StarTech.com 3ft (1m) USB4 Cable 40Gbps, 100W (5A) Power Delivery, 8K 120Hz / 4K

Make the connection with the StarTech.com 3ft (1m) USB4 Cable — length and connector details are in the spec table.

Connect to USB4-enabled devices, using this USB-IF certified USB-C cable

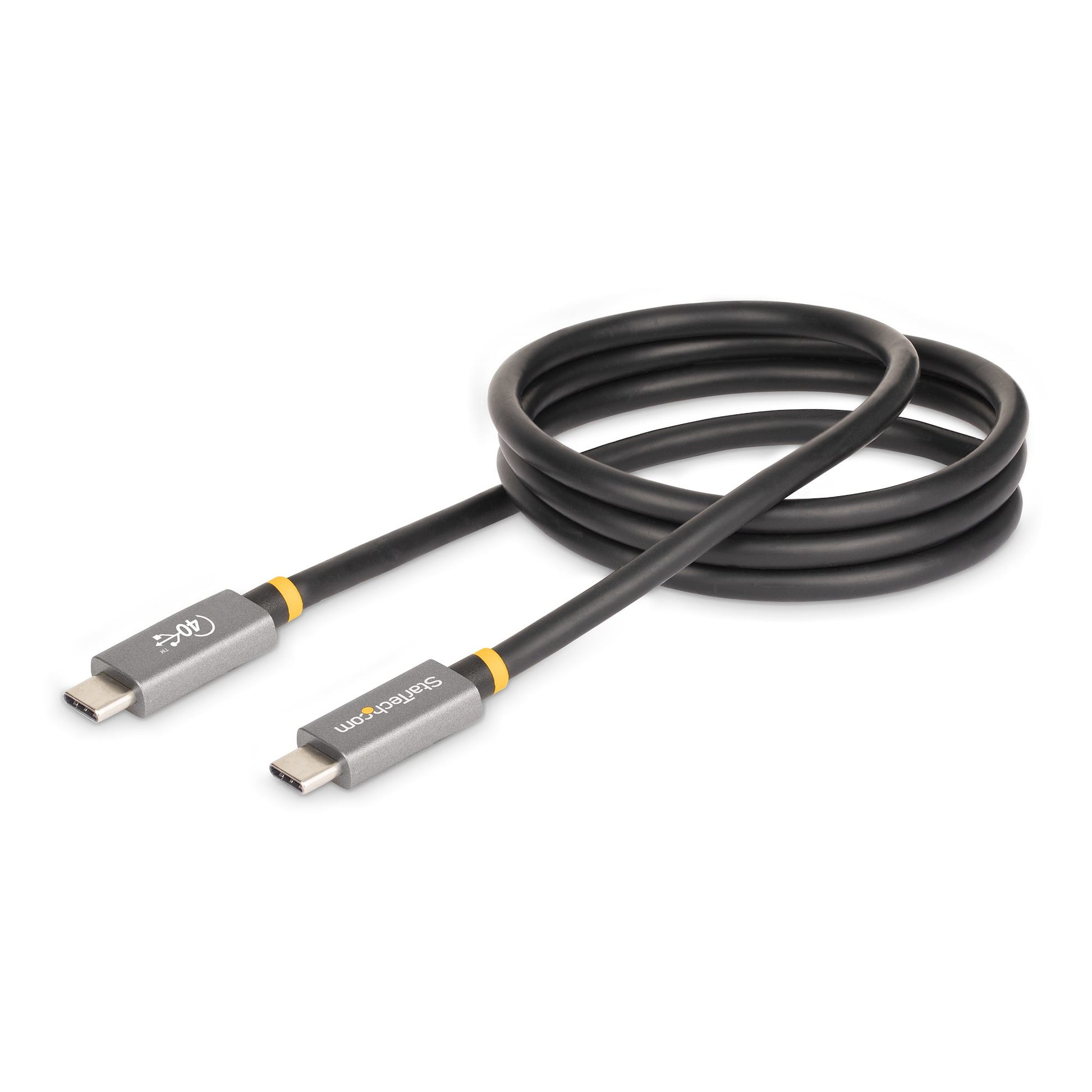

This 3ft (1m) USB4 Cable connects to USB Type-C® (USB 3.2), Thunderbolt™ 4/3, and PCIe-enabled devices, delivering up to 40Gbps, 4K/8K video, and 100W charging.

Establish Fast and Stable Power/Data Connections

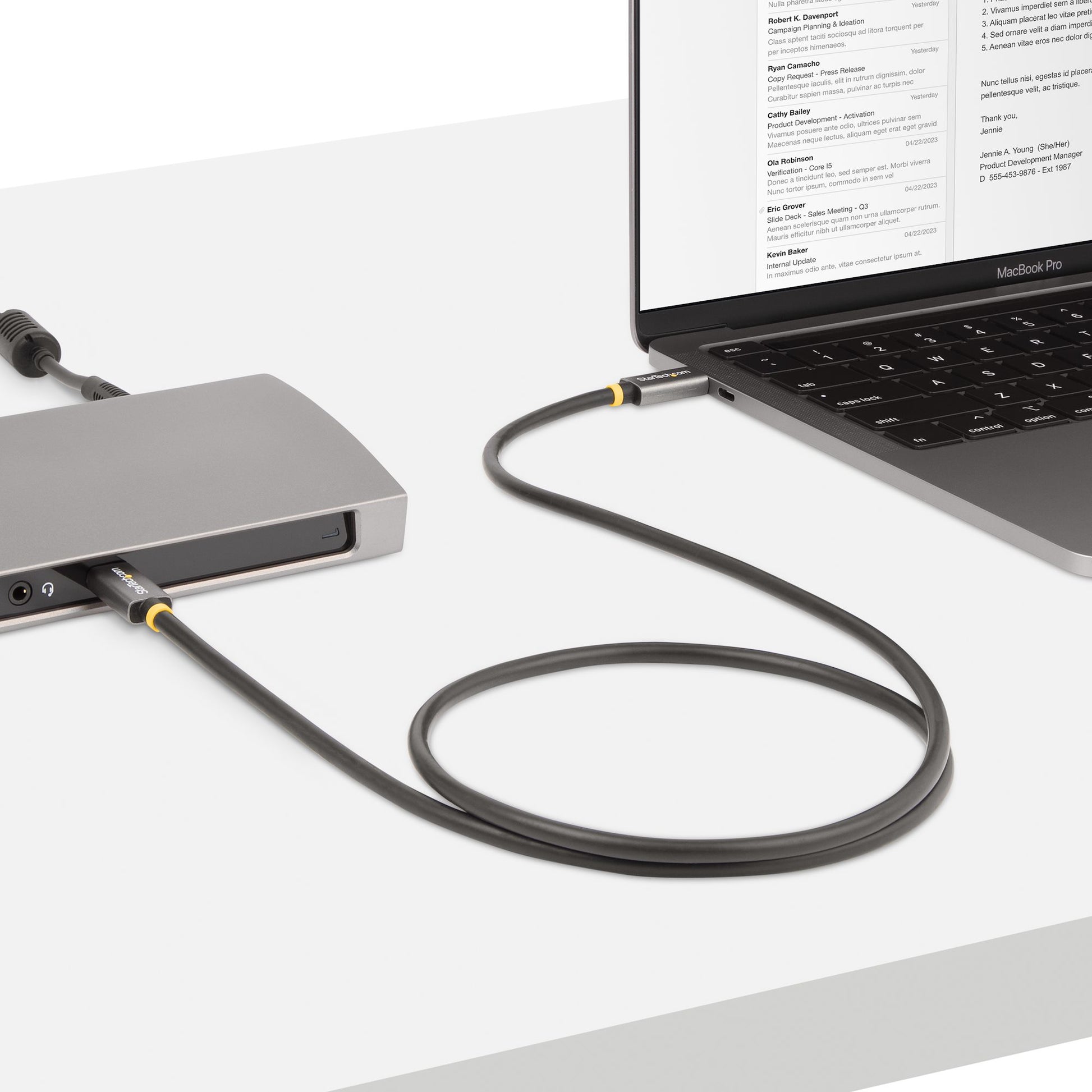

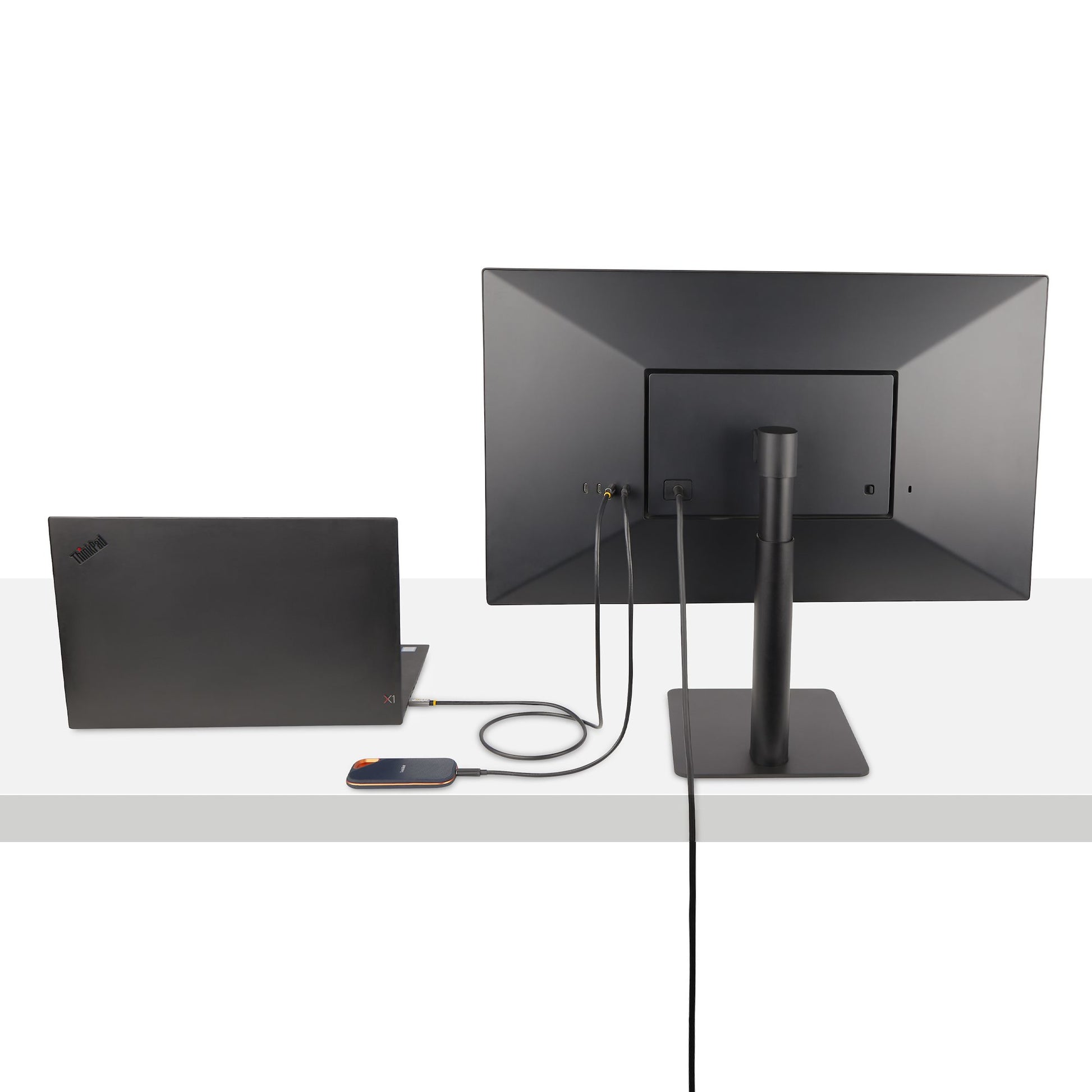

This USB4 Type-C cable is USB-IF certified for guaranteed USB-C compatibility. It reliably delivers consistent transfer rates and up to 100W PD output. It is ideal for 40Gbps data transfer to external USB-C-enabled external storage devices or as a single-cable connection from a USB-C dock to a laptop.

This cable has undergone rigorous USB-IF compliance testing to meet USB4 specifications. This includes electrical and mechanical standards which ensures a reliable, high-quality cable for USB-C devices.

Experience 8K Video with DisplayPort 2.1 Alt Mode

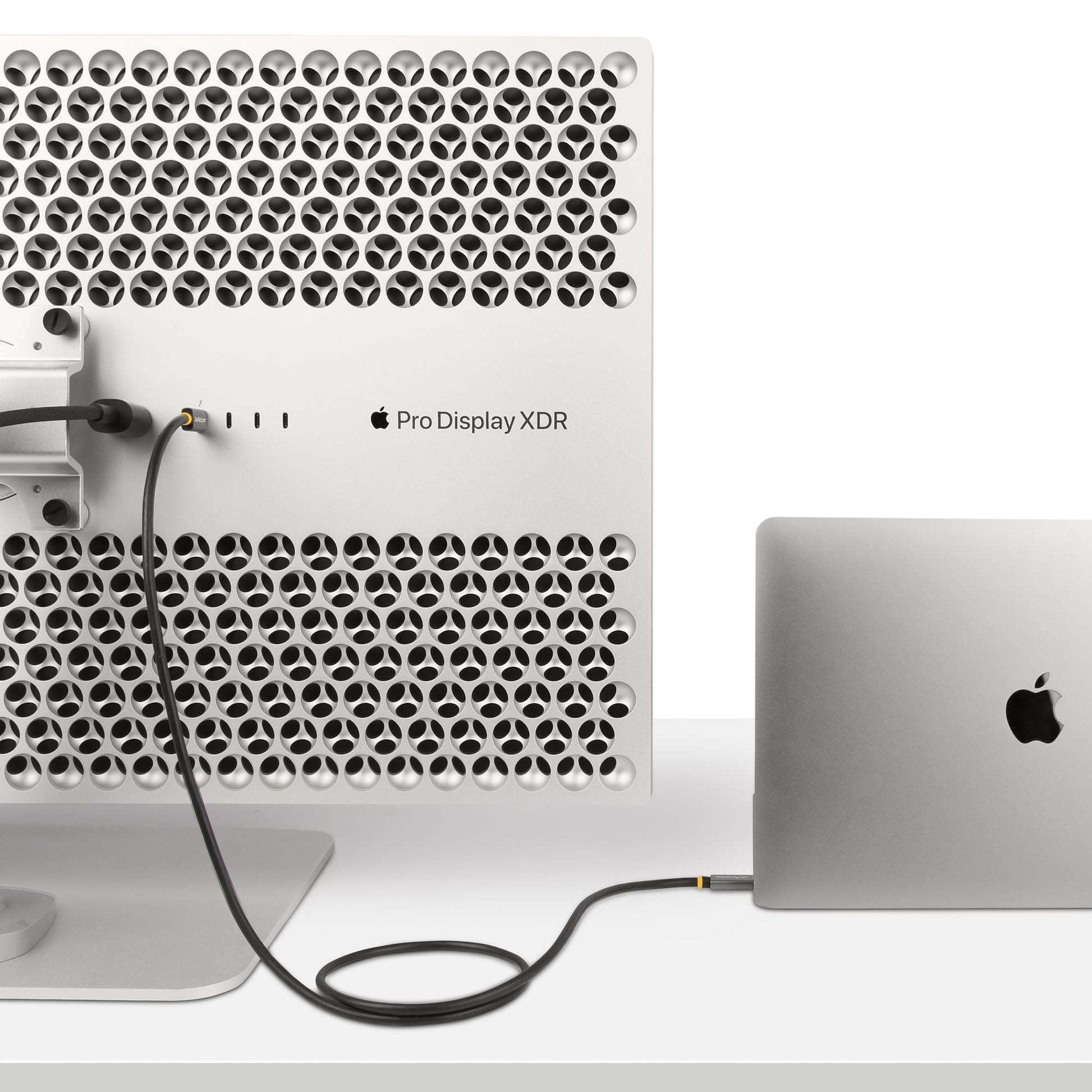

The USB4 cable supports up to 8K 120Hz or 4K 240Hz video over DisplayPort 2.1 Alt Mode with DSC, HDR, and HBR3, and is compatible with dual 4K 60Hz and lower resolutions.

Power a USB-C Laptop

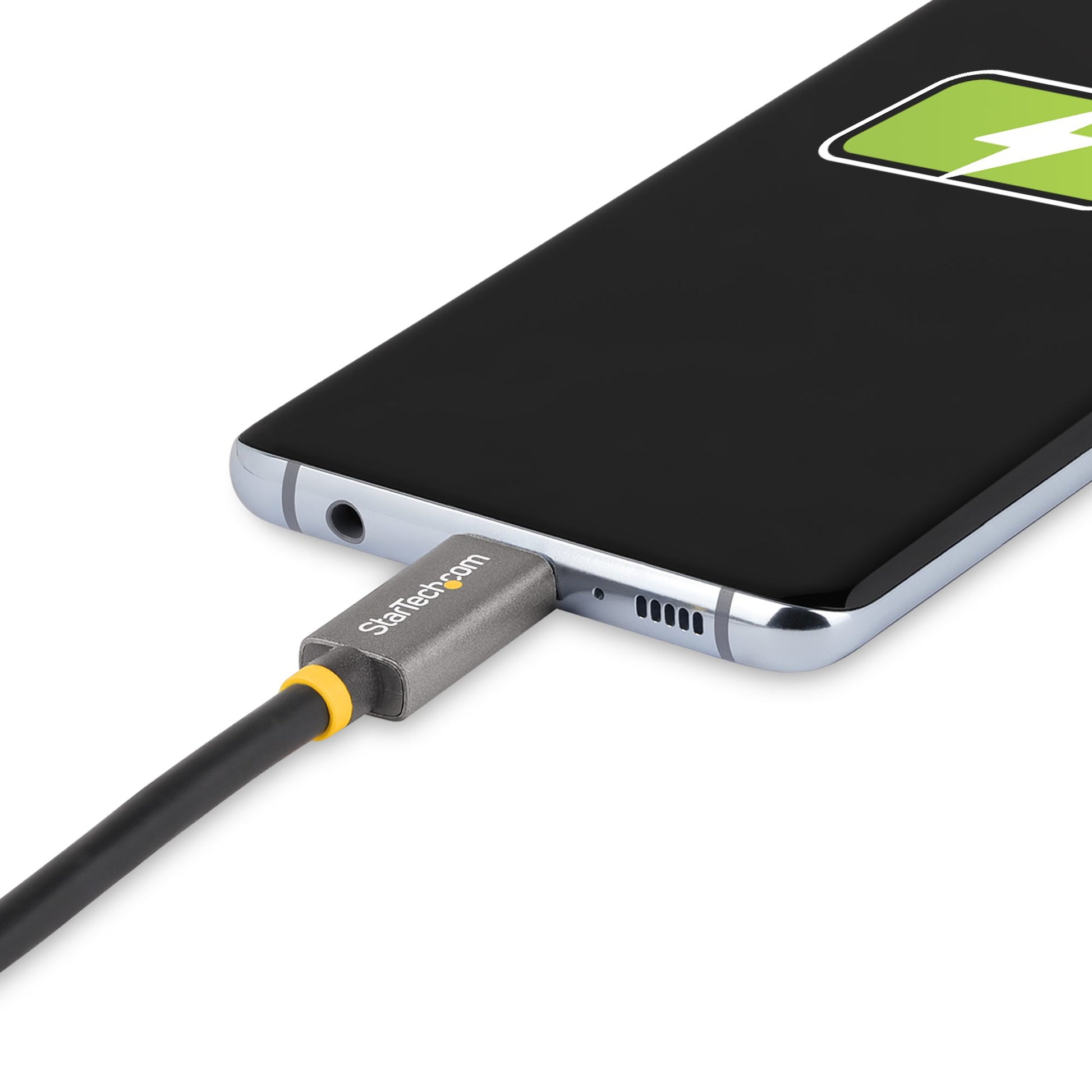

Power and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface with up to 100W output over USB Power Delivery 3.0. Connect the USB4 cable from a laptop to a USB-C wall charger or docking station.

Specifications

Features

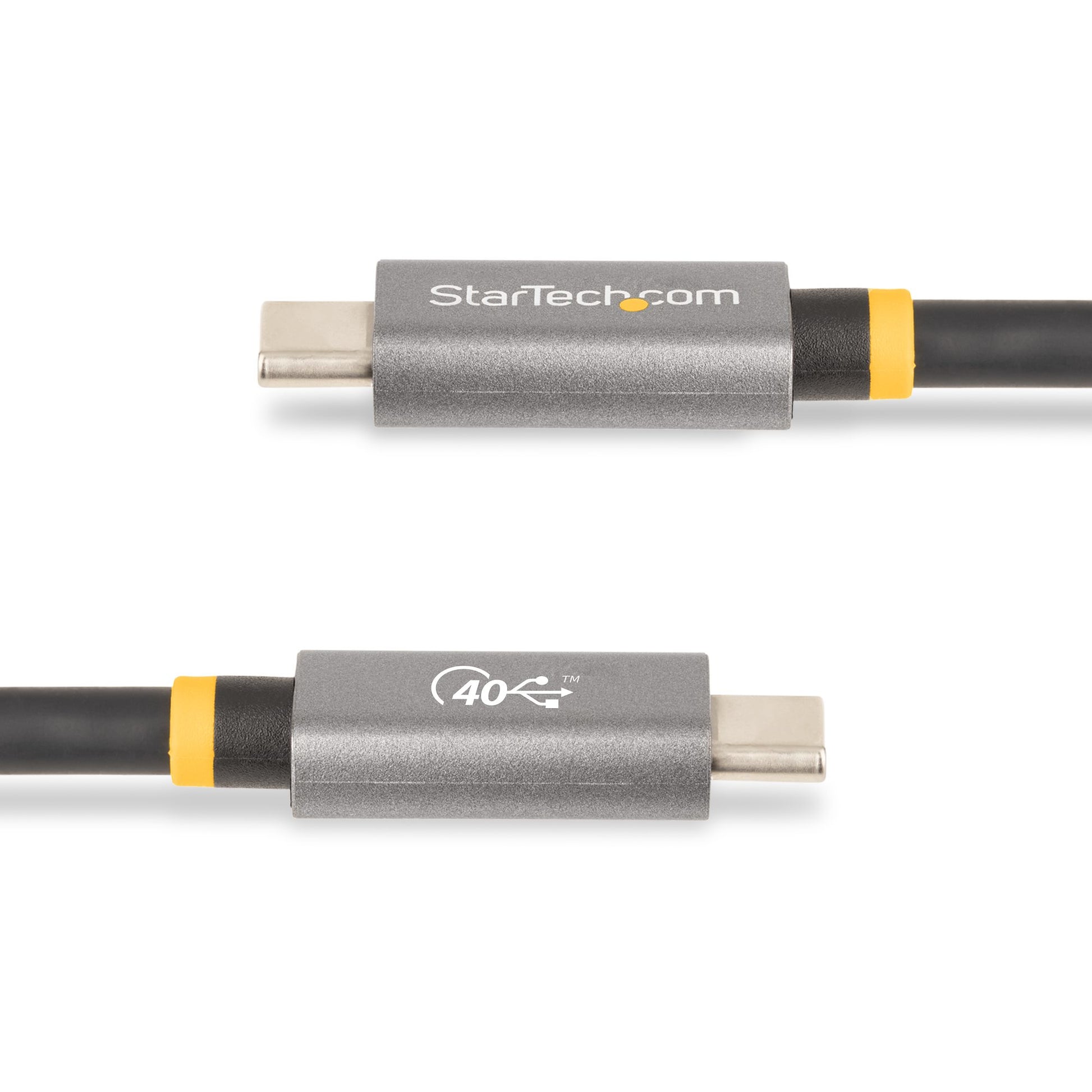

Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	34
USB version	USB4 Gen 2x2

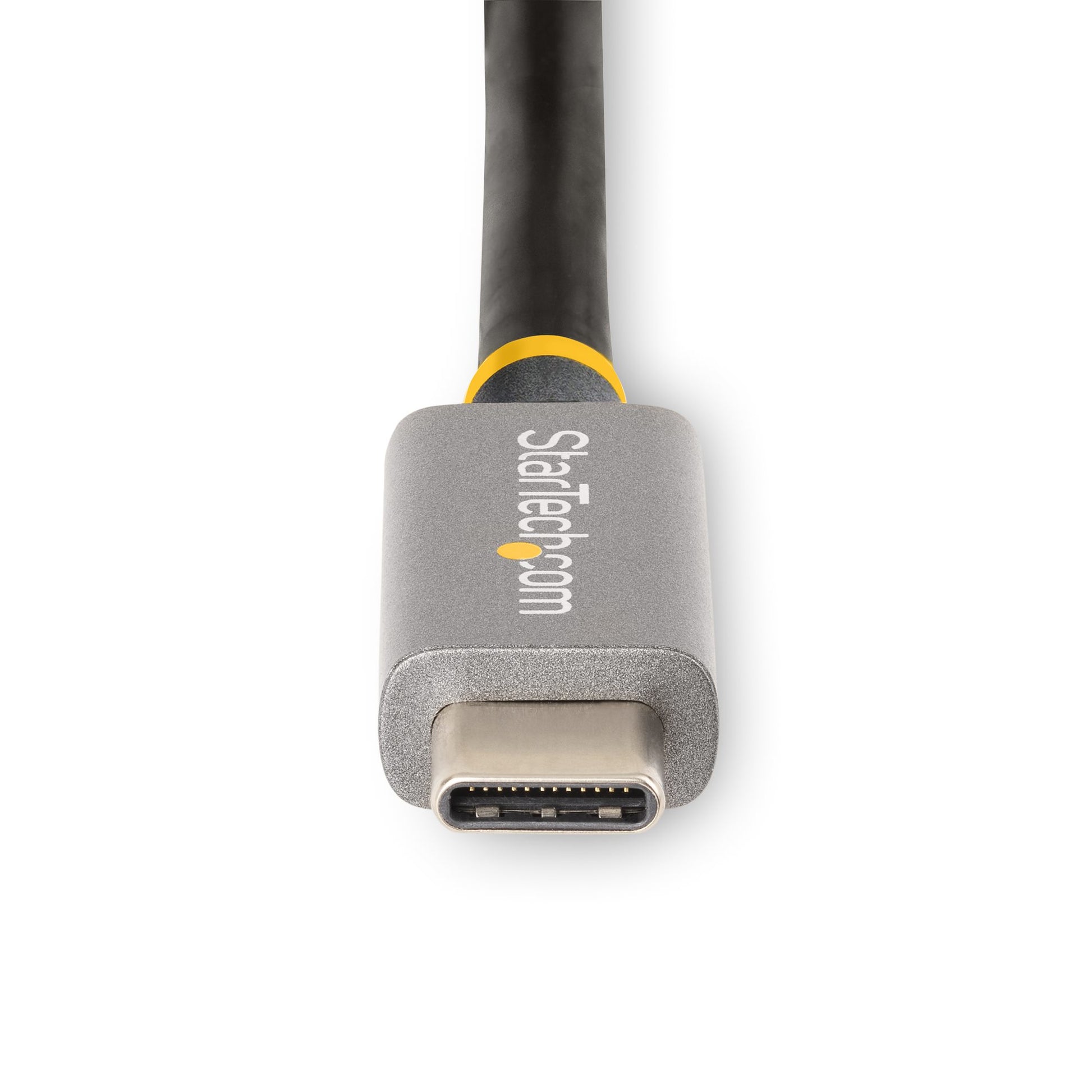

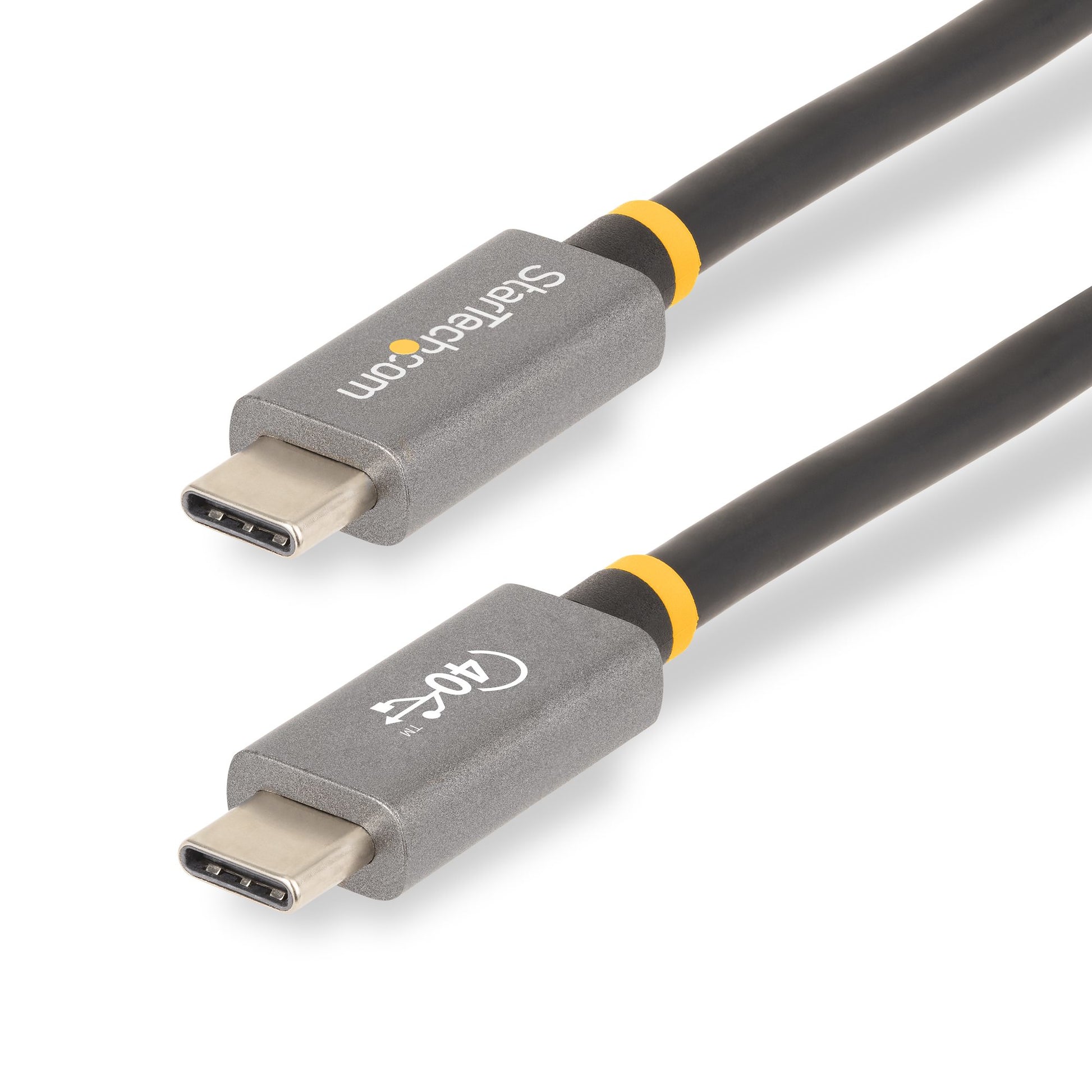

Connector 1	USB C
Connector 2	USB C
Cable length	1 m
Connector contacts plating	Nickel
Maximum data transfer rate	40000 Mbit/s
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Male
USB Power Delivery (USB PD)	Yes
Cable jacket material	Thermoplastic elastomer (TPE)
USB Power Delivery up to	100 W
Maximum resolution	7680 x 4320 pixels
Maximum refresh rate	120 Hz
High Dynamic Range (HDR) supported	Yes
Display Stream Compression (DSC)	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Cable diameter	5 mm
Weight	53 g
Quantity per pack	1 pc(s)
Weight & dimensions
Package width	126 mm
Package depth	187 mm
Package height	14 mm
Package weight	30 g
Sustainability
Sustainability compliance	Yes
Doesn't contain	Halogen
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Certificates
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	180 pc(s)
Master (outer) case width	517 mm
Master (outer) case length	329 mm
Master (outer) case height	226 mm

Downloads

• Datasheet (PDF)
