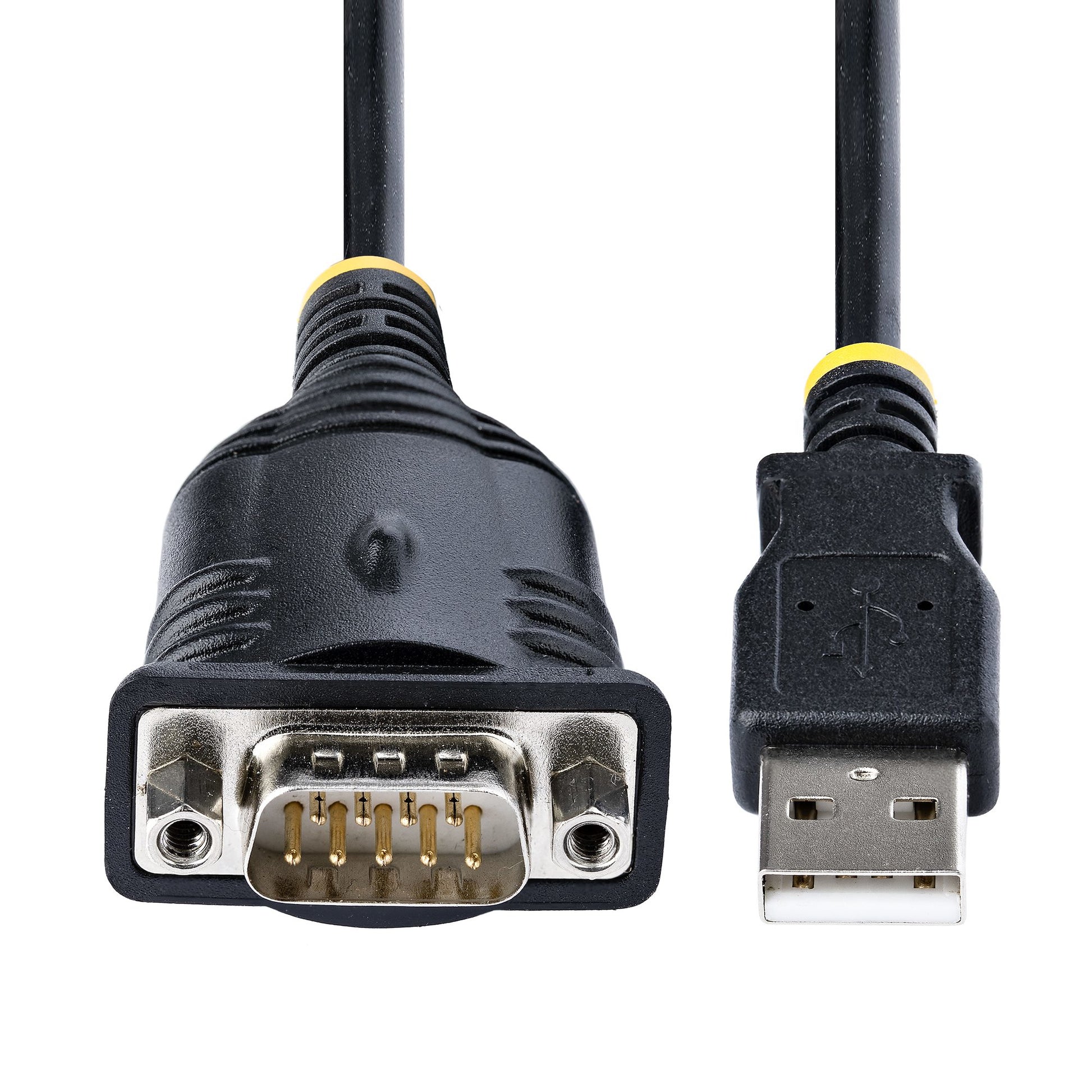

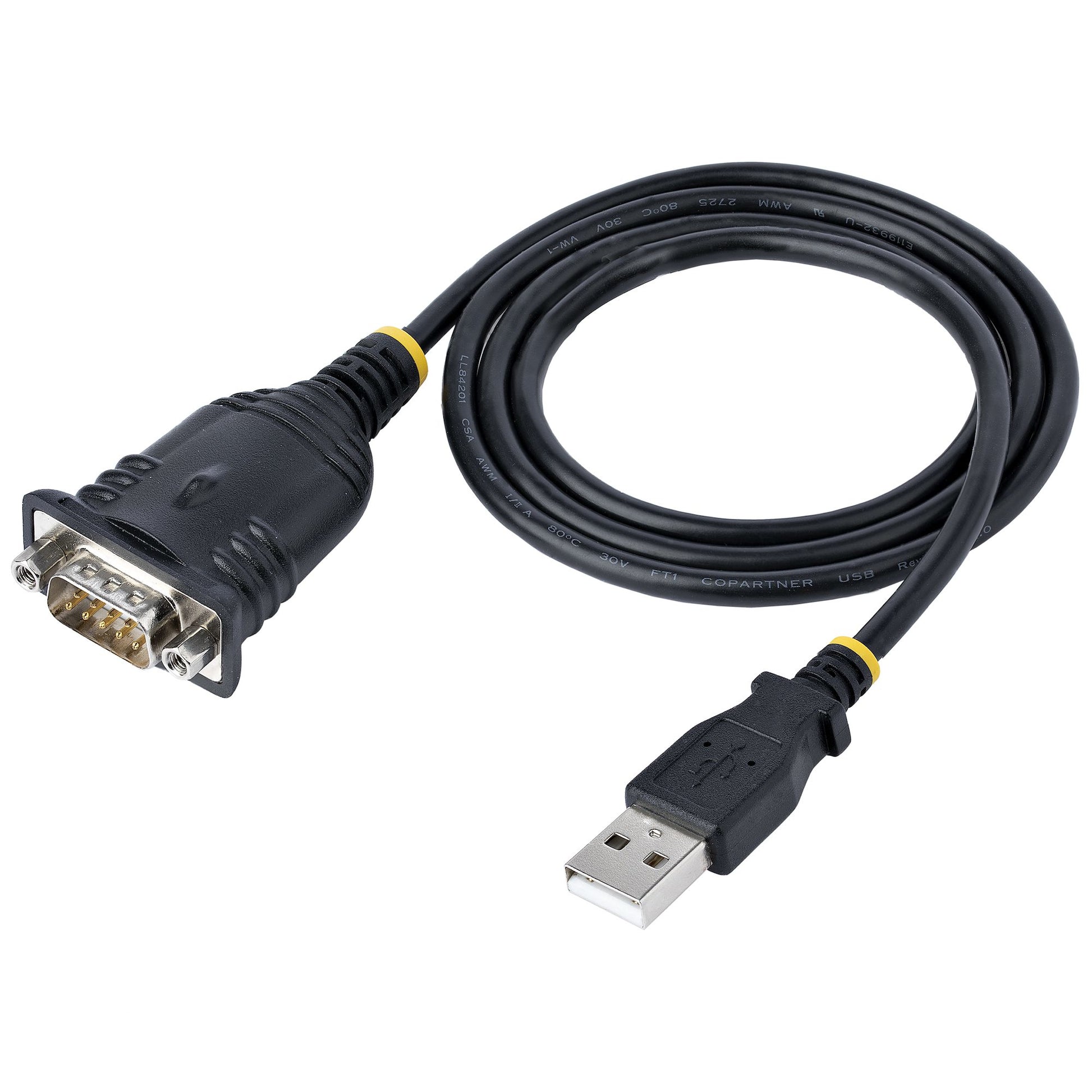

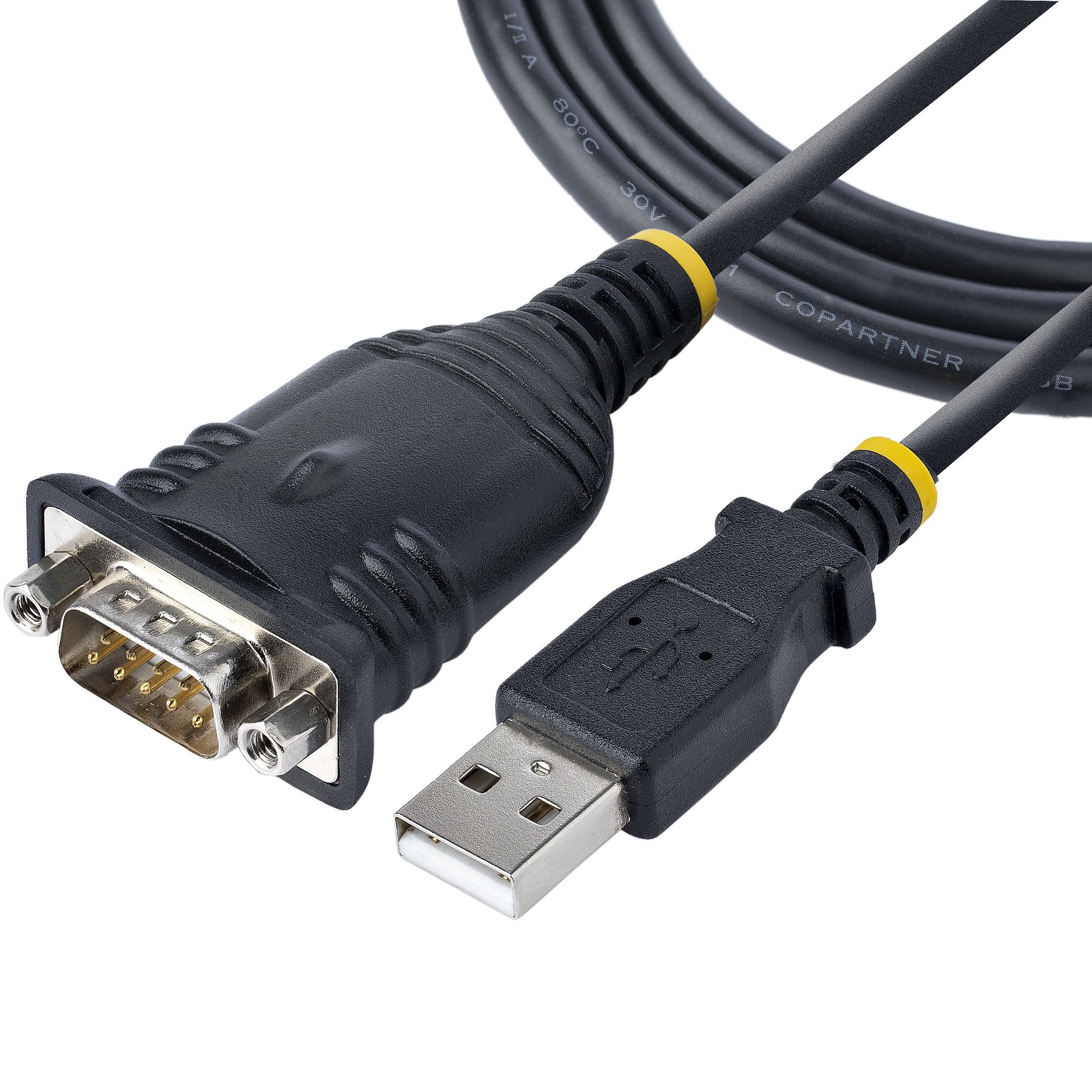

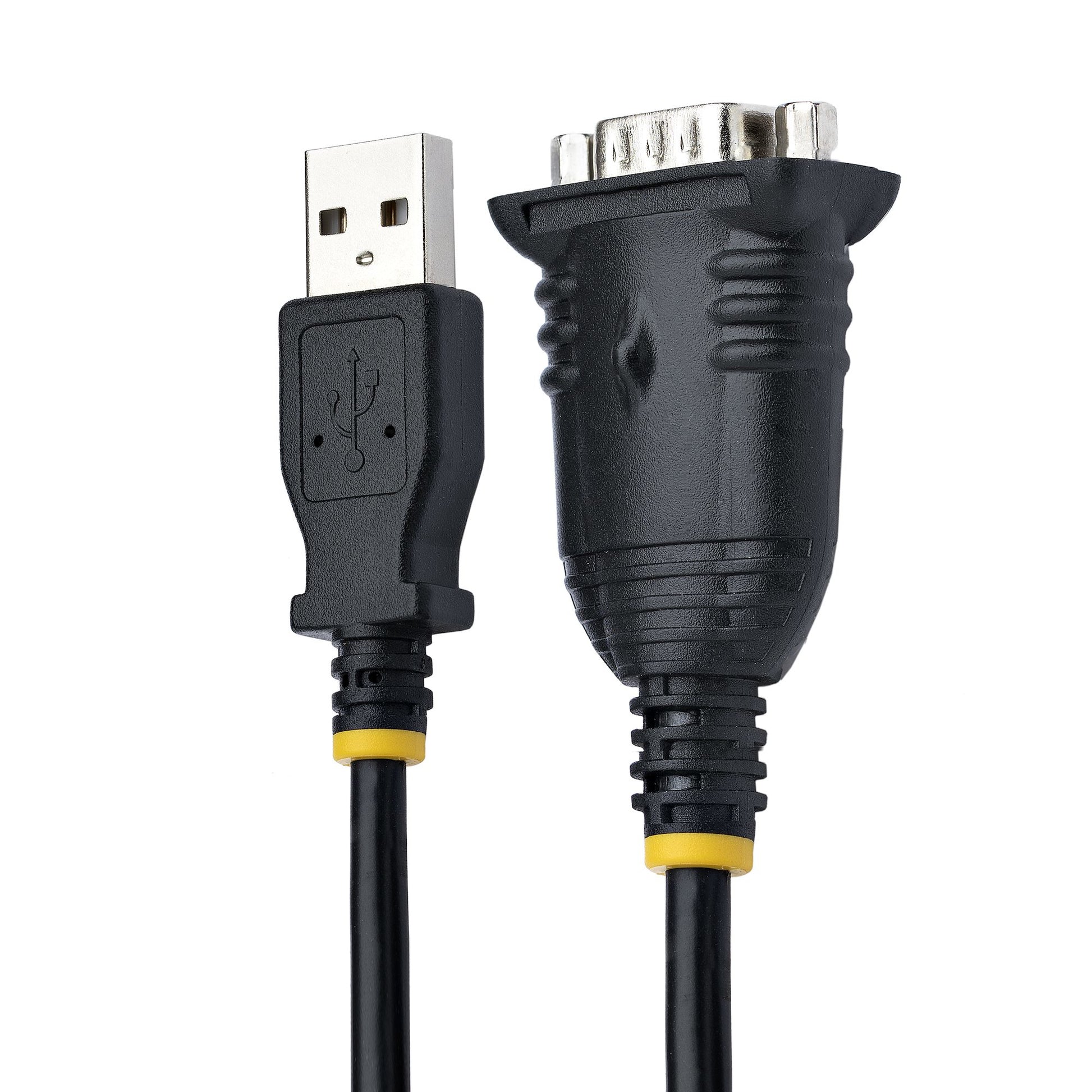

StarTech.com 3ft (1m) USB to Serial Cable, DB9 Male RS232 to USB Converter, Prolific

Make the connection with the StarTech.com 3ft (1m) — length and connector details are in the spec table.

USB to Serial Cable | 921.6 Kbps | For Servers/Printers/Barcode Readers/AV | Prolific Chipset | Windows/Mac/Linux

The 1P3FP-USB-SERIAL 1 Port USB to Serial Adapter lets you add an RS-232 DB9 serial COM port to your laptop or desktop computer, allowing it to control and communicate with a serial peripheral device.

Accessible Connectivity

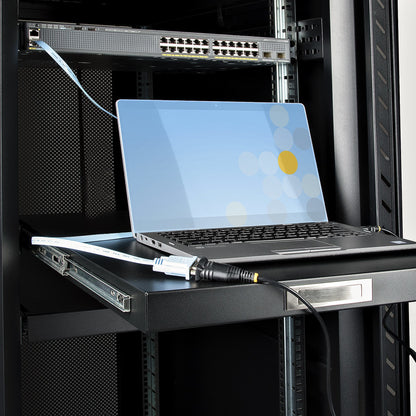

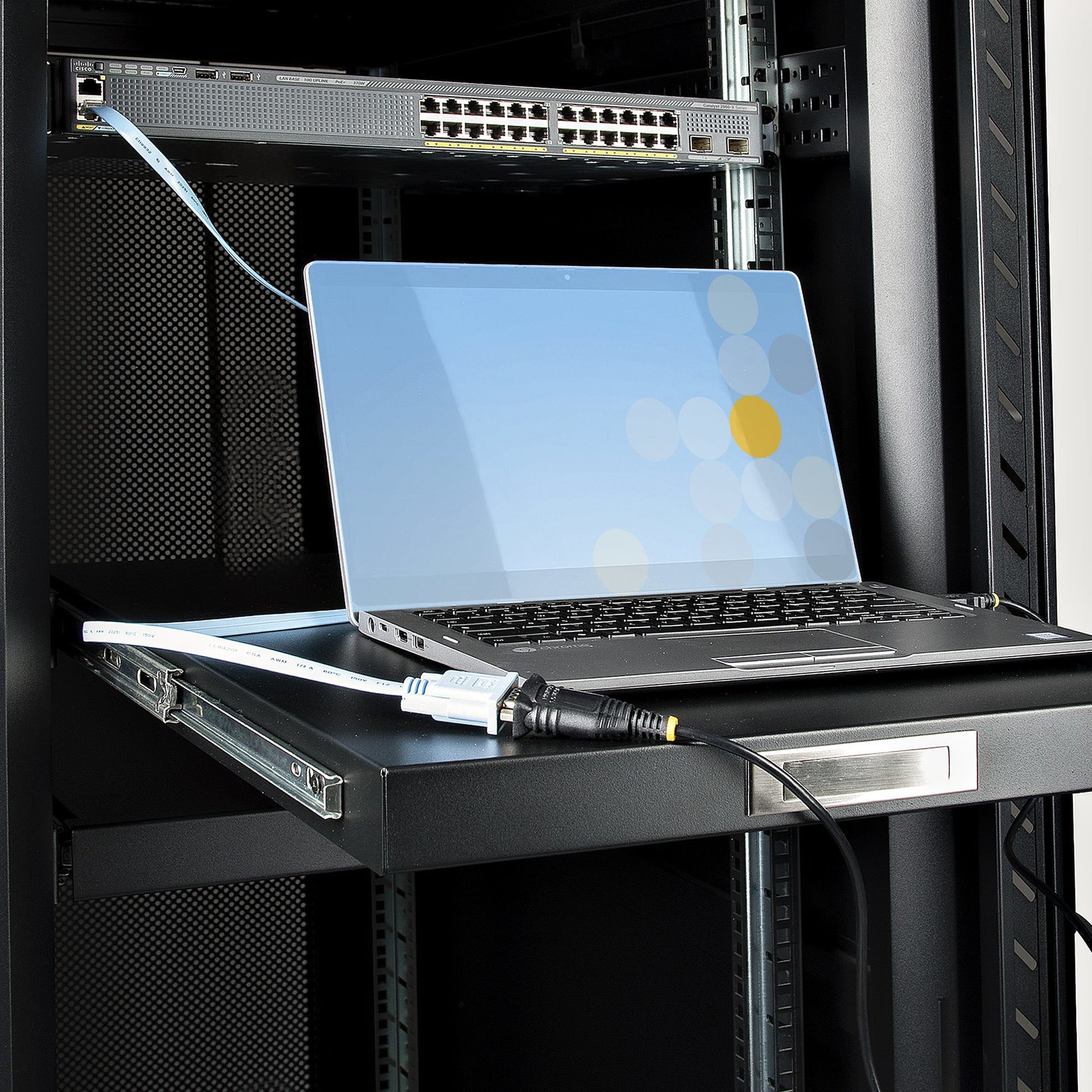

The USB to RS232 cable is a convenient connectivity solution that bridges the gap between current and legacy technologies. The small footprint, data rate of up to 921.6 kbps, and 3 ft (0.91 m) cable length makes it the ideal solution for the IT industry, point of sales (POS), industrial applications, AV, and office setups.

Connect with Ease

This adapter cable allows you to add an RS-232 DB9 COM port by connecting it to the commonly found USB Type-A port, located on your host device. This USB 2.0 converter is compatible with other USB revisions. It supports Windows, macOS, and Linux (including the latest versions) for maximum compatibility.

1P3FP-USB-SERIAL is backed for 3-years by StarTech.com, including free lifetime 24/5 multilingual technical assistance.

Specifications

Ports & interfaces
Connector 2	USB Type-A
Connector 1	DB-9
Cable length	0.91 m
Connector 2 gender	Male
Connector 1 gender	Male
Connector 2 form factor	Straight
Connector 1 form factor	Straight
USB version	2.0
Performance
Chipset	Prolific - PL2303RA
Stop bits	1, 1.5, 2
Flow Control type	DTR/DSR, No, RTS/CTS, XON/XOFF
Data bits	5, 6, 7, 8
Baud rate	921.6 Kbit/s
FIFO (First In, First Out)	512 B
Compatible operating systems	Windows 7, 8.1, 10, 11 Windows Server 2016, 2019 macOS 10.11 to 10.15, 11.0, 12.0, Mac OS X 13.0 Ventura Linux 4.15.x LTS Versions Only Chrome OS
Product colour	Black
Parity bit	Even, Mark, No, Odd, Space
Operational conditions
Storage temperature (T-T)	-20 - 100 °C
Relative humidity	20 - 80%
Operating temperature (T-T)	0 - 80 °C
Certificates
Compliance certificates	CE, RoHS
Weight & dimensions
Width	45 mm
Weight	39.2 g
Height	16 mm
Depth	34 mm
Packaging content
Manual	Yes
Packaging data
Package width	199 mm
Package height	23 mm
Package depth	133 mm
Package weight	102.2 g
Logistics data
Products per master (outer) case	100 pc(s)
Master (outer) case width	578 mm
Master (outer) case length	363 mm
Master (outer) case height	304 mm
