StarTech.com 3ft (1m) USB-C Cable, USB 10Gbps, 100W (5A) Power Delivery, 8K 60Hz / (31CCV1M)

Make the connection with the StarTech.com 3ft (1m) USB-C Cable — length and connector details are in the spec table.

USB C Cable 10Gbps | USB-IF Certified |100W (5A) Power Delivery | DP Alt Mode

This USB 3.2 Gen 2 10Gbps USB-C™ cable lets you connect your USB Type-C™ devices for syncing, charging and powering your devices.

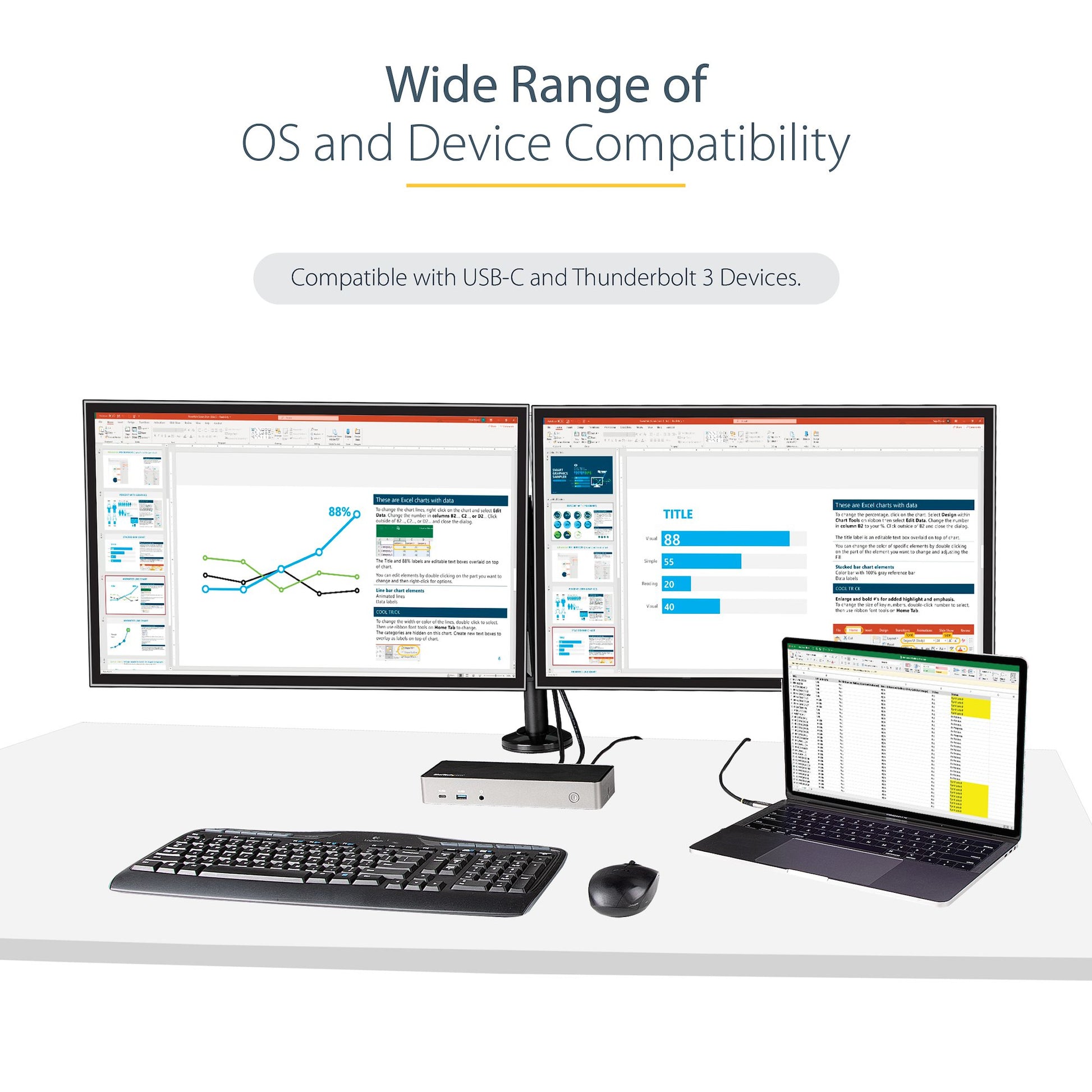

The cable is also compatible with Thunderbolt™ 3 ports, which means you can charge and sync your USB-C mobile devices using your Thunderbolt 3 laptop.

Power your USB-C devices

With up to 5A (100W) of power delivery, you can power a USB-C laptop, such as your Apple MacBook or Microsoft Surface Book. Simply connect the cable to your USB-C laptop and to a USB-C wall charger.

You can use this USB Type-C cable to power your USB-C hard drive from the USB-C port on your laptop.

Charge your mobile devices

When used with devices that support PD 3.0, this cable charges up to 20V and 5A for a maximum of 100W. It can decrease your charge time and make sure your mobile devices are ready, whenever you need them.

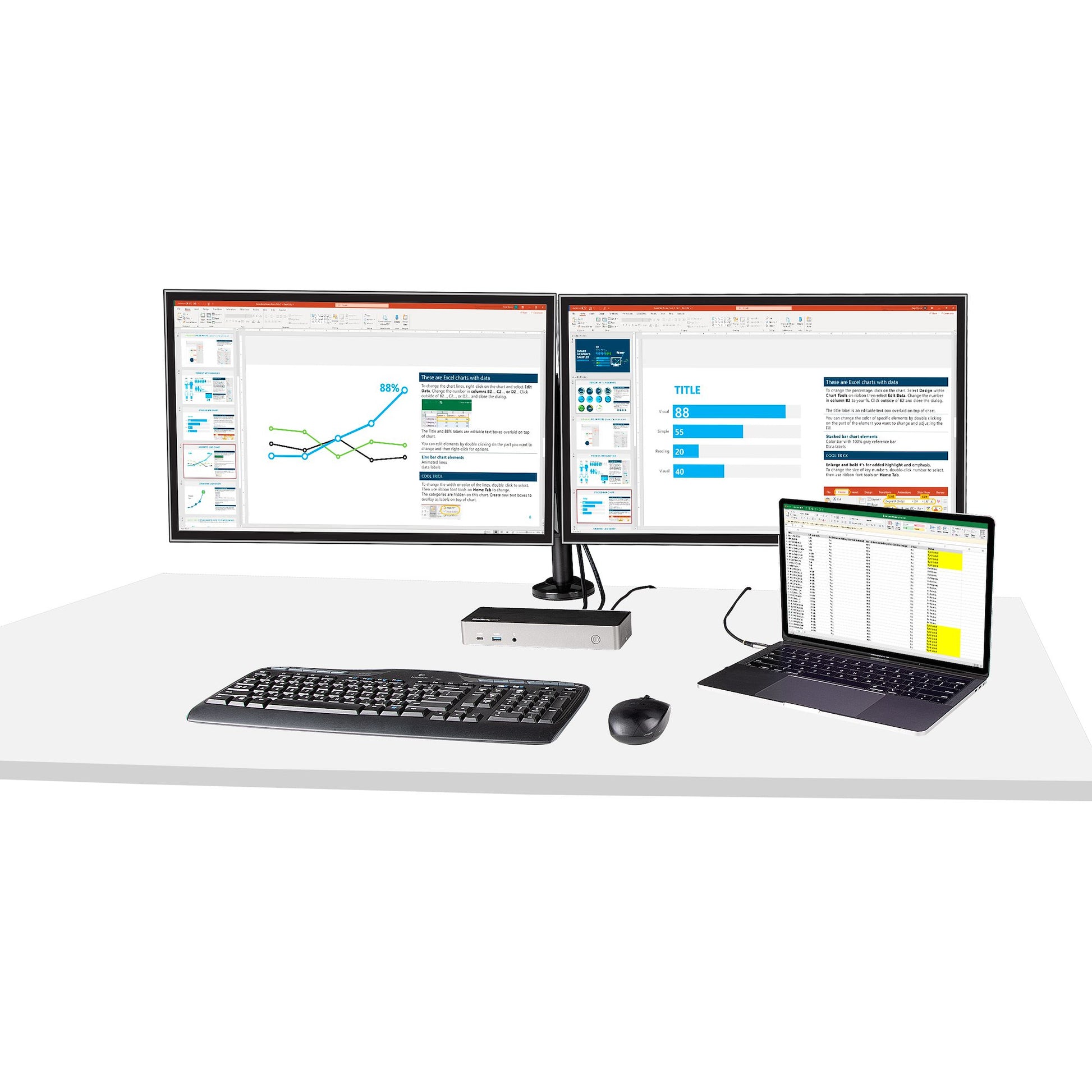

Deliver 8K Video with DisplayPort 1.4 Alt Mode

The cable supports 8K 60Hz or 4K 144Hz video with DisplayPort 1.4 and is backward compatible to connect your docking station or laptop to a monitor that supports 4K or 1080p resolutions.

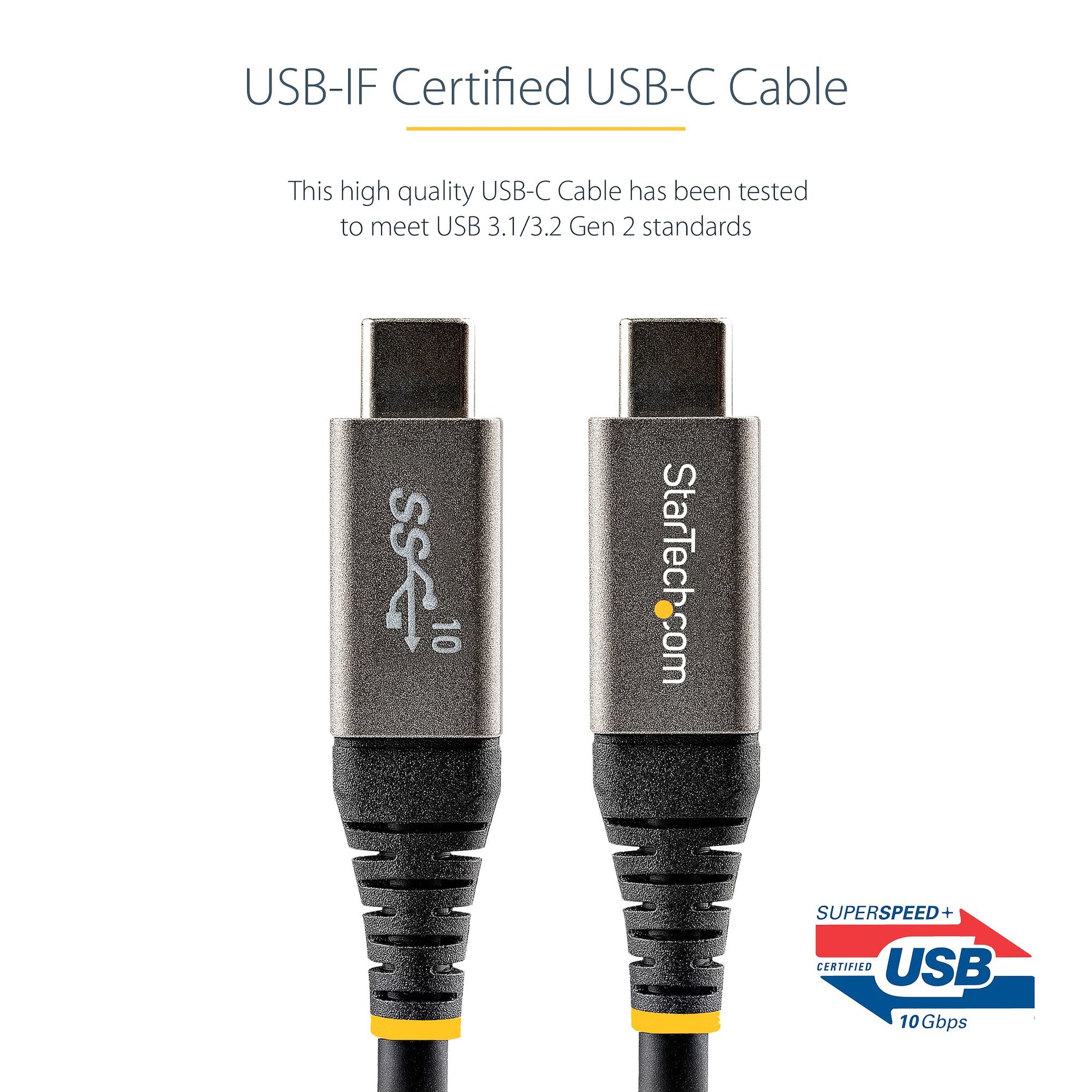

Provide superior connections with USB-IF certified cables

The cable has undergone rigorous compliance testing and is certified by USB-IF (USB Implementers Forum) to meet all USB 3.2 specifications. This includes all environmental, electrical and mechanical standards, which ensures a reliable, high-quality cable for all your USB-C devices.

Specifications

Features
Cable shielding	Aluminum mylar foil
Country of origin	China
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Plug and Play	Yes
USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB C
Connector 2	USB C
Cable length	1 m
Connector contacts plating	Nickel
Maximum data transfer rate	10000 Mbit/s
Product colour	Black, Grey
Connector 1 gender	Male
Connector 2 gender	Male
USB Power Delivery (USB PD)	Yes
Cable jacket material	Thermoplastic elastomer (TPE)
USB Power Delivery up to	100 W
USB Power Delivery revision	3.0
Output voltage	20 V
Output current (max)	5 A
Cable diameter	4.8 mm
Weight	44 g
Quantity per pack	1 pc(s)
Weight & dimensions
Package width	125 mm
Package depth	209 mm
Package height	19 mm
Package weight	95 g
Technical details
Harmonized System (HS) code	84733080
Logistics data
Products per master (outer) case	200 pc(s)
Master (outer) case width	452 mm
Master (outer) case length	404 mm
Master (outer) case height	298 mm

Downloads

• Datasheet (PDF)
