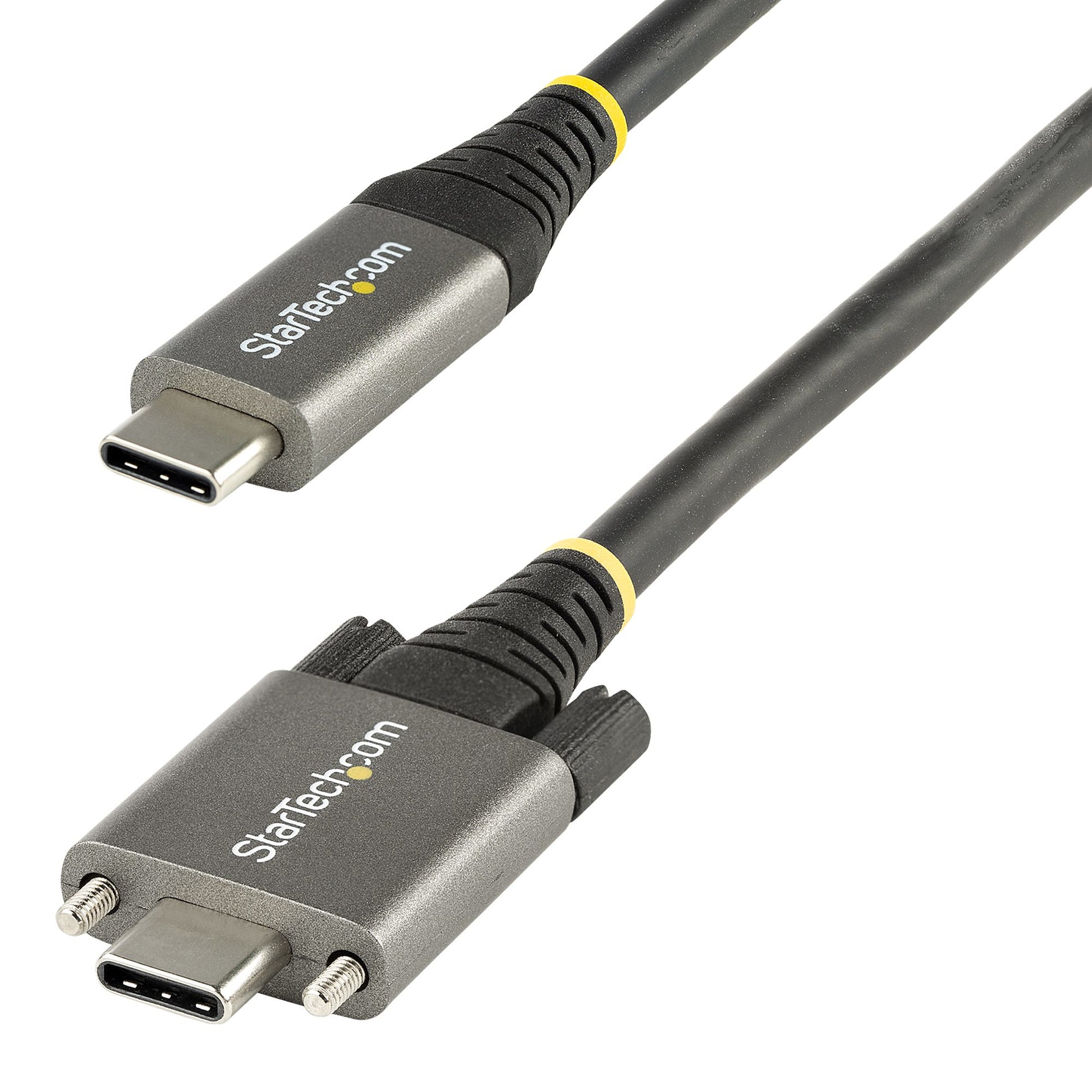

StarTech.com 3ft (1m) USB-C Cable, Side Screw Locking, USB 10Gbps, 100W (5A) Power

Make the connection with the StarTech.com 3ft (1m) USB-C Cable — length and connector details are in the spec table.

Side Screw Locking USB C Cable 10Gbps | 100W (5A) Power Delivery | DP Alt Mode

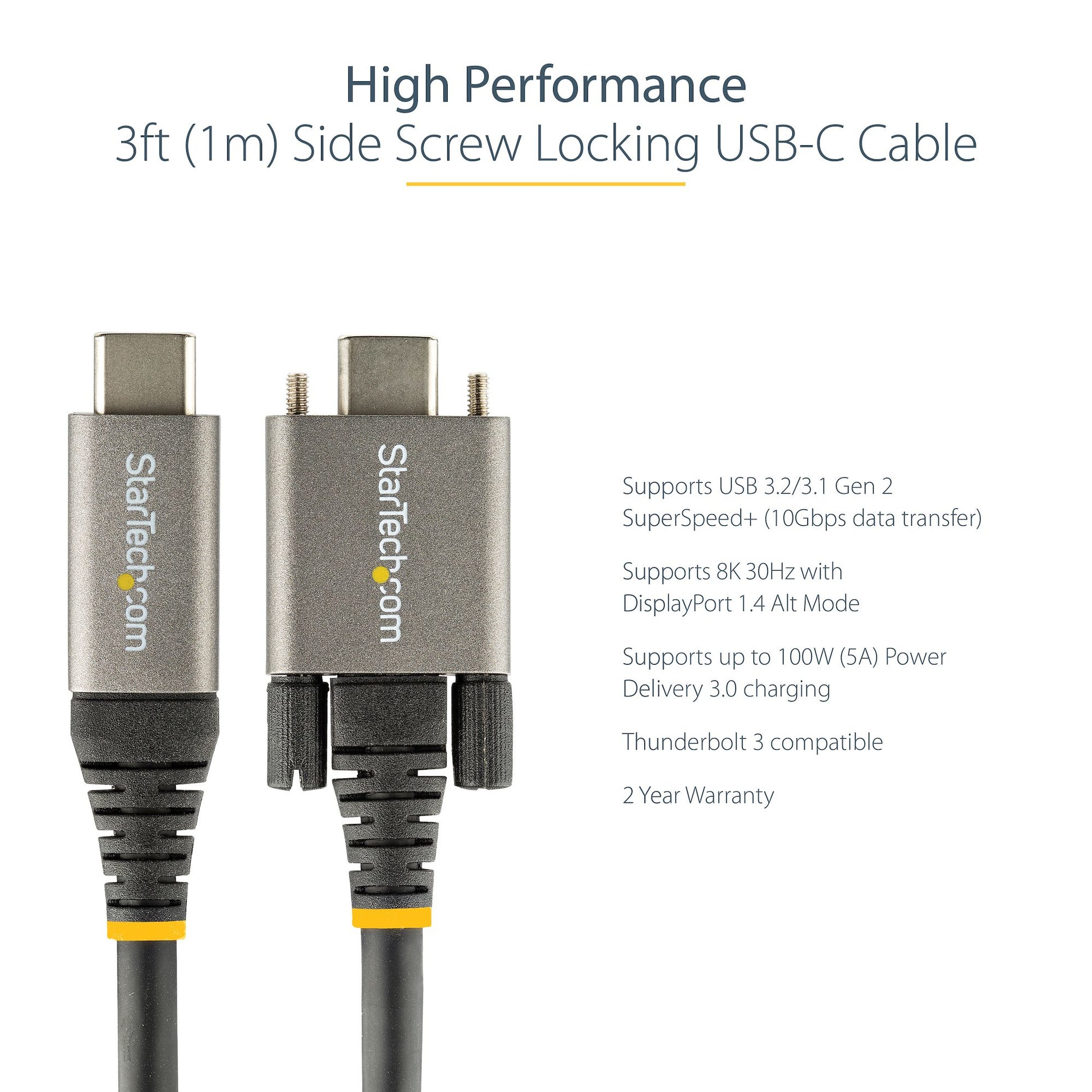

High Performance Cable

This side screw locking USB-C 3.2 Gen 2 10Gbps cable lets you connect your USB Type-C devices for syncing, charging, and powering your devices.

The USB-C cable is also compatible with Thunderbolt 3 ports, allowing you to connect and charge your USB-C devices using your Thunderbolt 3 laptop.

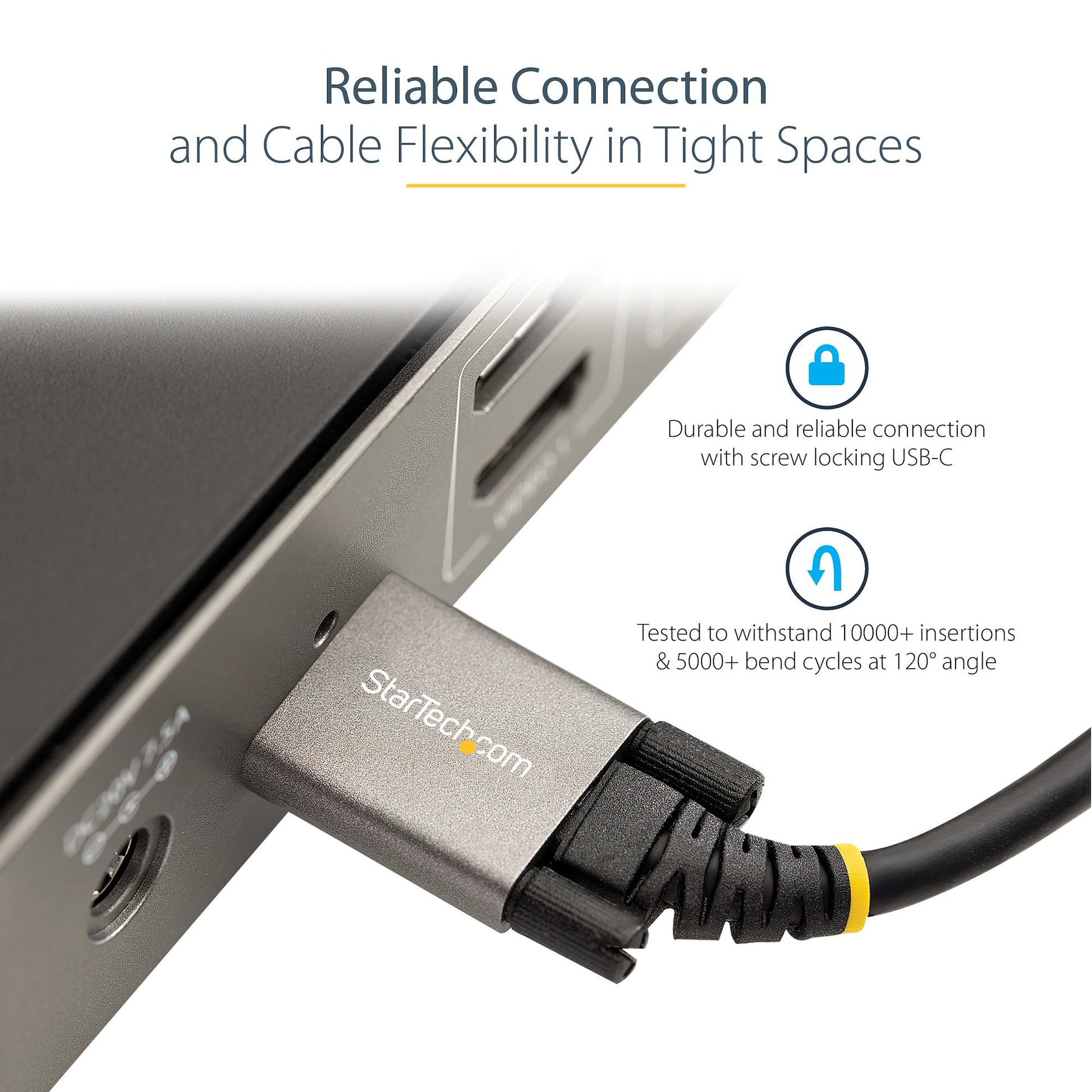

Reliable Connection with Screw Locking USB-C

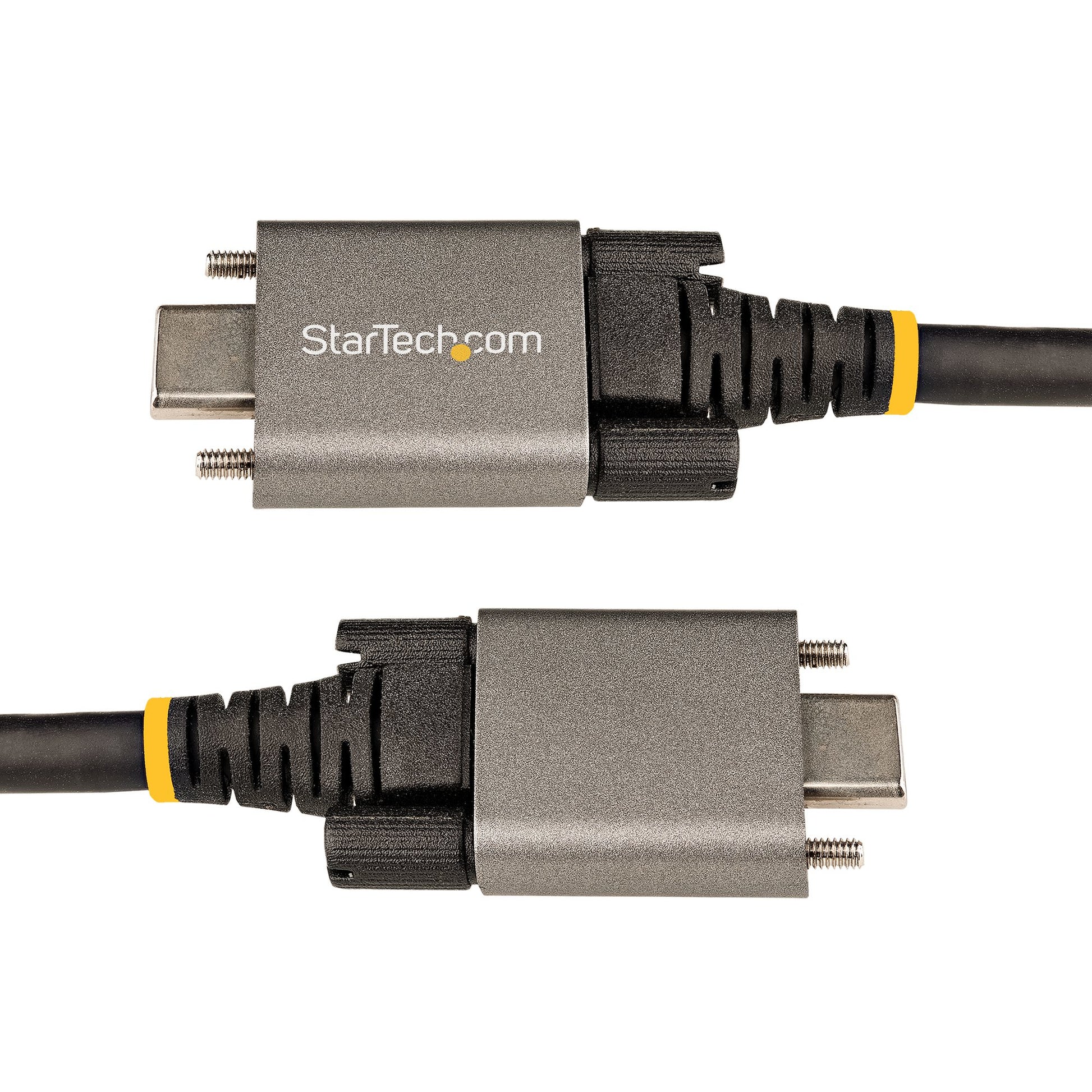

This cable features dual locking screws that can securely connect to your USB-C peripherals and can prevent accidental disconnection from your devices such as external hard drives or docking stations.

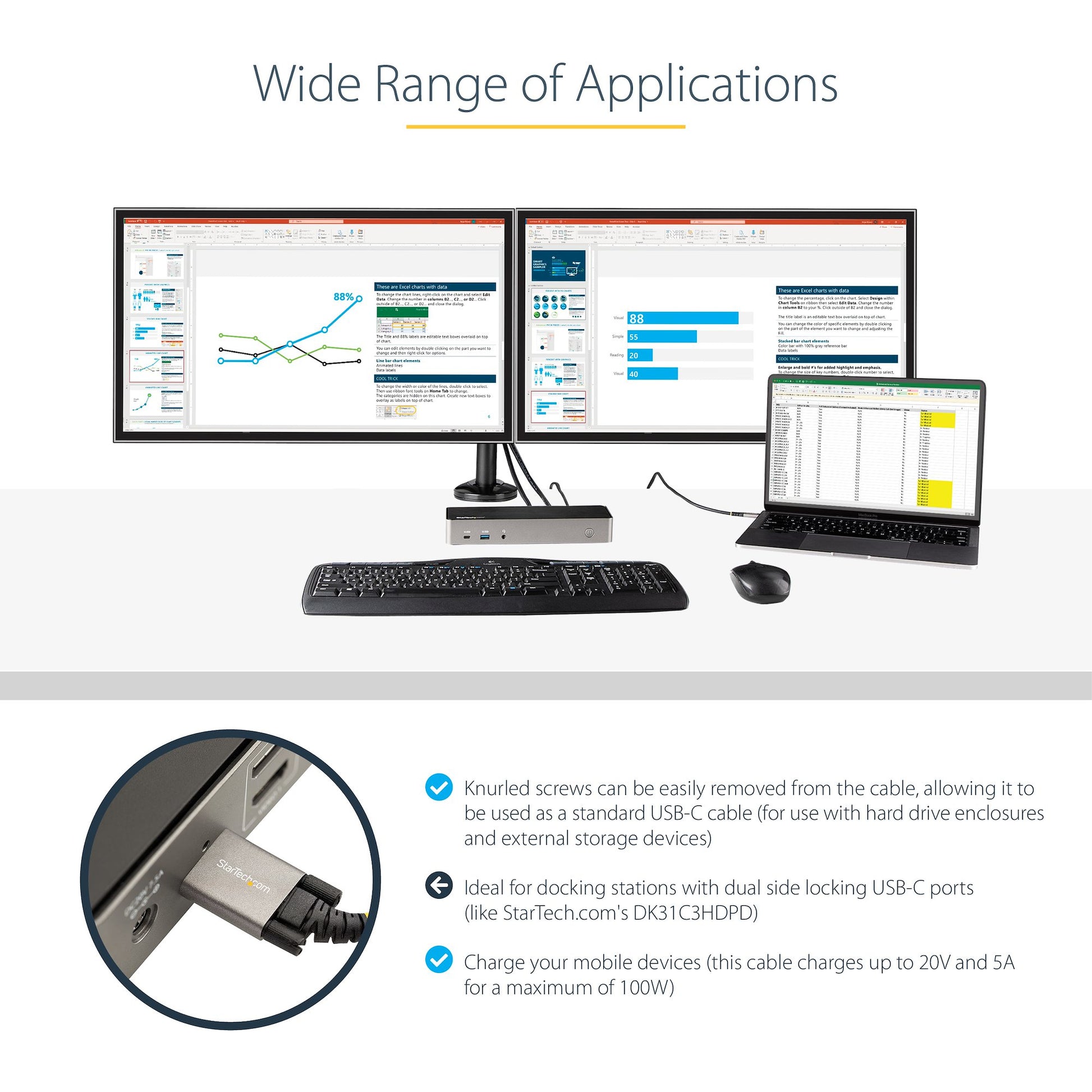

The screws are designed to fit all devices that use a standard side screw locking input, such as StarTech.com's DK31C3HDPD.

The knurled screws can easily be removed from the cable completely allowing it to be used as a standard USB-C cable if required.

Supports up to 100W (5A) with Power Delivery 3.0

With up to 100W (5A) of power delivery, you can power and charge a USB-C laptop, such as your Apple MacBook or Microsoft Surface Book. Simply connect the cable to your USB-C laptop and to a USB-C wall charger.

Deliver 8K video with DisplayPort 1.4 Alt Mode

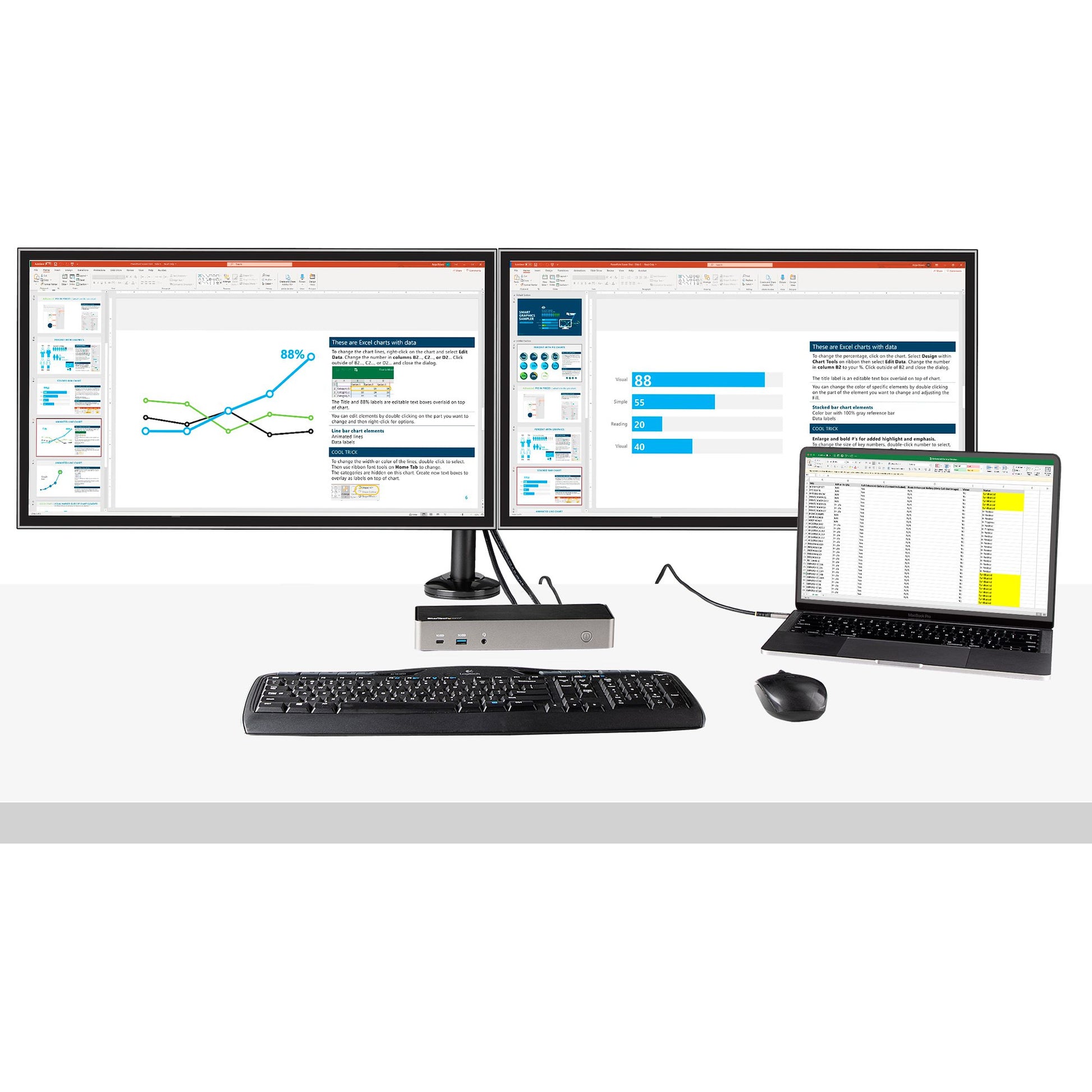

The cable supports 8K 60Hz or 4K 144Hz video with DisplayPort 1.4 and is backward compatible to connect your docking station or laptop to a monitor that supports 4K or 1080p resolutions.

Charge your mobile devices

When used with devices that support PD 3.0, this cable charges up to 20V and 5A for a maximum of 100W. It can decrease your charge time and make sure your mobile devices are ready, whenever you need them.

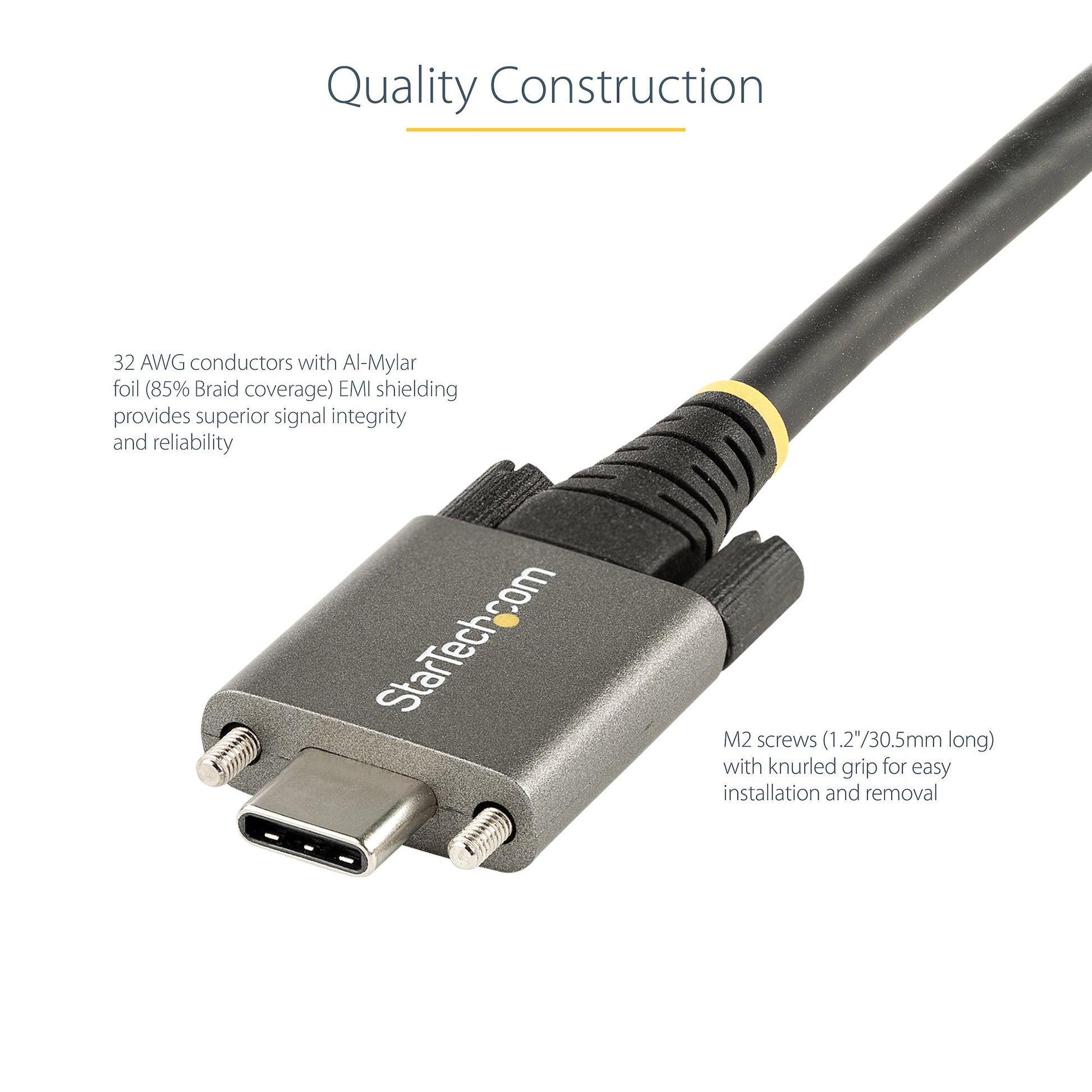

Quality Build

This cable is constructed with durable long-lasting, flexible TPE jacket and strain relief. It has been tested to withstand 4000+ bends. It is built with aluminum-mylar foil with 85% braid coverage and EMI shielding for improved signal integrity.

Specifications

Features
Cable shielding	Aluminum mylar foil
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Plug and Play	Yes
USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB C
Connector 2	USB C
Cable length	1 m
Connector contacts plating	Nickel
Maximum data transfer rate	10000 Mbit/s
Product colour	Black, Grey
Connector 1 gender	Male
Connector 2 gender	Male
USB Power Delivery (USB PD)	Yes
Cable jacket material	Thermoplastic elastomer (TPE)
USB Power Delivery up to	100 W
USB Power Delivery revision	3.0
Output voltage	20 V
Output current (max)	5 A
Cable diameter	4.8 mm
Weight	46 g
Quantity per pack	1 pc(s)
Weight & dimensions
Package width	125 mm
Package depth	131 mm
Package height	15 mm
Package weight	90 g
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	CE, RoHS
Logistics data
Products per master (outer) case	160 pc(s)
Master (outer) case width	390 mm
Master (outer) case length	420 mm
Master (outer) case height	290 mm

Downloads

• Datasheet (PDF)
