StarTech.com 3ft (1m) USB-C Cable, Right-Angled, USB 10Gbps, 100W (5A) Power

Make the connection with the StarTech.com 3ft (1m) USB-C Cable — length and connector details are in the spec table.

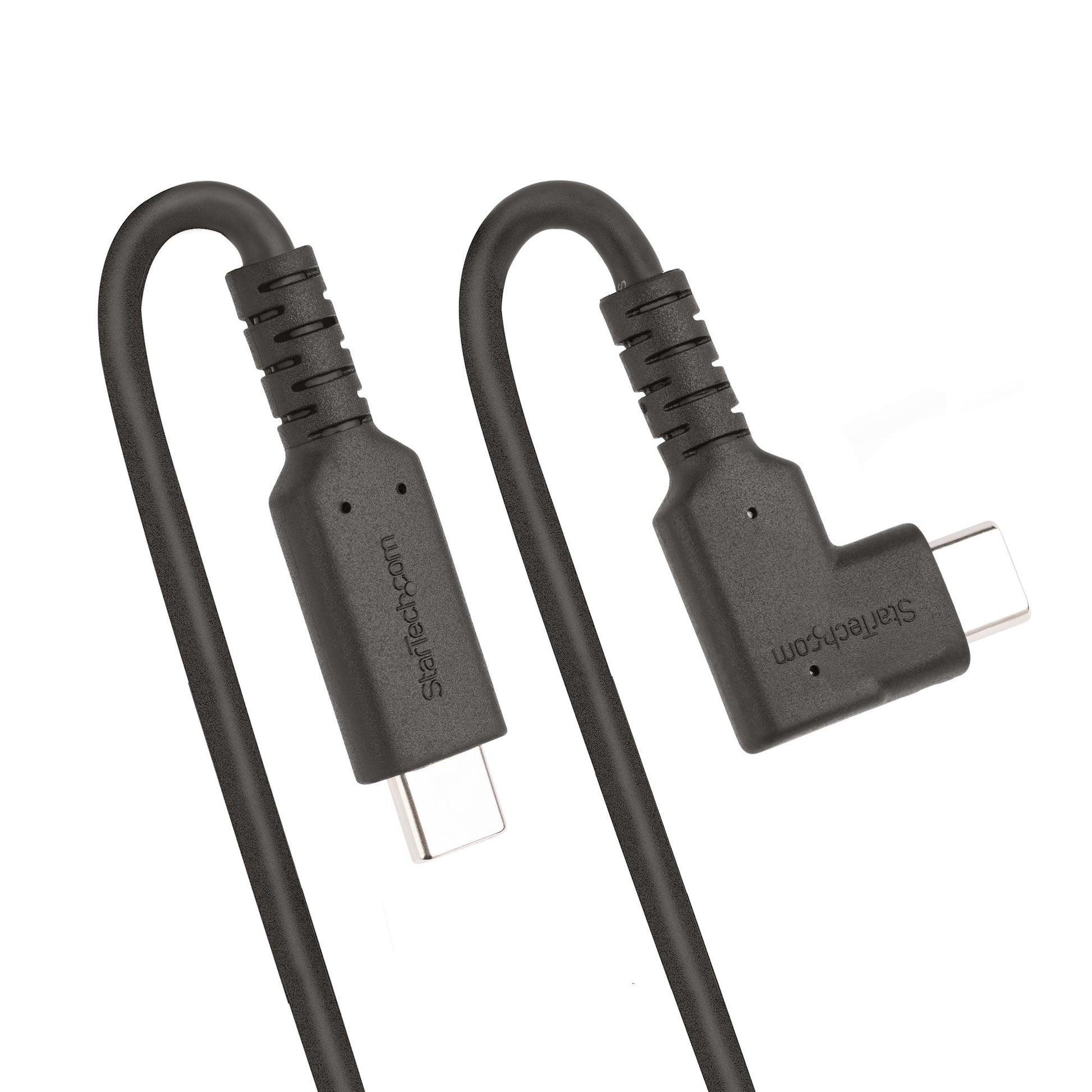

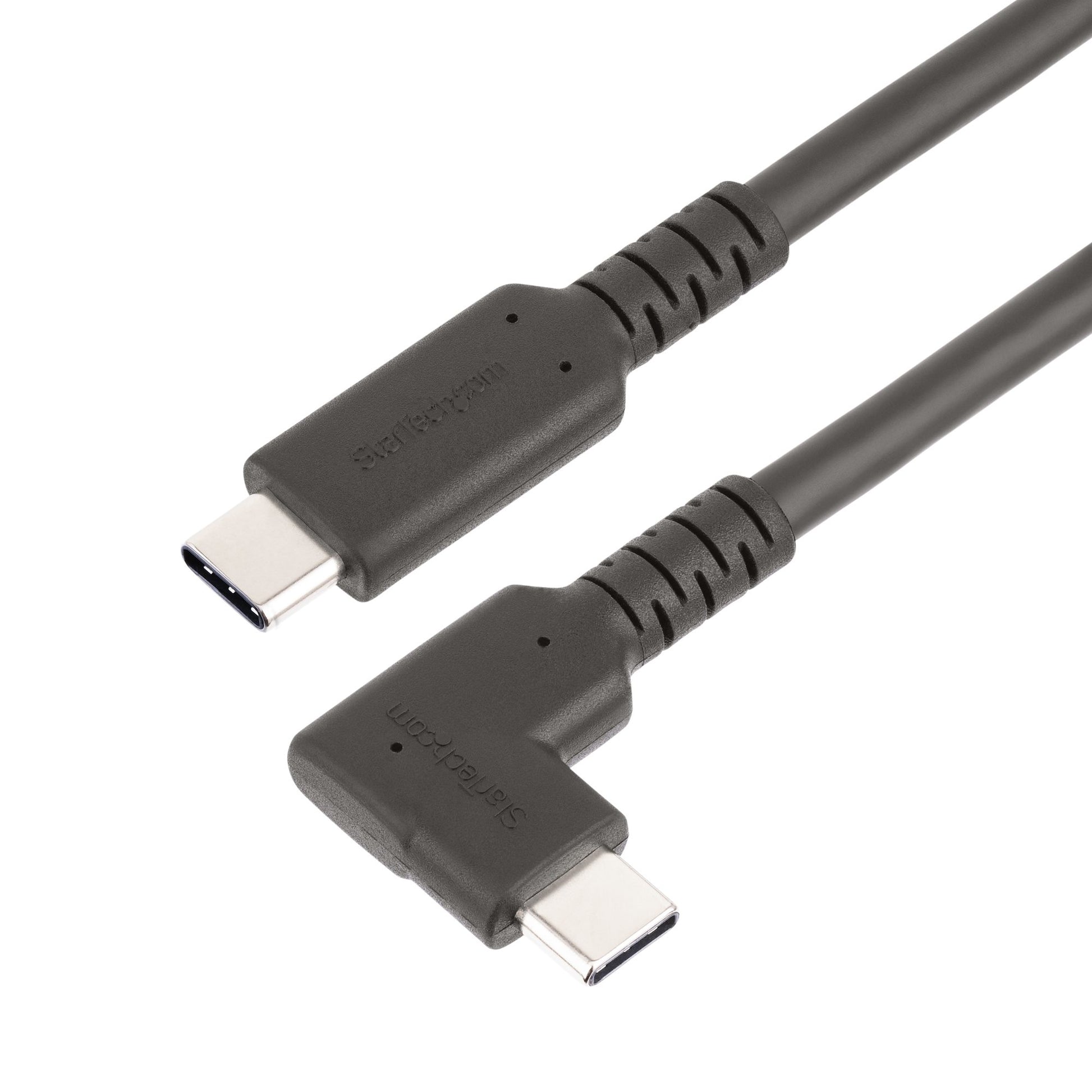

Connect and charge USB Type-C devices with a rugged right-angle USB-C Cable

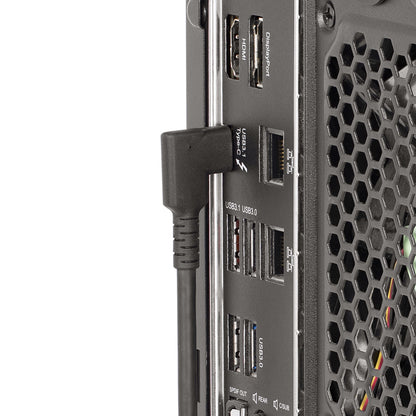

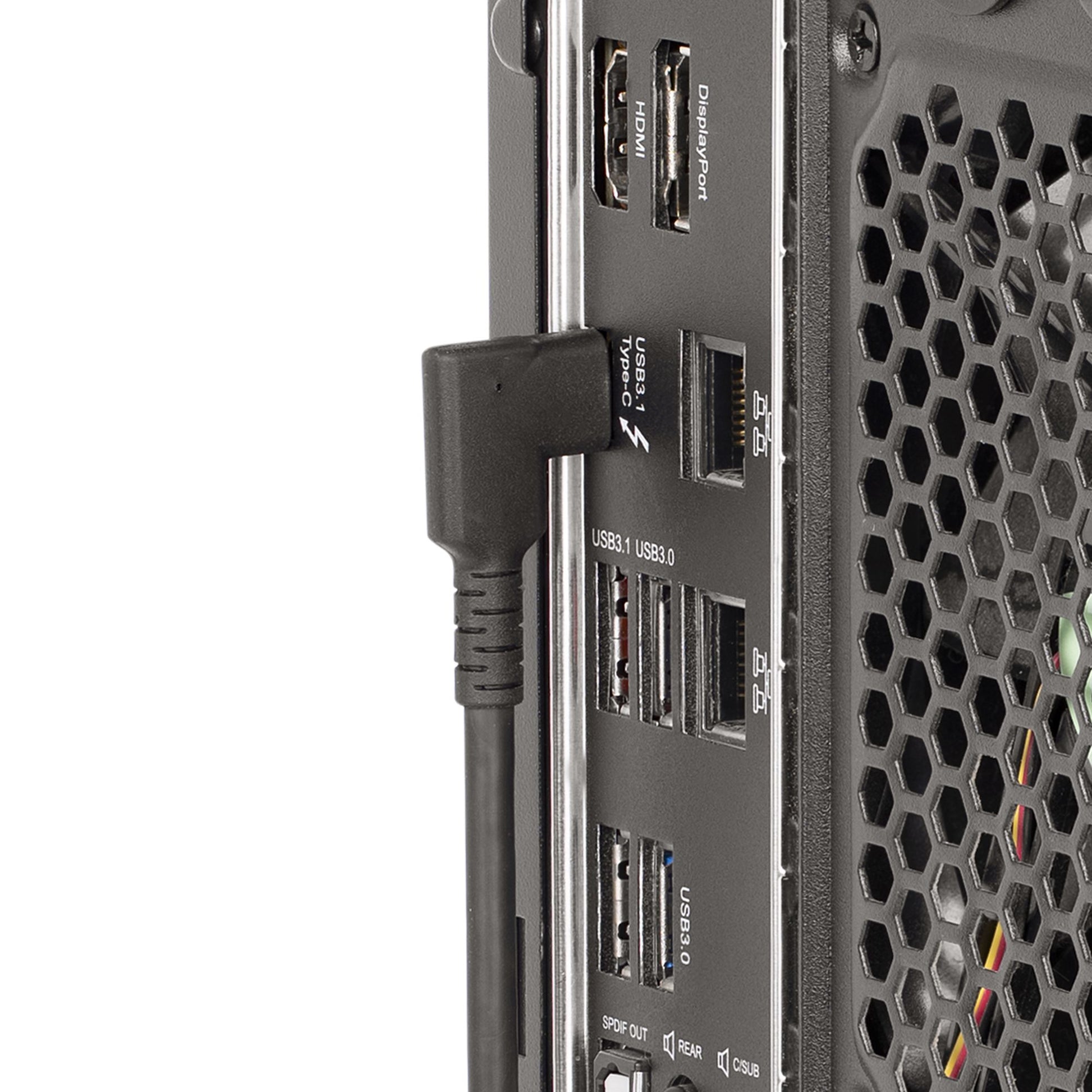

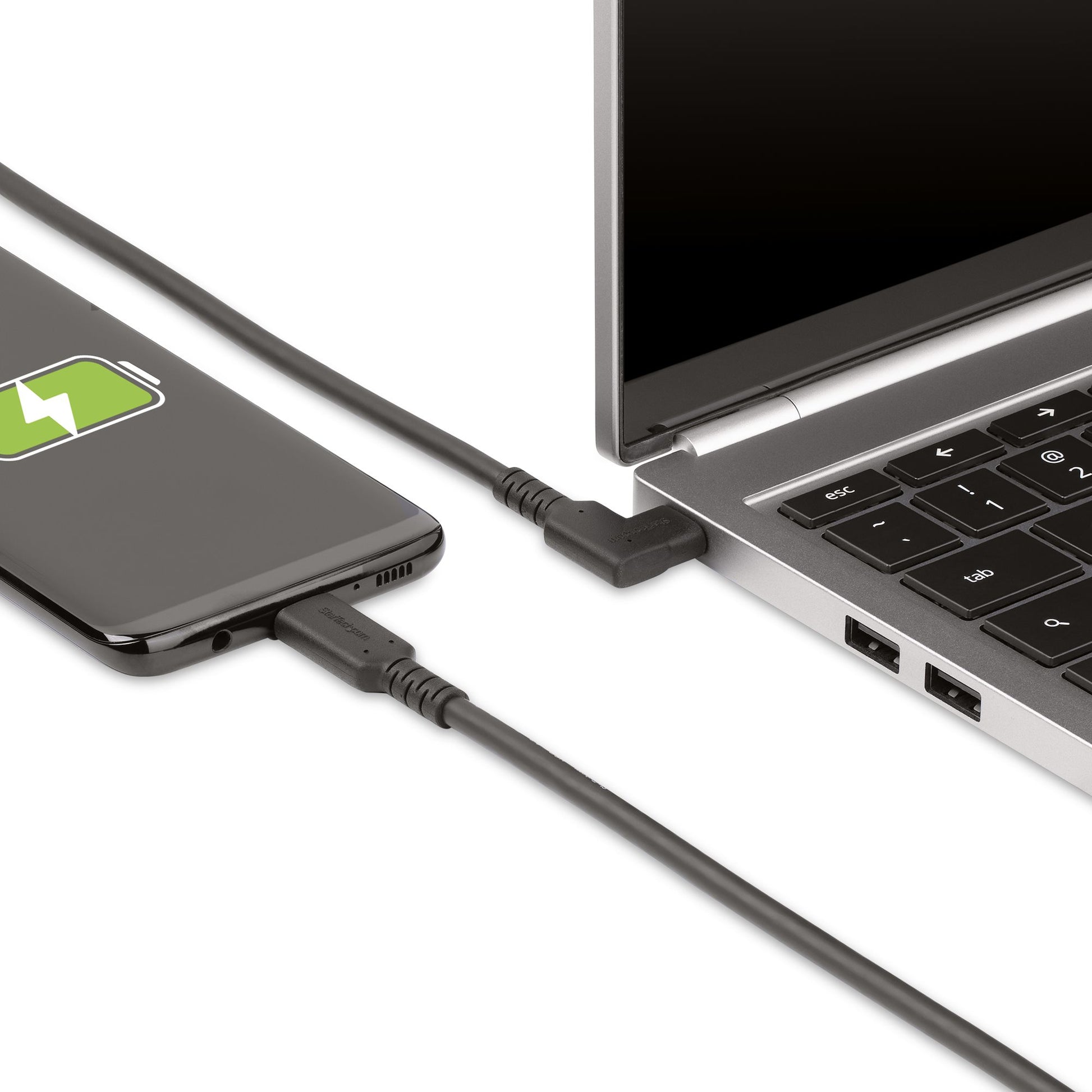

Connect USB 10Gbps source and peripheral devices, using this 3.3ft (1m) Rugged Right Angle USB Type-C Cable. Position the right angle USB-C connection along the device to reduce cable clutter and avoid prolonged strain from bending.

It is ideal for 10Gbps data transfer to external USB-C-enabled external storage devices, or as a single-cable connection from a USB-C dock to a laptop.

Experience 8K Video with DisplayPort 1.4 Alt Mode

The Rugged USB-C cable supports up to 8K 60Hz or 4K 144Hz video over DisplayPort 1.4 Alt Mode, and is compatible with 1080p and lower resolutions.

Enhanced Durability

Designed to withstand heavy use, the USB-C cable features an Aramid fiber core and durable TPE outer jacket. This heavy-duty construction protects against fraying or breakage and resists tangling.

Full-Featured USB-C Power and Data

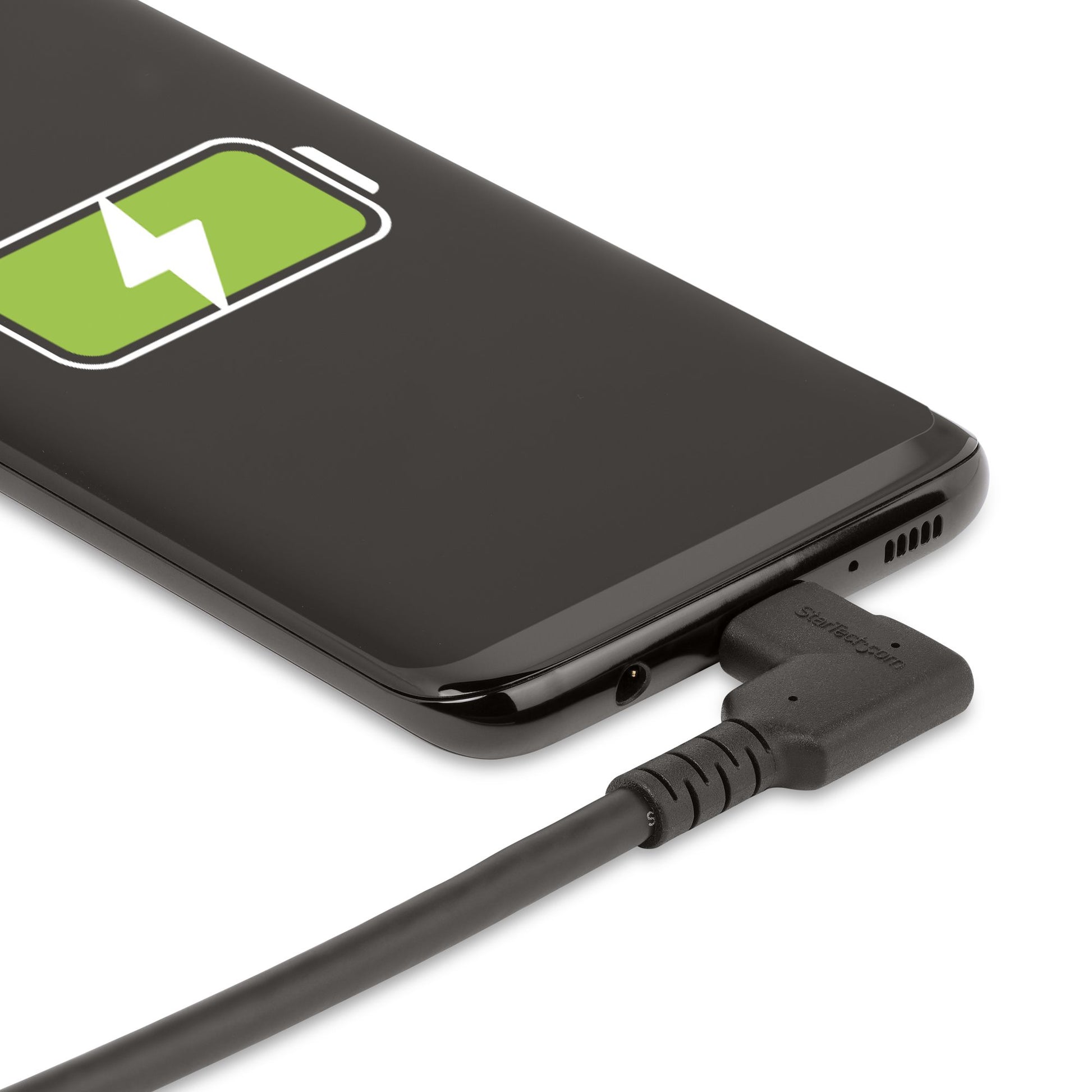

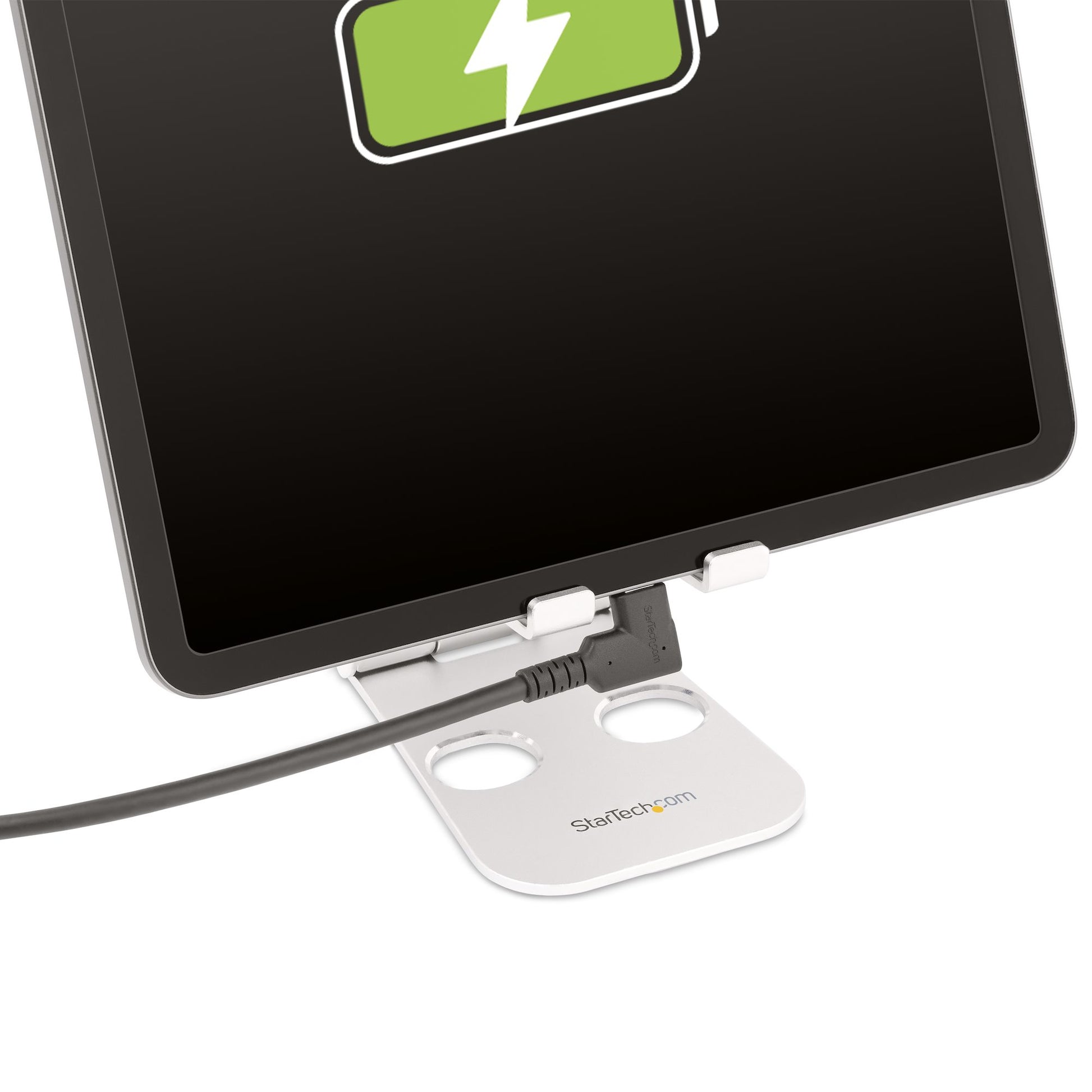

This USB Type-C cable features Power Delivery (PD) 3.0 with up to 100W PD output. Power and charge a USB-C laptop, such as Apple MacBook, Lenovo ThinkPad, or Microsoft Surface with up to 100W output over USB Power Delivery 3.0. Connect the USB-C cable from a laptop to a USB-C wall charger or docking station.

Specifications

Features
Cable shielding	Aluminum mylar foil

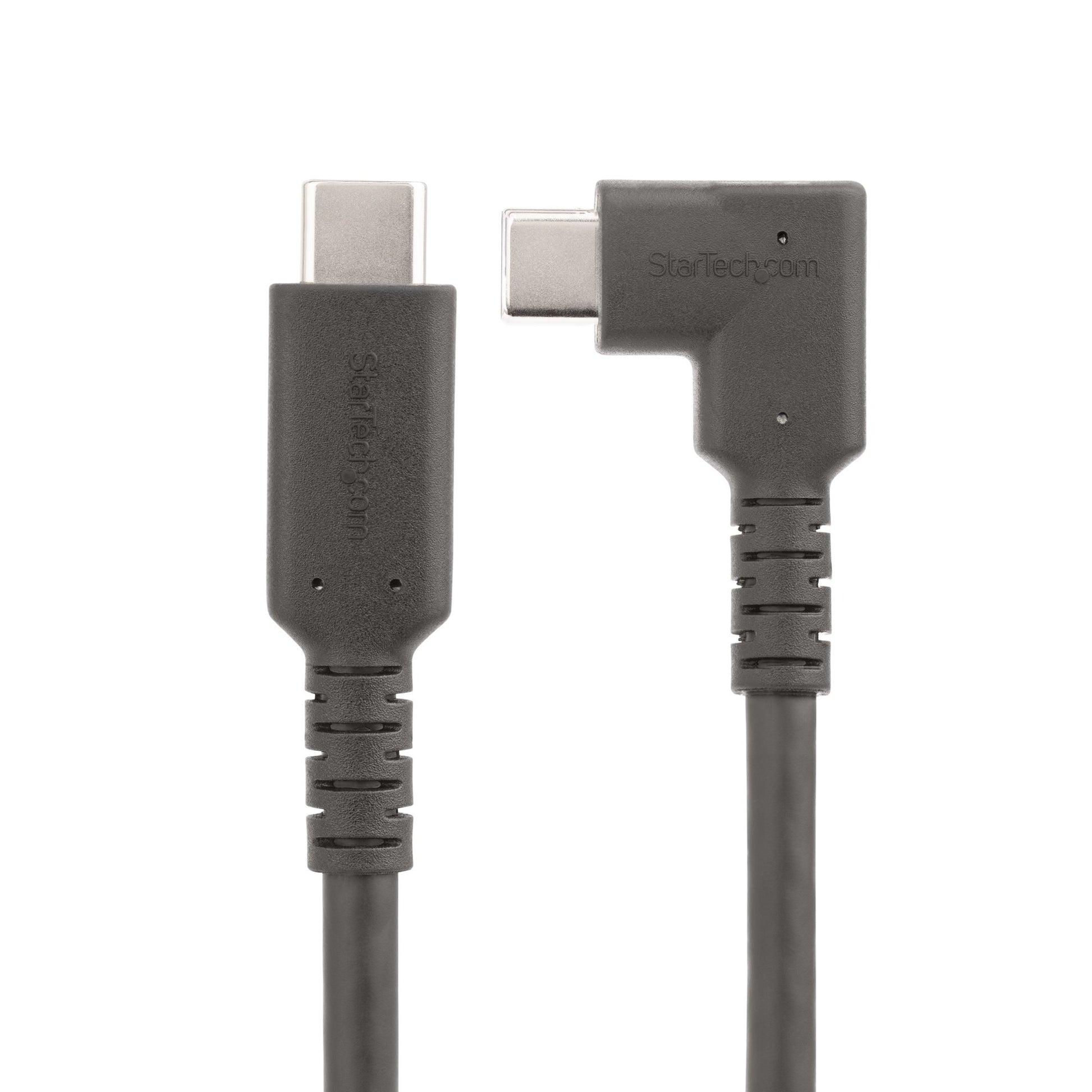

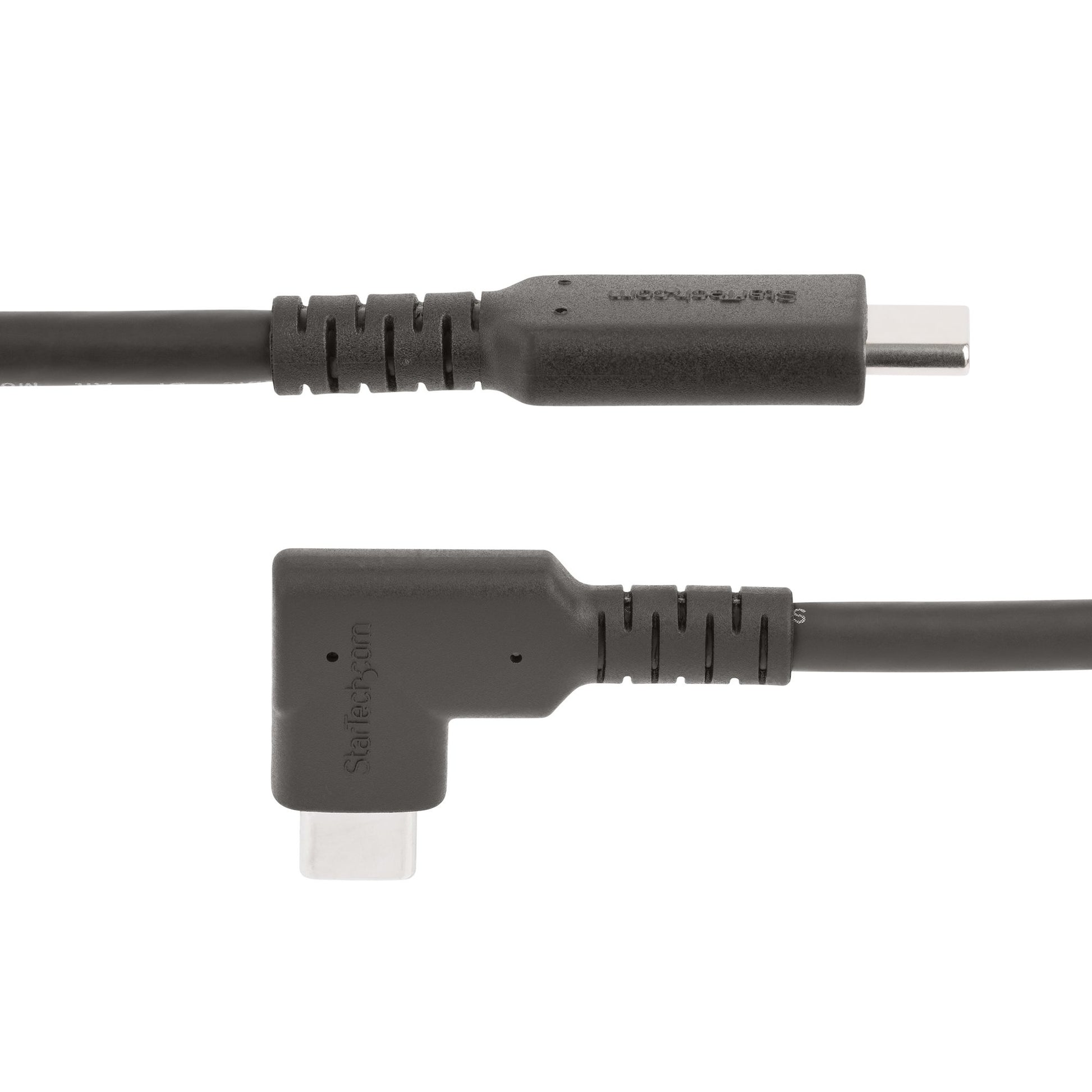

Connector 1 form factor	Angled
Connector 2 form factor	Straight
USB version	USB 3.2 Gen 2 (3.1 Gen 2)
Connector 1	USB C
Connector 2	USB C
Cable length	1 m
Connector contacts plating	Nickel/Gold
Maximum data transfer rate	10000 Mbit/s
Product colour	Black
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Male
USB Power Delivery (USB PD)	Yes
Cable jacket material	Thermoplastic elastomer (TPE)
USB Power Delivery up to	100 W
Maximum resolution	4096 x 2160 pixels
Maximum refresh rate	60 Hz
DisplayPort version	1.2
USB Type-C DisplayPort Alternate Mode	Yes
Output current (max)	5 A
Cable diameter	4.8 mm
Quantity per pack	1 pc(s)
Weight & dimensions
Bend radius (min)	8 mm
Package width	128 mm
Package depth	129 mm
Package height	14 mm
Package weight	95 g
Sustainability
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Technical details
Compliance certificates	CE, RoHS
Logistics data
Products per master (outer) case	200 pc(s)
Master (outer) case width	442 mm
Master (outer) case length	401 mm
Master (outer) case height	301 mm
