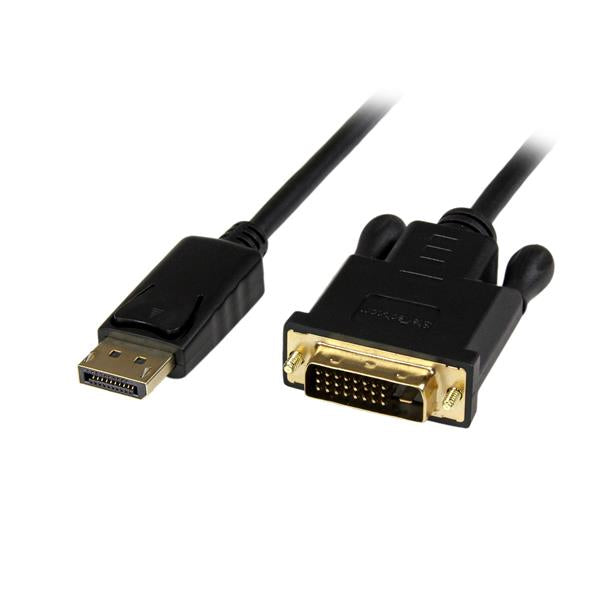

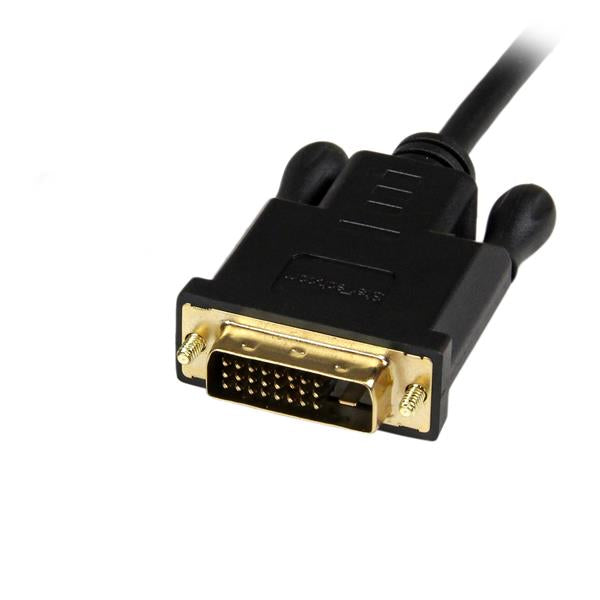

StarTech.com 3ft (1m) DisplayPort to DVI Cable - 1080p Video - Active DisplayPort to

Make the connection with the StarTech.com 3ft (1m) DisplayPort to — length and connector details are in the spec table.

Eliminate excess cable clutter with a short 3ft DisplayPort to DVI active adapter

The DP2DVIMM3BS 3ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.

For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.

Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.

The DP2DVIMM3BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Note:

This adapter is not compatible for use with the Apple Cinema Display.

The StarTech.com Advantage

Specifications

Features
Converter type	Active video converter
Chipset	Parade - PS171
DisplayPort version	1.2
Product colour	Black
Cable length	0.9 m
Connector 1	DisplayPort
Connector 2	DVI-D
Connector 1 gender	Male
Connector 2 gender	Male
Maximum resolution	1920 x 1200 pixels
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Plug and Play	Yes
Certification	CE, FCC, REACH
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Dual Link DVI	No
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	40 - 85%
Certificates
Compliance certificates	RoHS
Other features
Width	40 mm
Height	15 mm
Depth	915 mm
Weight & dimensions
Weight	74.9 g
Package width	197 mm
Package depth	222 mm
Package height	15 mm
Package weight	91.6 g
Packaging data
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Logistics data
Master (outer) case width	420 mm
Master (outer) case length	415 mm
Master (outer) case height	435 mm
Products per master (outer) case	220 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
