StarTech.com 32U Enterprise-Grade Flat Pack Server Rack Cabinet, 19in Enclosed

Build a tidy install with the StarTech.com 32U Enterprise-Grade Flat Pack — dimensions and mounting details are in the spec table.

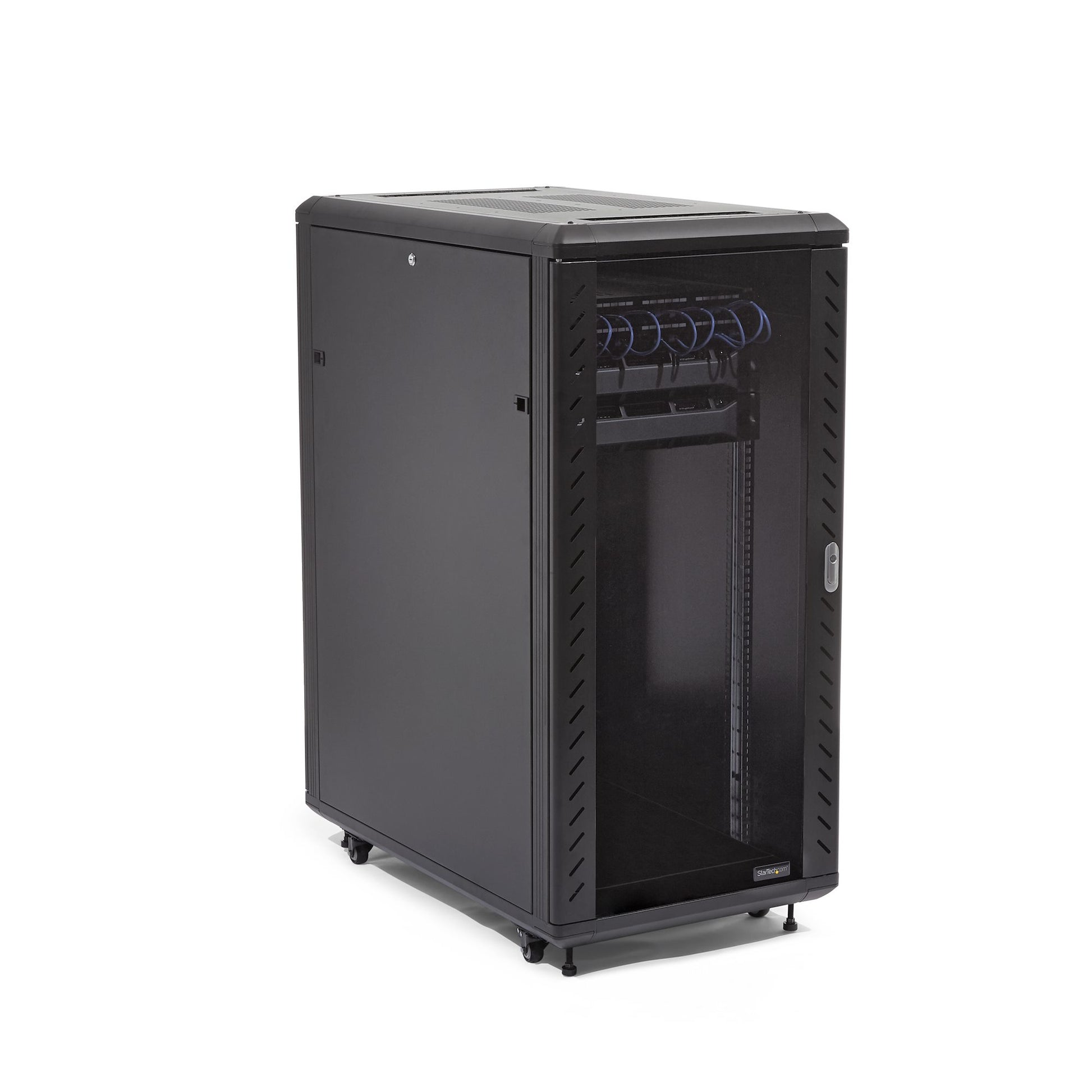

Securely store servers, network and telecommunications equipment in this 32U server rack

This server rack provides 32U of storage space in a sleek secure cabinet for storing EIA-310 compliant 19" rackmount devices such as Dell, HP and IBM servers along with telecommunication and A/V equipment. The rack creates a robust storage solution supporting a total load capacity of 800 kg. (1763.7 lbs.).

Hassle-Free Equipment Installation

This rack has been engineered with different features that enable you to easily incorporate plenty of equipment.

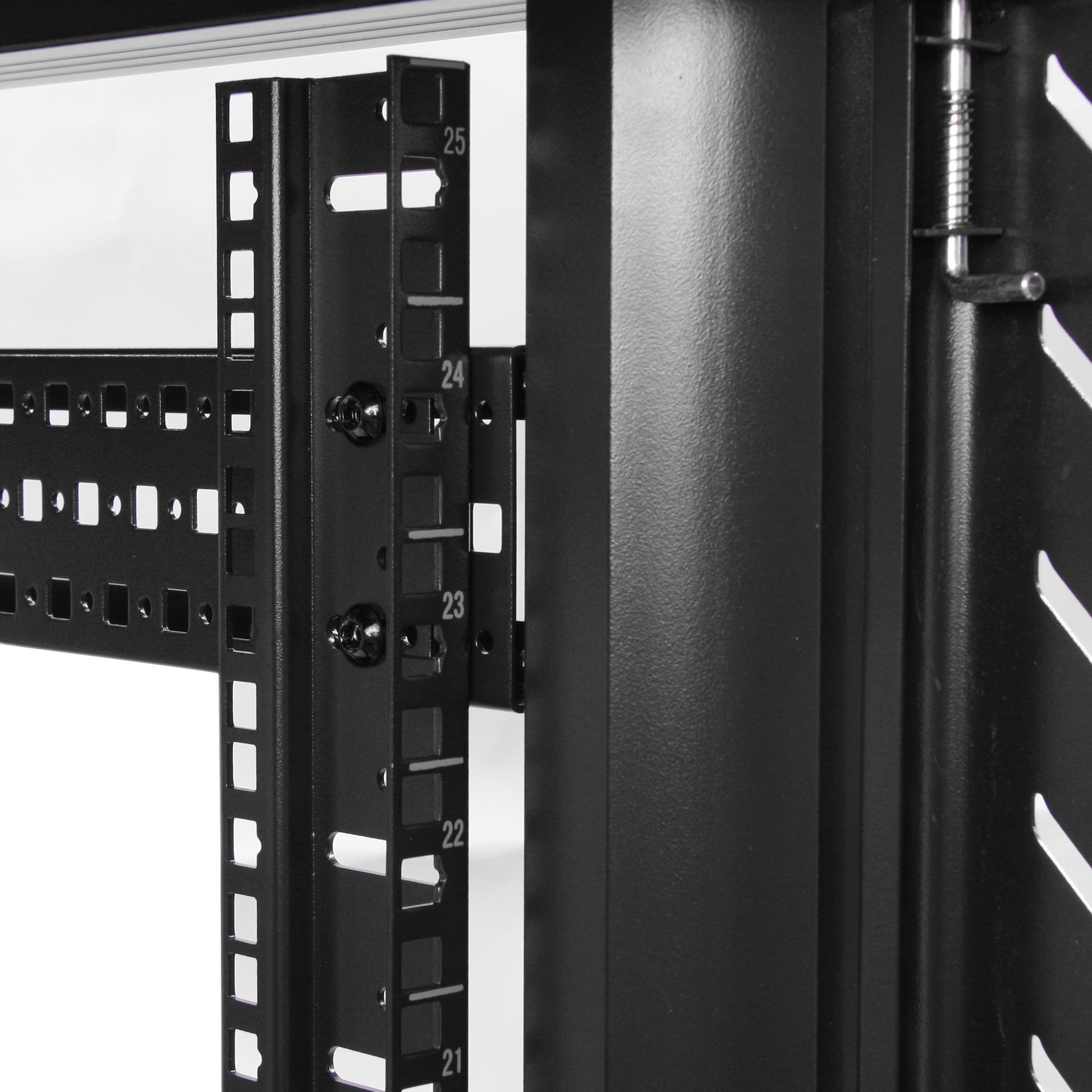

With adjustable mounting rails you can easily change the rail depth to up to 32.7 in. (830 mm). These rails ensure the cabinet is widely compatible with your standard rackmountable equipment. The added depth also provides support for additional cable and power management behind your equipment.

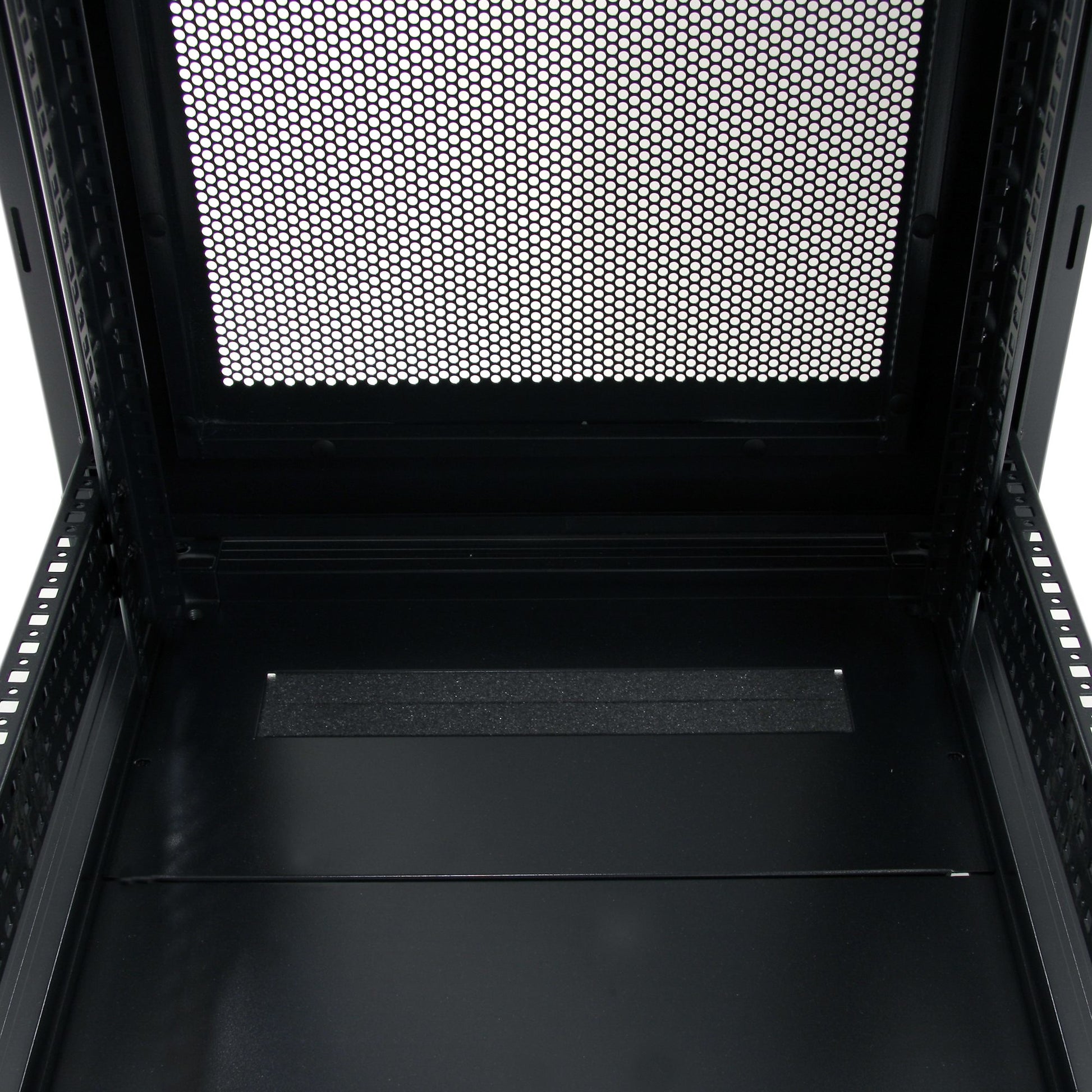

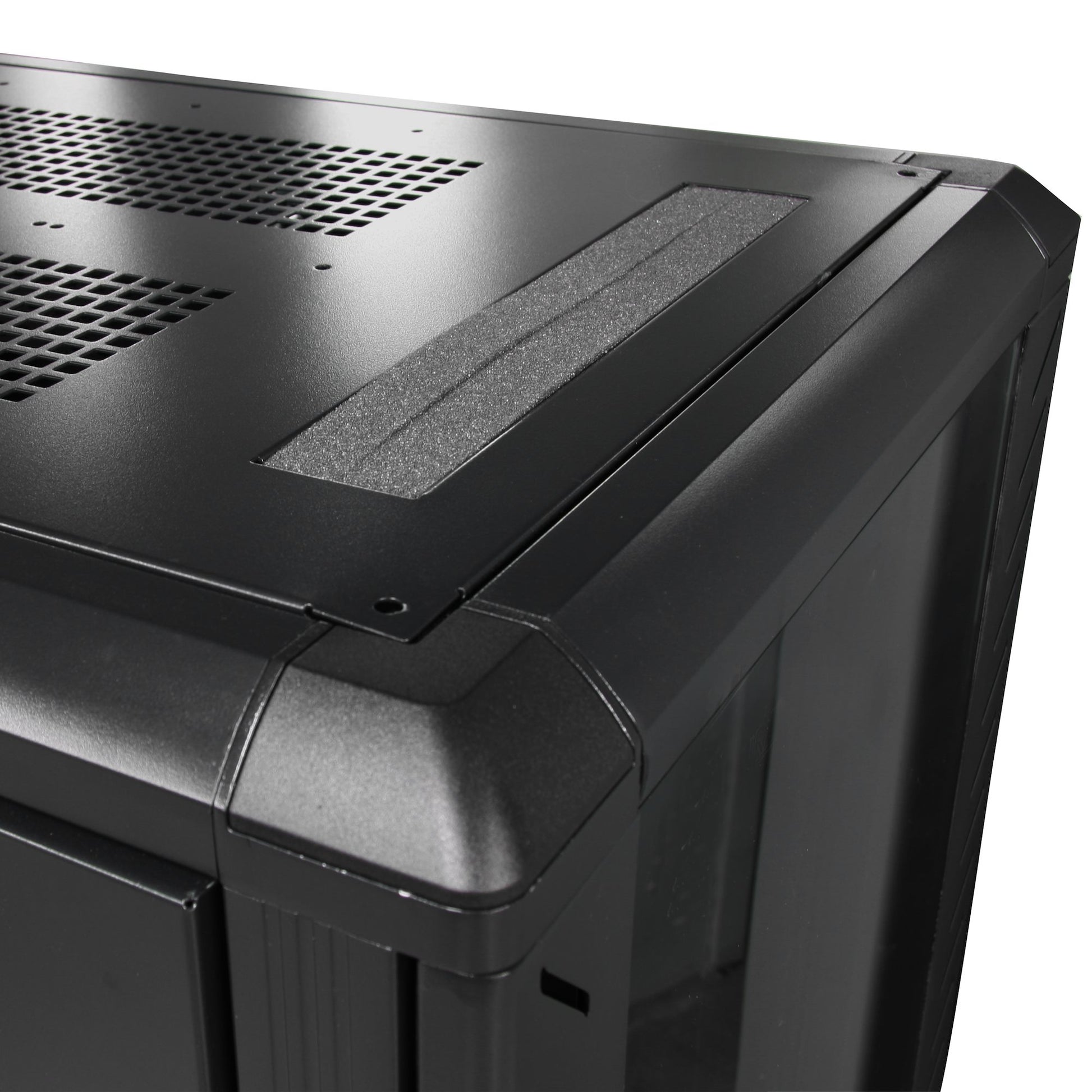

The rack features brushed ports on the ceiling and floor panels that enable you to easily run cabling to the inside and outside of the cabinet, for discreet cable management. The floor and ceiling panels can also be removed enabling you to customize your setup, and the rack features grounding lugs that enable you to ground your equipment for added protection.

Protect & Secure Your Equipment

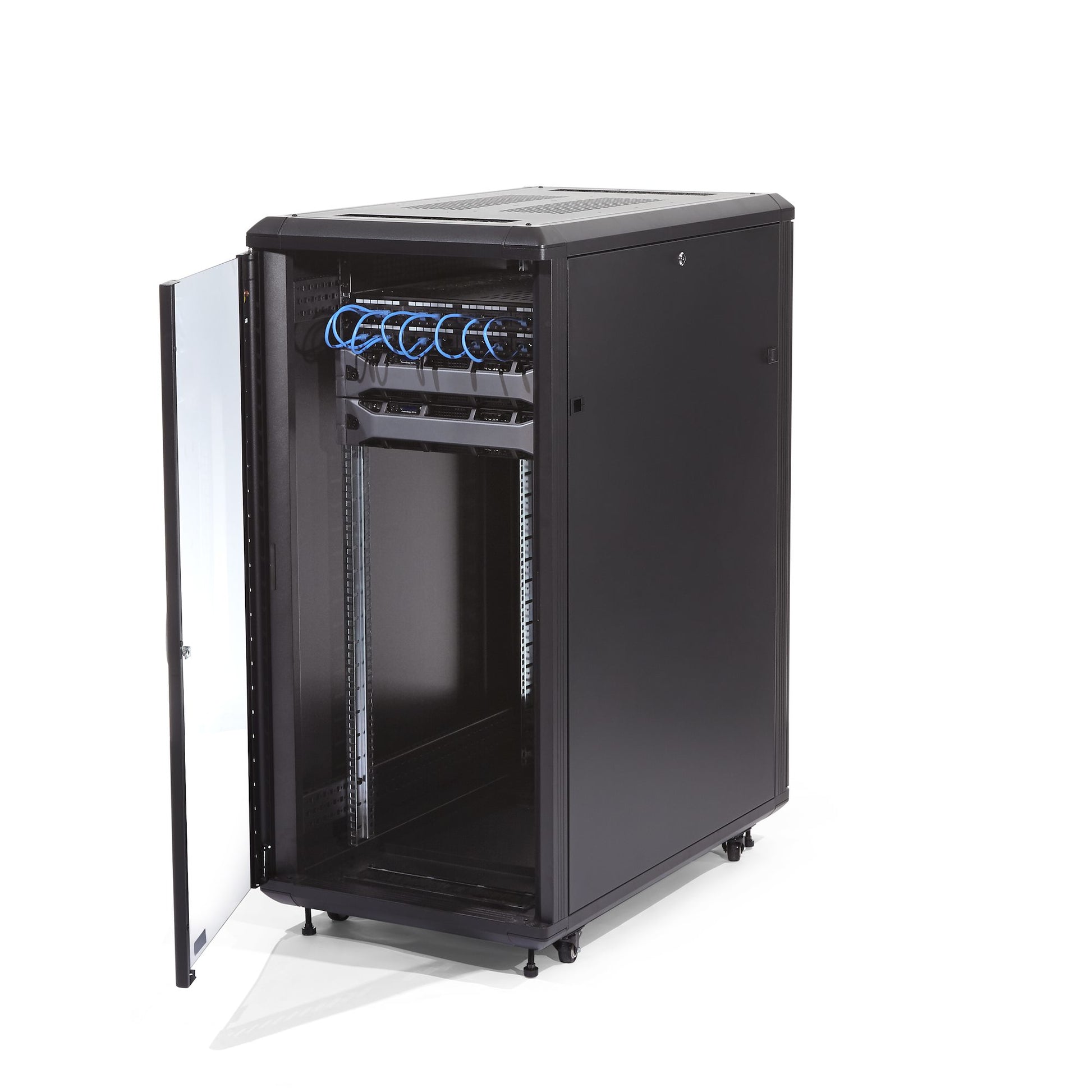

To ensure you have full visibility of your equipment while securely locking it up, this rack has a stylish glass window on the front door. The glass door looks great in any server room, and gives you the freedom to clearly monitor equipment without the hassle of opening your rack.

The rack also has removable side panels and doors with independent locks quick-release mechanisms that enable you to easily access your equipment while still keeping it secure.

Ships Flat-Packed

The cabinet comes in a flat packed box to reduce shipping volume, which significantly reduces your costs in shipping. Plus, because the rack is packaged efficiently, you can easily store the cabinet, for deployment at a later date.

Maximum Maneuverability

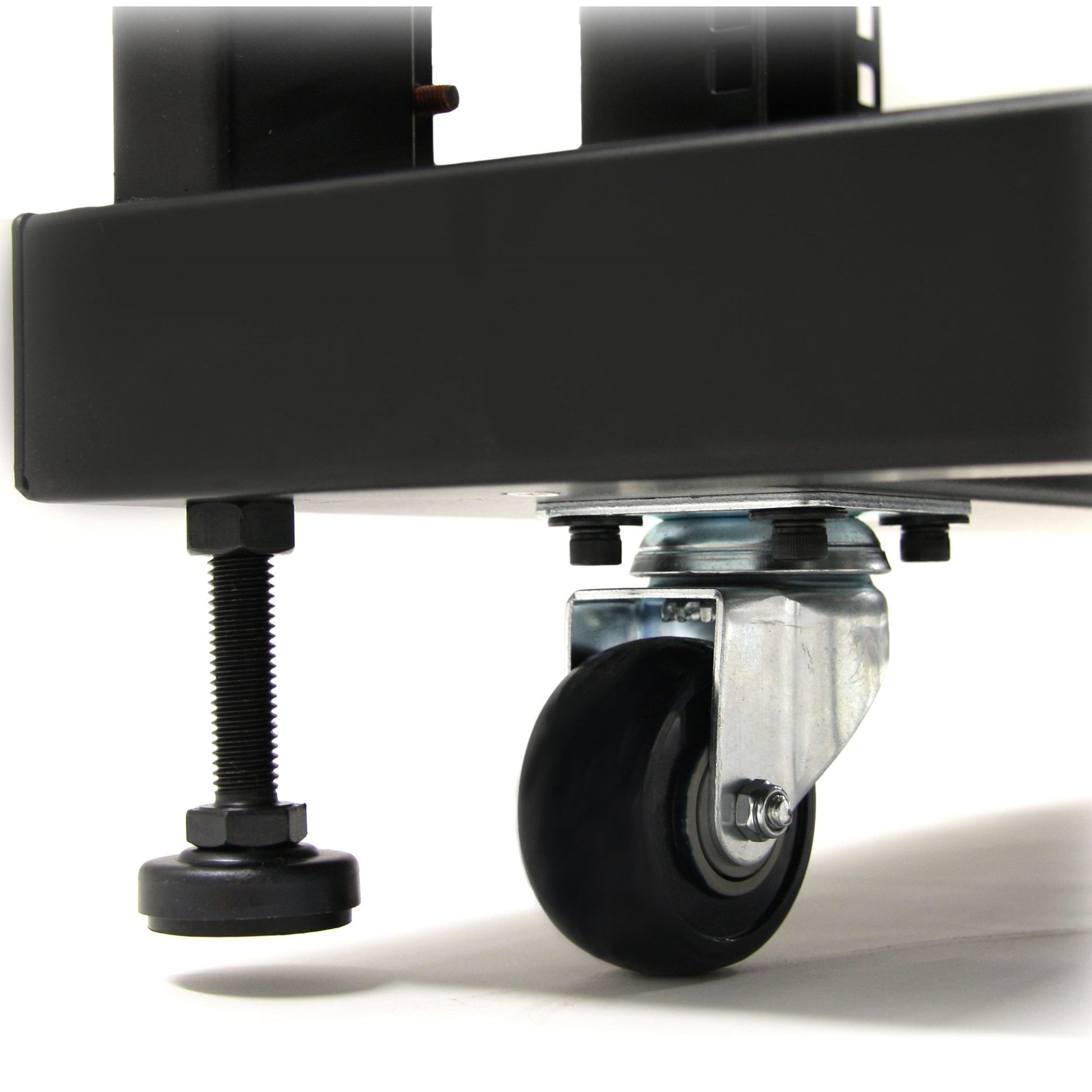

The cabinet features casters ensuring hassle-free access to the rear mounted equipment, while providing ease of mobility around your office, studio or server room. Plus, the width and height of the rack fits through standard doorways, giving you the freedom to wheel your server rack into different rooms.

Ensure your equipment is running at an optimal temperature

The rear door on the rack is mesh, and the front glass door is vented, working together to increase airflow to provide passive cooling that's cost effective and ensures your equipment runs at an optimal temperature.

Specifications

Weight & dimensions
Package depth	1065 mm
Package width	1615 mm
Package height	360 mm
Package weight	101 kg
Inner width	58 cm
Inner depth	99 cm
Mounting depth (max)	83 cm
Mounting depth (min)	14 cm
Width	600 mm
Depth	1000 mm
Height	1600 mm
Weight	101 kg
Maximum weight capacity	800 kg
Packaging content
Nuts included	Yes
Number of nuts	40
Screws included	Yes
Number of screws	82
Number of washers included	48
Number of wrenches included	1
Features
Key lock	Yes
Frame type	Closed
Product design	4-post
Rack capacity	32U
Castor wheels	Yes
Removable back door	Yes
Removable front door	Yes
Back door construction	Steel
Front door construction	Glass/Steel
Side panel construction	Steel
Mounting hole shape	Square
Back door key lock	Yes
Front door key lock	Yes
Type	Freestanding rack
Product colour	Black
Technical details
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85381000
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	1615 mm
Master (outer) case length	1065 mm
Master (outer) case height	360 mm
Products per master (outer) case	1 pc(s)
