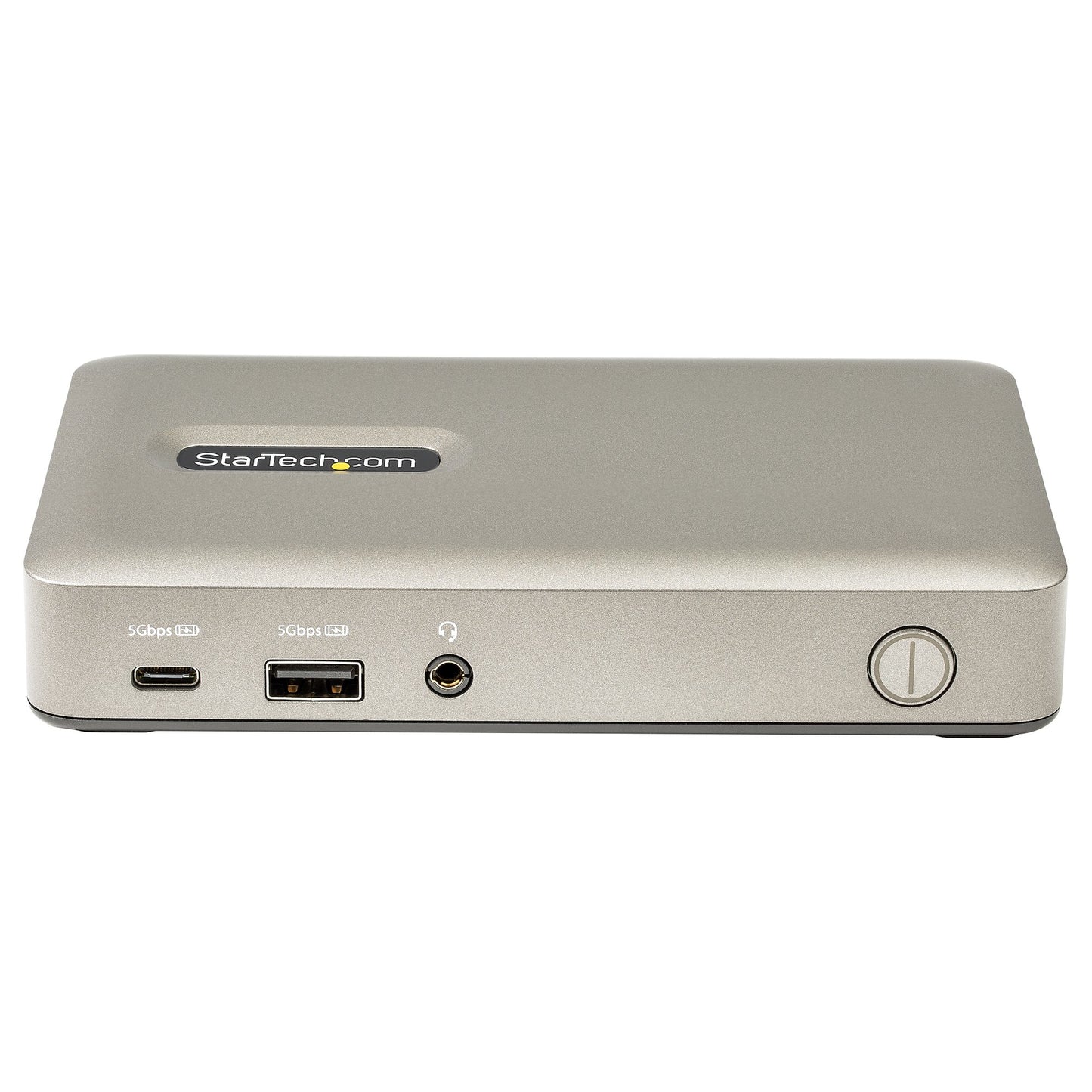

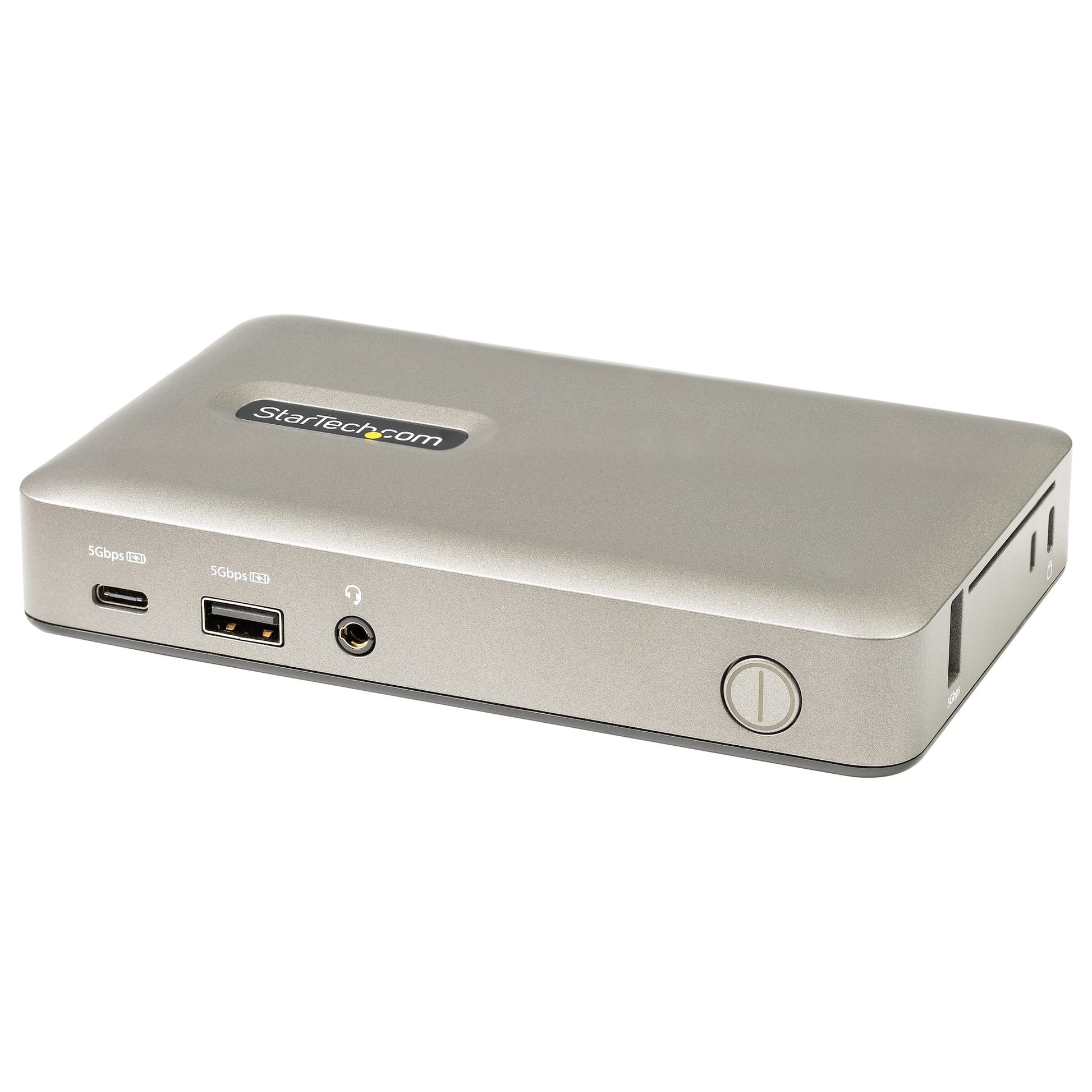

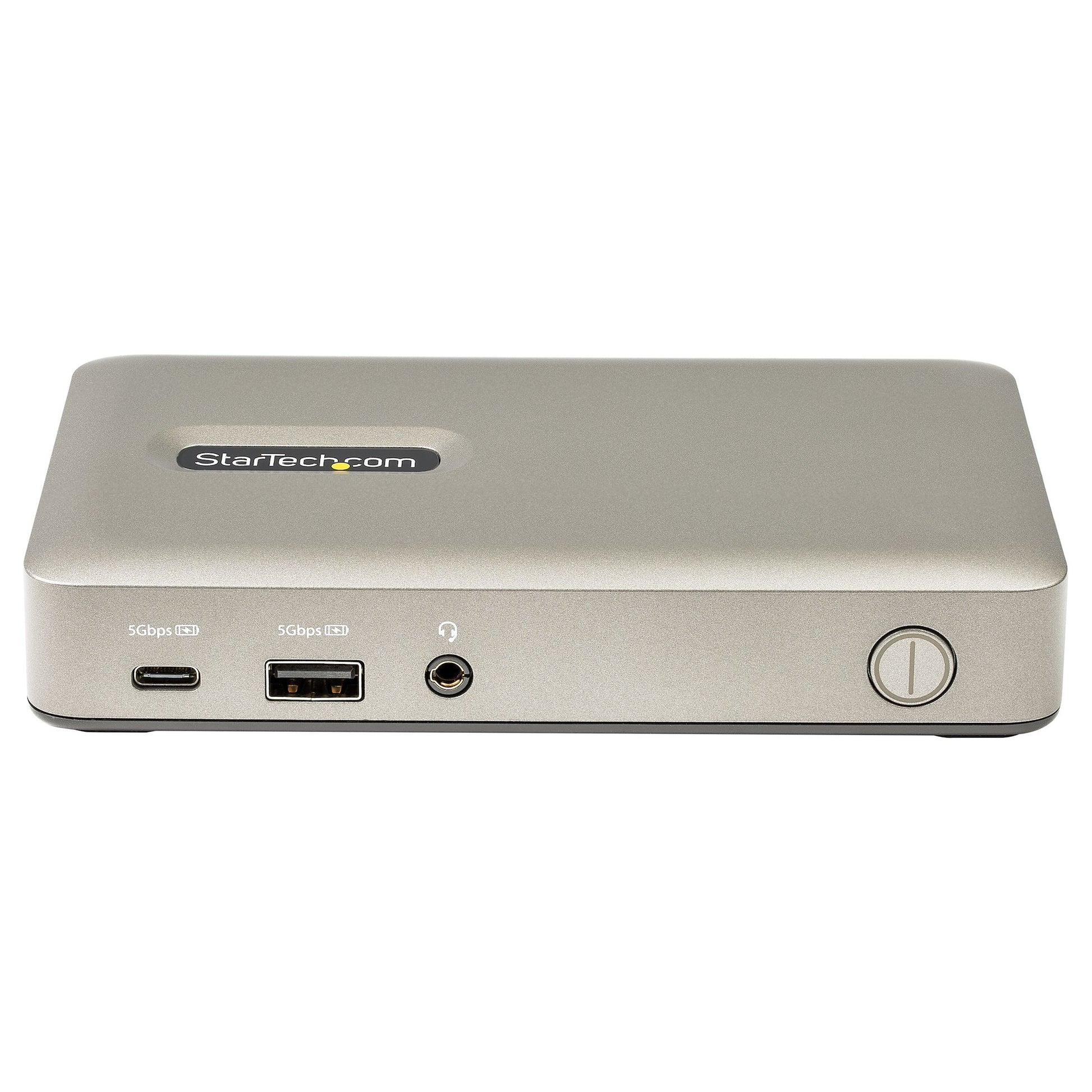

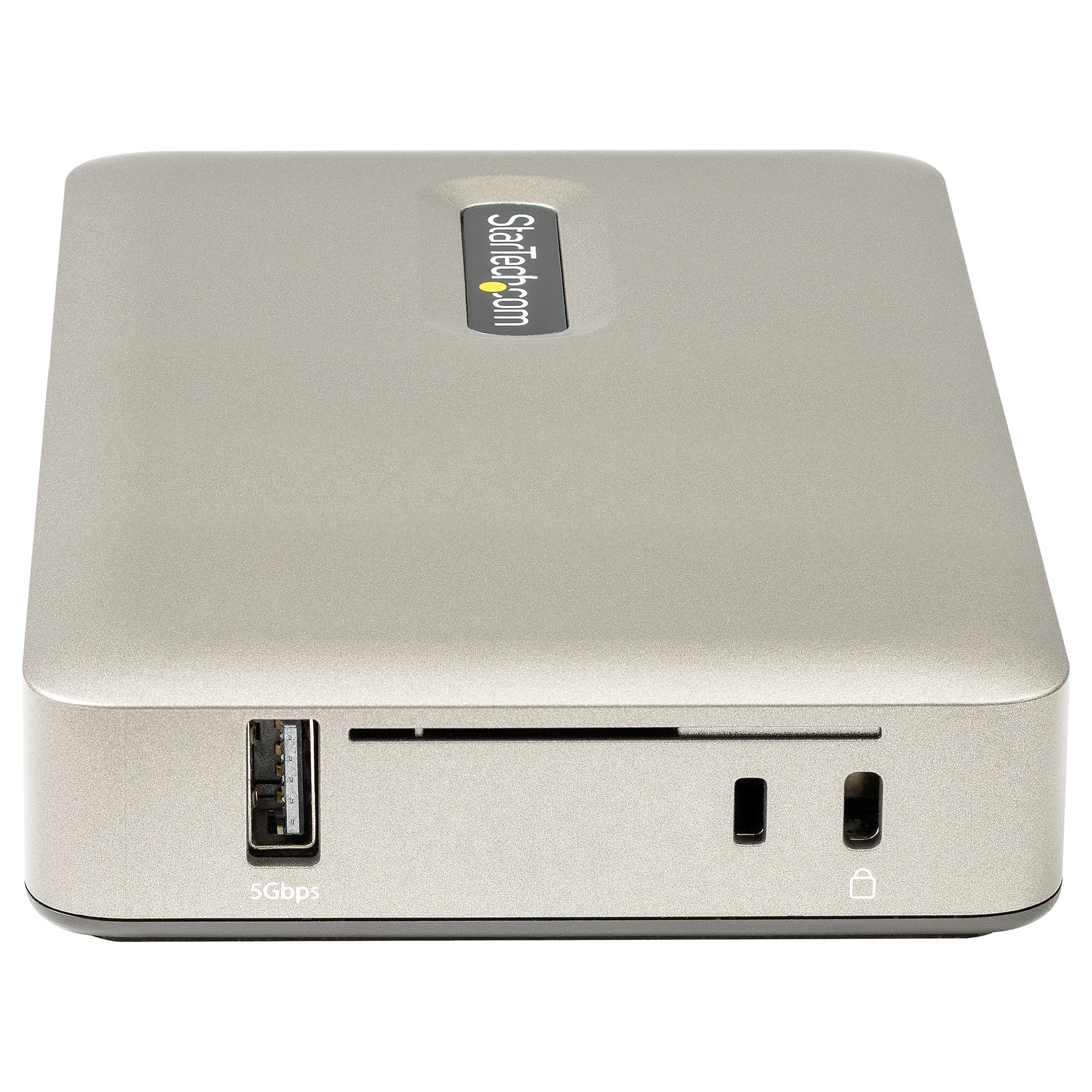

StarTech.com 30Hz or VGA USB-C Docking Station 65W

One cable, full desk: the StarTech.com 30Hz or VGA turns your laptop into a workstation with external displays, wired networking, 65W charging over a single USB-C connection.

Laptop Docking Station | Mac, Windows® & Chrome OS™ | 65W Power Delivery | DisplayPort (4K 30Hz) or VGA (1080p 60Hz)

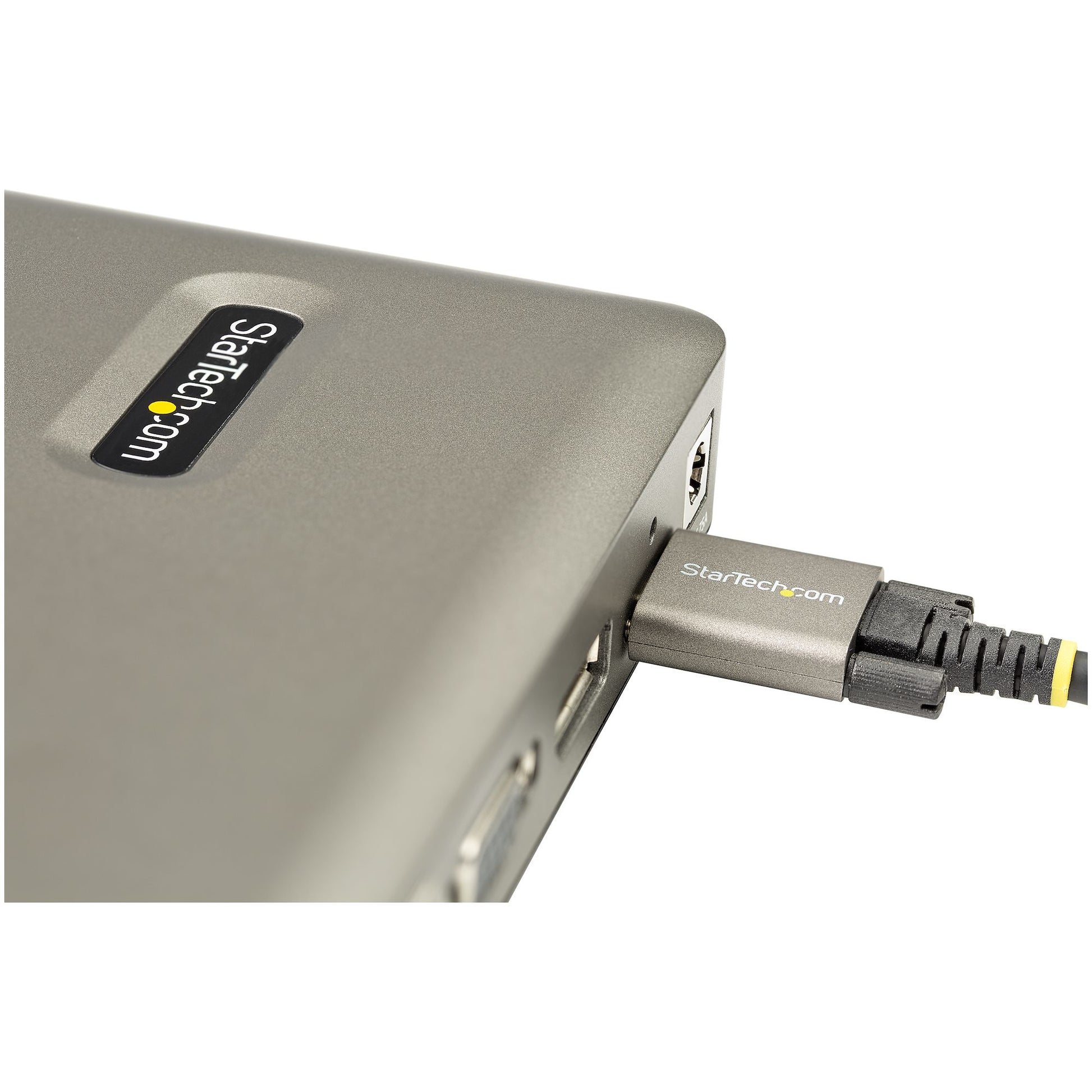

This USB-C docking station lets you use a single USB Type-C port on your laptop or tablet to add essential connectivity while charging your device via 65W USB Power Delivery 3.0. The dock enables you to connect your device to a single monitor of your choice between DisplayPort (4K 30Hz) or VGA (1080p 60Hz) video output. For peripheral connectivity the dock features three USB 3.1 Gen 1 (5Gbps) Type-A ports including a BC 1.2 port to power and charge your USB devices, a USB 3.1 Gen (5Gbps) Type-C port, a 3.5mm headset audio port, and Gigabit Ethernet.

Versatile Display Connectivity

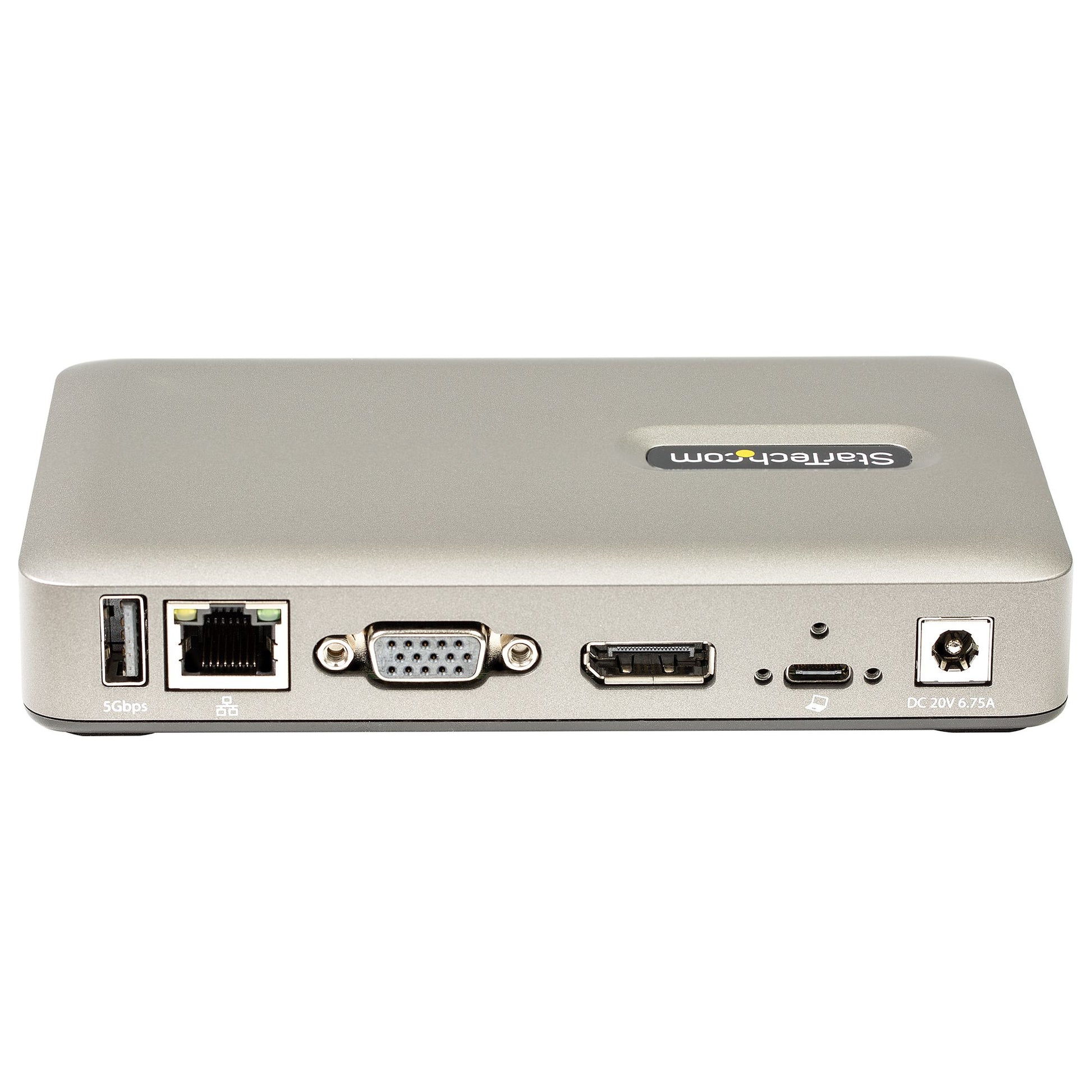

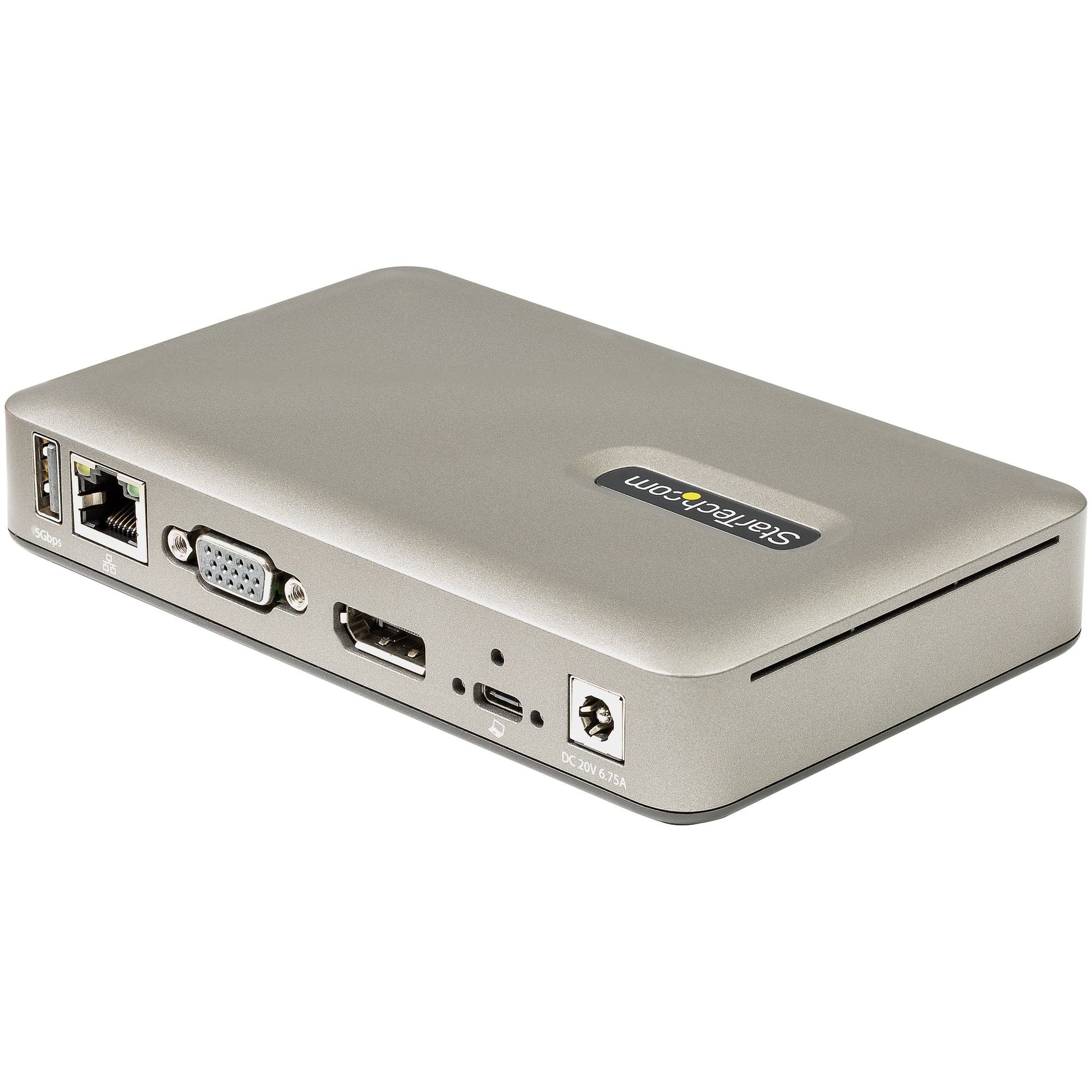

The docking station features single video output with DisplayPort or VGA connectivity so you connect to different monitor depending upon your workstation -- ideal for home office IT deployment, where different monitors may be used by different users. The DisplayPort connection offers resolutions up to 4096x2160 (4K) 30Hz, while the VGA connection offers resolutions up to 1920x1200/1080p 60Hz.

Essential Port Connectivity

The docking station utilizes the versatile USB-C port on your computer port to provide a wide range of port connectivity to suit a variety of applications.

The dock features:

• 3x USB 3.1 Gen 1 (5Gbps) Type-A ports to connect USB peripheral devices, including a single port that supports BC 1.2 with 7.5W (1.5A) for charging tablets & smartphones, and a physically isolated HID USB port (side) that prevents electromagnetic interference (EMI) on your wireless keyboard/mouse adapters.

• 1x USB 3.1 Gen 1 (5Gbps) Type-C port to connect USB peripheral devices.

• 1x Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN).

• 1x 3.5mm 4-position CTIA/OMTP TRRS Audio Jack to connect a 3.5mm headset.

65W USB Power Delivery

The docking station includes a 119.9W power adapter and supports 65W USB power delivery. This enables the dock to charge your connected laptop or tablet. Plus, the added power enables one of the USB-A ports to support BC 1.2, for charging tablets and smartphones.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility : To setup and save custom windows layouts.

• Mac Address Pass-Through Utility : To improve network security.

• USB Event Monitoring Utility : To track and log connected USB devices

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
DC-in jack	Yes
Connectivity technology	Wired
Network
Full duplex	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
UASP support	Yes
Maximum digital resolution	4096 x 2160 pixels
Maximum analog resolution	1920 x 1200 pixels
Product colour	Grey
Card reader integrated	No
Cable lock slot	Yes
LED indicators	Power
Data transfer rate	5 Gbit/s
Cable lock slot type	Kensington
HD type	4K Ultra HD
Housing material	Plastic
Maximum refresh rate	60 Hz
Technical details
Sustainability compliance	Yes
Harmonized System (HS) code	84733020
Compliance certificates	CE, RoHS
Products per master (outer) case	10 pc(s)
Master (outer) case width	370 mm
Master (outer) case length	272 mm
Master (outer) case height	500 mm
Power
Input current	2.9 A
Power plug type	Type M
Compatible power plug types	EU, UK
AC input voltage	100 - 240 V
Power consumption (typical)	119.925 W
Output voltage	19.5 V
Output current	6.15 A
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Other operating systems supported	ChromeOS
Mobile operating systems supported	Android 10.0, Android 11.0, Android 9.0, iPadOS
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Weight	313 g
Width	145 mm
Depth	91 mm
Height	27 mm
Package weight	1.3 kg
Package width	247 mm
Package depth	168 mm
Package height	93 mm

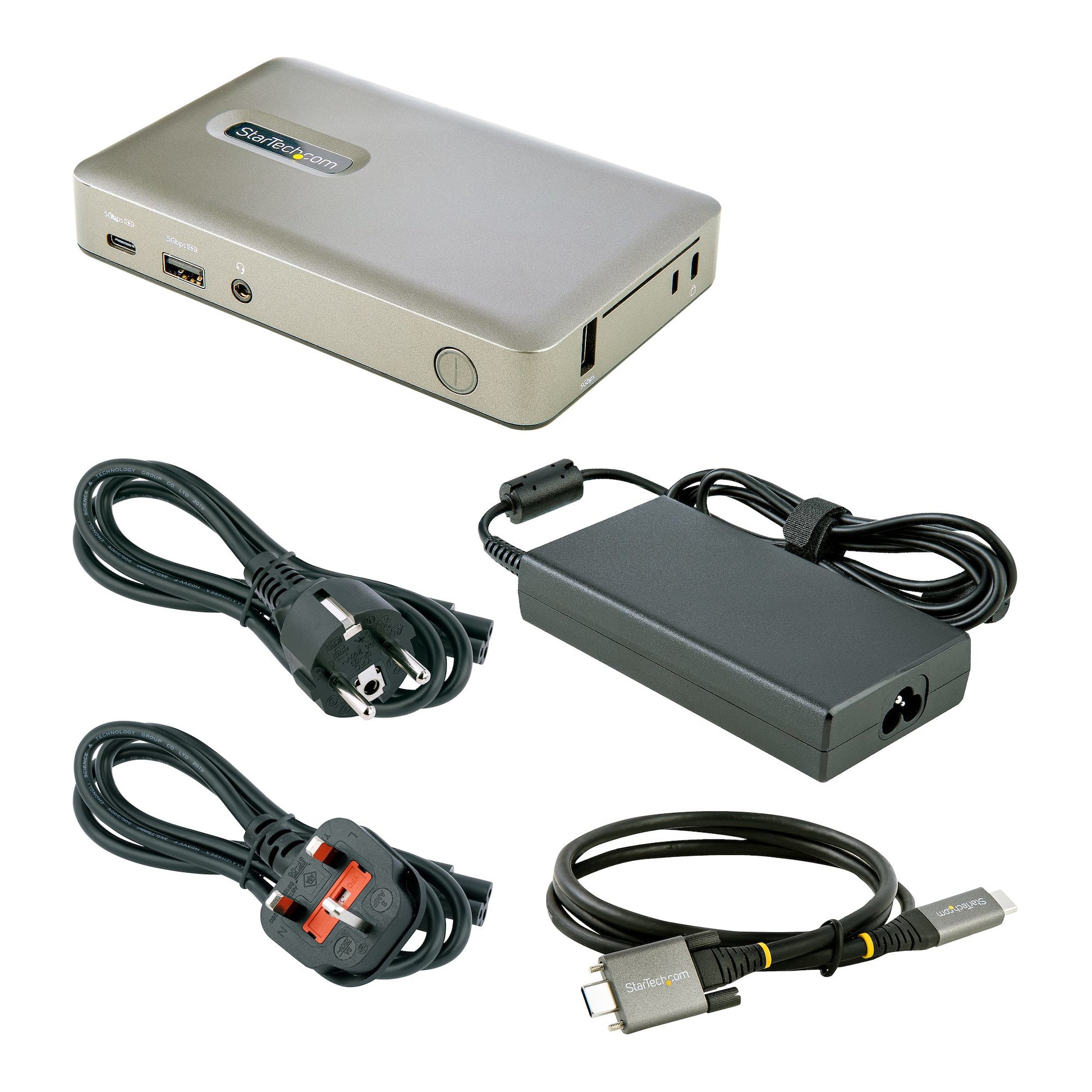

Packaging content
Quick start guide	Yes
Cables included	USB
AC adapter included	Yes
Other features
Chipset	Genesys Logic - GL3523-S, Cmedia - CM6533, Realtek - RTL8153B, Etron - EJ279S, Parade - PS8338B, ITE - IT6516BFN
