StarTech.com 30ft (9.1m) HDMI 2.0 Cable - 4K 60Hz Active HDMI Cable - CL2 Rated for

Make the connection with the StarTech.com 30ft (9.1m) HDMI 2.0 — length and connector details are in the spec table.

Create feature-rich HDMI connections, up to 10 m away with no signal loss

This High Speed HDMI™ Cable with Ethernet is designed to deliver superior video and audio performance while ensuring reliable connectivity with a variety of HDMI devices, including HDTVs, stereo receivers, projectors, gaming consoles, and more. The active cable also features a thinner wire construction for more flexibility, making it ideal for in-wall installations.

High Speed HDMI™

This HDMI 2.0 cable delivers high performance with support for 4K (3840x2160p) resolution at 60Hz, 18Gbps bandwidth, and HDR (High Dynamic Range) for enhanced contrast and color. It's ideal for home theaters, digital signage, and presentations, offering sharp visuals and up to 32 uncompressed audio channels for clear sound.

Premium Build Quality

Constructed with 24 AWG copper wire, gold-plated connectors, and superior EMI shielding using Al-Mylar foil and a copper braid, this cable minimizes signal loss and interference. The cable's built-in amplifier circuitry actively boosts the HDMI signal with no external power required. It supports longer connections than regular HDMI.

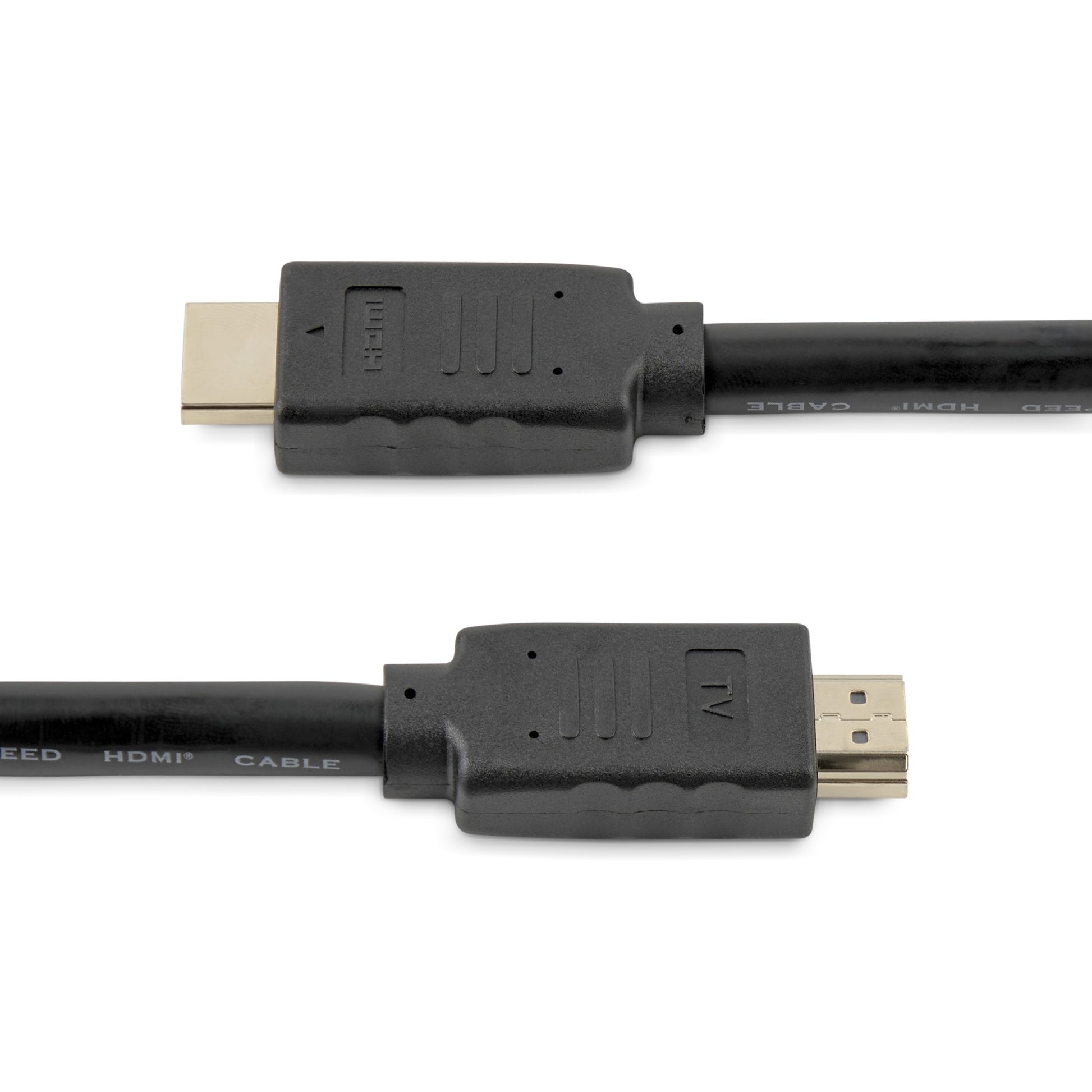

Note : This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please ensure that the HDMI connector labelled with "TV" is connected to the display, in order to ensure that the device and the HDMI source are connected properly.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	60 Hz
Cable shielding	Aluminum mylar foil
Product colour	Black
Cable length	10 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
AWG wire size	24
HDMI version	2.0
Bandwidth	18000 MB/s
3D	Yes
Supported graphics resolutions	3840 x 2160
Plug and Play	Yes
High Dynamic Range (HDR) supported	Yes
Cable rating	CL2
Cable jacket material	Polyvinyl chloride (PVC)
Quantity per pack	1 pc(s)
Certificates
Compliance certificates	CE, RoHS
Weight & dimensions
Weight	1 kg
Package weight	1 kg
Package width	257 mm
Package depth	276 mm
Package height	61 mm
Logistics data
Products per master (outer) case	7 pc(s)
Master (outer) case width	352 mm
Master (outer) case length	319 mm
Master (outer) case height	282 mm
Harmonized System (HS) code	84733080
