StarTech.com 30ft (10m) Active HDMI Cable w/ Ethernet - HDMI 2.0 4K 60Hz UHD

Make the connection with the StarTech.com 30ft (10m) Active HDMI — length and connector details are in the spec table.

Connect 4K HDMI-enabled devices up to 10m away with no signal loss

This Active High Speed HDMI™ Cable with Ethernet establishes a connection between HDMI-enabled devices over long distances, ideal for in-home and office cable runs.

High-Speed HDMI Cable

This High Speed HDMI™ cable supports resolutions of up to 4K at 60Hz (4096 x 2160p), 18Gbps bandwidth, High Dynamic Range (HDR10), Audio Return Channel (ARC), and Dolby Vision, for high contrast ratios, and vivid color.

Reliable Connections Over Long Distances

The cable features built-in amplifier circuitry, which actively boosts the HDMI signal, with no external power required. It is the perfect solution for longer transmissions without any signal loss. It features source and display labels on the connectors to ensure the display and source are properly connected.

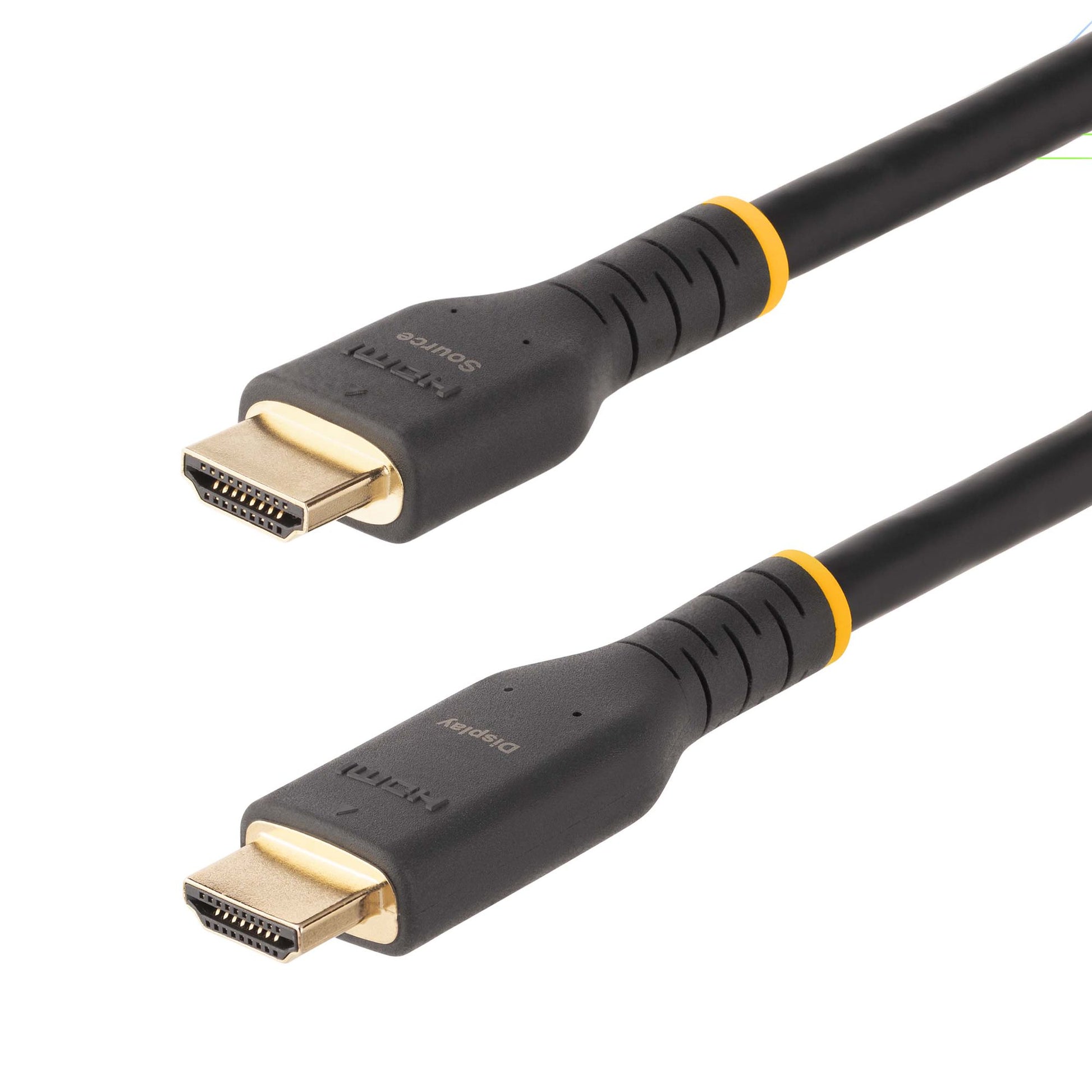

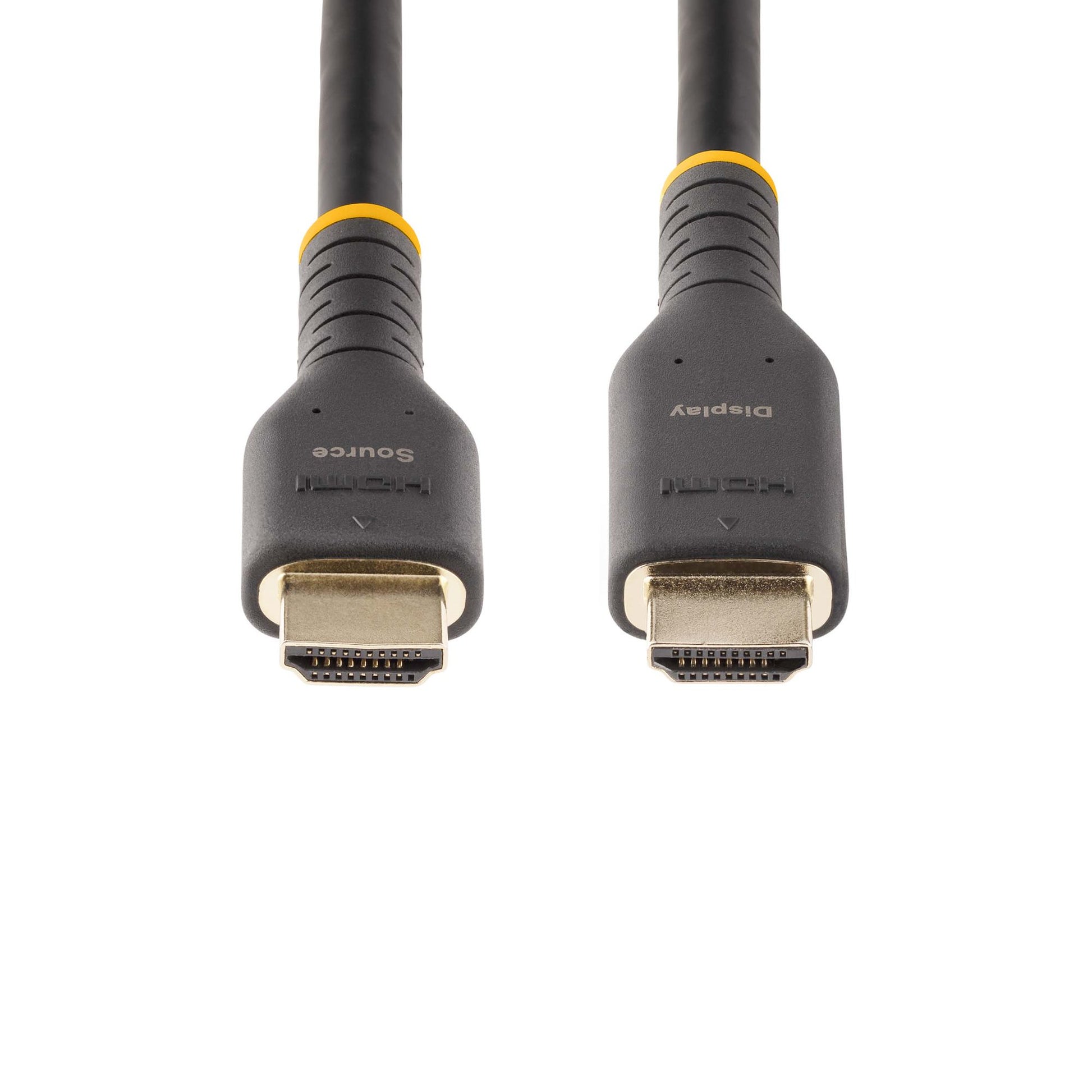

Note : This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the Source and Display labels on the HDMI connectors in order to ensure that the device and the HDMI source are connected properly.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Dolby technologies	Dolby TrueHD, Dolby Atmos, Dolby Digital Plus
HDMI Ethernet channel	Yes
Audio Return Channel (ARC)	Yes
Product colour	Black
Cable length	10 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Cable material	Copper
AWG wire size	28
HDMI version	2.0
HDCP	Yes
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
Cable jacket material	Thermoplastic elastomer (TPE)
HDCP version	2.2
Supported digital audio channels (uncompressed)	32
Cable type	Round cable
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 85%
Sustainability
Sustainability compliance	Yes
Certificates
Compliance certificates	RoHS, CE
Weight & dimensions
Weight	700 g
Cable diameter	7.5 mm
Package weight	700 g
Package width	248 mm
Package depth	219 mm
Package height	54 mm
Logistics data
Products per master (outer) case	16 pc(s)
Master (outer) case width	438 mm
Master (outer) case length	391 mm
Master (outer) case height	300 mm
