StarTech.com 3-Port Hub Ethernet USB-C Docking Station 100W

One cable, full desk: the StarTech.com 3-Port Hub Ethernet turns your laptop into a workstation with wired networking, 100W charging over a single USB-C connection.

Enable 2.5G ethernet, 100W PD pass-through, and add three USB 3.2 10Gbps ports, using this portable adapter

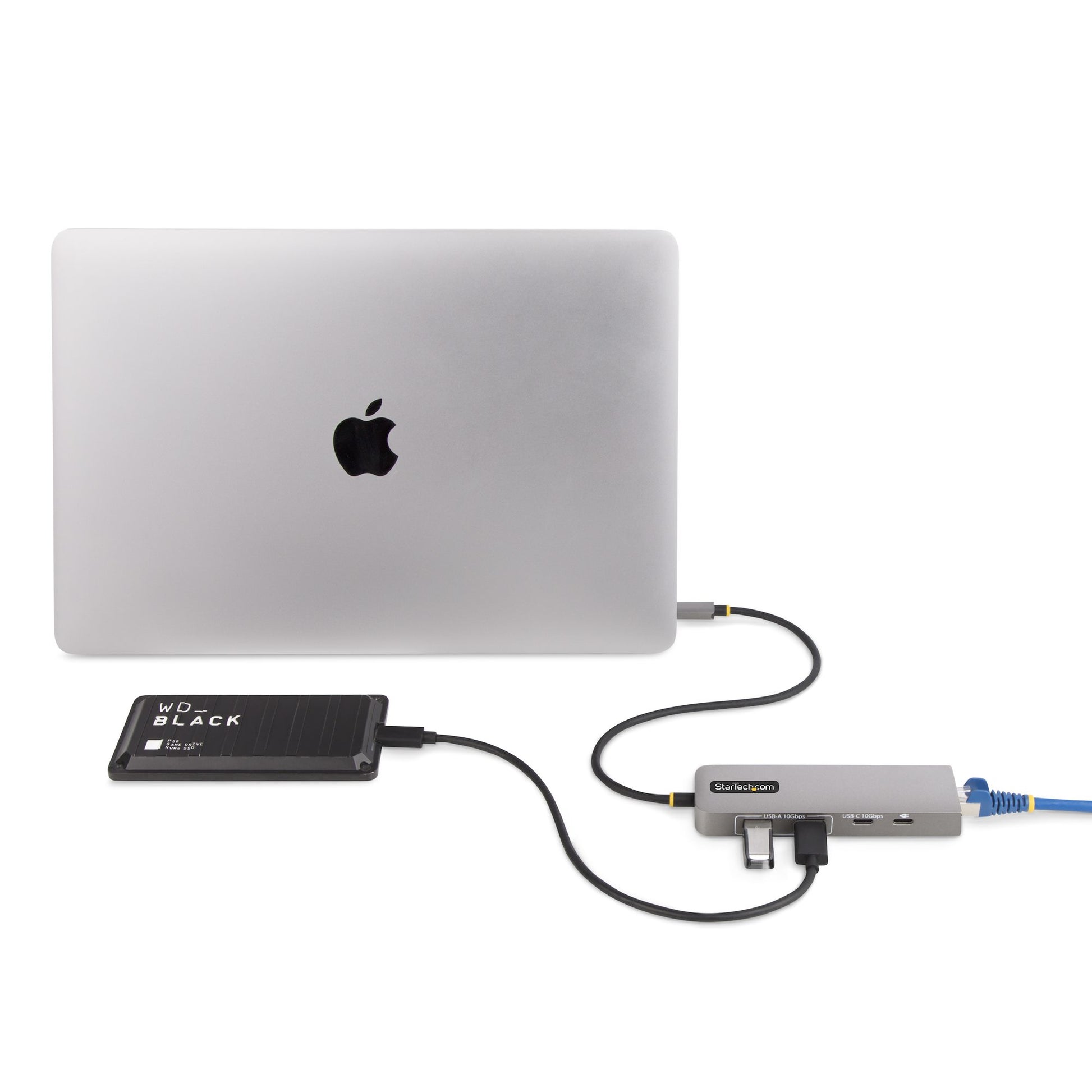

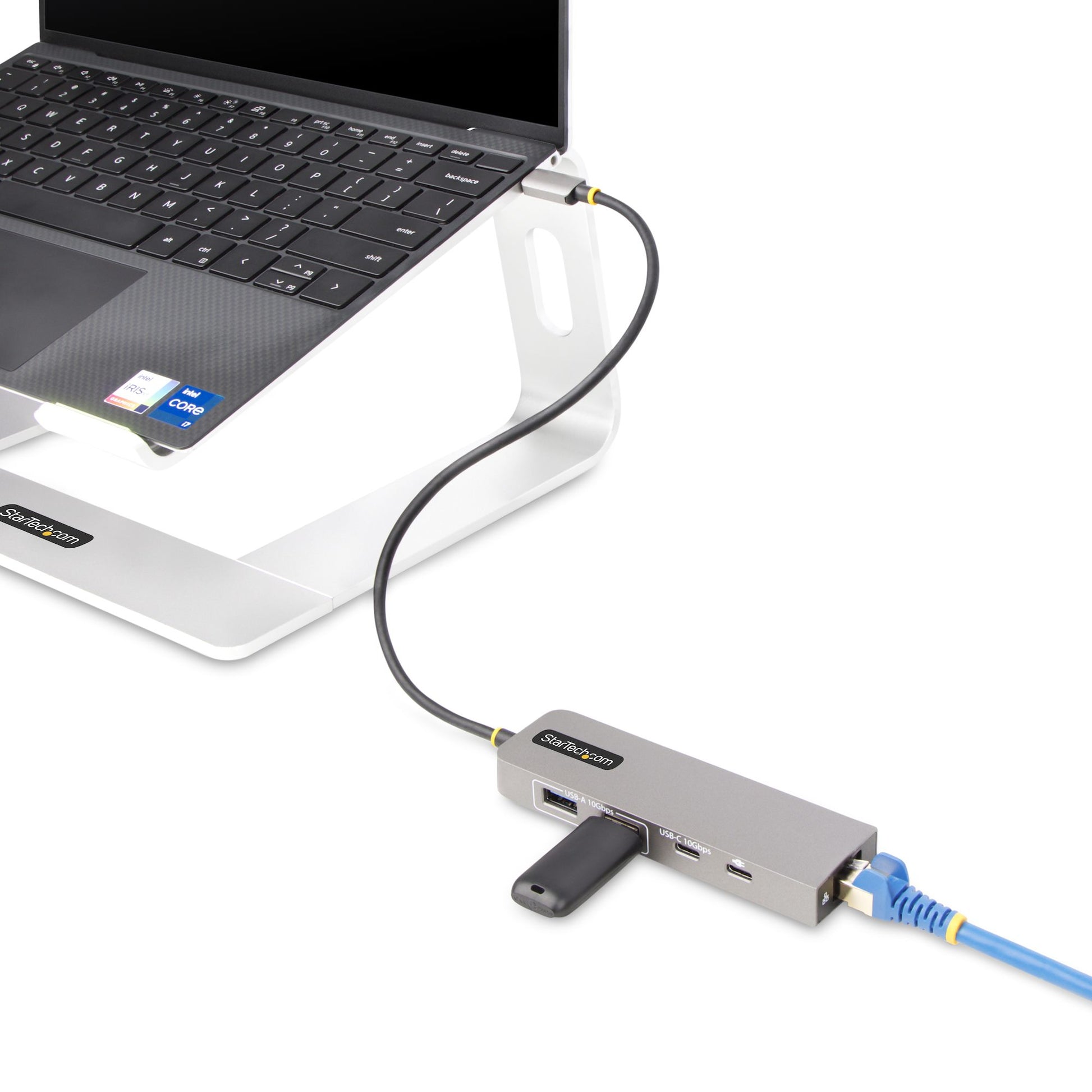

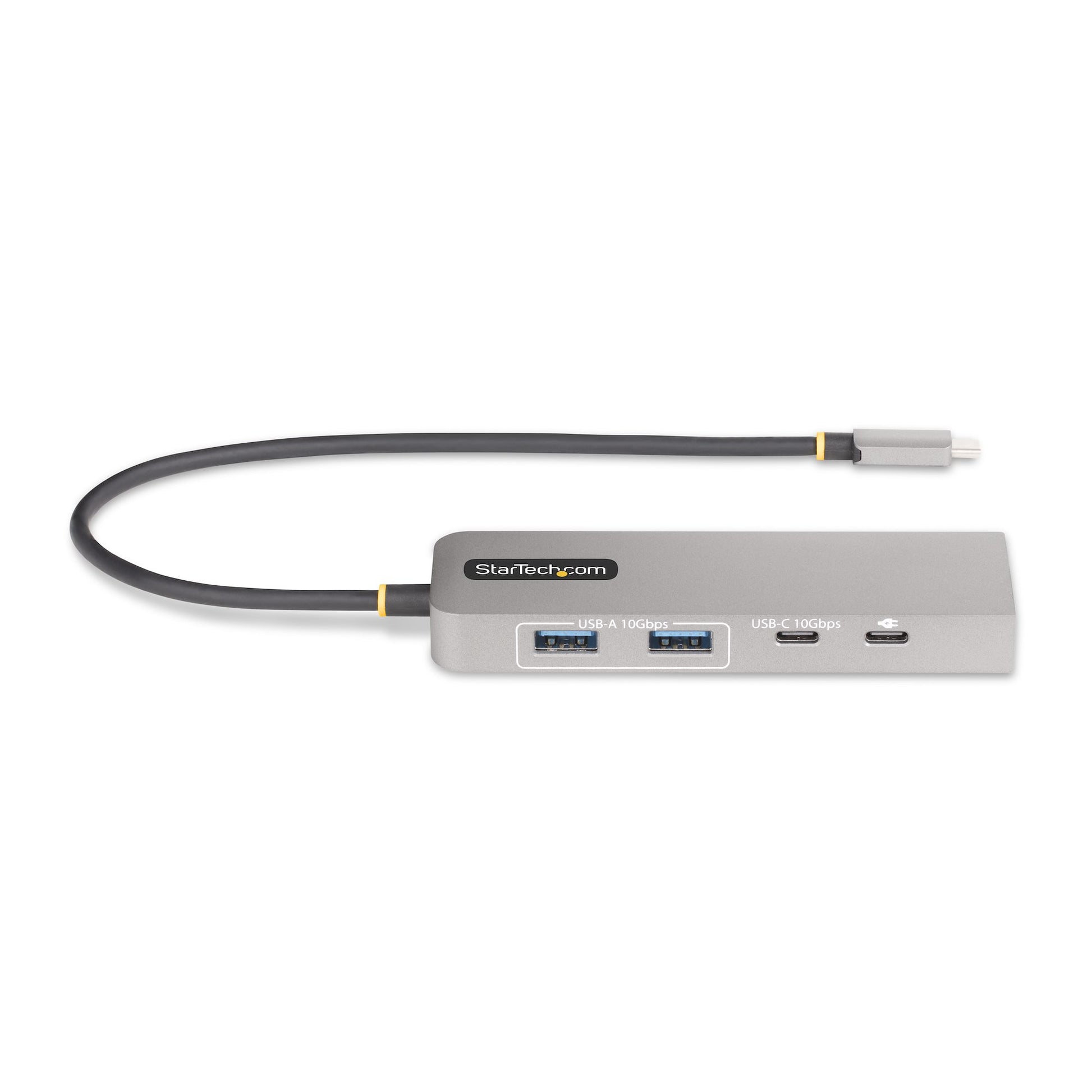

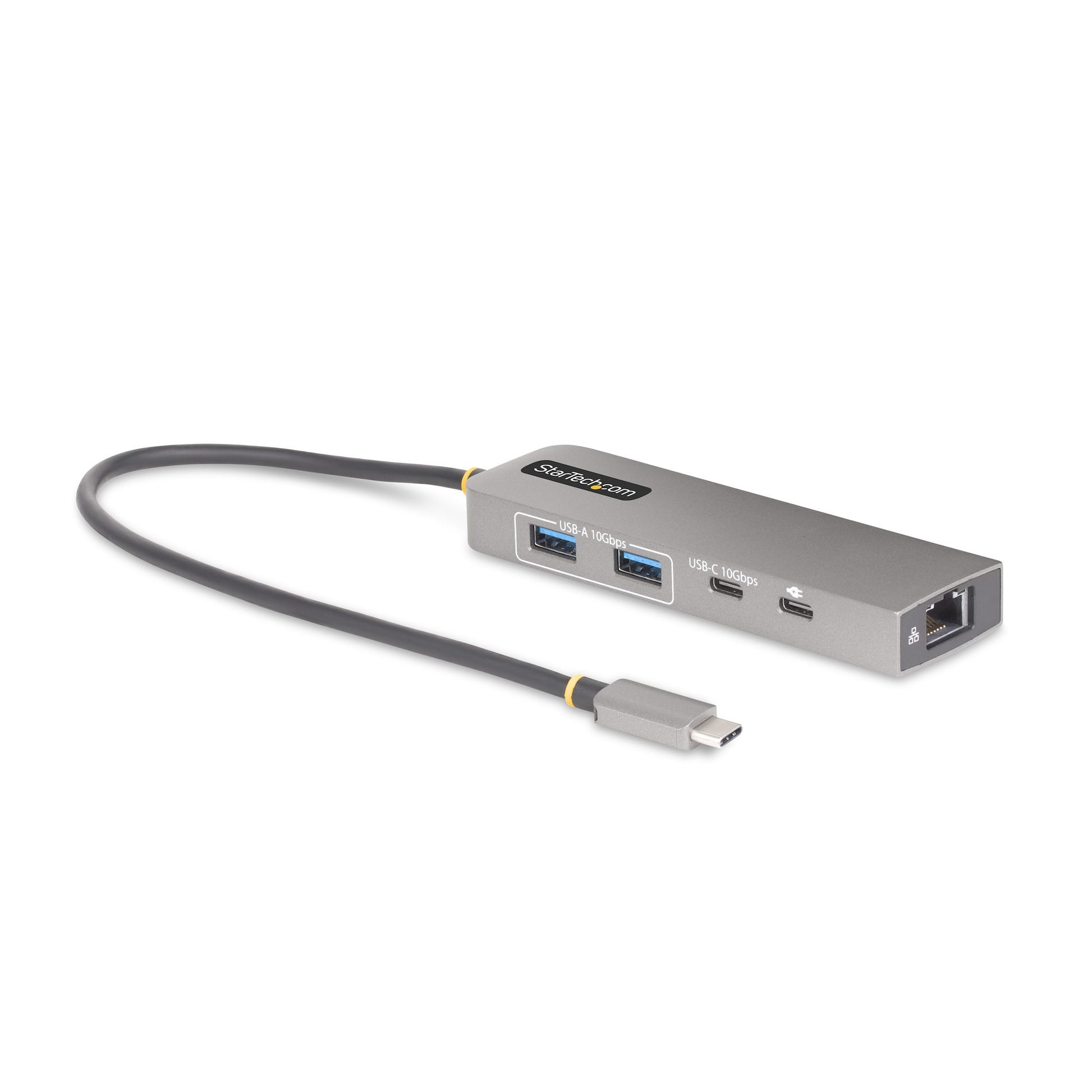

This USB Type-C Hub with 2.5Gigabit Ethernet and 100W USB Power Delivery Pass-Through adds three USB 3.2 Gen 2 (10Gbps) ports (2x USB-A, 1x USB-C) to a USB-C enabled computer. Connect the USB hub to a USB-C port on a laptop, using the built-in 1ft (30cm) USB-C host cable. Charge a host laptop by connecting the host laptop's USB-C power supply to the USB Power Delivery (PD) 3.0 port. Backward compatibility with USB 2.0 (480Mbps) devices ensures support for a wide range of modern and legacy USB peripherals.

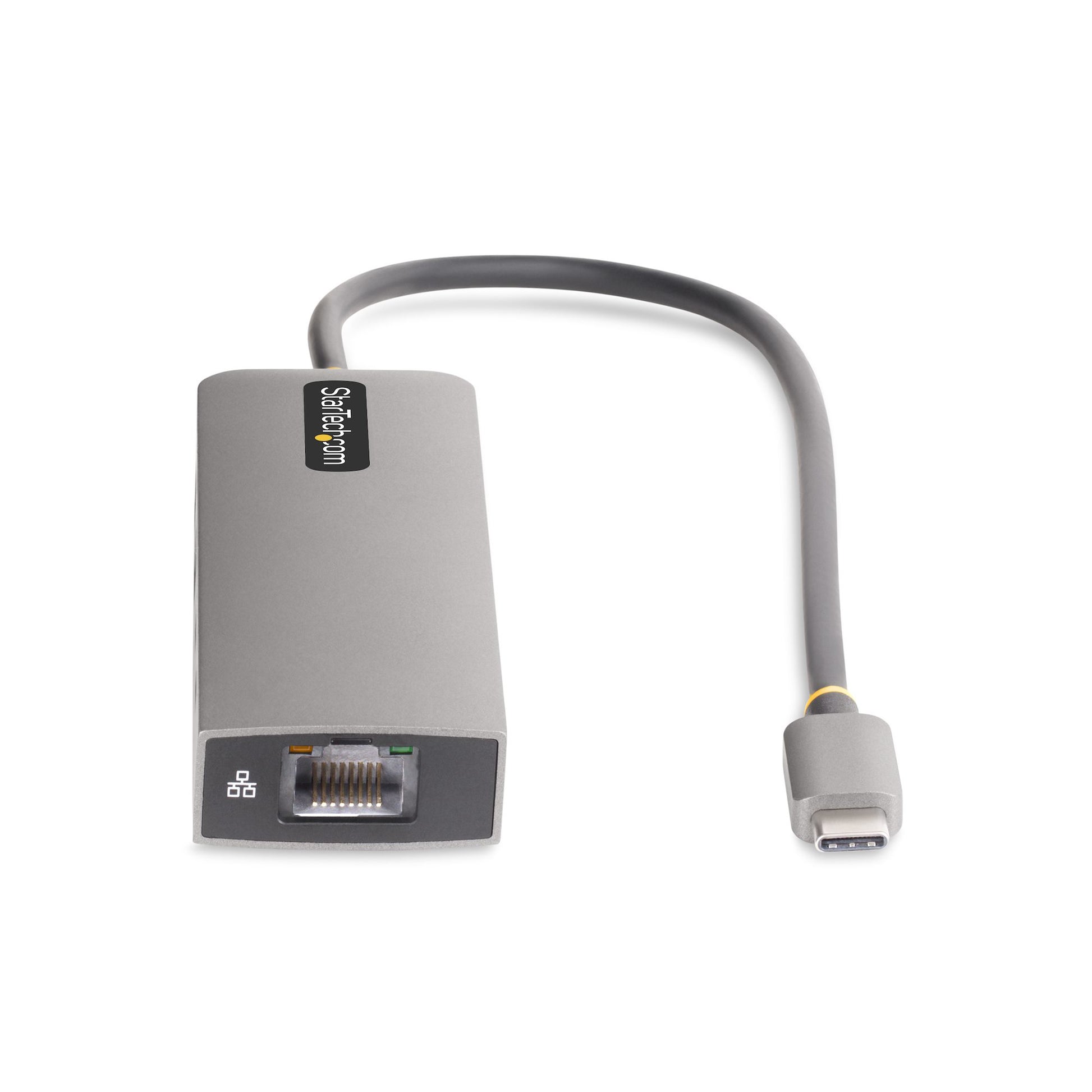

2.5 Gigabit Ethernet

The USB hub features a 2.5 Gigabit Ethernet adapter. The Ethernet controller is compatible with the IEEE 802.3bz standard (2.5GBASE-T/NBASE-T) and supports Wake-on-LAN (WoL), Jumbo Frames, and V-LAN Tagging. The network adapter enhances network reliability, security, and performance at speeds of up to 10/100/1000/2500Mbps.

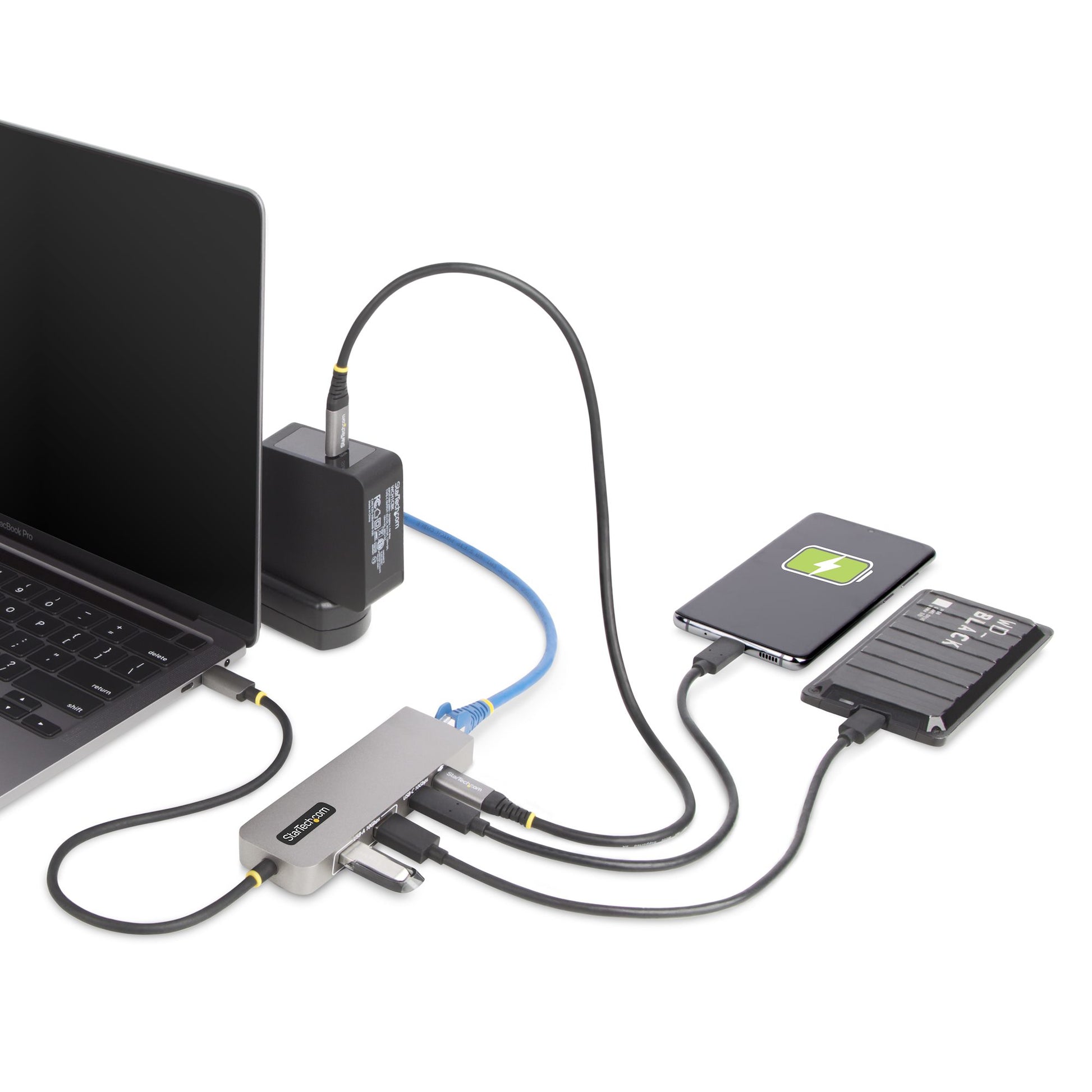

USB Power Delivery Pass-Through

This USB hub features 100W USB Power Delivery 3.0 pass-through (85W laptop charging). Connect a power source to the PD pass-through port to power the connected host device. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when switching power sources (USB-C power adapter to bus power).

This Power is dynamically shared across the downstream ports. For added protection to the USB hub and any connected devices, the USB hub features Overcurrent Protection (OCP). OCP prevents faulty USB peripherals from drawing more power than is safely allocated.

Plug and Play

This device is compatible with all major operating systems, including Windows, macOS, ChromeOS, iPadOS, and Android. The Hub is automatically detected, configured, and installed upon connection to a host computer.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• USB Event Monitoring Utility: Track and log connected USB devices.

• MAC Address Pass-Through Utility: Improve network security.

• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-tools

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
Microphone in	No
Headphone outputs	0
DC-in jack	No
Connectivity technology	Wired
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
Network
Networking standards	IEEE 802.3bz
Wake-on-LAN ready	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Performance
Product colour	Grey
Card reader integrated	No
LED indicators	Activity, Link
Data transfer rate	10 Gbit/s
Housing material	Plastic
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Products per master (outer) case	60 pc(s)
Master (outer) case width	330 mm
Master (outer) case length	530 mm
Master (outer) case height	310 mm
Power
Power source type	USB
Wireless charging	No
USB cable length	0.305 m
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Weight & dimensions
Weight	68 g
Width	163 mm
Depth	34 mm
Height	15 mm
Package weight	129 g
Package width	142 mm
Package depth	175 mm
Package height	33 mm
Packaging content
Quick start guide	Yes
Other features
Chipset	VIA - VL103, VIA - VL822, Realtek - RTL8156B

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
