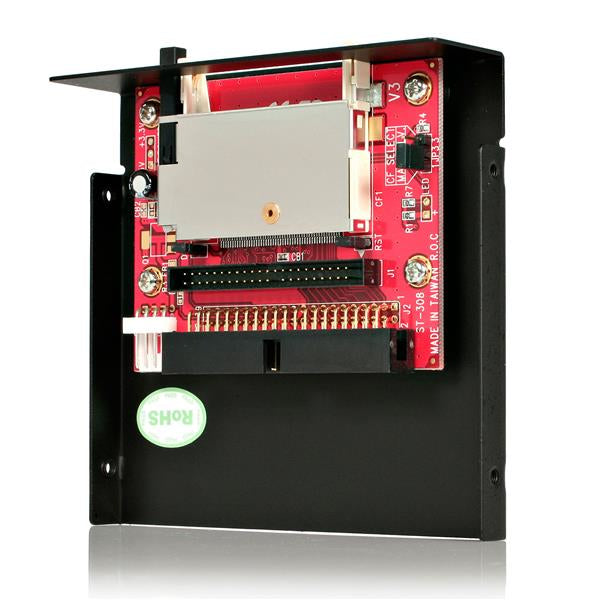

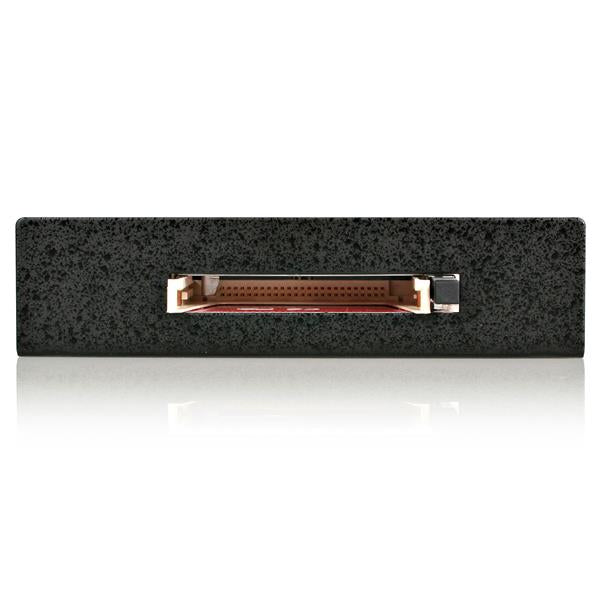

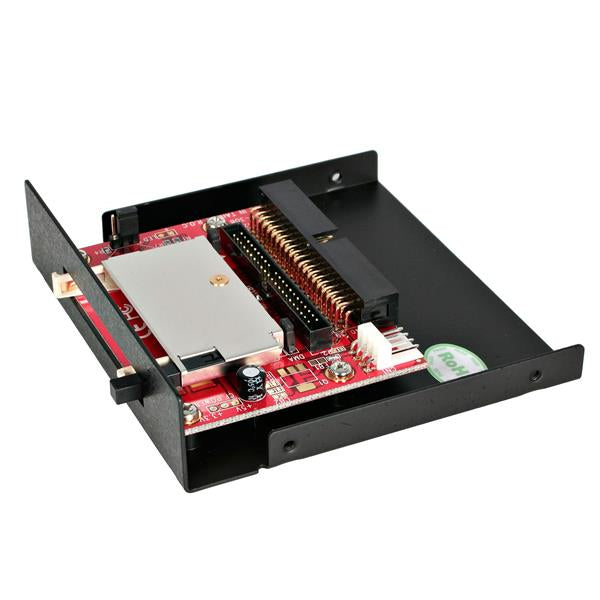

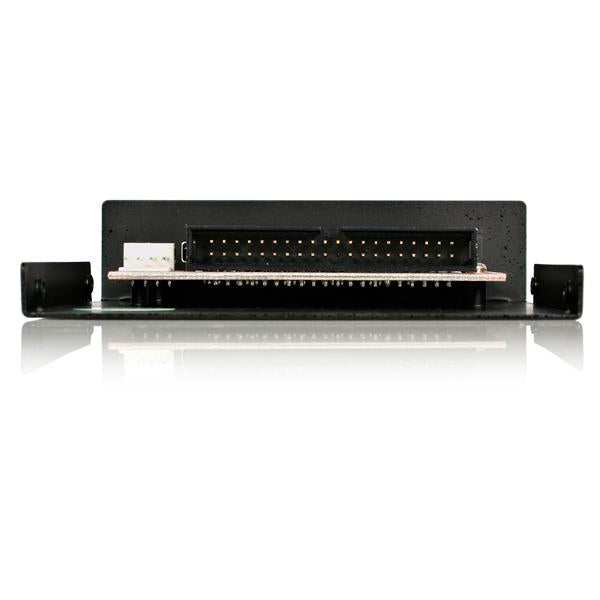

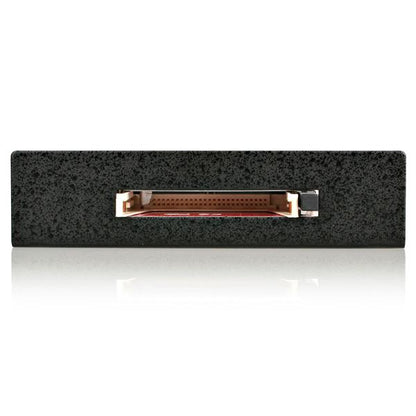

StarTech.com 3.5in Drive Bay IDE to Single CF SSD Adapter Card Reader - TAA Hub

The StarTech.com 3.5in Drive Bay IDE expands your ports in seconds — plug in and go.

Connect a CF card to a computer through an IDE connector

This Compact Flash IDE adapter is a perfect solution for accessing CompactFlash (CF I, CF II) and IBM Micro Drive media, allowing you to access the flash/micro drive media as if it were an IDE hard drive. The CF/IDE adapter can be installed in the computer case through simple mounting in an available 3.5in drive bay, for connection to the computer IDE bus through either a 40 or 44-pin connection. Designed and constructed to provide a reliable media card platform, the CF IDE adapter is backed by StarTech.com's 2-year warranty.

Specifications

Ports & interfaces
Internal	Yes
Output interface	CF
Host interface	IDE
Technical details
Data transfer rate (max)	0.133 Gbit/s
Compliance certificates	RoHS
Performance
Harmonized System (HS) code	84733020
Operational conditions
Operating temperature (T-T)	-55 - 85 °C
Storage temperature (T-T)	-55 - 85 °C
Operating relative humidity (H-H)	5 - 85%
Weight & dimensions
Width	97 mm
Depth	100 mm
Height	25 mm
Weight	145 g
Package width	143 mm
Package depth	173 mm
Package height	34 mm
Package weight	215 g
Packaging data
User guide	Yes
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case width	360 mm
Master (outer) case length	370 mm
Master (outer) case height	320 mm

Downloads

• Datasheet (PDF)
