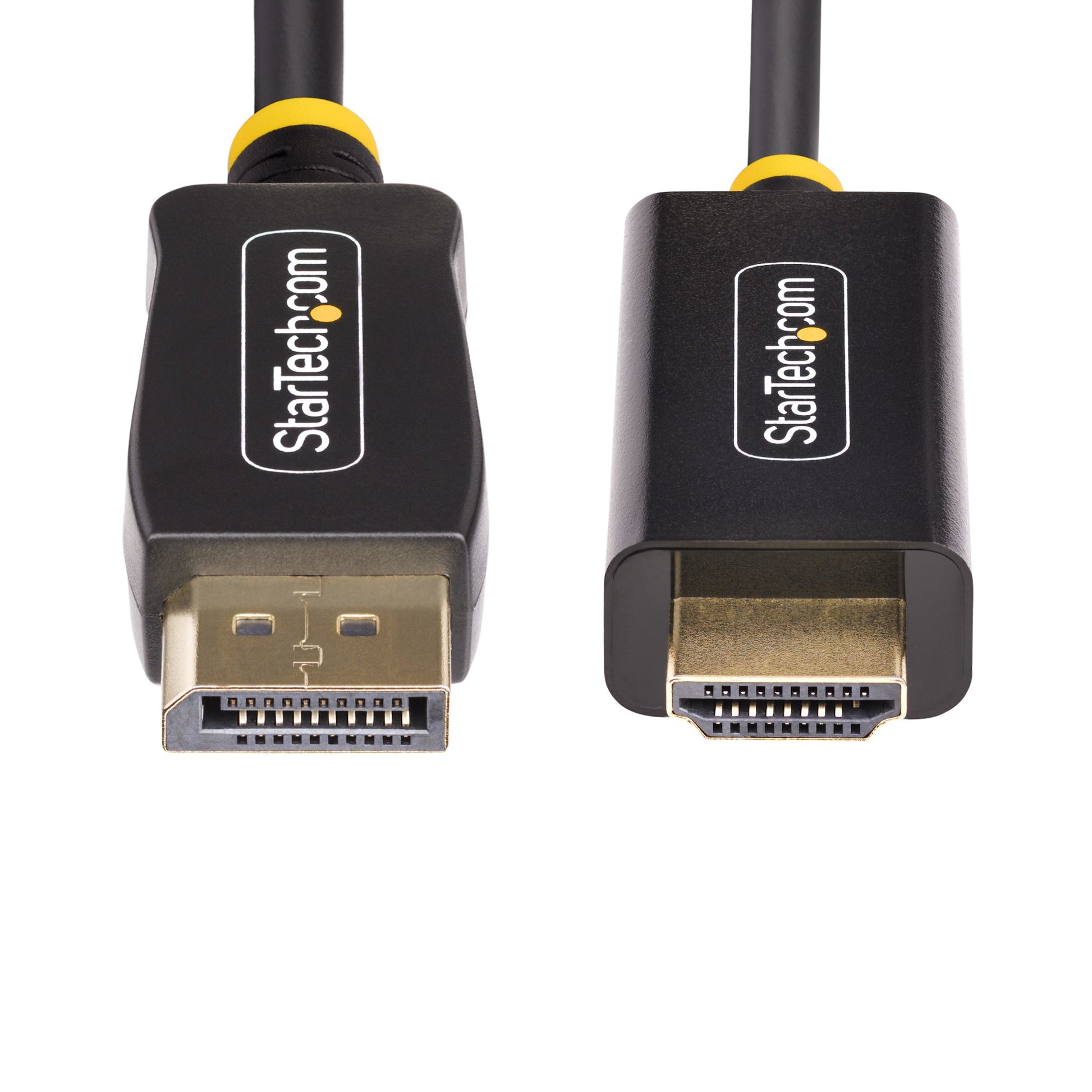

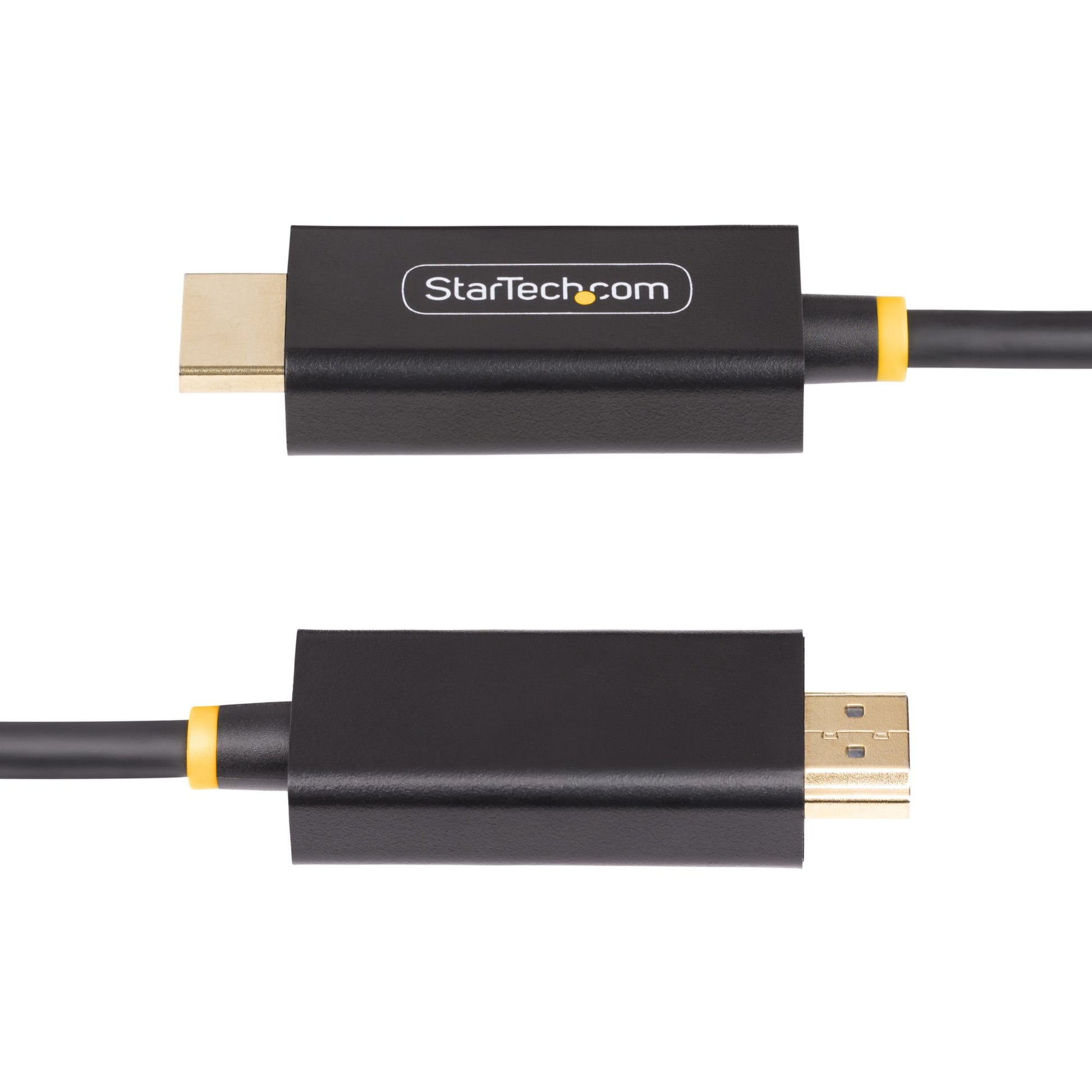

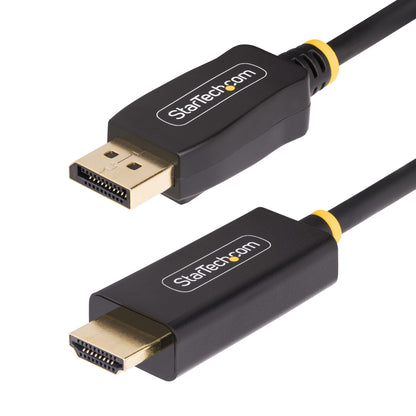

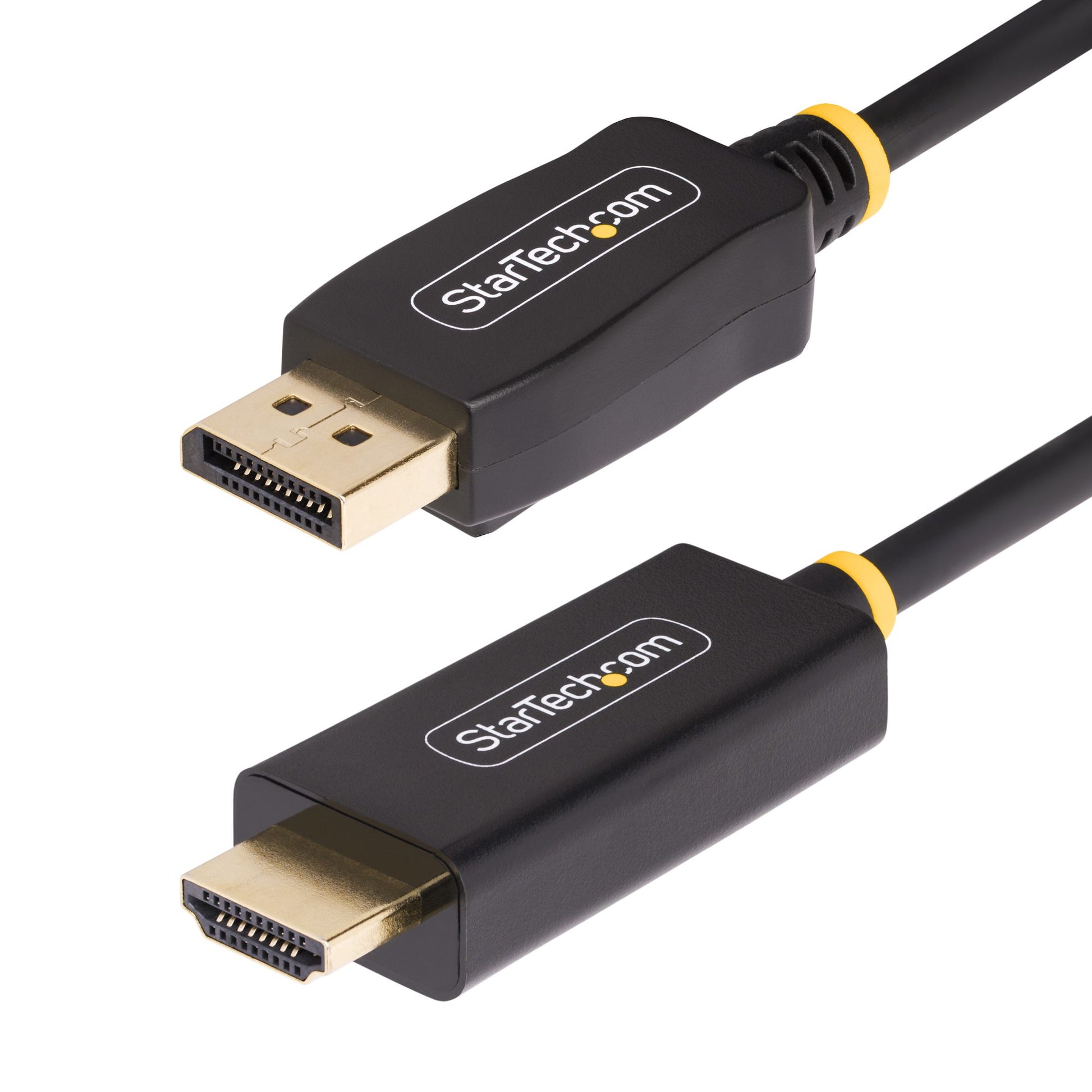

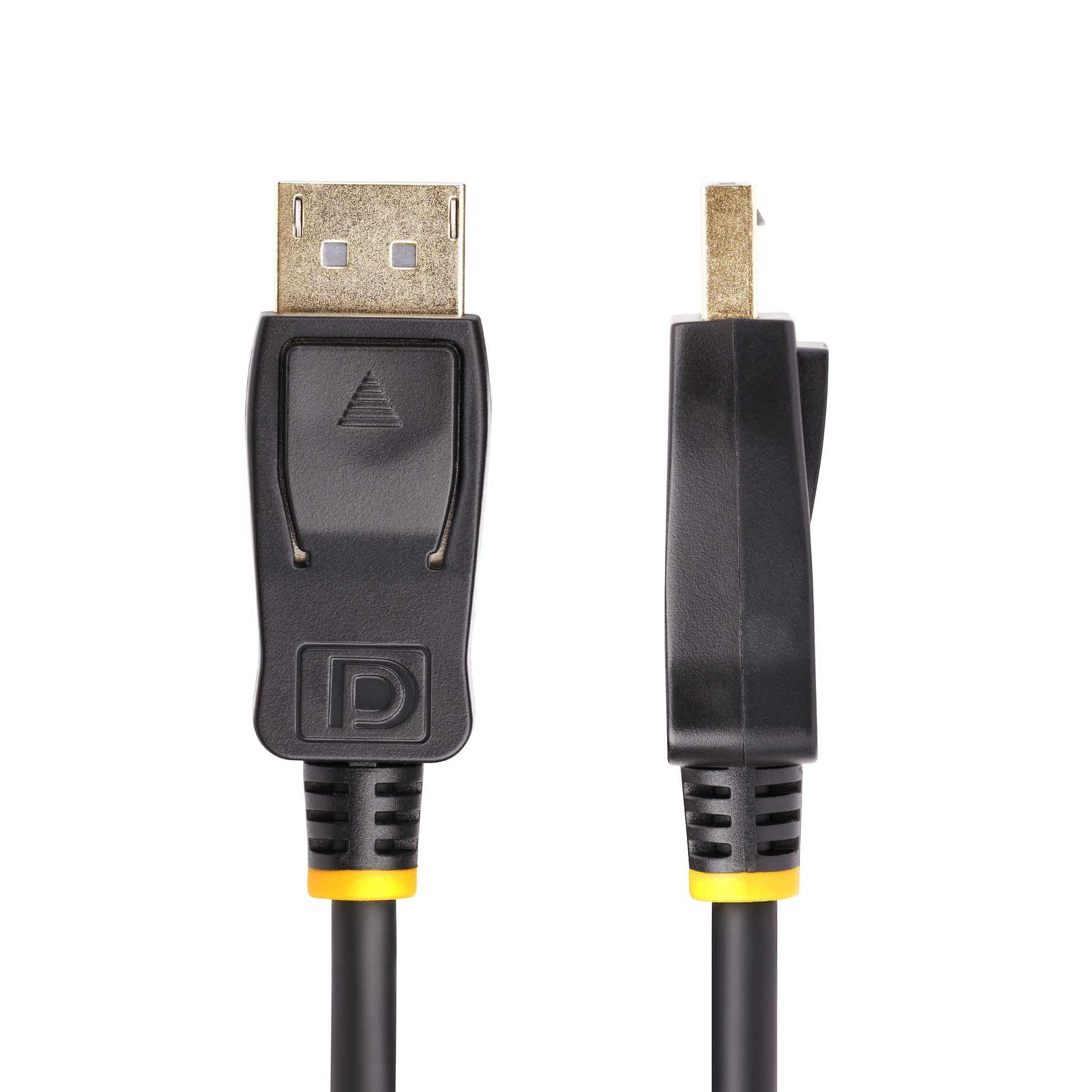

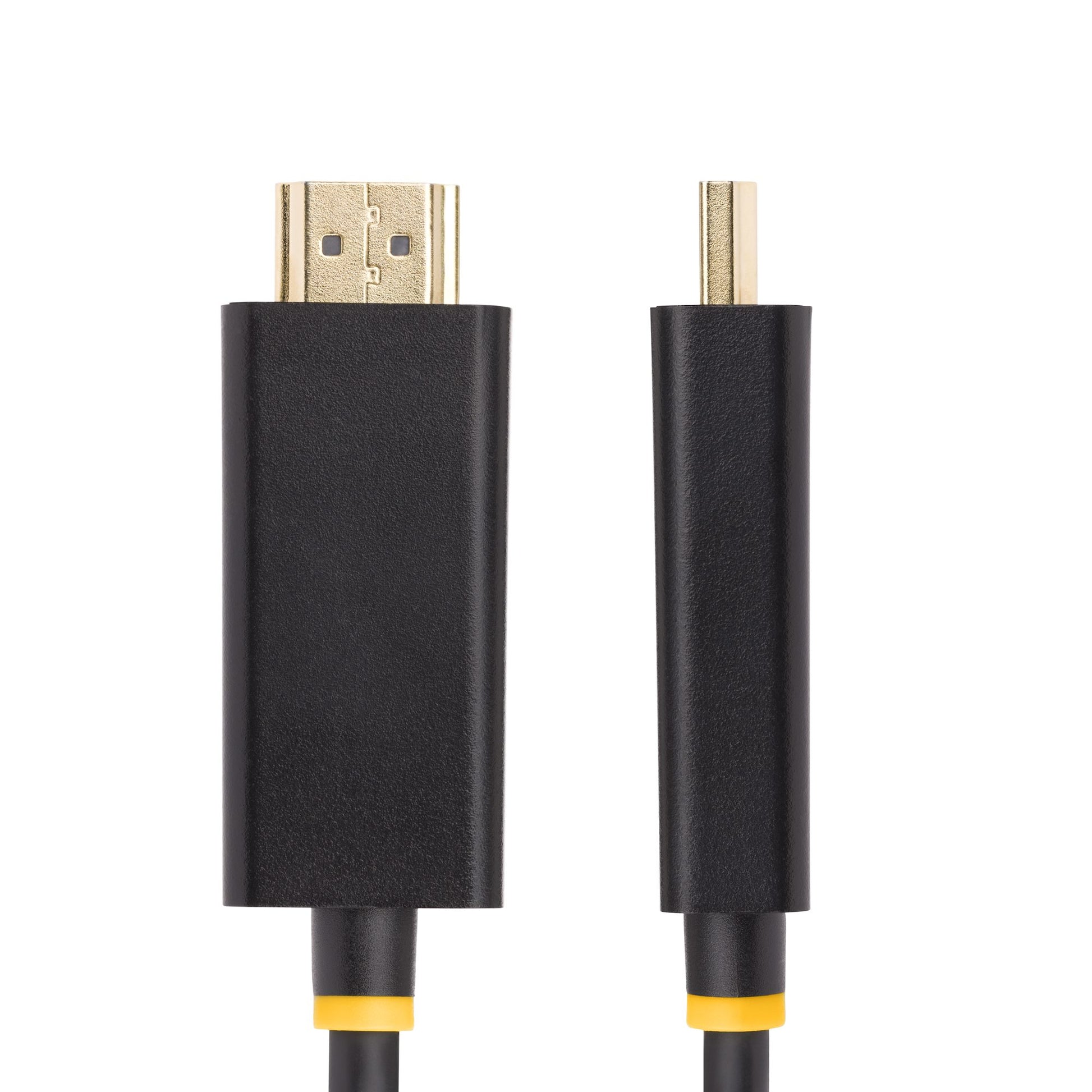

StarTech.com 3.3ft (1m) DisplayPort to HDMI Adapter Cable, 4K 60Hz with HDR, DP to
StarTech.com 3.3ft (1m) DisplayPort to HDMI Adapter Cable, 4K 60Hz with HDR, DP to
Regular price
£22.15 GBP
Regular price
Sale price
£22.15 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Make the connection with the StarTech.com 3.3ft (1m) DisplayPort to — length and connector details are in the spec table.

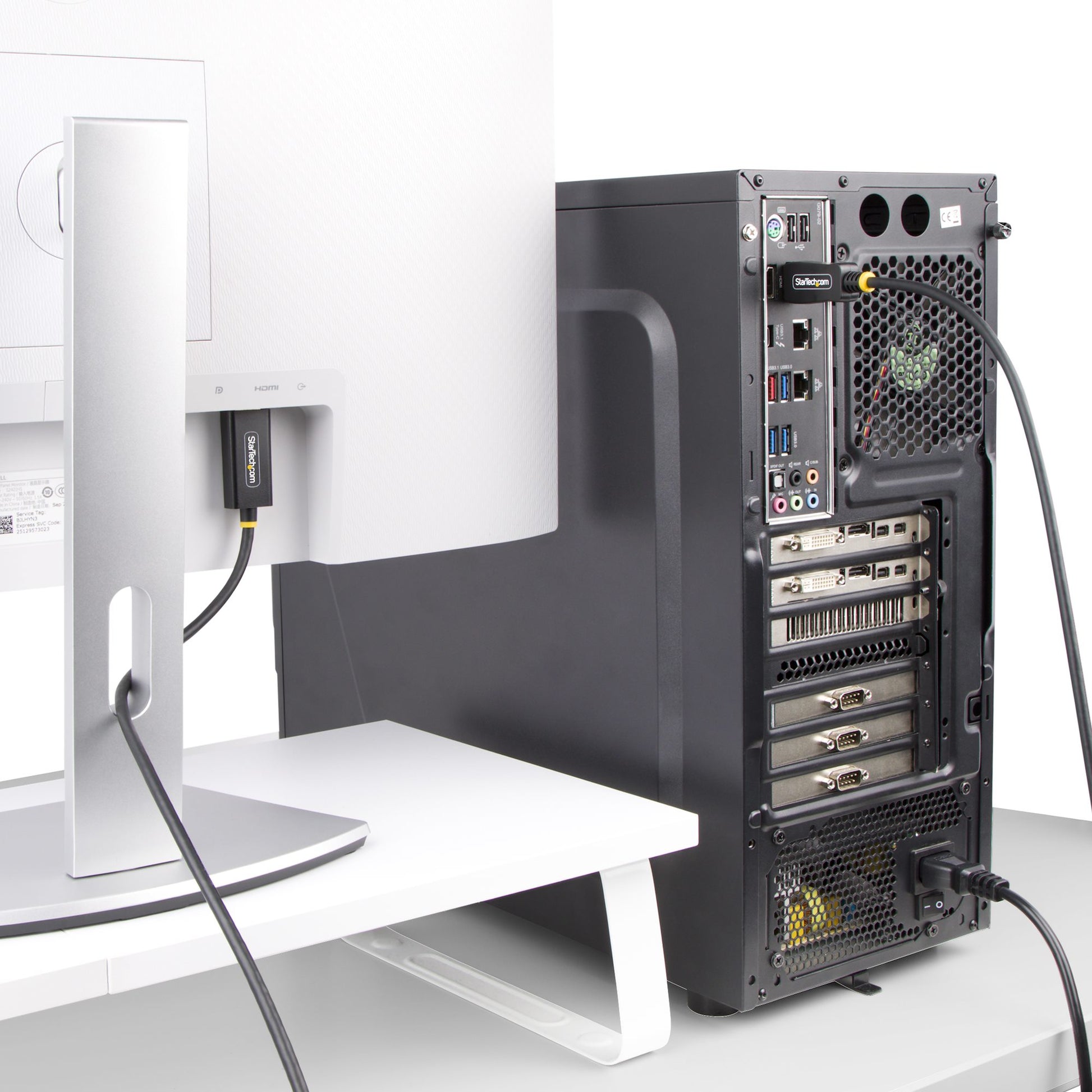

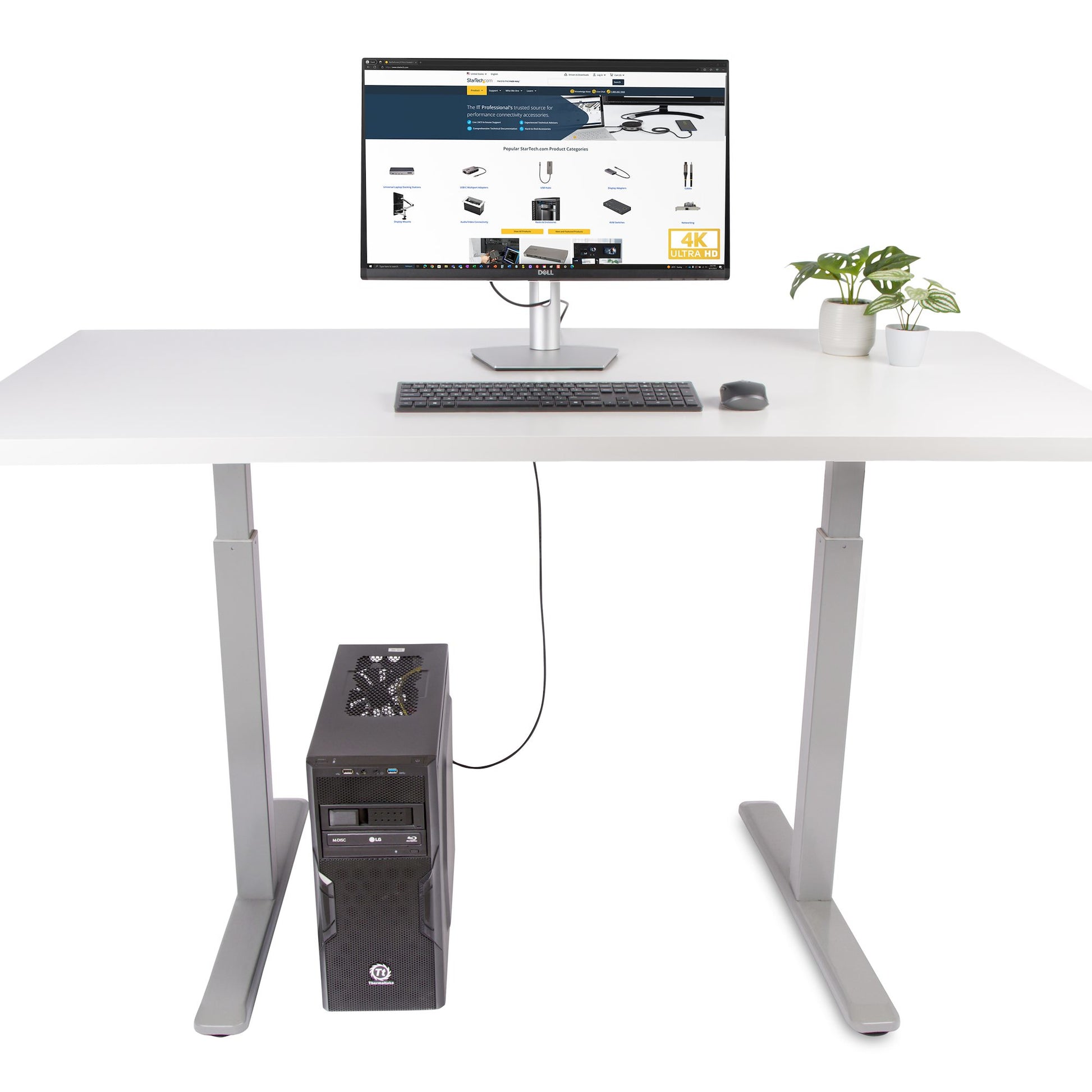

Connect a DisplayPort source to an HDMI display up to 3.3ft (1m) away, with support for up to 4K 60Hz HDR videoConnect a DisplayPort-enabled desktop to 4K 60Hz High Dynamic Range (HDR)-capable HDMI monitor, using this 3.3-foot (1-meter) Active DisplayPort to HDMI Adapter Cable.
4K 60Hz HDR Capabilities
HDR improves visual quality by providing a wide assortment of colors across a dynamic range of brightnesses, resulting in a more vibrant viewing experience. The DP 1.4 to HDMI 2.0b adapter supports 18Gbps bandwidth, allowing for 4:4:4/RGB color space, 8-bit with dithering, and 7.1ch audio. It also supports HBR3 and HDCP 1.4/2.3.
Compatibility
The Universal Adapter Cable is compatible with all hardware platforms and any operating system. Utilize integrated or dedicated GPU (Intel/AMD/Nvidia) capabilities, enabling high-performance graphics with minimal CPU usage.
Designed and Built for IT Professionals
Integrated video adapter cable reduces points of failure, signal loss and clutter, and requires no additional power. Built with adaptive receiver equalization to optimize the input signal and amplify the output signal, to ensure display compatibility. Cage shielding prevents Electromagnetic Interference (EMI) and helps maintain signal integrity. This Active Adapter Cable works with computers from Dell, HP, Lenovo, and other desktop manufacturers. It is backward compatible with 4K 30Hz, 1080p, and other lower resolutions.
Specifications
| Features | |
|---|---|
| Converter type | Active video converter |
| Chipset | Synaptics - VMR7100 |
| Colour depth | 10 bit |
| HDMI version | 2.0b |
| DisplayPort version | 1.4 |
| Product colour | Black |
| Cable length | 1 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Bandwidth | 18000 MB/s |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1440, 3072 x 1728, 3200 x 1800, 3840 x 2160, 4096 x 2160 |
| HDCP | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 120 Hz |
| HDCP version | 1.4/2.3 |
| High Dynamic Range (HDR) supported | Yes |
| Supported audio channels | 7.1 |
| Colour sampling | 4:4:4 |
| Cable type | Round cable |
| Refresh rate at maximum resolution | 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Compliance certificates | RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Cable diameter | 5 mm |
| Weight | 55 g |
| Package width | 119 mm |
| Package depth | 168 mm |
| Package height | 27 mm |
| Package weight | 55 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 305 mm |
| Master (outer) case length | 405 mm |
| Master (outer) case height | 310 mm |
| Products per master (outer) case | 150 pc(s) |
