StarTech.com 2U Wall Mount Network Rack - 14In. Deep (Low Profile) - 19" Patch Panel
StarTech.com 2U Wall Mount Network Rack - 14In. Deep (Low Profile) - 19" Patch Panel
Regular price
£35.05 GBP
Regular price
Sale price
£35.05 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Build a tidy install with the StarTech.com 2U Wall Mount Network — dimensions and mounting details are in the spec table.
Mount equipment that is up to 14 inches deep, such as patch panels or network switches, to your wallThe 2U 14in deep wall mounting bracket for patch panels delivers a sturdy and dependable equipment storage option, allowing you to wall mount data/IT equipment for a more efficient and accessible operating environment. It's the perfect solution for areas where space is at a premium like SoHo (small office, home office) environment, or space limited server room because it doesn't take any floor space.
Sturdy Construction & Easy Installation

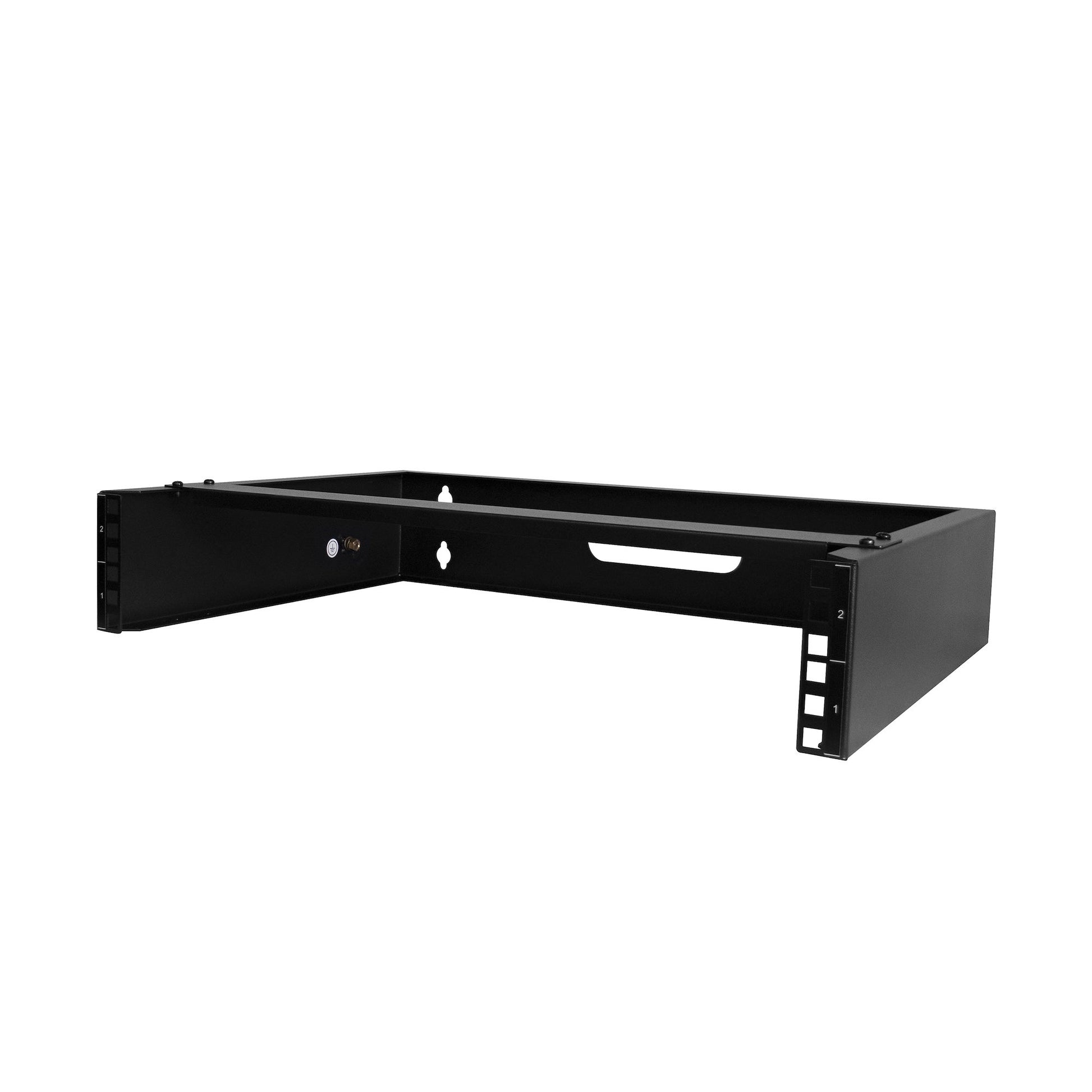

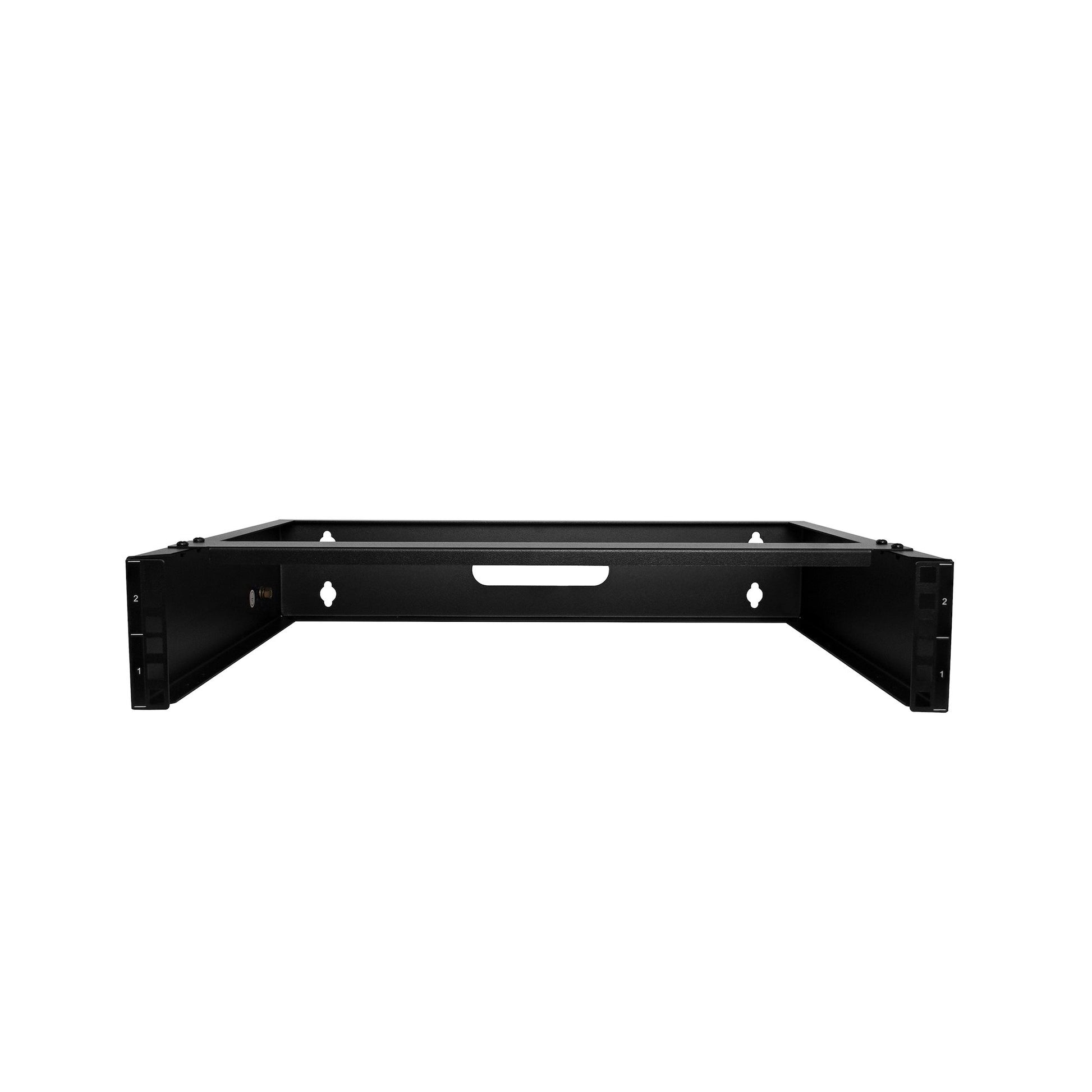

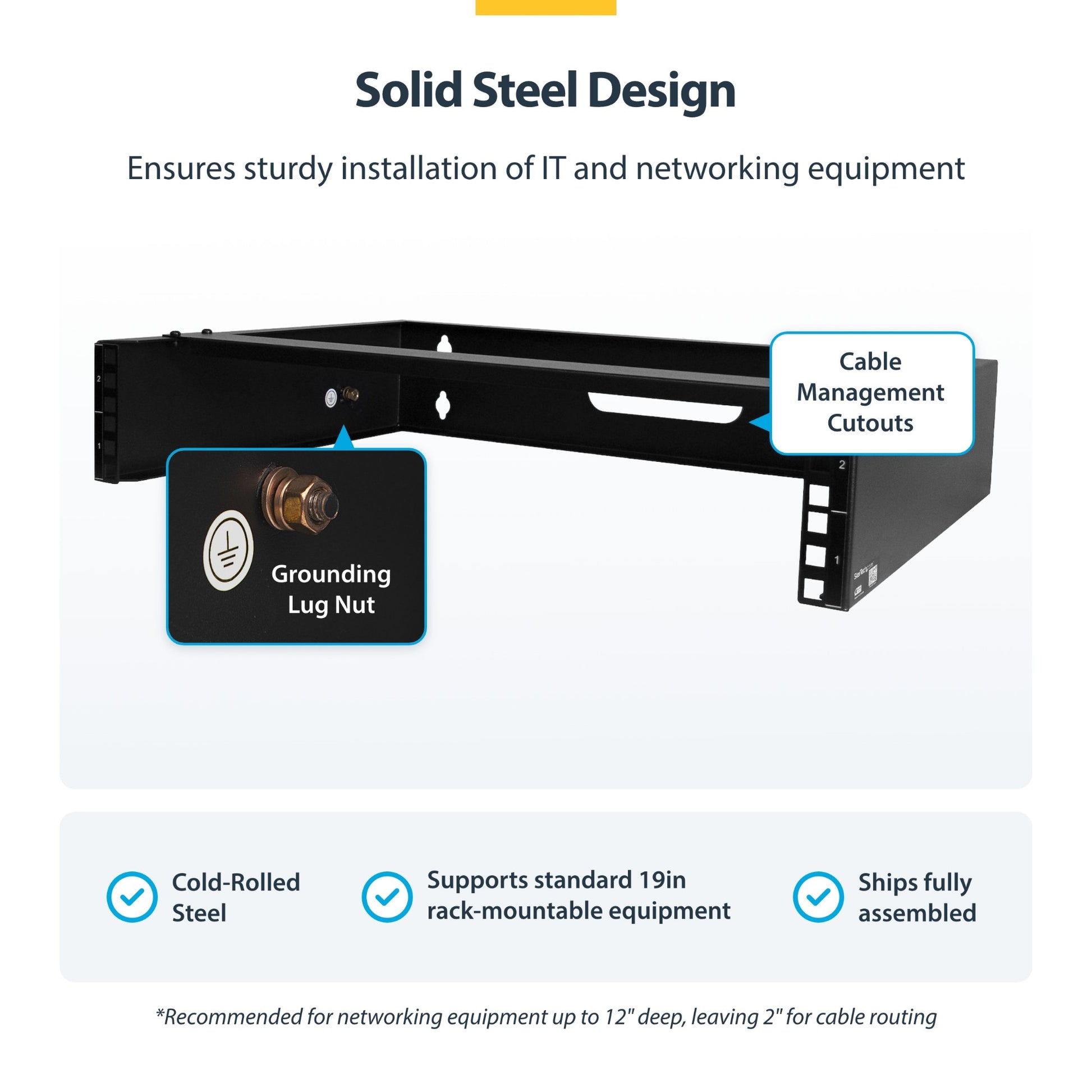

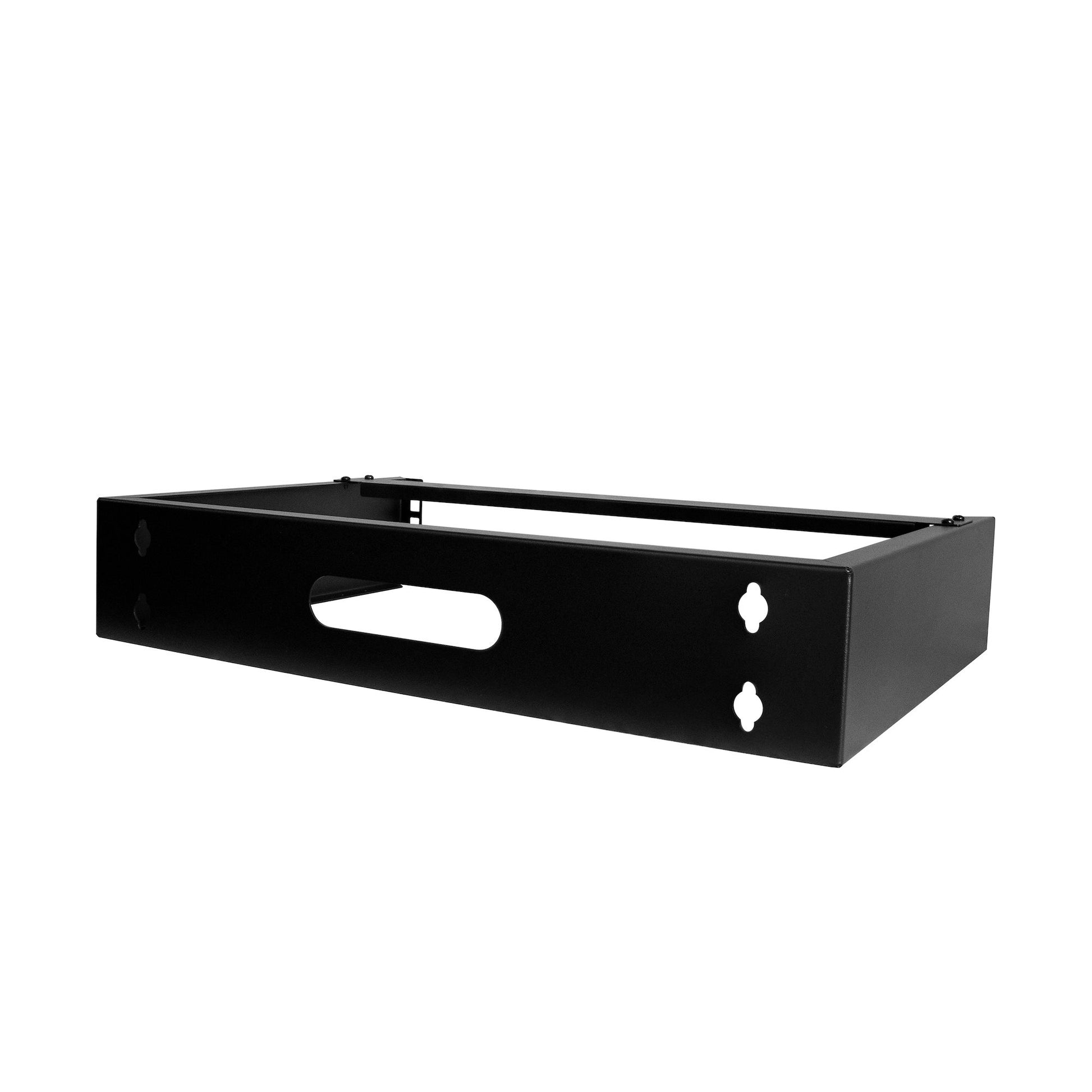

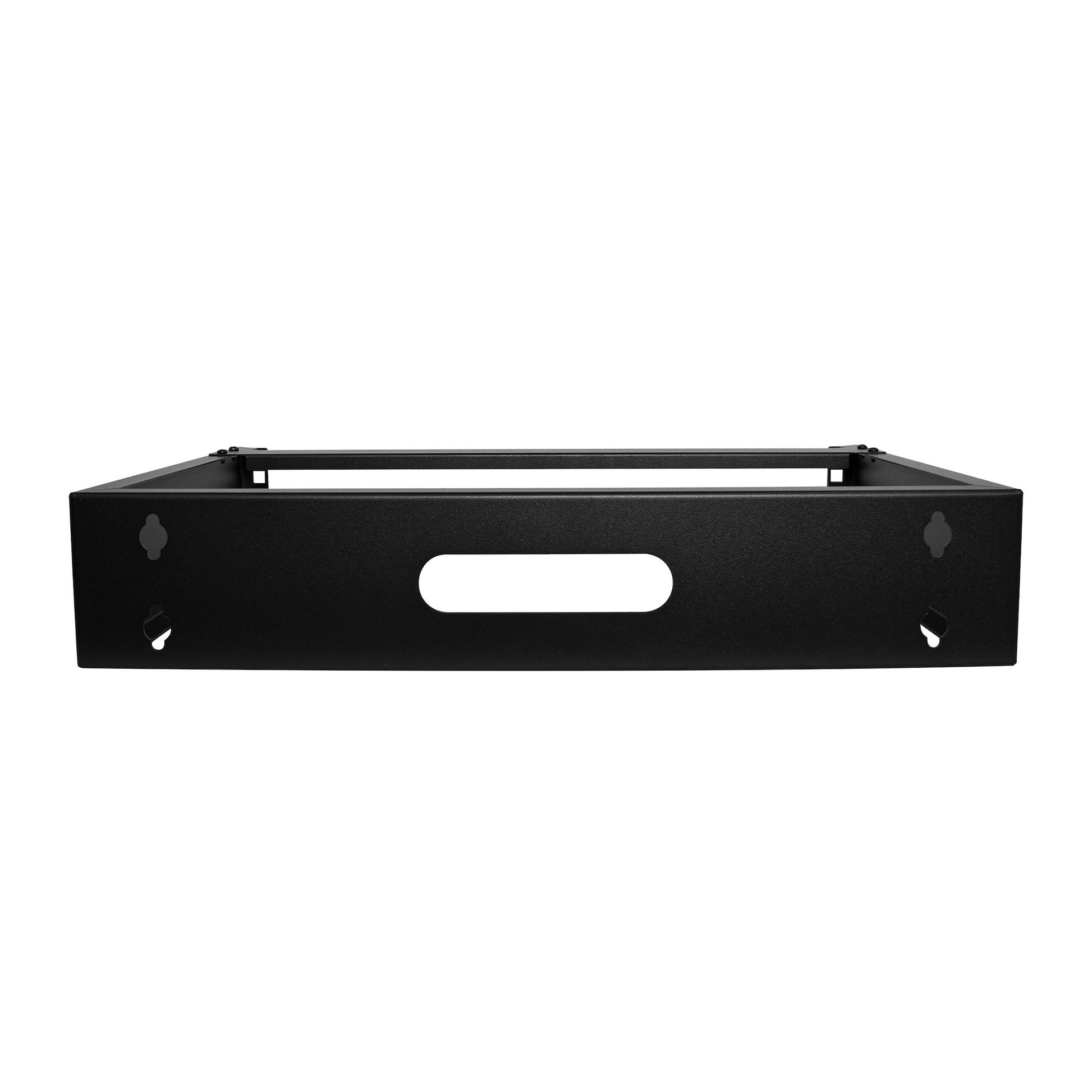

The mounting bracket features an all-steel design and is suitable for mounting patch panels, or other slim 19in equipment to a wall, and to organize cabling or equipment in your network closet, wiring closet, back office, or IDF. The sturdy steel construction is especially helpful for durability and stability. Also, because The open frame wall rack's mounting holes are positioned 16in. apart, allowing you a simple and secure wall-stud anchoring to your existing construction framework.
Includes Hardware

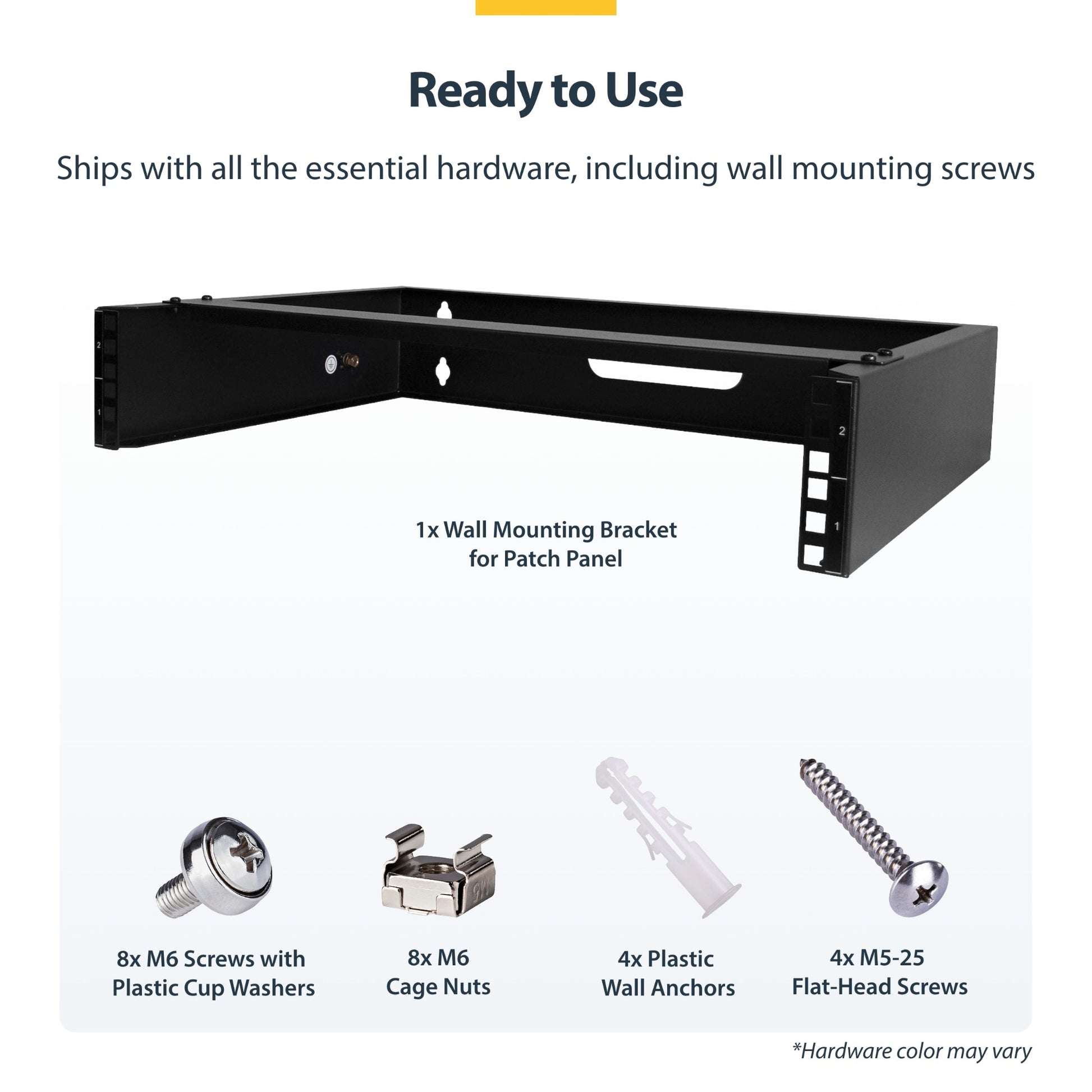

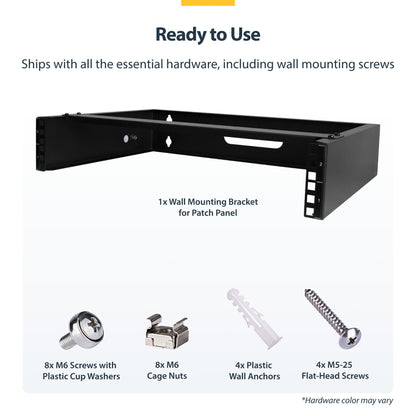

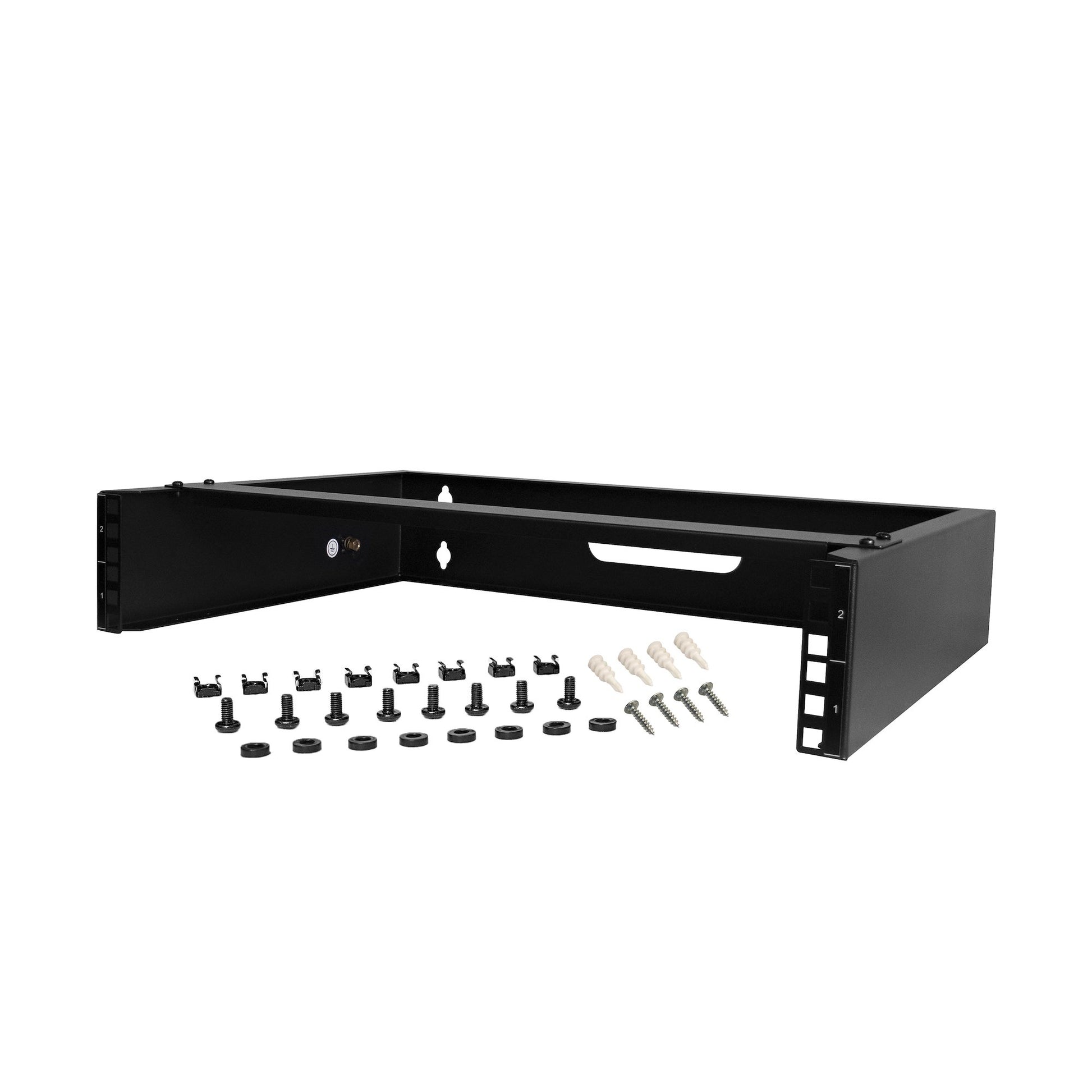

M6 square cage nuts and M6 screws are included with the wall-mount bracket, additionally, M5x25 mounting screws are included to save you the hassle of sourcing separate mounting hardware.
The RACK-2U-14-BRACKET is backed by a StarTech.com lifetime warranty and free lifetime technical support
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 394 mm |
| Package width | 532 mm |
| Package height | 140 mm |
| Package weight | 3.3 kg |
| Mounting depth (max) | 30 cm |
| Width | 498 mm |
| Depth | 356 mm |
| Height | 96 mm |
| Weight | 5 kg |
| Maximum weight capacity | 35 kg |
| Packaging content | |
| Quick installation guide | Yes |
| Nuts included | Yes |
| Number of nuts | 8 |
| Screws included | Yes |
| Number of screws | 12 |
| Number of washers included | 8 |
| Features | |
| Product design | 2-post |
| Rack capacity | 2U |
| Type | Wall mounted rack |
| Material | Steel |
| Product colour | Black |
| Technical details | |
| Harmonized System (HS) code | 85381000 |
| Logistics data | |
| Master (outer) case width | 395 mm |
| Master (outer) case length | 530 mm |
| Master (outer) case height | 130 mm |
| Products per master (outer) case | 1 pc(s) |
