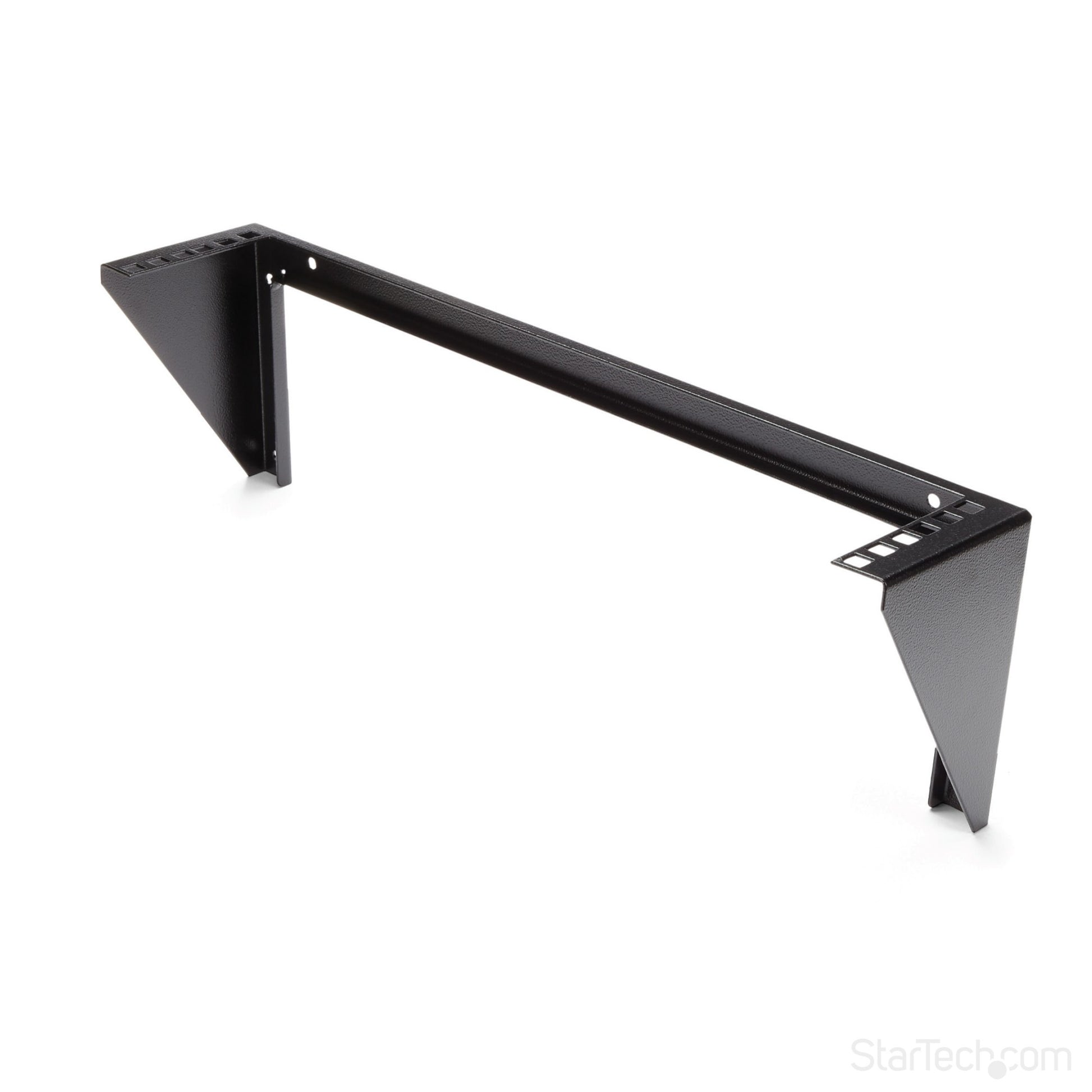

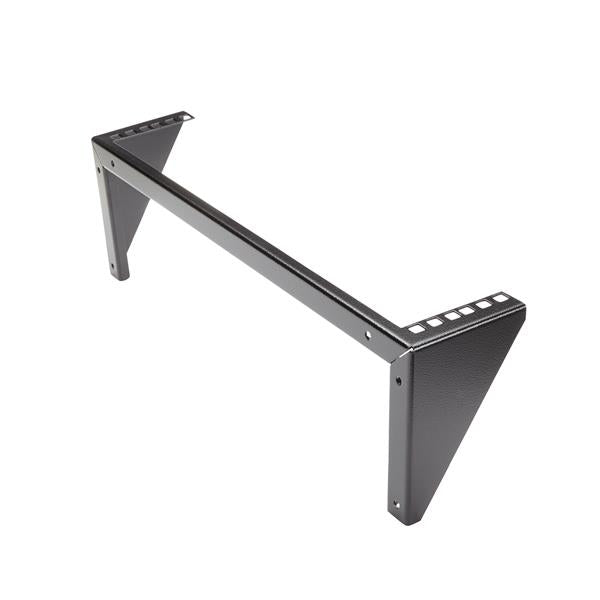

StarTech.com 2U Vertical Wall Mount Patch Panel Bracket - Steel Rack Mount Bracket
StarTech.com 2U Vertical Wall Mount Patch Panel Bracket - Steel Rack Mount Bracket
Regular price
£43.38 GBP
Regular price
Sale price
£43.38 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Build a tidy install with the StarTech.com 2U Vertical Wall Mount — dimensions and mounting details are in the spec table.

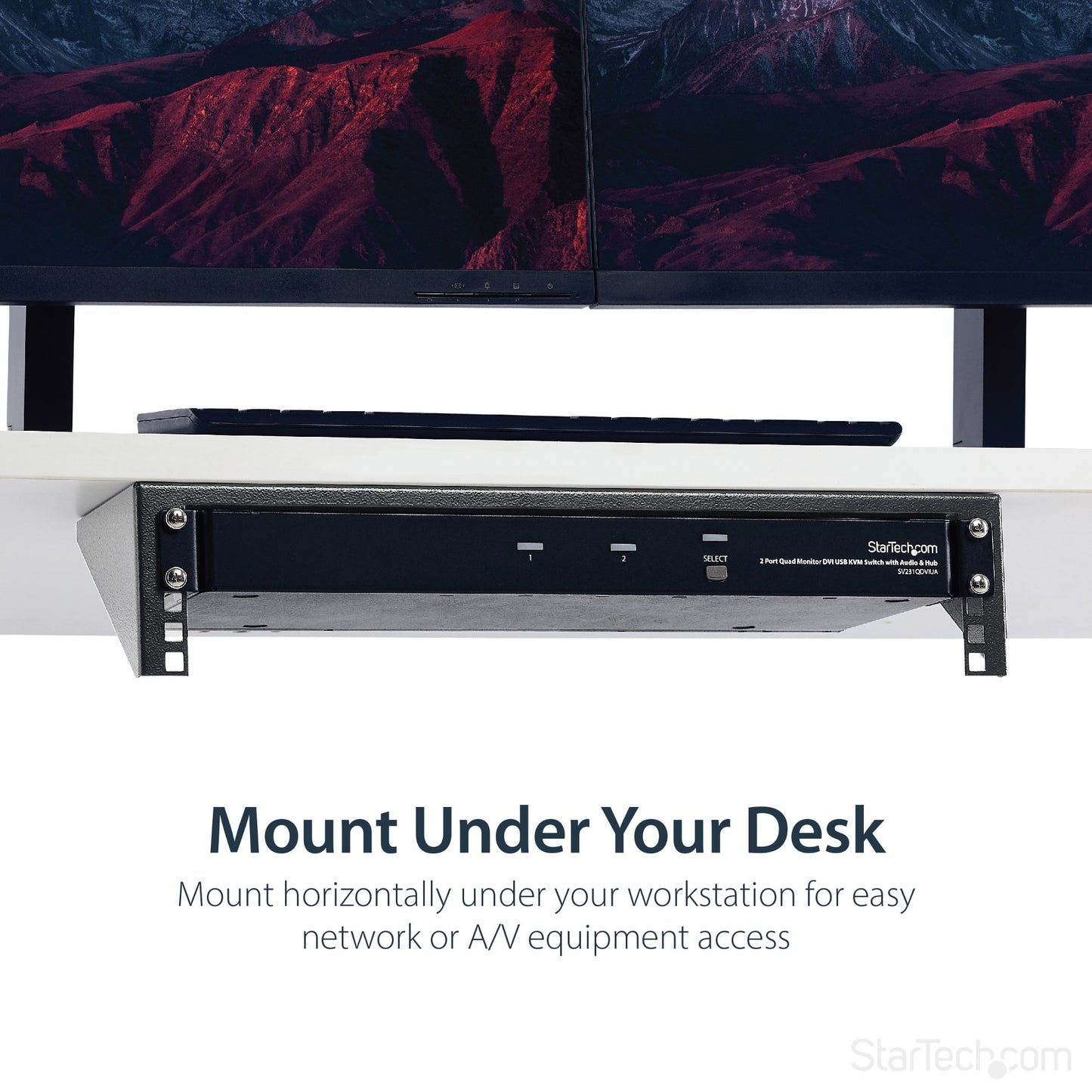

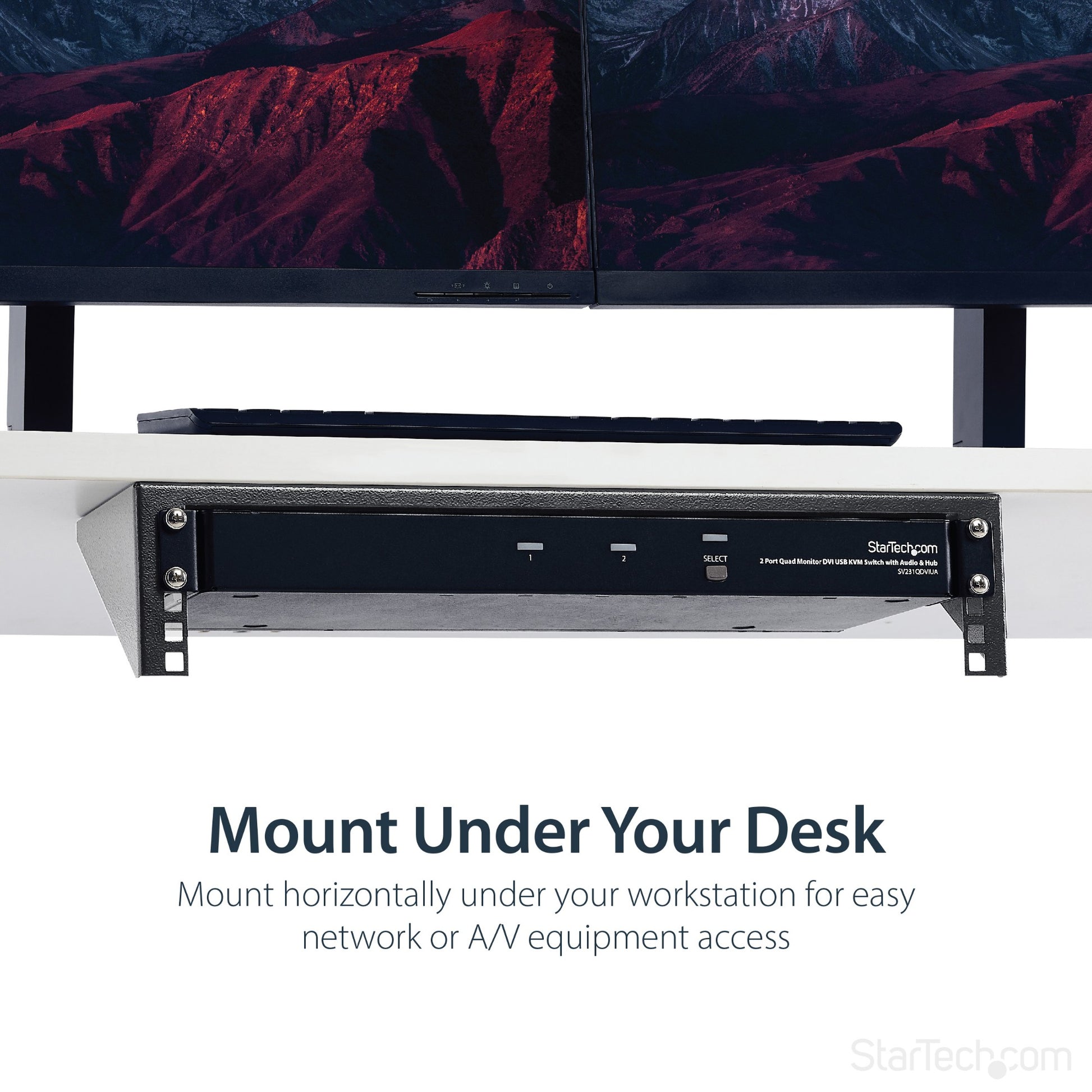

Mount a server, network or telecommunications device vertically with this 2U wall-mountable rackThe RK219WALLV 2U 19in Steel Vertical Wall Mount Equipment Rack Bracket offers a versatile storage solution allowing rackmount equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with wall) to save space. Alternatively, the 2U bracket can be installed horizontally under a desk, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

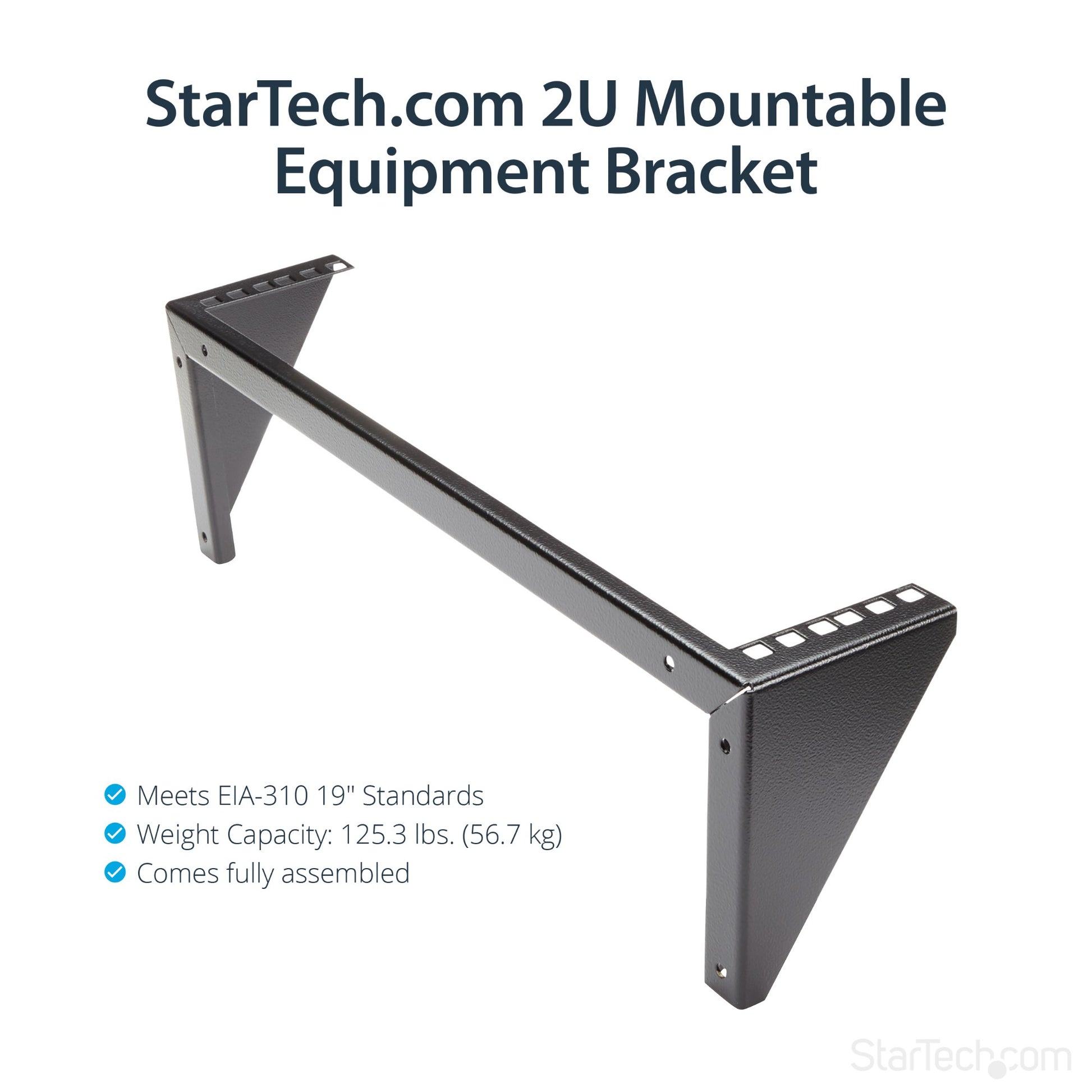

Perfect for SoHo (small office, home office) environments, the wallmount bracket features a sturdy steel design constructed to EIA-310 19in rack standards, and offers space-savings for environments lacking the footprint space for a full size server equipment rack. Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes are positioned at exactly 16in apart, matching standard construction framework.
Need more storage space? StarTech.com also offers a 3U 19in Wallmount Bracket and a 4U 19in Wallmount Bracket.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Number of fans | 0 fan(s) |
| Frame type | Open |
| Product design | 2-post |
| Rack capacity | 2U |
| Mounting hole shape | Square |
| Type | Wall mounted rack |
| Maximum weight capacity | 56.7 kg |
| Material | Steel |
| Product colour | Black |
| Certification | CE, REACH, TAA |

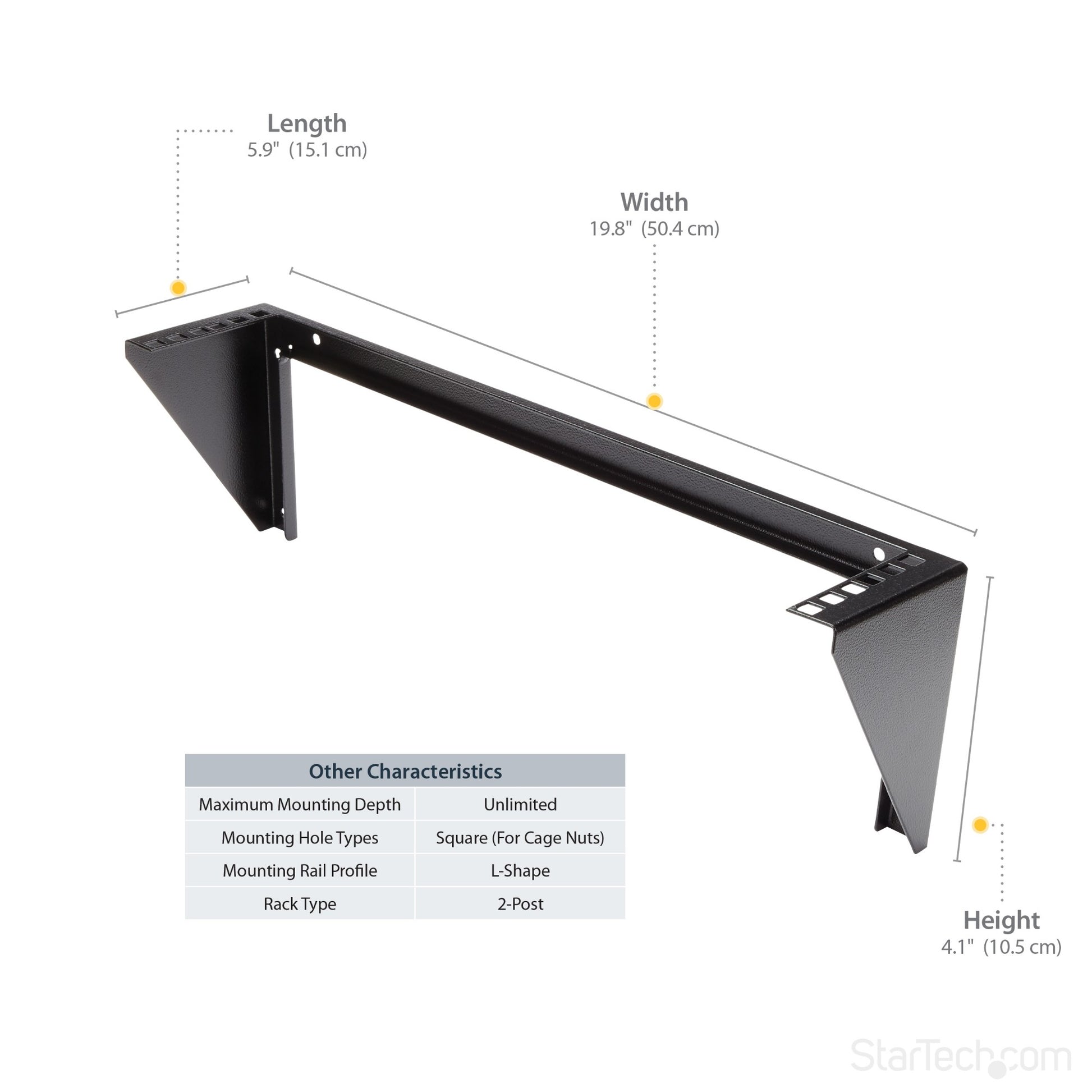

| Weight & dimensions | |
| Package depth | 169 mm |
| Package width | 540 mm |
| Package height | 120 mm |
| Package weight | 1.2 kg |
| Inner width | 45 cm |
| Width | 504 mm |
| Depth | 151 mm |
| Height | 105 mm |
| Weight | 748.7 g |

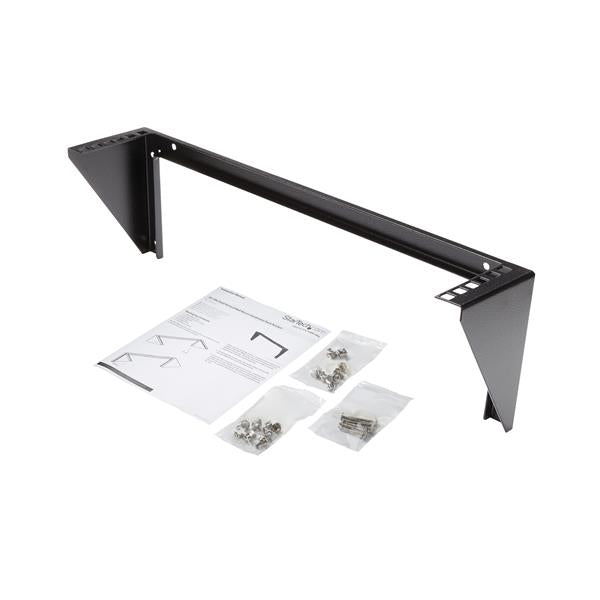

| Packaging content | |
| Wall mounting kit | Yes |
| Manual | Yes |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 8 |
| Screws included | Yes |
| Number of screws | 14 |
| Technical details | |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | RoHS |
