StarTech.com 2U Vented Sliding Server Rack Shelf w/ Cable Management Arm - 27.6 to

Build a tidy install with the StarTech.com 2U Vented Sliding Server — dimensions and mounting details are in the spec table.

Add a vented, sliding shelf with integrated cable management into virtually any server rack or cabinet

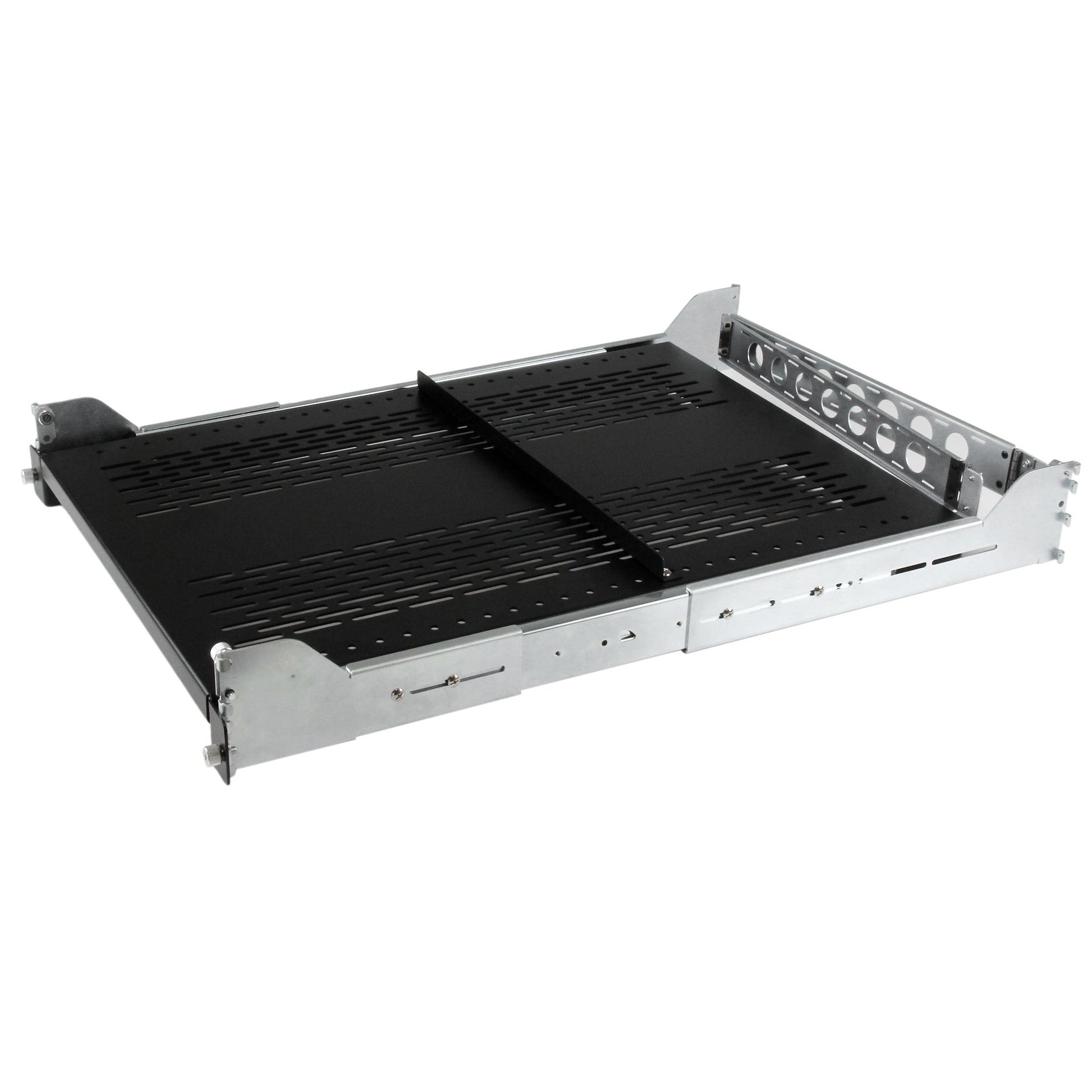

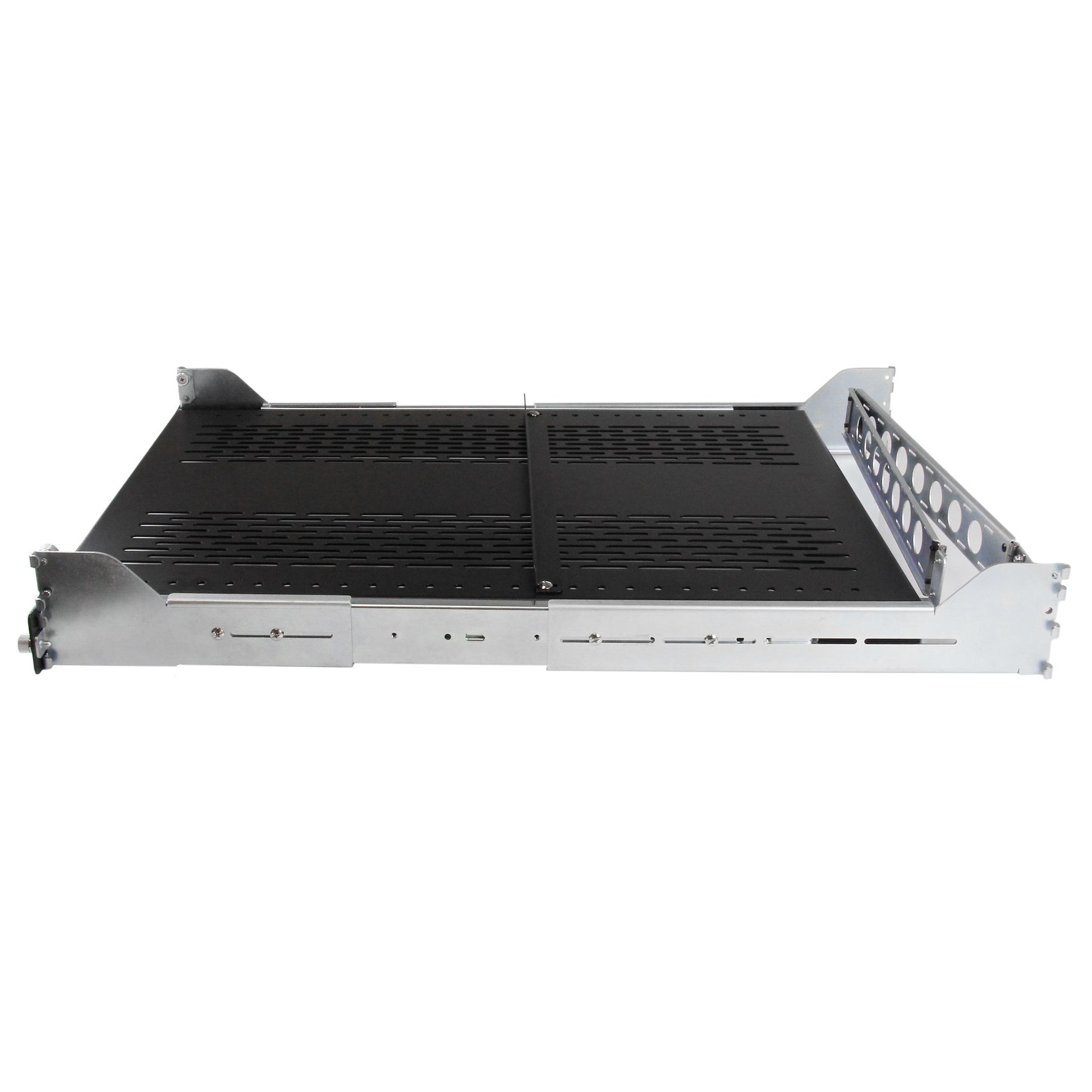

The UNISLDSHF19M Adjustable Sliding Rack Shelf lets you add a vented, sliding shelf with cable management into virtually any 4-post server rack or cabinet.

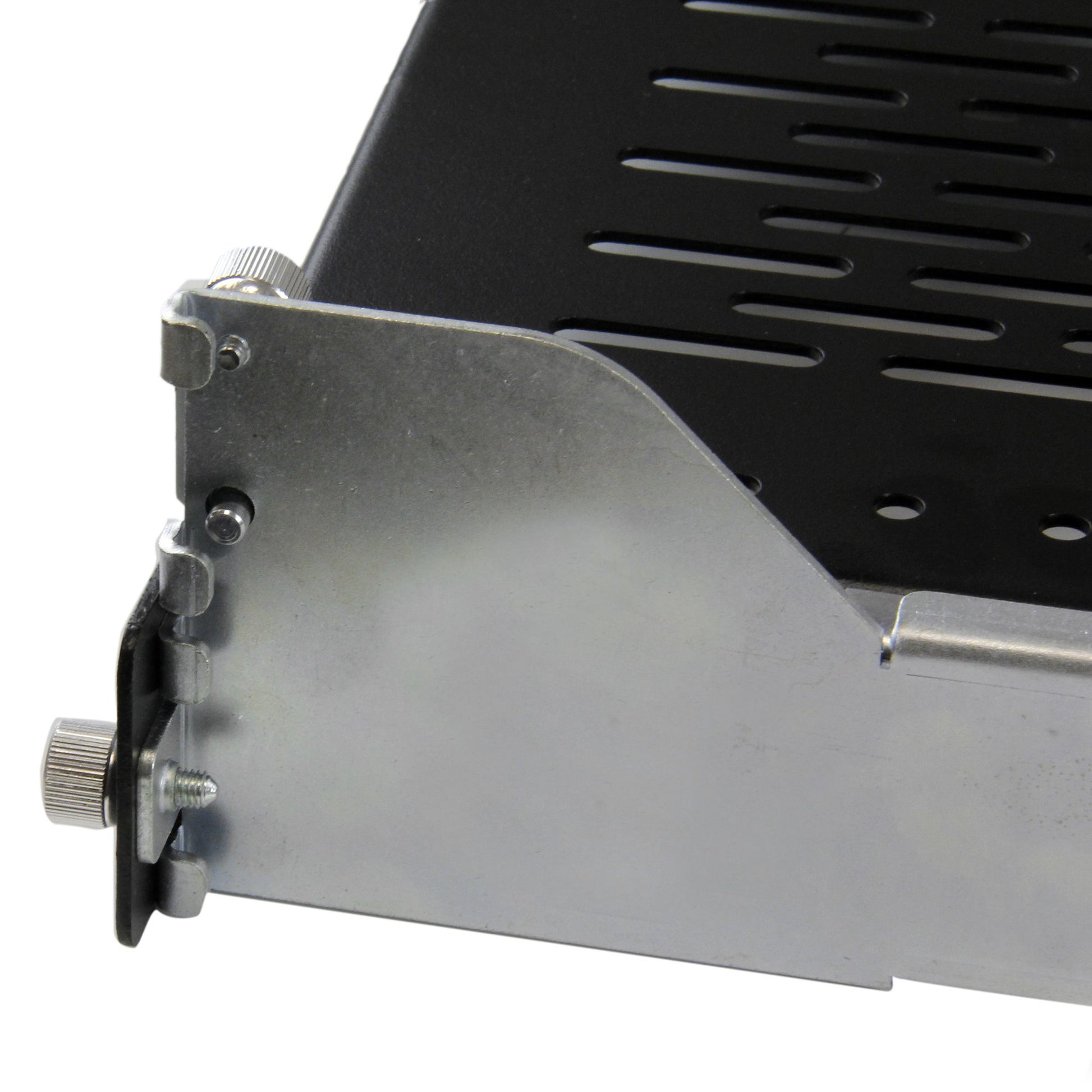

The adjustable mounting depth design allows the shelf to be installed easily into server cabinets with mounting depths from 27.7in (702.2mm) to 31.6in (802.2mm). The sliding rails also offer a locking mechanism to stop the shelf from sliding out too far, or sliding back into the rack before maintenance is complete.

Offering a weight capacity of up to 110 lbs (50 kg), this sliding rack shelf features a ventilated, cold-rolled steel construction for increased airflow and durability in your server room or wiring closet installations.

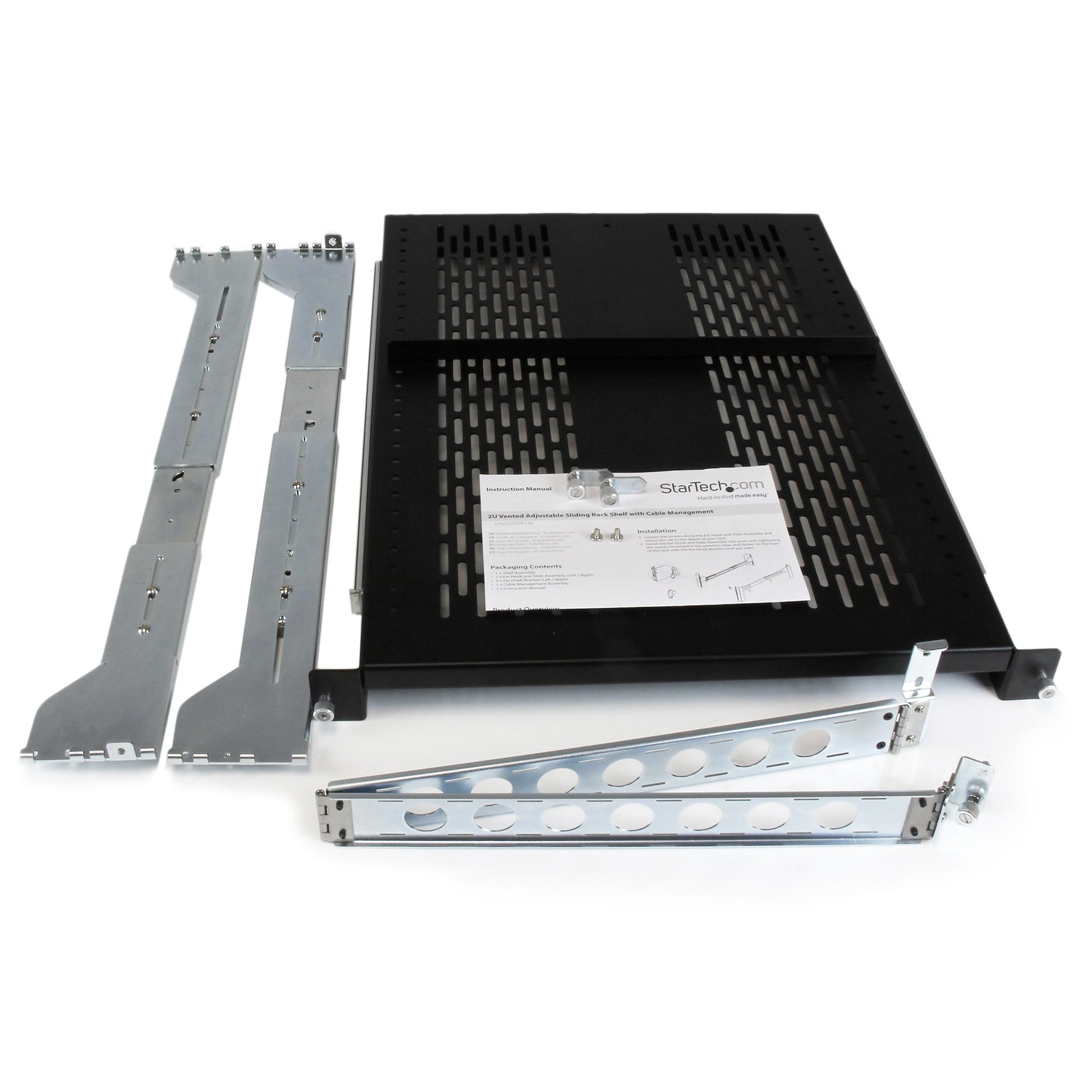

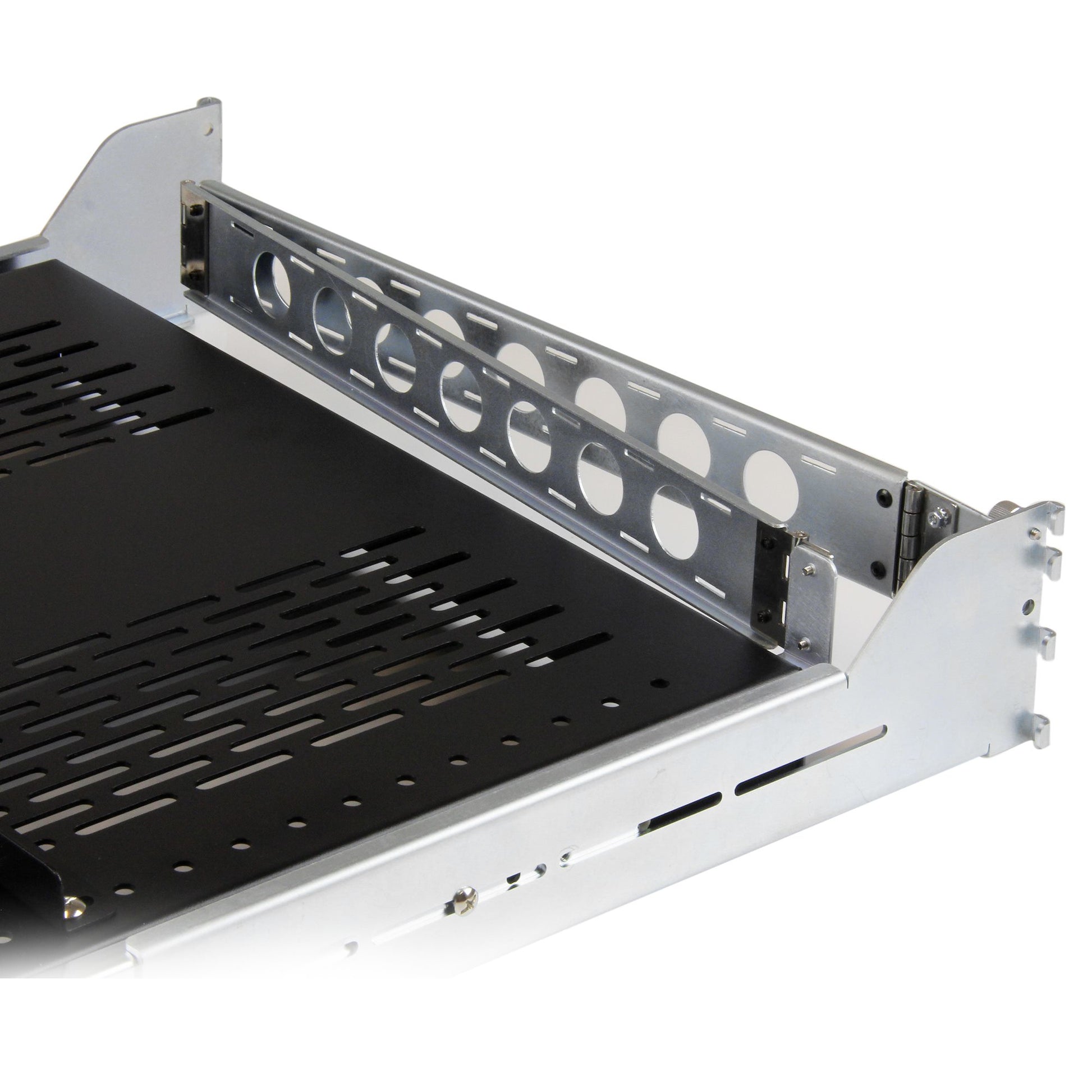

For ease in routing cables neatly through your rack, we've included a reversible cable management arm that can be attached to the back of the shelf, plus an adjustable bezel to keep your equipment where you want it on the shelf.

Specifications

Features
Type	Adjustable shelf
Rack capacity	2U
Maximum weight capacity	56.7 kg
Product colour	Black, Silver
Compliance industry standards	EIA RS310-D
Harmonized System (HS) code	85389099
Housing material	Steel
Weight & dimensions
Package width	570 mm
Package height	195 mm
Package depth	790 mm
Package weight	10.1 kg
Mounting depth (min)	70.2 cm
Mounting depth (max)	80.2 cm
Width	483 mm
Weight	8.2 kg
Height	89 mm
Depth	610 mm
Packaging content
Mounting kit	Yes
Quick installation guide	Yes
Technical details
Compliance certificates	RoHS
Logistics data
Master (outer) case width	585 mm
Master (outer) case length	800 mm
Master (outer) case height	600 mm
Products per master (outer) case	3 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
