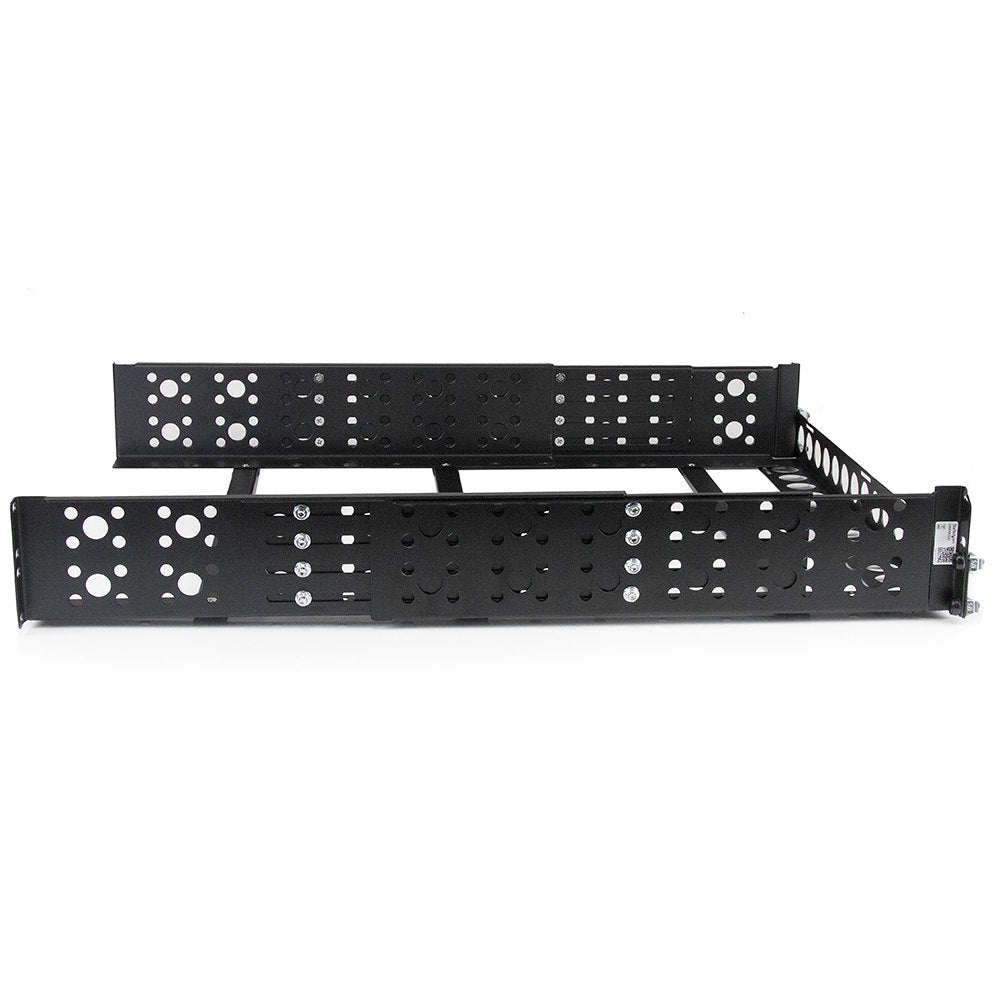

StarTech.com 2U Universal Rack Mount Rails - for 19in Server Rack Enclosure or

£78.34 GBP

Sale Sold out

Taxes included.

Condition New

Build a tidy install with the StarTech.com 2U Universal Rack Mount — dimensions and mounting details are in the spec table.

Mount 19" servers or networking hardware in any standard rack with these universal, adjustable depth 2U rack rails

These 2U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19" server rack without sacrificing an additional 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell™; IBM®; HP® or Apple servers that no longer have rack rails available.

Turn non-rackmount equipment into 2U rackmount hardware

These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security.

Universal design mounts to almost any 19" server rack

Adhering to the EIA-310 standard for 19" rackmount equipment, these mounting rails are universally compatible with 19" server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that's removable for additional customization.

Maximum durability

To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 100 lb (45 kg).

The UNIRAILS2U is backed by a lifetime StarTech.com warranty with free technical support.

Specifications

Features
Certification	CE, UL, REACH, TAA
Type	Rack rail
Rack capacity	2U
Maximum weight capacity	45.3 kg
Product colour	Black
Harmonized System (HS) code	85389099
Housing material	Steel
Weight & dimensions
Package width	584 mm
Package height	143 mm
Package depth	186 mm
Package weight	4 kg

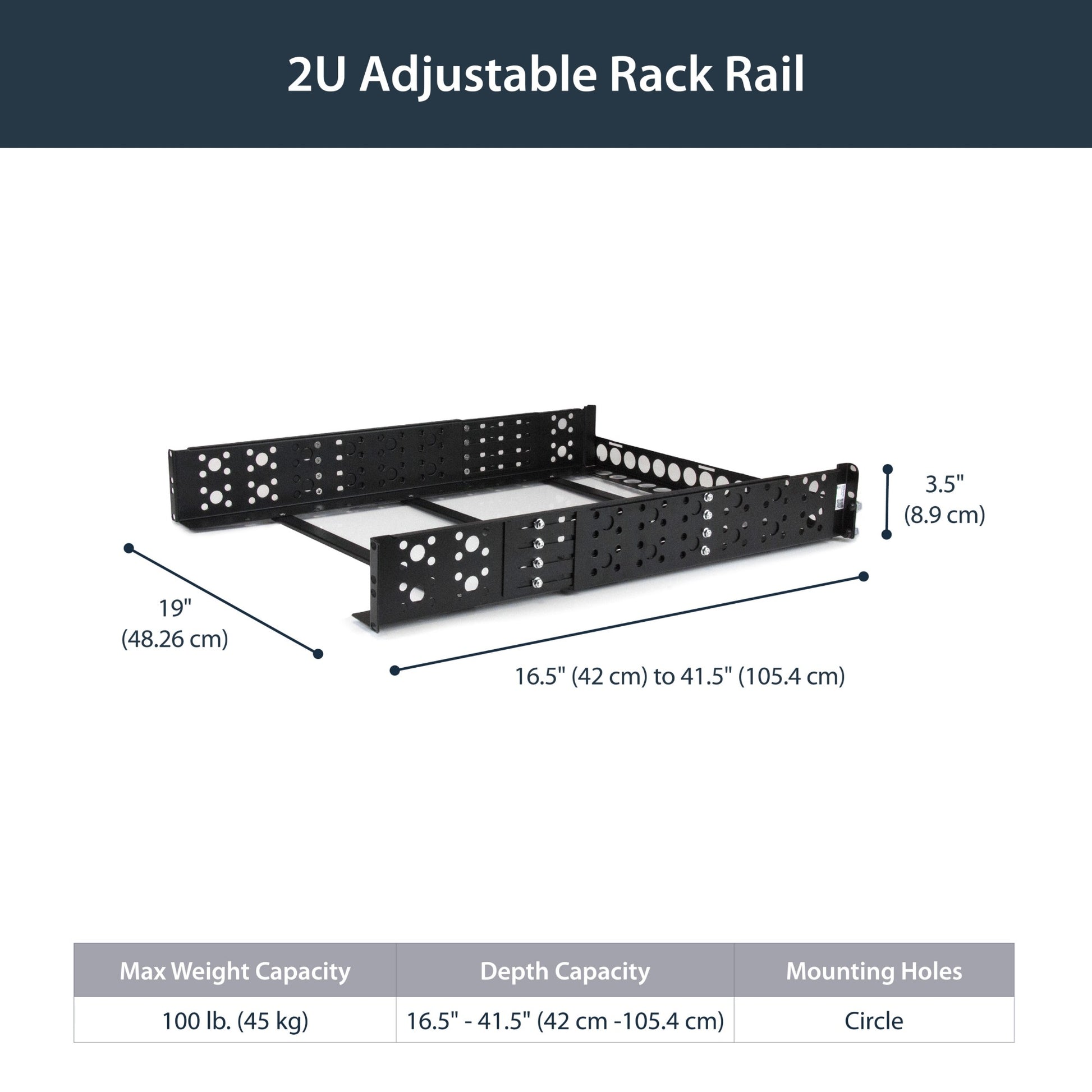

Mounting depth (min)	42 cm
Mounting depth (max)	105.4 cm
Weight	3.7 kg

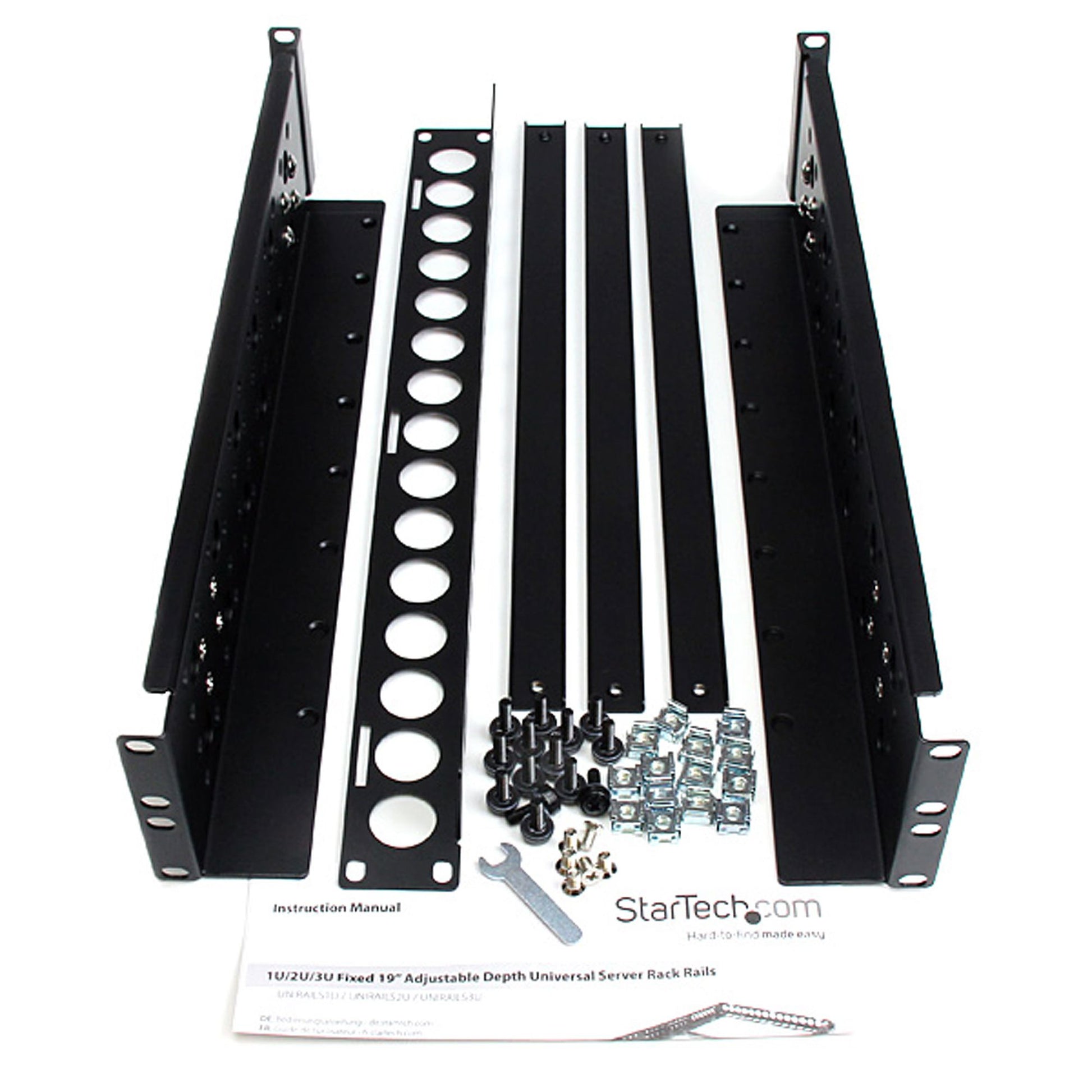

Packaging content
Screws included	Yes
Mounting kit	Yes
Number of screws	16
Screw type	M5
Number of cage nuts	16
Cage nuts included	Yes
Technical details
Compliance certificates	RoHS
Logistics data
Master (outer) case width	380 mm
Master (outer) case length	590 mm
Master (outer) case height	420 mm
Products per master (outer) case	6 pc(s)
