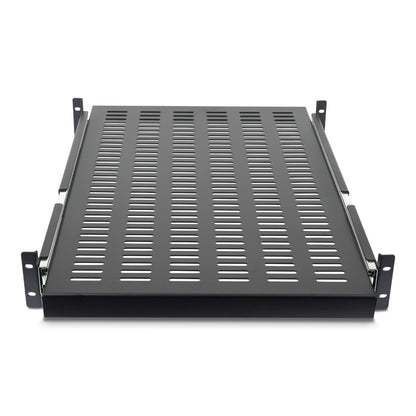

StarTech.com 2U Sliding Server Rack Mount Shelf - 20 to 30in Adjustable Mounting

Build a tidy install with the StarTech.com 2U Sliding Server Rack — dimensions and mounting details are in the spec table.

Increase peripheral and equipment accessibility with this vented sliding cabinet shelf

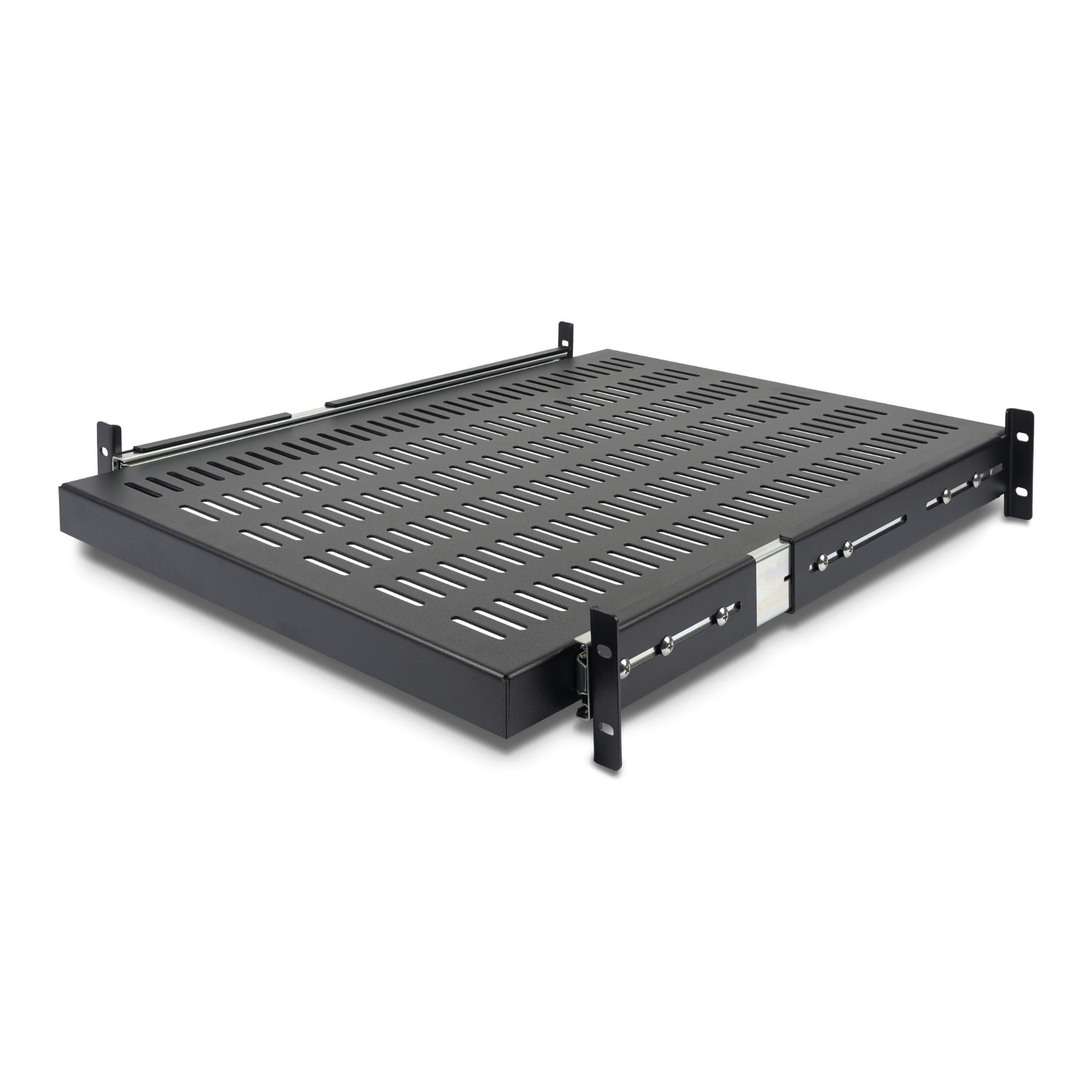

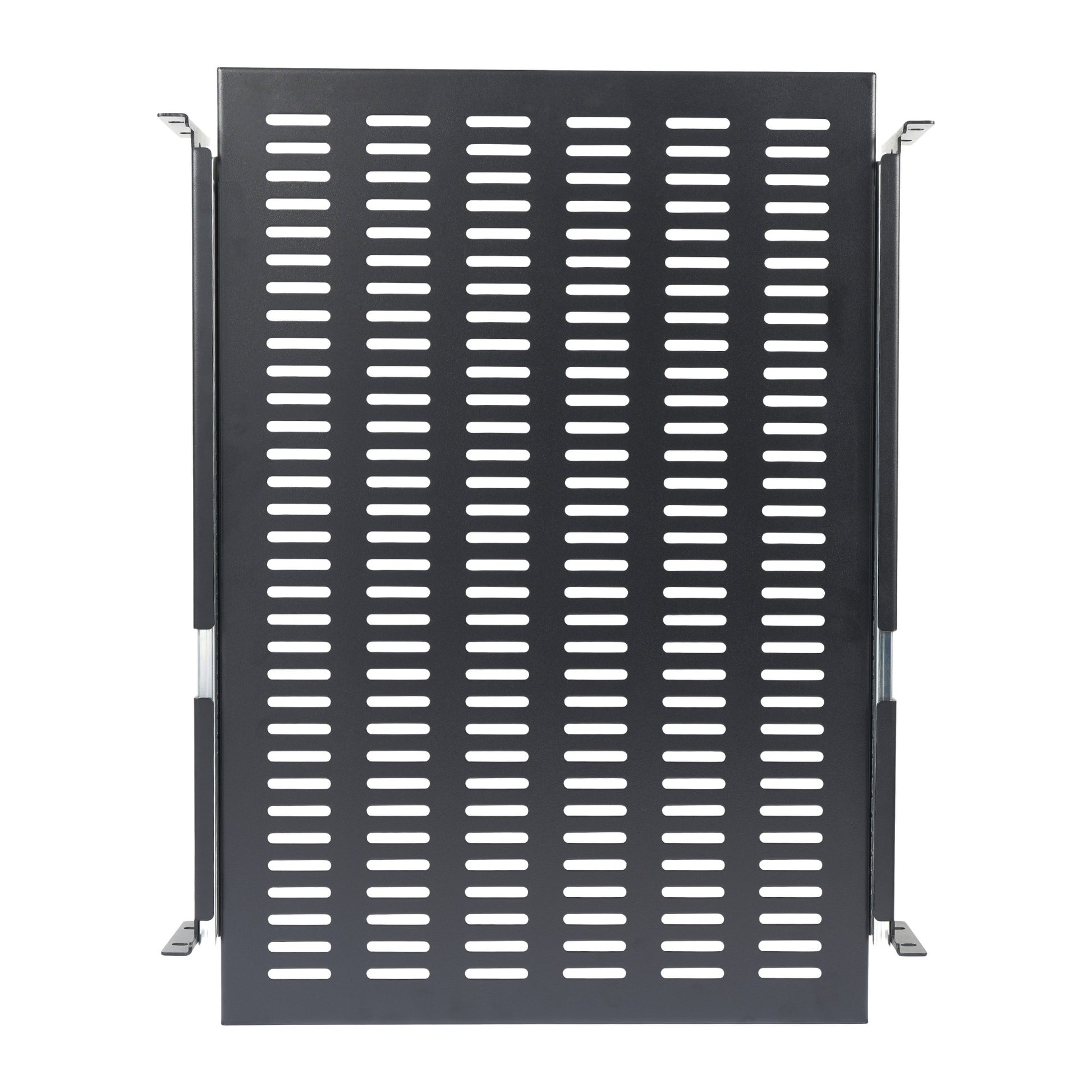

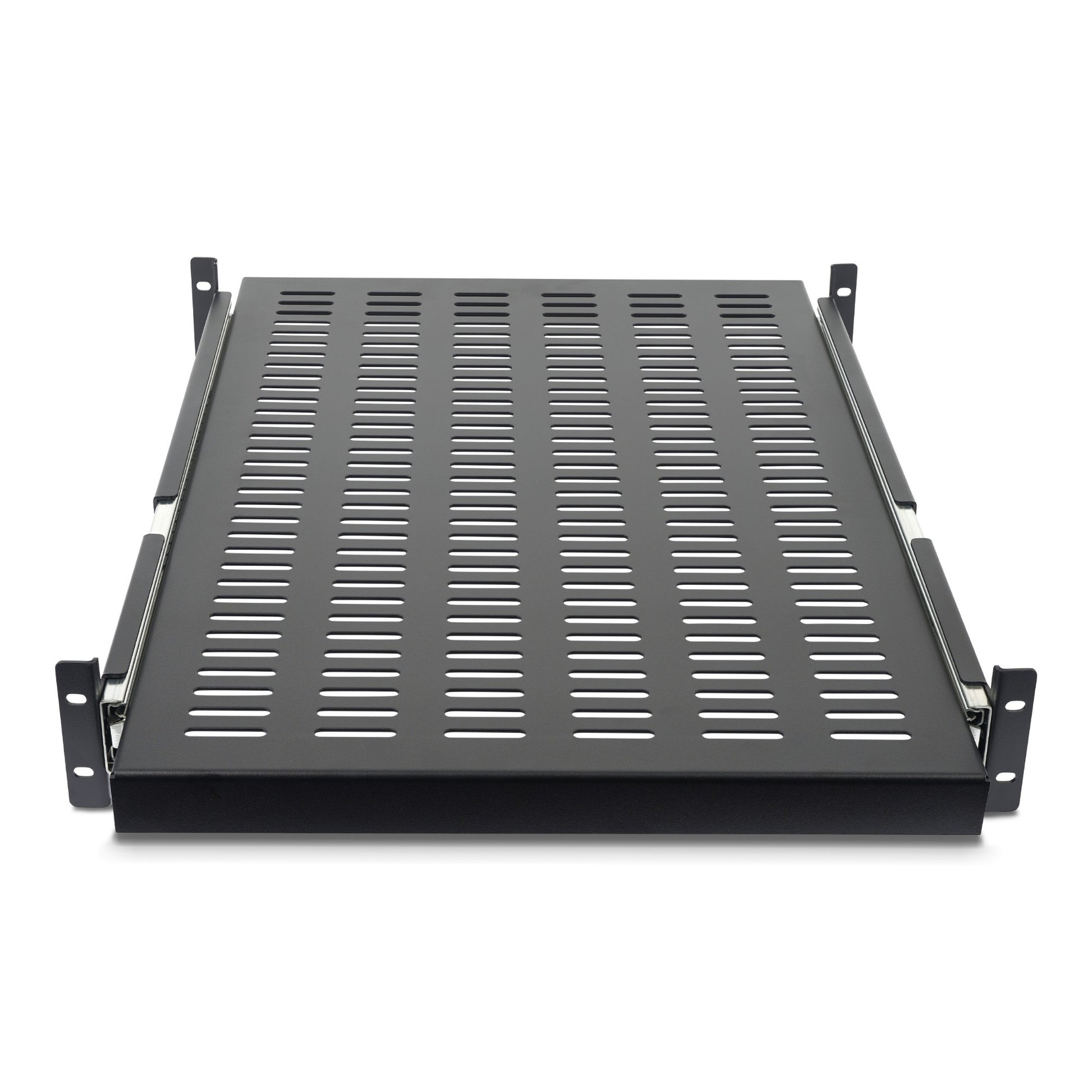

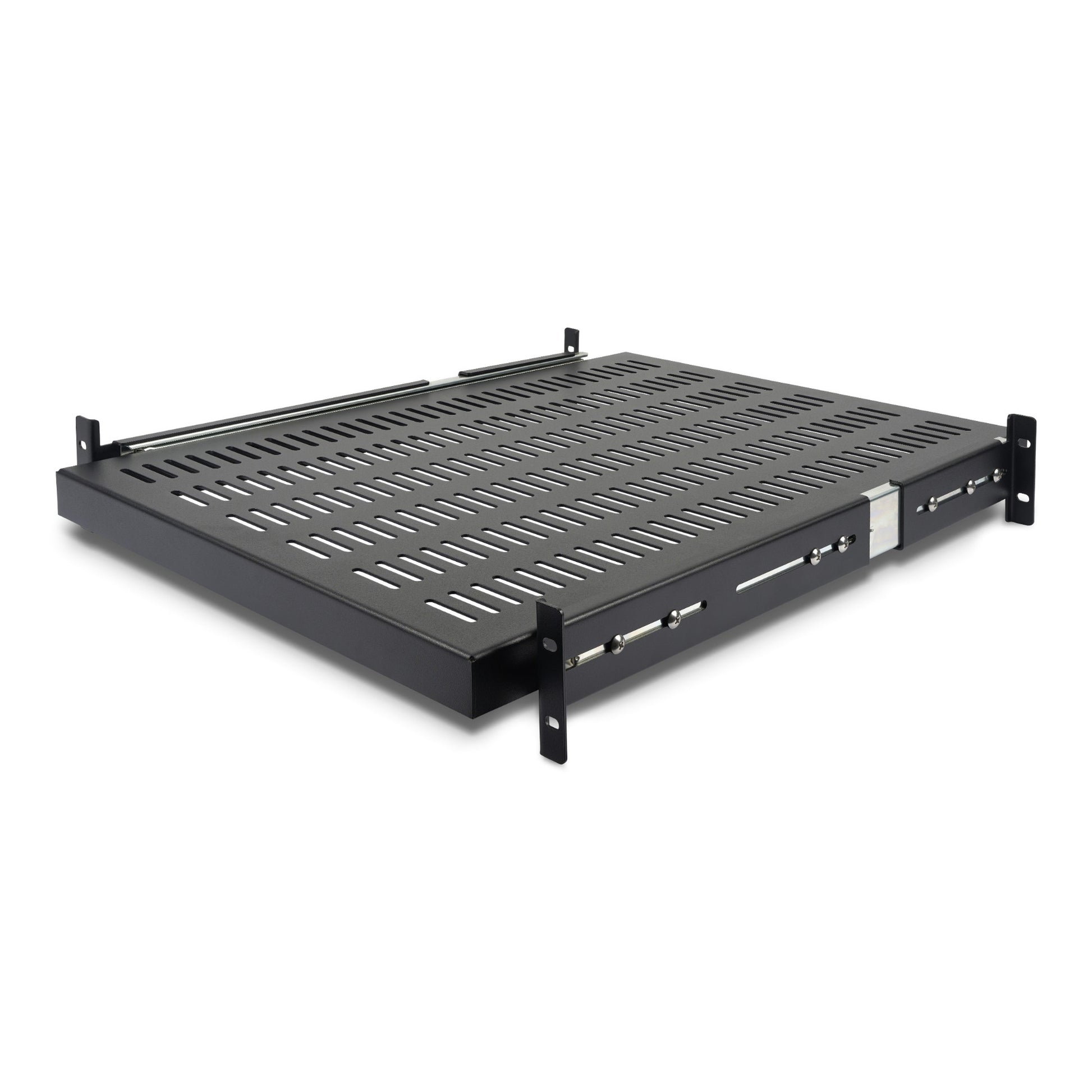

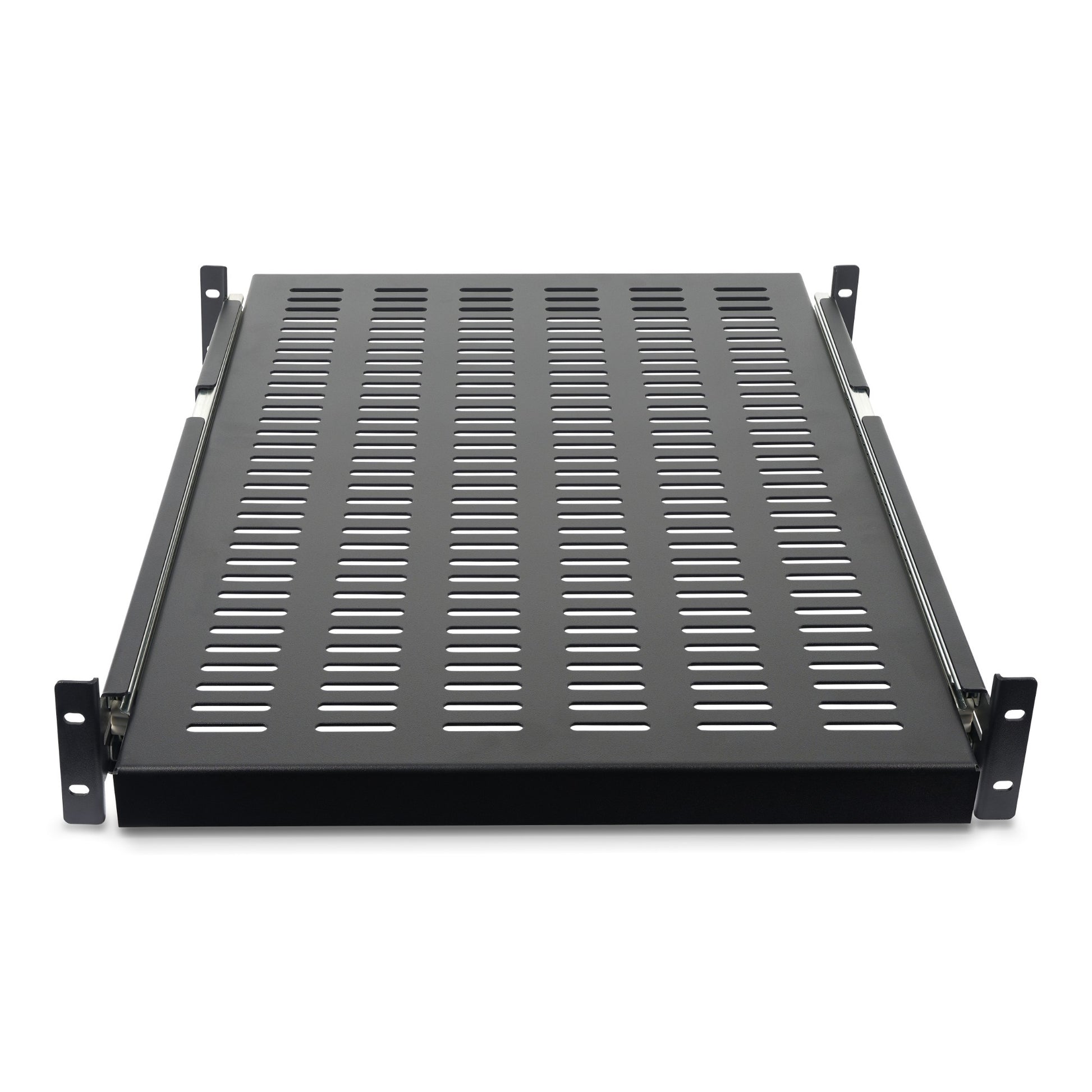

The UNISLDSHF19 19in Vented Adjustable Mounting Depth Sliding Server Rack Cabinet Shelf offers a simple way to install non rack mountable equipment into a server cabinet or open server rack.

Offering a weight capacity of up to 50 lbs (22.7 kg), the sliding rack shelf features a ventilated, cold-rolled steel shelf on two locking adjustable rails which allow the shelf to be installed into cabinets or racks with mounting depths from 20in (510mm) to 30in (744mm). The locking feature locks the shelf 3/4 of the way out, preventing the shelf from accidentally falling out of the rack or sliding back in before maintenance is complete.

Specifications

Features
Type	Adjustable shelf
Rack capacity	2U
Maximum weight capacity	22.7 kg
Product colour	Black
Compliance industry standards	EIA RS310-C
Harmonized System (HS) code	85389099
Housing material	Steel
Weight & dimensions
Package width	701 mm
Package height	176 mm
Package depth	548 mm
Package weight	8.4 kg
Mounting depth (min)	51 cm
Mounting depth (max)	74.4 cm
Width	452 mm
Weight	6.4 kg
Height	45 mm
Depth	610 mm

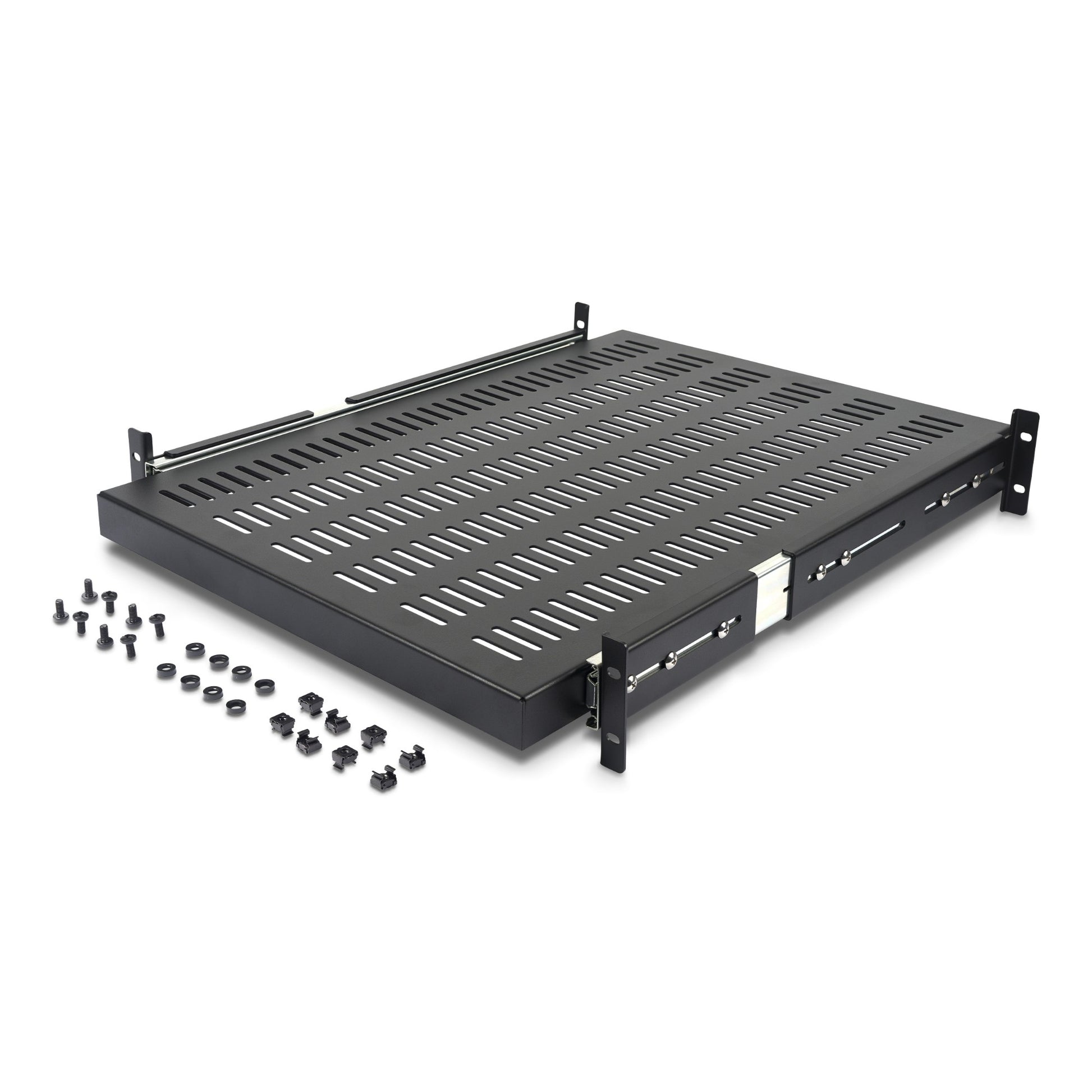

Packaging content
Screws included	Yes
Number of screws	8
Screw type	M6
Number of cage nuts	8
Cage nuts included	Yes
Technical details
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	718 mm
Master (outer) case length	715 mm
Master (outer) case height	585 mm
Products per master (outer) case	4 pc(s)
