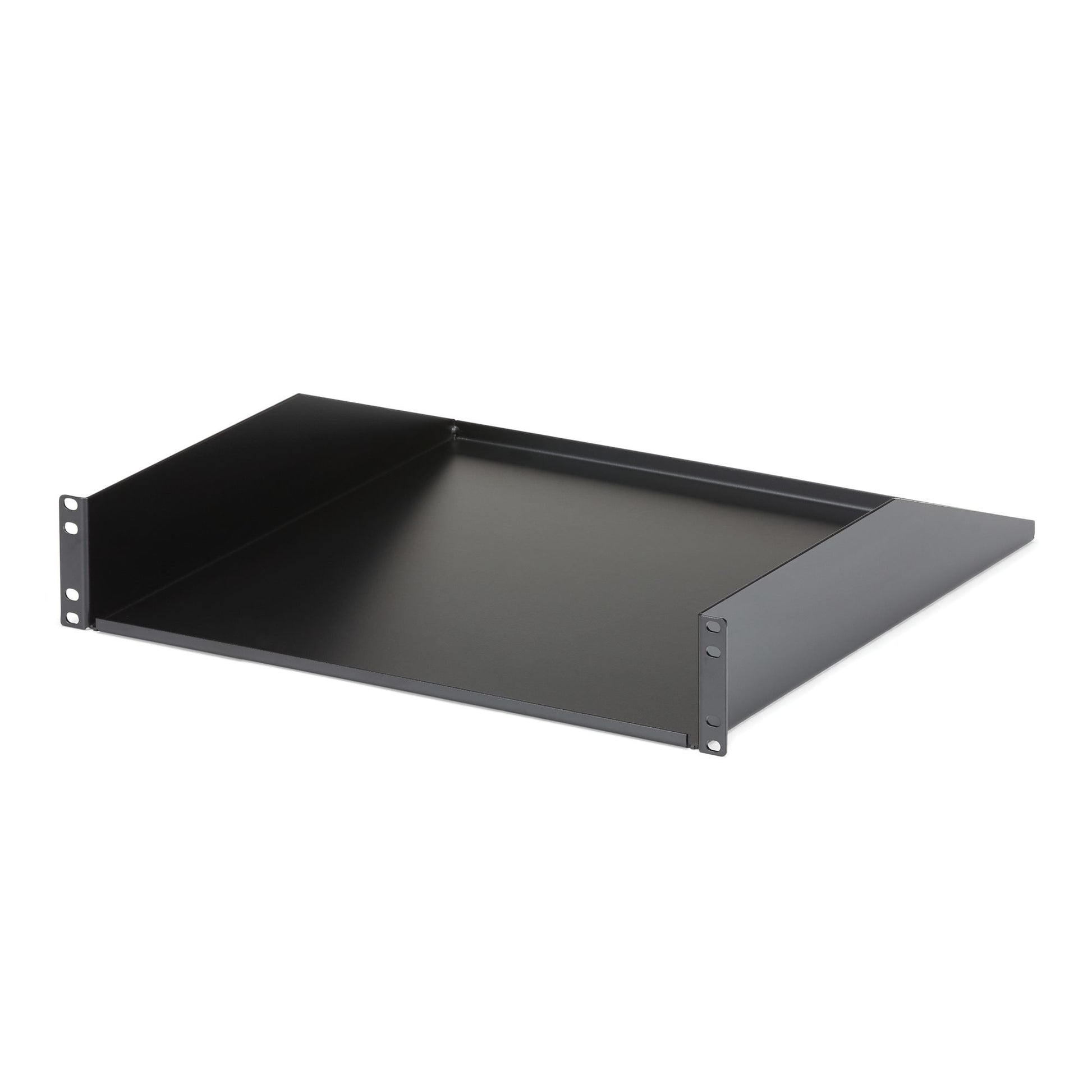

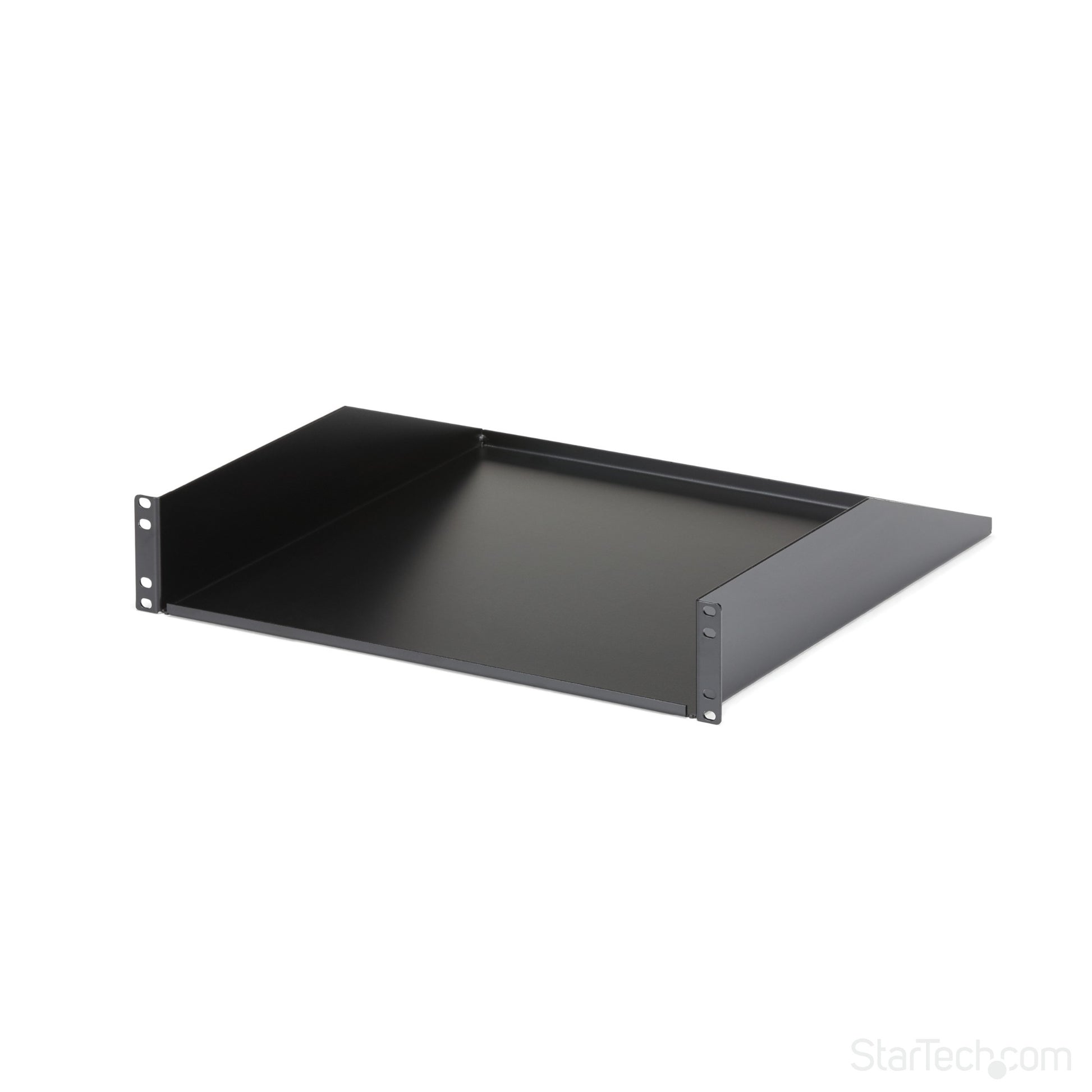

StarTech.com 2U Server Rack Shelf - Universal Rack Mount Cantilever Shelf for 19" (SHELFHD)

StarTech.com 2U Server Rack Shelf - Universal Rack Mount Cantilever Shelf for 19" (SHELFHD)

Regular price £55.40 GBP
Regular price Sale price £55.40 GBP
Sale Sold out
Taxes included.
Condition
Quantity

Build a tidy install with the StarTech.com 2U Server Rack Shelf — dimensions and mounting details are in the spec table.

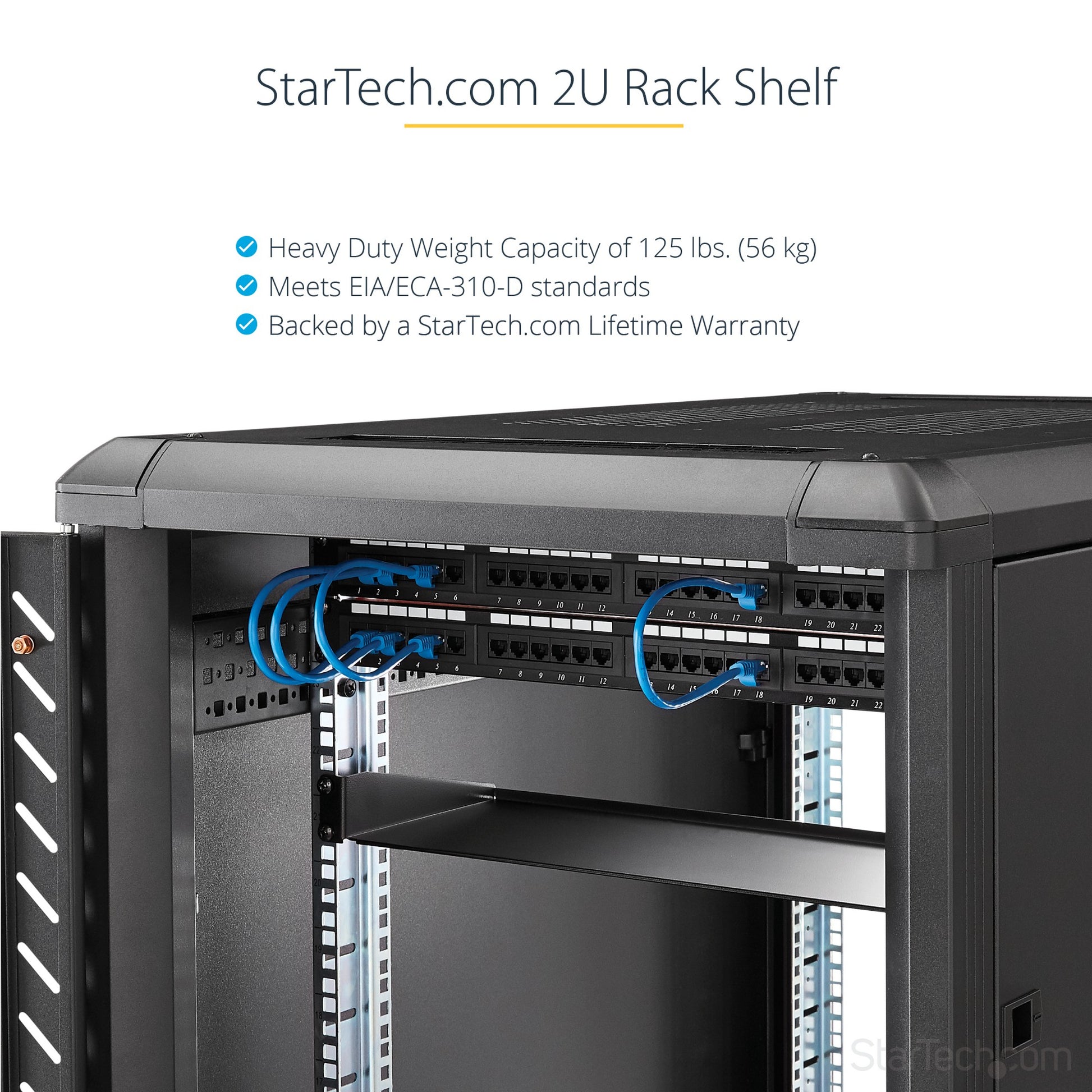

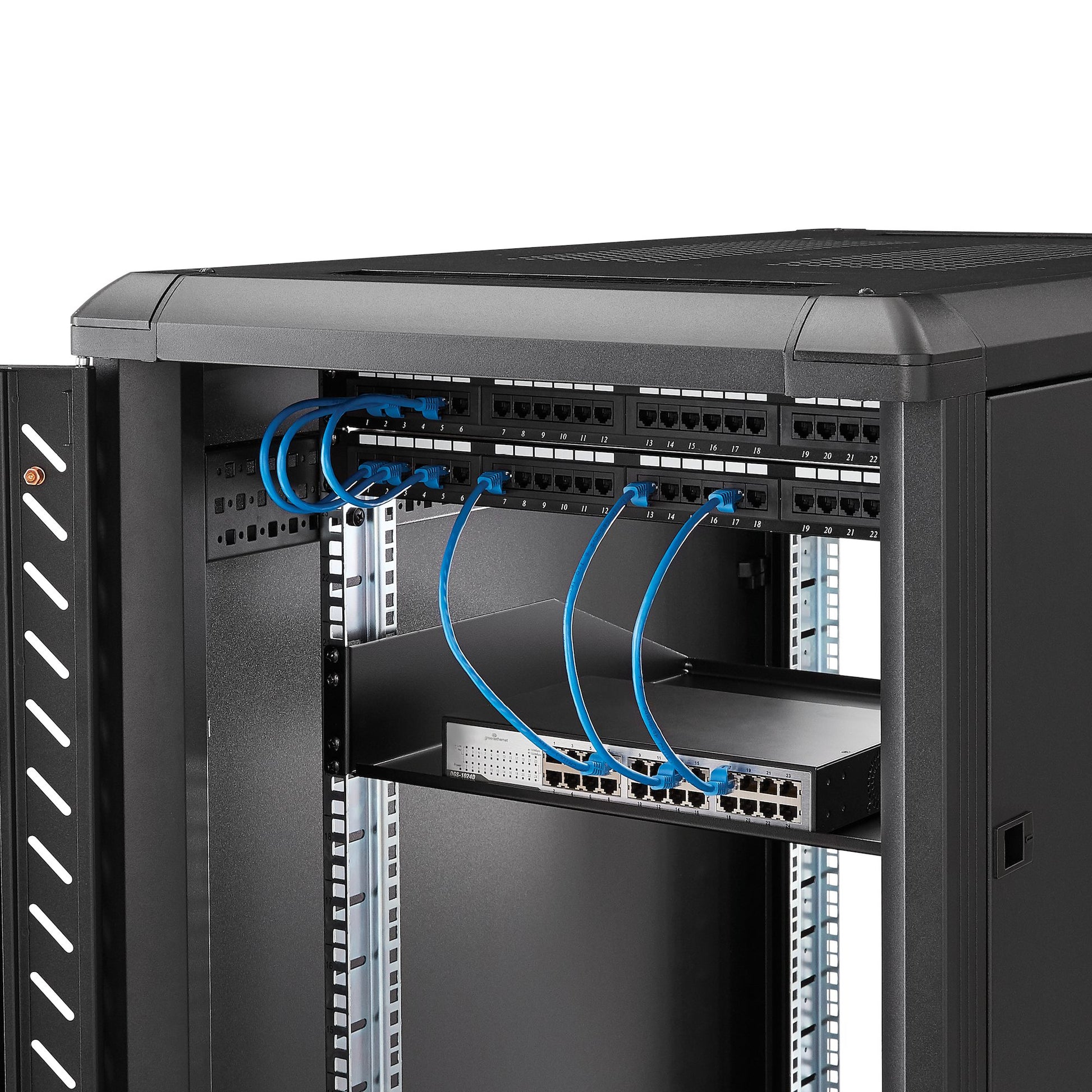

Add a high-capacity fixed shelf into almost any server rack or cabinet

The CABSHELFHD 2U 18in Depth Heavy Duty Fixed Rack Mount Shelf lets you add a high-capacity 2U shelf to virtually any standard 19-inch server rack or cabinet with front mount options.

This high-capacity server rack shelf is constructed using SPCC commercial grade cold-rolled steel, providing the additional strength required to hold up to 56kg (125lbs) of equipment - a perfect solution for storing larger, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.

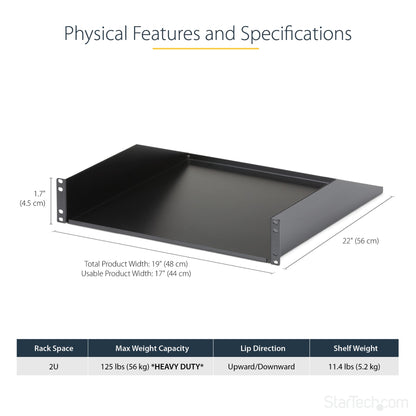

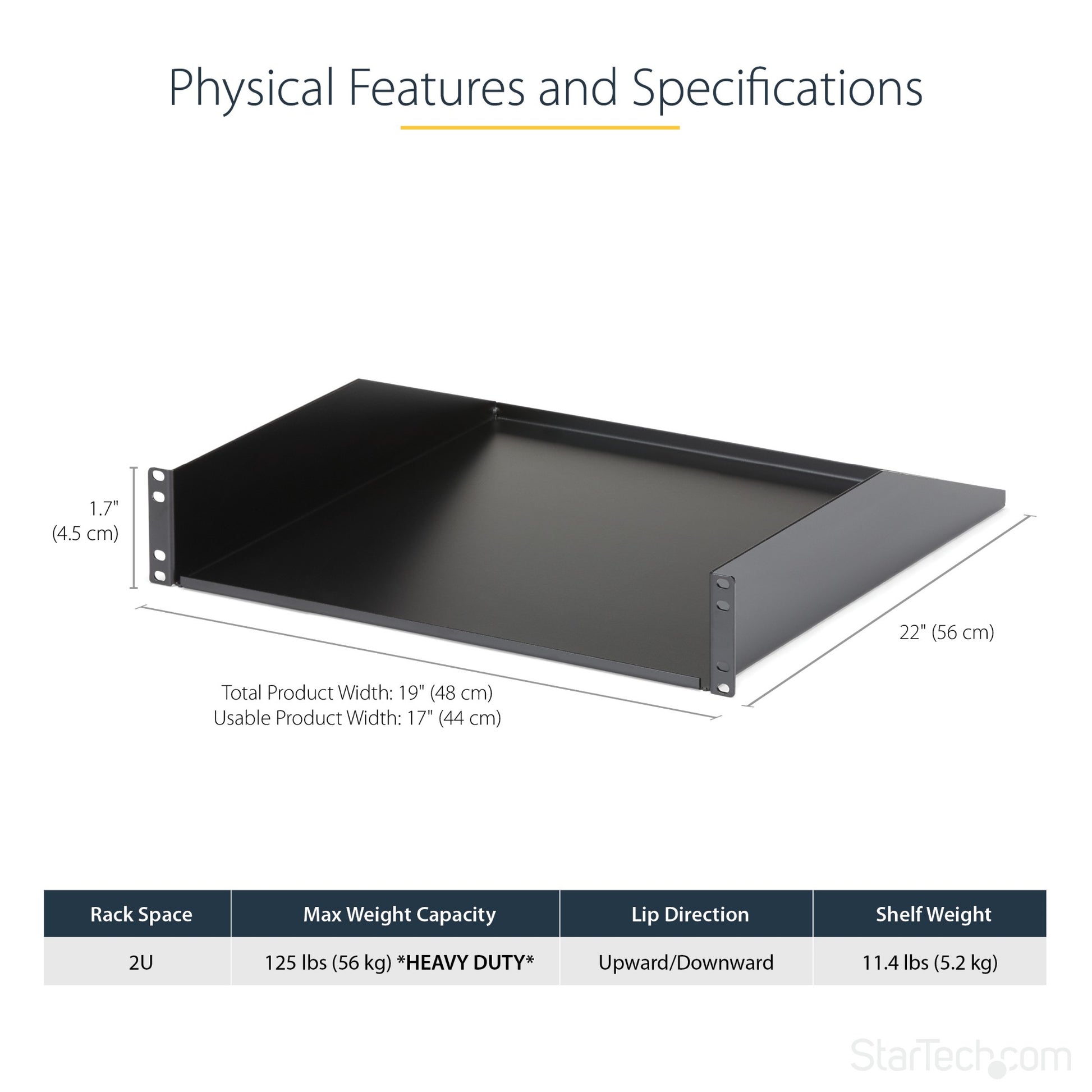

Specifications

Features
Certification CE, TAA, REACH
Type Shelf
Rack capacity 2U
Maximum weight capacity 56.6 kg
Product colour Black
Harmonized System (HS) code 85389099
Housing material Steel

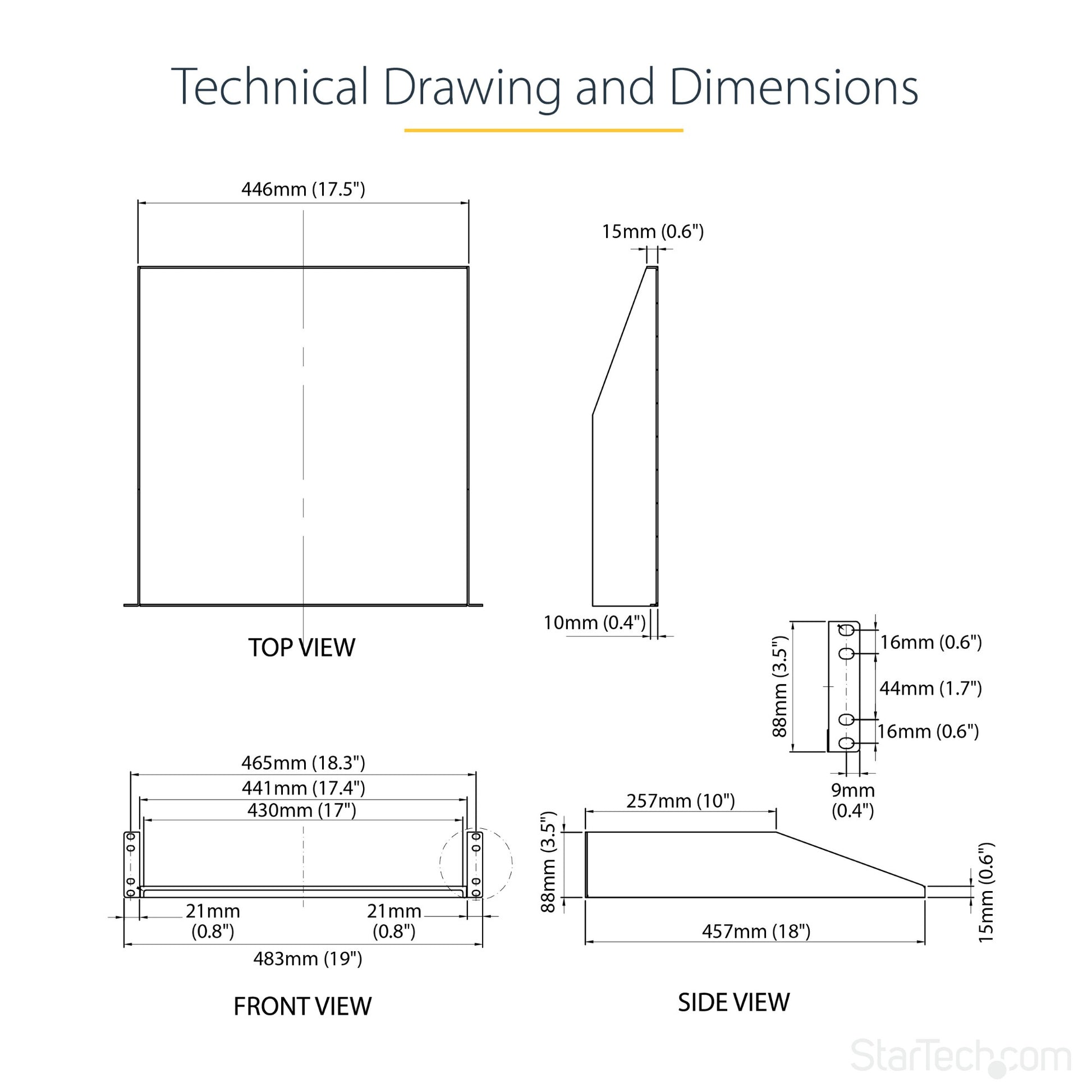

Weight & dimensions
Package width 542 mm
Package height 130 mm
Package depth 528 mm
Package weight 6.3 kg
Material thickness 2.3 mm
Weight 5.2 kg
Depth 457.2 mm

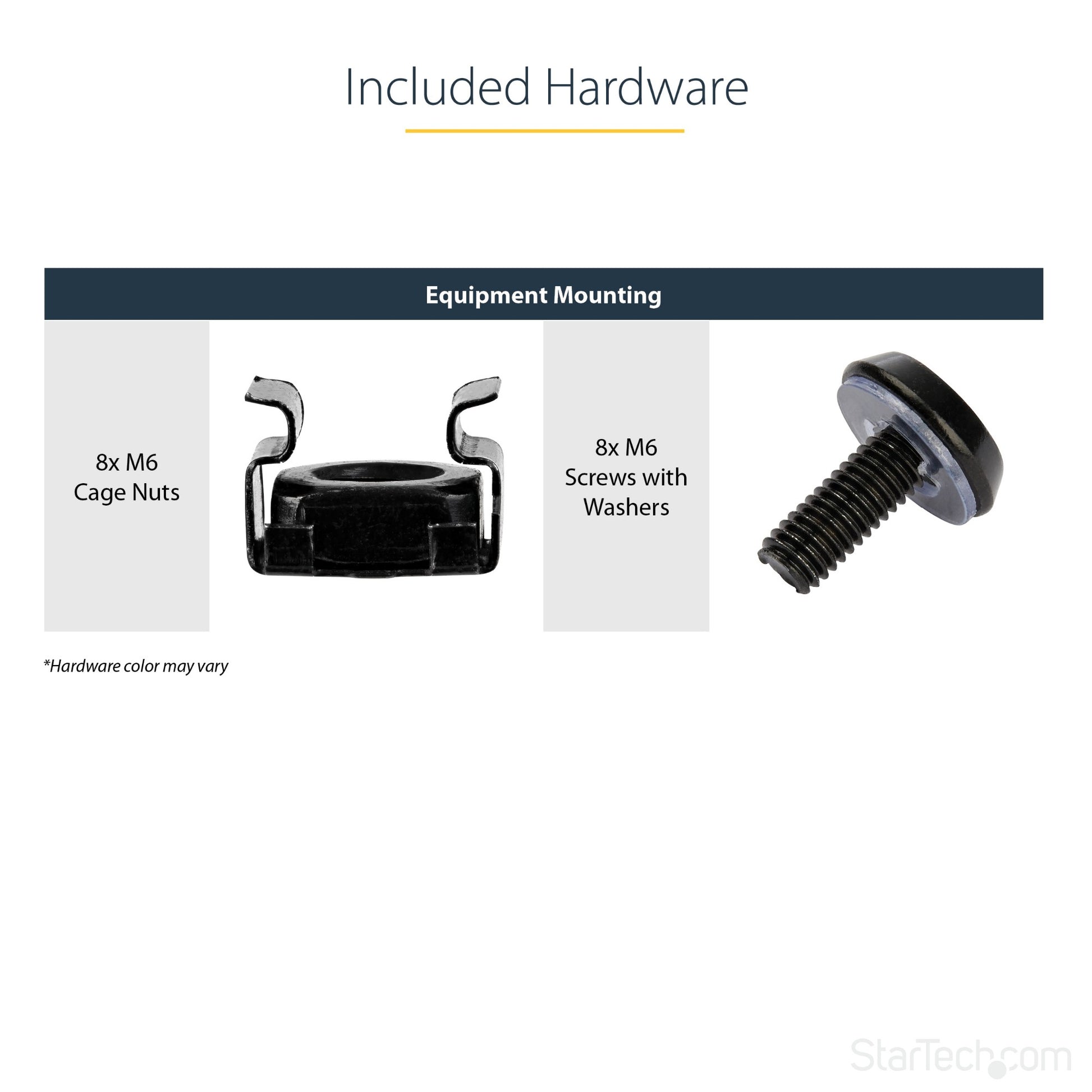

Packaging content
Screws included Yes
Nuts included Yes
Number of screws 8
Number of nuts 8
Quick installation guide Yes
Screw type M6
Technical details
Compliance certificates RoHS
Logistics data
Master (outer) case width 550 mm
Master (outer) case length 620 mm
Master (outer) case height 540 mm
Products per master (outer) case 5 pc(s)
