StarTech.com 2U Server Rack Shelf, Center Mounted Universal Vented Rackmount

Build a tidy install with the StarTech.com 2U Server Rack Shelf — dimensions and mounting details are in the spec table.

Add a sturdy, 2U server rack shelf to any 2 post rack

The SHELF-2U-20-CENTER-V lets you add 2U 20 inches (50.8 cm) deep shelf to any 2-post EIA-310 compliant 19-inch rack. The shelf is vented to improve airflow and help lower temperatures in your rack.

Quality construction

The centered rack shelf can hold up to 200 lbs (91 kg) of equipment and is constructed using 1/16 in (1.5 mm) thick SPCC commercial-grade cold-rolled steel for long-term durability and sturdiness. Accommodate your accessories or non-mountable devices for ease of access or connectivity to your equipment.

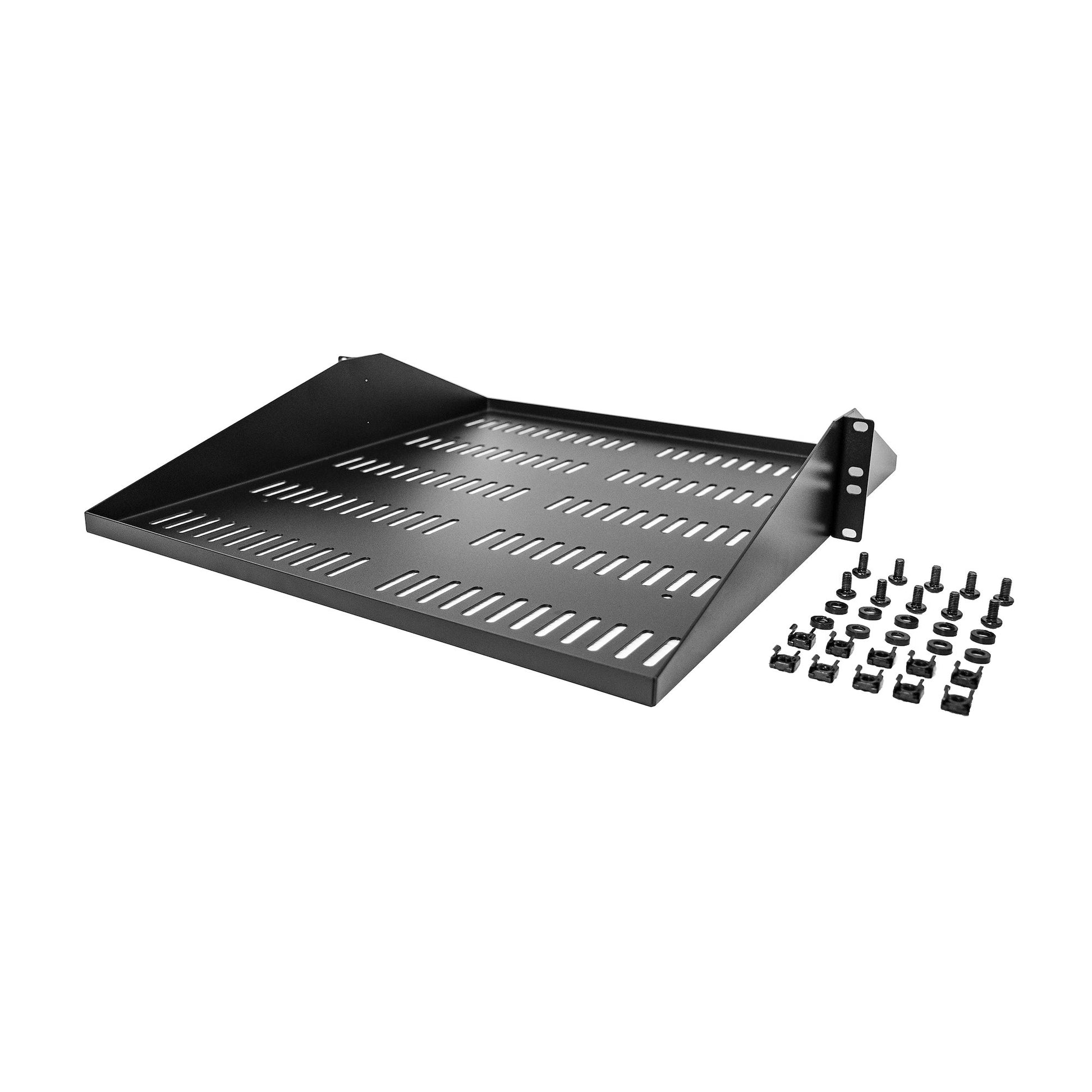

Hardware included

Conveniently includes M6 square cage nuts and M6 screws to set it up in no time.

The SHELF-2U-20-CENTER-V is backed by a StarTech.com lifetime warranty and free lifetime technical support

Specifications

Features
Type	Rack shelf
Rack capacity	2U
Maximum weight capacity	91 kg
Product colour	Black
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85389099
Housing material	SPCC
Weight & dimensions
Package width	562 mm
Package height	126 mm
Package depth	551 mm
Package weight	4.5 kg
Width	483 mm
Weight	3.2 kg
Height	87 mm
Depth	356 mm
Packaging content
Screws included	Yes
Quick installation guide	Yes
Screw type	M6
Washers included	Yes
Cage nuts included	Yes
Logistics data
Master (outer) case width	581 mm
Master (outer) case length	504 mm
Master (outer) case height	584 mm
Products per master (outer) case	4 pc(s)
