StarTech.com 2m DisplayPort to HDMI Adapter Cable with Gripping Connectors, 4K 60Hz

Make the connection with the StarTech.com 2m DisplayPort to HDMI — length and connector details are in the spec table.

DisplayPort to HDMI cable delivering seamless UHD video without accidental disconnections

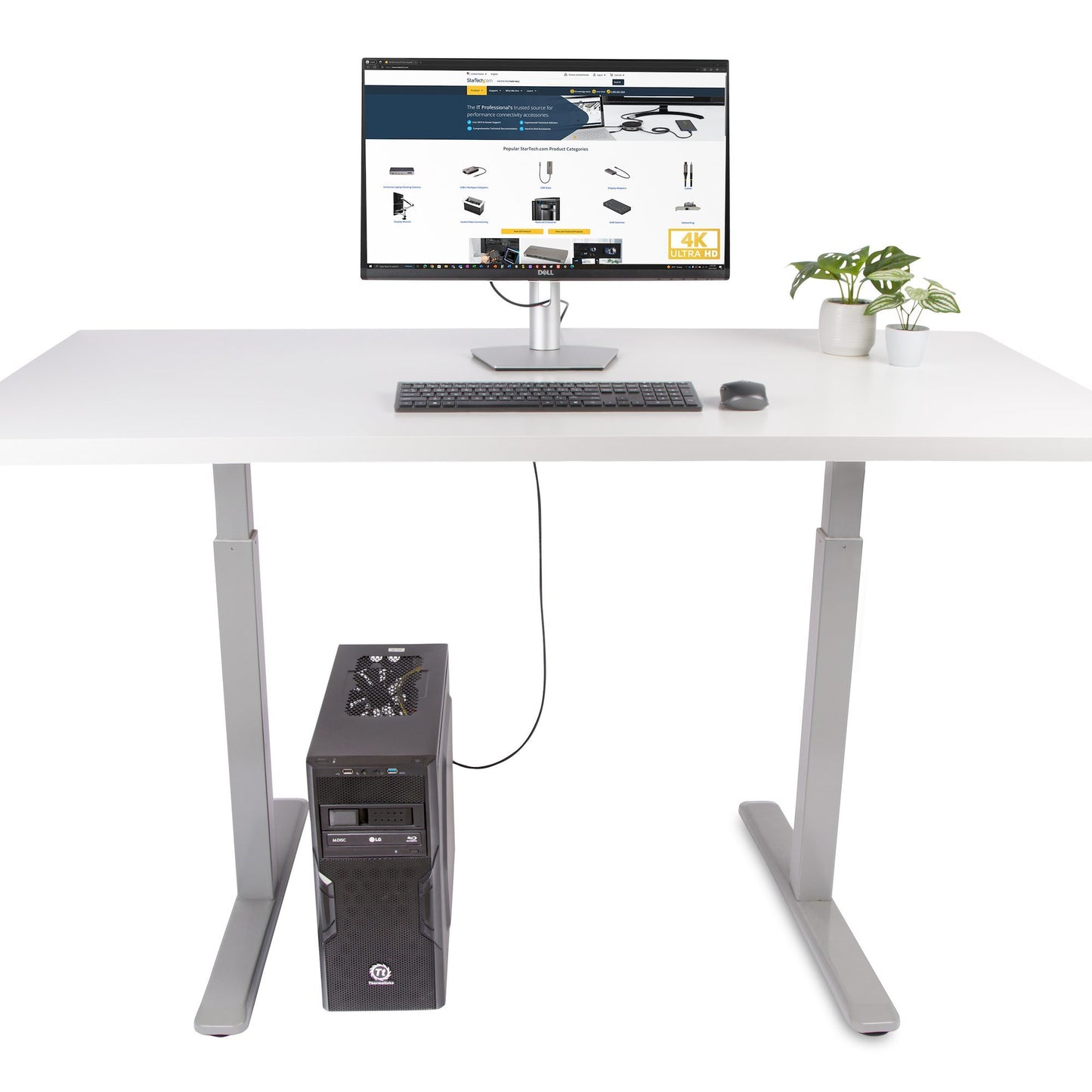

Connect a DisplayPort-enabled desktop to 4K 60Hz High Dynamic Range (HDR)-capable HDMI monitor, using this 2-meter Active DisplayPort to HDMI Adapter Cable.

Gripping HDMI Connector

The HDMI UHD Cord features gold-plated gripping connectors to prevent accidental disconnections. The connectors attach securely to HDMI device ports, making this cable ideal for critical A/V setups such as security systems and HDMI switches.

4K 60Hz HDR Capabilities

HDR improves visual quality by providing a wide assortment of colors across a dynamic range of brightnesses, resulting in a more vibrant viewing experience. The DP 1.4 to HDMI 2.0b adapter supports 18Gbps bandwidth, allowing for 4:4:4/RGB color space, 8-bit with dithering, and 7.1ch audio. It also supports HBR3 and HDCP 1.4/2.3.

Compatibility

The Universal Adapter Cable is compatible with all hardware platforms and any operating system. Utilize integrated or dedicated GPU (Intel/AMD/Nvidia) capabilities, enabling high-performance graphics with minimal CPU usage.

Designed and Built for IT Professionals

Integrated video adapter cable reduces points of failure, signal loss and clutter, and requires no additional power. Built with adaptive receiver equalization to optimize the input signal and amplify the output signal, to ensure display compatibility. Cage shielding prevents Electromagnetic Interference (EMI) and helps maintain signal integrity. This Active Adapter Cable works with computers from Dell, HP, Lenovo, and other desktop manufacturers. It is backward compatible with 4K 30Hz, 1080p, and other lower resolutions.

Specifications

Features
Chipset	Synaptics - VMR7100
Colour depth	10 bit
HDMI version	2.0b
DisplayPort version	1.4
Product colour	Black
Cable length	2 m
Connector 1	DisplayPort
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Jacket material	Polyvinyl chloride (PVC)
Bandwidth	18000 MB/s
Maximum resolution	4096 x 2160 pixels
Supported graphics resolutions	4096 x 2160, 3840 x 2160, 3200 x 1800, 3072 x 1728, 2560 x 1440, 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA)
HDCP	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	120 Hz
HDCP version	1.4/2.3
High Dynamic Range (HDR) supported	Yes
Supported audio channels	7.1
Colour sampling	4:4:4
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Certificates
Compliance certificates	RoHS
Weight & dimensions
Cable diameter	5.5 mm
Package width	190 mm
Package depth	110 mm
Package height	23 mm
Package weight	115 g
Logistics data
Master (outer) case width	410 mm
Master (outer) case length	275 mm
Master (outer) case height	265 mm
Products per master (outer) case	40 pc(s)

Downloads

• Datasheet (PDF)
