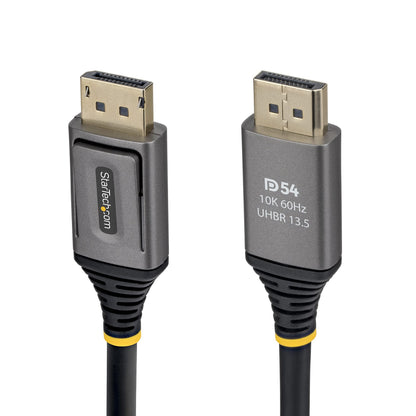

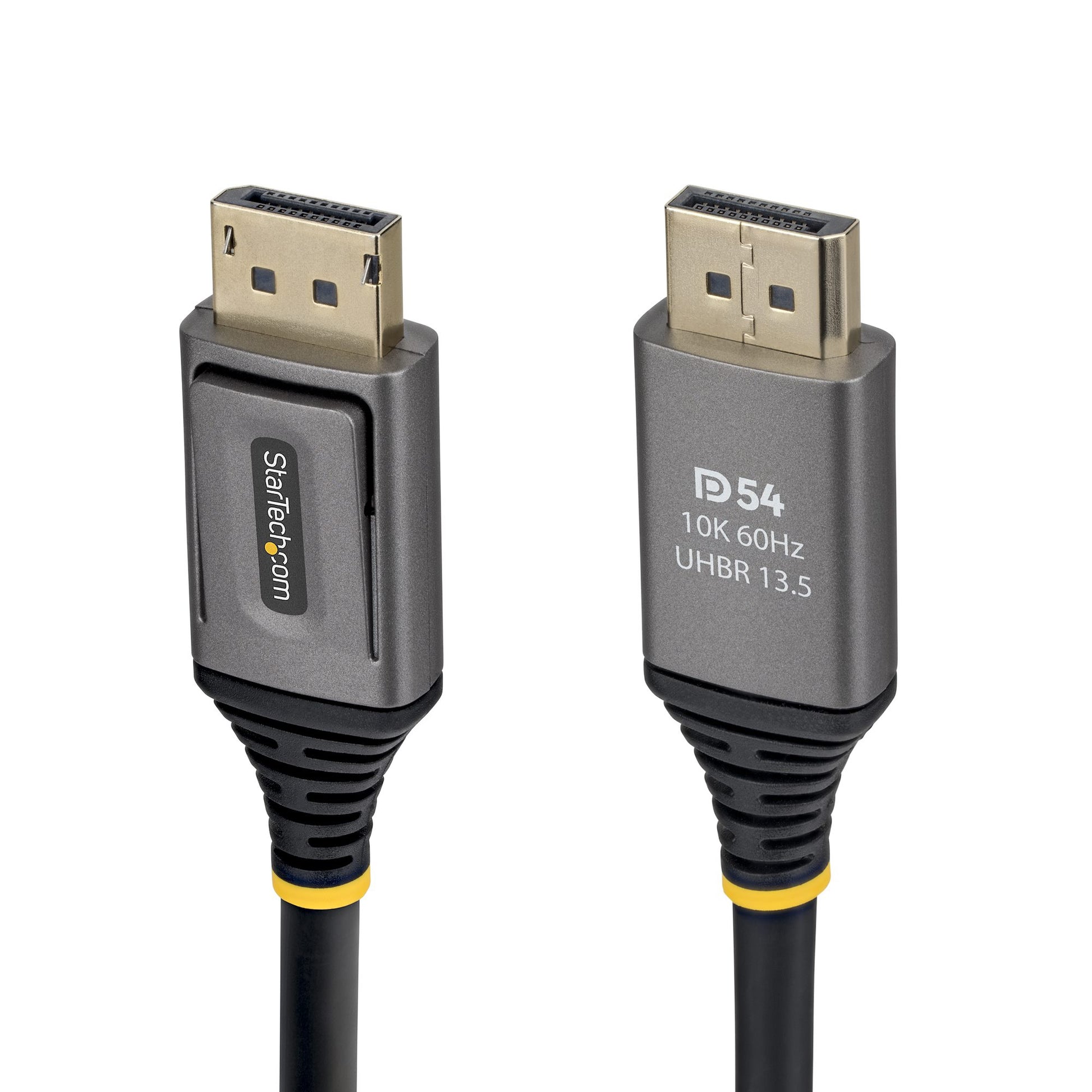

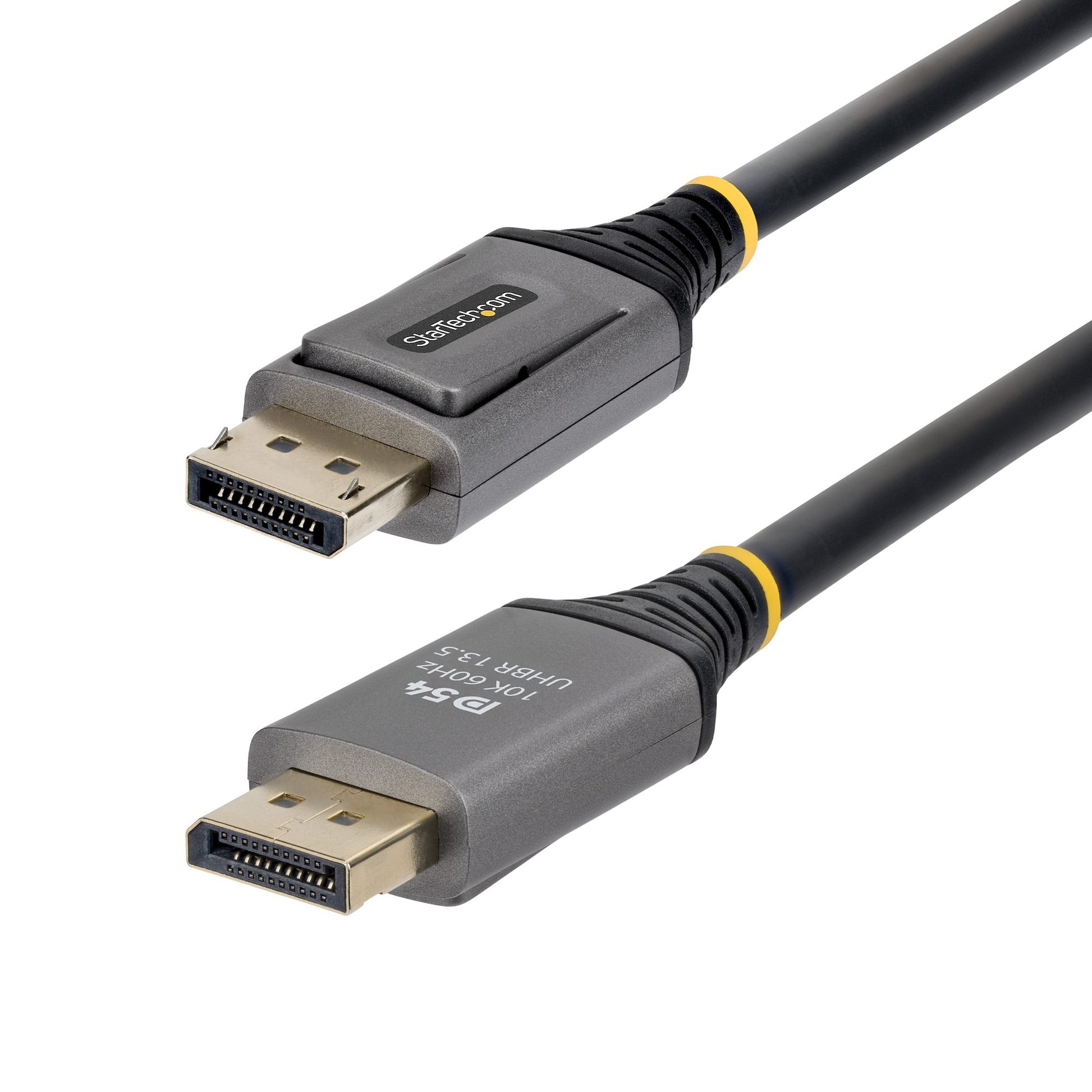

StarTech.com 2m DisplayPort 2.1 Cable, VESA Certified DP54 DisplayPort Cable

Make the connection with the StarTech.com 2m DisplayPort 2.1 Cable — length and connector details are in the spec table.

Unlock UHBR13.5 Bandwidth for Next-Gen Resolutions, High Refresh Rates, and Uncompressed 8K 60Hz video

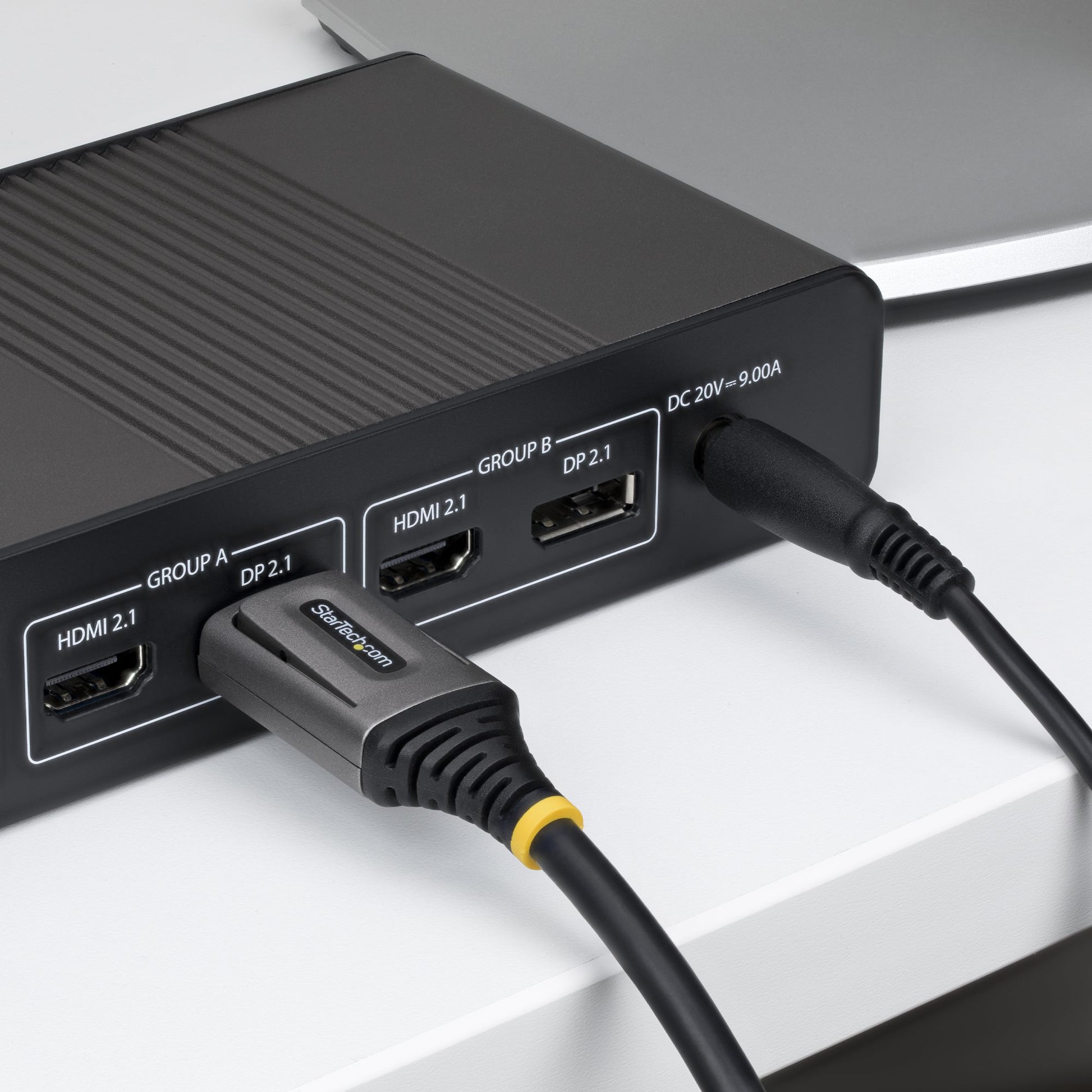

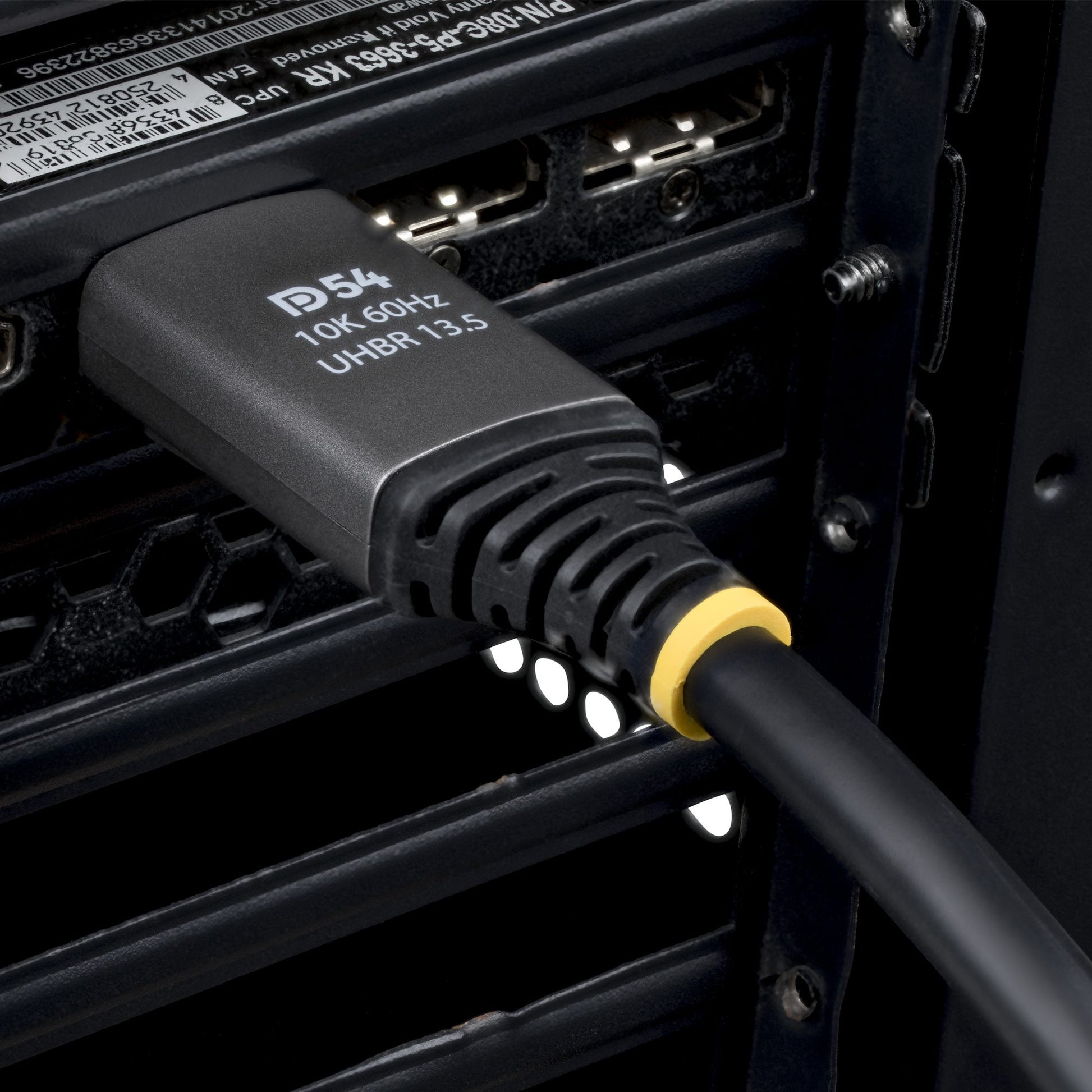

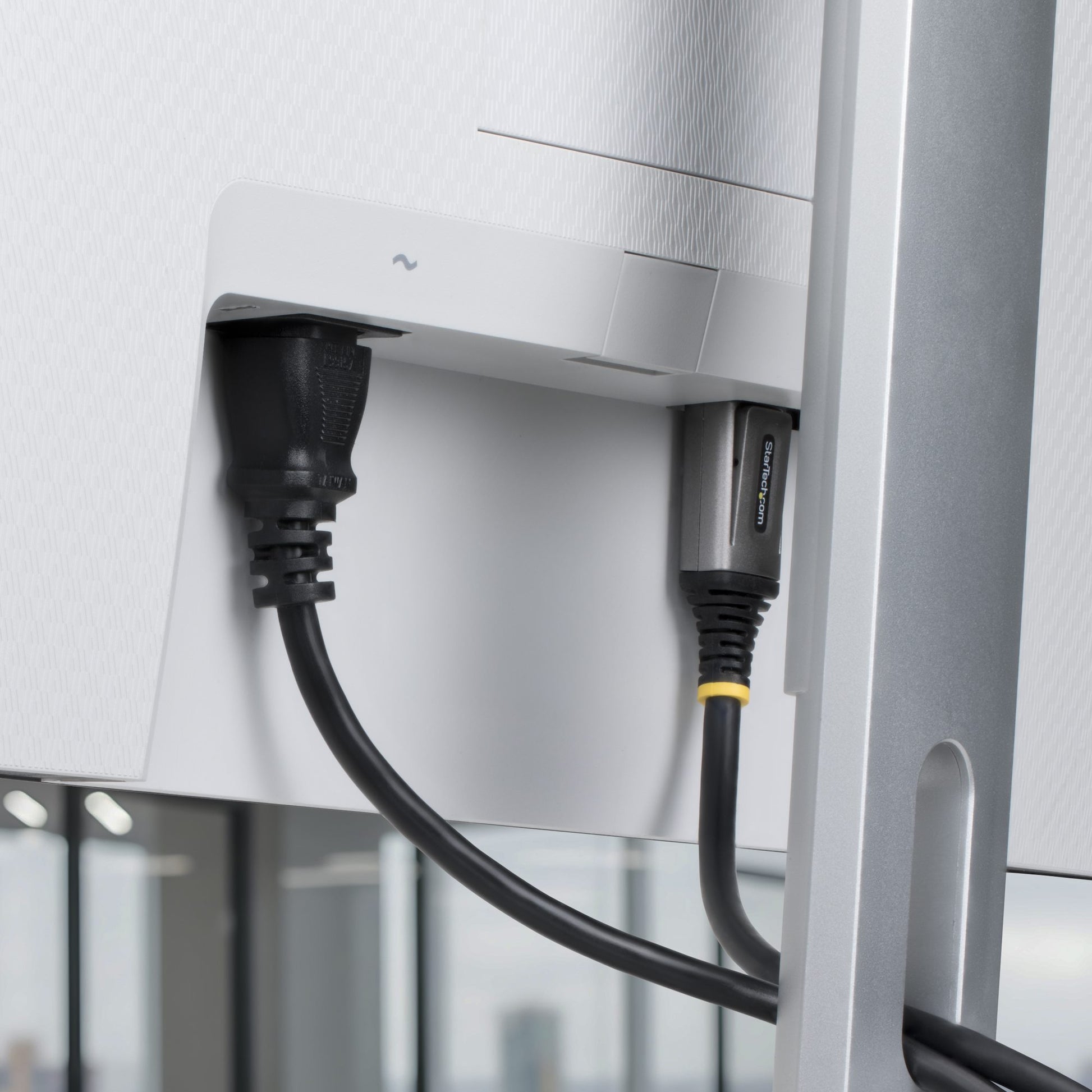

Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP54 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.

Seamless Compatibility

For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.

Durable Design

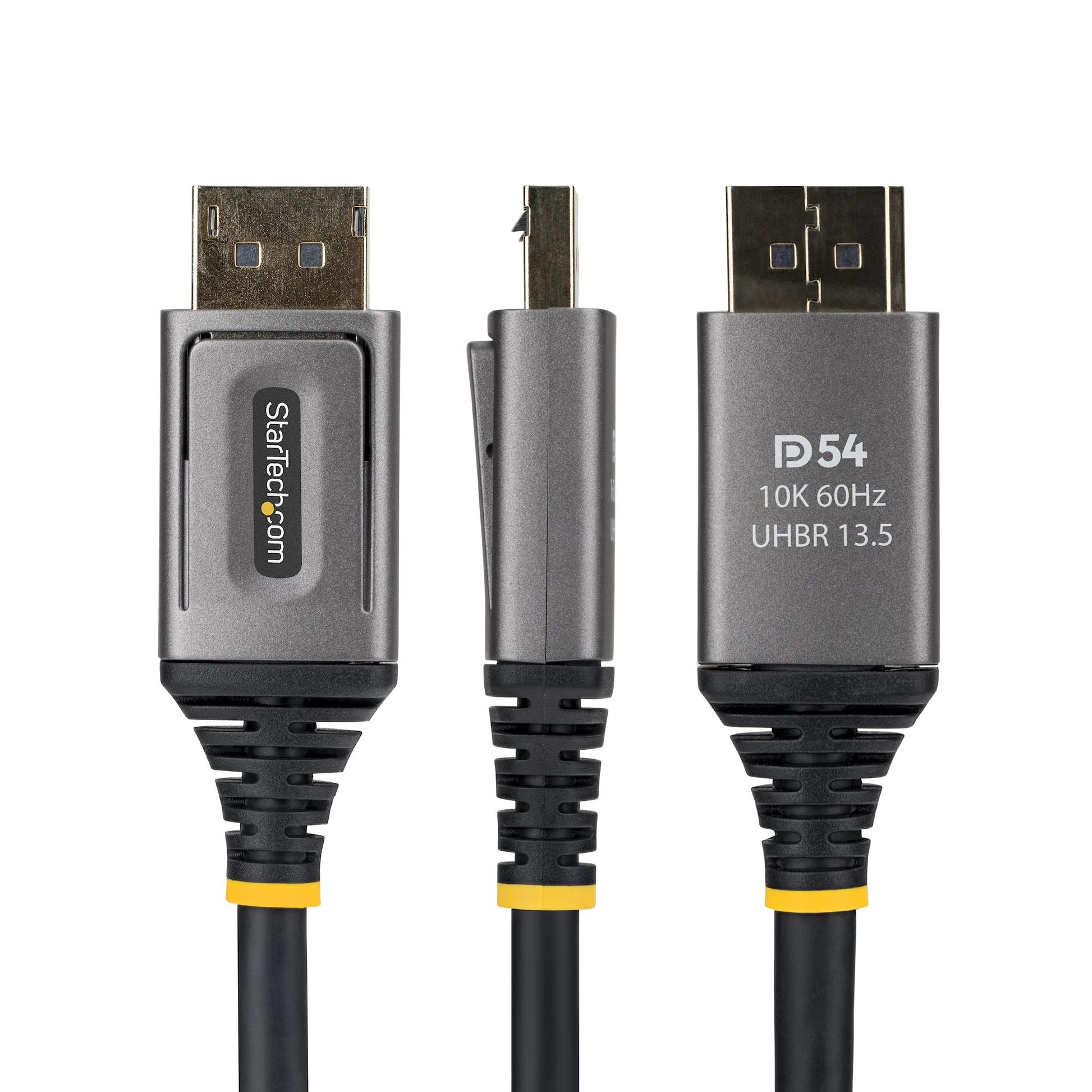

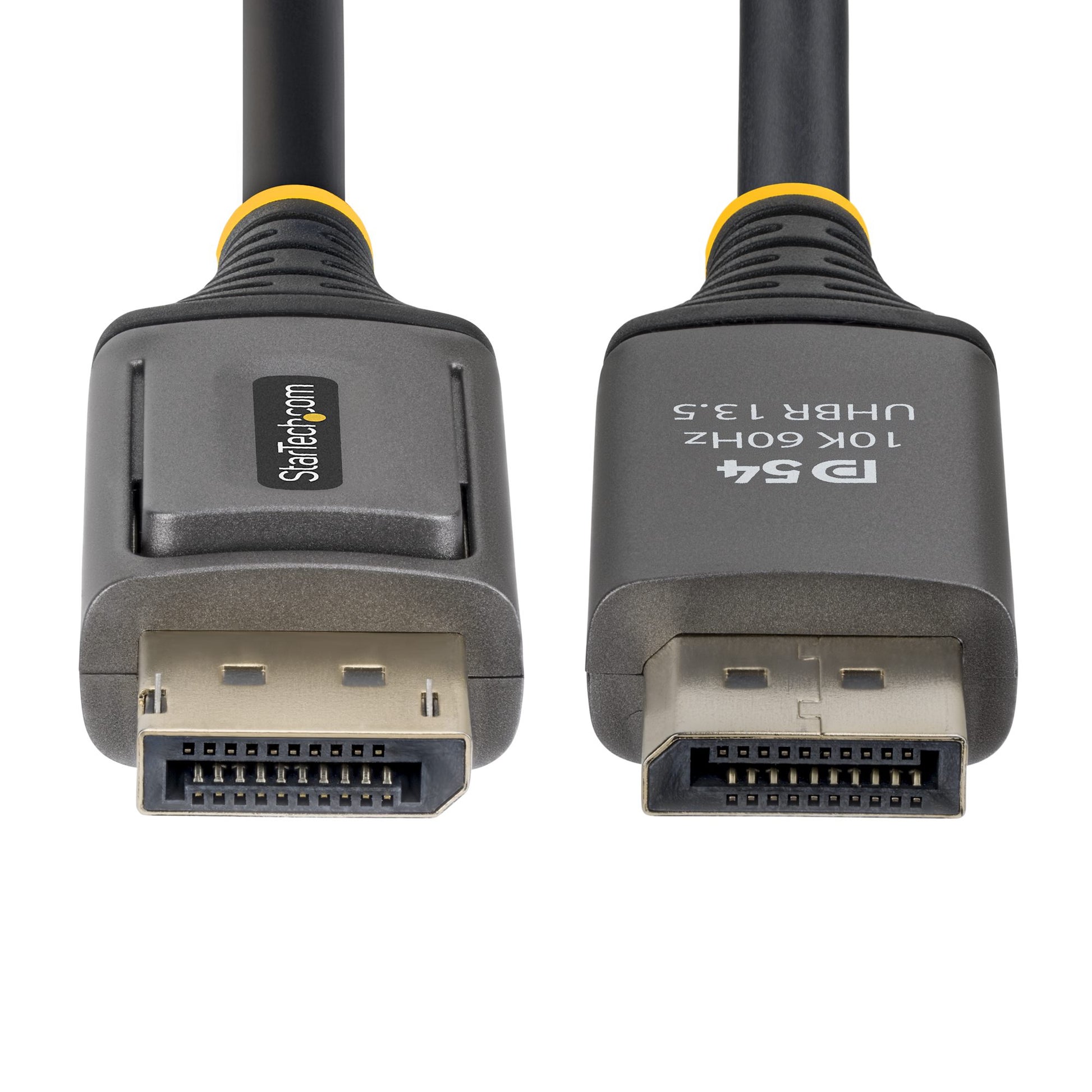

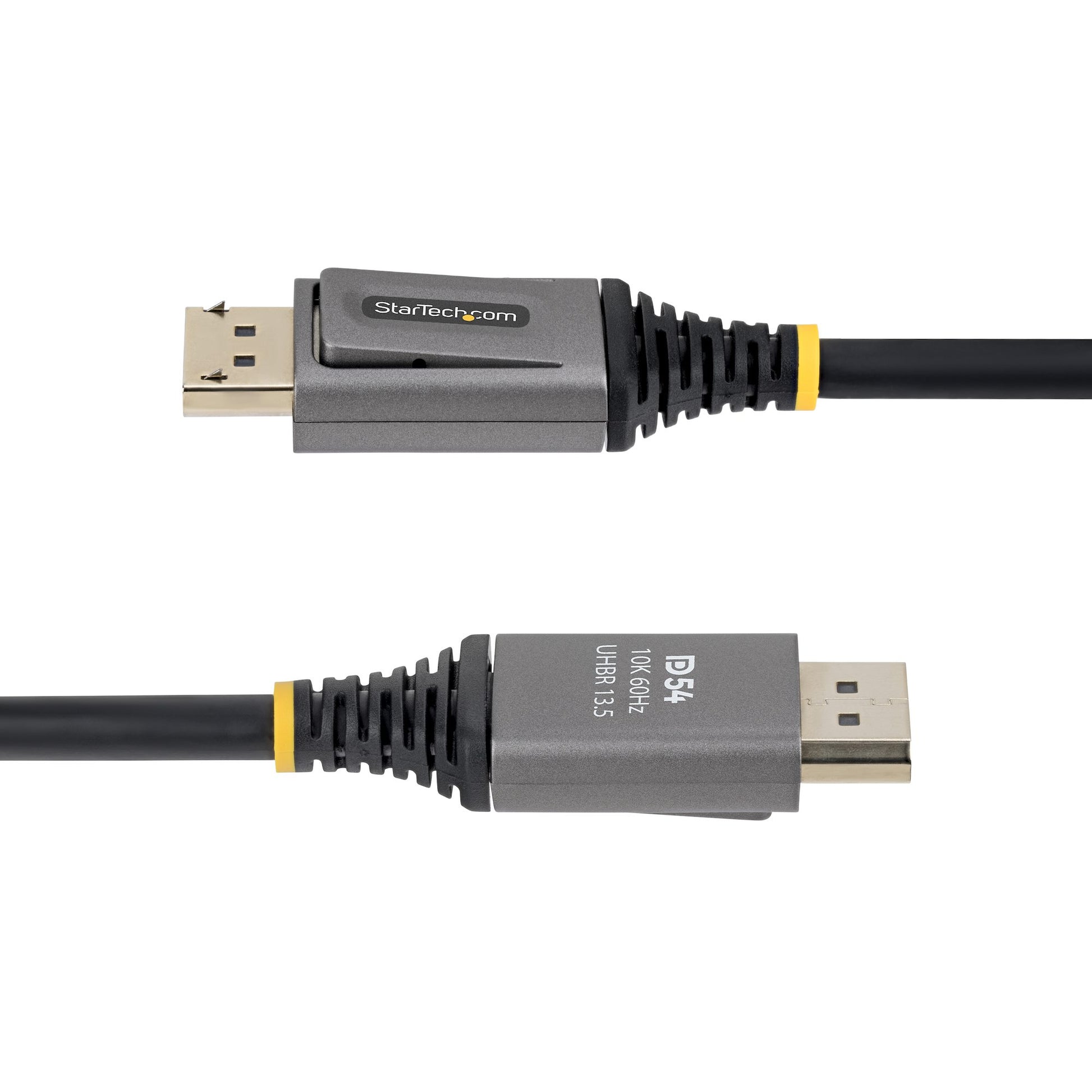

This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.

Supported DisplayPort 2.1 Features:

This DP54 DisplayPort cable supports the following DP 2.1 features:

• UHBR13.5 supports high refresh rates including uncompressed 5K 120Hz and 4K 144Hz
• DSC-compressed video up to 16K 30Hz / 10K 60Hz / 4K 240Hz 4:4:4 8-bit
• Uncompressed video resolutions up to 10K 30Hz / 8K 60Hz / 4K 144Hz 4:4:4 8-bit
• High-Bandwidth Digital Content Protection (HDCP) 2.3 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions

This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.

Specifications

Features
Cable shielding	Aluminum mylar foil
Product colour	Black
Cable length	2 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Nickel
Jacket material	Thermoplastic elastomer (TPE)
DisplayPort version	2.1
Data transfer rate	54 Gbit/s
Maximum resolution	15360 x 8640 pixels
Supported graphics resolutions	15360 x 8640, 5120 x 2880, 7680 x 4320, 4096 x 2160
HDCP	Yes
Plug and Play	Yes
High Dynamic Range (HDR) supported	Yes
Maximum refresh rate	240 Hz
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Colour sampling	4:4:4
HDCP version	2.3
Display Stream Compression (DSC)	Yes
Display Stream Compression (DSC) version	1.2a
Channels quantity	32 channels
Cable type	Round cable
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Certificates
Compliance certificates	RoHS
Weight & dimensions
Cable diameter	7 mm
Weight	138 g
Package weight	205 g
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Packaging data
Quantity per pack	1 pc(s)
Logistics data
Products per master (outer) case	30 pc(s)
Master (outer) case width	450 mm
Master (outer) case length	320 mm
Master (outer) case height	200 mm

Downloads

• Datasheet (PDF)
