StarTech.com 2m (6ft) USB4 Cable, 20Gbps, USB-IF Certified USB-C Cable, 240W PD EPR

Make the connection with the StarTech.com 2m (6ft) USB4 Cable — length and connector details are in the spec table.

Use this USB-IF Certified USB-C cable for fast and reliable connections to your USB4 devices

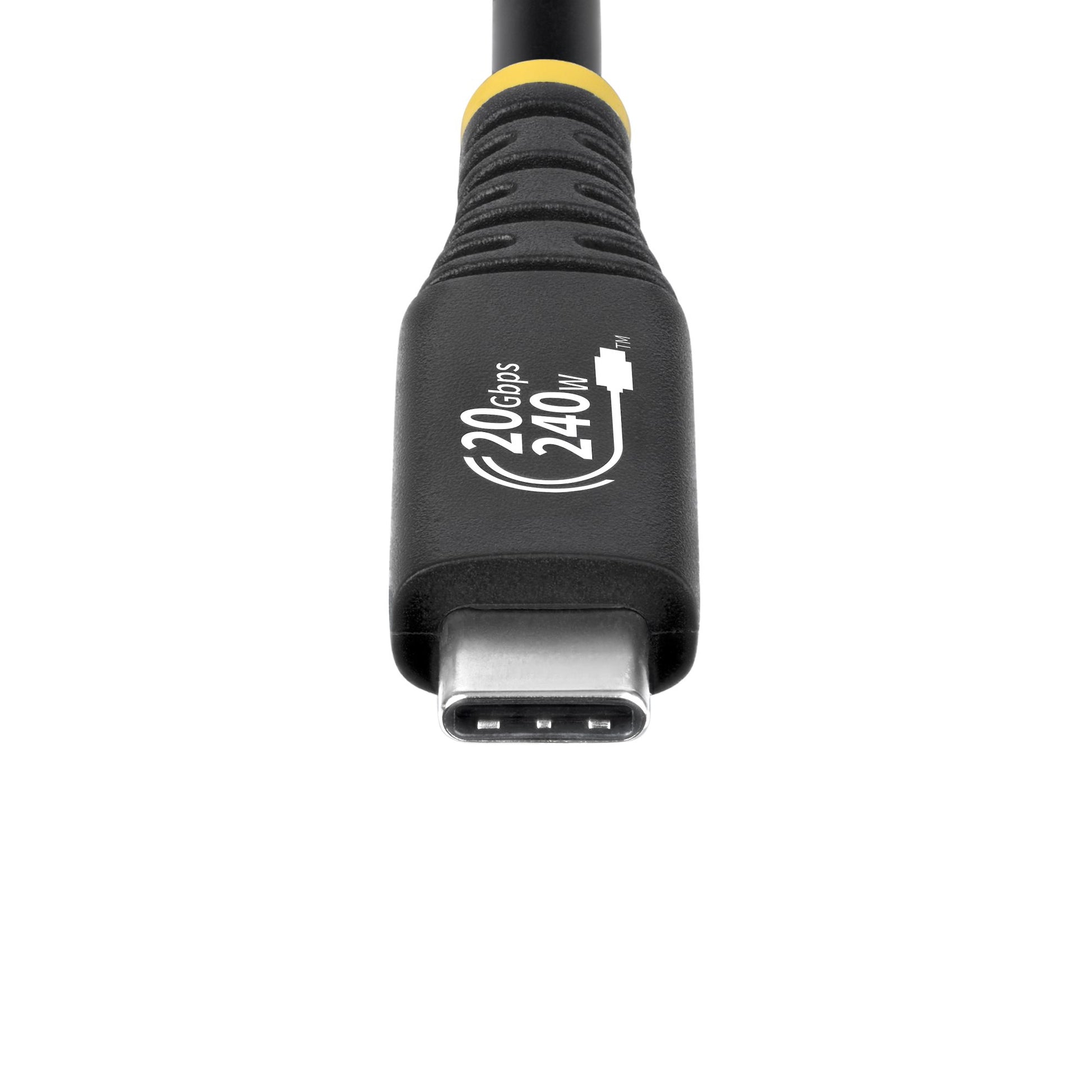

Connect reliably to USB Type-C® (USB4) devices, delivering up to 20Gbps, 4K 120Hz video, and 240W of Power Delivery. Each connector is laser-etched with USB4 specifications, an exclusive feature that eliminates guesswork, confirms compatibility, and verifies USB4 performance.

Power High-Performance Laptops

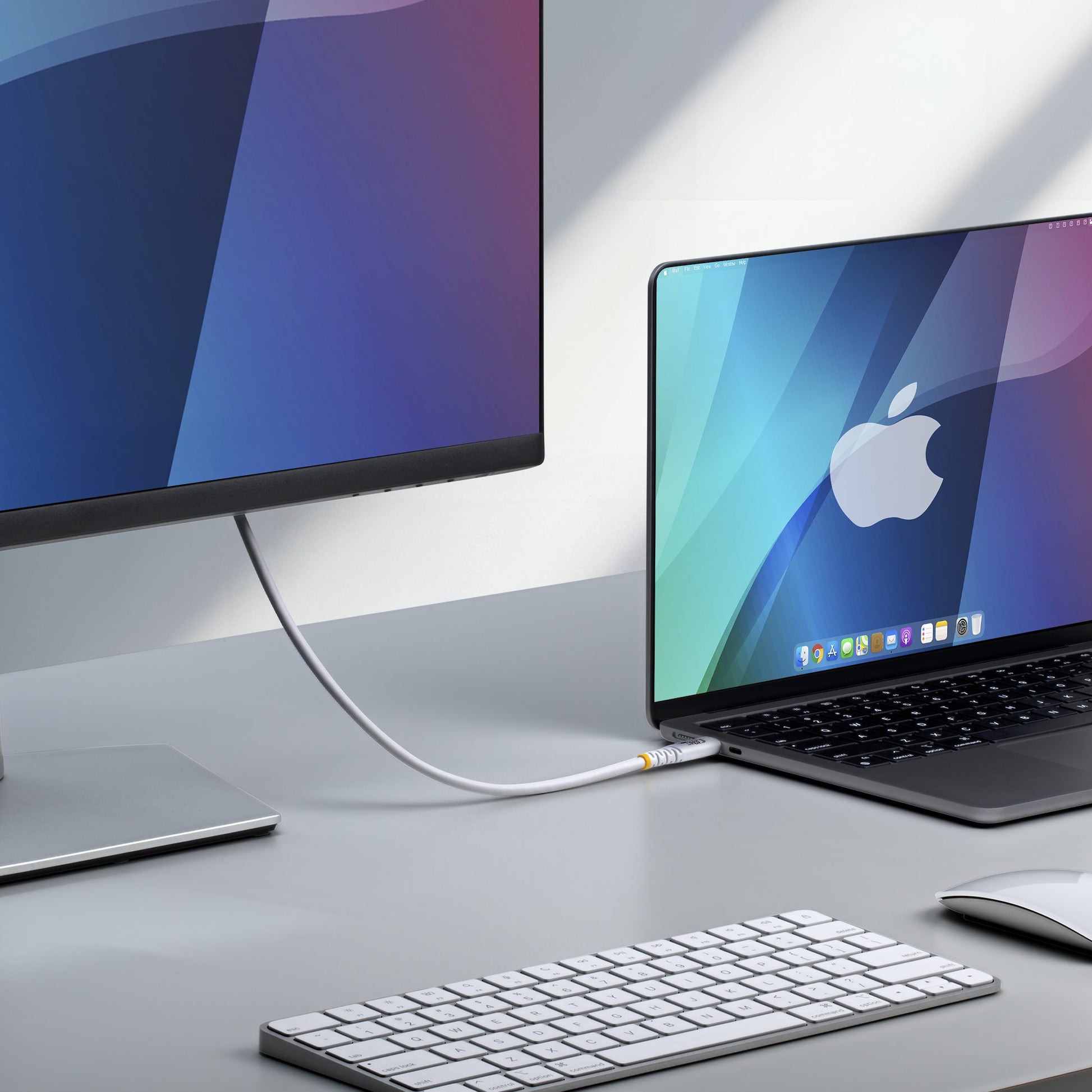

Safely power high-performance laptops and USB-C devices with up to 240W of Extended Power Range (EPR) Power Delivery 3.1 using a compatible USB-C docking station or wall charger. An integrated E-marker chip ensures accurate power negotiation for stable, consistent charging. Ideal for professional laptops such as Apple M-series Pro/Max MacBooks.

Certified for Reliable Performance

Enable full-speed, spec-compliant USB4 performance with a USB-IF Certified cable designed for demanding power, data, and display applications. Rigorously tested to meet electrical and mechanical standards, it ensures reliable interoperability, signal integrity, and consistent operation across a wide range of USB-C devices. The USB4 cable features shielded 23/31AWG wire for enhanced EMI protection.

Deliver 4K 120Hz Video with DisplayPort 2.1 Alt Mode

Drive sharp 4K 120Hz video or dual 4K 60Hz displays via DisplayPort 2.1 Alt Mode with DSC, HBR3, and HDR10 support. Suitable for professional 3D rendering, high-frame-rate video, and bandwidth-intensive visual workflows. This USB4 cable integrates seamlessly with USB-C docks, and maintains backward compatibility with a wide range of resolutions and refresh rates.

Rugged and Flexible

The USB4 Cable features a TPE inner jacket with a braided exterior for optimal flexibility and wear protection. The durable nickel-plated connectors are designed for frequent daily use, and are rated to operate beyond 10,000 insertion cycles. The 2-meter (6.6-foot) cable length is ideal for general use and desk workspaces where extra reach is desired.

Specifications

Features
Cable shielding	Aluminum mylar foil
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Plug and Play	Yes
AWG wire size	23/31
USB version	USB4 Gen 2x2
Connector 1	USB C
Connector 2	USB C
Cable length	2 m
Connector contacts plating	Nickel
Product colour	Black
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Male
USB Power Delivery (USB PD)	Yes
Cable jacket material	Thermoplastic elastomer (TPE)
USB Power Delivery up to	240 W
USB Power Delivery revision	3.0
Fast charging	Yes
Maximum resolution	3840 x 2160 pixels
Maximum refresh rate	120 Hz
DisplayPort version	1.4
Display Stream Compression (DSC)	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Maximum data transfer rate	20 Gbit/s
Cable diameter	5.1 mm
Input current (max)	3 A
Weight	85 g
Quantity per pack	1 pc(s)
Weight & dimensions
Package width	80 mm
Package depth	30 mm
Package height	230 mm
Package weight	111 g
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 60 °C
Technical details
Compliance certificates	RoHS, CE
Logistics data
Products per master (outer) case	80 pc(s)
Master (outer) case width	540 mm
Master (outer) case length	500 mm
Master (outer) case height	215 mm

Downloads

• Datasheet (PDF)
