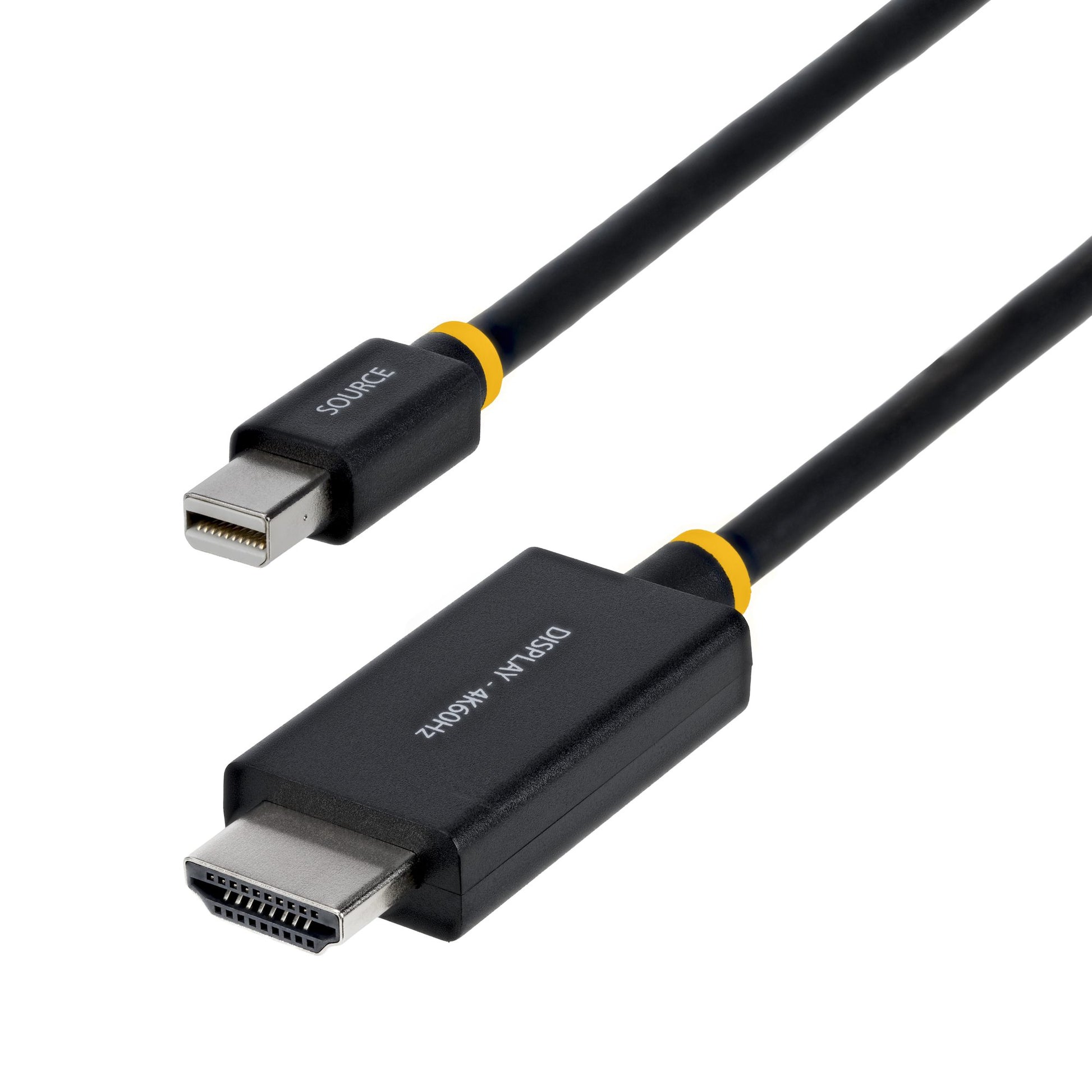

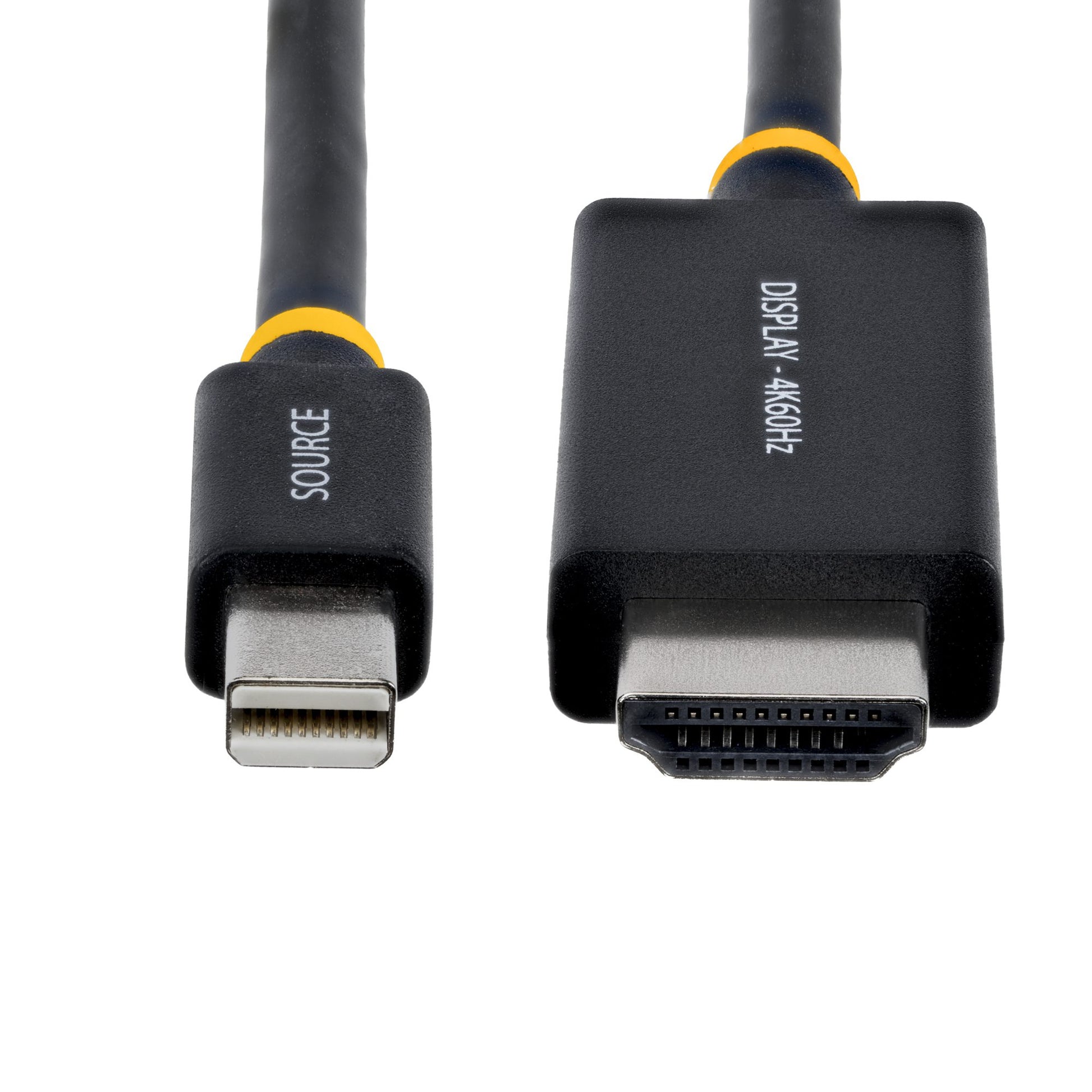

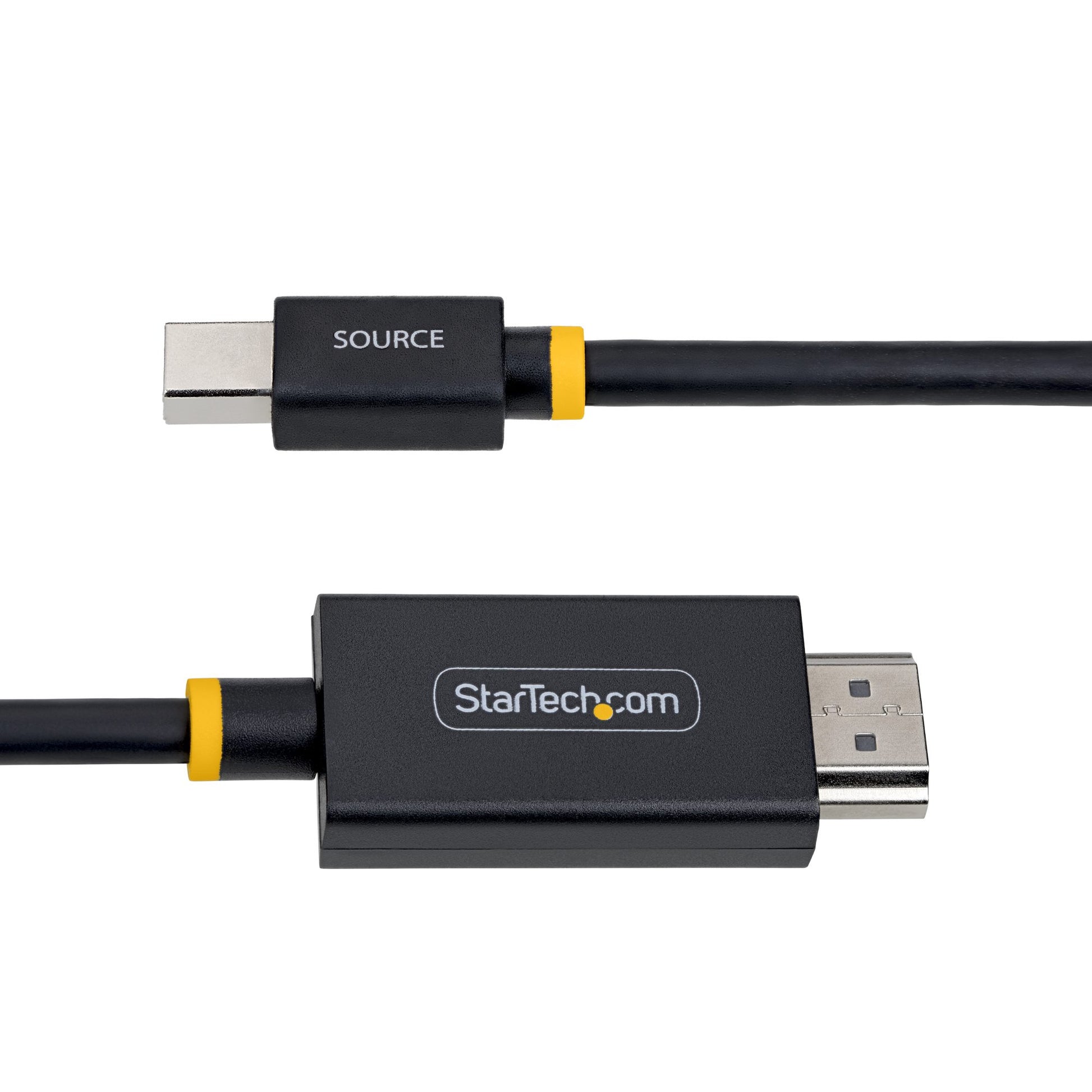

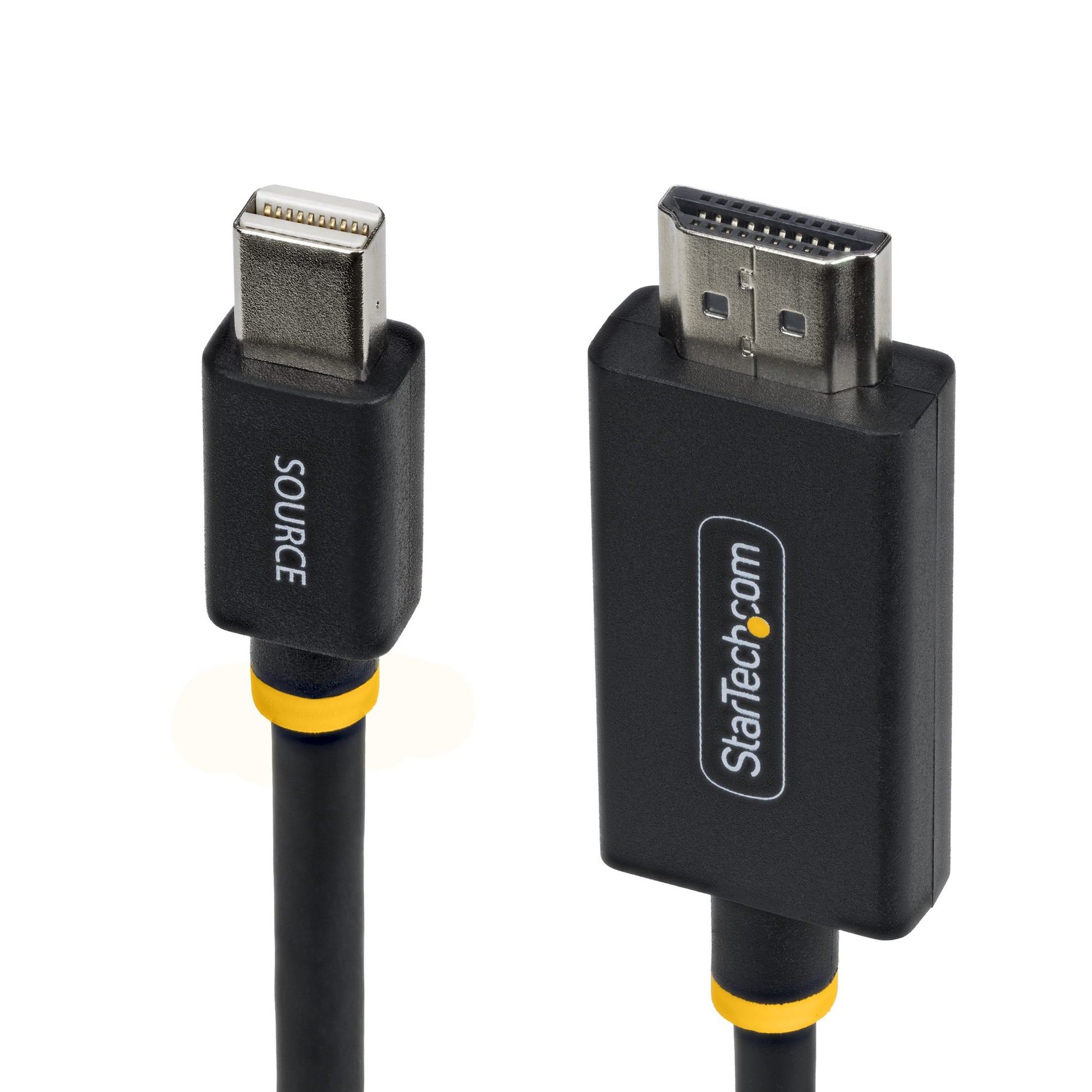

StarTech.com 2m (6ft) Mini DisplayPort to HDMI Adapter Cable, 4K 60Hz with HBR3/HDCP

Make the connection with the StarTech.com 2m (6ft) Mini DisplayPort — length and connector details are in the spec table.

Connect a Mini DisplayPort source to an HDMI display with support for up to 4K 60Hz UHD video

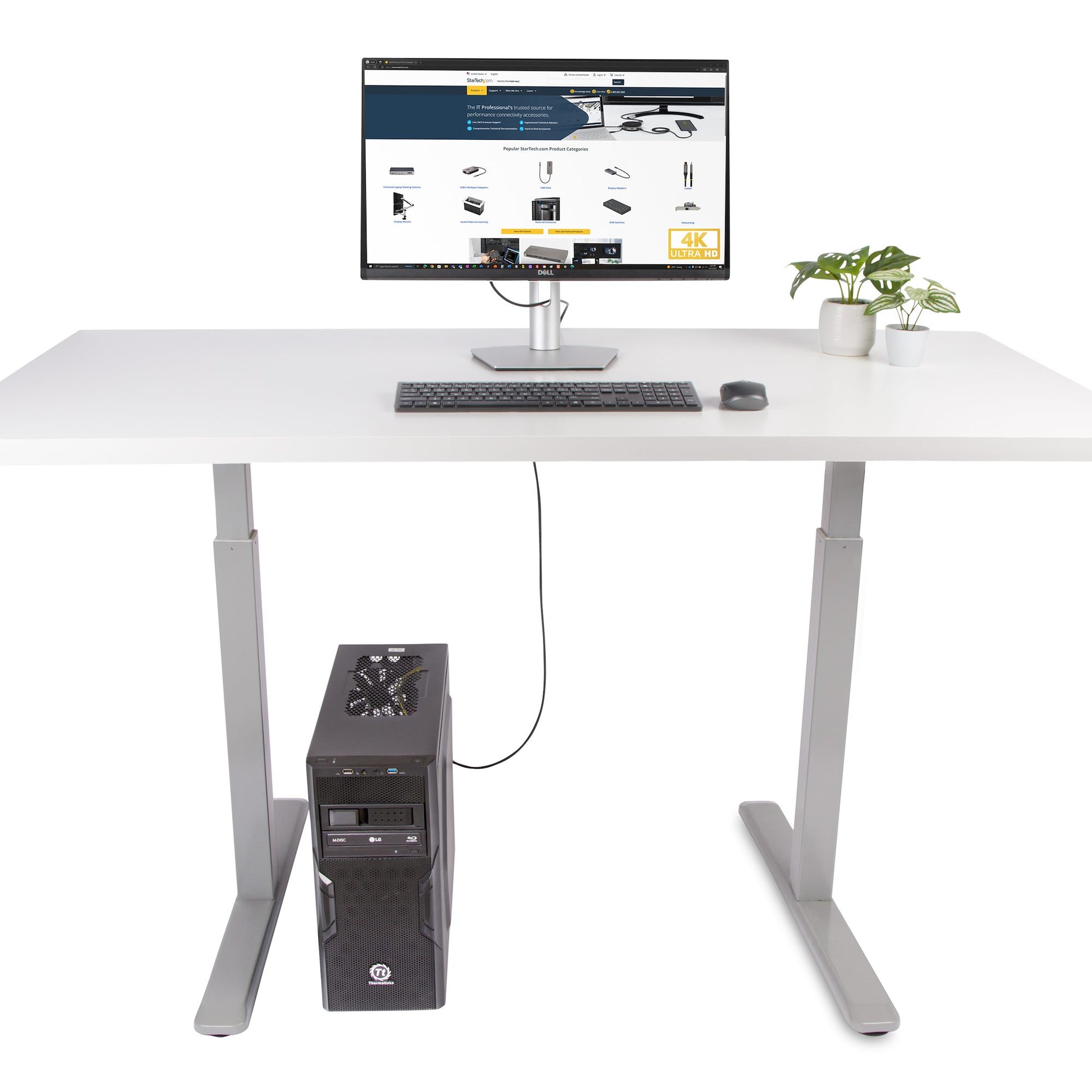

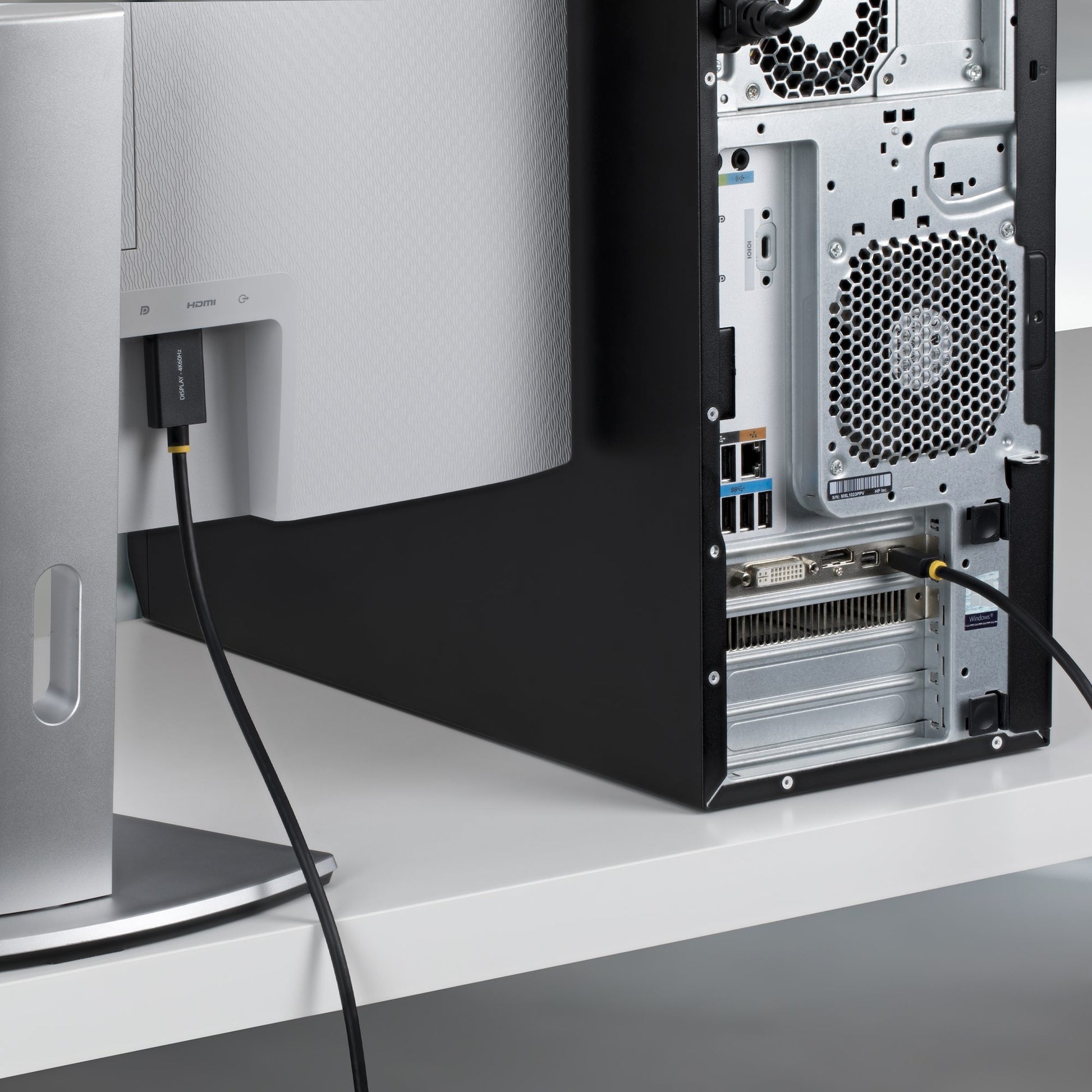

Connect a Mini DisplayPort-enabled desktop to an HDMI UHD monitor, using this 2-meter (6.6-foot) Active Mini DisplayPort to HDMI Adapter Cable.

Seamless 4K 60Hz UHD Video

This active Mini DisplayPort to HDMI adapter cable supports up to 4K 60Hz UHD over HDMI 2.0 with 7.1ch audio, HDCP 2.3 and DPCP content protection. Ensure sharp picture quality with 32Gbps HBR3 bandwidth from the Mini DisplayPort input, delivering full 18Gbps HDMI 2.0 output for consistent UHD video performance.

Universal Compatibility

The mDP To HDMI adapter cord is ideal for workstations and GPUs equipped with a Mini DisplayPort 1.2, 1.4, or 2.1 video ports and HDMI 2.0 displays. An active chipset ensures optimal signaling and universal compatibility across standard mDP and mDP++ ports. Connect a Mini DisplayPort 1.2 source to enable HDMI 2.0 4K 60Hz 4:4:4 chroma, 8-bit color depth output.

Designed and Built for IT Professionals

The integrated adapter cable design minimizes signal loss, reduces clutter, and eliminates the need for external power. This Mini DisplayPort to HDMI cable helps maintain signal integrity and reduce electromagnetic interference (EMI) for reliable long-term performance. Compatible with systems from Dell, HP, Lenovo, and other desktop manufacturers, and backward compatible with 4K 30Hz, 1080p, and lower resolutions.

Specifications

Features
Converter type	Active video converter
Chipset	Parade PS176
HDMI version	2.0
DisplayPort version	2.1
Product colour	Black
Cable length	2 m
Connector 1	Mini DisplayPort
Connector 2	HDMI Type A (Standard)
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Gold
Jacket material	Thermoplastic elastomer (TPE)
Bandwidth	32000 MB/s
Maximum resolution	3840 x 2160 pixels
Supported graphics resolutions	3840 x 2160, 3200 x 1800, 3072 x 1728, 2560 x 1440, 2048 x 1536 (QXGA), 1920 x 1200 (WUXGA), 1920 x 1080 (HD 1080)
HDCP	Yes
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Maximum refresh rate	144 Hz
HDCP version	2.3
Supported audio channels	7.1
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Certificates
Compliance certificates	RoHS
Weight & dimensions
Cable diameter	5 mm
Weight	100 g
Package width	220 mm
Package depth	128 mm
Package height	15 mm
Package weight	68 g
Logistics data
Master (outer) case width	500 mm
Master (outer) case length	320 mm
Master (outer) case height	21 mm
Products per master (outer) case	80 pc(s)

Downloads

• Datasheet (PDF)
