StarTech.com 25U Enterprise-Grade Server Rack Cabinet Kit, 19in Enclosed 4-Post Rack

Build a tidy install with the StarTech.com 25U Enterprise-Grade Server Rack — dimensions and mounting details are in the spec table.

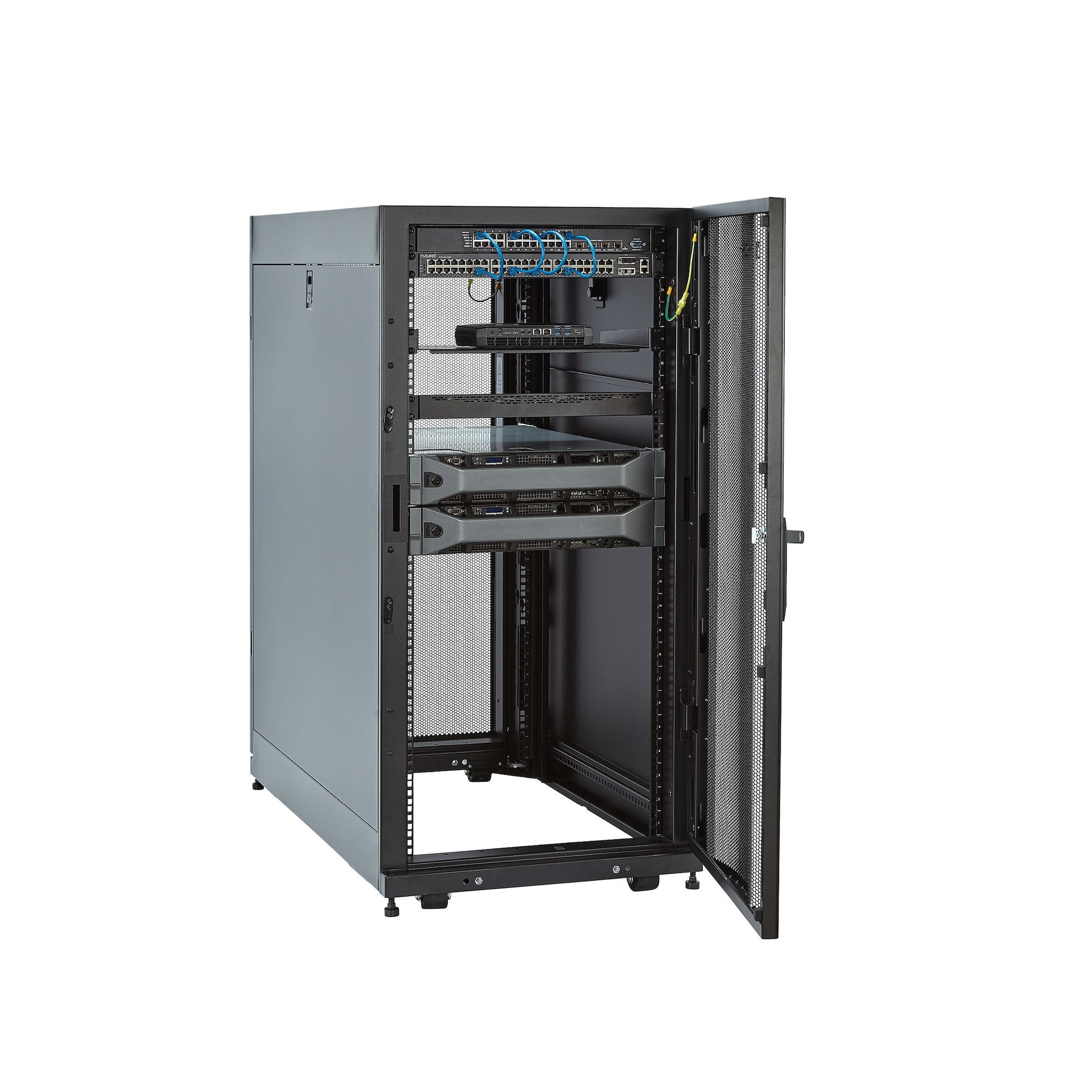

Securely store servers, network and telecommunications equipment in this 25U server rack

This 25U server rack provides a sleek, secure cabinet for storing standard 19" rack-mount devices such as Dell, HP, and IBM servers, along with telecommunication and A/V equipment. The rack is compatible with EIA-310 compliant equipment and supports a total load capacity of 1500 kg (3307 lb.).

Hassle-free equipment installation

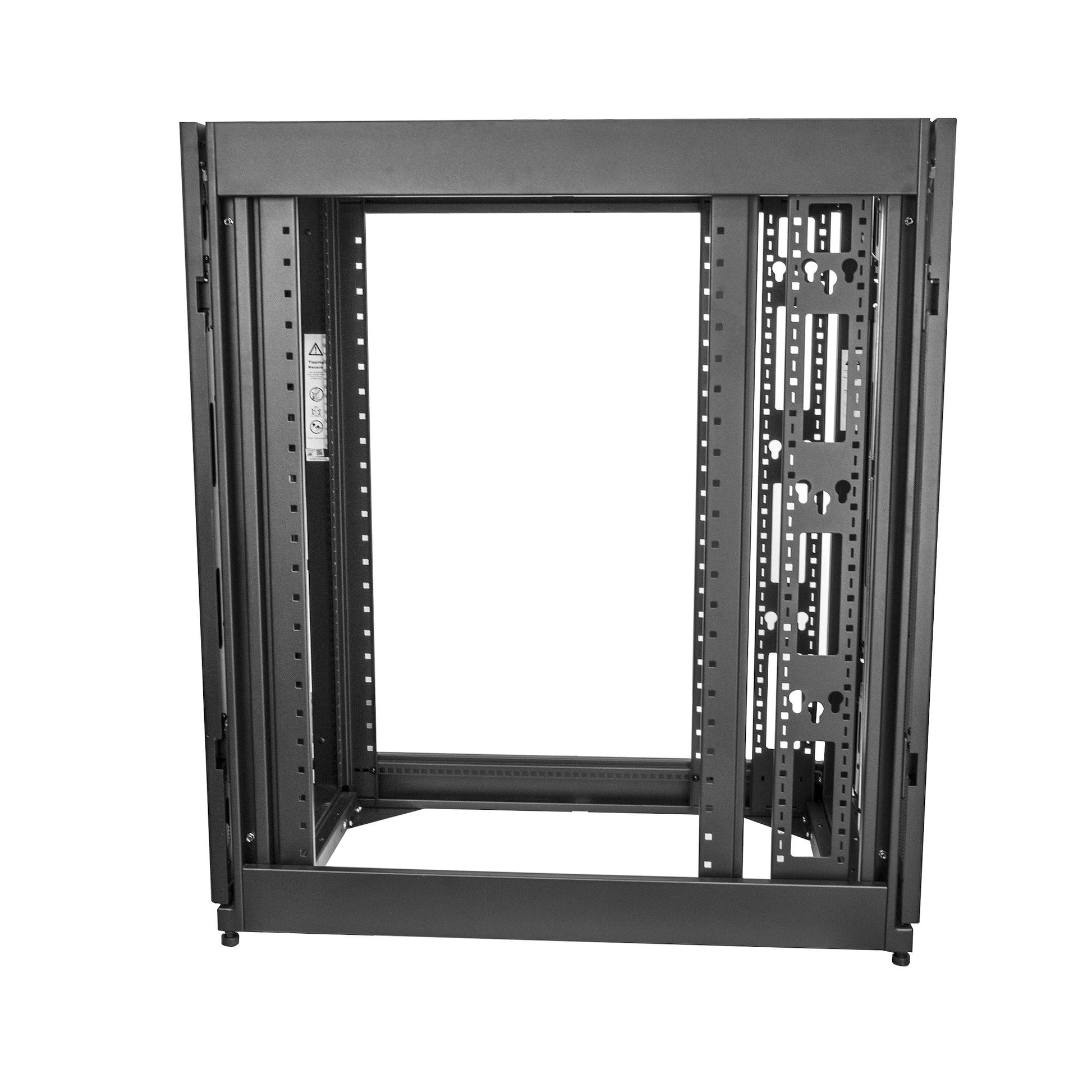

This rack offers a variety of features that make it easy to install your equipment. With adjustable mounting rails, you can easily change the rail depth from 7 to 35 in. (76.2 mm - 939.8 mm) to support full-depth equipment. The added depth also provides support for additional cable and power management behind your equipment.

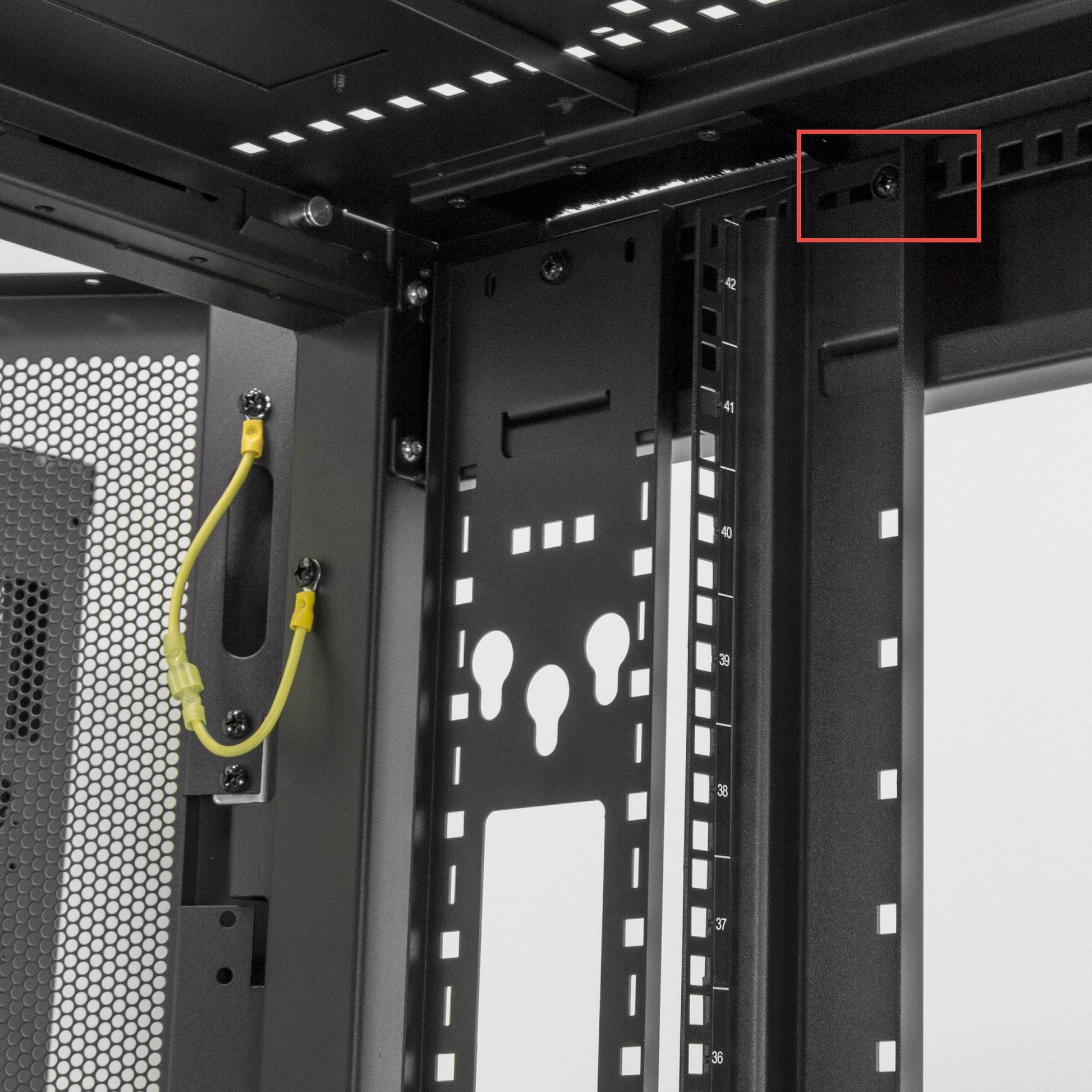

The rack features grommet holes on the ceiling and floor, which make it easy to run cabling in and out of the cabinet for discreet cable management. The rack also features grounding lugs that enable you to ground your equipment for added protection, and tool-less accessory mounting rails so you can mount 0U vertical cable managers and PDUs.

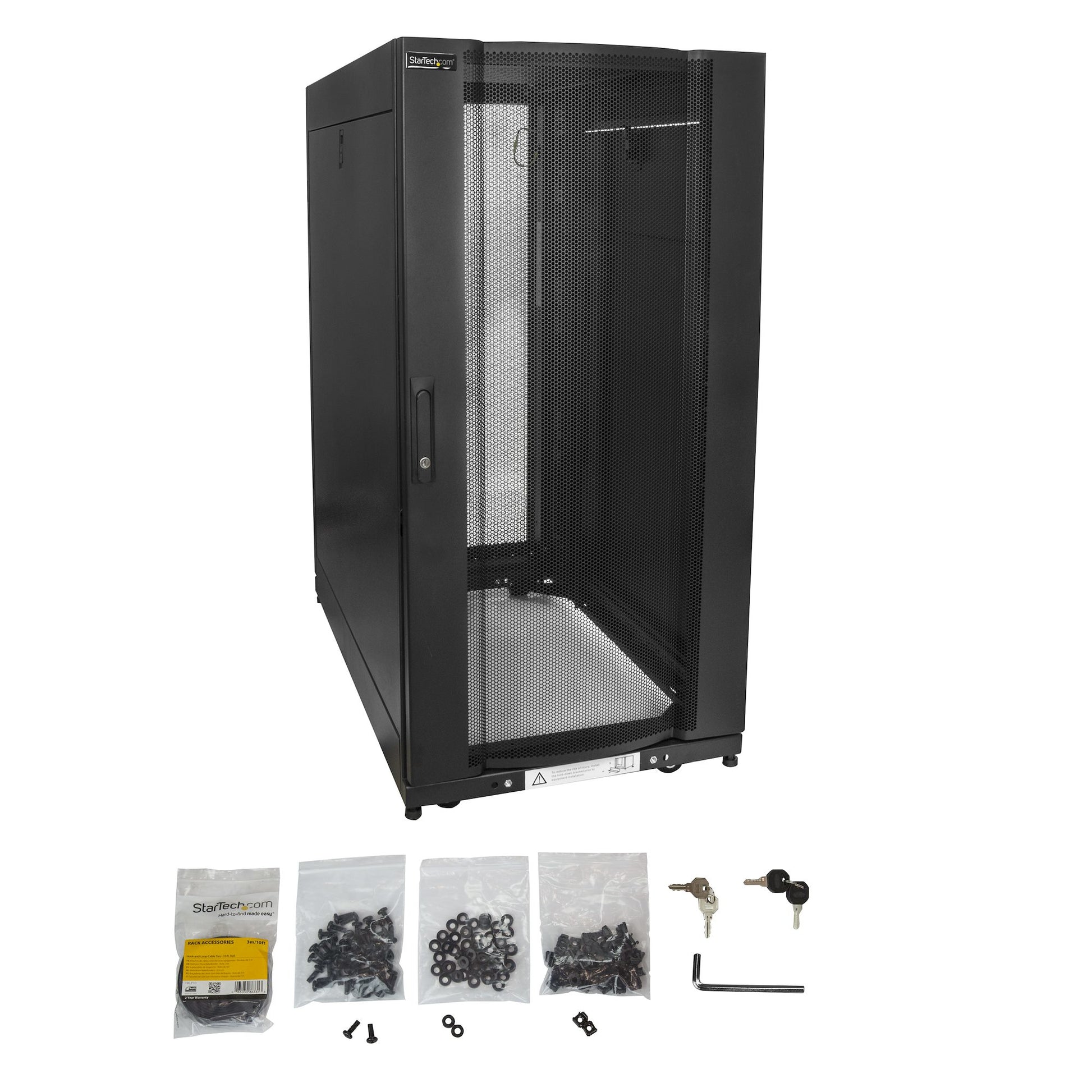

For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables tidy. You can cut the self-gripping fabric to any size, and bind your equipment cables together or to the rack.

To provide hassle-free deployment the rack ships fully assembled.

Keep your equipment secure, cool, and accessible

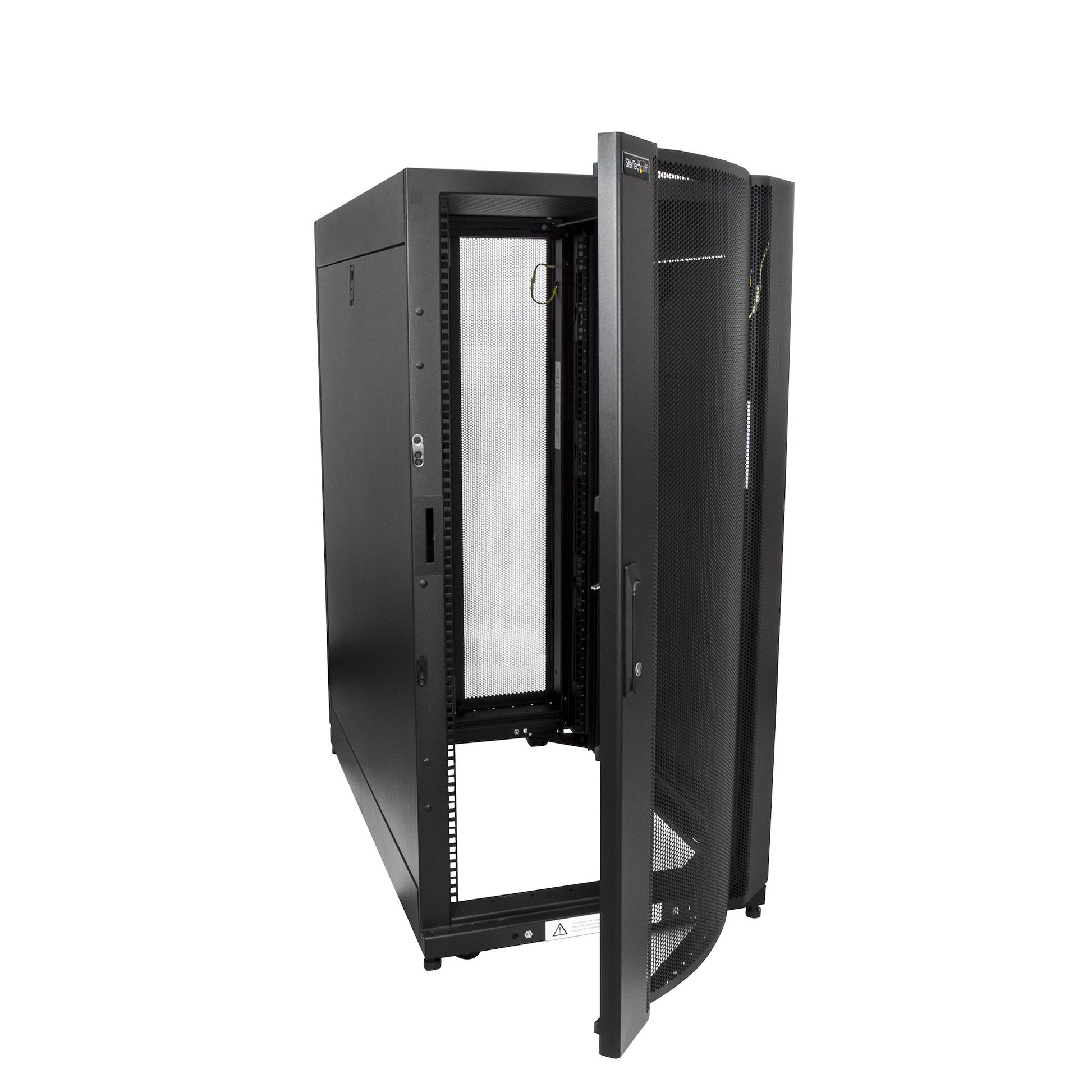

To keep your rack-mounted equipment secure, this rack features front and rear locking mesh doors that also increase airflow to provide passive cooling.

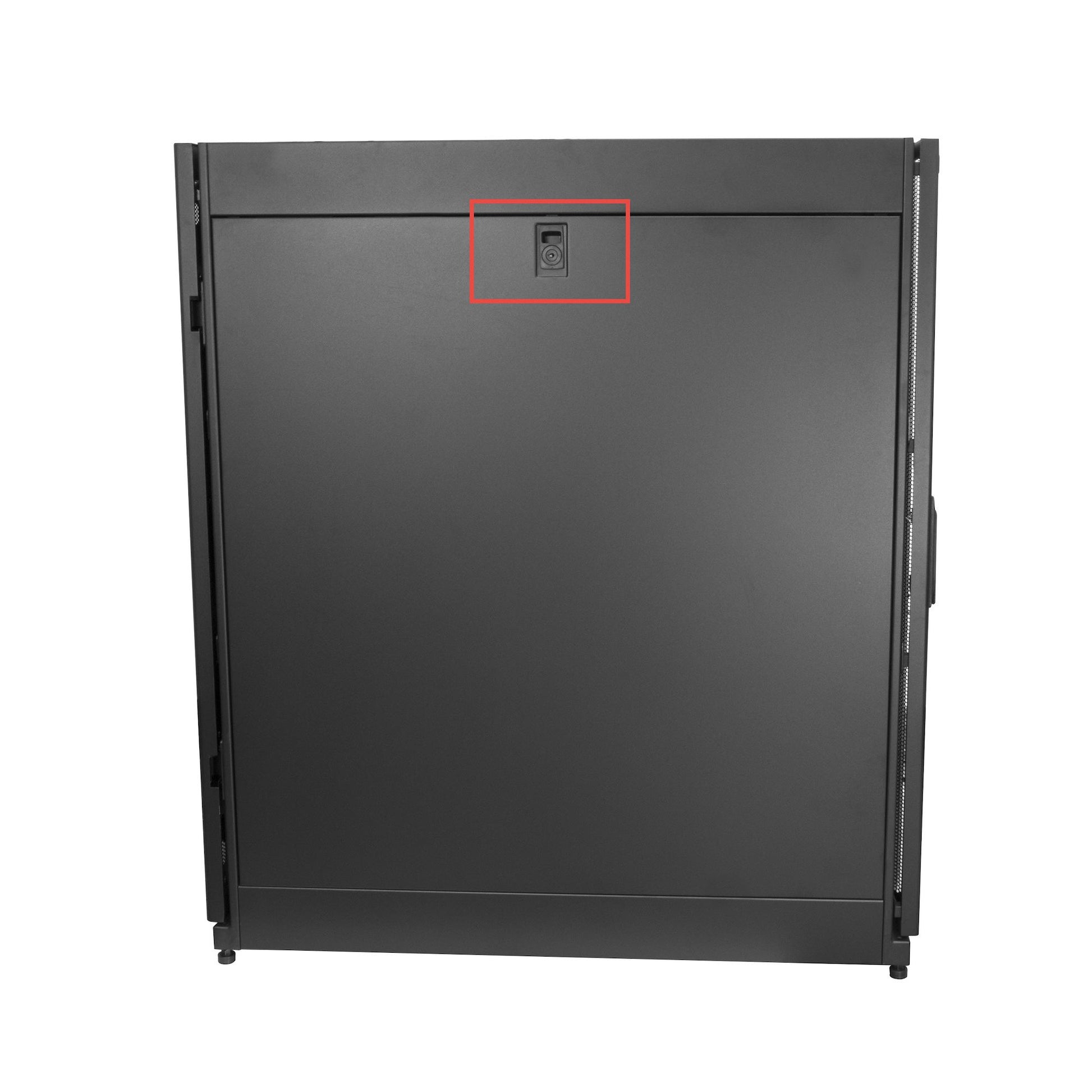

The rack also has a removable side panel with an independent quick-release lock that enables you to access your equipment easily, while still keeping it secure. Plus, a quick-release ceiling panel you can remove without interfering with cable runs that are running through your rack.

Maximum Maneuverability, with casters included

The cabinet features casters, providing ease of mobility around your office, studio or server room. Plus, the width and height of the rack fit through standard doorways, giving you the freedom to wheel your server rack into different rooms as needed.

The RK2537BKM is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Specifications

Weight & dimensions
Package depth	1162 mm
Package width	684 mm
Package height	1385 mm
Package weight	114.3 kg
Inner width	60.1 cm
Inner depth	107.4 cm
Inner height	111 cm
Mounting depth (max)	89.3 cm
Mounting depth (min)	18 cm
Width	604 mm
Depth	1078 mm
Height	1200 mm
Weight	81.8 kg
Maximum weight capacity	1500 kg
Packaging content
Manual	Yes
Nuts included	Yes
Number of nuts	104
Screws included	Yes
Number of screws	104
Number of washers included	104
Features
Number of fans	0 fan(s)
Key lock	Yes
Frame type	Closed
Product design	4-post
Rack capacity	25U
Castor wheels	Yes
Maximum weight capacity (rolling)	1050 kg
Adjustable mounting rails	Yes
Removable back door	Yes
Removable front door	Yes
Back door construction	Steel
Front door construction	Steel
Side panel construction	Steel
Cable management	Yes
Back door key lock	Yes
Front door key lock	Yes
Side panel key lock	Yes
Type	Freestanding rack
Material	Steel
Product colour	Black
Certification	REACH, CE
Technical details
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85381000
Compliance certificates	RoHS
Logistics data
Master (outer) case width	680 mm
Master (outer) case length	1165 mm
Master (outer) case height	1450 mm
Products per master (outer) case	1 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
