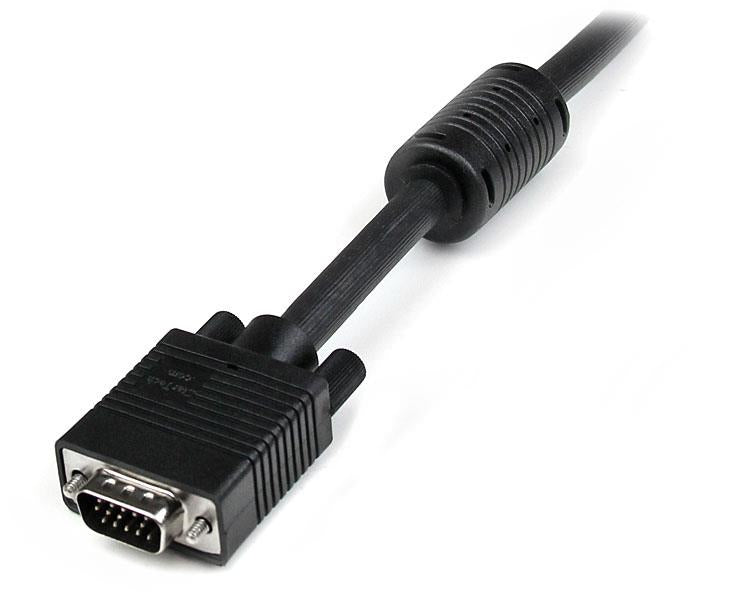

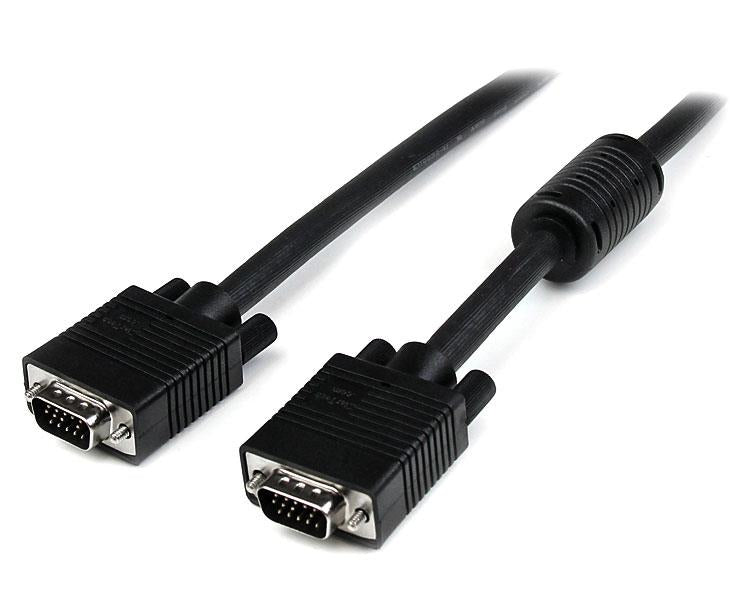

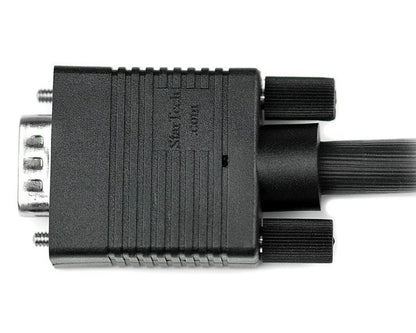

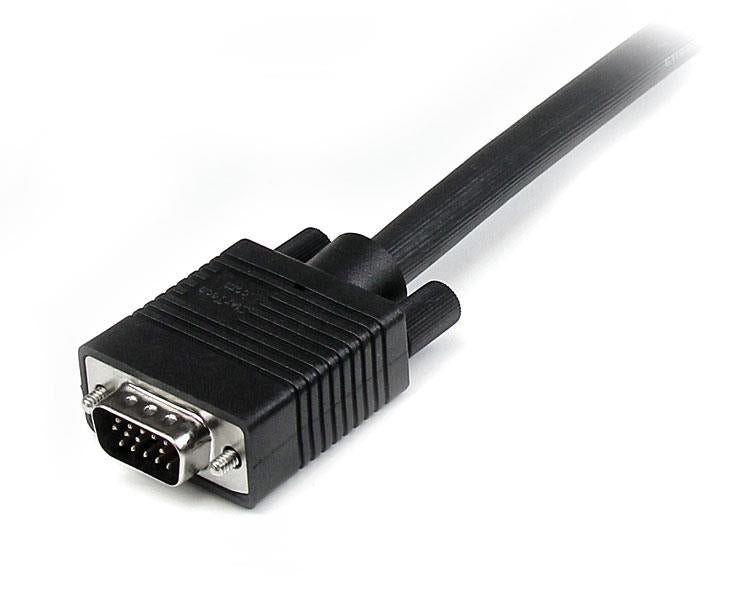

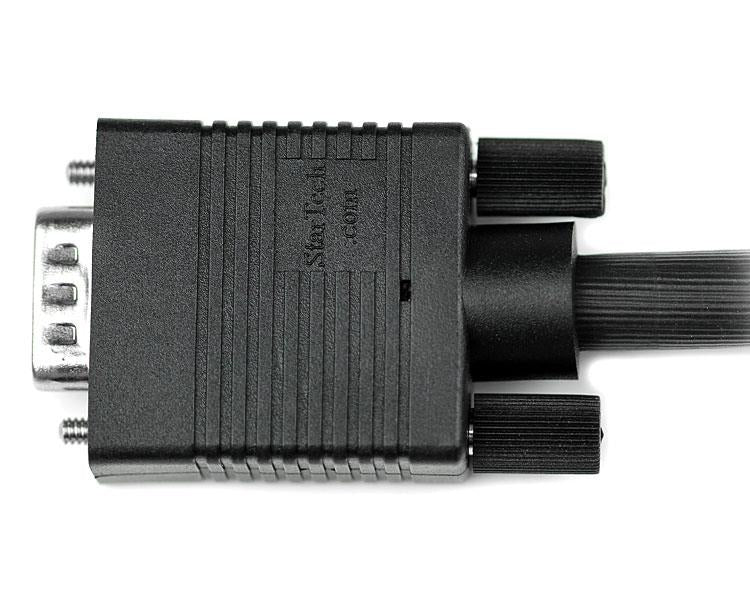

StarTech.com 25m Coax High Resolution Monitor VGA Cable - HD15 M/M

Make the connection with the StarTech.com 25m Coax High Resolution — length and connector details are in the spec table.

Connect your VGA monitor with the highest quality connection available

The MXTMMHQ25M High Resolution VGA Cable (25-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.

Specifications

Features
Product colour	Black
Cable length	25 m
Connector 1	VGA (D-Sub)
Connector 2	VGA (D-Sub)
Connector 1 gender	Male
Connector 2 gender	Male
Connector contacts plating	Nickel
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Weight	2.16 kg
Package weight	2.26 kg
Package width	350 mm
Package depth	460 mm
Package height	107 mm
Technical details
Harmonized System (HS) code	84733080
Logistics data
Products per master (outer) case	6 pc(s)
Master (outer) case width	370 mm
Master (outer) case length	434 mm
Master (outer) case height	278 mm

Downloads

• Datasheet (PDF)
