StarTech.com 24U Enterprise-Grade Server Rack Cabinet Kit, 19in Enclosed 4-Post Rack

Build a tidy install with the StarTech.com 24U Enterprise-Grade Server Rack — dimensions and mounting details are in the spec table.

Securely store servers, network and telecommunications equipment in this 24U server rack

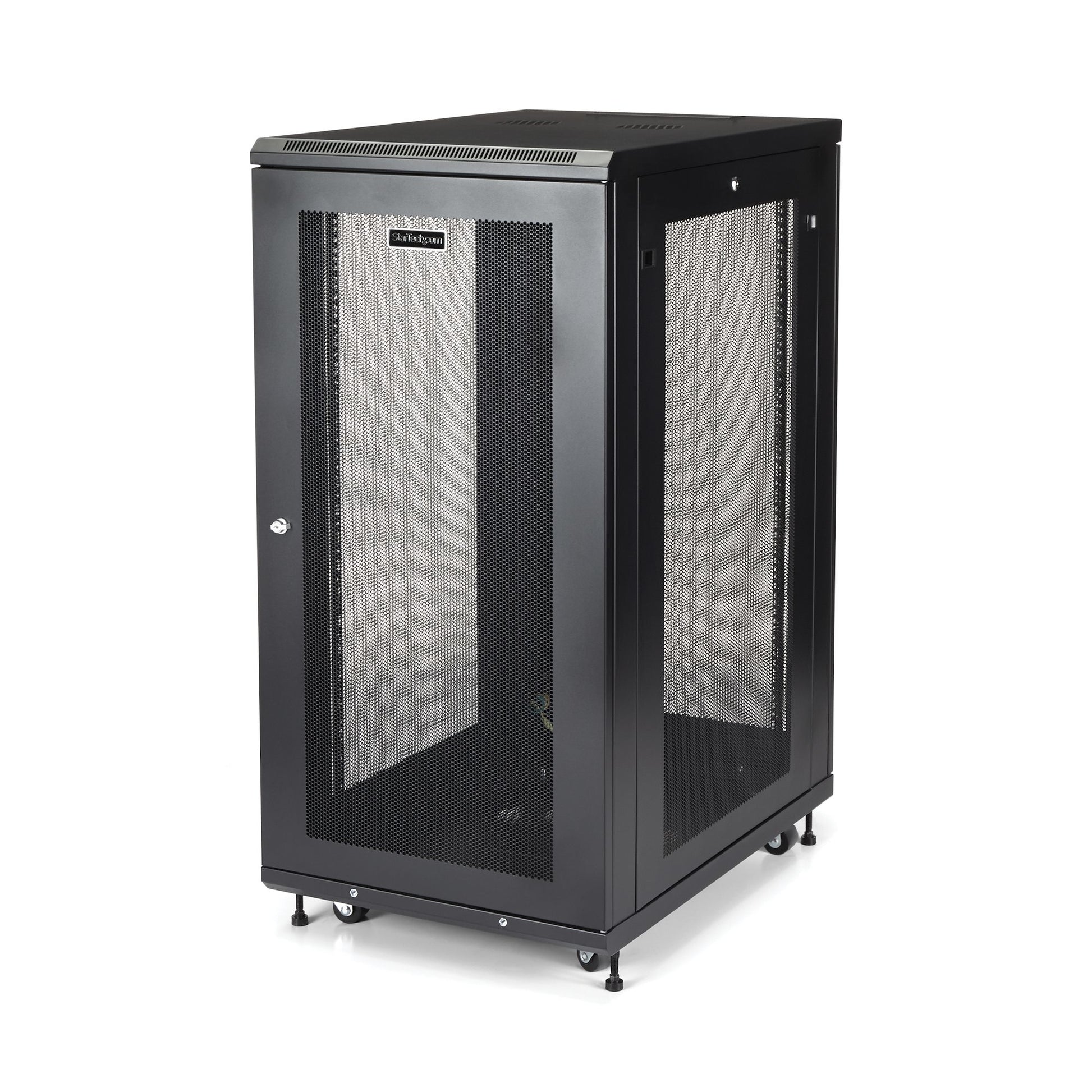

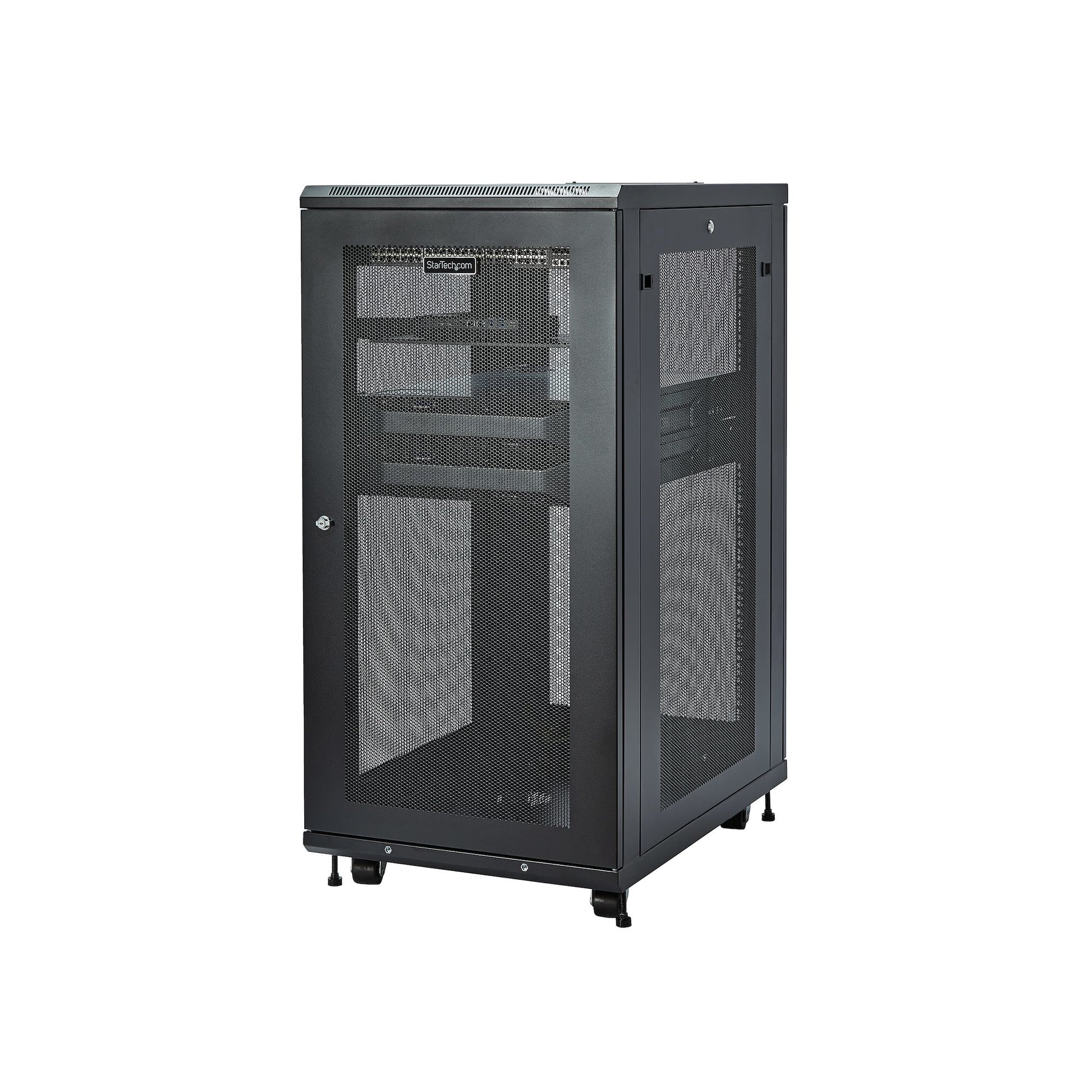

This server rack provides 24U of storage space in a sleek, secure cabinet for storing standard 19” rack-mount devices such as Dell®, HP® and IBM® servers, along with telecommunication and A/V equipment. The rack is compatible with EIA-310 compliant equipment and supports a total load capacity of 450 kg (992 lb.).

Hassle-free equipment installation

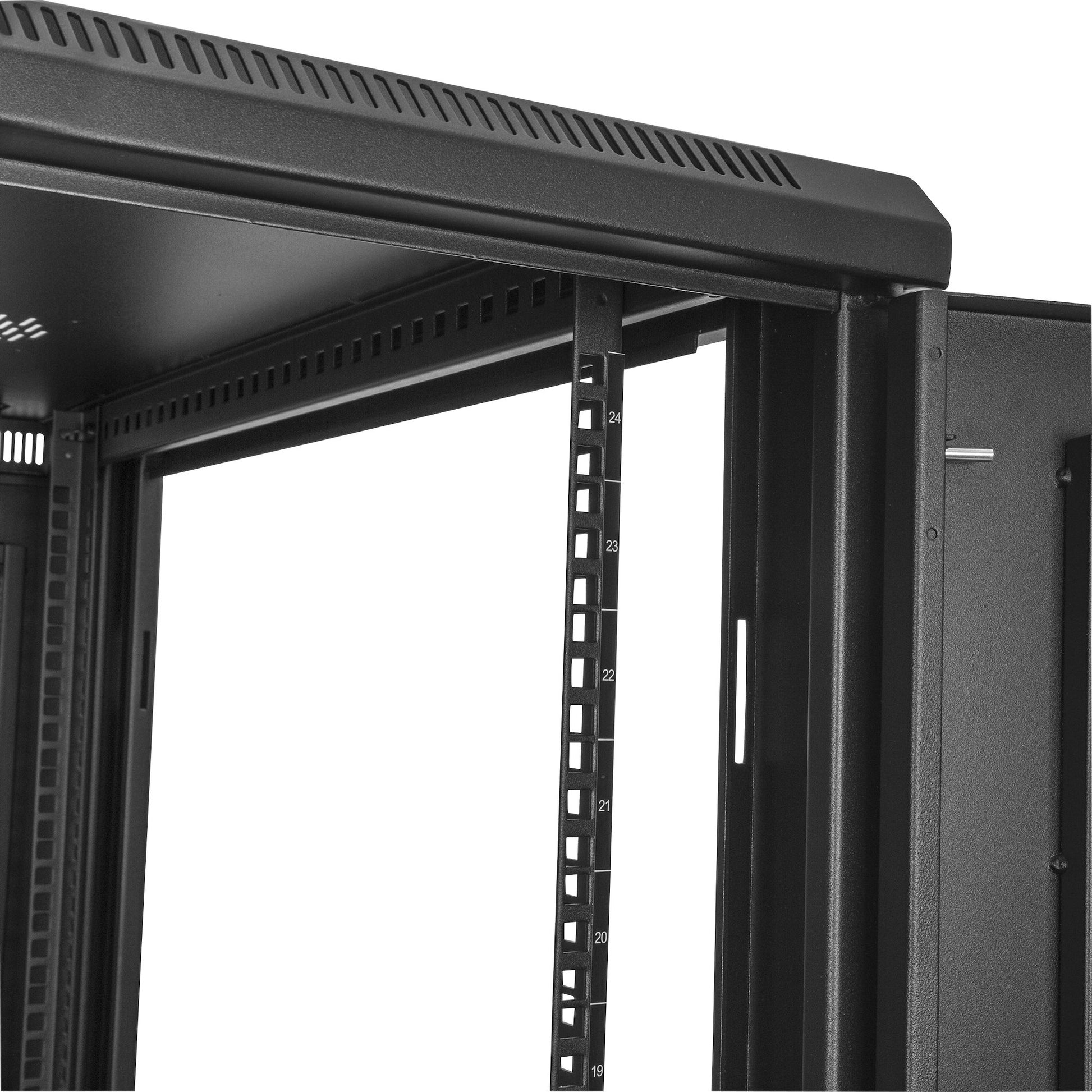

This rack includes a variety of features that enable you to easily incorporate plenty of equipment. With adjustable mounting rails, you can easily change the rail depth from 2" up to 30" (76.2 mm - 780 mm) to ensure compatibility your standard rack-mount equipment. The added depth also provides support for additional cable and power management behind your equipment. For hassle-free cable management, the rack includes a 3 meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

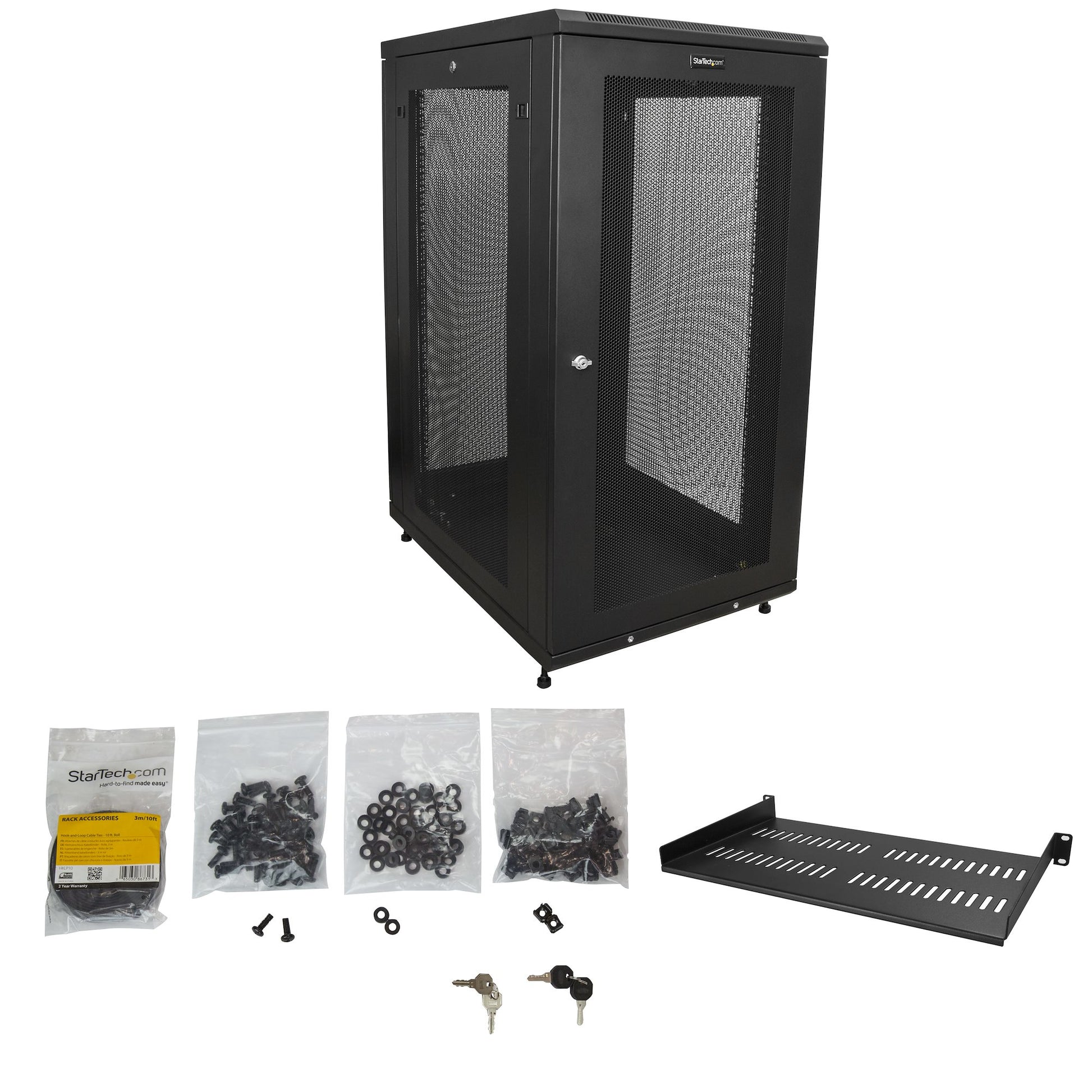

The rack features holes with covers on the ceiling and floor panels that make it easy to run cabling to the inside and outside of the cabinet, for discreet cable management. The rack also features grounding lugs that enable you to ground your equipment for added protection. This rack also includes a 1U shelf that gives you a stable surface for placing equipment that's not rack-mountable or storing your tools.

To provide hassle-free deployment the rack ships fully assembled.

Securely protect your equipment

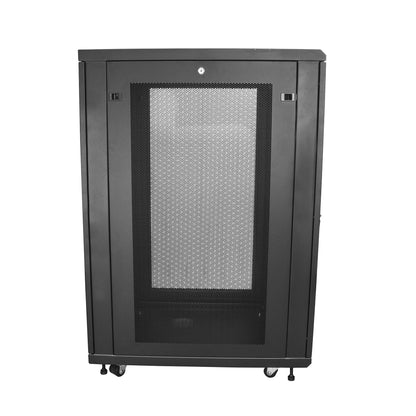

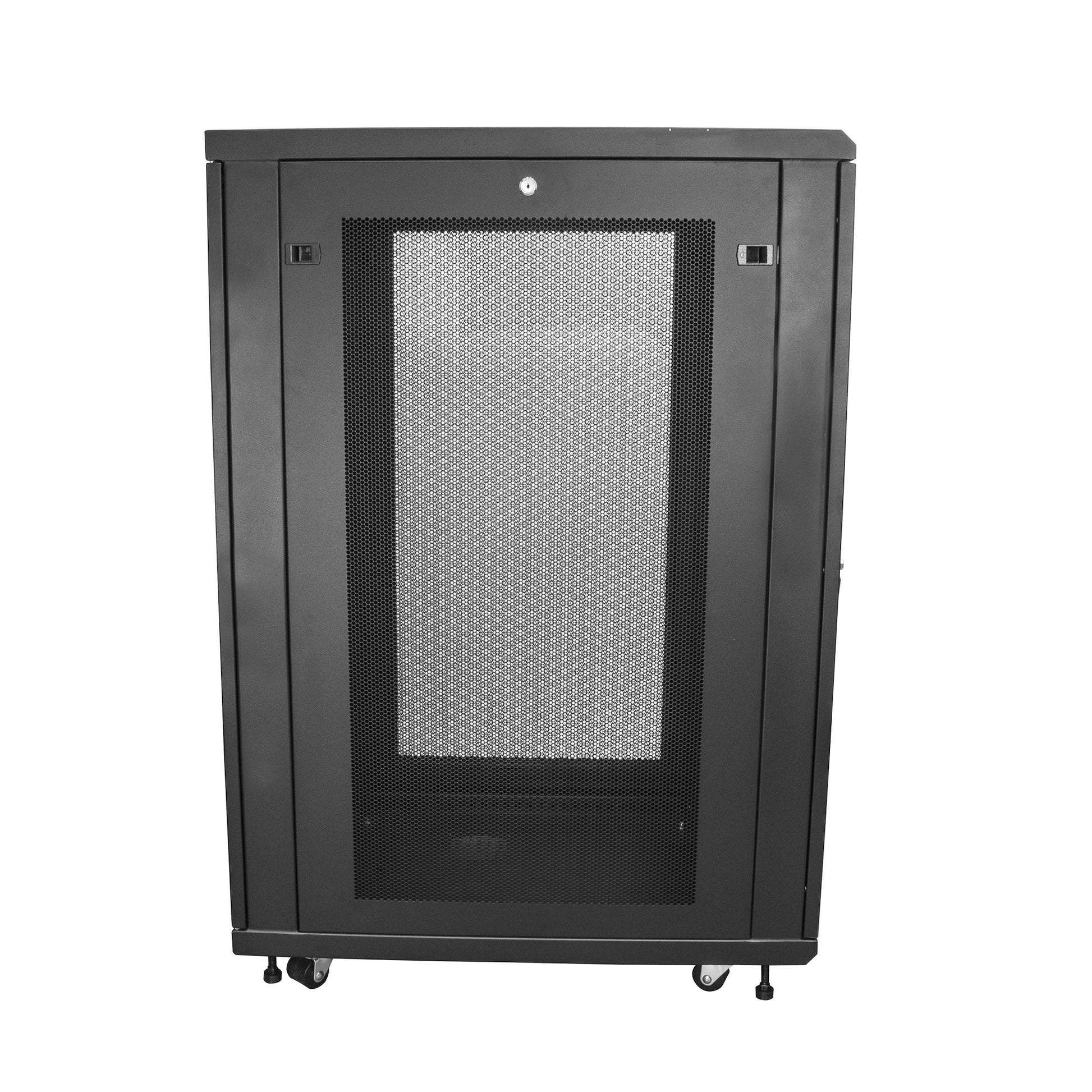

To keep your rack-mounted equipment secure, this rack features front and rear locking mesh doors. The mesh doors look great in any server room and help provide passive cooling. The doors are also reversible, which gives you the freedom to choose which side of the rack the door opens from, to suit your server room’s spatial requirements.

The rack also has removable side panels with independent quick-release locks that enable you to access your equipment easily, while still keeping it secure.

Maximum Maneuverability, with casters included

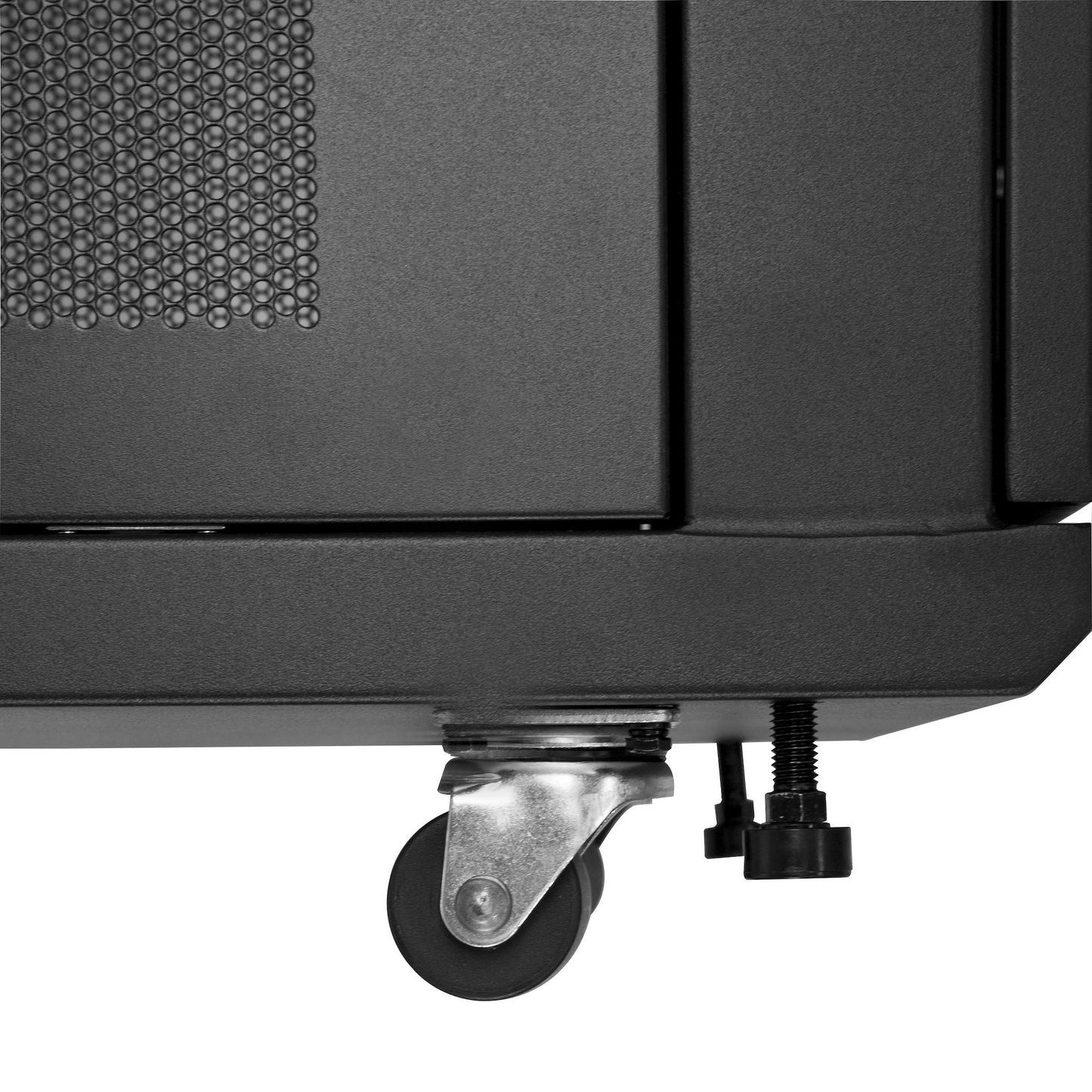

The cabinet features casters for hassle-free access to rear-mounted equipment while providing ease of mobility around your office, studio or server room. Plus, the width and height of the rack fit through standard doorways, giving you the freedom to wheel your server rack into different rooms.

The RK2433BKM is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Specifications

Weight & dimensions
Package depth	656 mm
Package width	964 mm
Package height	1393 mm
Package weight	73.5 kg
Inner width	60 cm
Inner depth	84.8 cm
Mounting depth (max)	76.2 cm
Mounting depth (min)	6.4 cm
Width	600 mm
Depth	852 mm
Height	1172 mm
Weight	59 kg
Maximum weight capacity	450 kg
Packaging content
Mounting kit	Yes
Nuts included	Yes
Number of nuts	100
Screws included	Yes
Number of screws	100
Side panels included	Yes
Features
Number of fans	0 fan(s)
Key lock	Yes
Frame type	Closed
Product design	4-post
Rack capacity	24U
Castor wheels	Yes
Adjustable mounting rails	Yes
Front door construction	Steel
Side panel construction	Steel
Cable management	Yes
Mounting hole shape	Square
Front door key lock	Yes
Type	Freestanding rack
Material	Steel
Product colour	Black
Certification	CE, REACH
Technical details
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85381000
Compliance certificates	RoHS
Logistics data
Master (outer) case width	645 mm
Master (outer) case length	940 mm
Master (outer) case height	1390 mm
Products per master (outer) case	1 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
