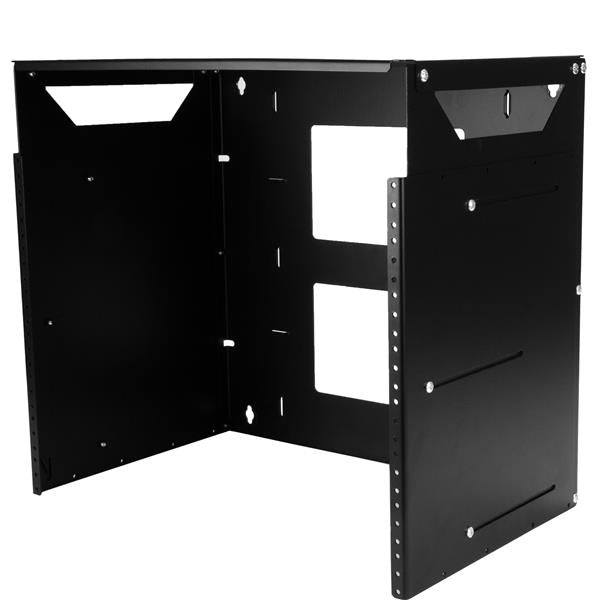

StarTech.com 2-Post 8U Open Frame Wall Mount Network Rack with Built-in Shelf, Wall

Build a tidy install with the StarTech.com 2-Post 8U Open Frame — dimensions and mounting details are in the spec table.

Mount your server, network and telecom devices to the wall, while storing your non-rackmountable equipment on the built-in shelf

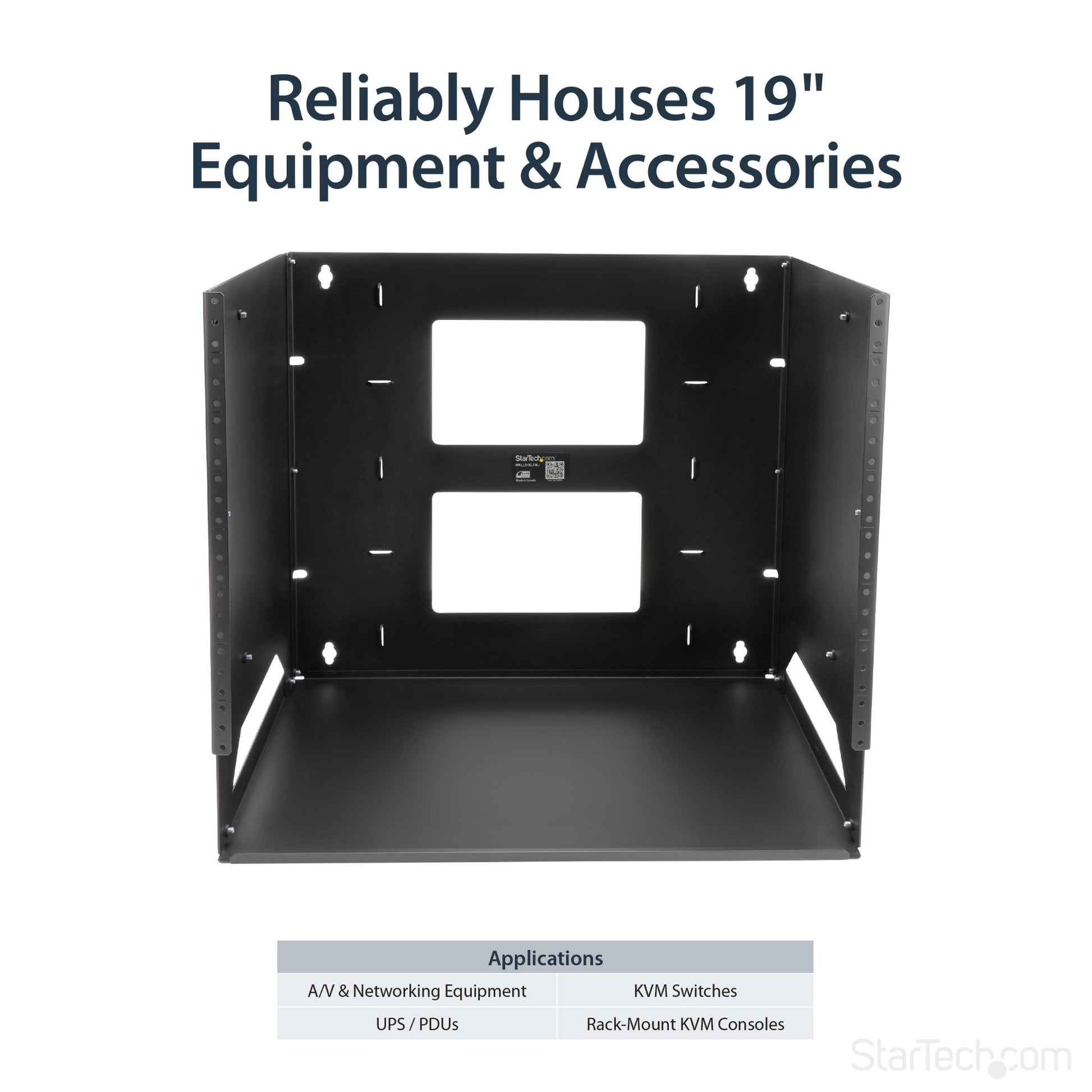

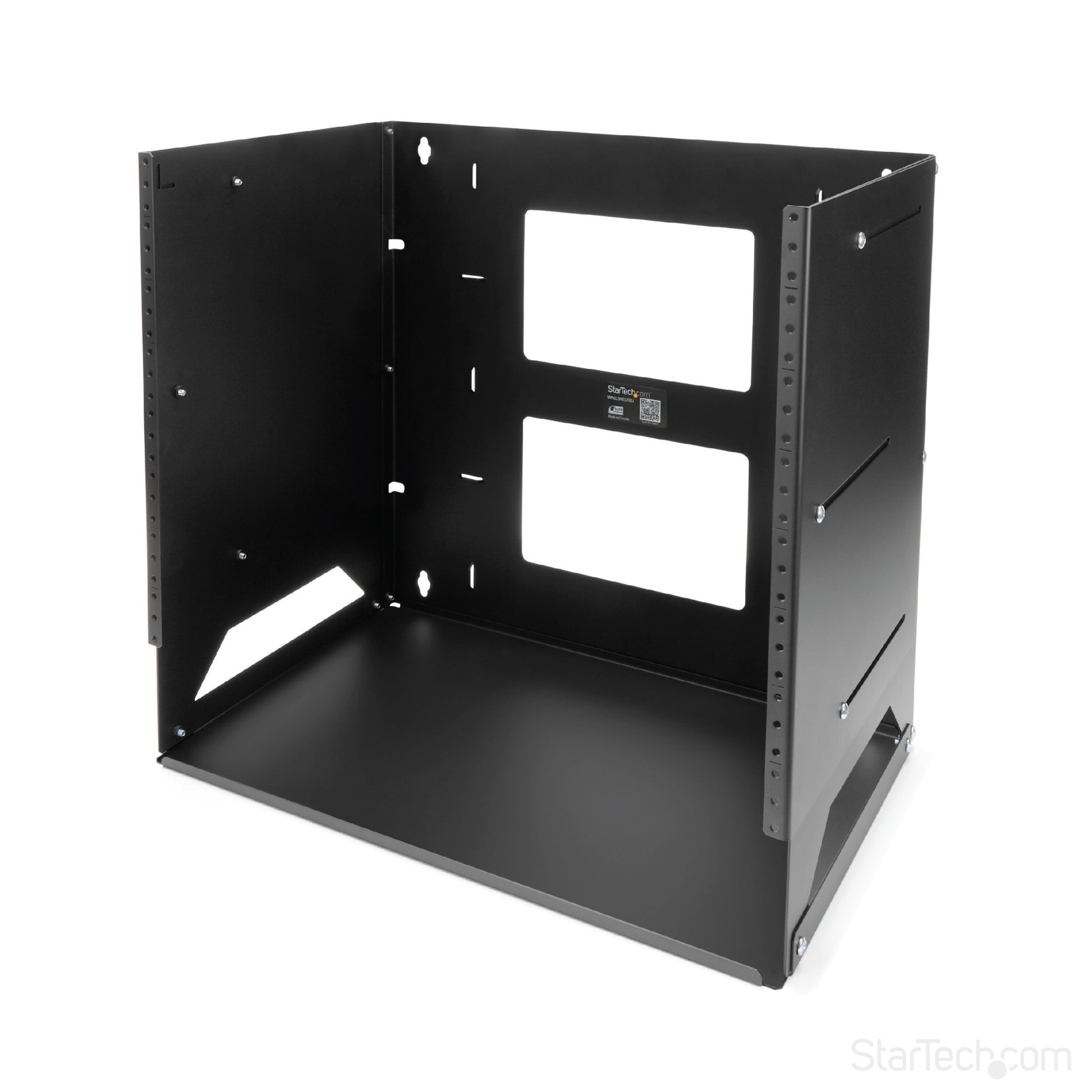

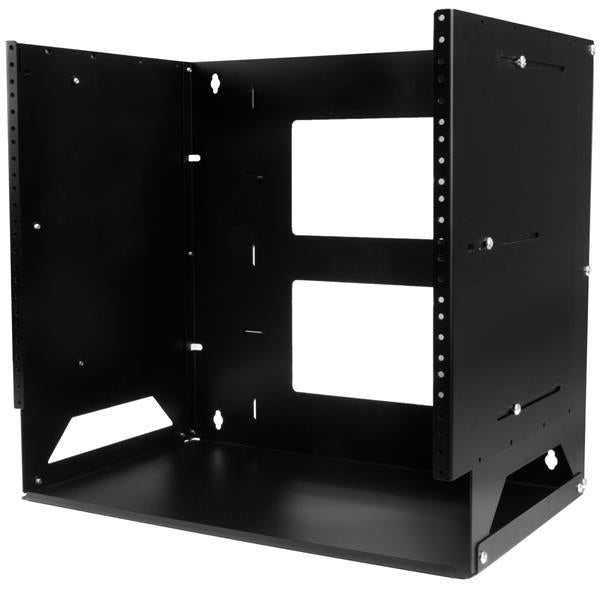

This wall-mount rack provides 8U of space for mounting your servers or A/V equipment to a wall. The rack also has a built-in shelf to create a sturdy surface for storing equipment that is not rack-mountable.

Customize your setup

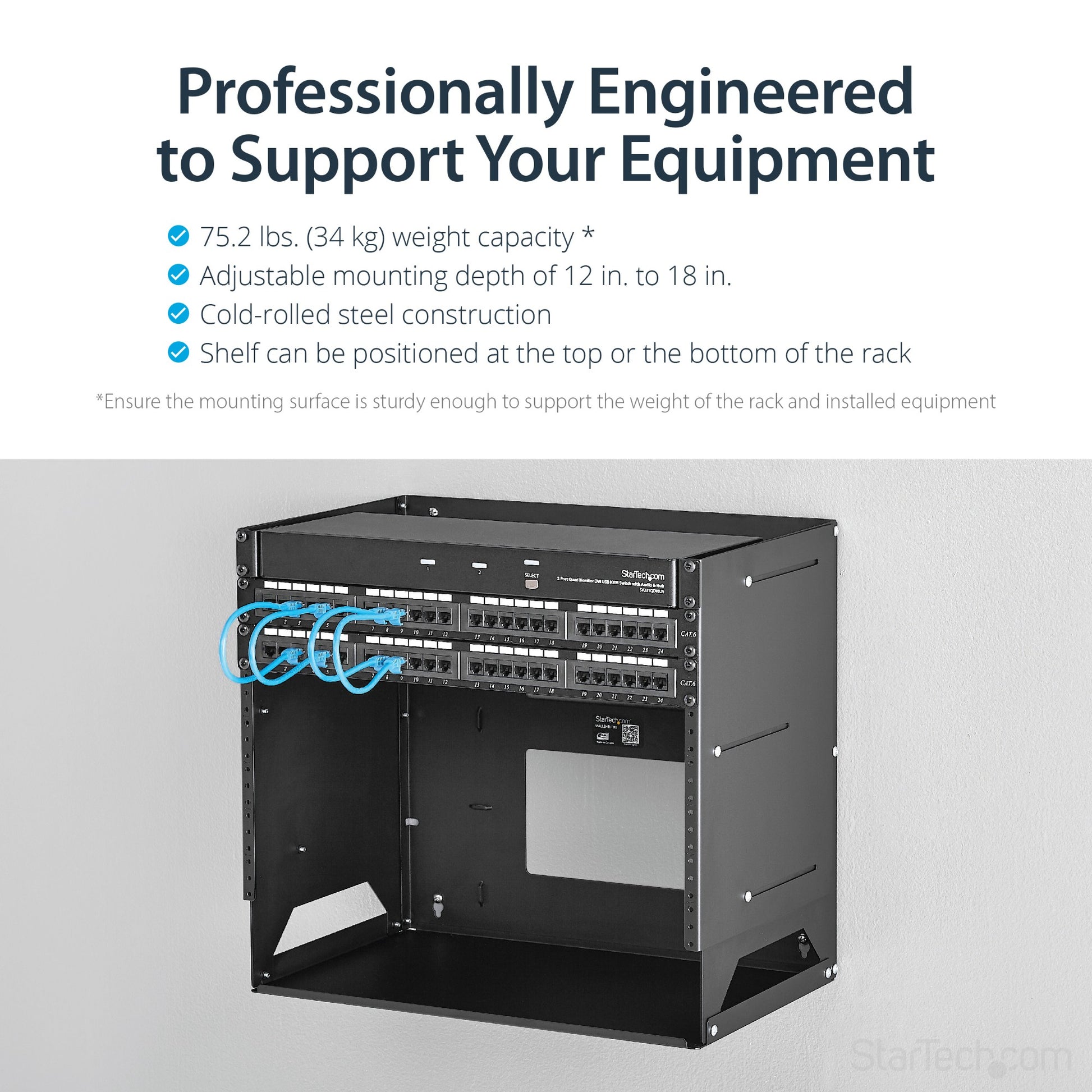

The wall-mount bracket features an adjustable mounting depth of 12 inches to 18 inches as well as a dual-position 12 in. shelf that can be at either the top or the bottom depending on rack's positioning. These two features allow you to customize both depth and layout to best fit your equipment and cables, ensuring that the rack suits your space.

Make the most of your available space

The 8U rack wall mounting feature allows you to free up desk or floor space -- perfect for your SoHo (small office, home office) environment, server room or any other location with limited space available.

Ensure a secure and hassle-free installation

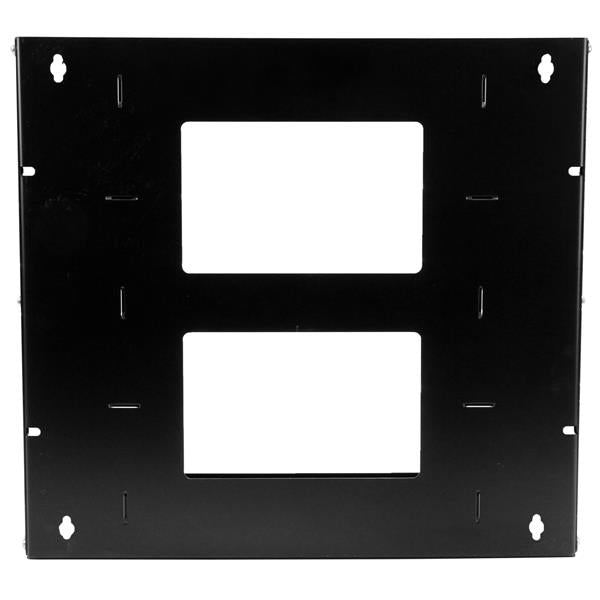

The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment and with the wall mounting holes positioned 16" apart, it exactly matches standard drywall construction framework, to ensure simple and secure wall-stud anchoring.

For hassle-free equipment installation, the rack features 10-32 tapped rails, so you can mount your equipment directly to the rail and avoid the hassle of using cage nuts.

Save money, with a cost-effective, compact shipping package

The wall-mount rack comes in a flat-packed box to reduce shipping volume, which significantly reduces your costs in shipping while also providing greater protection than offered by pre-assembled racks. Packaged efficiently, you can easily store and transport the rack for deployment at a later date or in a different location than where it's received.

The WALLSHELF8U is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

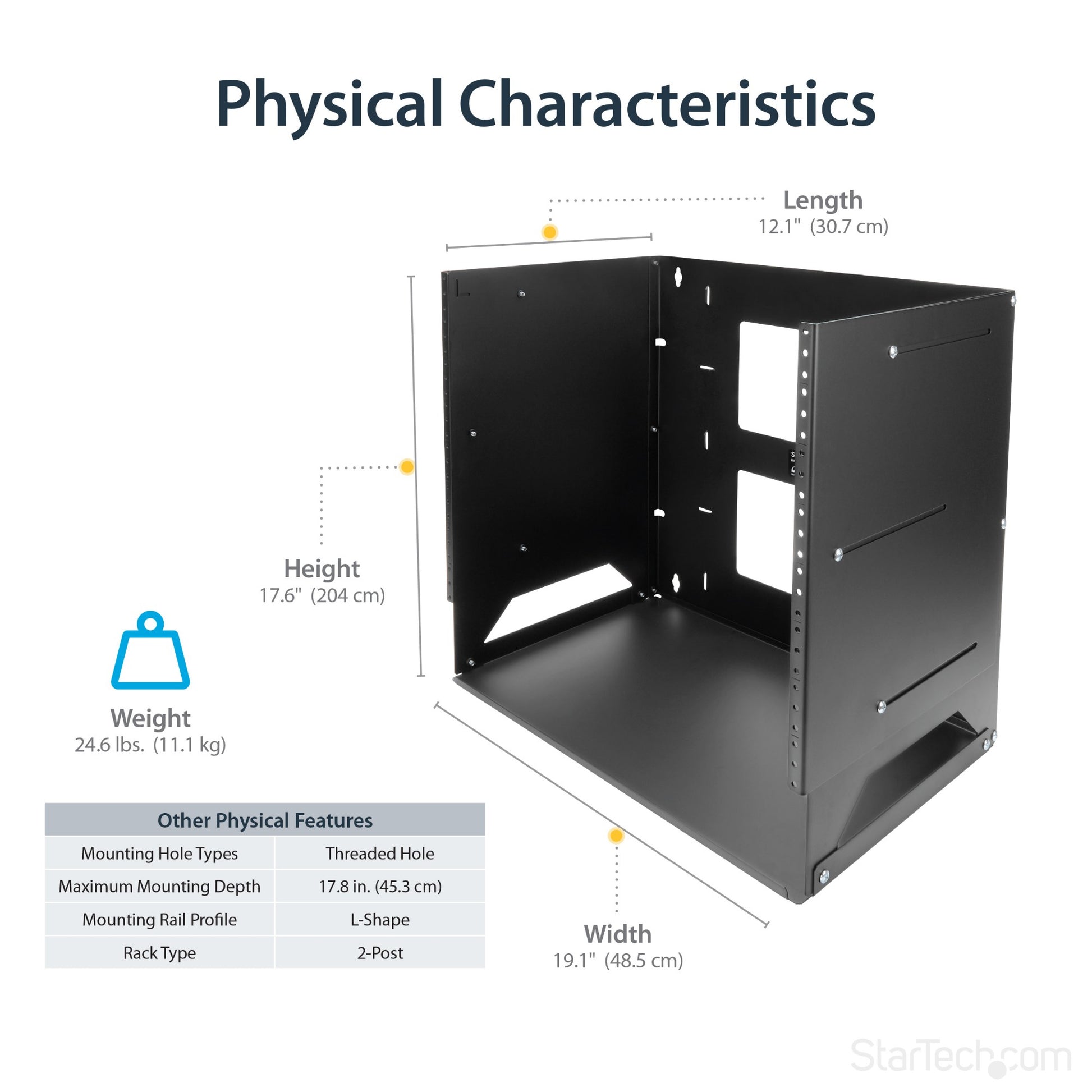

Weight & dimensions
Package depth	512 mm
Package width	560 mm
Package height	50 mm
Package weight	12 kg
Inner width	47.5 cm
Inner depth	45.7 cm
Mounting depth (min)	45.3 cm
Width	485 mm
Depth	307 mm
Height	446 mm
Weight	11.1 kg
Maximum weight capacity	34 kg

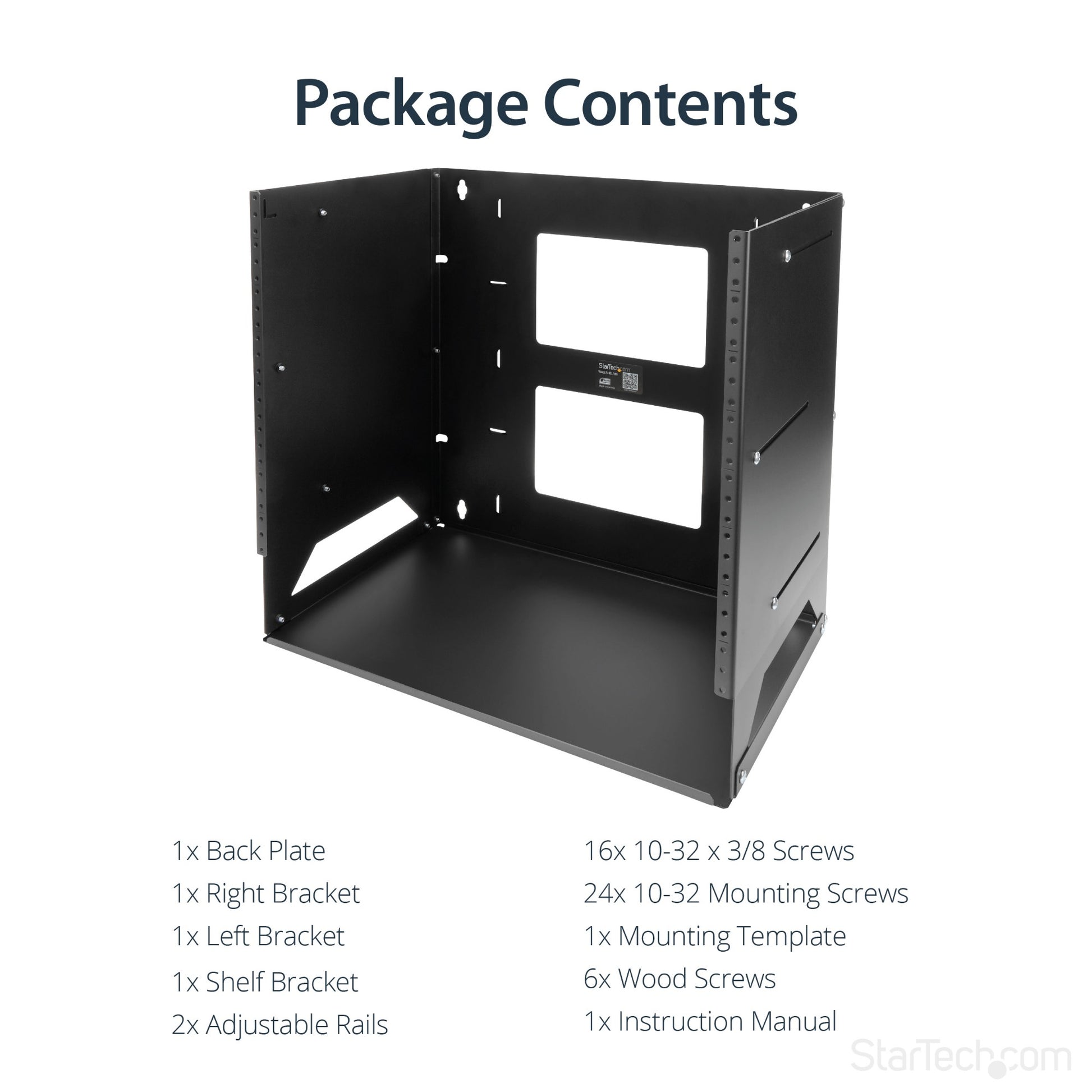

Packaging content
Manual	Yes
Nuts included	Yes
Screws included	Yes
Number of screws	46
Features
Number of fans	0 fan(s)
Frame type	Open
Product design	2-post
Rack capacity	8U
Castor wheels	No
Adjustable mounting rails	No
Cable management	No
Mounting hole shape	Round
Type	Wall mounted rack
Material	Steel
Product colour	Black
Certification	RoHS, TAA
Technical details
Compliance industry standards	EIA-310-D, EIA RS310-C
Harmonized System (HS) code	85381000
