StarTech.com 2-Post 6U Wall Mount Network Cabinet with 1U Shelf, 19" Wall-Mounted Rack

Build a tidy install with the StarTech.com 2-Post 6U Wall Mount — dimensions and mounting details are in the spec table.

Use this wall mount network cabinet to mount your server or networking equipment to the wall

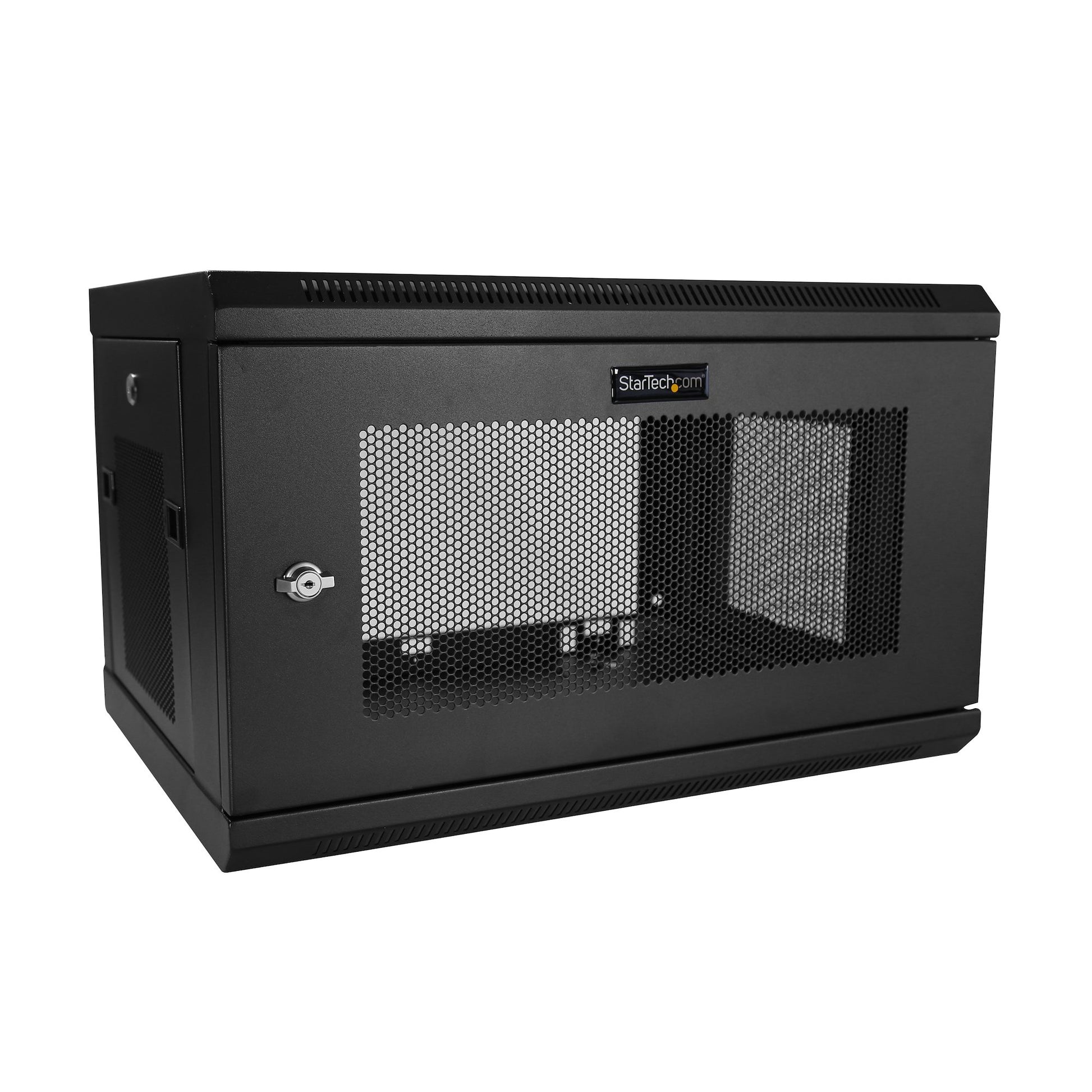

This 6U server rack cabinet lets you mount your EIA-310 compliant equipment to the wall. The enclosure features a mounting depth up to 15 in. and offers a maximum load capacity of 200 lb. (90 kg).

Save space in your office or server room

Save valuable floor space, by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for storing your tools or placing equipment that's not rack-mountable.

Easily install your servers and network equipment

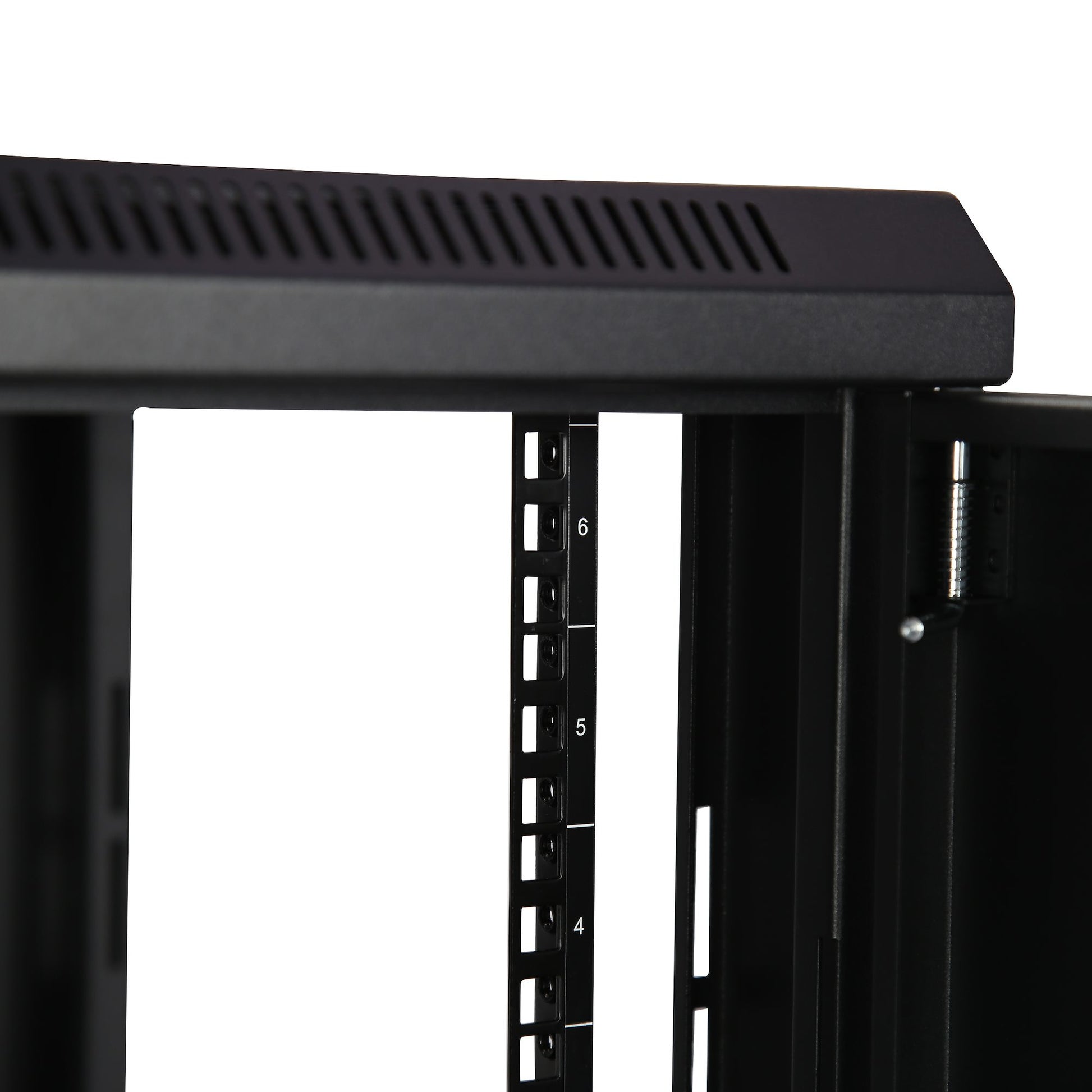

The wall-mount network rack makes it easy to install your equipment, with 2-post mounting rails that can be positioned to create more room at the front or the back of the enclosure depending on your requirements.

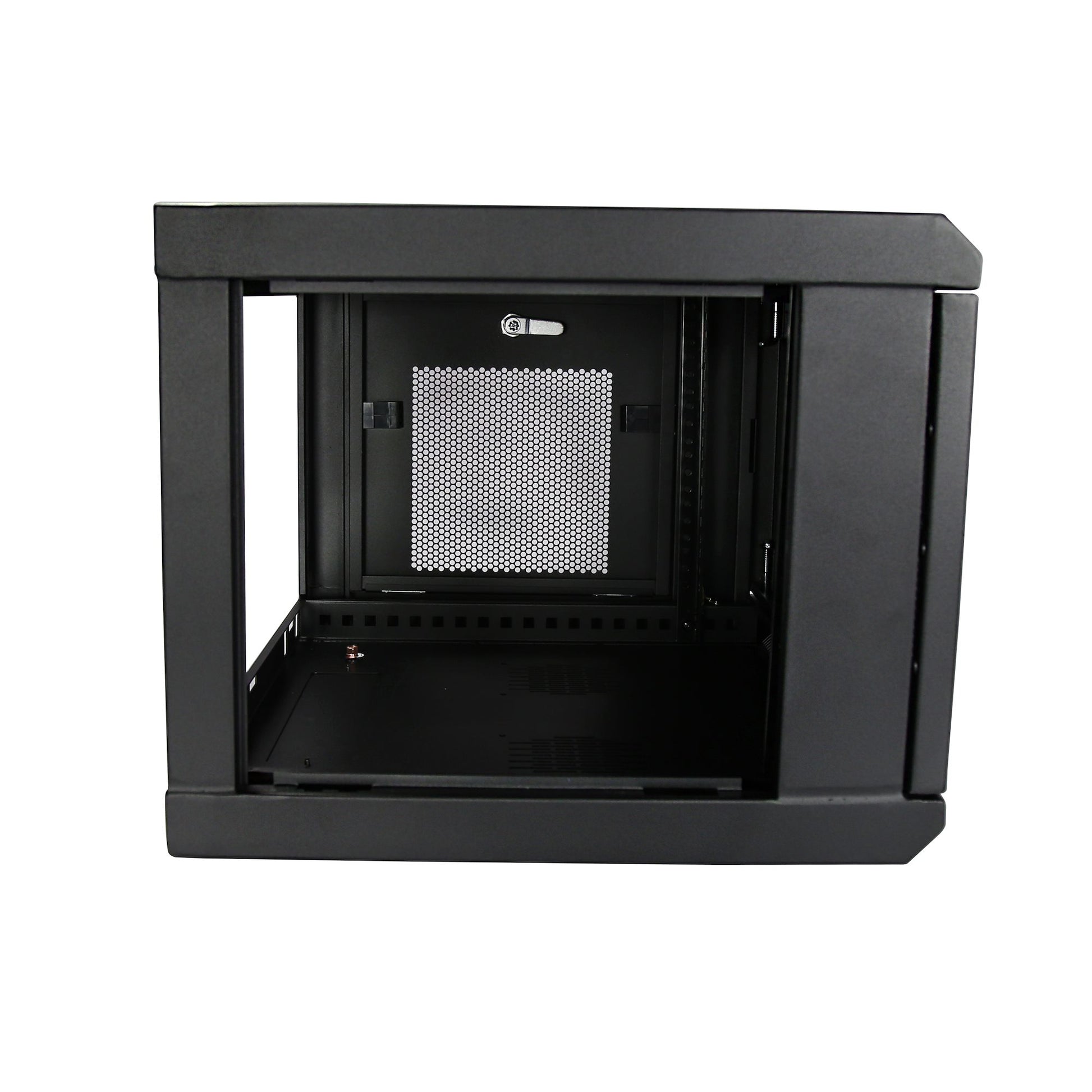

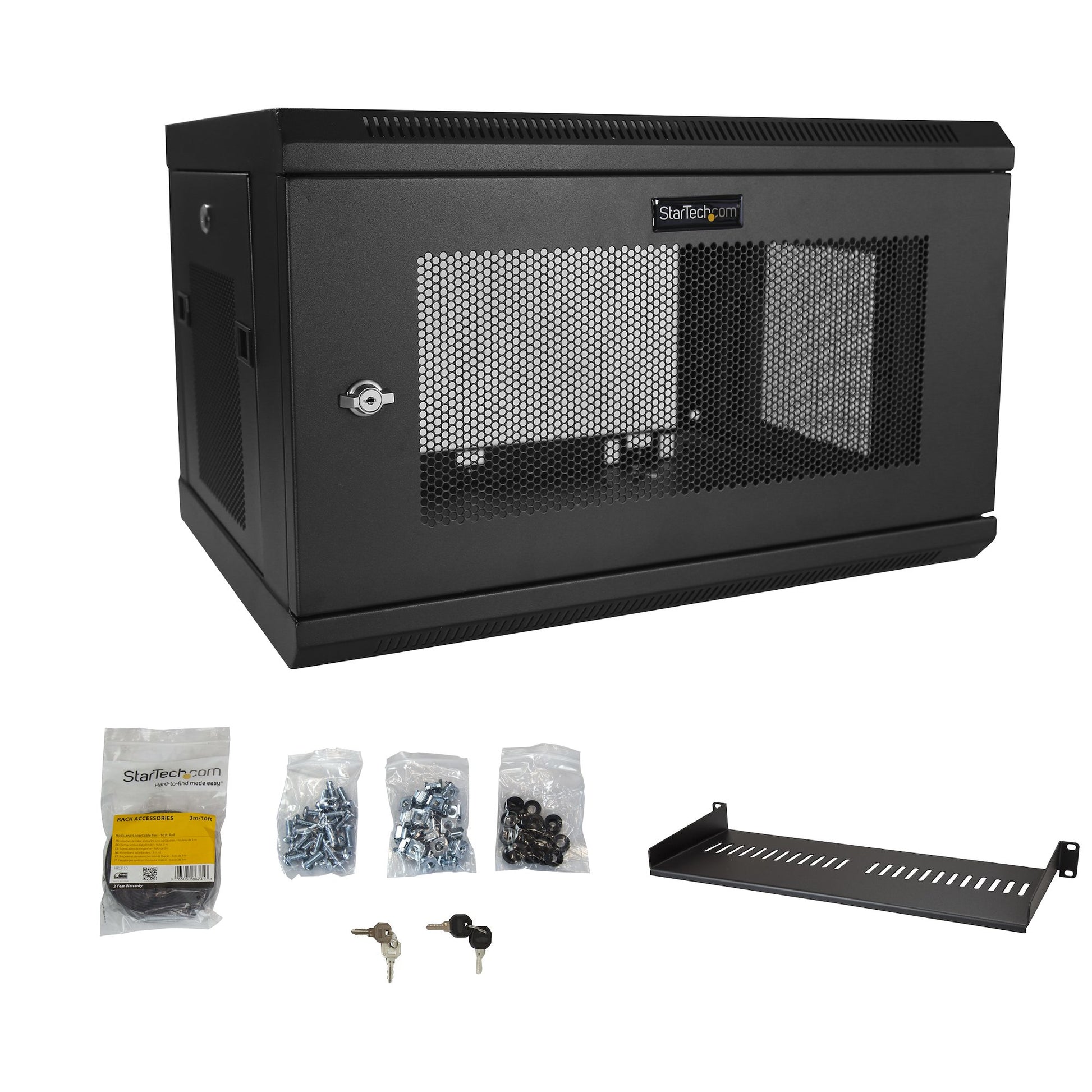

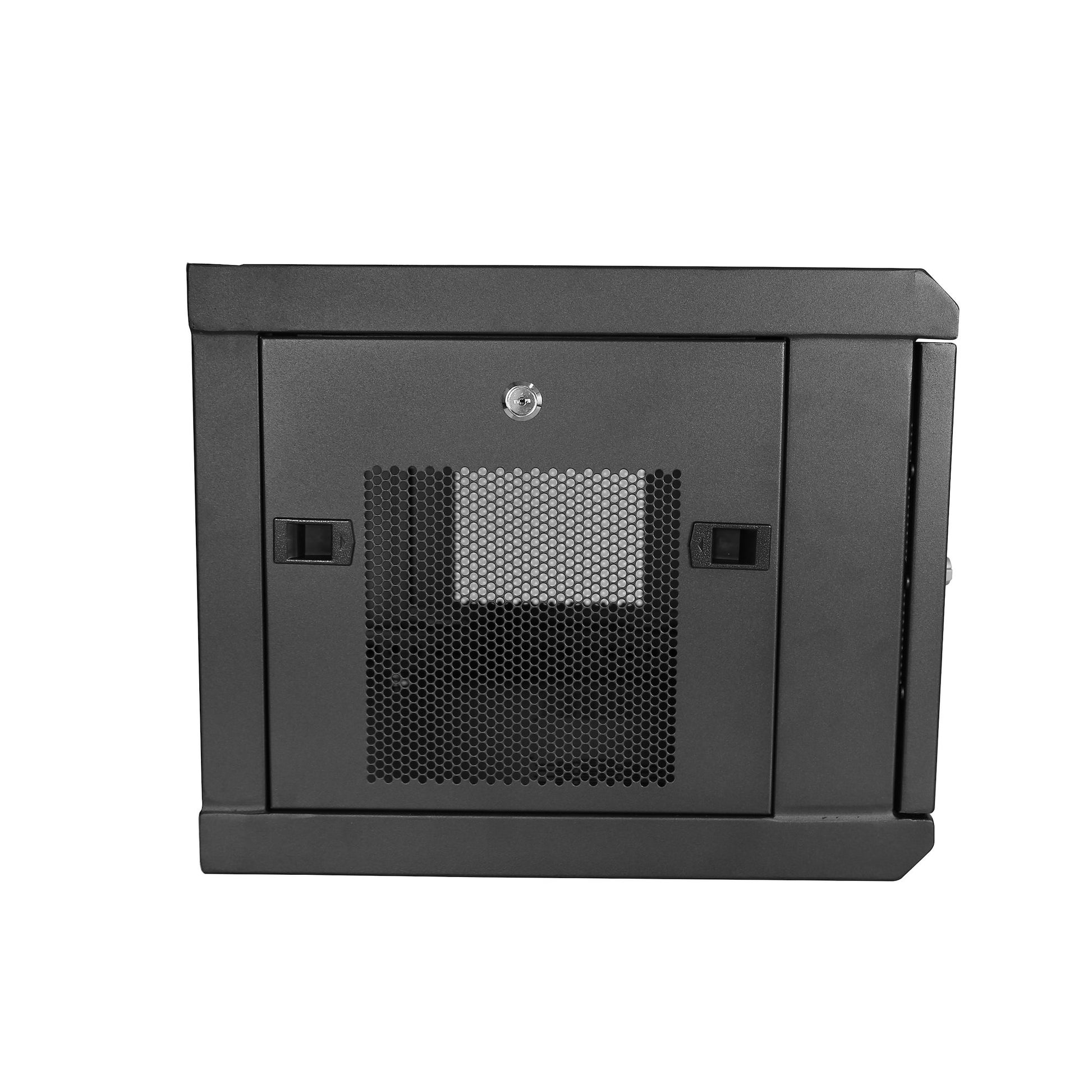

The 6U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure. The wall-mount server rack also includes all of the cage nuts and mounting screws you'll need to fill the rack with equipment, saving you the time, hassle and cost of sourcing mounting hardware.

For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

Securely protect your equipment

This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.

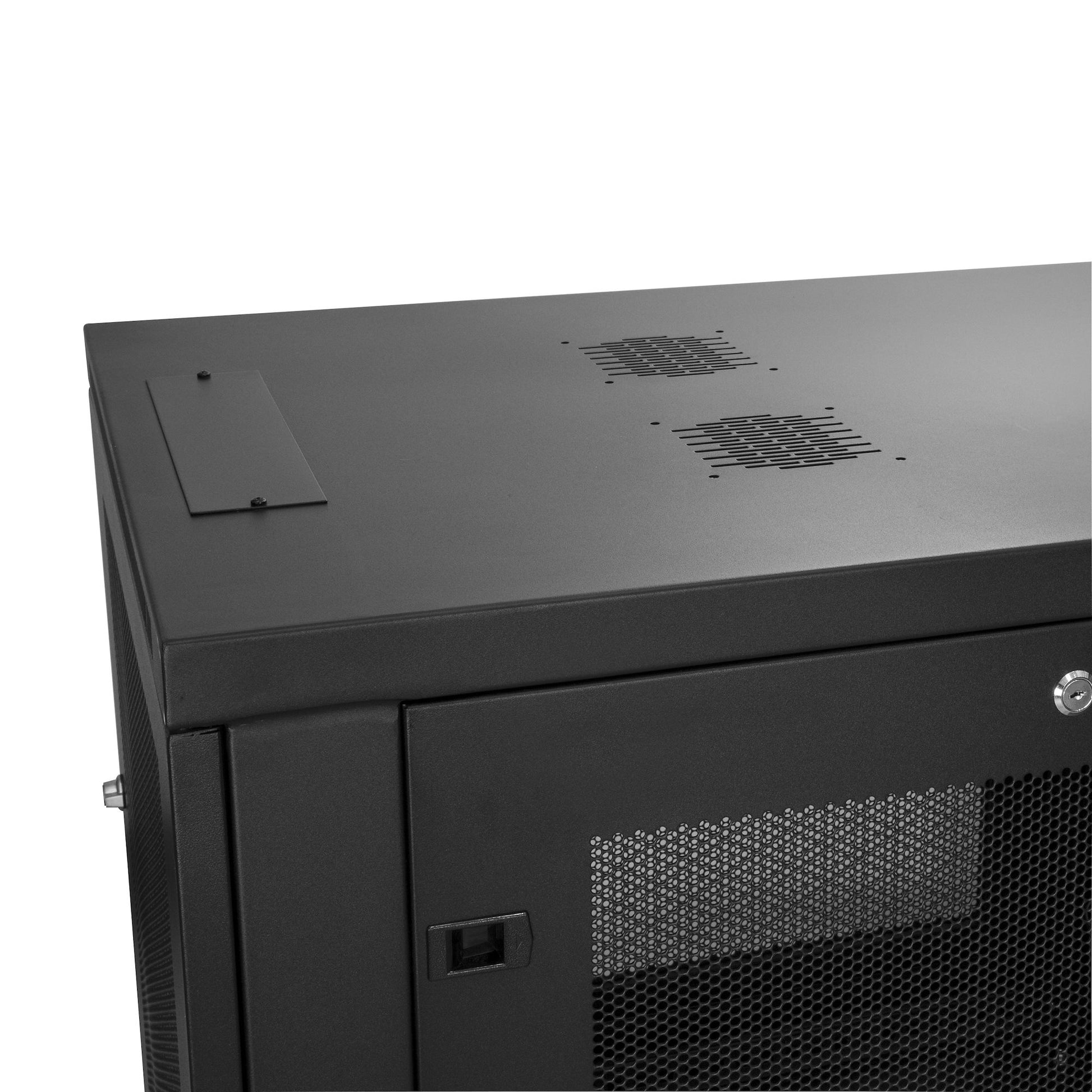

To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.

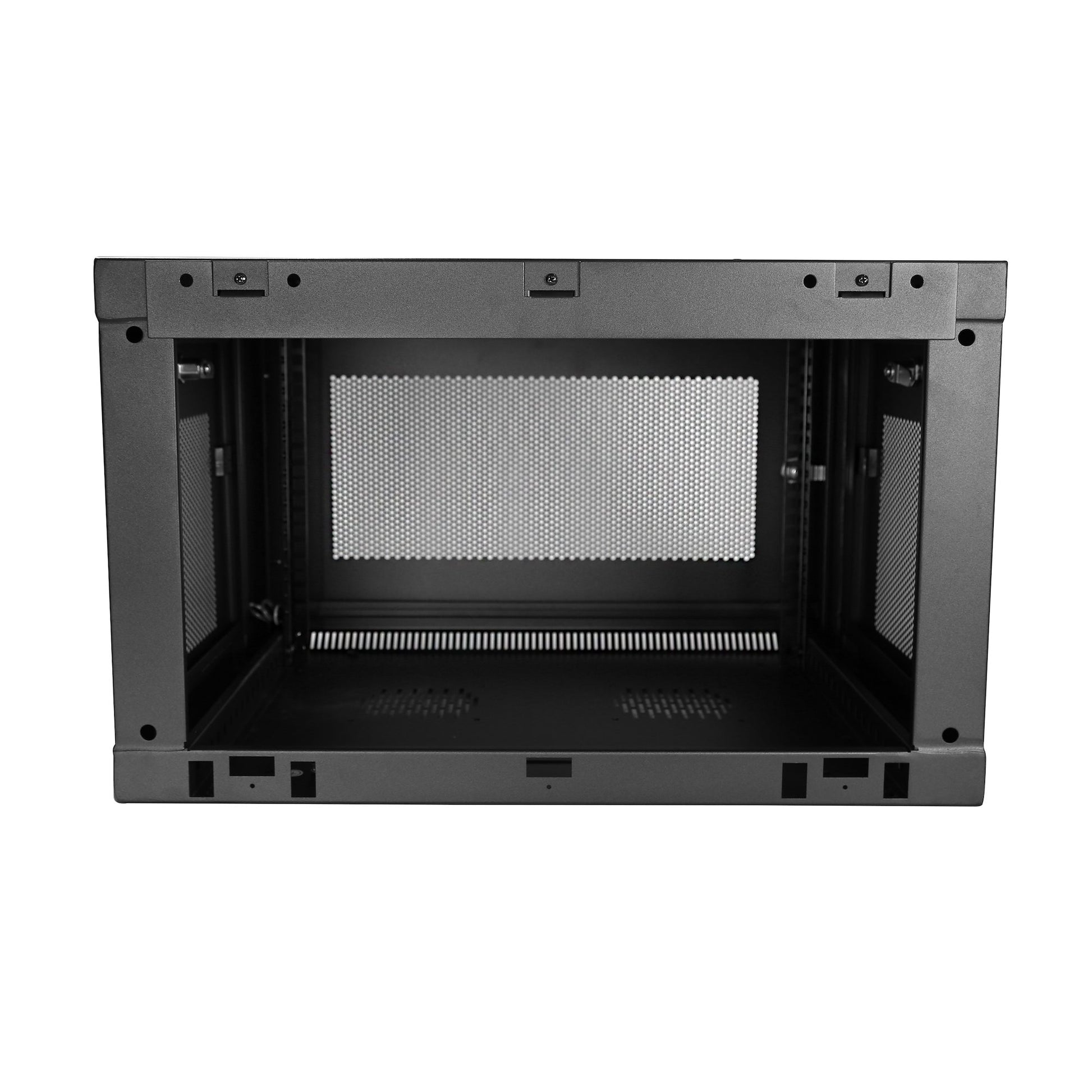

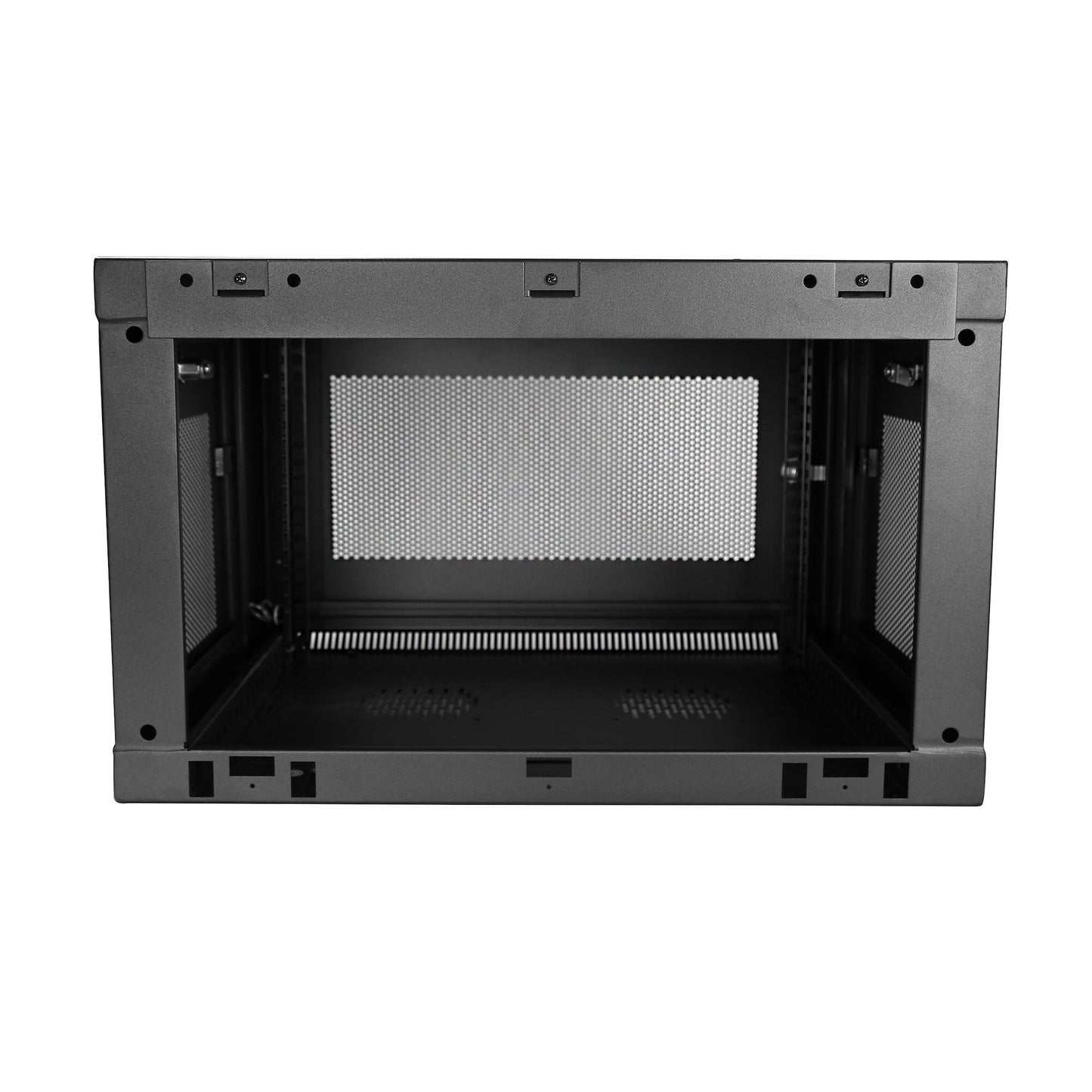

For simple and sturdy mounting, the rack's mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.

Specifications

Weight & dimensions
Package depth	540 mm
Package width	672 mm
Package height	455 mm
Package weight	19.6 kg
Inner width	59.4 cm
Inner depth	45 cm
Mounting depth (max)	37.5 cm
Width	600 mm
Depth	450 mm
Height	371 mm
Weight	17.6 kg
Maximum weight capacity	90 kg
Packaging content
Manual	Yes
Nuts included	Yes
Number of nuts	24
Screws included	Yes
Number of screws	24
Features
Key lock	Yes
Frame type	Closed
Product design	2-post
Rack capacity	6U
Removable front door	Yes
Back door construction	Steel
Front door construction	Steel
Side panel construction	Steel
Cable management	Yes
Front door key lock	Yes
Side panel key lock	Yes
Type	Wall mounted rack
Material	Steel
Product colour	Black
Certification	CE, REACH
Technical details
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85381000
Compliance certificates	RoHS
Logistics data
Master (outer) case width	525 mm
Master (outer) case length	675 mm
Master (outer) case height	450 mm
Products per master (outer) case	1 pc(s)
