StarTech.com 2-Post 21U Heavy-Duty Wall Mount Network Rack, 19" Open Frame Server

Build a tidy install with the StarTech.com 2-Post 21U Heavy-Duty Wall — dimensions and mounting details are in the spec table.

Mount your network and telecommunications equipment with the convenience of adjustable depth

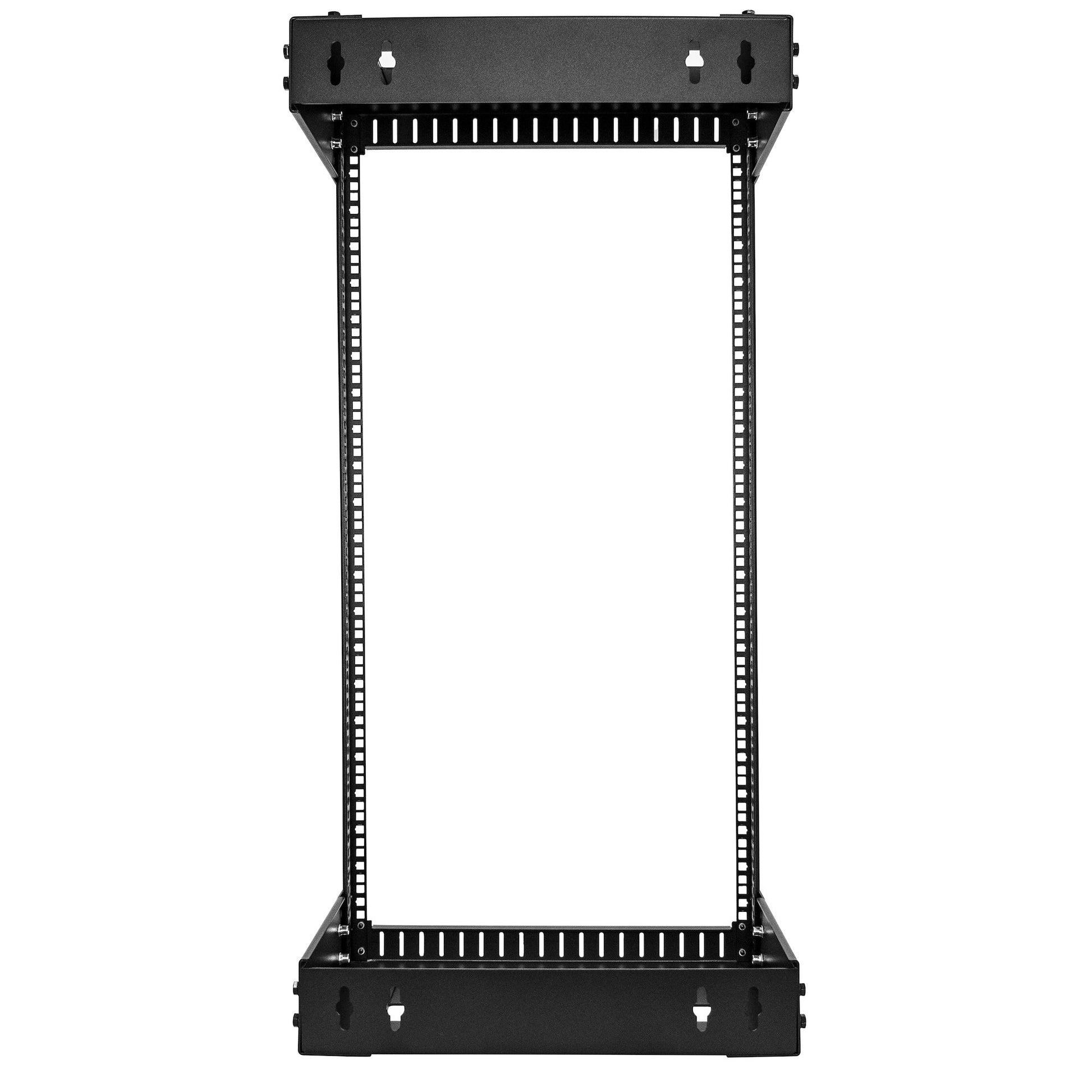

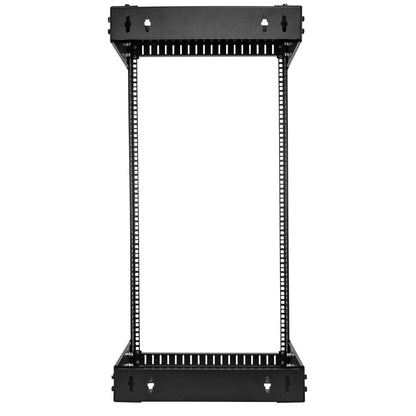

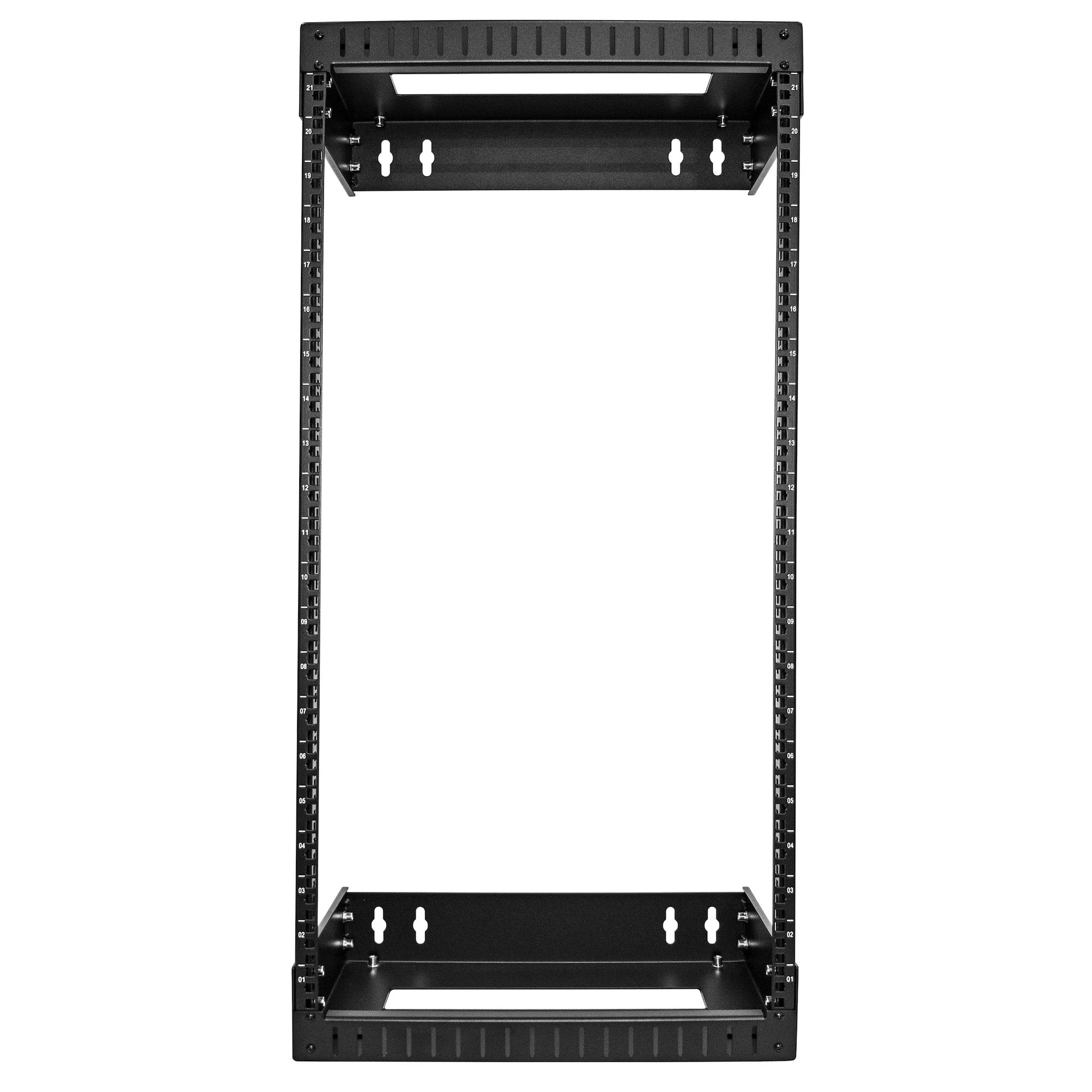

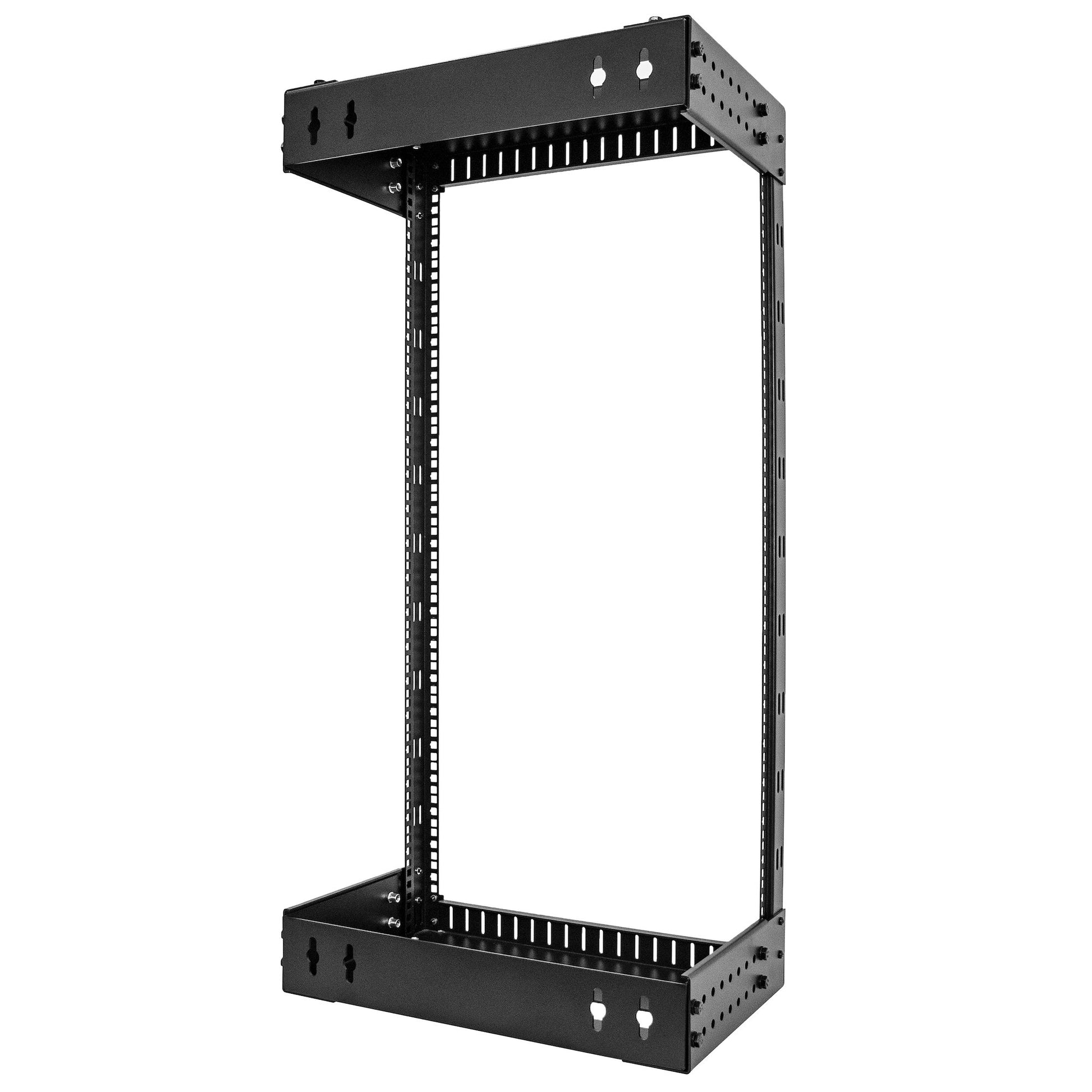

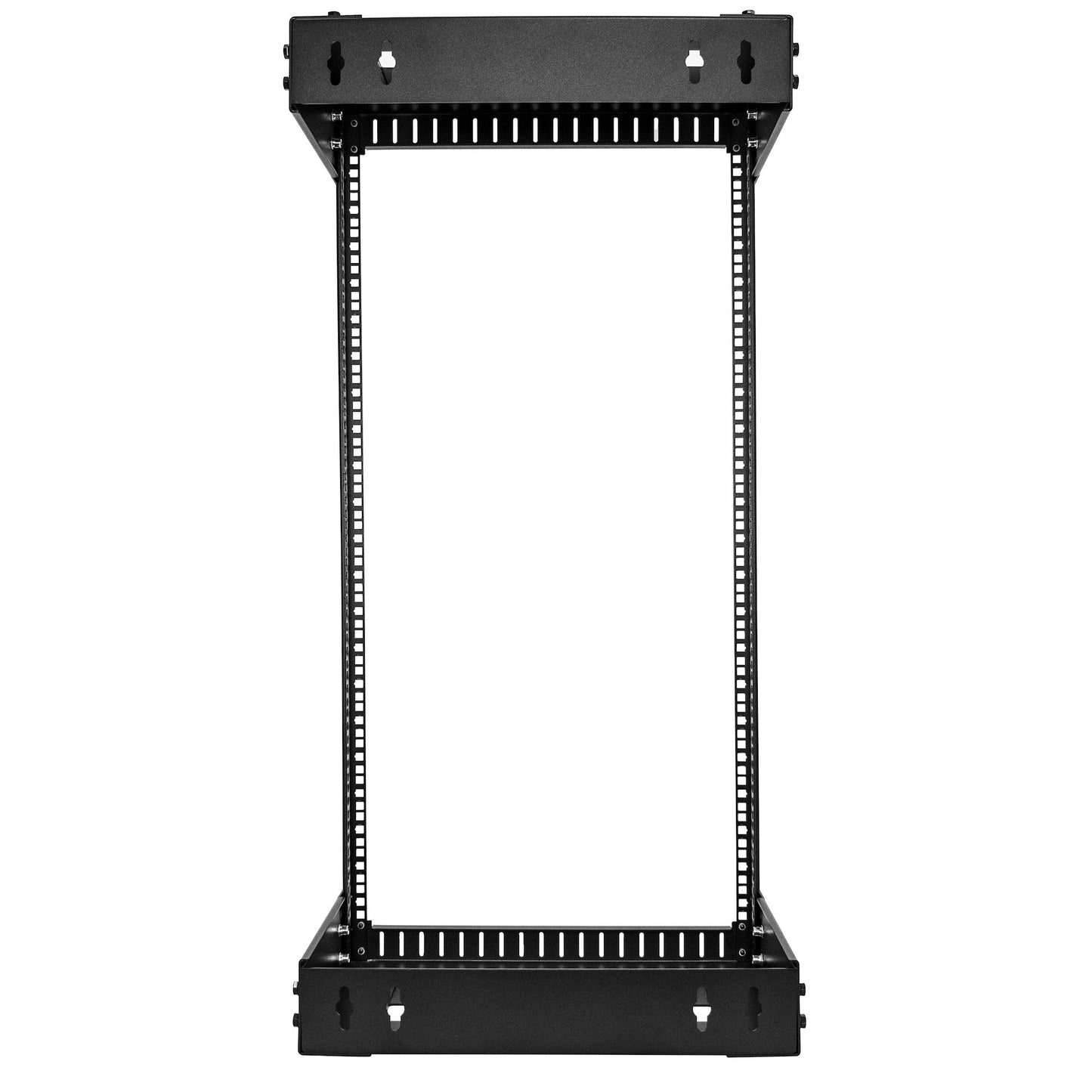

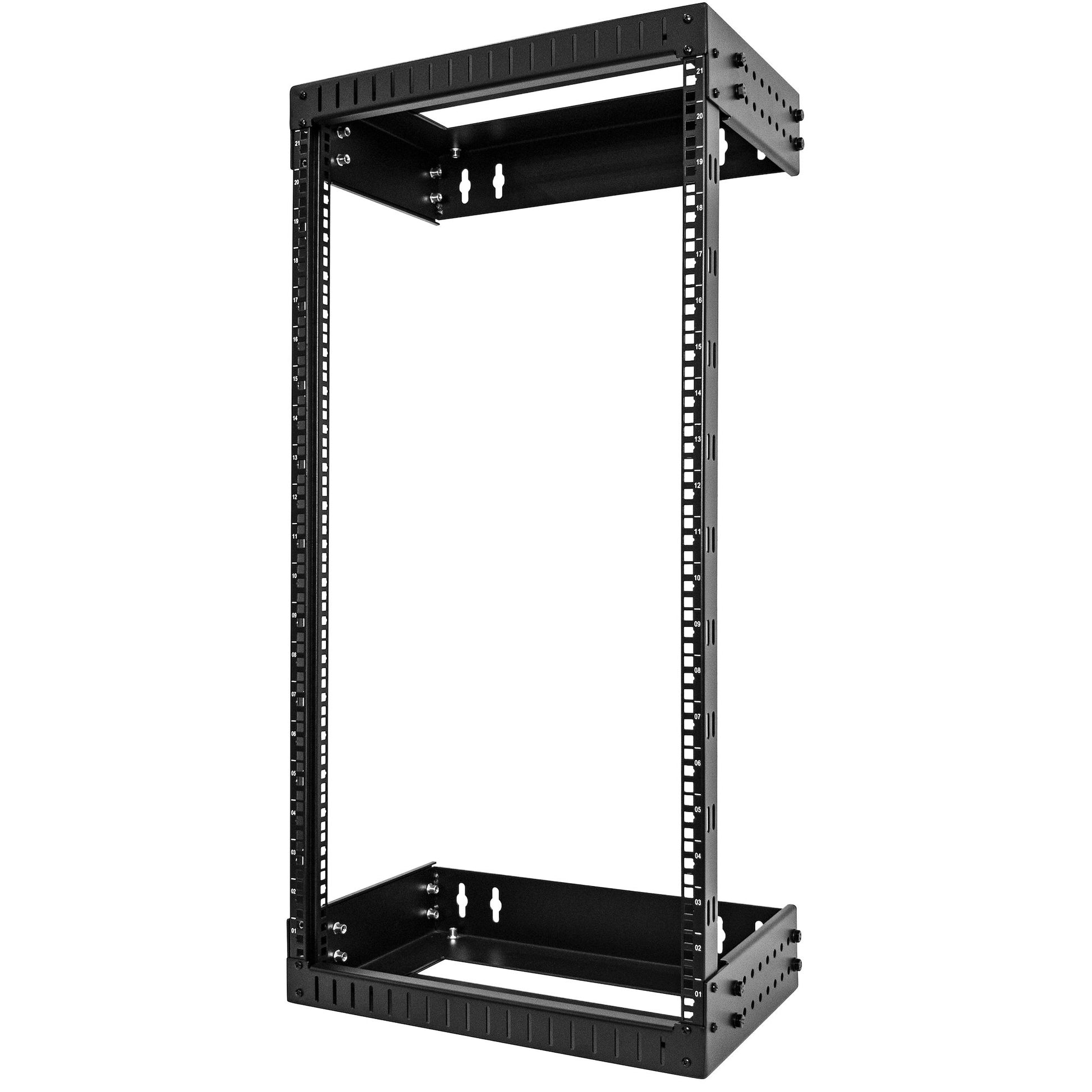

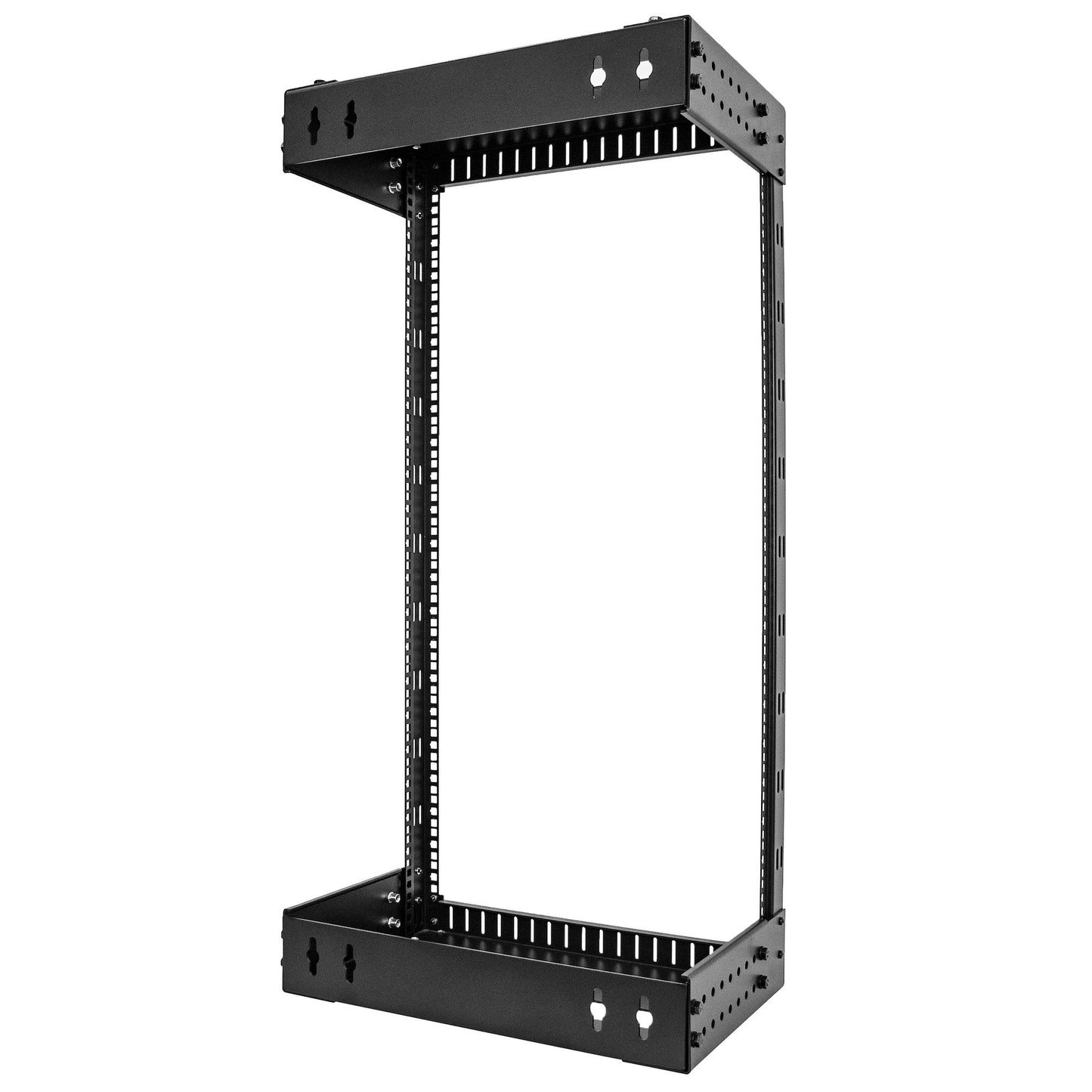

The RACK-21U-20-WALL-OA 21U Open Frame Wall Mount Equipment Rack with Adjustable Depth is a high-quality, sturdy relay rack solution that is easy to assemble and install into any environment.

Sturdy Construction & Easy Installation

The open rack features an adjustable depth ranging from 12-20 inches to accommodate larger data, network, and telecommunications devices. With a maximum depth of 20 inches, this rack allows for mounting of shelves and other accessories with enough clearance at the back for cable management. The open-frame design help to keep your equipment cool and easily accessible from different angles. The wall mounting holes are positioned 12 and 16 inches apart (center to center) providing a convenient and effecting anchoring, making it suitable for mounting on virtually any wall surface or construction framework.

Includes Hardware

This 21U rack includes M6 square cage nuts and M6 screws to save you the hassle of sourcing separate mounting hardware for your equipment. This rack can be mounted to the wall in a server room, data closet, or office expanding your valuable floor space.

Specifications

Weight & dimensions
Package depth	420 mm
Package width	1170 mm
Package height	160 mm
Package weight	20.2 kg
Mounting depth (max)	50.8 cm
Width	504 mm
Depth	508 mm
Height	1000 mm
Weight	15.2 kg
Maximum weight capacity	90 kg
Packaging content
Wall mounting kit	Yes
Quick installation guide	Yes
Nuts included	Yes
Number of nuts	2
Screws included	Yes
Number of screws	4
Number of bolts	2
Number of washers included	4
Features
Frame type	Open
Product design	2-post
Rack capacity	21U
Mounting hole shape	Square
Type	Wall mounted rack
Material	Steel
Product colour	Black
Technical details
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85381000
Logistics data
Master (outer) case width	1170 mm
Master (outer) case length	420 mm
Master (outer) case height	160 mm
Products per master (outer) case	1 pc(s)
