StarTech.com 2-Post 12U Heavy-Duty Wall Mount Network Rack, 19" Open Frame Server
StarTech.com 2-Post 12U Heavy-Duty Wall Mount Network Rack, 19" Open Frame Server
Regular price
£127.16 GBP
Regular price
Sale price
£127.16 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Build a tidy install with the StarTech.com 2-Post 12U Heavy-Duty Wall — dimensions and mounting details are in the spec table.

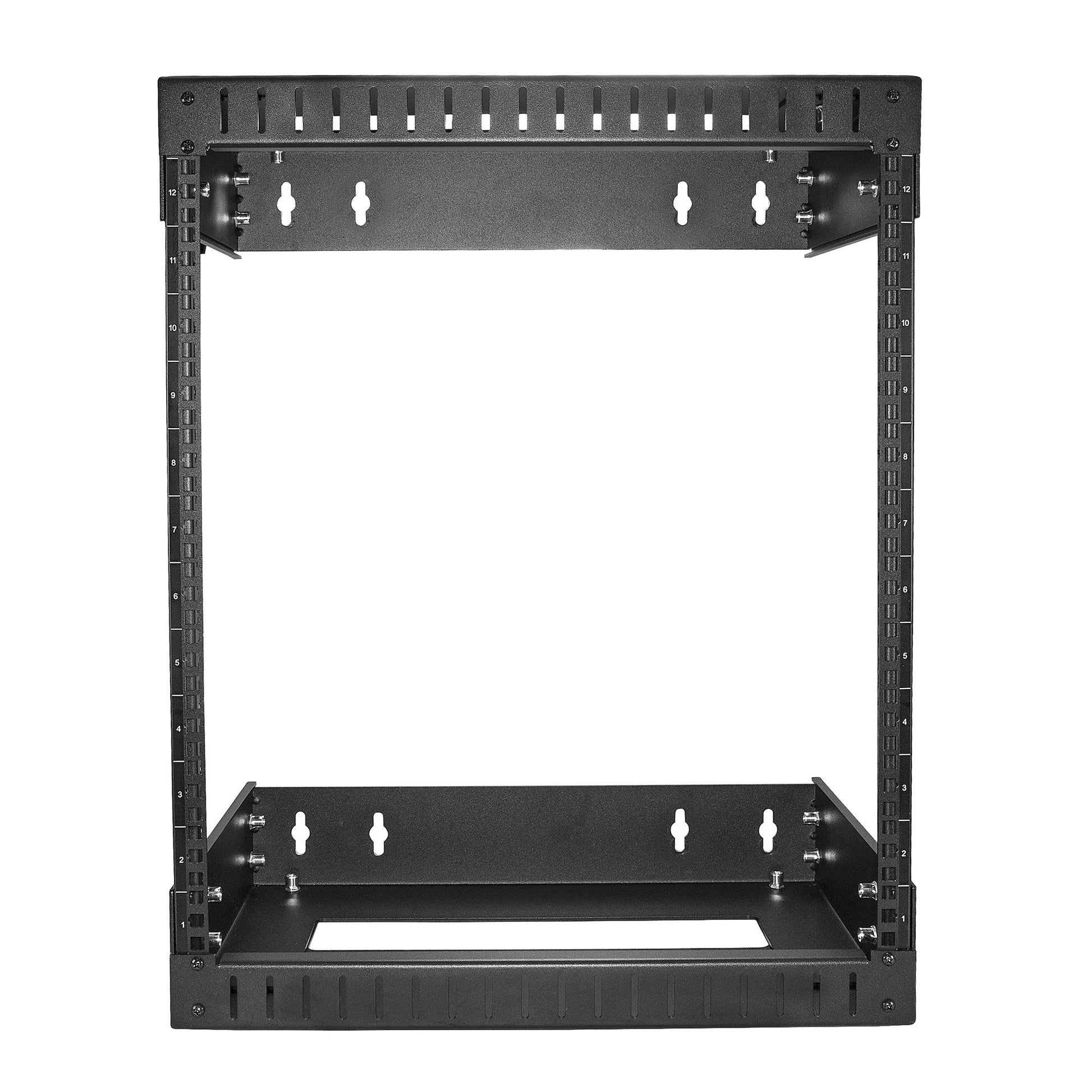

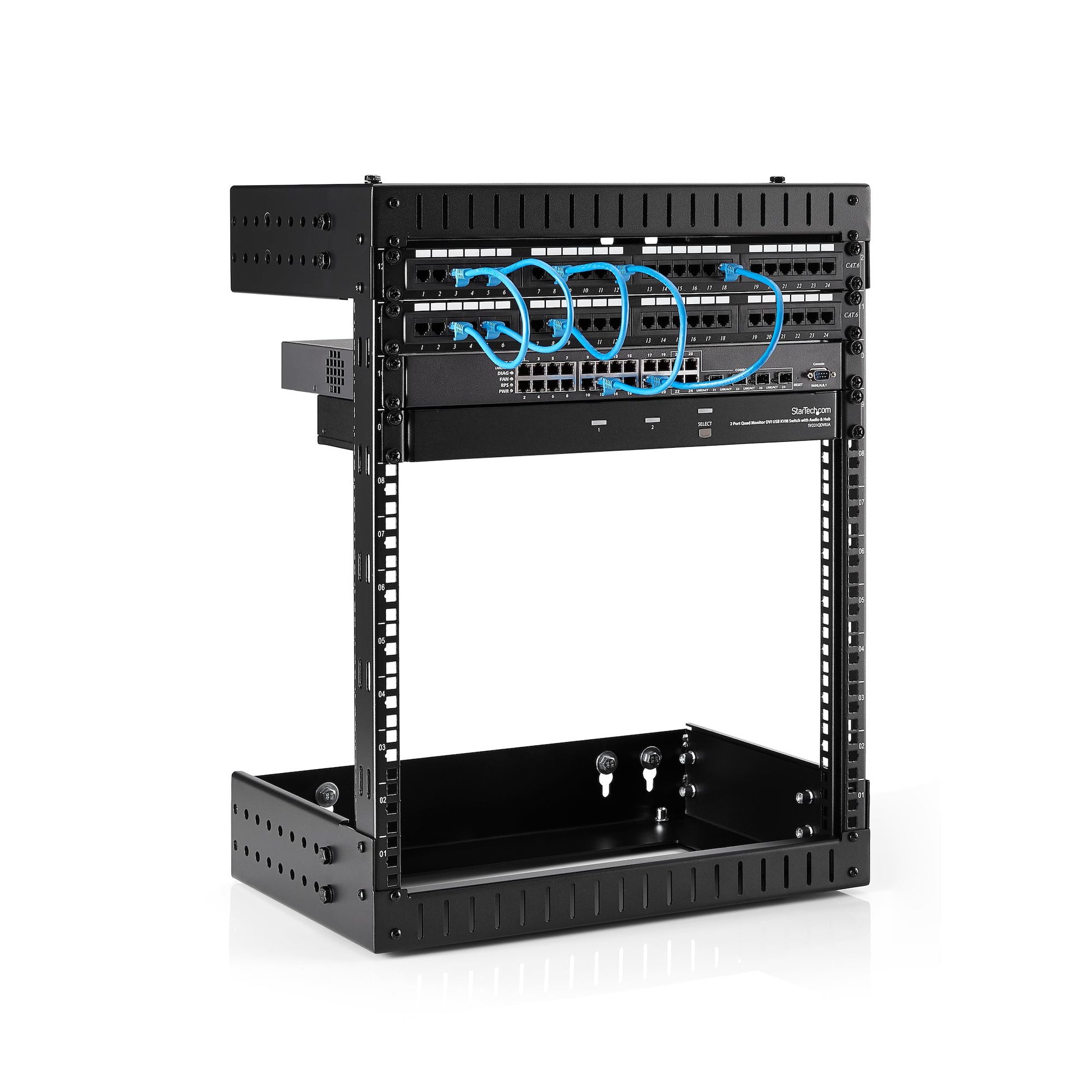

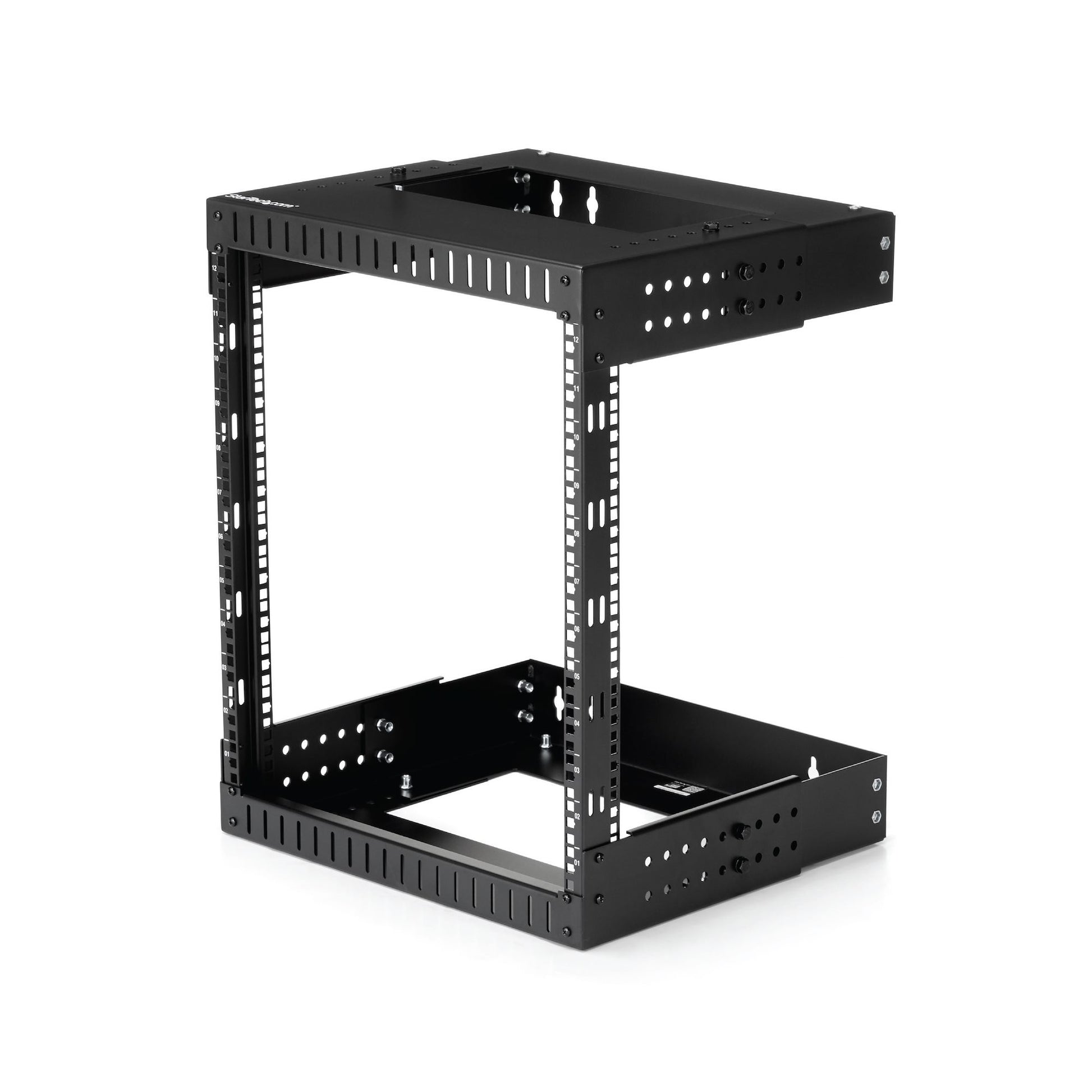

Mount your network and telecommunications equipment with the convenience of adjustable depthThis open-frame wall-mount server rack provides 12U of storage, helping you to save space and stay organized. The equipment rack features an adjustable depth and can hold a total of up to 198 lb. (90 kg).
Easy, hassle-free installation
With adjustable depth to as low as 12 in. (30.5 cm) this network rack is perfect for smaller spaces. It's easy to assemble and features wall-mounting holes that are spaced 12 and 16 in. apart, making it suitable for mounting on almost any wall, based on North American wall-frame stud-spacing standards. The wall-mount rack comes in a flat-pack, which makes it easy to transport and saves you money on shipping.
Accommodate larger devices
The open-frame rack adjusts from 12 to 20 in. (30.5 to 50.8 cm) to accommodate larger data, network, and telecommunication devices. The above-average depth also gives you the option to mount shelves and other accessories.
Free up space
When space is limited you can mount the open-frame rack on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.
Keep your equipment cool and accessible
The rack's open frame design ensures passive cooling for your rack-mounted equipment. Additionally, the open frame provides easy access to your equipment and makes it easier to configure mounted devices, which saves you time.
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 538 mm |
| Package width | 688 mm |
| Package height | 139 mm |
| Package weight | 17 kg |
| Mounting depth (max) | 50.5 cm |
| Width | 503 mm |
| Depth | 510 mm |
| Height | 640 mm |
| Weight | 14.6 kg |
| Maximum weight capacity | 90 kg |

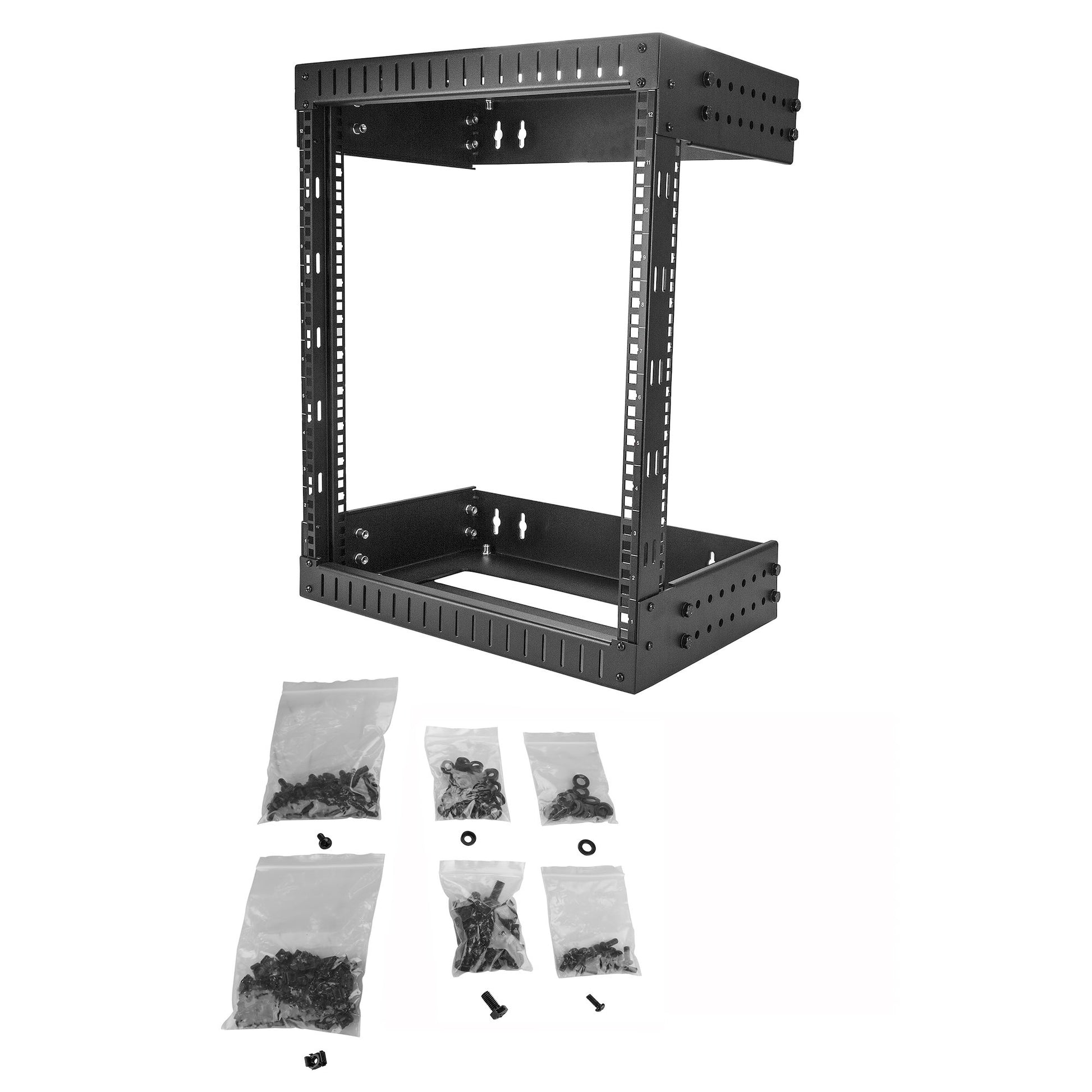

| Packaging content | |
| Manual | Yes |
| Nuts included | Yes |
| Number of nuts | 48 |
| Screws included | Yes |
| Number of screws | 64 |
| Number of bolts | 24 |
| Number of washers included | 72 |
| Features | |
| Number of fans | 0 fan(s) |
| Frame type | Open |
| Product design | 2-post |
| Rack capacity | 12U |
| Adjustable mounting rails | Yes |
| Cable management | No |

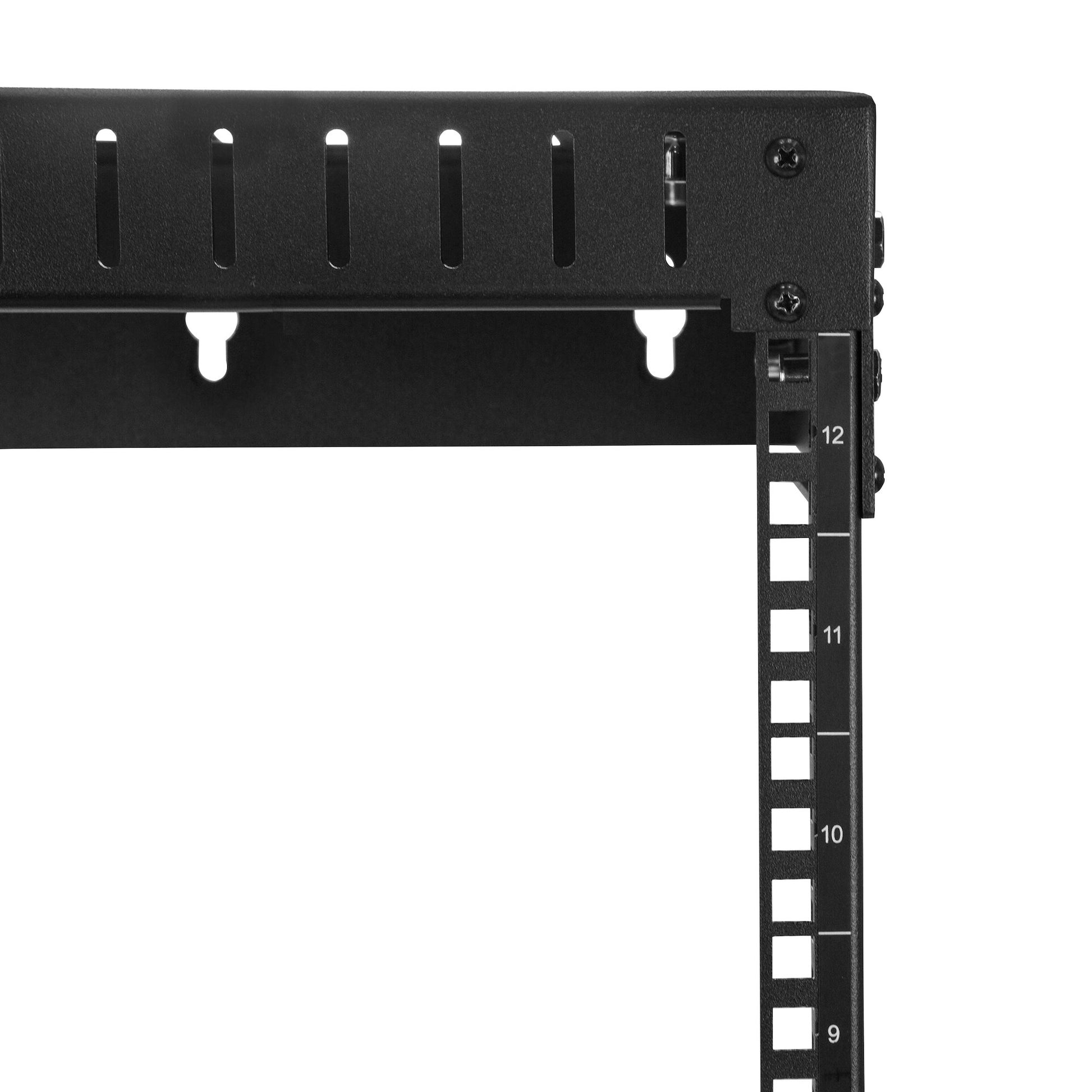

| Mounting hole shape | Square |
| Type | Wall mounted rack |
| Material | Steel |
| Product colour | Black |
| Certification | CE, REACH |
| Technical details | |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85381000 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 865 mm |
| Master (outer) case length | 595 mm |
| Master (outer) case height | 209 mm |
| Products per master (outer) case | 1 pc(s) |
