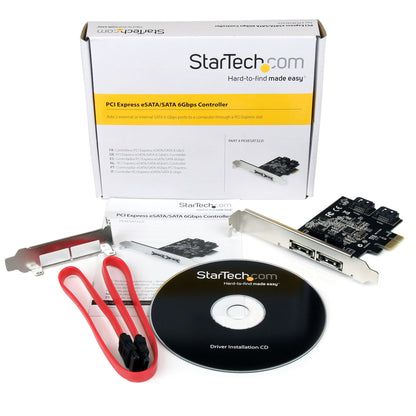

StarTech.com 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe Hub

The StarTech.com 2 Port PCI Express expands your ports in seconds — plug in and go.

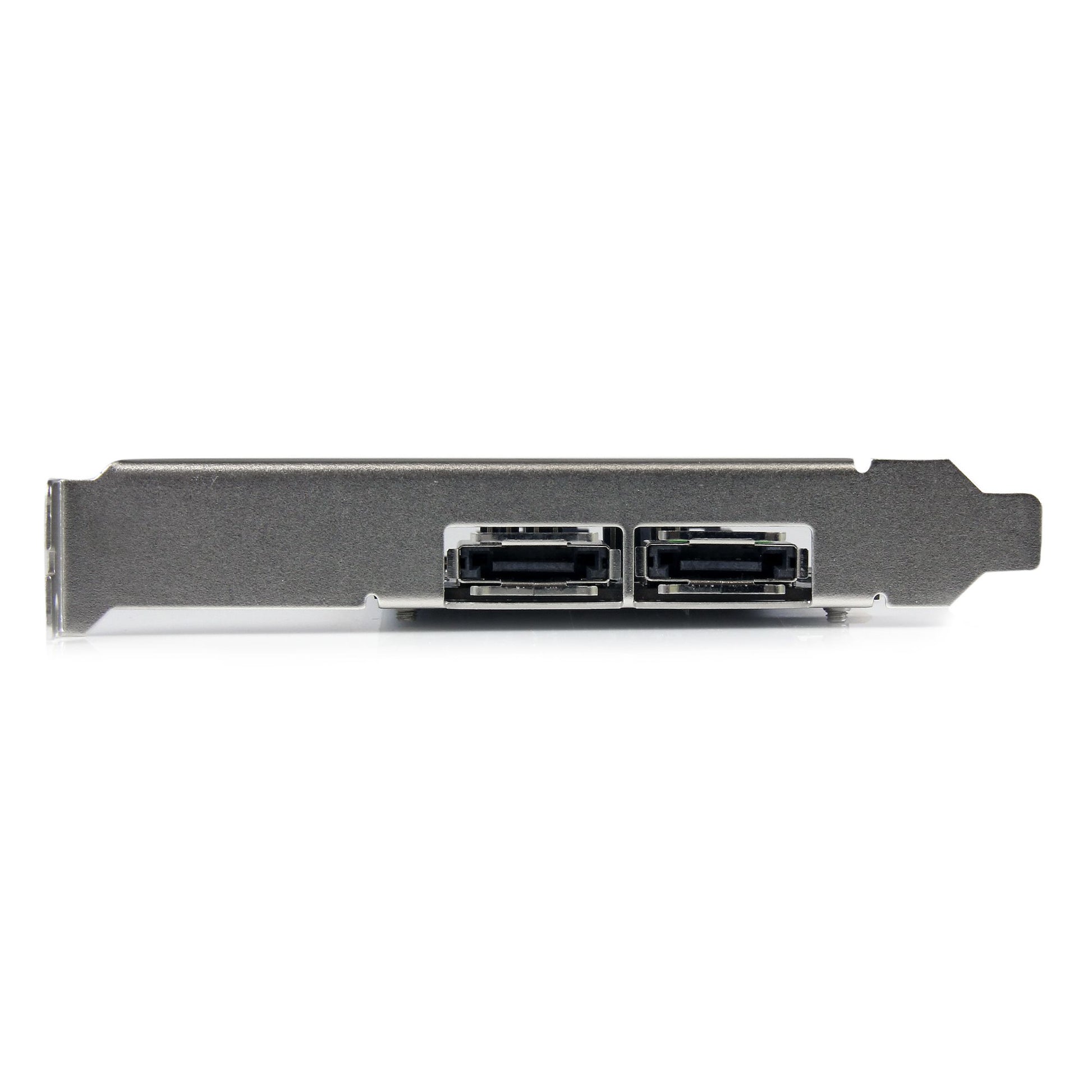

Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot

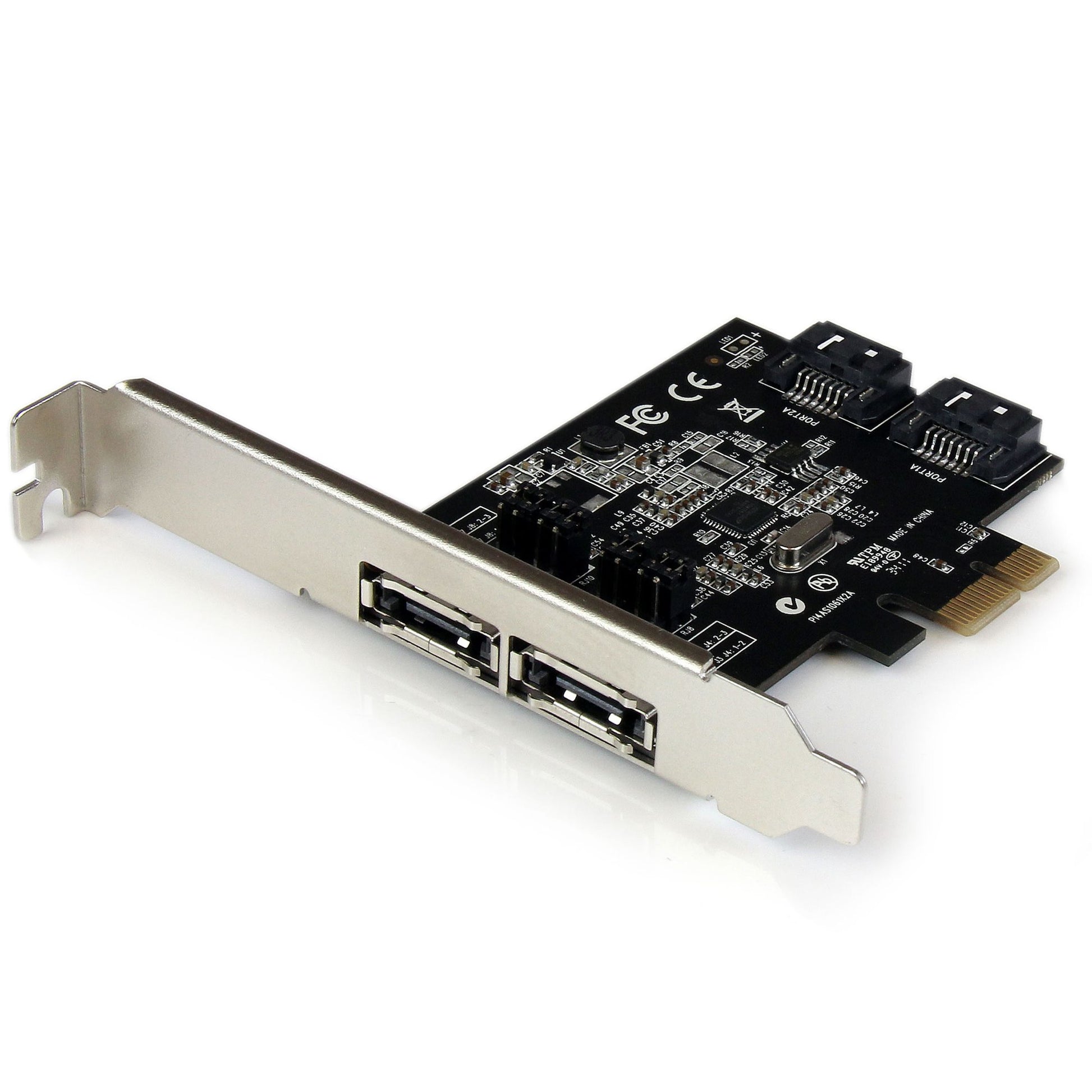

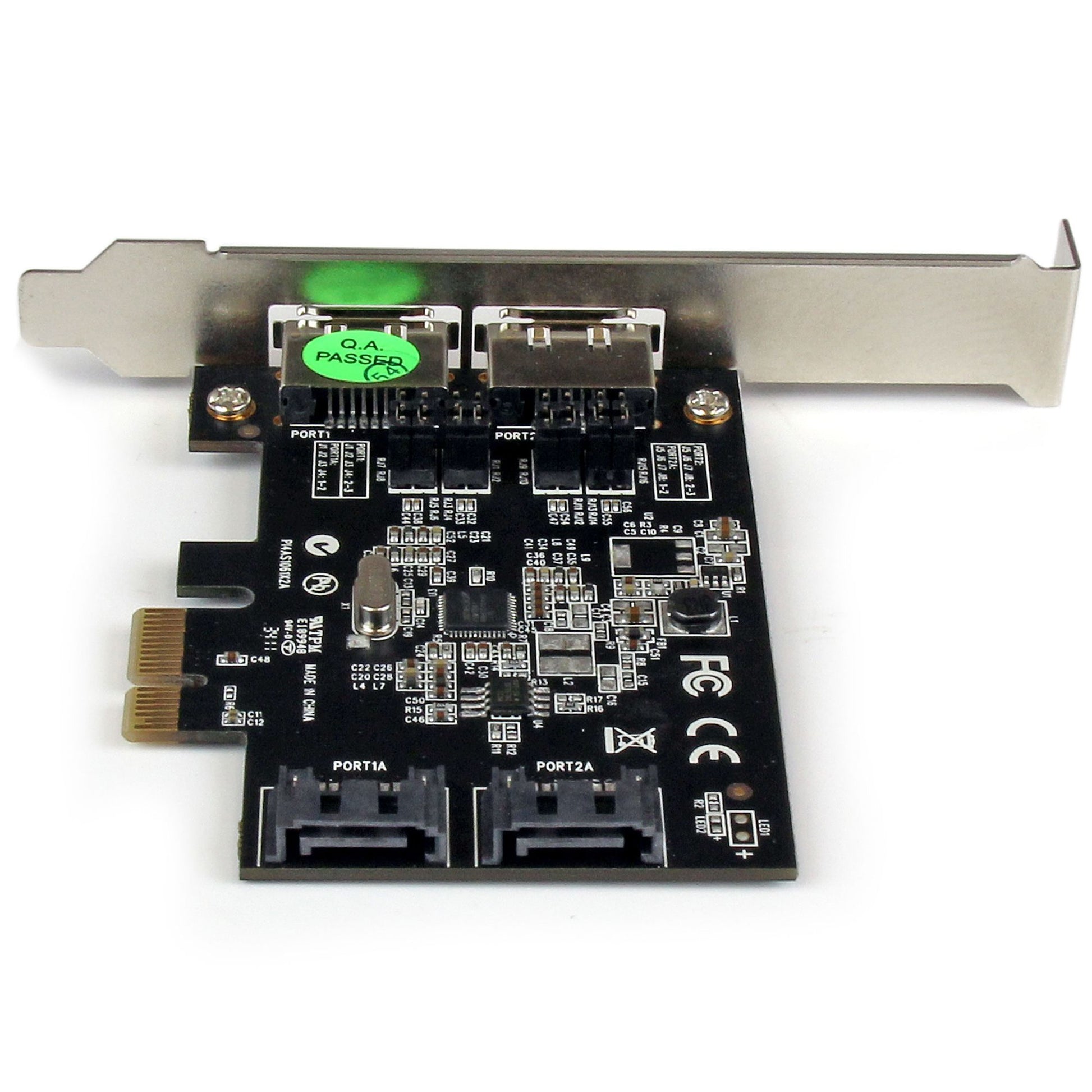

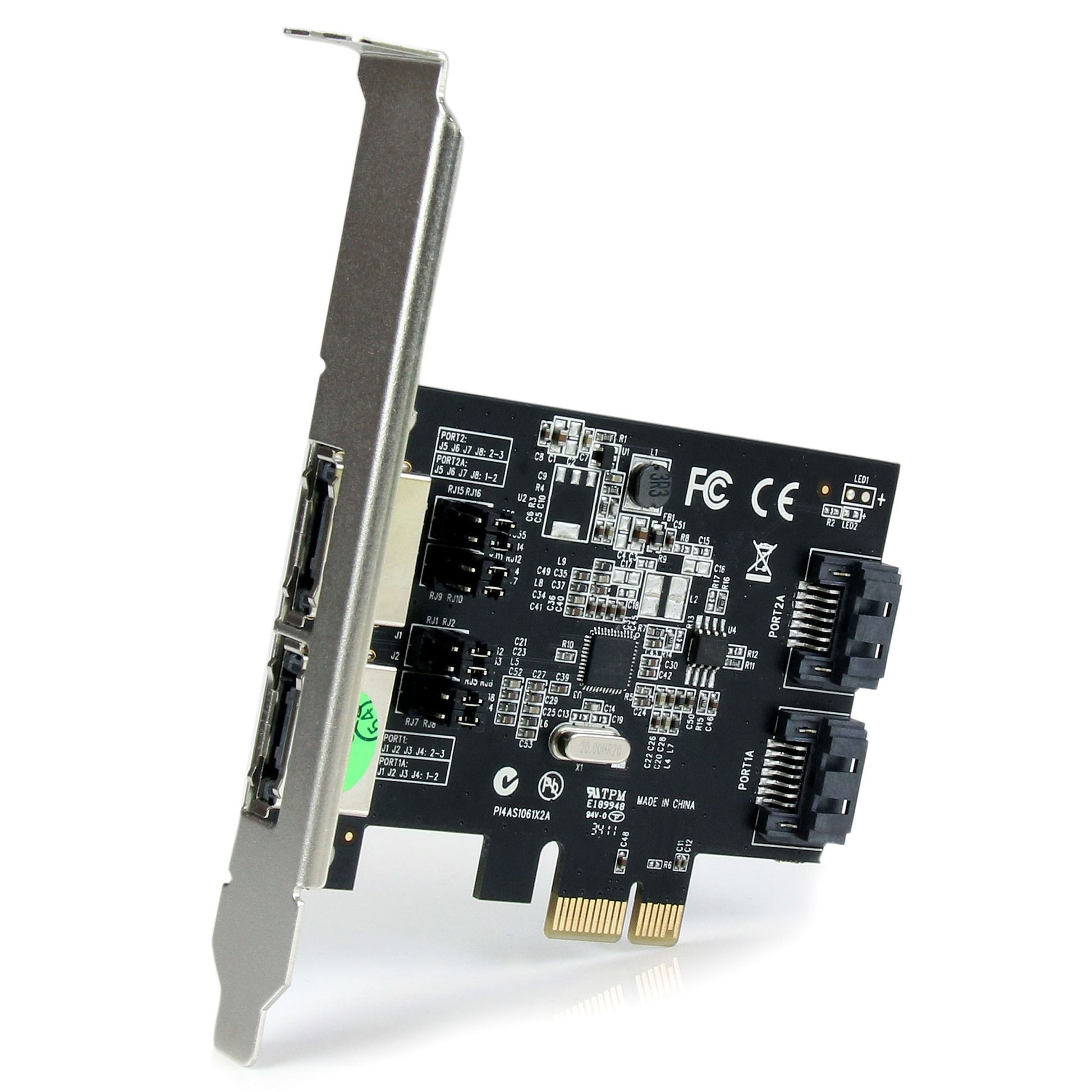

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.

Specifications

Ports & interfaces
Internal	Yes
Port multiplier	Yes
Output interface	SATA
SATA revision	3.0
eSATA ports quantity	2
Internal SATA ports quantity	2
Host interface	PCIe
Technical details
Chipset	ASMedia - ASM1061
Logical block addressing (LBA) support	48 bit
Native Command Queuing (NCQ)	Yes
Compliance certificates	RoHS
Performance
Harmonized System (HS) code	84733020
Certificates
Certification	CE, FCC, REACH
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 85%
System requirements
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width	92 mm
Depth	121 mm
Height	20 mm
Weight	48 g
Package width	216 mm
Package depth	148 mm
Package height	36 mm
Package weight	152 g
Packaging data
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes

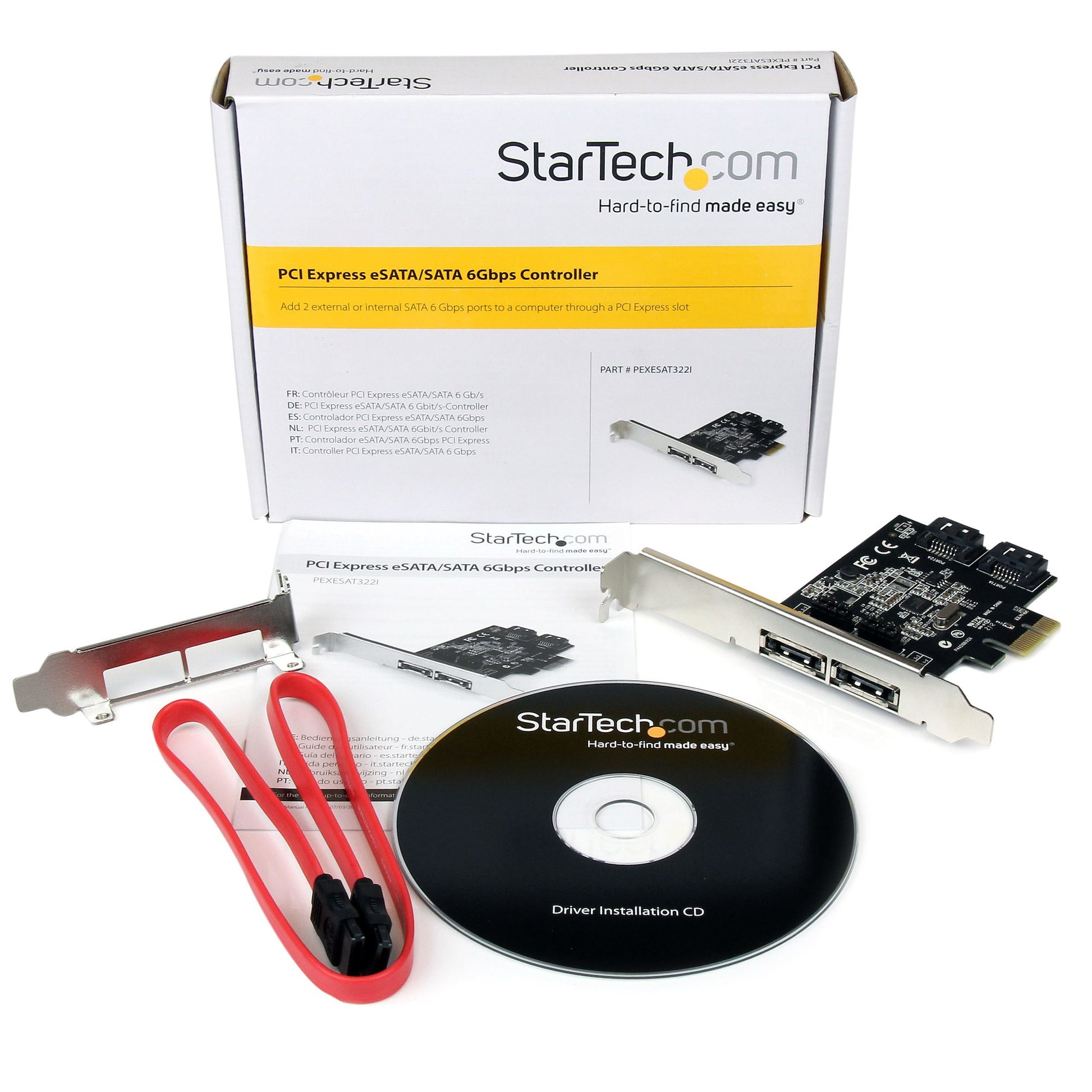

Cables included	SATA
Quantity	1
Logistics data
Products per master (outer) case	40 pc(s)
Master (outer) case width	451 mm
Master (outer) case length	379 mm
Master (outer) case height	325 mm

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
