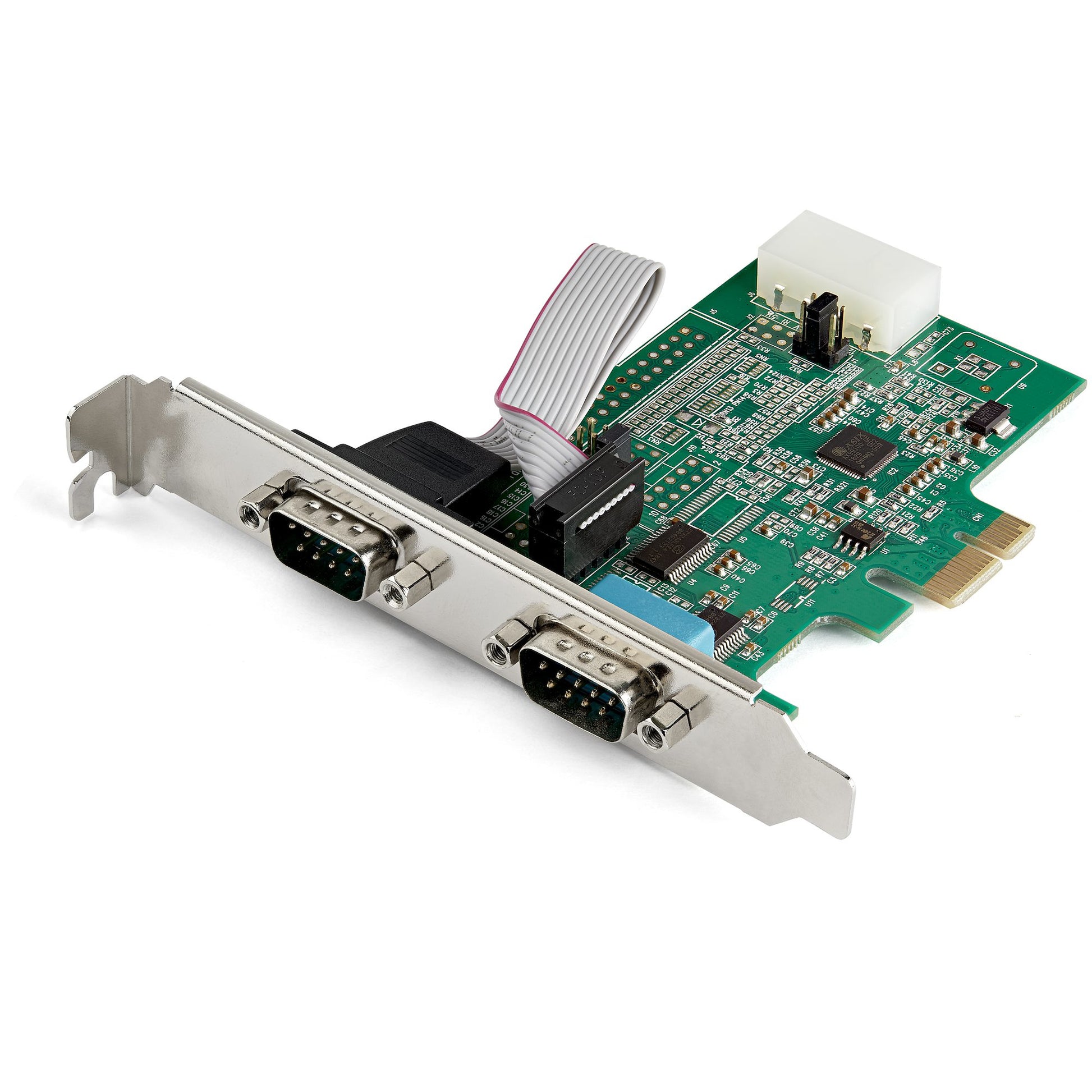

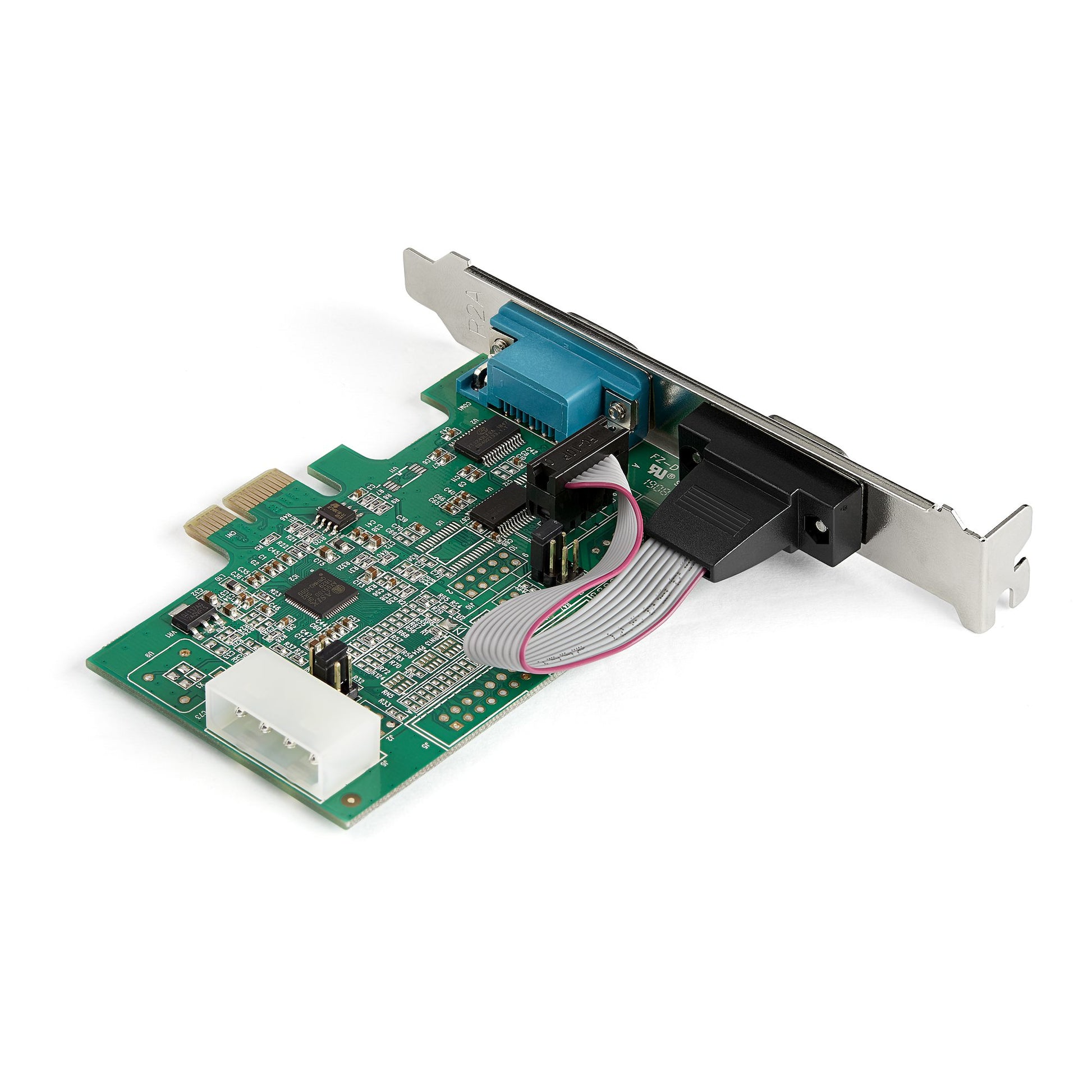

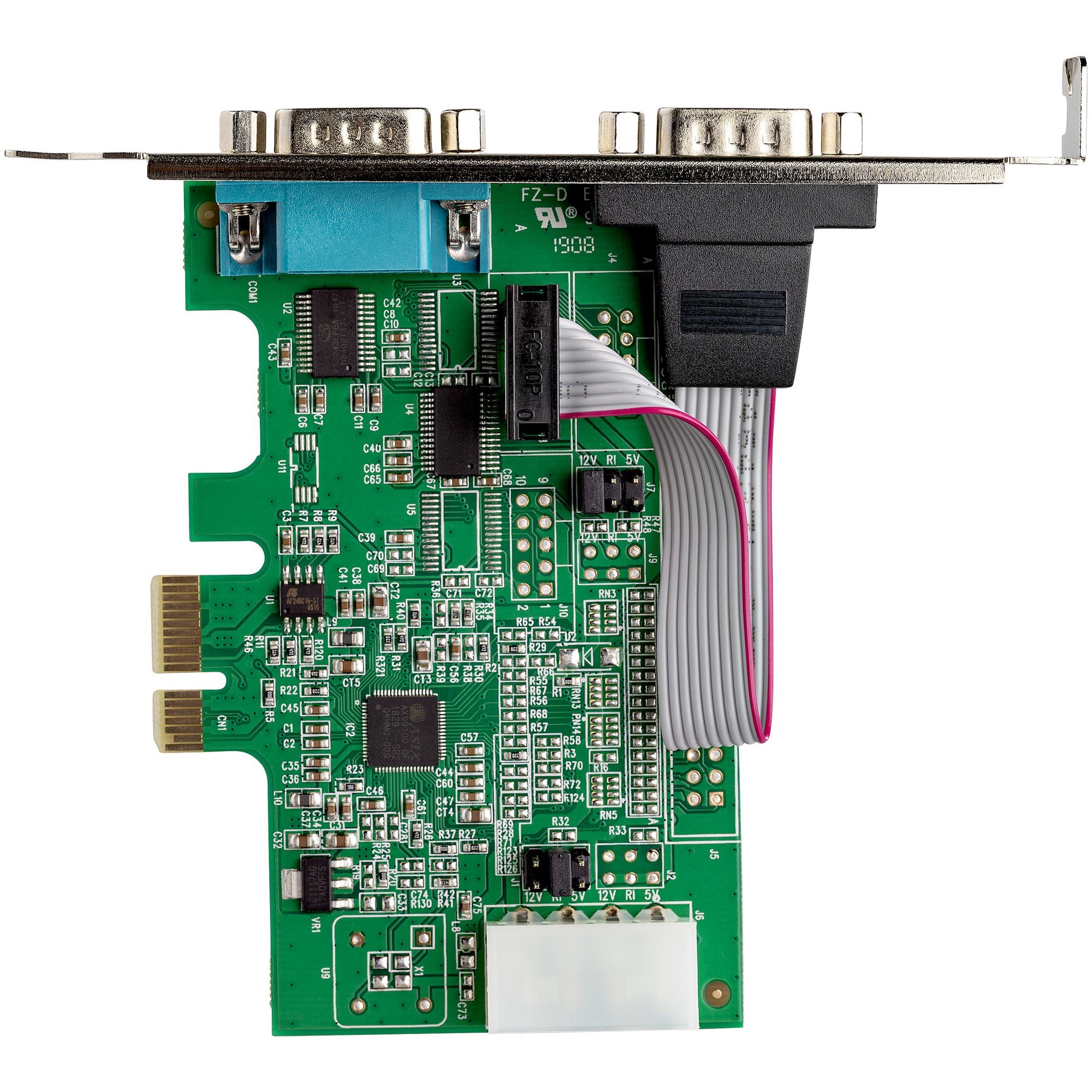

StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Hub (EX2S953)
StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Hub (EX2S953)
Regular price
£41.30 GBP
Regular price
Sale price
£41.30 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The StarTech.com 2-port PCI Express RS232 expands your ports in seconds — plug in and go.

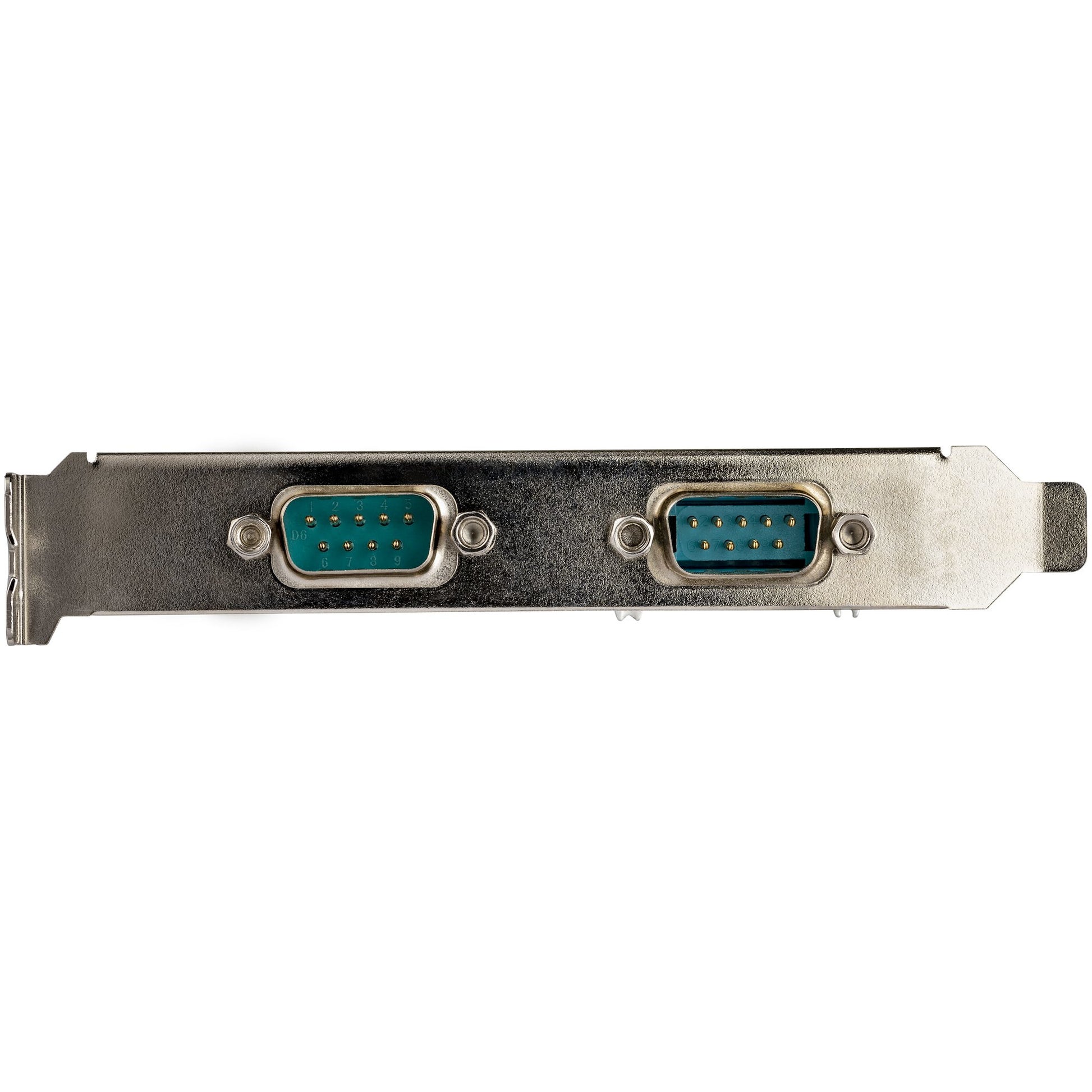

PCI Express to Serial Adapter | 921.6Kbps | Windows® and Linux® CompatibleThis multiport PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this 2 port PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket, and includes optional low-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX2S952 .
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
• Industry standard 16950 UART compatible
• Supports max baud rate of up-to 921.6Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 256-byte depth FIFO cache per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits (one per port)
• Asix AX99100 chipset
• Base PCI Express 1.1 compliant

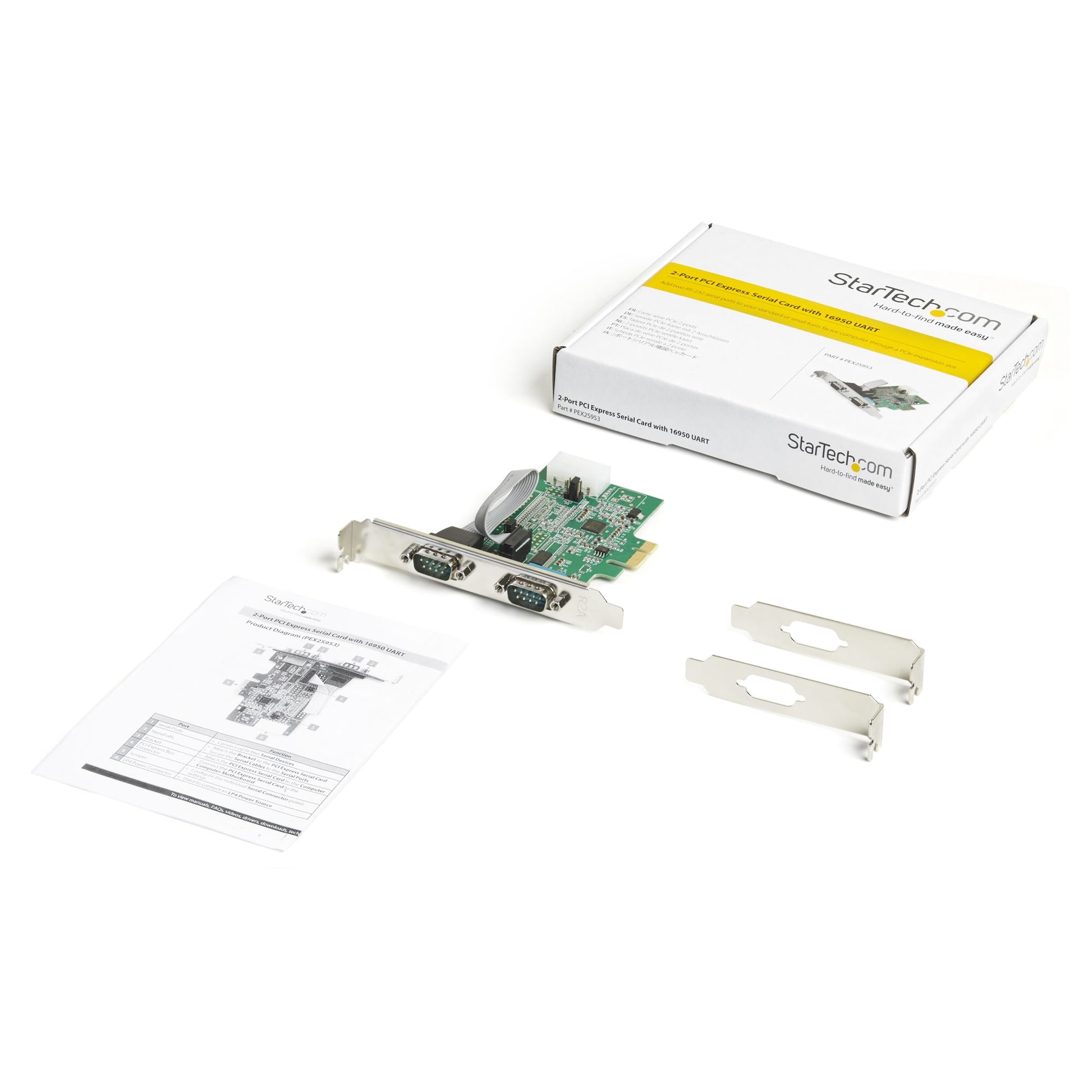

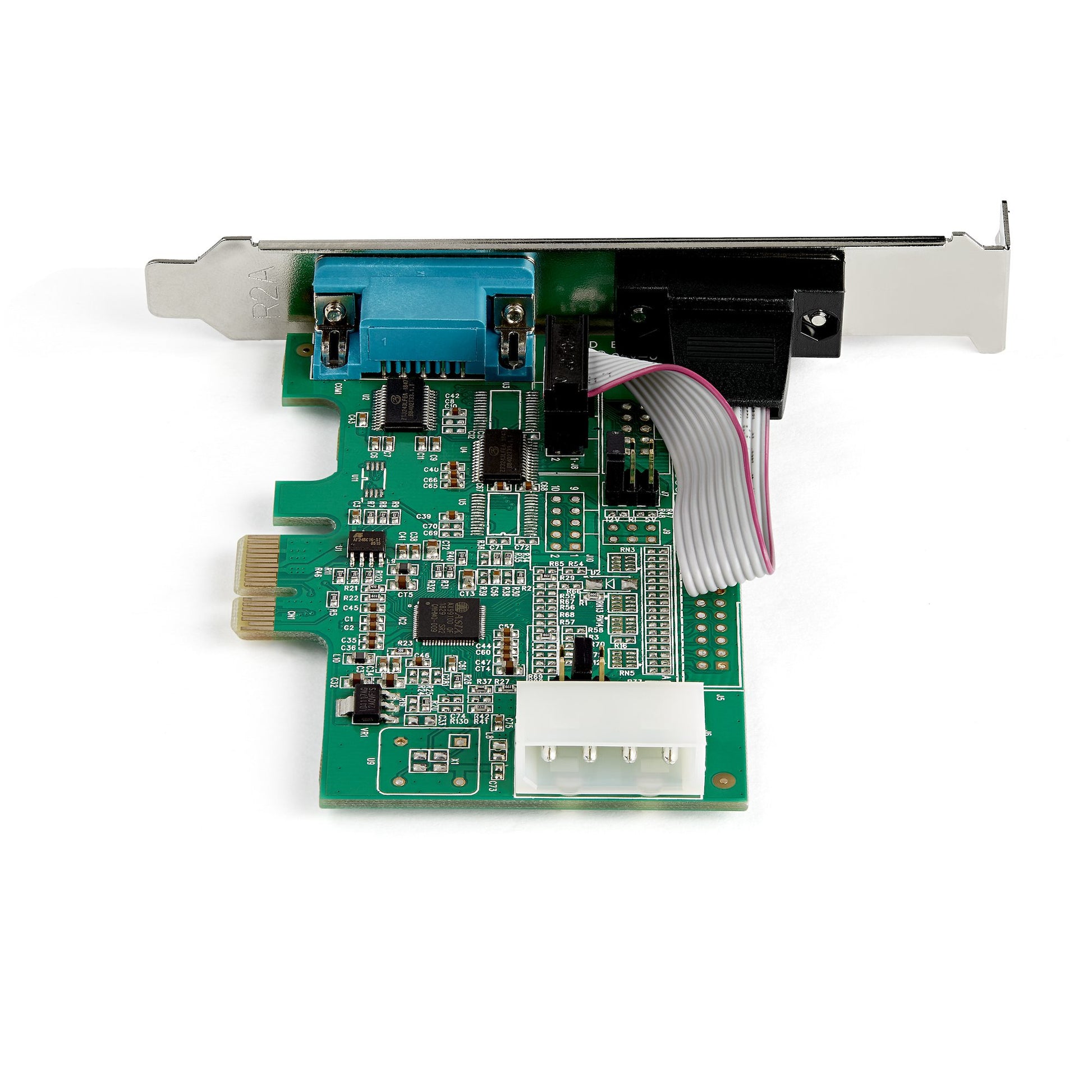

• Low and full-profile brackets included
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
PEX2S953 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Host interface | PCIe |
| Expansion card standard | PCIe 1.1 |
| Technical details | |
| Chipset | Asix AX99100 |
| FIFO (First In, First Out) | 256 B |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Performance | |
| Stop bits | 1, 1.5, 2 |
| Data bits | 5, 6, 7, 8, 9 |
| Baud rate | 921.6 Kbit/s |
| Product colour | Green |
| Harmonized System (HS) code | 84733020 |
| Design | |
| Mean time between failures (MTBF) | 222366 h |
| Features | |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Weight & dimensions | |
| Width | 63 mm |
| Depth | 75 mm |
| Height | 15 mm |
| Weight | 56 g |
| Package width | 144 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 136 g |
| Packaging data | |
| Quick installation guide | Yes |
| Quantity | 1 |
| Logistics data | |
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 359 mm |
| Master (outer) case length | 690 mm |
| Master (outer) case height | 310 mm |
