StarTech.com 2 Port Panel Mount USB 3.0 (5Gbps) Cable - USB A to Motherboard Header

Make the connection with the StarTech.com 2 Port Panel Mount — length and connector details are in the spec table.

Extend a USB 3.2 Gen1 Motherboard Header into Two Panel-mount USB 3.2 Gen1-A Ports

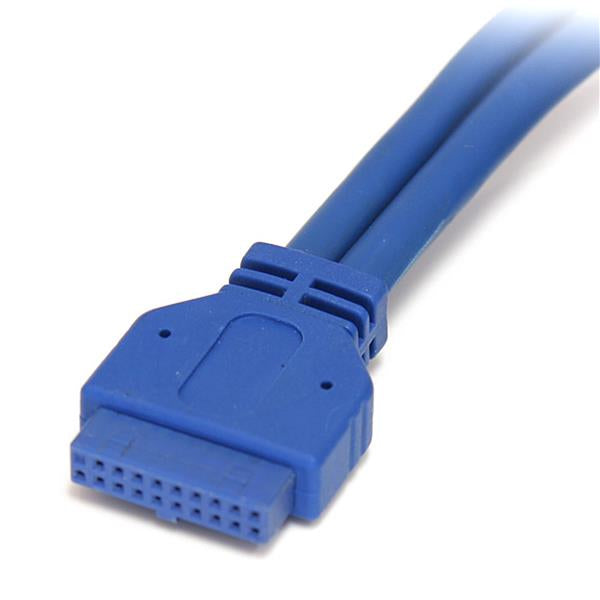

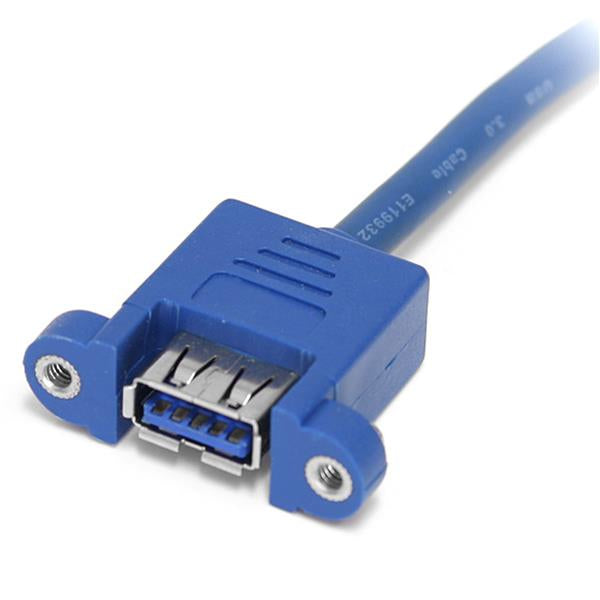

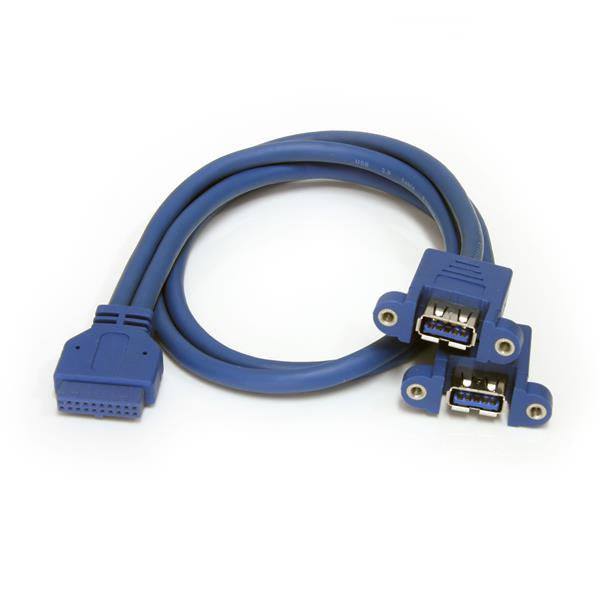

The USB3SPNLAFHD 2-Port USB 3.2 Gen 1 to Panel mount USB cable features a 20-pin USB 3.2 Gen 1 motherboard header connection on one end, breaking off into two separate USB 3.2 Gen 1-A (female) ports on the other end of the cable.
The USB 3.2 Gen 1 panel mount cable offers a convenient solution for connecting bootable thumb drives or authentication fobs etc. to the motherboard USB 3.2 Gen 1 connection.
The USB 20-pin motherboard header to panel mount USB 3.2 Gen 1 cable is backed by StarTech.com's Lifetime Warranty.

Specifications

Ports & interfaces
Connector 2	IDC
Connector 1	2 x USB A
Cable length	0.5 m
Performance
Housing material	Polyvinyl chloride (PVC)
AWG wire size	28
Cable jacket material	Polyvinyl chloride (PVC)
Product colour	Blue
Certification	CE, REACH
Certificates
Compliance certificates	RoHS
Weight & dimensions
Width	36.5 mm
Weight	69 g
Height	12 mm
Depth	500 mm
Packaging data
Package width	198 mm
Package height	25 mm
Package depth	167 mm
Package weight	74 g
Logistics data
Products per master (outer) case	200 pc(s)
Master (outer) case width	386 mm
Master (outer) case length	434 mm
Master (outer) case height	342 mm

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
