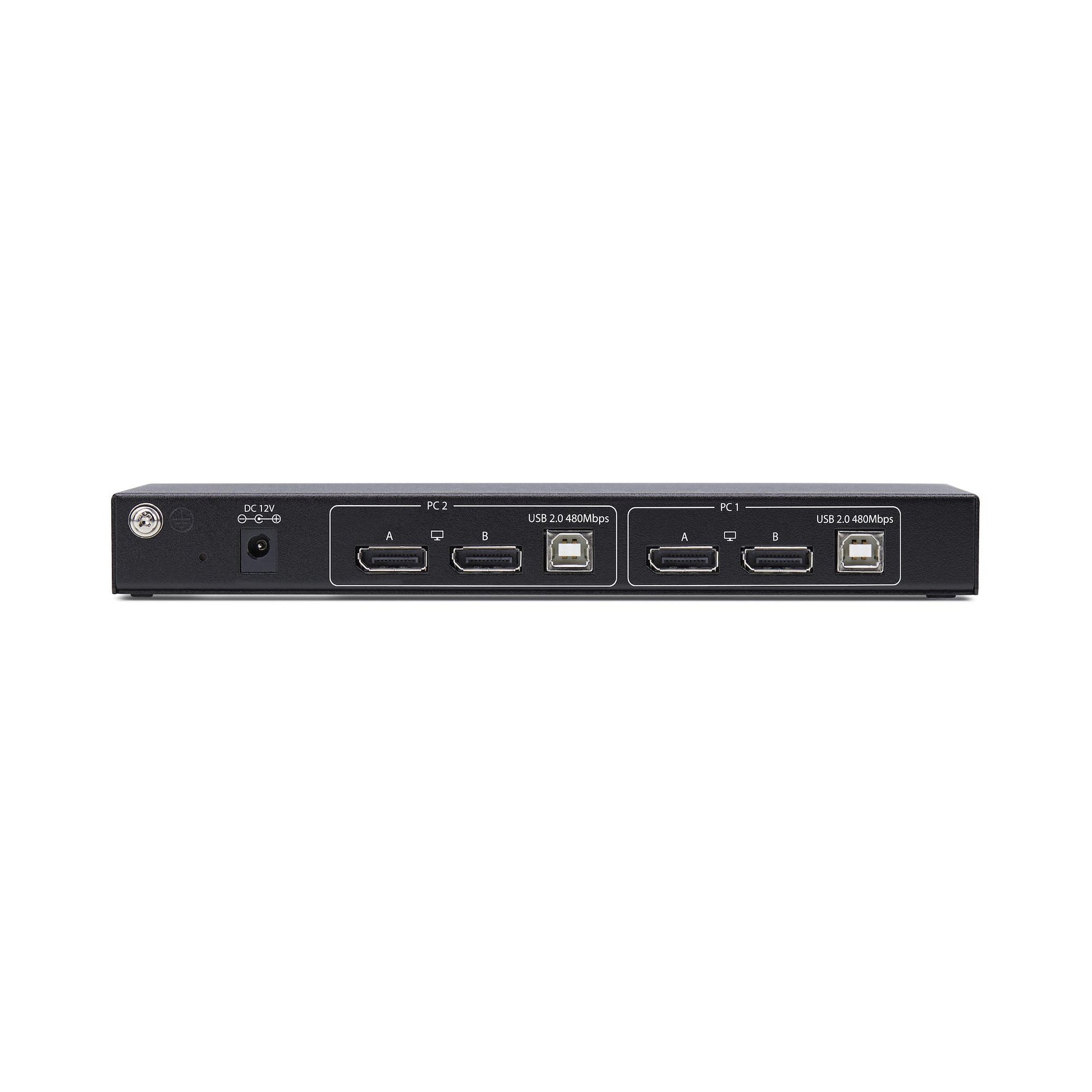

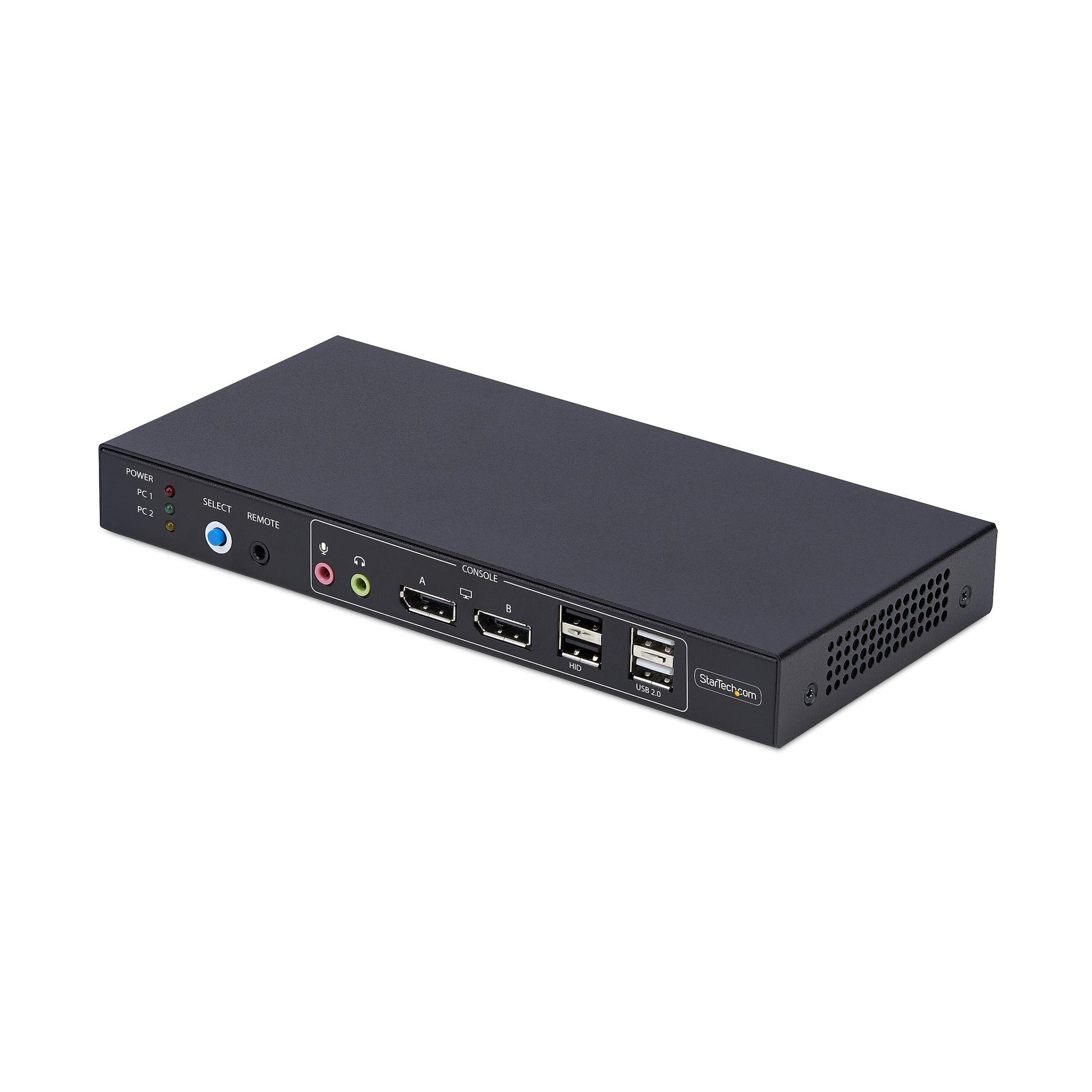

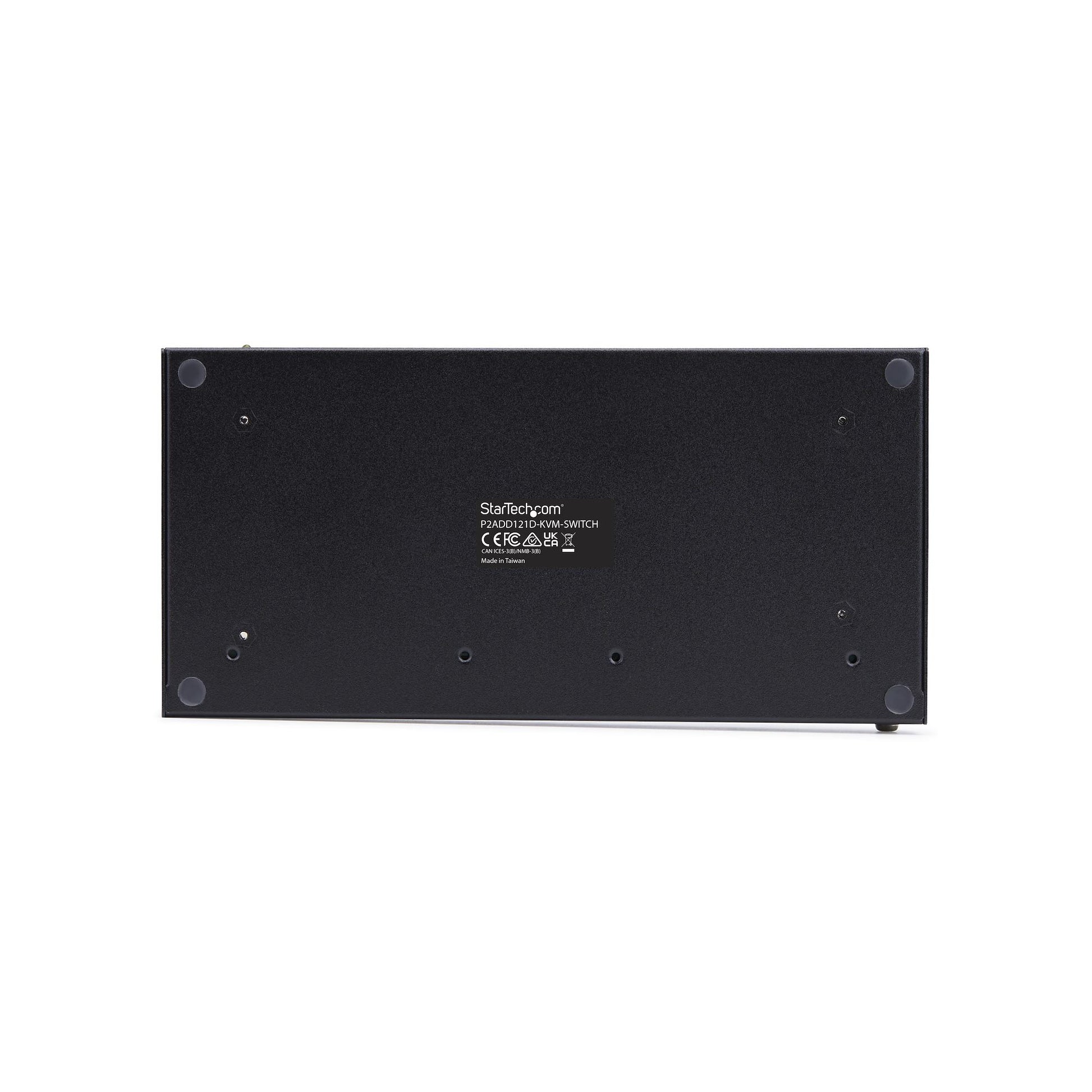

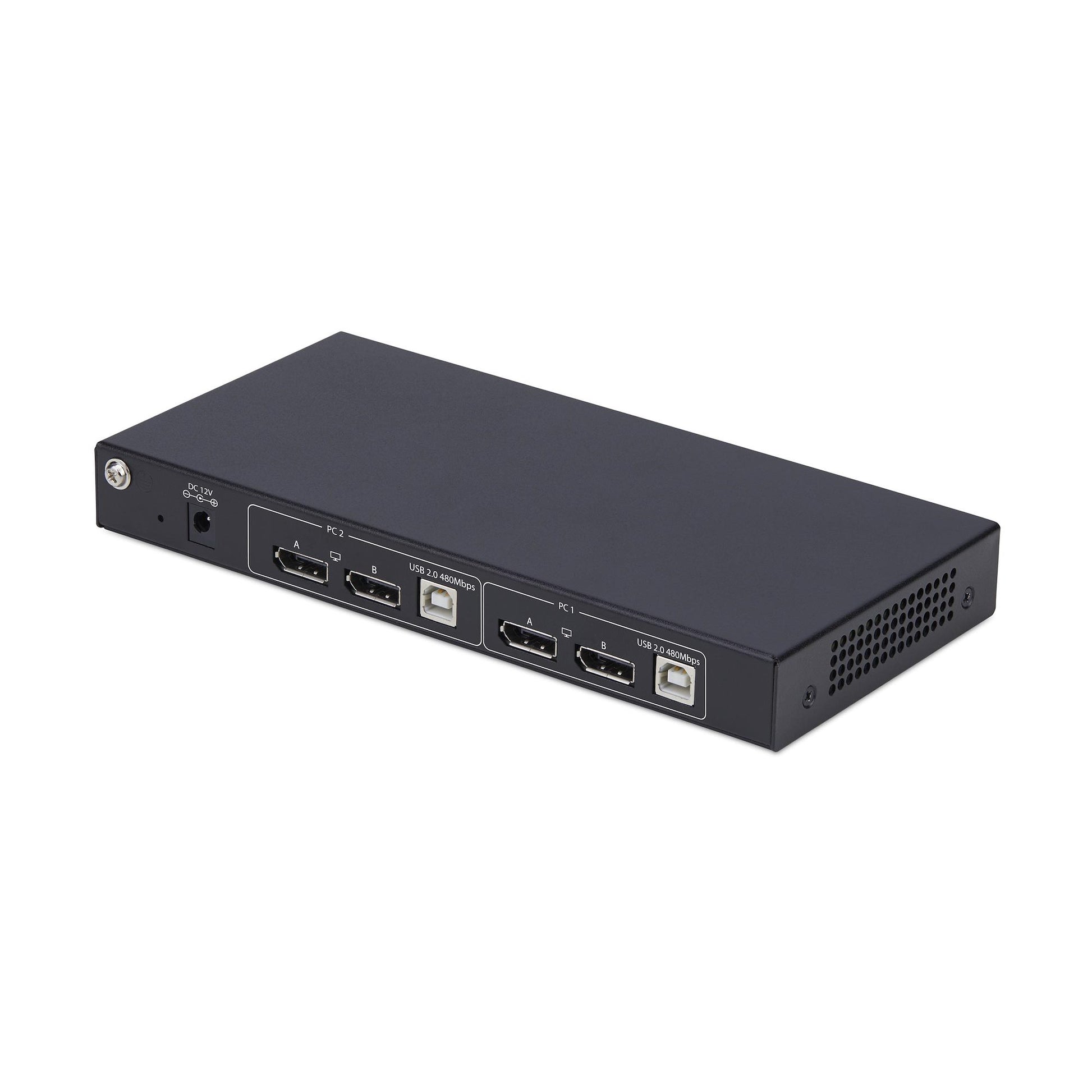

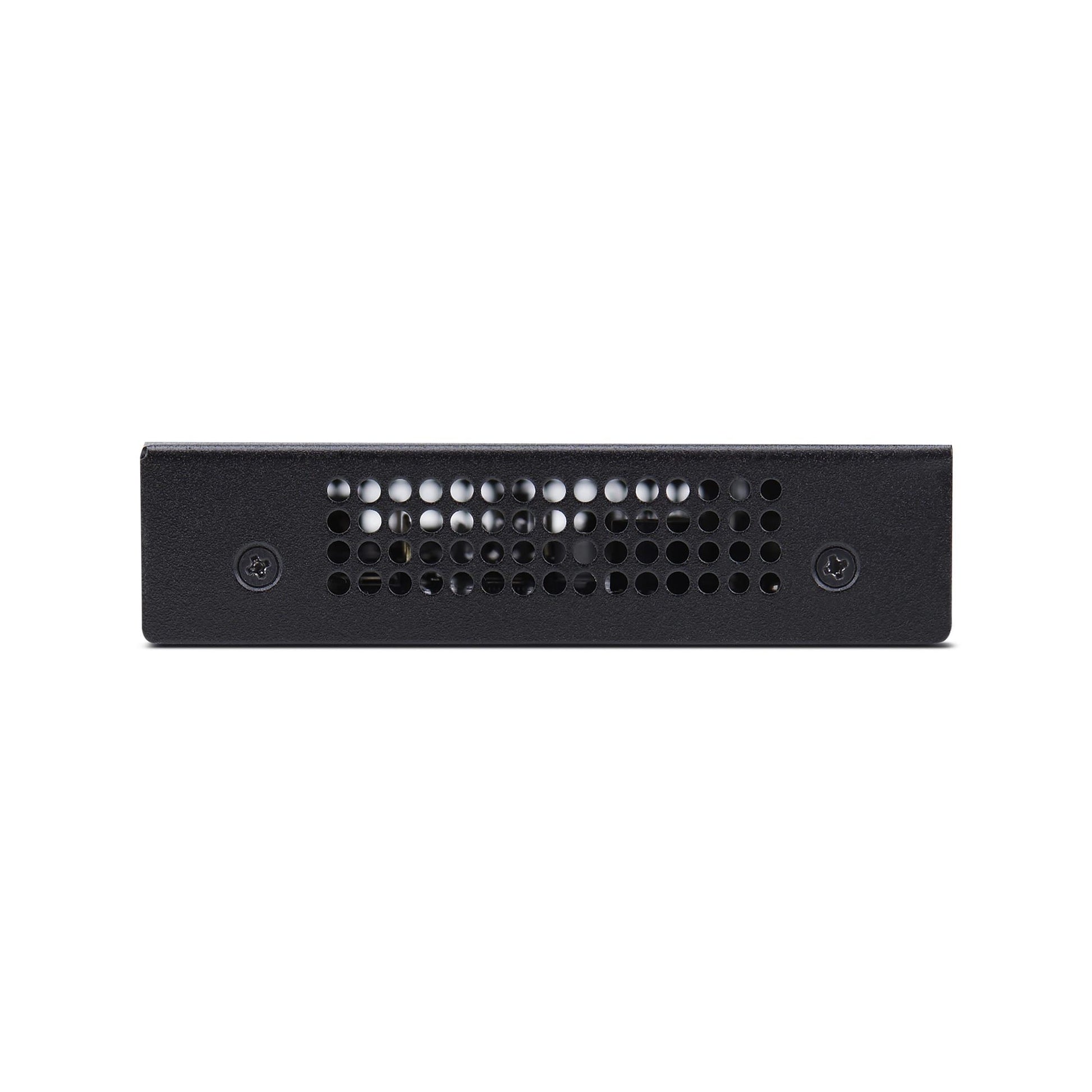

StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch with Dual View Video Matrix

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 2-Port Dual-Monitor DisplayPort.

Share a mouse, keyboard, USB hub, and dual 4K 60Hz DisplayPort monitors, between two DisplayPort-enabled computers, featuring dual-view video matrix capabilities

The Video Matrix KVM Switch allows you to view one display from each connected computer and switch the keyboard, mouse, and audio device between the selected displays using hotkeys. You can also switch all connected peripherals and both monitors like a standard KVM.

Universal Compatibility

The TAA-Compliant KVM Switch provides BIOS/UEFI control and works with any operating system, including Windows, macOS, and Linux. No software is required, and it is compatible with all hardware platforms such as Intel, AMD, and Apple Silicon.

Customizable Switching

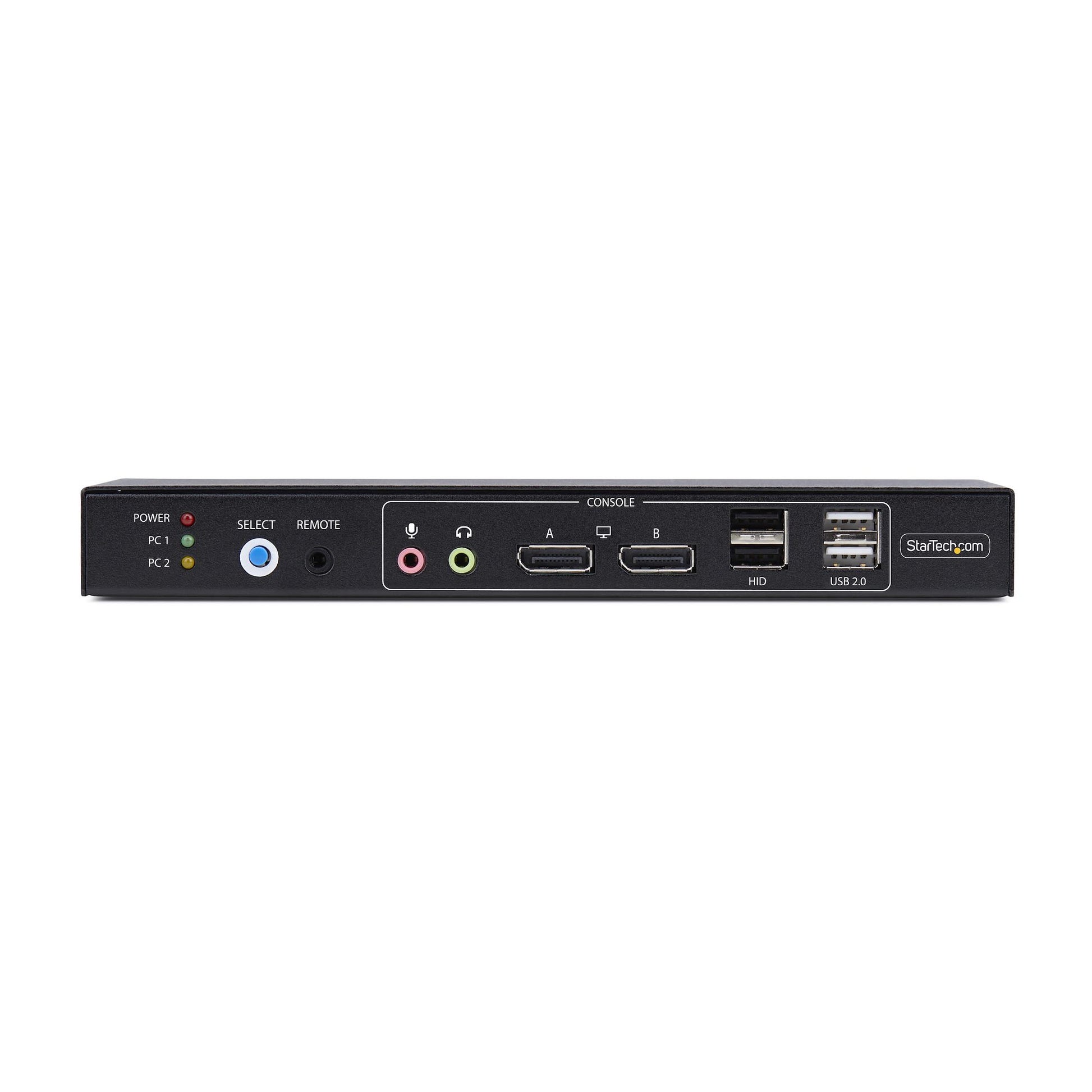

Switching KVM ports is easy with the front-facing push button, hotkeys, or the included remote selector cable. An audible buzzer provides confirmation, and LEDs offer quick visual port selection status.

Reliable Performance

The durable design features a steel housing that helps prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the KVM. Its sturdy construction makes it ideal for installation in a variety of environments, and it offers 8kV Air/6kV Contact ESD protection.

USB Audio

Eliminate the need to connect 3.5mm cables from the computers to the KVM by using this KVM switch's built-in USB audio device, which provides 3.5mm audio jacks for both microphone and speakers. This setup simplifies your workspace by integrating audio management directly into the KVM switch.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

Specifications

Ports & interfaces
Console USB ports quantity	4
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Number of microphone inputs	1
DisplayPorts quantity	4
DisplayPort version	1.2
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
Headphone outputs	1
DC-in jack	Yes
USB hub	Yes
USB 2.0 Type-B ports quantity	2
USB 2.0 Type-A hub ports quantity	2
Console DisplayPorts ports quantity	2
Performance
Daisy chain	No
Data transfer rate (max)	0.48 Gbit/s
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Scan interval	10,20,30,40,50,60 s
Audio channels	2.0
Technical details
Product colour	Black
Rack mounting	No
Push button	Yes
On Screen Display (OSD)	No
LED indicators	Yes
Hot keys	Yes
IP control	No
Compliance certificates	Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Design
Wired remote switch	Yes
Mean time between failures (MTBF)	87298 h
Housing material	Aluminium, Steel
Display
Built-in display	No
Power
Input current	1 A
Output current	3 A
Power plug type	Type M
Compatible power plug types	AU, EU, UK, US
Output voltage	12 V
Power source	DC
Power consumption (typical)	36 W
Input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	105 mm
Depth	221 mm
Height	26 mm
Weight	626 g
Package width	250 mm
Package depth	292 mm
Package height	78 mm
Package weight	1.5 kg
Packaging content
Quick installation guide	Yes
AC adapter included	Yes
Logistics data
Master (outer) case width	539 mm
Master (outer) case length	419 mm
Master (outer) case height	333 mm
Products per master (outer) case	10 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
