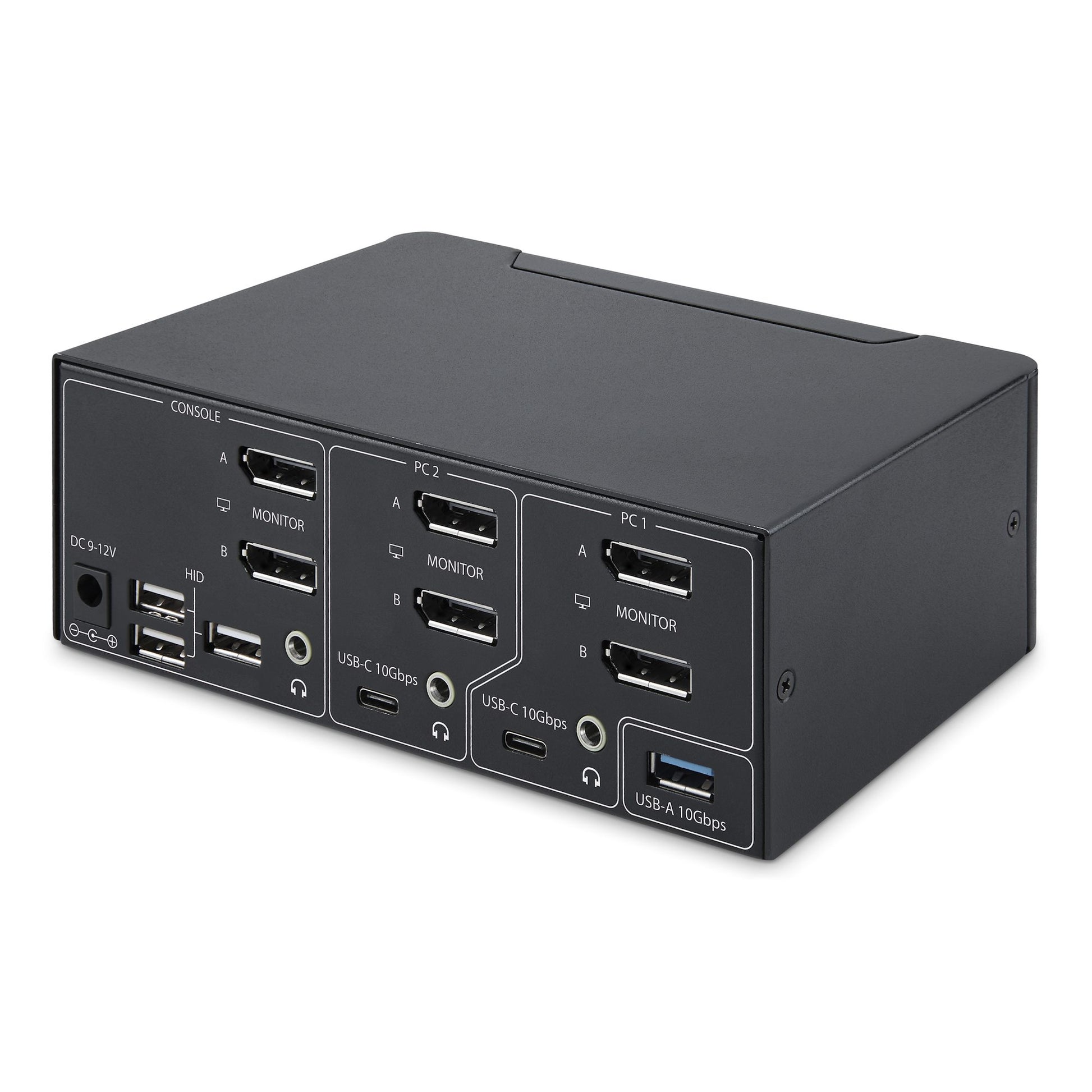

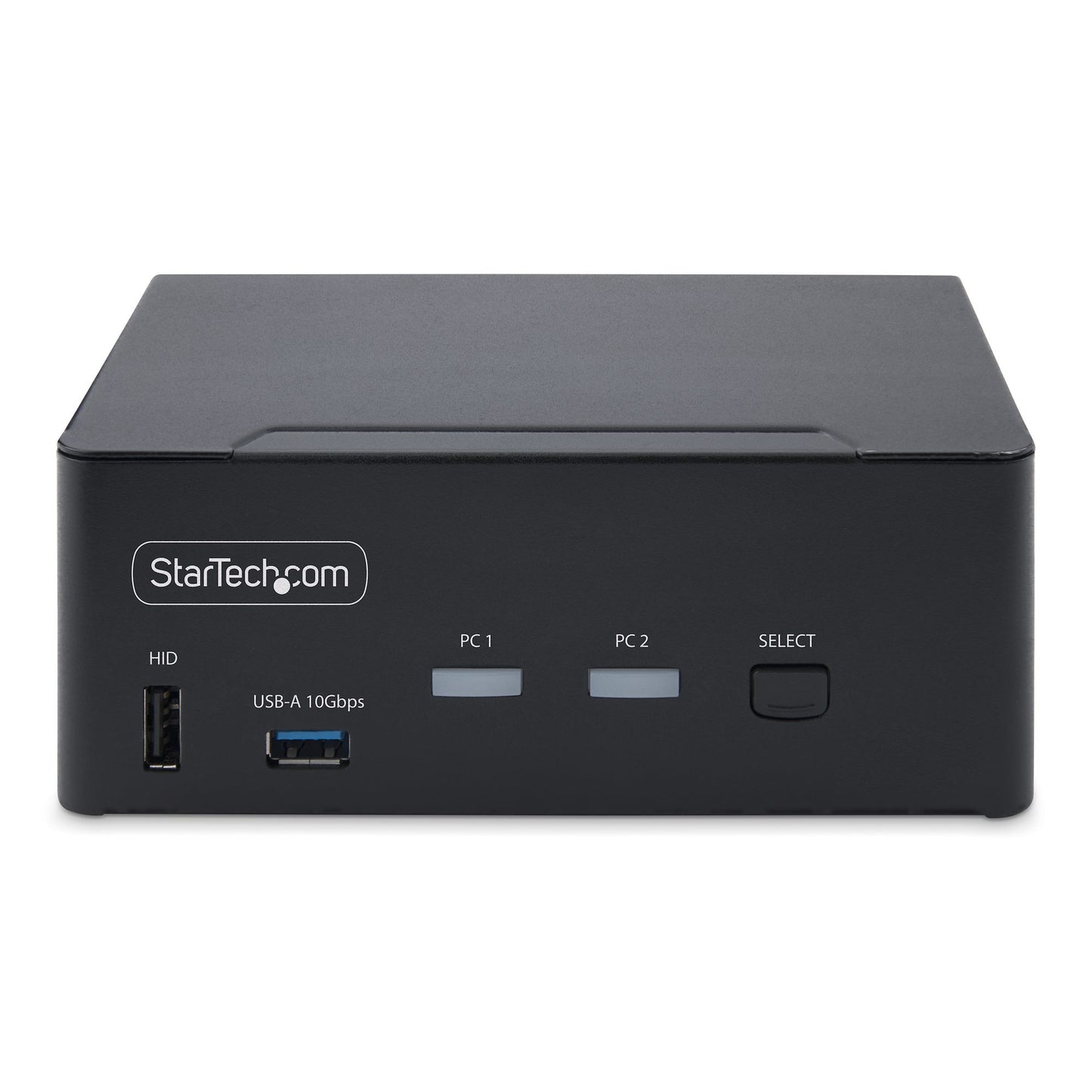

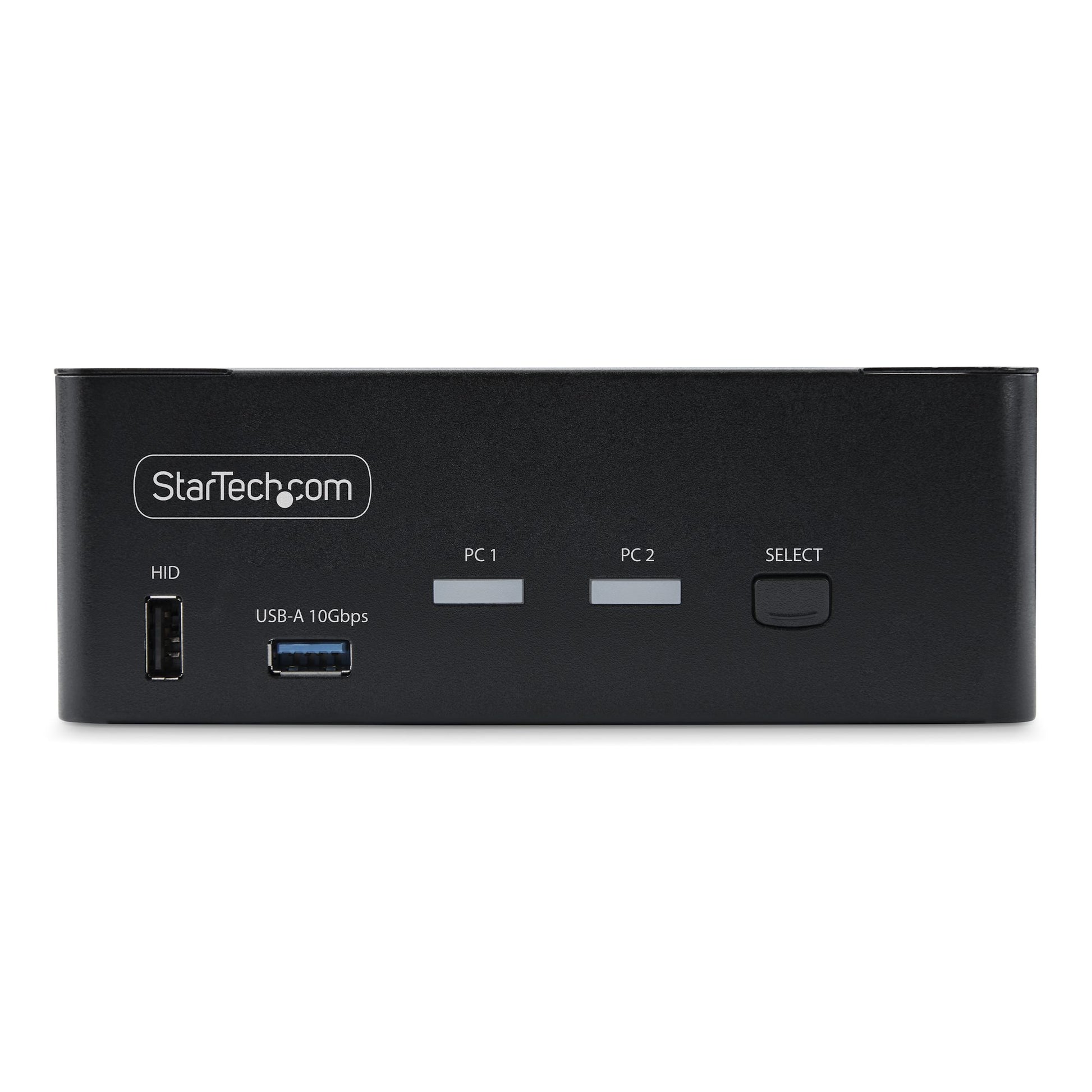

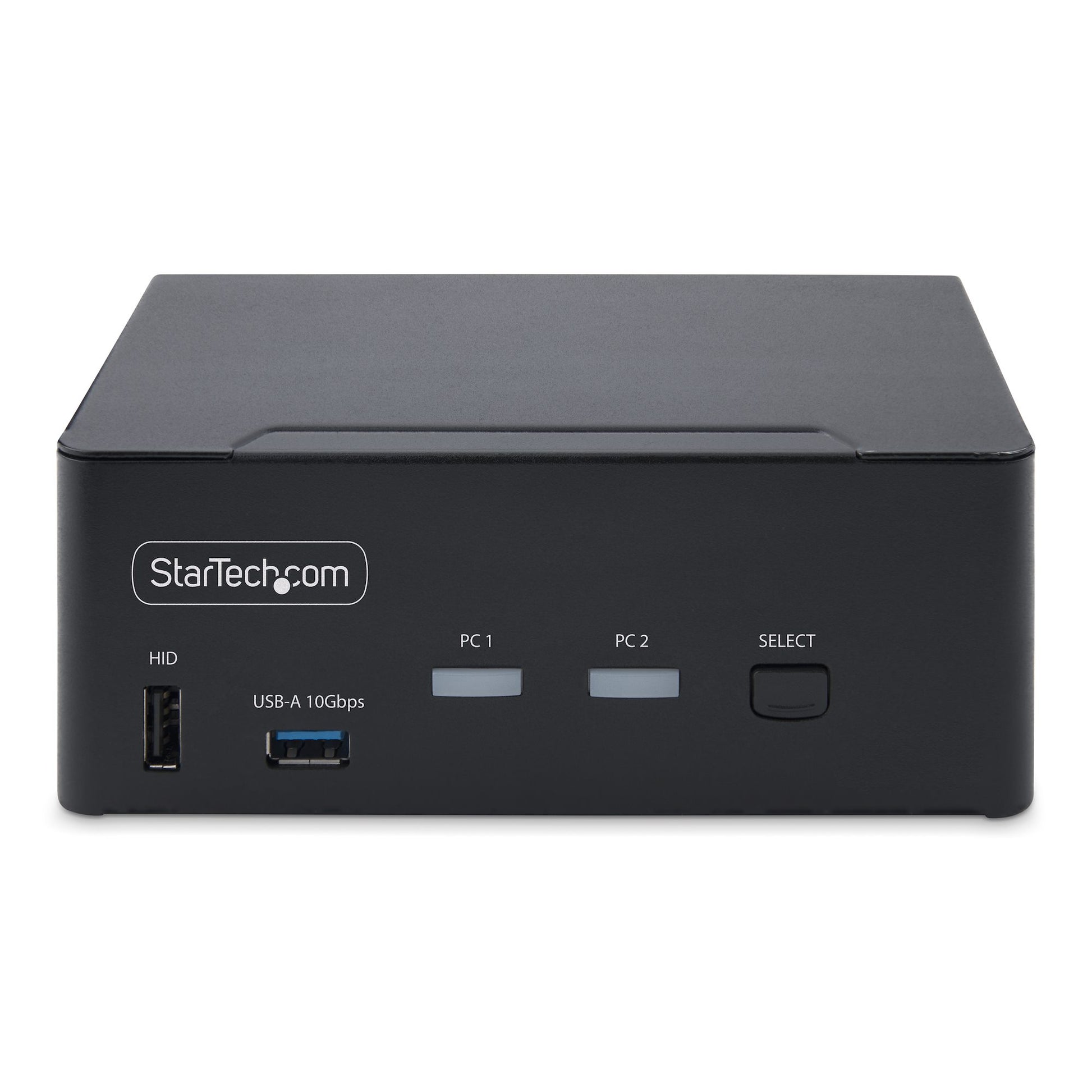

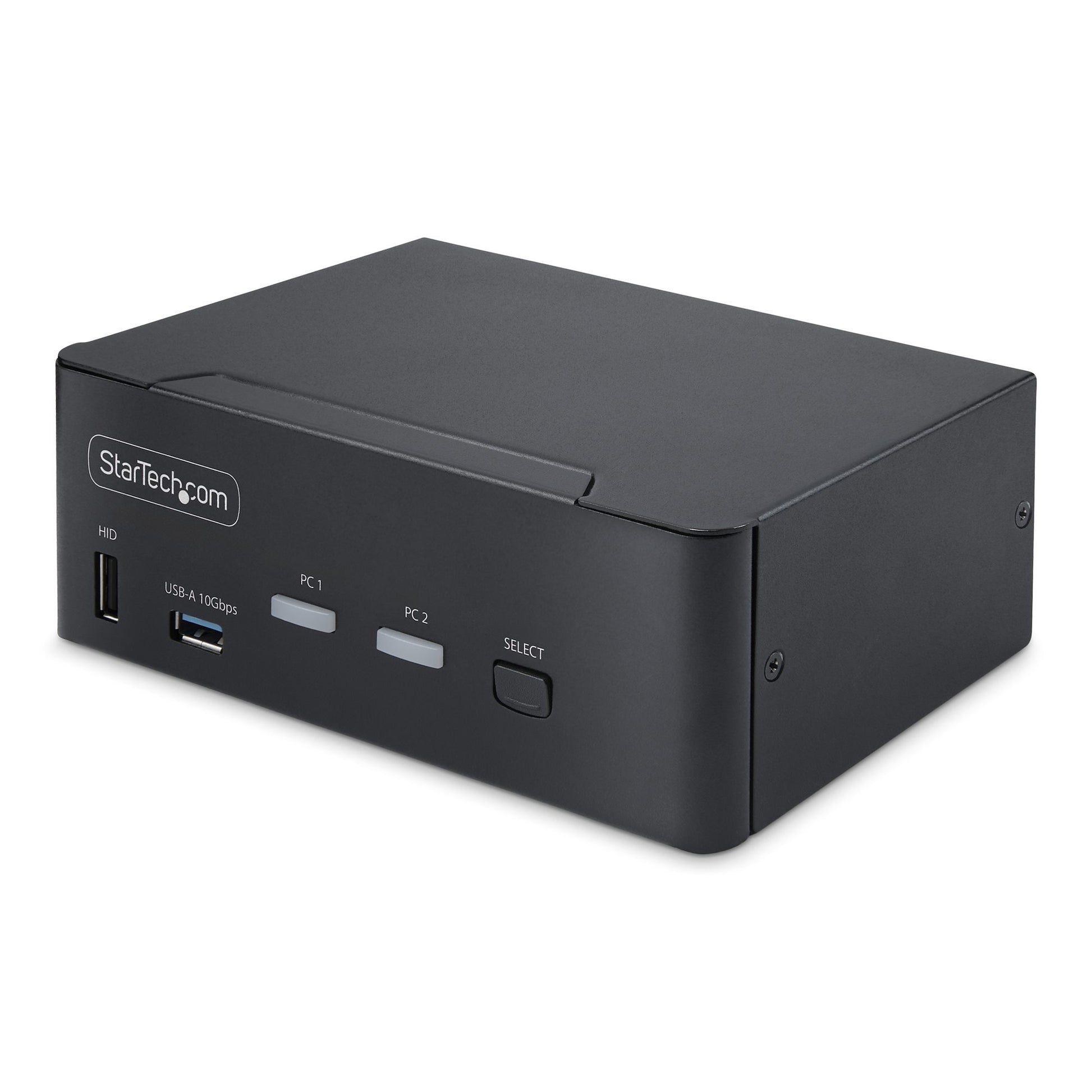

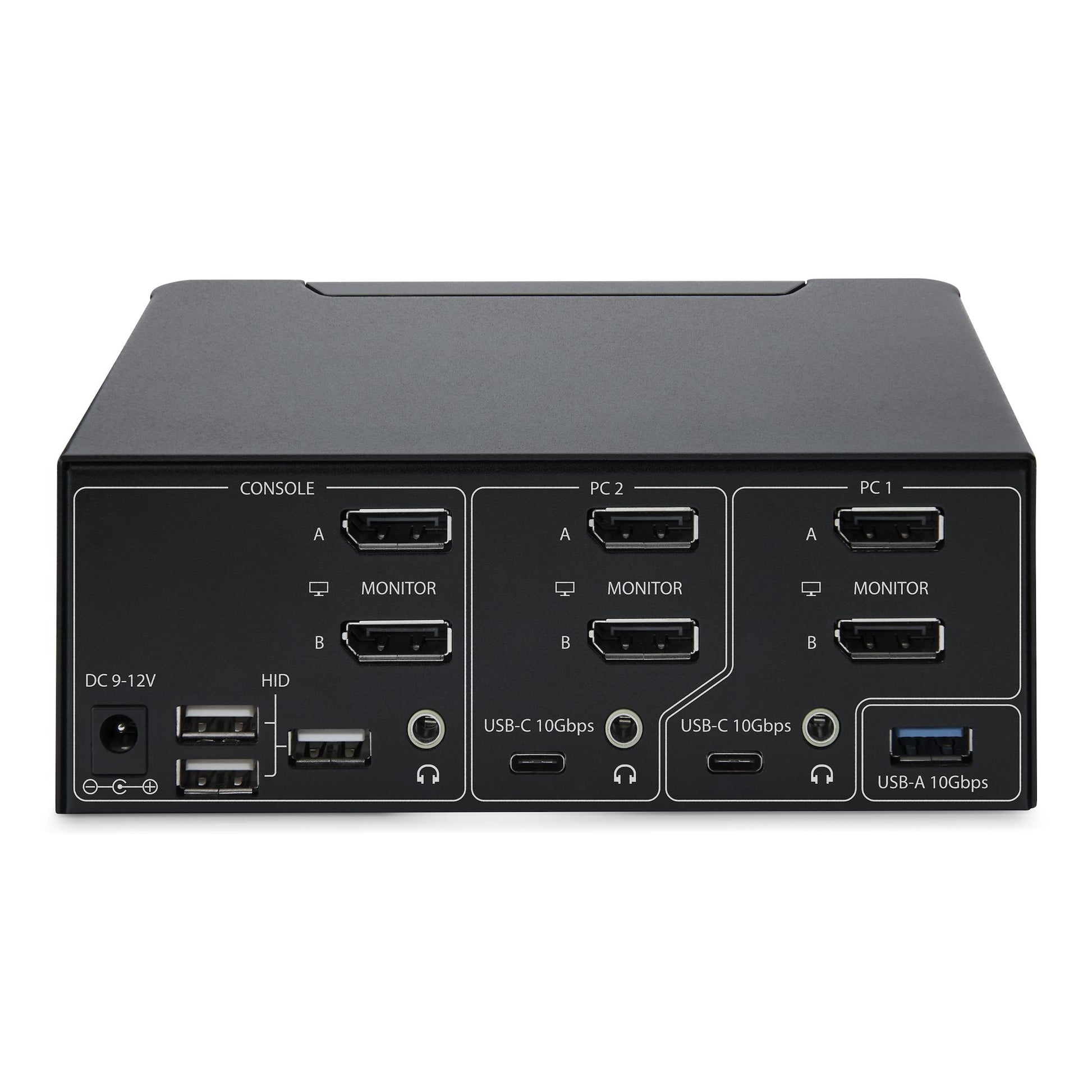

StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, DP 1.4
StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, DP 1.4
Regular price
£456.97 GBP
Regular price
Sale price
£456.97 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 2-Port Dual-Monitor DisplayPort.
Share a mouse, keyboard, USB (10Gbps) Hub, and dual 8K 60Hz DisplayPort monitors between two DisplayPort-enabled computersThis dual-monitor KVM switch allows users to switch between two USB and DisplayPort-enabled desktops. It allows for sharing of dual-8K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 10Gbps devices.
Dual-8K 60Hz Displays & USB 10Gbps Hub Ports
This TAA-compliant KVM Switch supports dual 8K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. It also features two USB 3.2 Gen 2 (10Gbps) hub ports for fast data transfer, and four USB HID ports for the keyboard, mouse, and two additional USB peripherals.
Fast Switching with USB Emulation
USB emulation technology enables faster keyboard, video, and mouse switching compared to traditional KVMs. USB Emulation also ensures compatibility with combo keyboards/mice and keyboards featuring extra function keys.
Switching Options
This Universal KVM Switch offers hotkey or push-button switching options. Hotkeys allow for independent switching of audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
Specifications

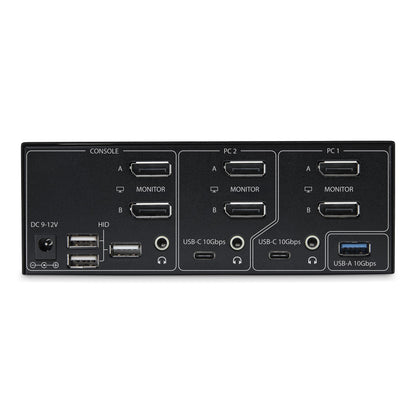

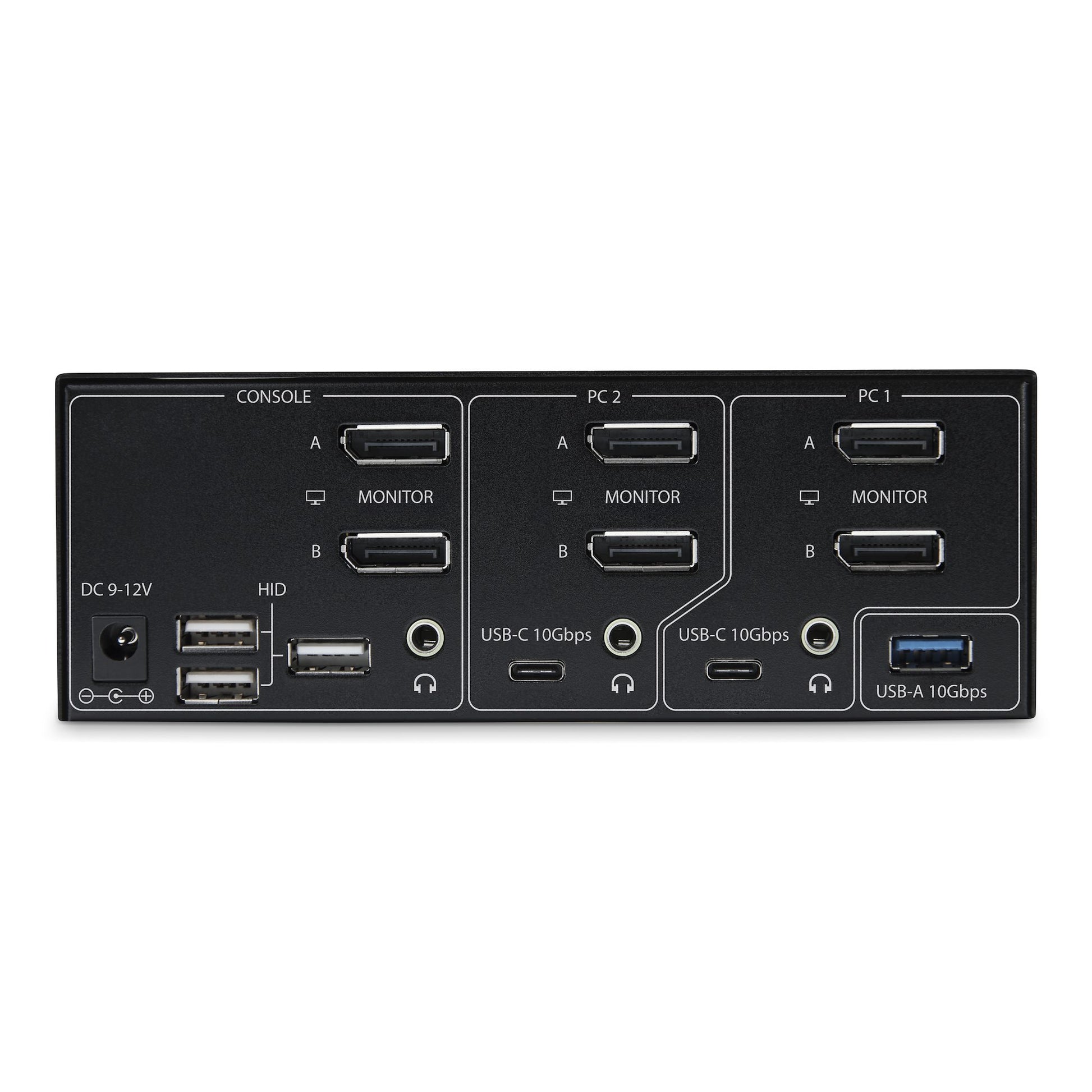

| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 3 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| USB 2.0 ports quantity | 1 |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| USB hub | Yes |
| Console DisplayPorts ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Performance | |
| Chipset | Genesys Logic - GL3590 |
| Data transfer rate (max) | 10 Gbit/s |
| HD type | 8K Ultra HD |
| Maximum resolution | 7680 x 4320 pixels |
| Scan interval | 3,8,15,30 s |
| Number of users | 1 user(s) |
| Number of displays supported | 2 |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 144 Hz |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Push button | Yes |
| On Screen Display (OSD) | No |
| LED indicators | Yes |
| Hot keys | Yes |
| IP control | No |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Design | |
| Mean time between failures (MTBF) | 168000 h |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| Power | |
| Input current | 1 A |
| Output current | 3 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Output voltage | 12 V |
| Power consumption (typical) | 36 W |
| Input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 100 mm |
| Depth | 160 mm |
| Height | 60 mm |
| Weight | 800 g |
| Package width | 238 mm |
| Package depth | 184 mm |
| Package height | 89 mm |
| Package weight | 1.4 kg |

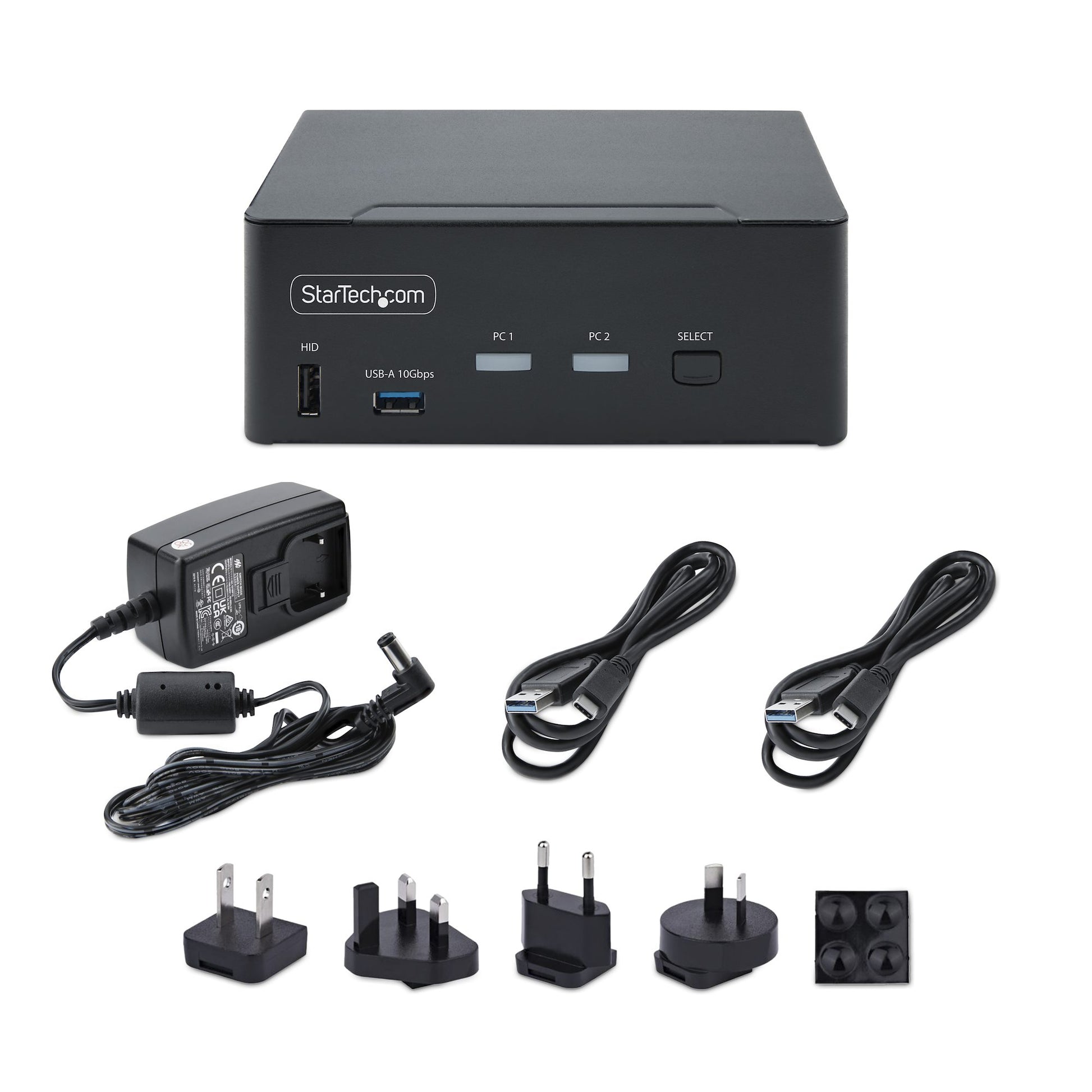

| Packaging content | |
| Rubber feet | Yes |
| Cables included | USB Type-A to USB Type-C |
| Quick installation guide | Yes |
| Logistics data | |
| Master (outer) case width | 260 mm |
| Master (outer) case length | 395 mm |
| Master (outer) case height | 300 mm |
| Products per master (outer) case | 6 pc(s) |
