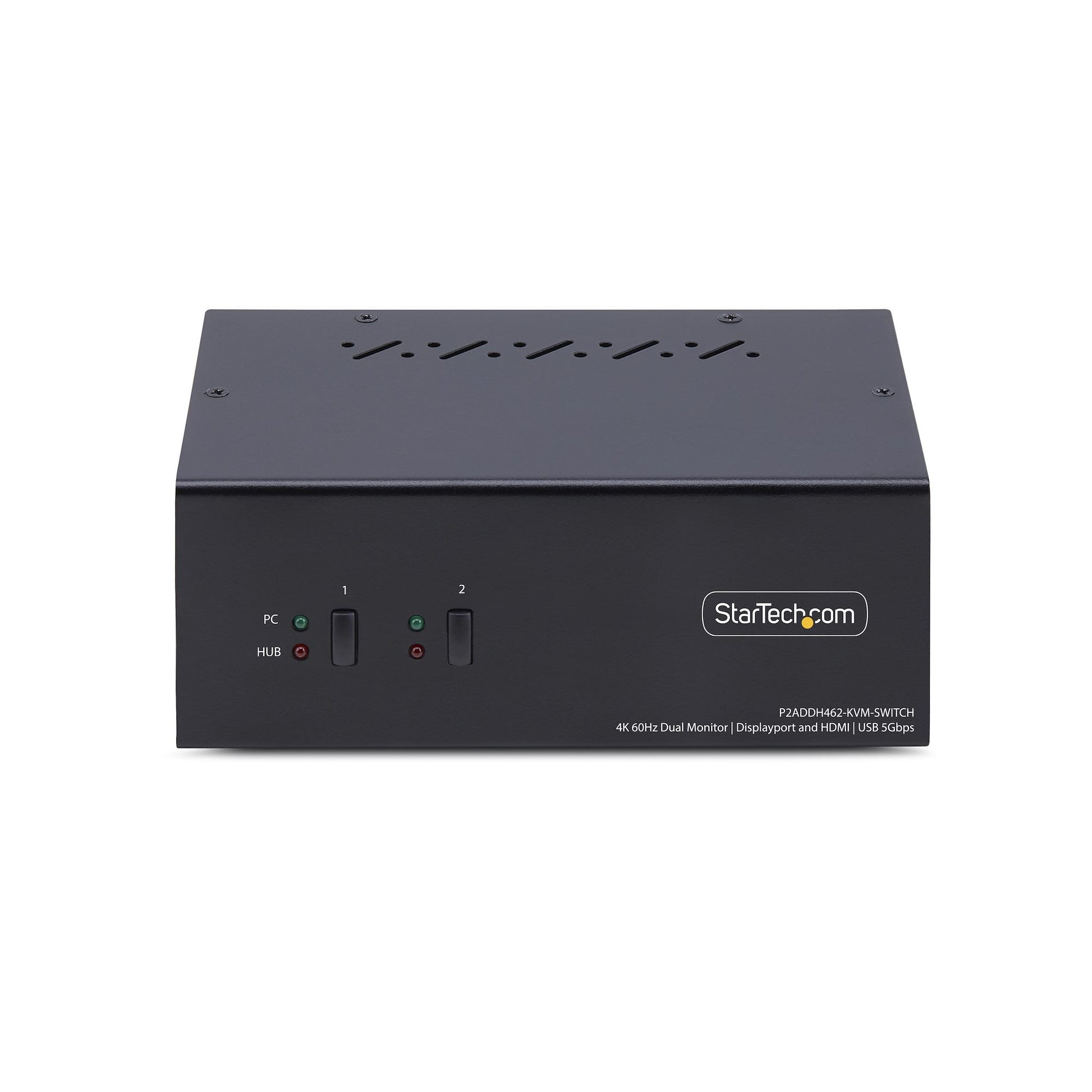

StarTech.com 2-Port Dual-Monitor DisplayPort and HDMI KVM Switch, 4K 60Hz, 1x HDMI &

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 2-Port Dual-Monitor DisplayPort and.

Share a mouse, keyboard, USB 5Gbps hub, 4K 60Hz DisplayPort monitor, and a 4K 60Hz HDMI monitor between two computers

The HDMI and DisplayPort KVM switch enables a mixed-display setup of an HDMI and a DisplayPort monitor without the need for adapters or converters. It allows you to share peripherals, including a keyboard, mouse, audio device, and dual monitors, between two computers.

HDMI + DisplayPort

Connect an HDMI and a DisplayPort monitor to this KVM switch, both supporting resolutions up to 4K 60Hz for high-definition content without the need for adapters. The HDMI port is ideal for connecting to a wide range of devices, including TVs, monitors, and projectors, while the DisplayPort port is ideal for high-performance monitors.

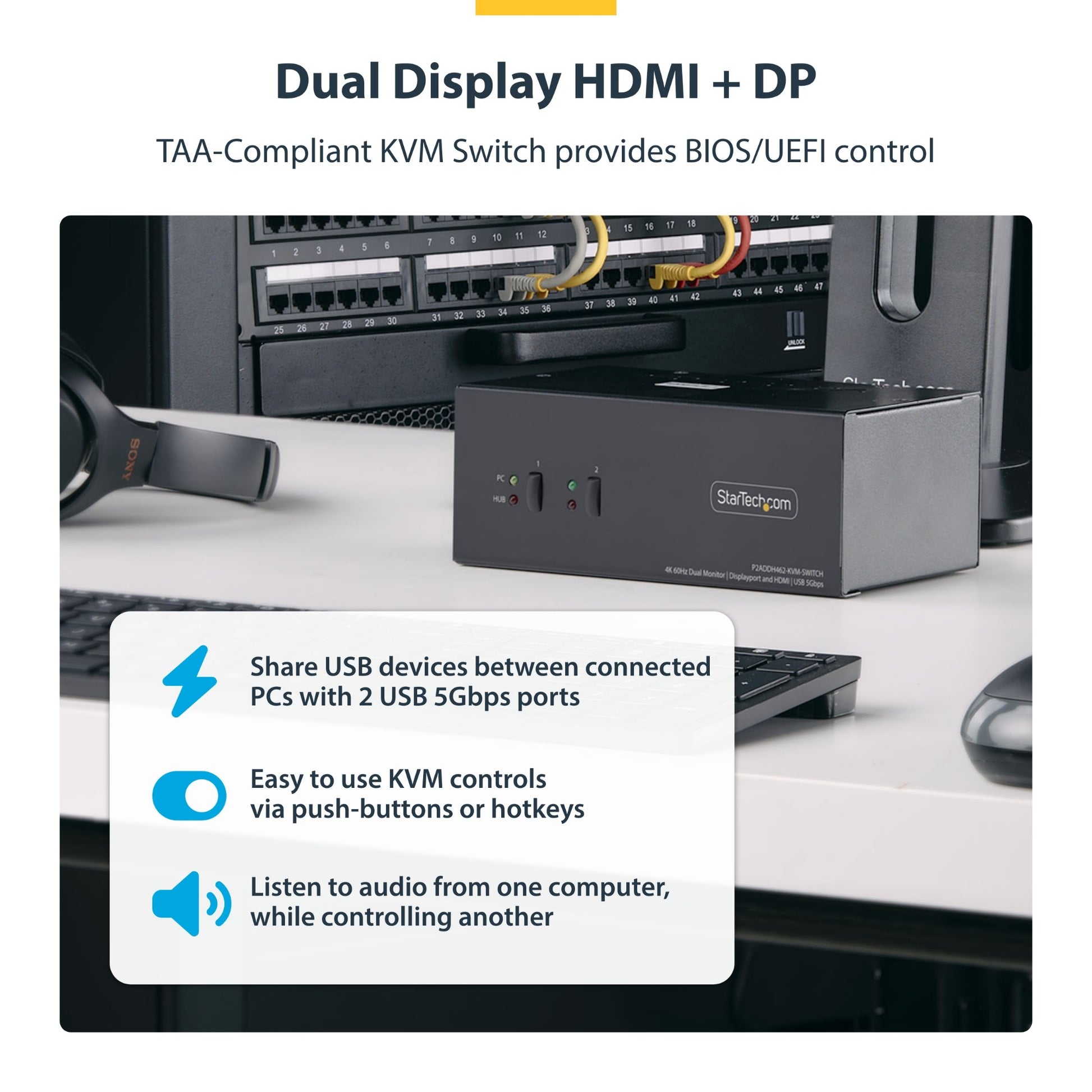

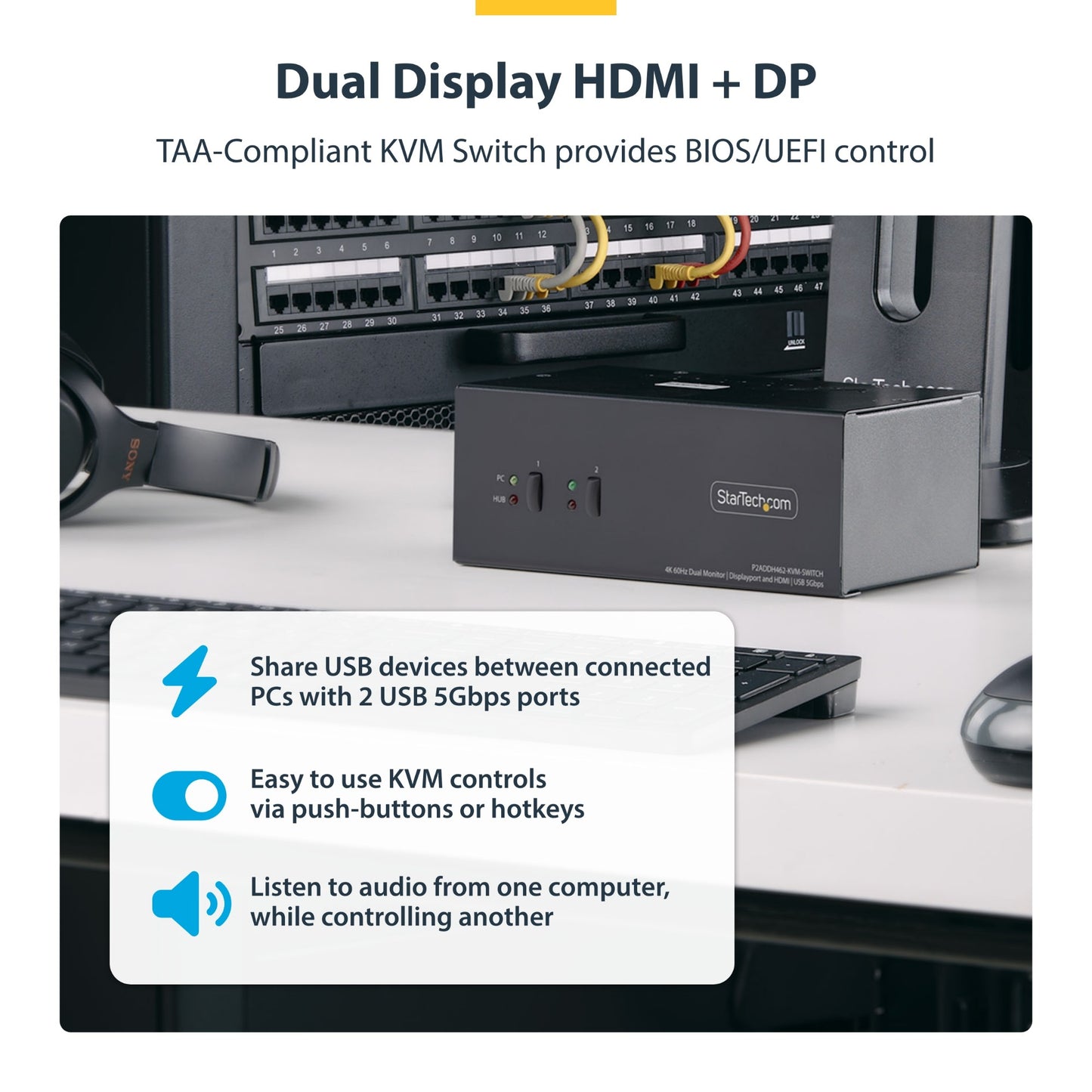

Easily Share USB Devices

The USB 3.0 hub provides high-speed data transfer over two USB 3.0 ports for devices such as external SSDs and flash drives. It also includes two dedicated USB HID ports for a keyboard and mouse.

No Drivers or Software Required

The TAA-compliant KVM switch offers BIOS/UEFI control and works with any operating system, including Windows, macOS, ChromeOS, and Linux, without requiring any software. It is compatible with all hardware platforms, such as Intel, AMD, and Apple.

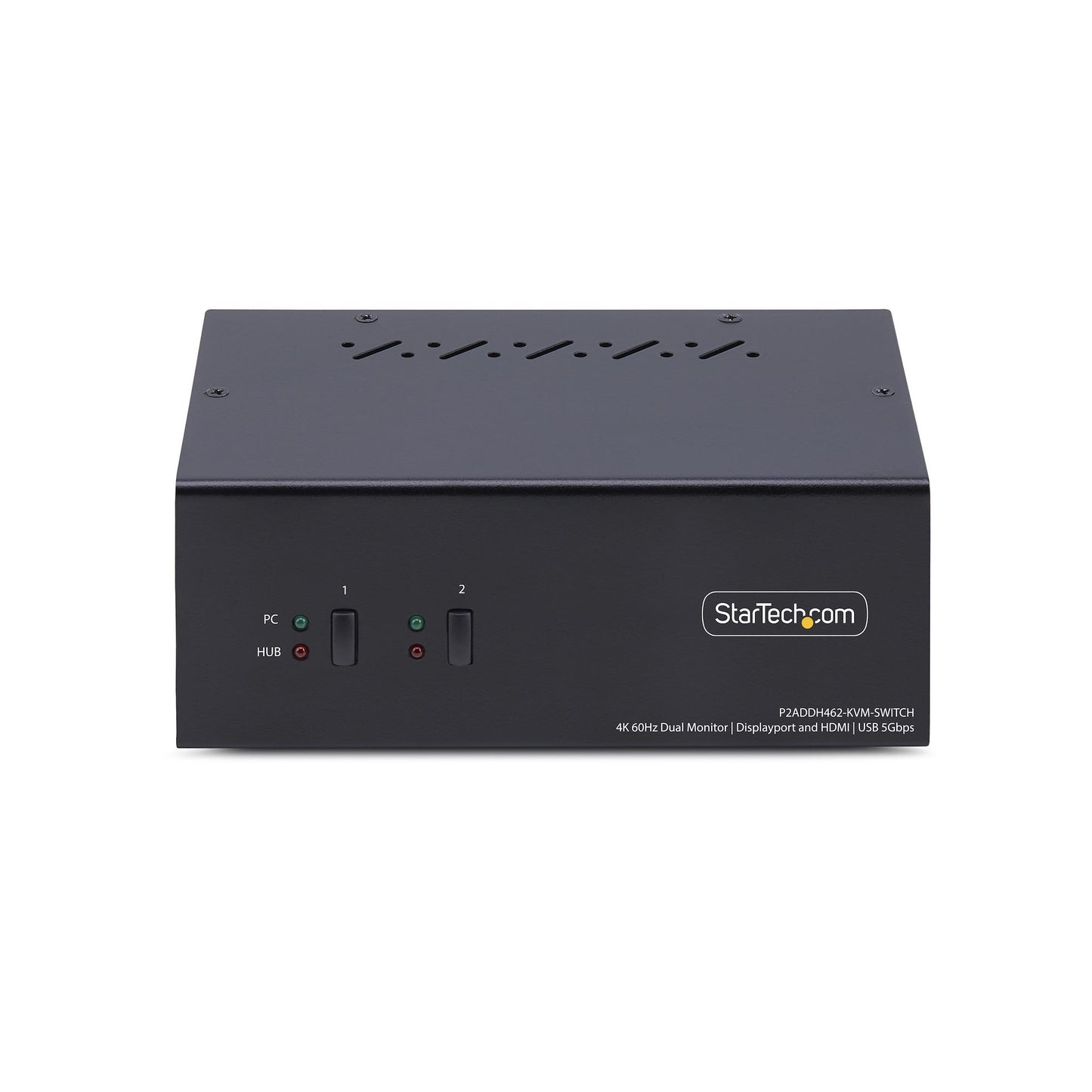

The KVM switch can be controlled via push-buttons or hotkeys, with an audible buzzer providing confirmation. LEDs offer quick visual port selection status, and you can listen to audio from one computer while controlling another.

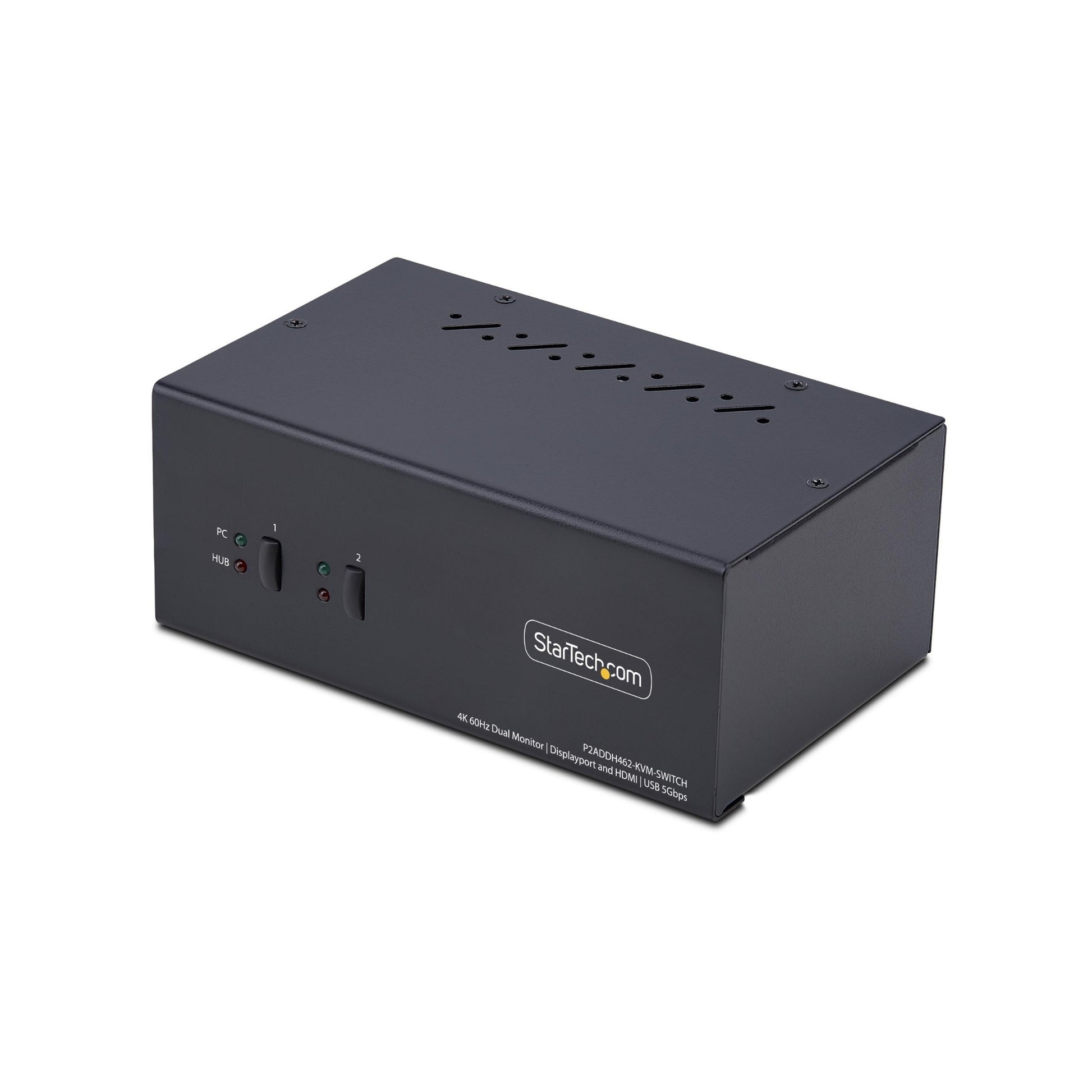

Reliable Performance

The durable design features a steel housing that helps prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the KVM. Its sturdy construction makes it ideal for installation in various environments, and it provides 8kV air and 6kV contact ESD protection.

Specifications

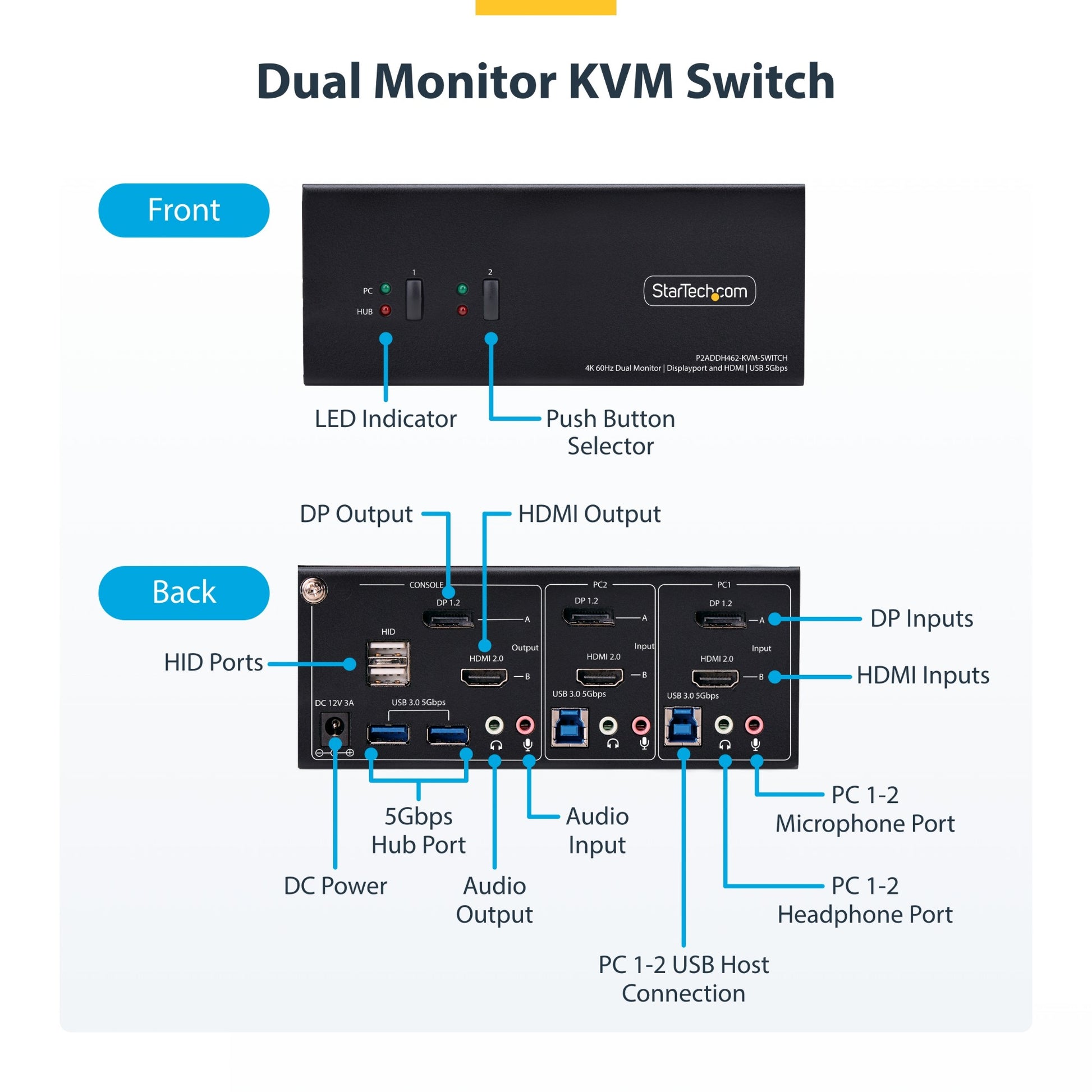

Ports & interfaces
Console USB ports quantity	2
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Number of microphone inputs	3
DisplayPorts quantity	2
DisplayPort version	1.2
HDMI version	2.0
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI/DisplayPort
Audio connections	Yes
Headphone outputs	3
HDMI ports quantity	2
DC-in jack	Yes
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
Console DisplayPorts ports quantity	1
Console HDMI ports quantity	1
Performance
Data transfer rate (max)	5 Gbit/s
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Audio channels	7.1
Technical details
Product colour	Black
Rack mounting	No
LED indicators	Yes
IP control	No
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Design
Mean time between failures (MTBF)	138390 h
Display
Built-in display	No
Power
Input current	1 A
Output current	3 A
Power plug type	Type M
Compatible power plug types	AU, EU, UK, US
Output voltage	12 V
Power consumption (typical)	36 W
Input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%

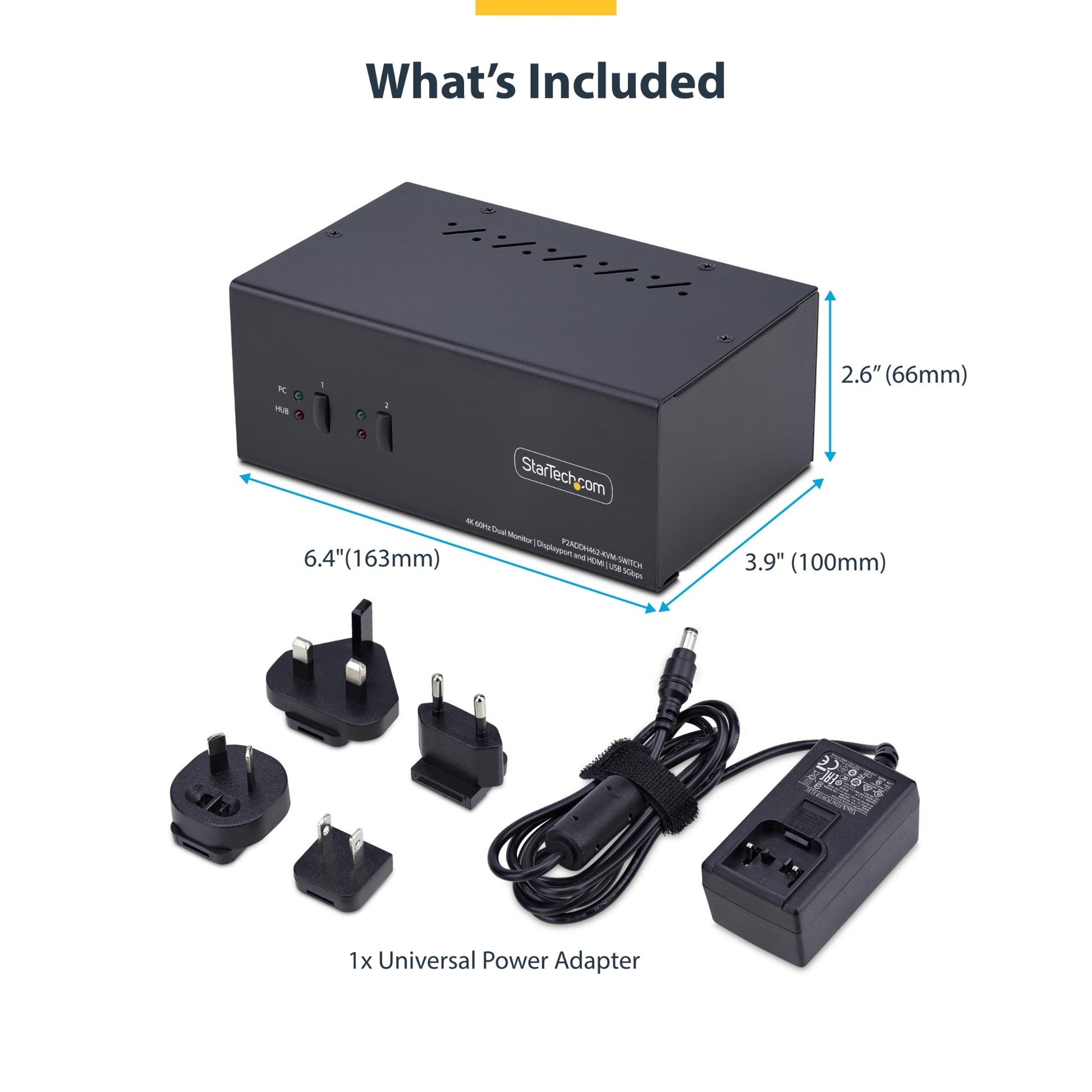

Weight & dimensions
Width	100 mm
Depth	163 mm
Height	66 mm
Weight	750 g
Package width	332 mm
Package depth	162 mm
Package height	128 mm
Package weight	128 g
Packaging content
Quick installation guide	Yes
Logistics data
Master (outer) case width	513 mm
Master (outer) case length	352 mm
Master (outer) case height	301 mm
Products per master (outer) case	6 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
