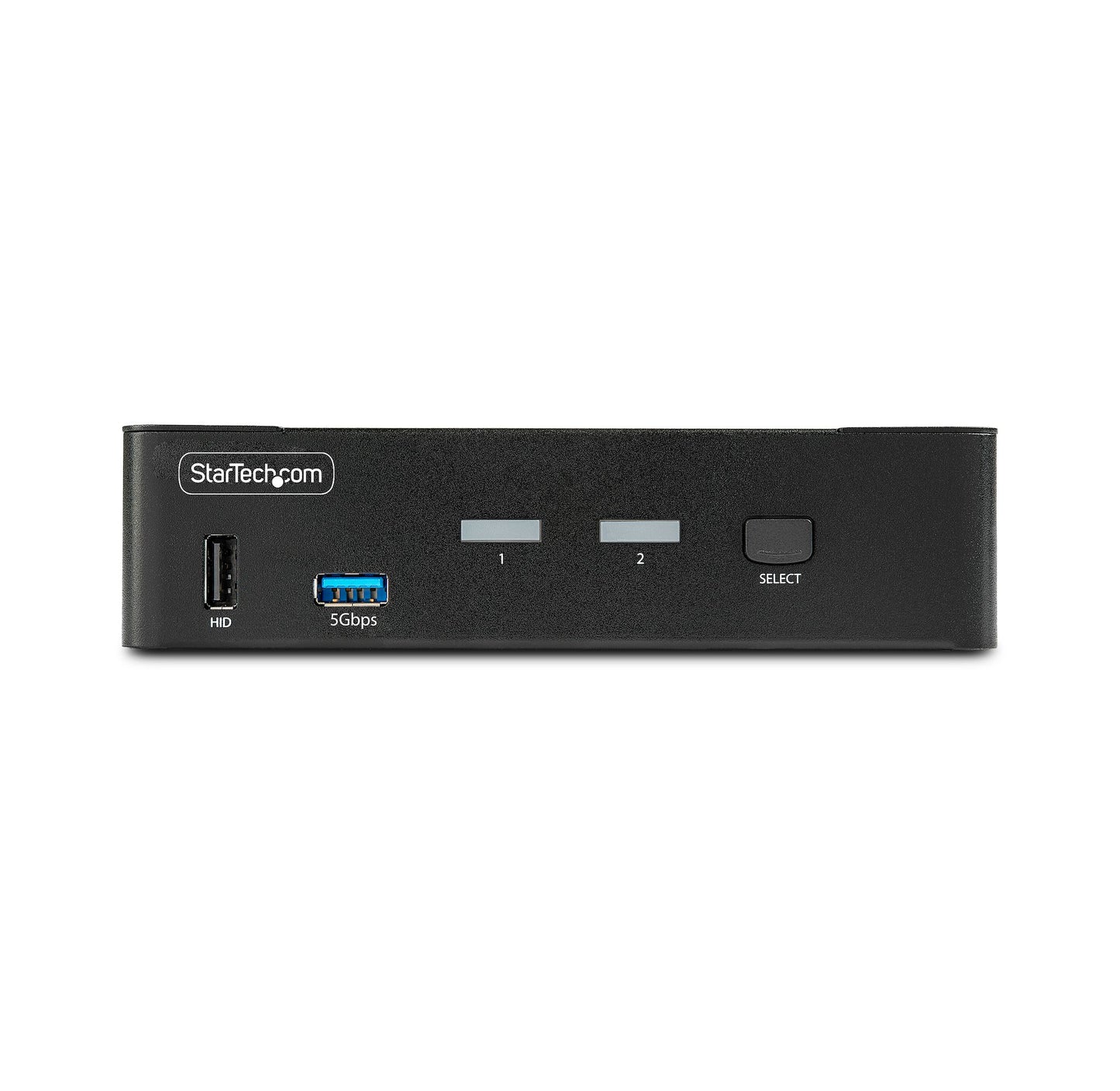

StarTech.com 2-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display, DP

Control multiple machines from one keyboard, monitor and mouse with the StarTech.com 2-Port DisplayPort.

Share a mouse, keyboard, USB 5Gbps Hub, and 8K 60Hz DisplayPort between two DisplayPort enabled computers

Share and switch between two USB-A and DisplayPort-enabled computers, using this DisplayPort KVM Switch. Share an 8K 60Hz DisplayPort monitor, a keyboard and mouse, two USB 5Gbps devices, and two additional USB 2.0 devices.

High-Resolution 8K 60Hz Video

This KVM supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz. Daisy chain additional monitors via MST pass-through. The KVM supports ultrawide resolutions of up to 5120x1440 at 60Hz. Ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

Customizable Switching

This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of audio and video, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

Universal Compatibility

The TAA-Compliant KVM Switch offers universal compatibility, working with all operating systems, including Windows, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms, including Intel and AMD.

Reliable Performance

The durable metal housing helps prevent Electro-magnetic Interference (EMI). Overcurrent Protection (OCP) ensures peripherals don't overdraw power, reducing the occurrence of device dropouts or shutdowns.

Specifications

Ports & interfaces
Console USB ports quantity	6
Console ports	3.5mm headphone, DisplayPort, USB A
DisplayPorts quantity	2
DisplayPort version	1.4
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
Headphone outputs	3
DC-in jack	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
Console DisplayPorts ports quantity	1
HDCP	Yes
Performance
Daisy chain	No
Chipset	GL-3523
Data transfer rate (max)	5 Gbit/s
HD type	8K Ultra HD
Plug and Play	Yes
Maximum resolution	7680 x 4320 pixels
Scan interval	3,8,15,30 s
High Dynamic Range (HDR) supported	Yes
HDCP version	1.4/2.2
Technical details
Product colour	Black
Rack mounting	No
Push button	Yes
On Screen Display (OSD)	No
LED indicators	Yes
Hot keys	Yes
IP control	No
Sustainability compliance	Yes
Compliance certificates	CE, RoHS, Trade Agreements Act (TAA)
Design
Mean time between failures (MTBF)	130000 h
Housing material	Steel
Display
Built-in display	No
Power
Input current	1 A
Output current	3 A
Compatible power plug types	EU, JP, UK, US
Output voltage	12 V
Power source	DC
Power consumption (typical)	36 W
Input voltage	100 - 240 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	100 mm
Depth	160 mm
Height	40 mm
Weight	600 g
Package width	187 mm
Package depth	242 mm
Package height	93 mm
Package weight	1 kg
Packaging content
Rubber feet	Yes
Quick installation guide	Yes
Logistics data
Master (outer) case width	397 mm
Master (outer) case length	257 mm
Master (outer) case height	300 mm
Products per master (outer) case	60 pc(s)
