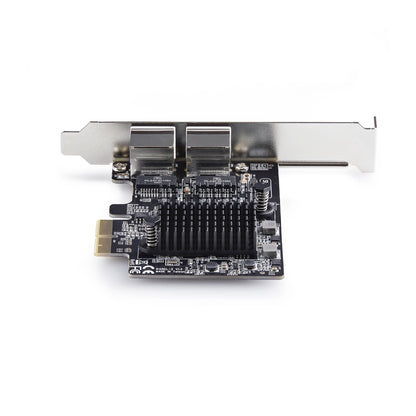

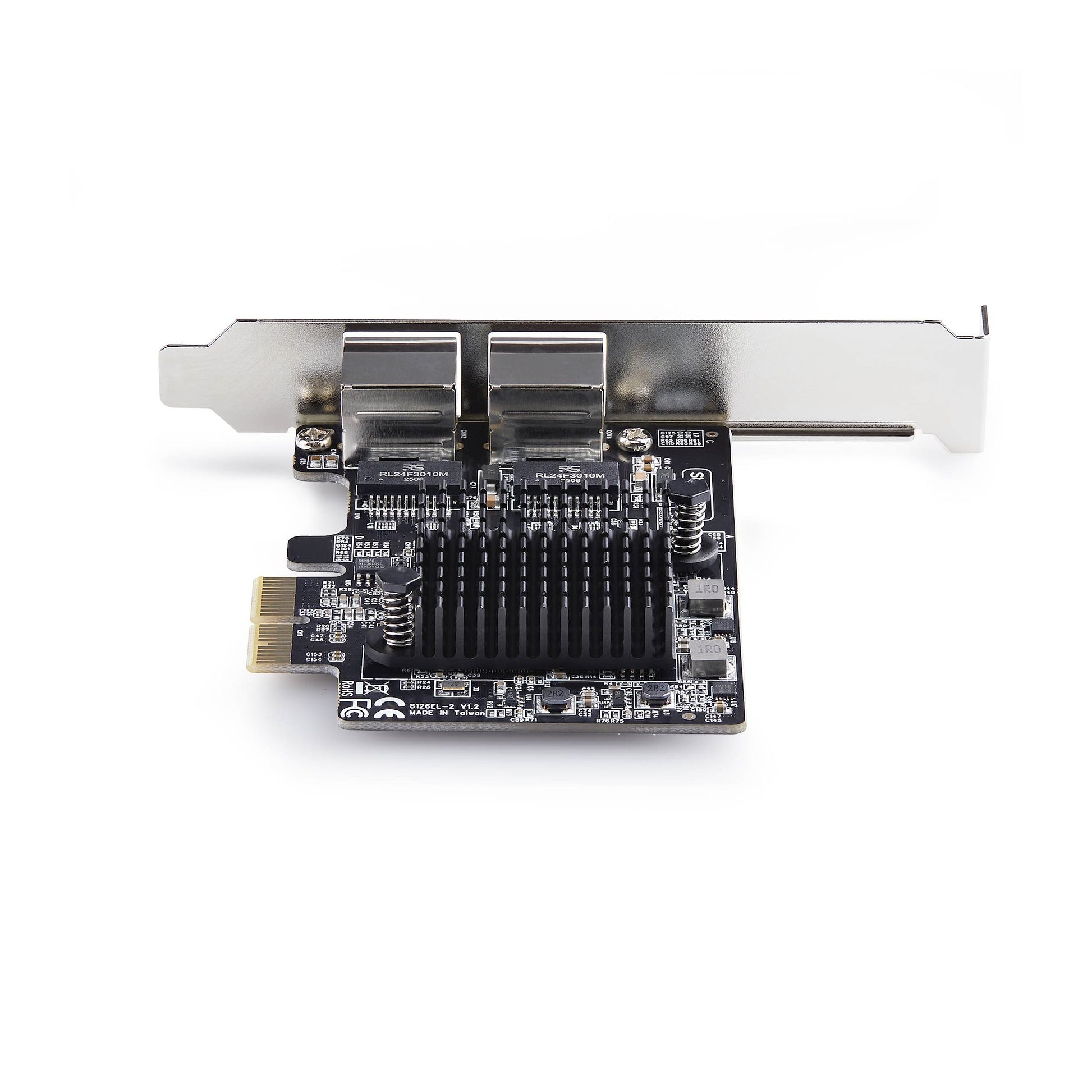

StarTech.com 2-Port 5G Gigabit PCIe Network Adapter Card, 5G/2.5G/1G/100M/10M PCI
StarTech.com 2-Port 5G Gigabit PCIe Network Adapter Card, 5G/2.5G/1G/100M/10M PCI
Regular price
£127.13 GBP
Regular price
Sale price
£127.13 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Upgrade your connectivity with the StarTech.com 2-Port 5G Gigabit PCIe — ports, speeds and interface details are in the spec table.
Add two 5 Gbps Ethernet Ports to a PCI Express-enabled computerThis TAA-compliant 2-port 5G Gigabit Ethernet card with Realtek RTL8126 chip adds a gigabit Ethernet interface to a desktop or server. 2.5G and 5G speeds maximize Cat5e infrastructure, providing multi-Gig performance without cabling upgrades.
Plug And Play Compatible
This 2-port network interface card is plug-and-play compatible, with drivers that auto-install on major operating systems such as Windows, Windows Server, and Linux. It is compatible with Intel and AMD hardware platforms equipped with PCI Express x1, x2, x4, x8, or x16 slots.
Performance and Management
This network card features link speed and activity LED indicators for visual network speed verification and issue diagnosis.
This PCIe network adapter supports 9K jumbo frames to minimize packet overhead, Wake-on-LAN (WoL) for remote system booting, auto-negotiation between 10/100M/2.5G/5G, and VLANs for streamlined network management. This network card supports virtually any environment, accommodating both the latest and slower legacy network connections. Futureproof your devices by ensuring your system is ready as more devices become 5G compatible.
Universal Fit

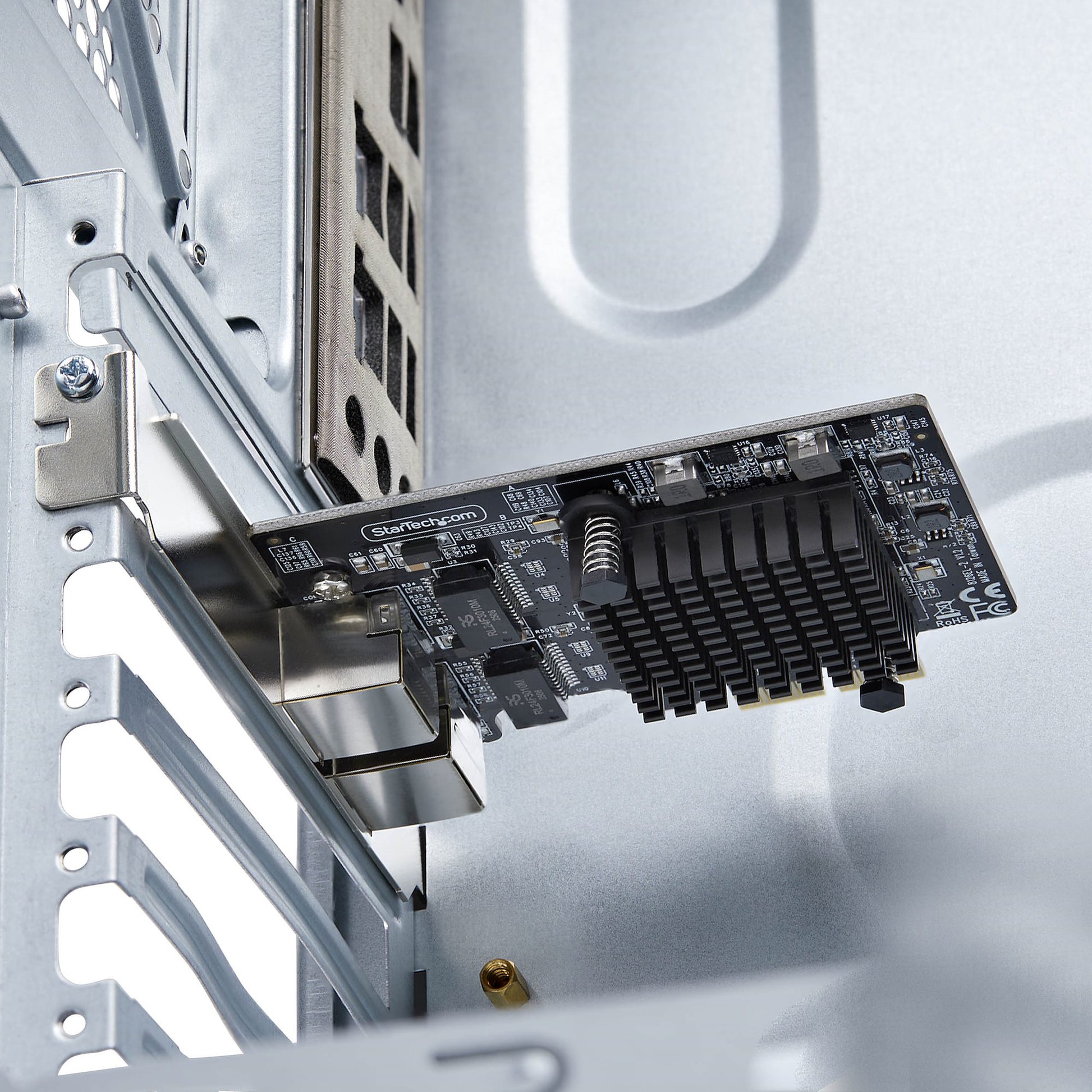

The PCI Express NIC includes full-height (pre-installed) and low-profile (accessory in the box) brackets for installation in compact and standard desktops or servers.
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 5000 Mbit/s |
| Network | |
| Chipset | Realtek RTL8126 |
| VLAN tagging | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Jumbo frames | 9000 |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Wake-on-LAN ready | Yes |
| Jumbo frames support | Yes |
| Technical details | |
| Product colour | Black |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Design | |
| LED indicators | Yes |
| Component for | PC/Laptop |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Linux operating systems supported | Yes |
| System requirements | |
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 65 °C |
| Storage temperature (T-T) | -30 - 90 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Weight & dimensions | |
| Width | 86 mm |
| Depth | 121 mm |
| Height | 18 mm |
| Weight | 58.8 g |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 119.9 g |
| Packaging data | |
| Mounting brackets included | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 685 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 306 mm |
| Products per master (outer) case | 75 pc(s) |
