StarTech.com 1U Universal Server Rack Rails, Adjustable Depth Server Mounting Rails

Build a tidy install with the StarTech.com 1U Universal Server Rack — dimensions and mounting details are in the spec table.

Mount 19" Servers or Networking Hardware in any Standard Rack

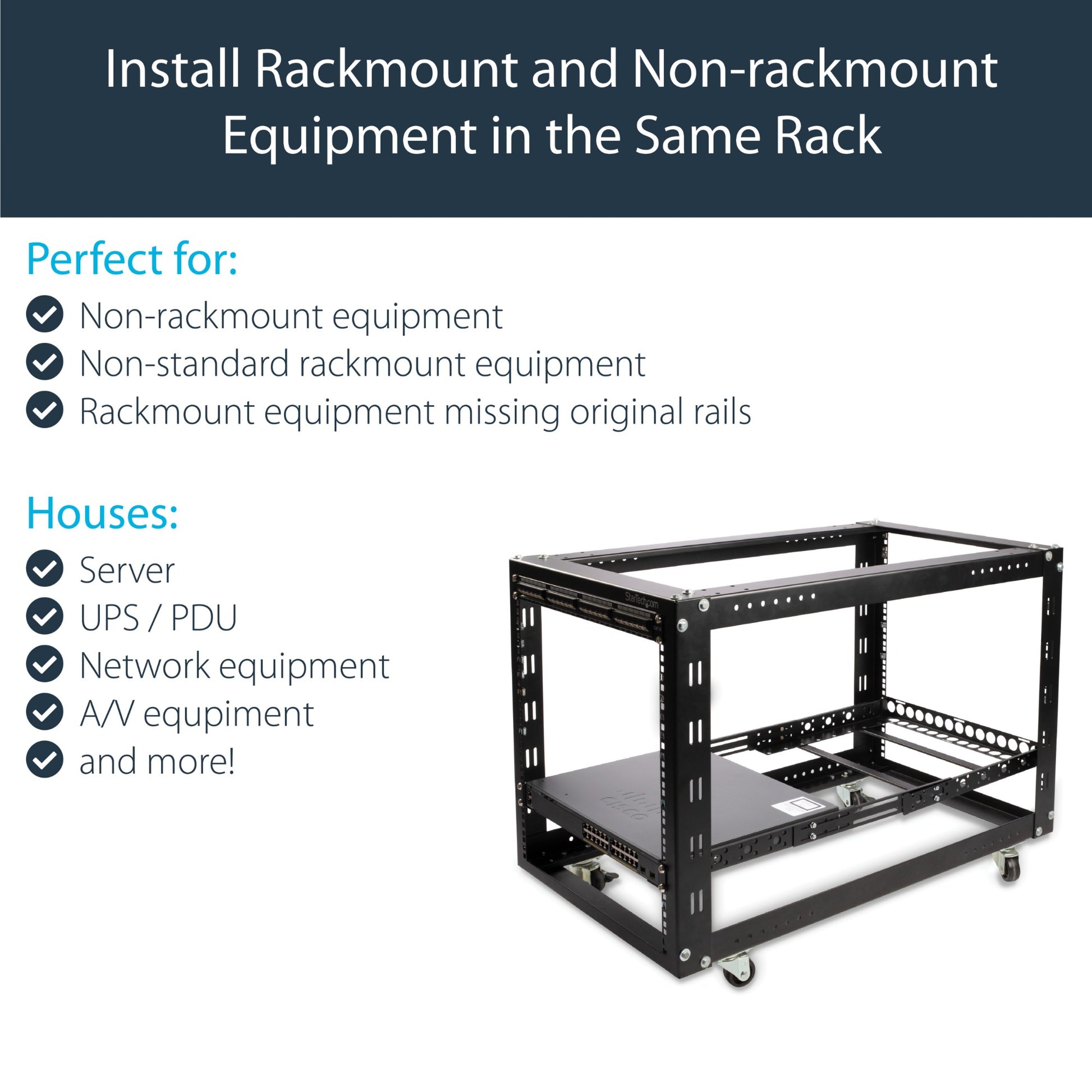

These 1U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19” server rack without sacrificing 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell™, IBM®, HP® or Apple servers that no longer have rack rails available.

Turn non-rackmount equipment into 1U rackmount hardware

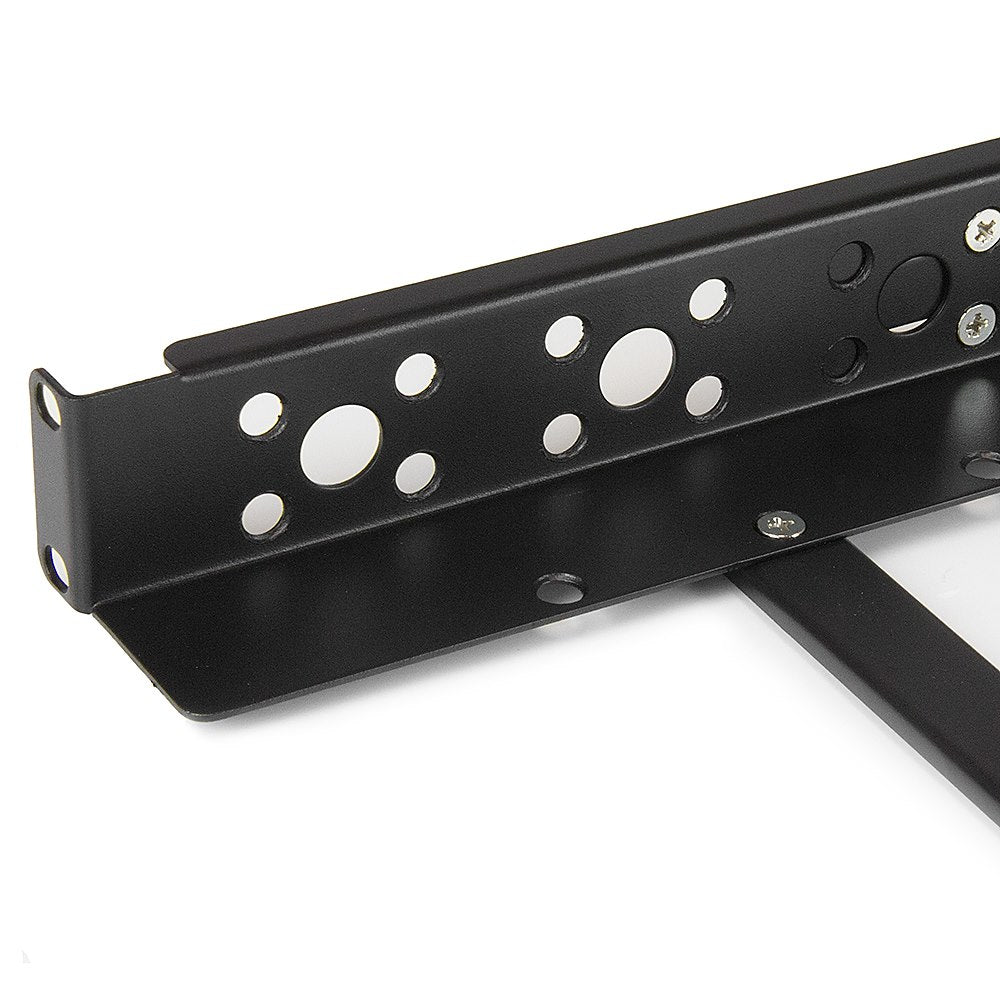

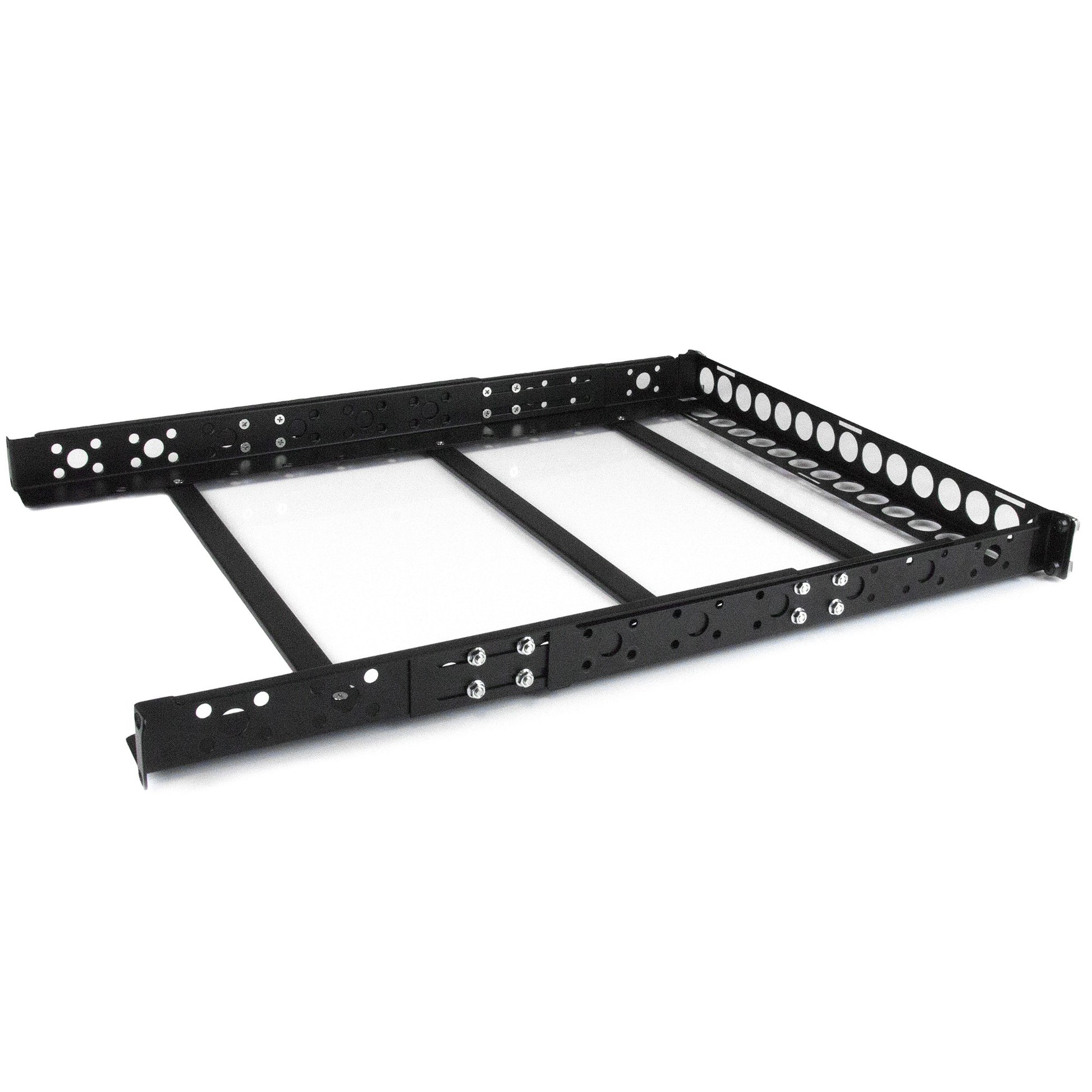

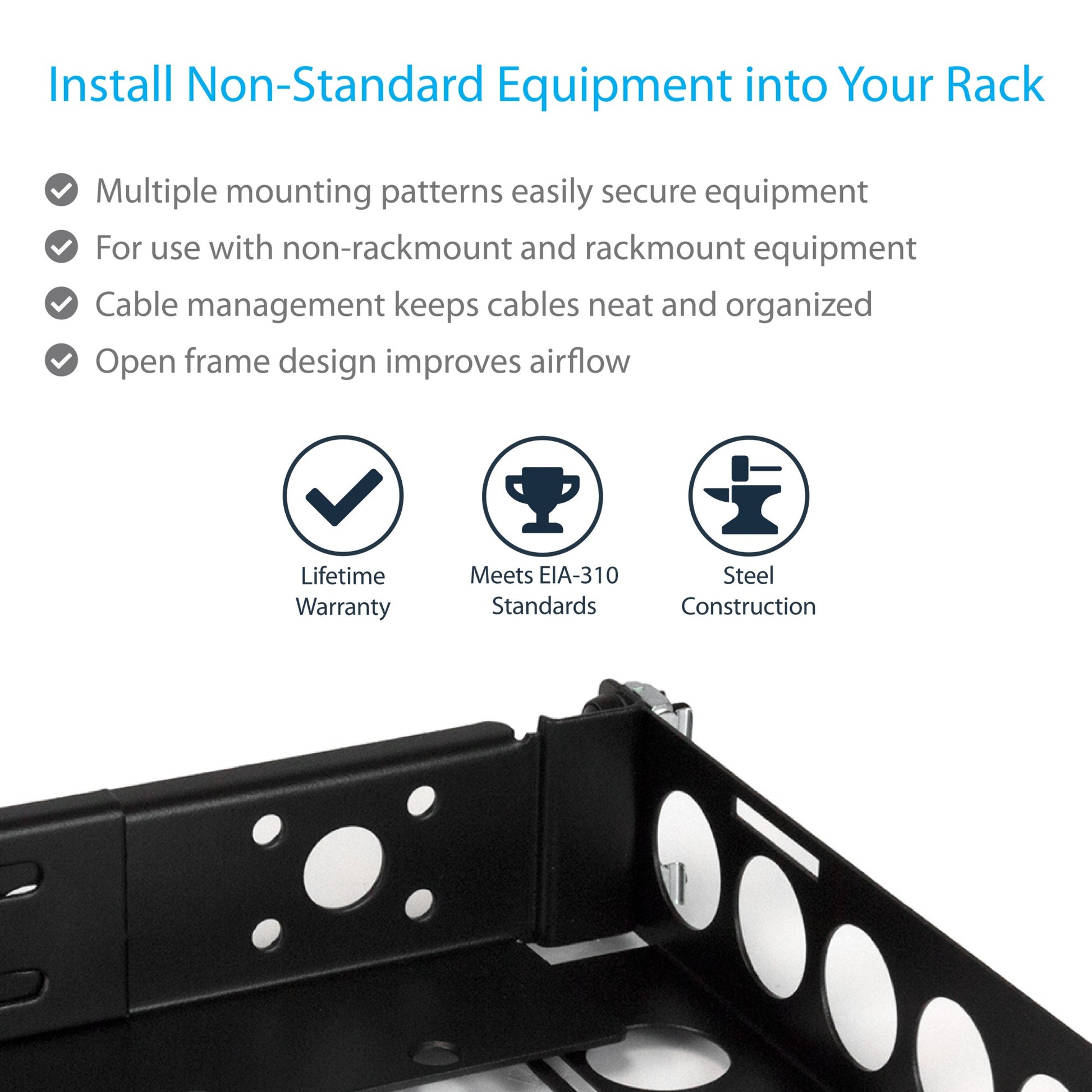

These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security.

Universal design mounts to almost any 19" server rack

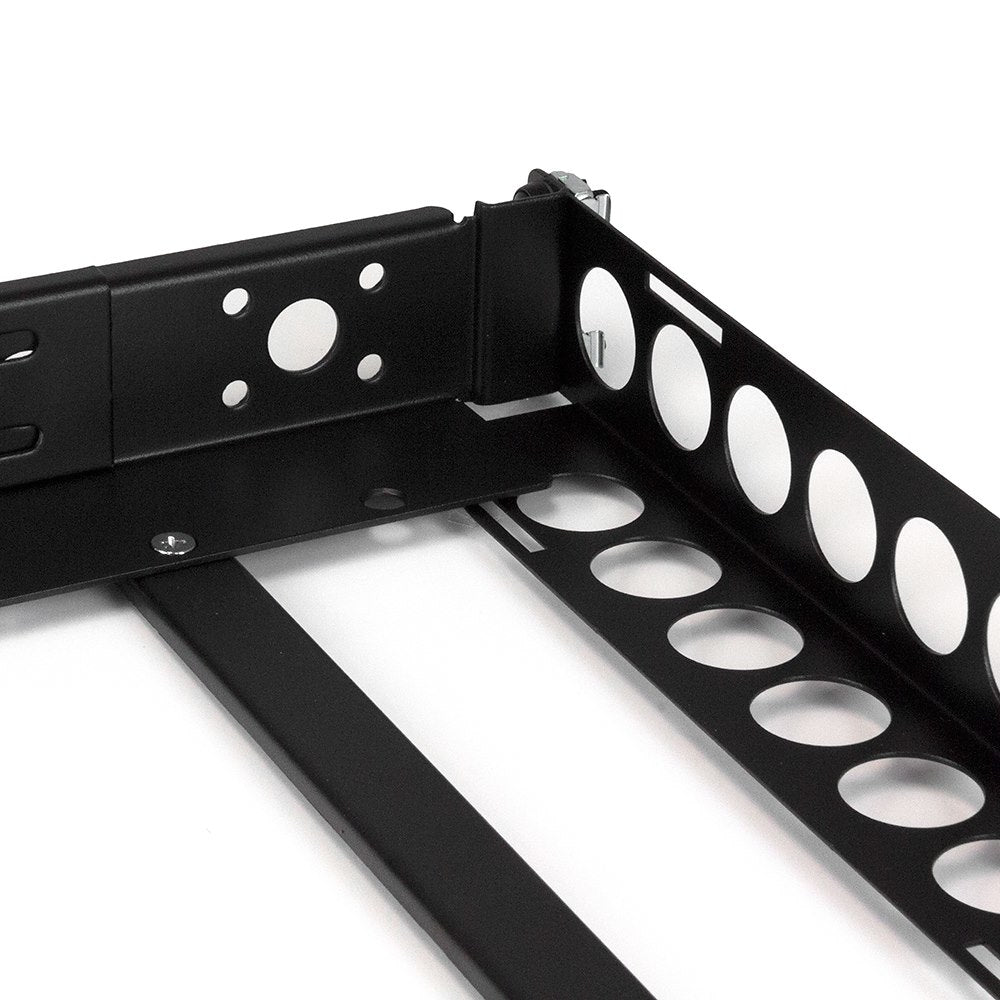

Adhering to the EIA-310 standard for 19” rackmount equipment, these mounting rails are universally compatible with 19” server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that’s removable for additional customization.

Maximum durability

To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 55 lb (25 kg).

Specifications

Features
Type	Rack rail
Size (imperial)	48.3 cm (19")
Rack capacity	1U
Maximum weight capacity	25 kg
Product colour	Black
Harmonized System (HS) code	85389099
Housing material	Steel
Weight & dimensions
Package width	107 mm
Package height	144 mm
Package depth	502 mm
Package weight	2.9 kg

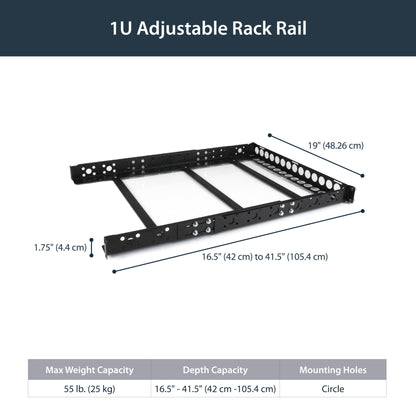

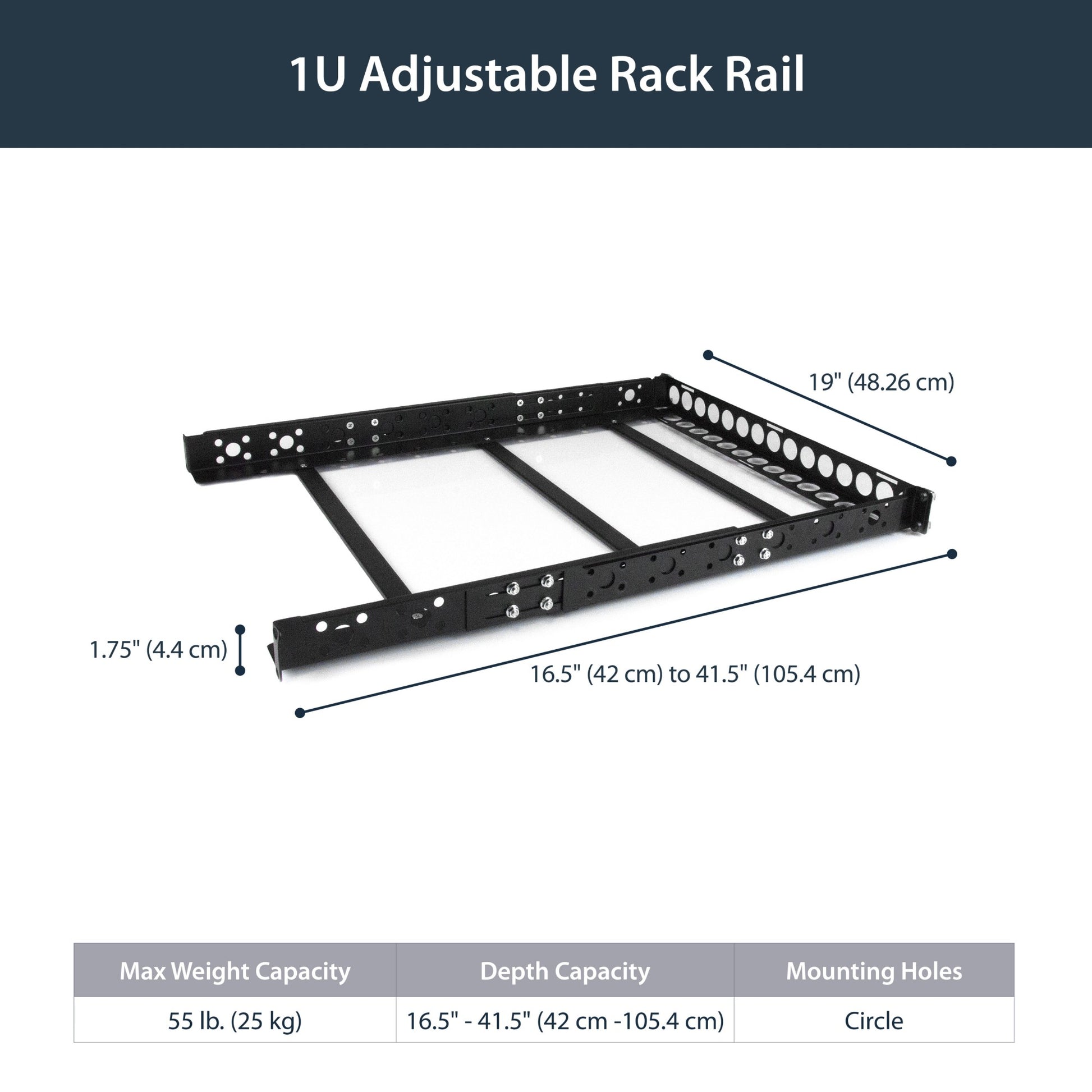

Mounting depth (min)	42 cm
Mounting depth (max)	105.4 cm
Width	481 mm
Weight	2.6 kg
Height	42 mm
Depth	1100 mm

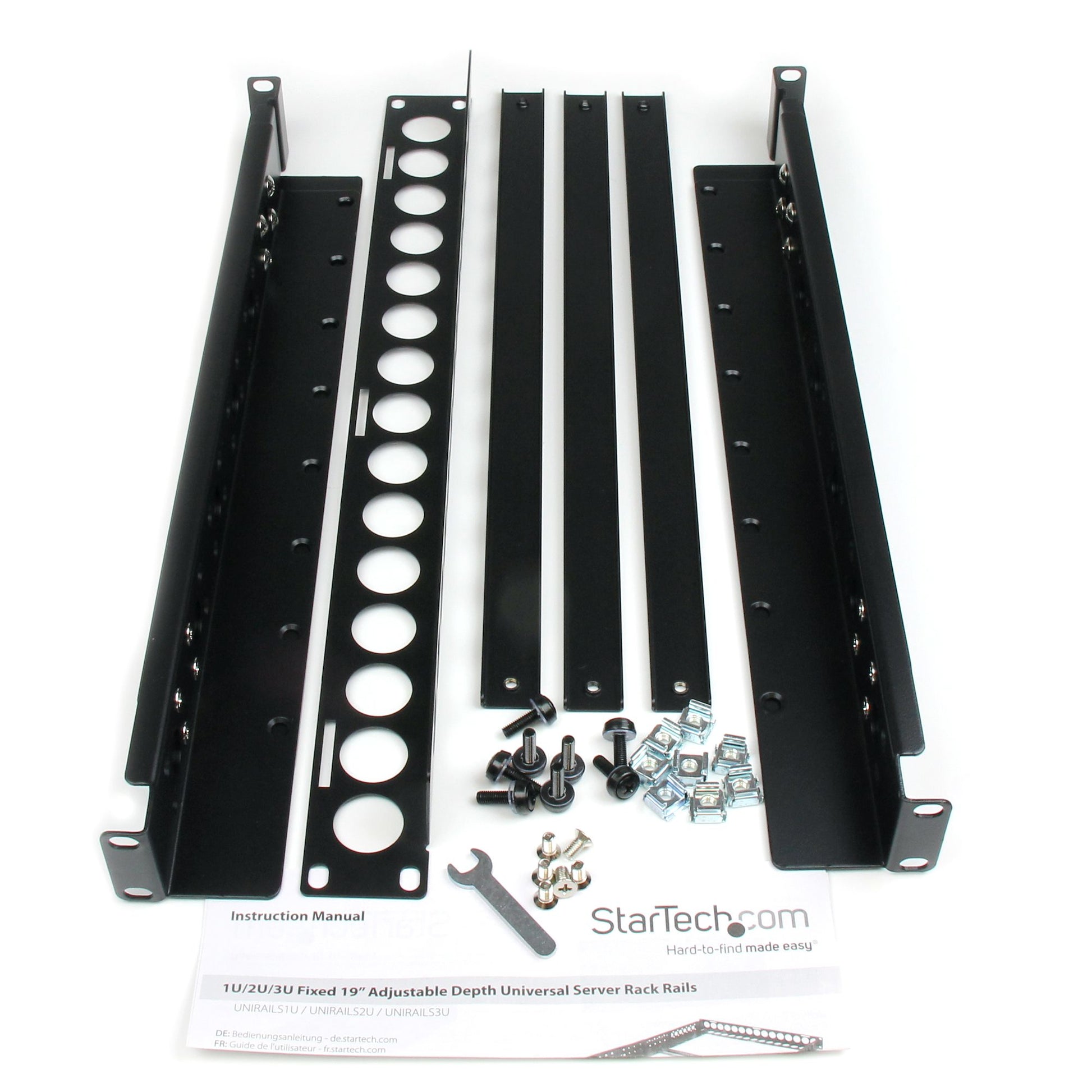

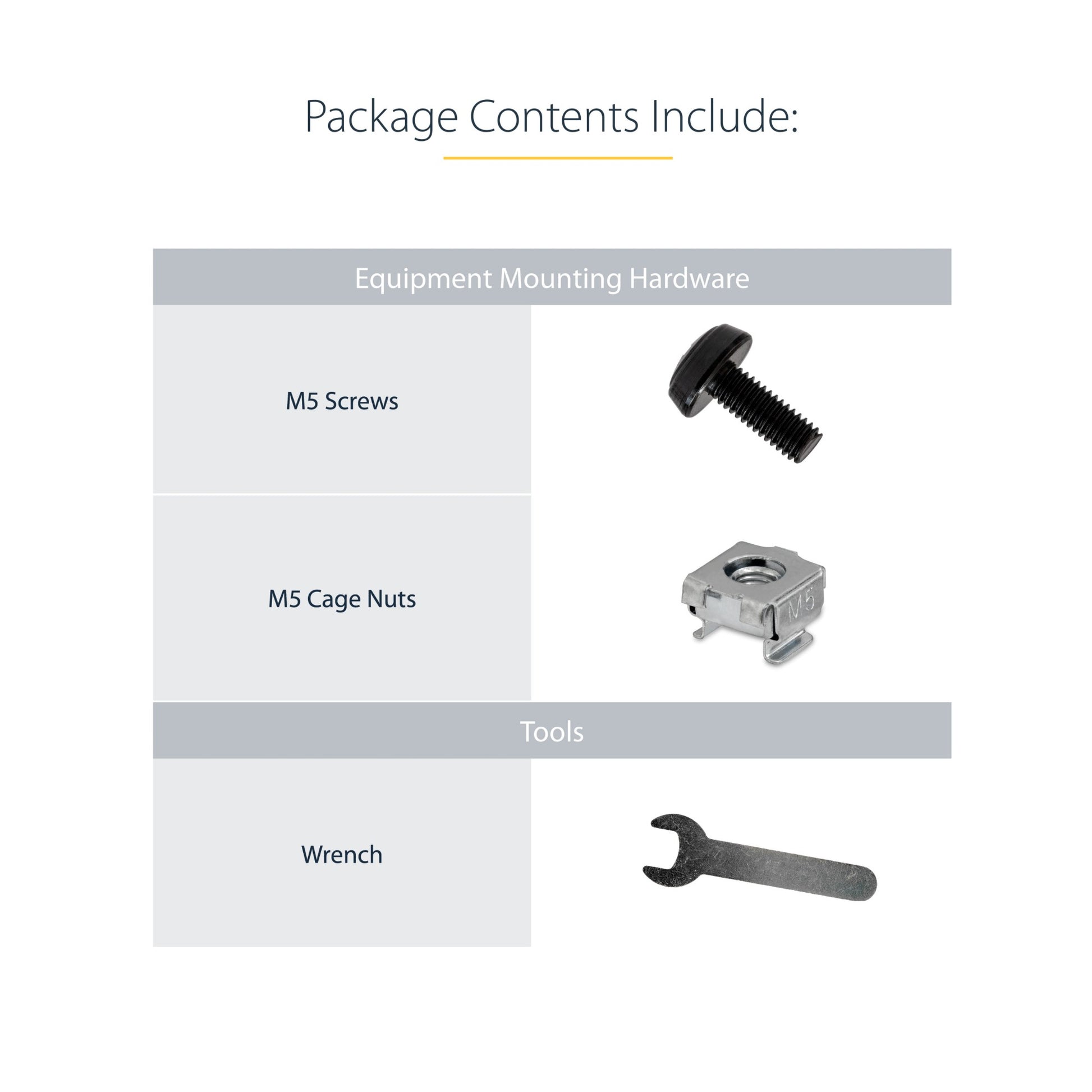

Packaging content
Screws included	Yes
Mounting kit	Yes
Number of screws	8
Screw type	M5
Number of cage nuts	8
Cage nuts included	Yes
Technical details
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	608 mm
Master (outer) case length	449 mm
Master (outer) case height	448 mm
Products per master (outer) case	9 pc(s)
