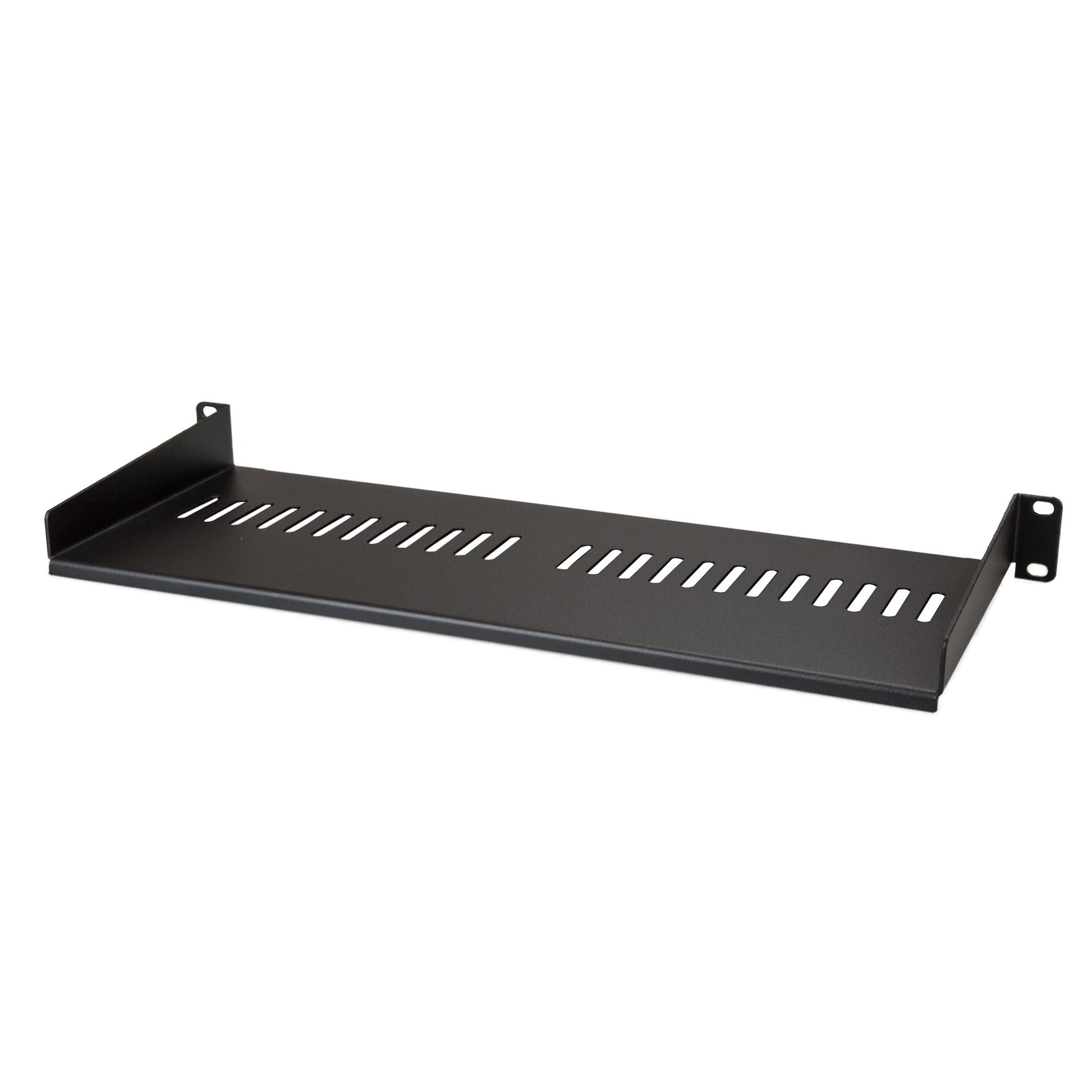

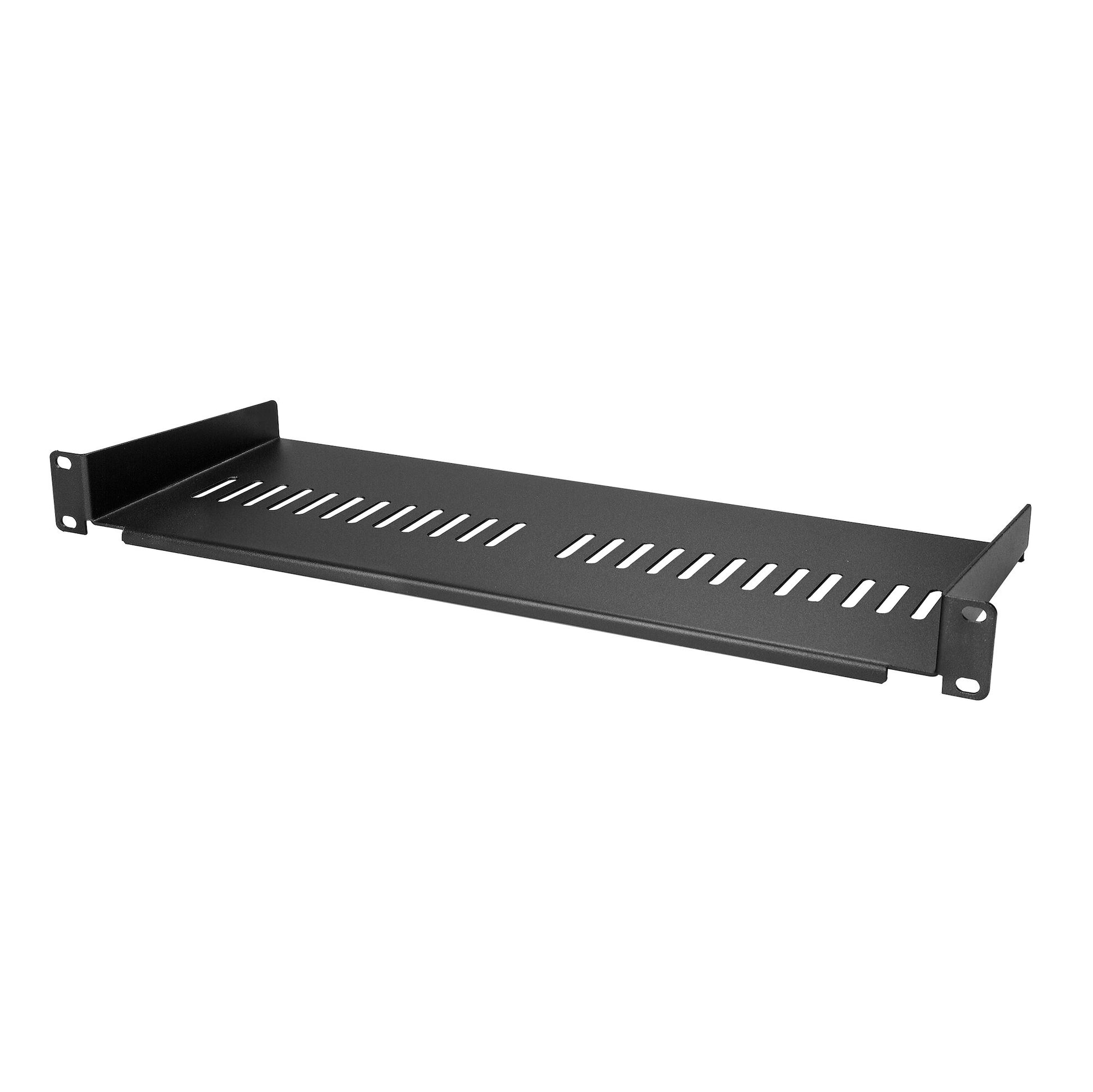

StarTech.com 1U Server Rack Shelf - Universal Vented Rack Mount Cantilever Tray for (ELF1U7V)
StarTech.com 1U Server Rack Shelf - Universal Vented Rack Mount Cantilever Tray for (ELF1U7V)
Regular price
£26.89 GBP
Regular price
Sale price
£26.89 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Build a tidy install with the StarTech.com 1U Server Rack Shelf — dimensions and mounting details are in the spec table.
Add a sturdy, 1U server rack shelf into almost any rack or cabinetThis 1U rack shelf lets you add 7 in. (17.5 cm) of flat storage space to any EIA-310 compliant server rack or cabinet. The shelf is vented to improve air flow and help lower temperatures in your rack.
Ensure your equipment is secure
The durable fixed-rack shelf can hold up to 44 lb. (20 kg) of equipment and is constructed using SPCC commercial-grade cold-rolled steel.
Make the most of your available space
The 1U cantilever shelf lets you optimize your working space by giving you the ability to mount equipment to your rack instead of taking up desk or floor space. It’s perfect for your SOHO (small office, home office) environment, server room or any other location with limited space available.
Customize your setup
You can install the 1U vented rack shelf in your rack at any height, giving you a stable surface for placing equipment that's un-mountable or storing your tools.
The CABSHELF1U7V is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Specifications
| Features | |
|---|---|
| Certification | REACH |
| Type | Rack shelf |
| Rack capacity | 1U |
| Maximum weight capacity | 20 kg |
| Product colour | Black |
| Compliance industry standards | EIA/ECA-310-E |
| Harmonized System (HS) code | 85389099 |
| Housing material | Steel |
| Weight & dimensions | |
| Package width | 526 mm |
| Package height | 63 mm |
| Package depth | 203 mm |
| Package weight | 1.75 kg |
| Width | 440 mm |
| Weight | 1.4 kg |
| Height | 44 mm |
| Depth | 175 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |

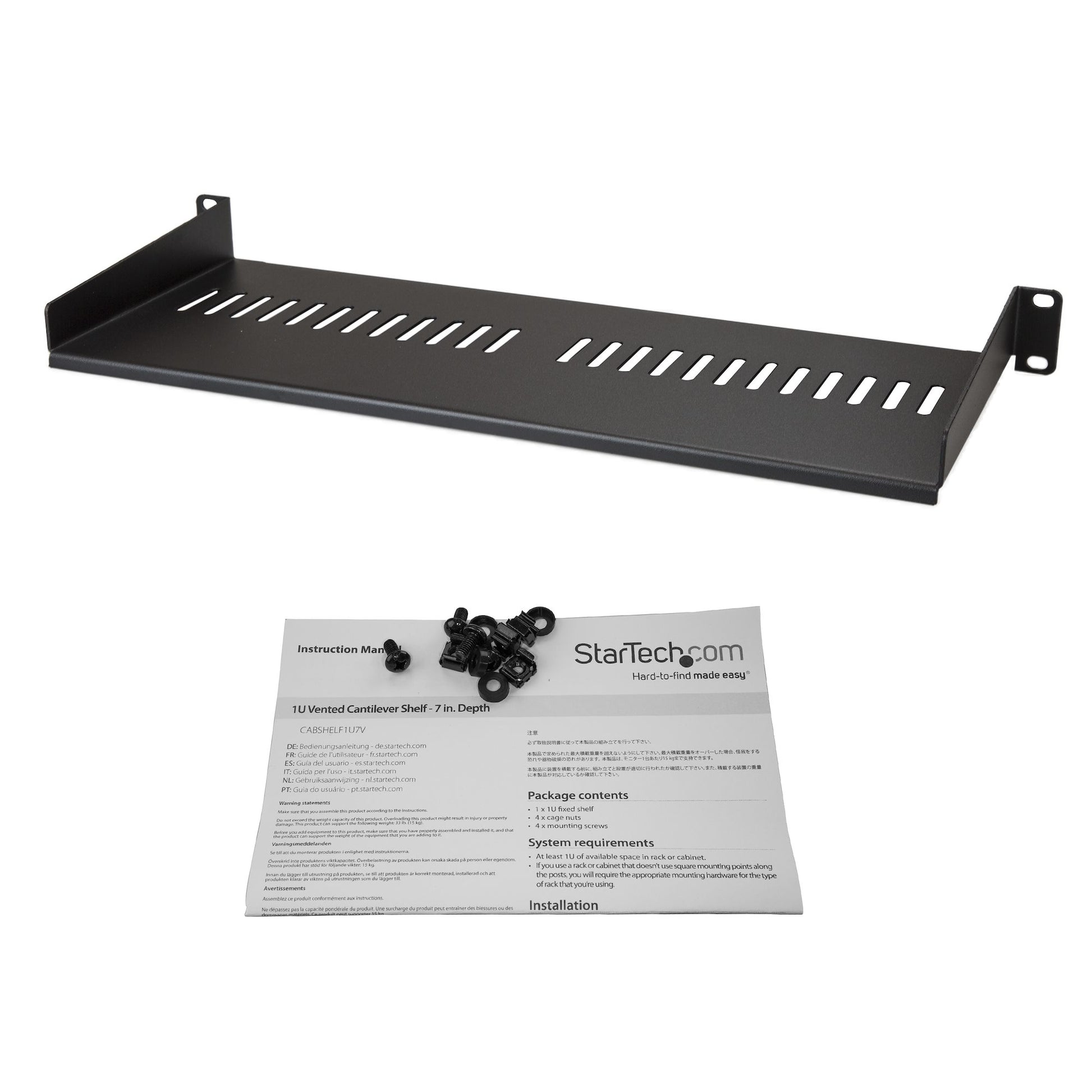

| Packaging content | |
| Screws included | Yes |
| Nuts included | Yes |
| Number of screws | 4 |
| Number of nuts | 4 |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 544 mm |
| Master (outer) case length | 334 mm |
| Master (outer) case height | 232 mm |
| Products per master (outer) case | 5 pc(s) |
