StarTech.com 1U Server Rack Shelf - Universal Vented Rack Mount Cantilever Tray for (2FIXEDV)

Build a tidy install with the StarTech.com 1U Server Rack Shelf — dimensions and mounting details are in the spec table.

Add a sturdy, 1U server rack shelf into almost any rack or cabinet

The SHELF-1U-12-FIXED-V lets you add 1U 12 inches (30.5 cm) deep shelf to any EIA-310 compliant 19-inch rack or cabinet. The shelf is vented to improve airflow and help lower temperatures in your rack.

Quality construction

The fixed-rack shelf can hold up to 55 lbs (25 kg) of equipment and is constructed using 2.0 mm SPCC commercial-grade cold-rolled steel for long-term durability and sturdiness. Accommodate your accessories or non-mountable devices for ease of access or connectivity to your equipment.

Maximize ventilation

The vented shelf plate improves the airflow helping to dissipate heat away from your equipment for extended and cooler operation.

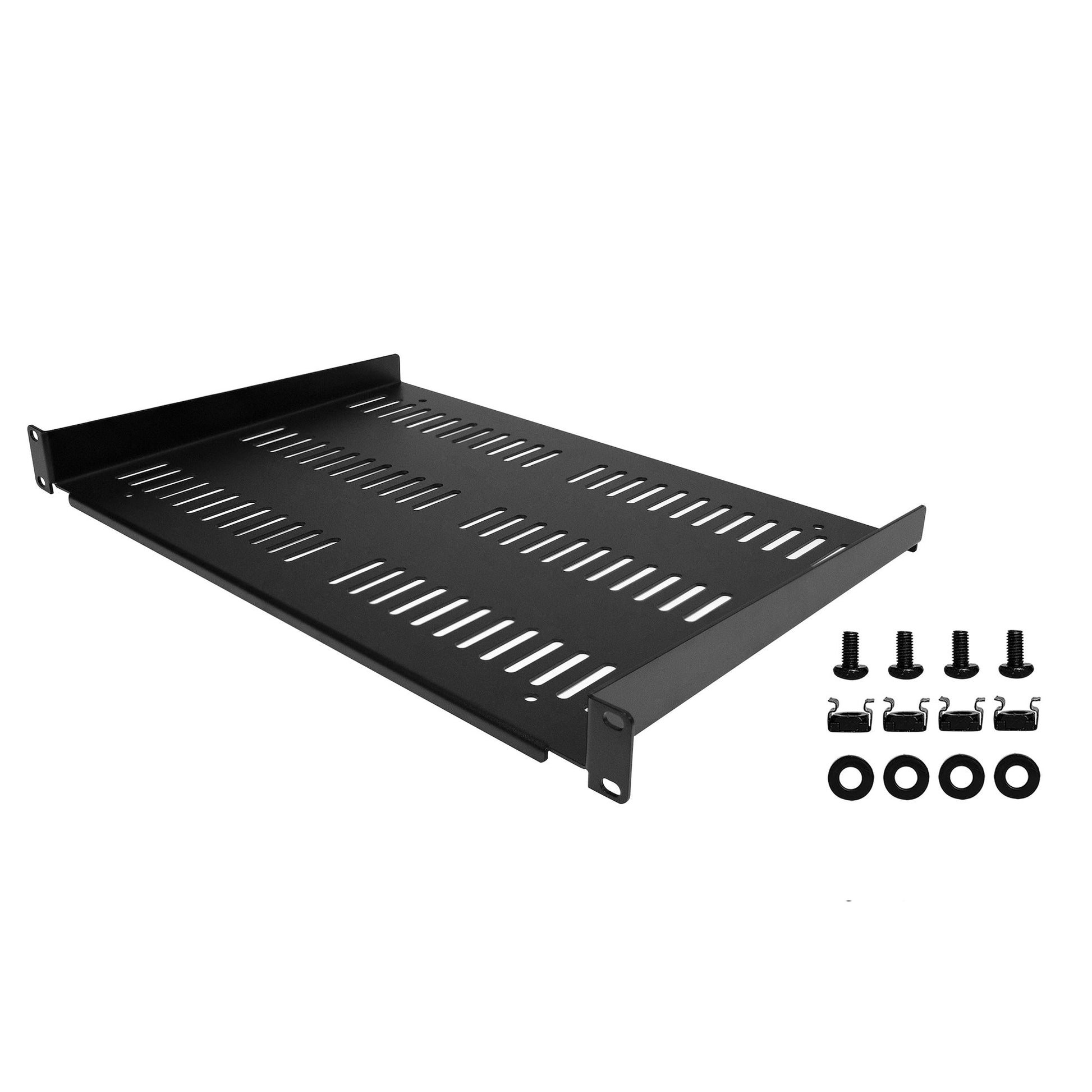

Hardware included

Conveniently includes M6 square cage nuts and M6 screws to set it up in no time.

The SHELF-1U-12-FIXED-V is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

Features
Type	Rack shelf
Rack capacity	1U
Maximum weight capacity	25 kg
Product colour	Black
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85389099
Housing material	SPCC
Weight & dimensions
Package width	547 mm
Package height	125 mm
Package depth	459 mm
Package weight	3 kg
Width	483 mm
Weight	2.2 kg
Height	43 mm
Depth	305 mm
Packaging content
Screws included	Yes
Quick installation guide	Yes
Screw type	M6
Washers included	Yes
Cage nuts included	Yes
Logistics data
Master (outer) case width	635 mm
Master (outer) case length	465 mm
Master (outer) case height	577 mm
Products per master (outer) case	5 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
