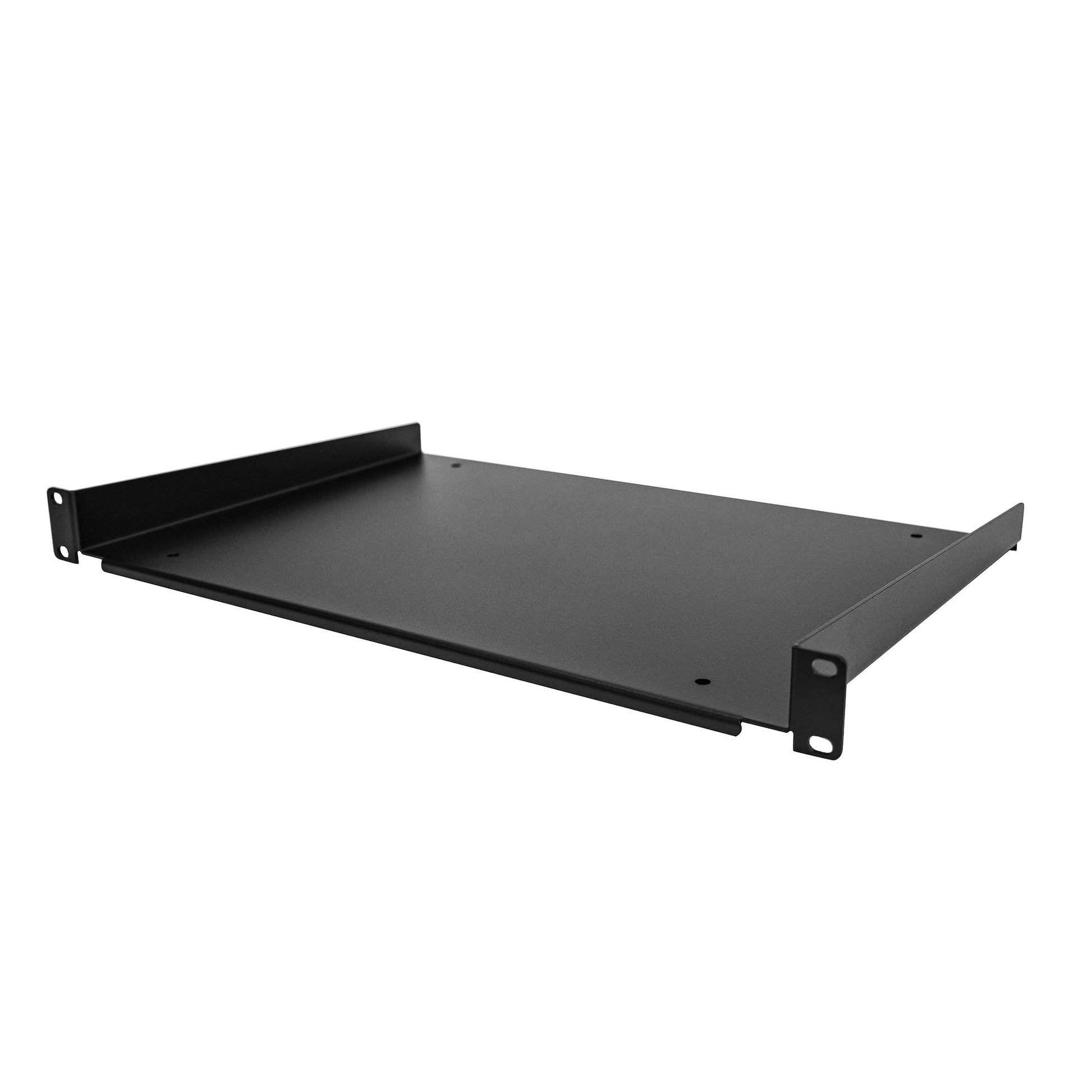

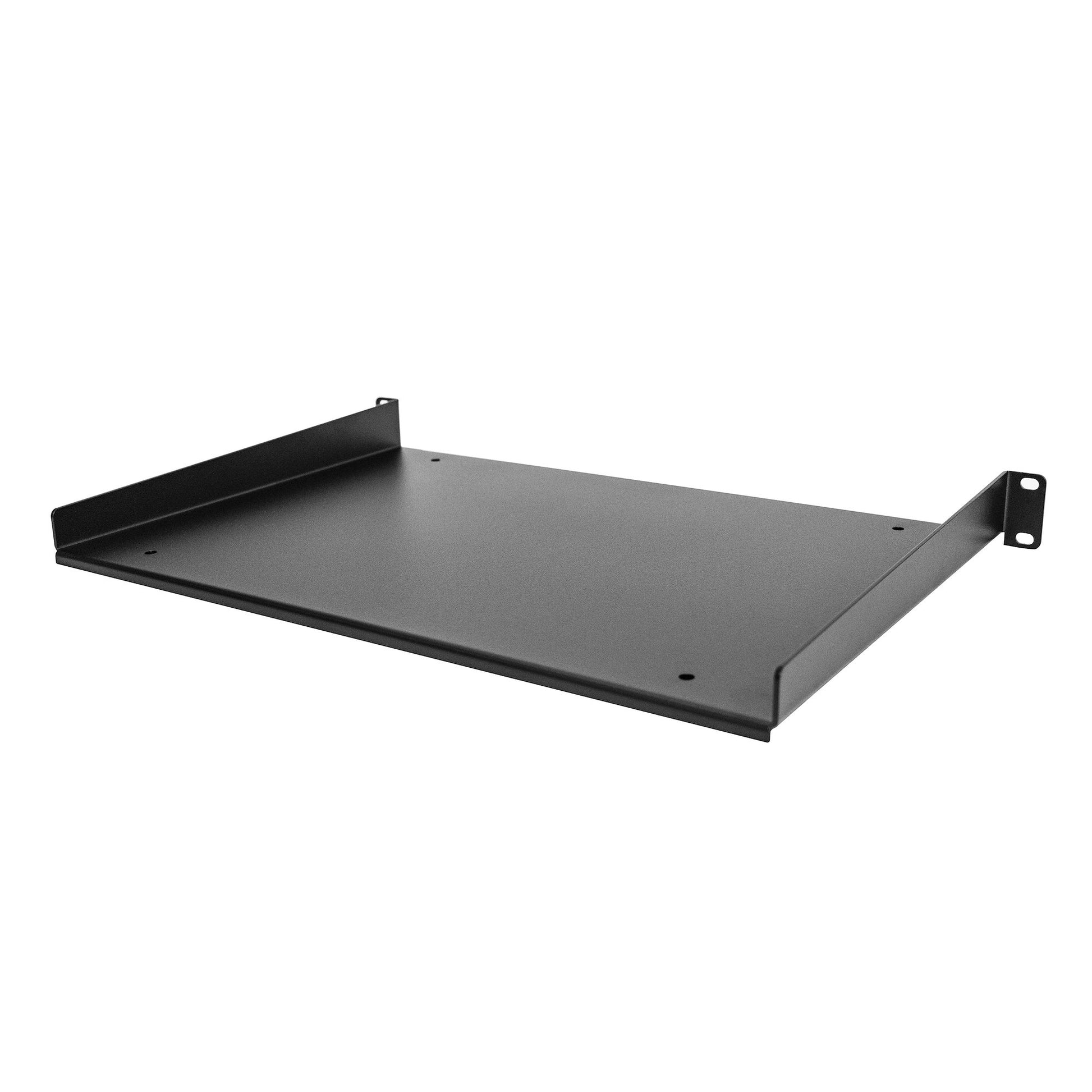

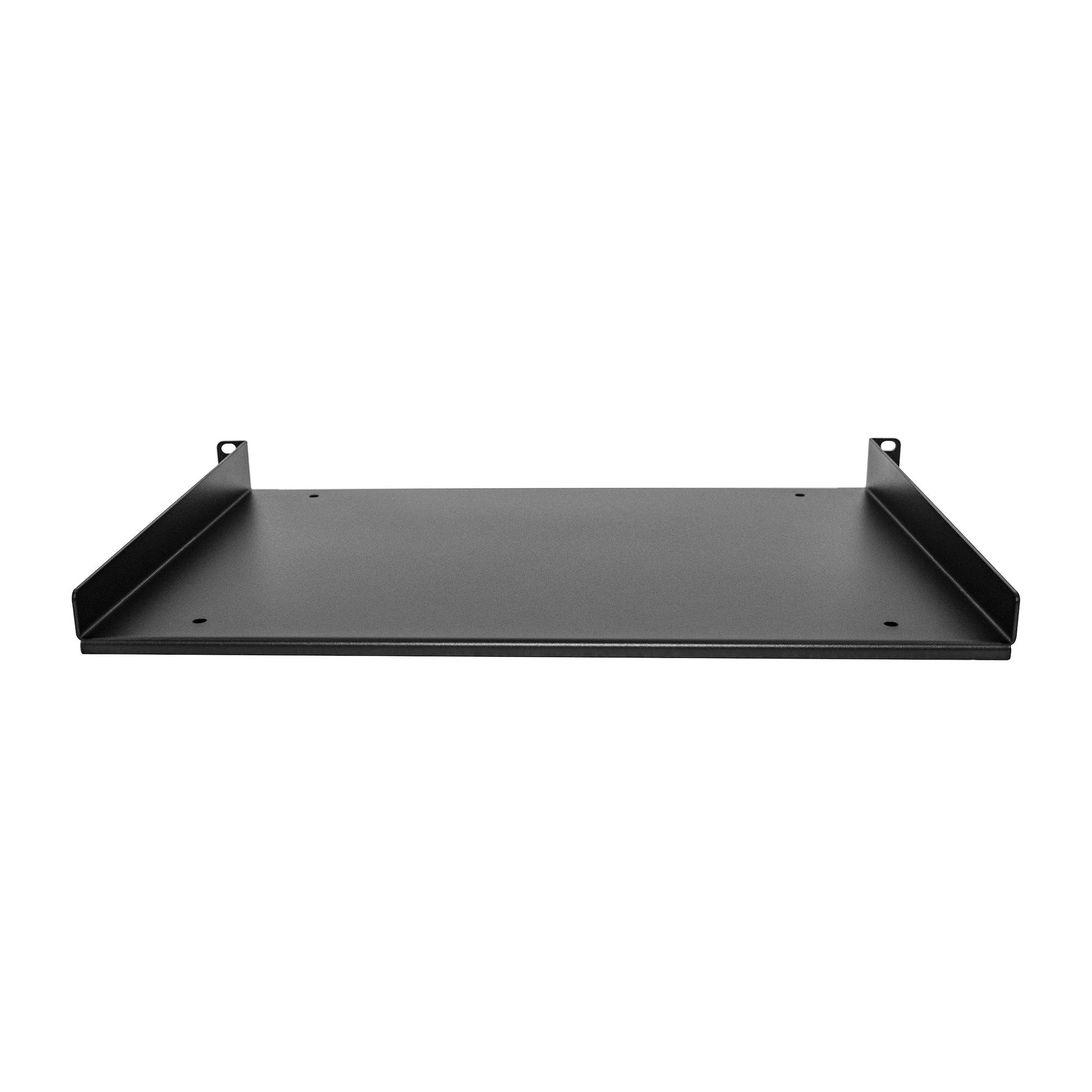

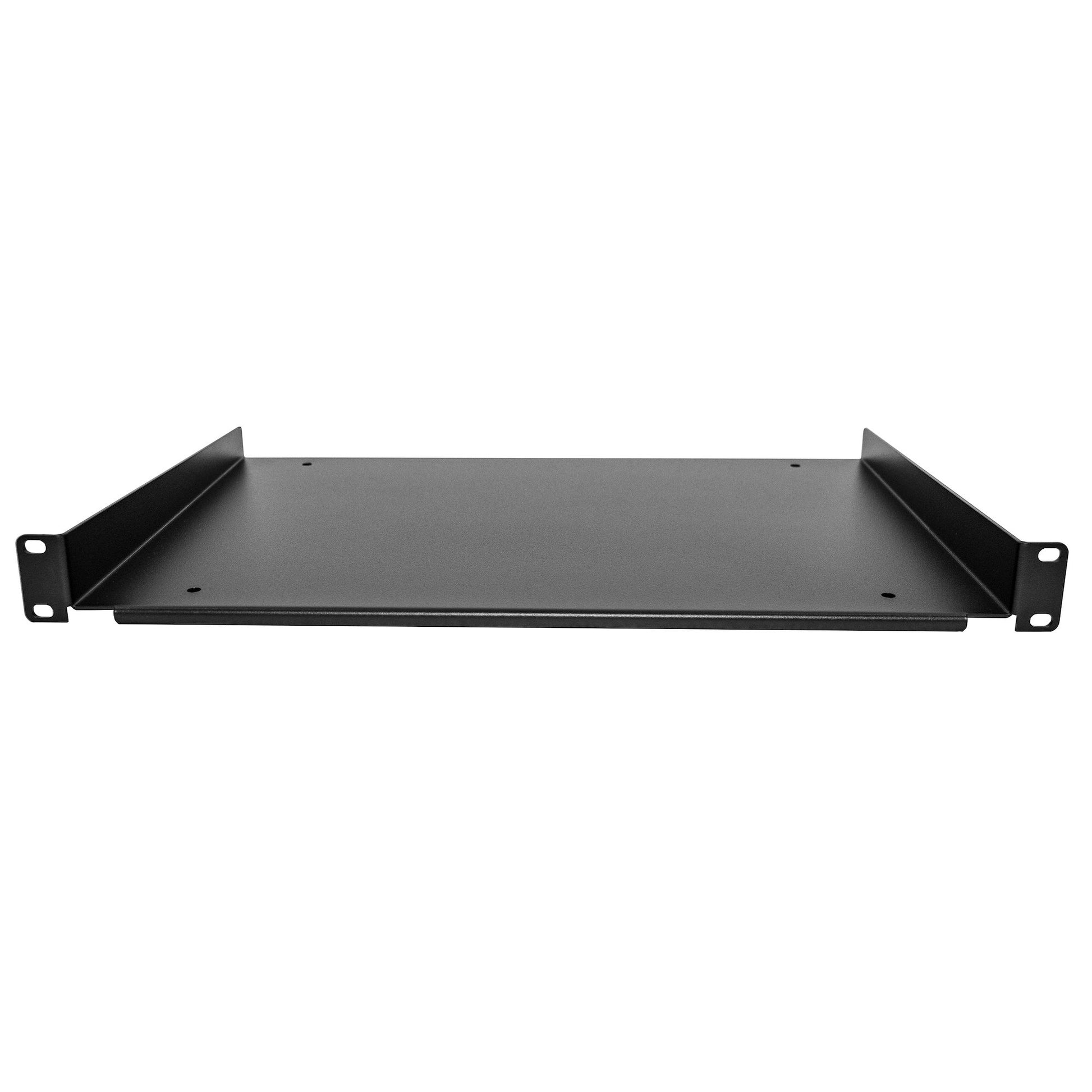

StarTech.com 1U Server Rack Shelf - Universal Rack Mount Cantilever Shelf for 19" (2FIXEDS)

Build a tidy install with the StarTech.com 1U Server Rack Shelf — dimensions and mounting details are in the spec table.

Add a sturdy, fixed shelf into almost any server rack or cabinet

The SHELF-1U-12-FIXED-S lets you add a 1U 12 inches (30.5 cm) deep shelf to any EIA-310 compliant 19-inch rack or cabinet.

Quality construction

The fixed-rack shelf can hold up to 55 lbs (25 kg) of equipment and is constructed using 2.0 mm SPCC commercial-grade cold-rolled steel for long-term durability and sturdiness. Accommodate your accessories or non-mountable devices for ease of access or connectivity to your equipment.

Two installation options

You can install the 1U rack shelf using one of two different orientations for mounting. The standard, with the lip facing downwards or inversed with the lip facing upwards that prevents your equipment from sliding off.

Hardware included

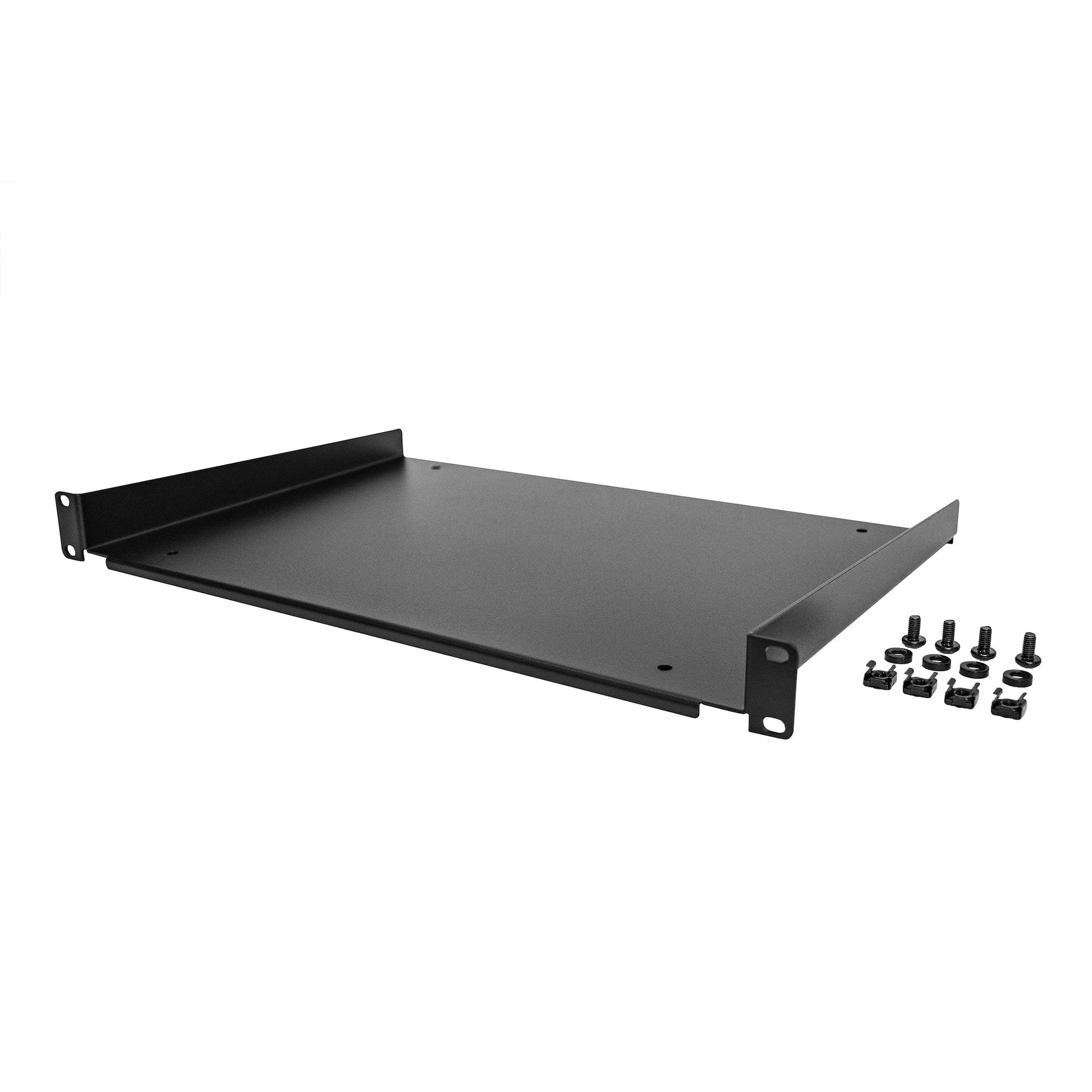

Conveniently includes M6 square cage nuts and M6 screws to setup your equipment in no time.

The SHELF-1U-12-FIXED-S is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

Features
Type	Rack shelf
Rack capacity	1U
Maximum weight capacity	25 kg
Product colour	Black
Harmonized System (HS) code	85389099
Housing material	SPCC
Weight & dimensions
Package width	547 mm
Package height	125 mm
Package depth	374 mm
Package weight	3.2 kg
Width	483 mm
Weight	2.5 kg
Height	43 mm
Depth	305 mm
Packaging content
Screws included	Yes
Quick installation guide	Yes
Screw type	M6
Cage nuts included	Yes
Logistics data
Master (outer) case width	635 mm
Master (outer) case length	407 mm
Master (outer) case height	572 mm
Products per master (outer) case	5 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
