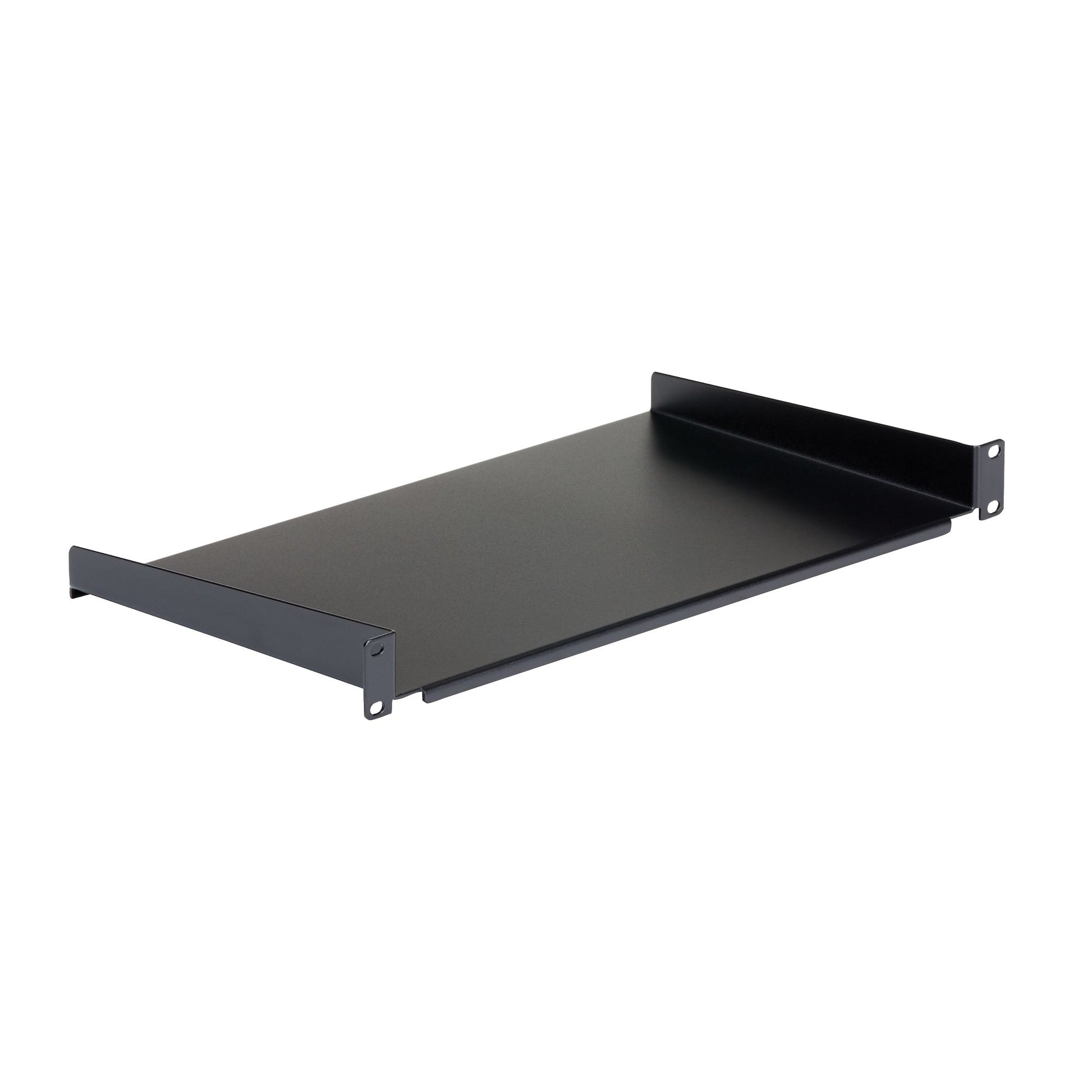

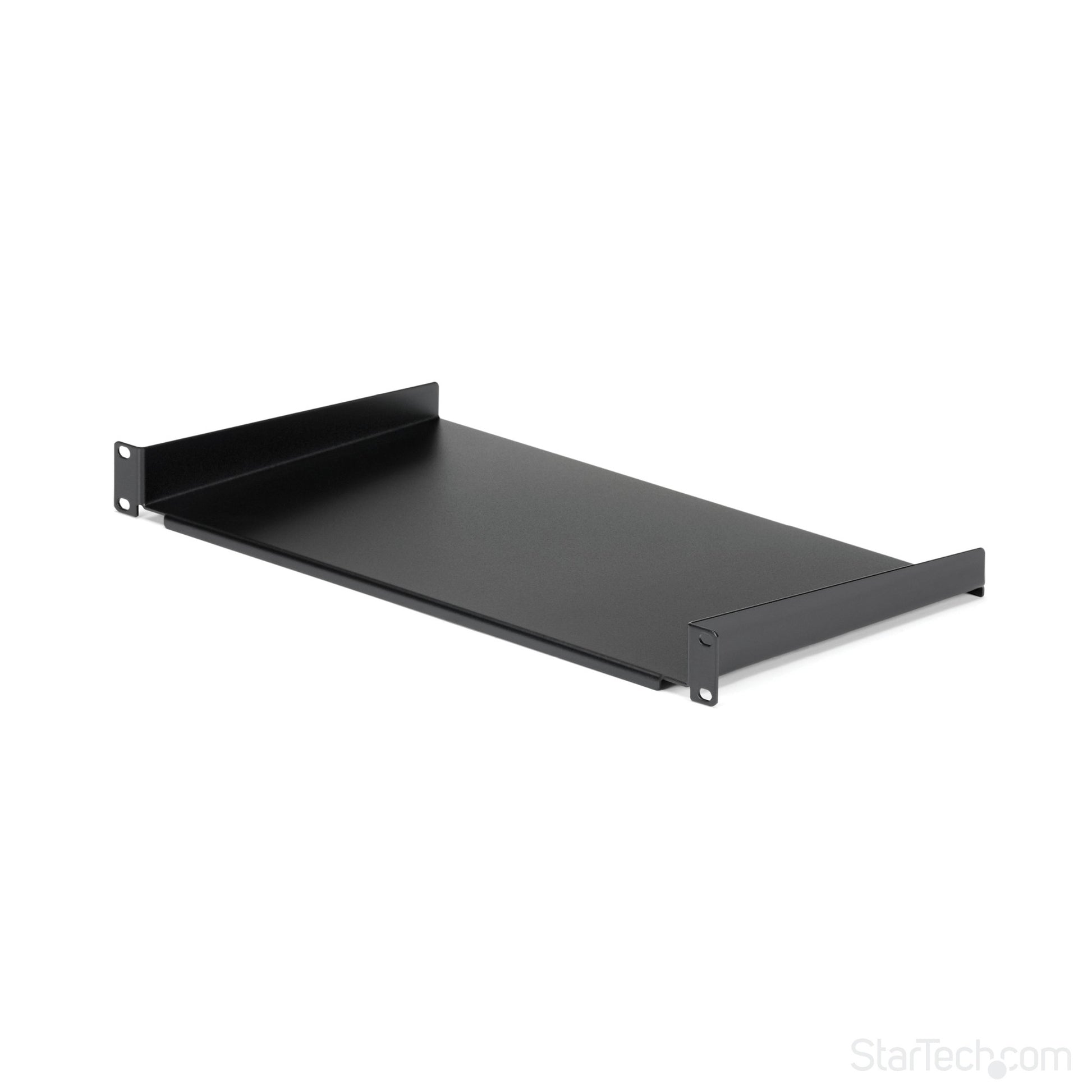

StarTech.com 1U Fixed Server Rack Mount Shelf - 10in Deep Steel Universal Cantilever

StarTech.com 1U Fixed Server Rack Mount Shelf - 10in Deep Steel Universal Cantilever

Regular price £27.31 GBP
Regular price Sale price £27.31 GBP
Sale Sold out
Taxes included.
Condition
Quantity

Build a tidy install with the StarTech.com 1U Fixed Server Rack — dimensions and mounting details are in the spec table.

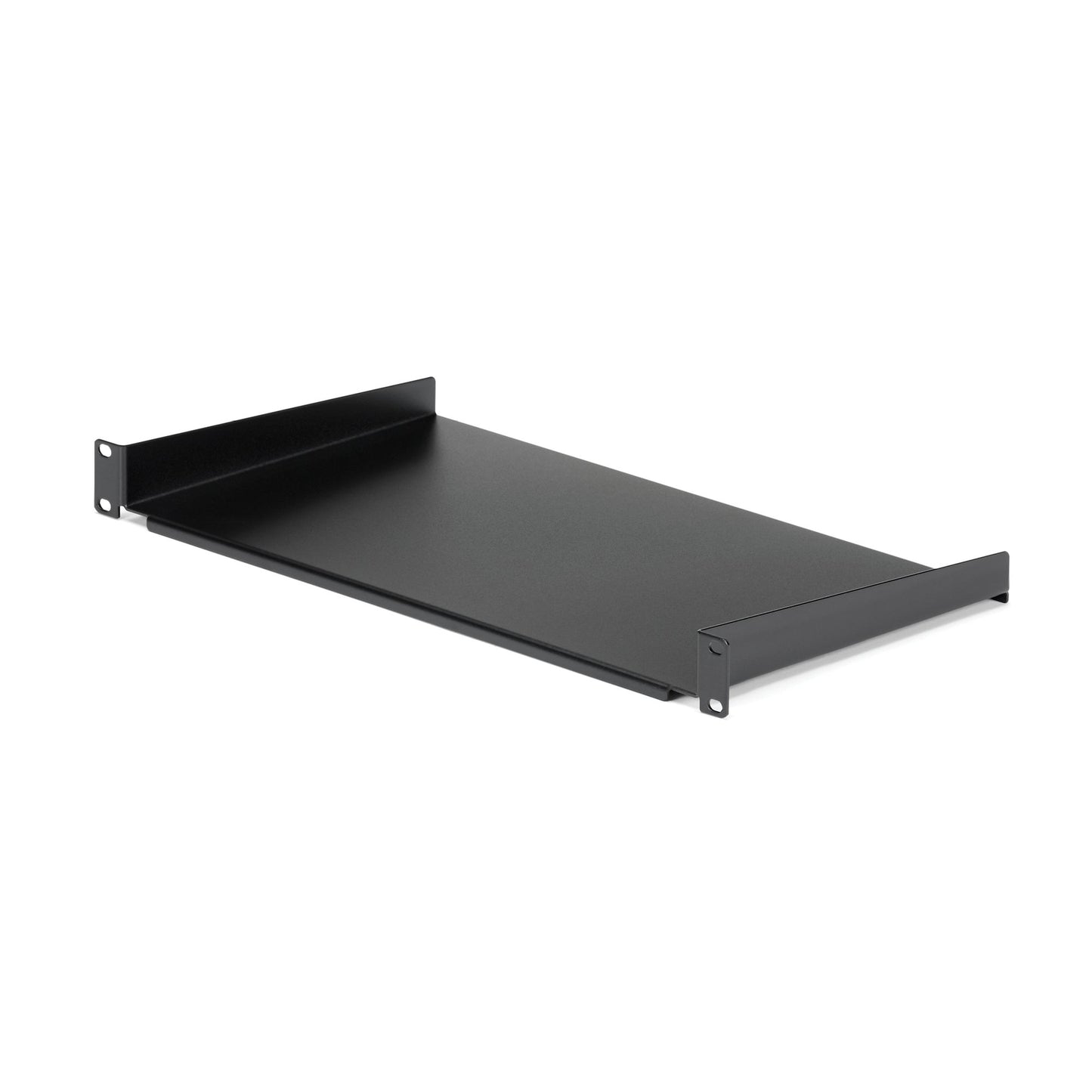

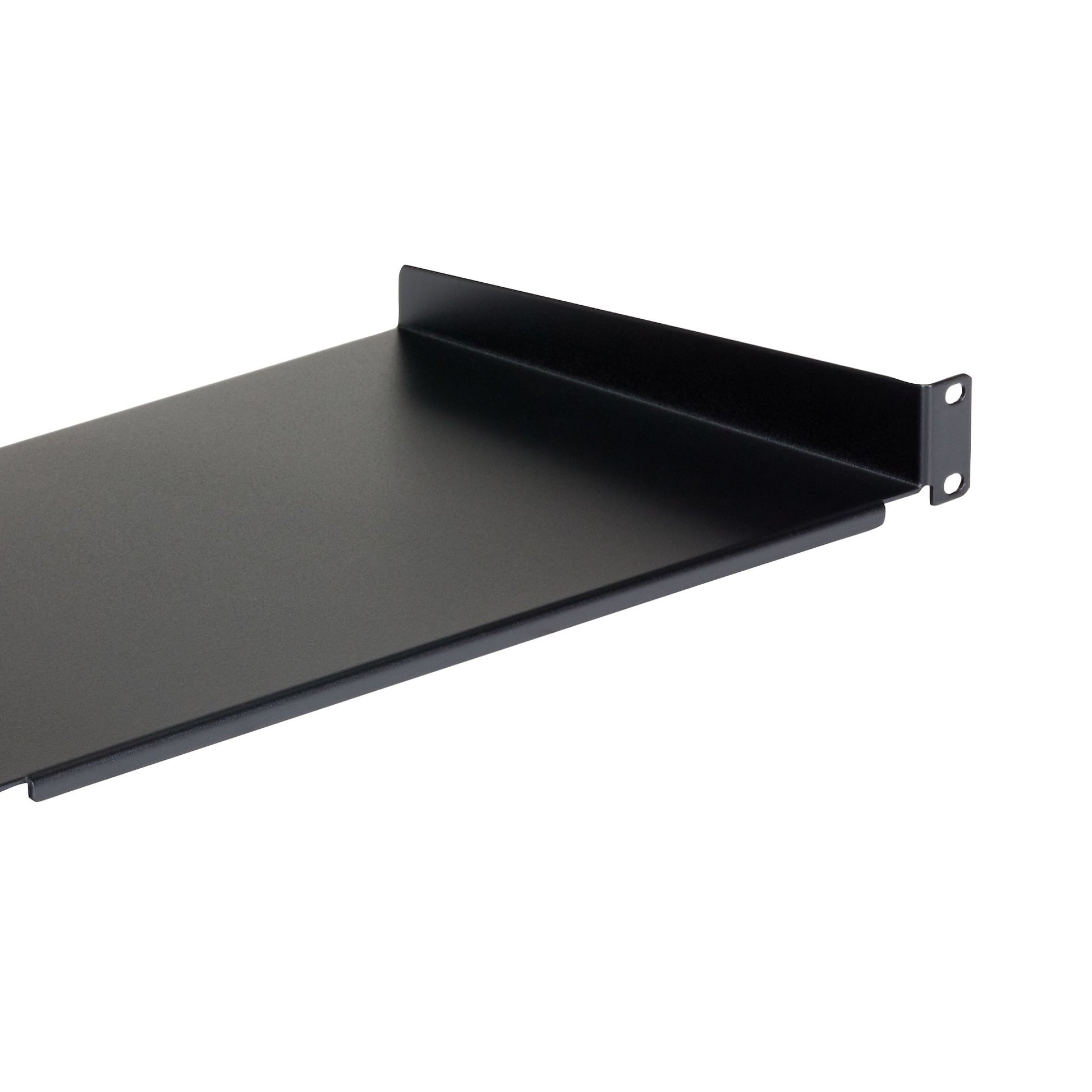

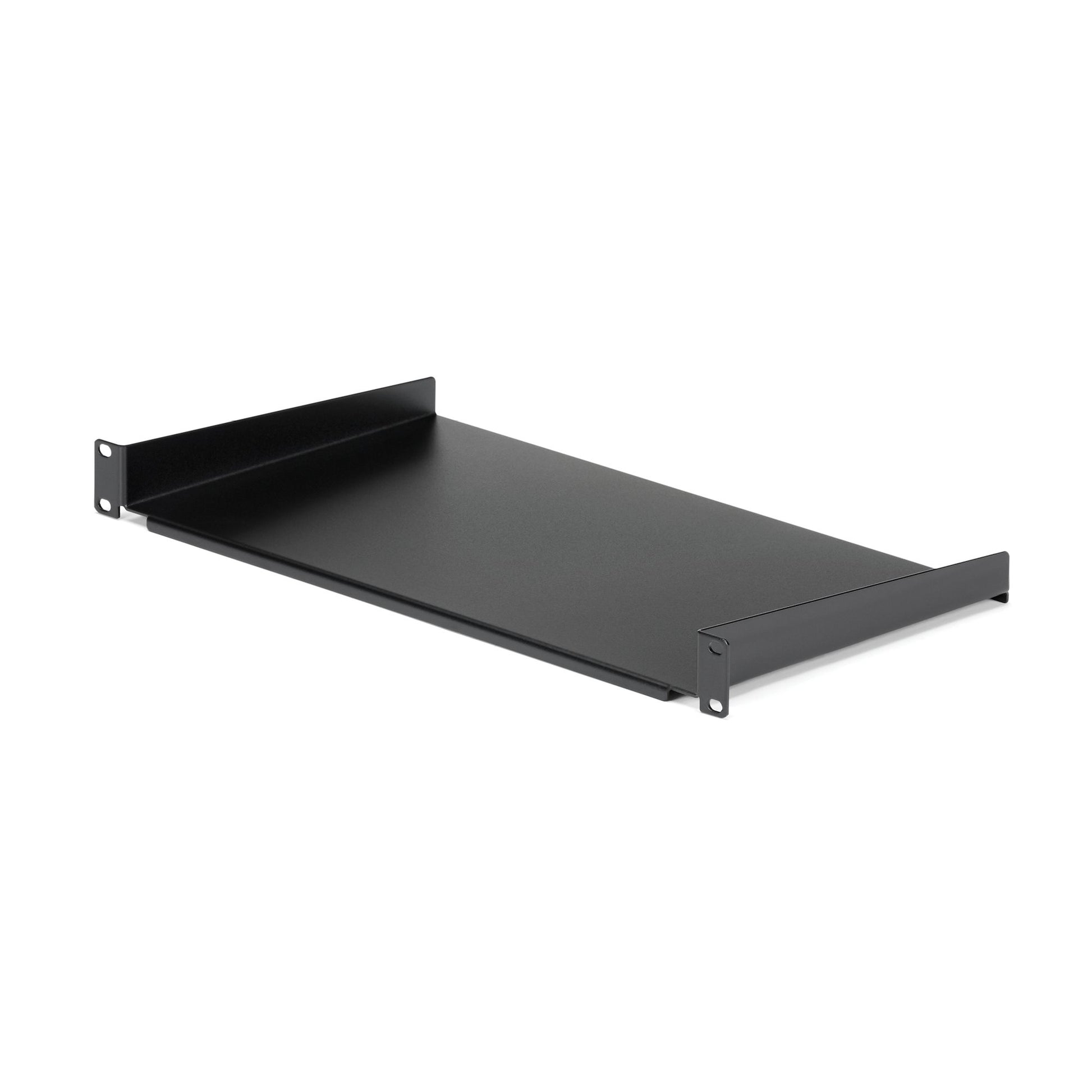

Add a sturdy, 1U server rack shelf into almost any rack or cabinet

This 1U rack shelf lets you add 10 in. of flat storage space to any EIA-310 compliant server rack or cabinet.

Ensure your equipment is secure

The durable fixed-rack shelf can hold up to 20 kg (44 lbs.) of equipment and is constructed using SPCC commercial-grade cold-rolled steel.

Make the most of your available space

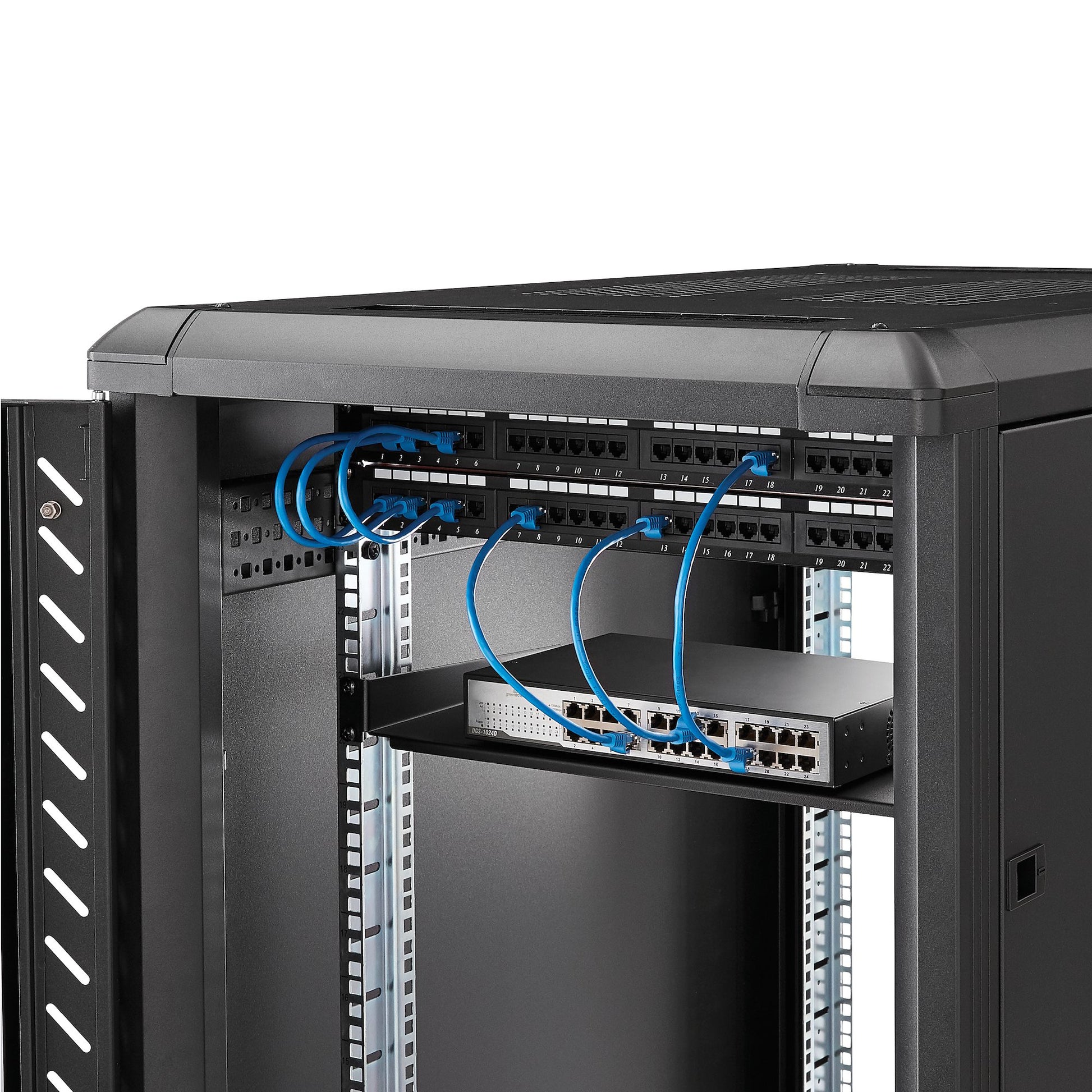

The 1U cantilever shelf lets you optimize your working space by giving you the ability to mount equipment to your rack instead of taking up desk or floor space. It’s perfect for your SOHO (small office, home office) environment, server room or any other location with limited space available.

Customize your setup

You can install the 1U rack shelf in your rack at any height, giving you a stable surface for placing equipment that's un-mountable or storing your tools.

The CABSHELF1U10 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

Features
Type Rack shelf
Rack capacity 1U
Maximum weight capacity 20 kg
Product colour Black
Harmonized System (HS) code 85389099
Housing material Steel

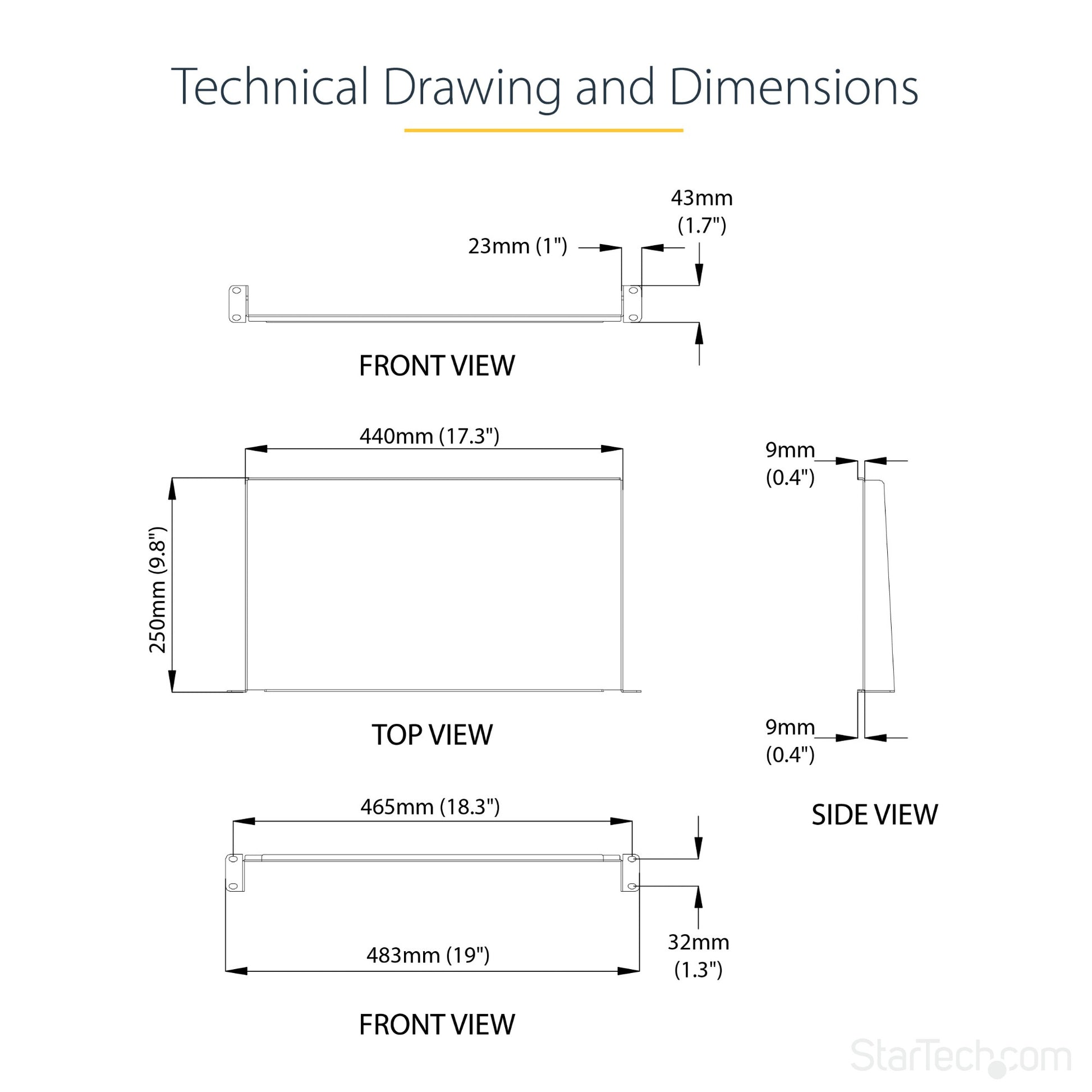

Weight & dimensions
Package width 268 mm
Package height 56 mm
Package depth 520 mm
Package weight 2.46 kg
Width 482.6 mm
Weight 2 kg
Height 44.5 mm
Depth 254 mm
Packaging data
Quantity per pack 1 pc(s)

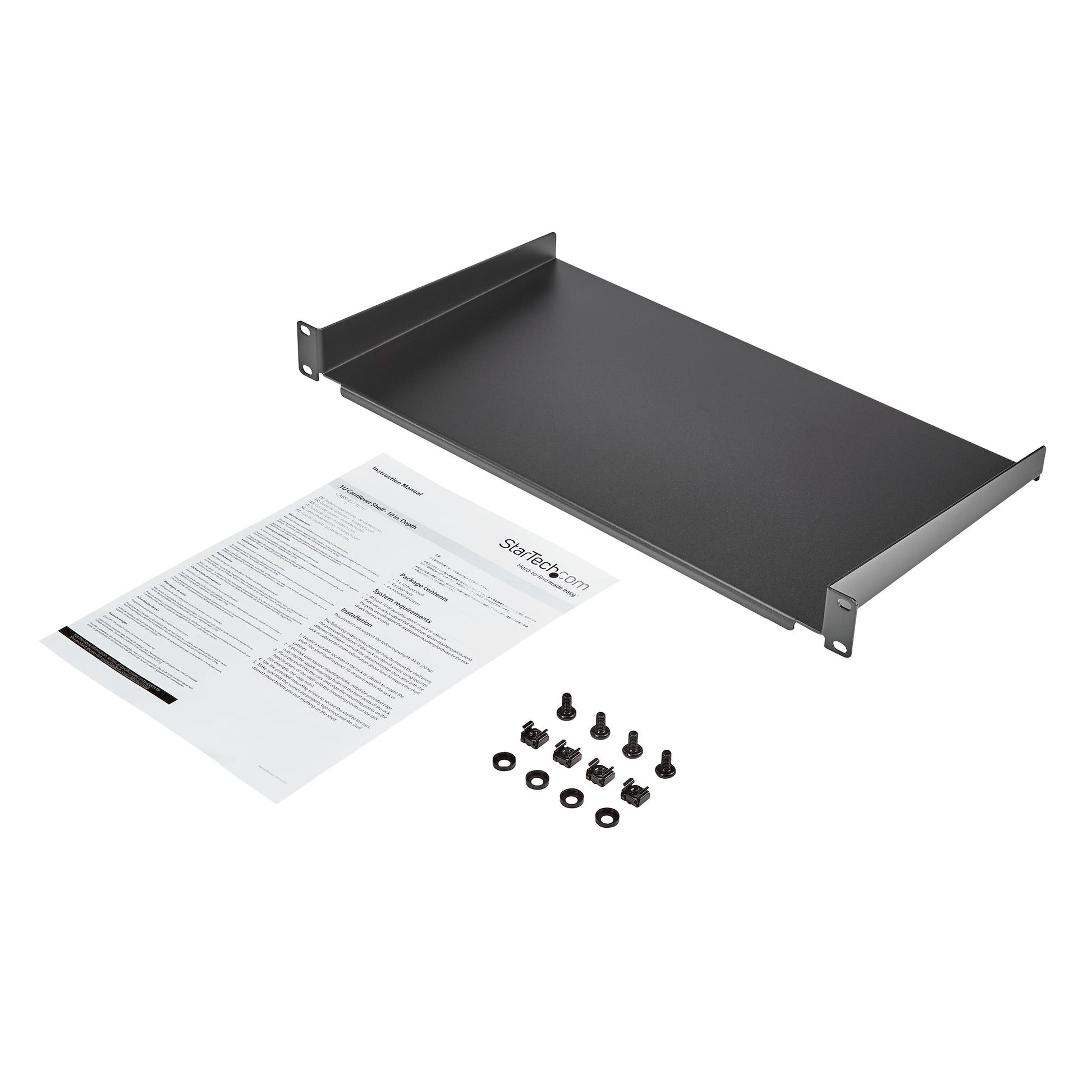

Packaging content
Screws included Yes
Technical details
Compliance certificates RoHS
Logistics data
Master (outer) case width 331 mm
Master (outer) case length 532 mm
Master (outer) case height 300 mm
Products per master (outer) case 5 pc(s)
