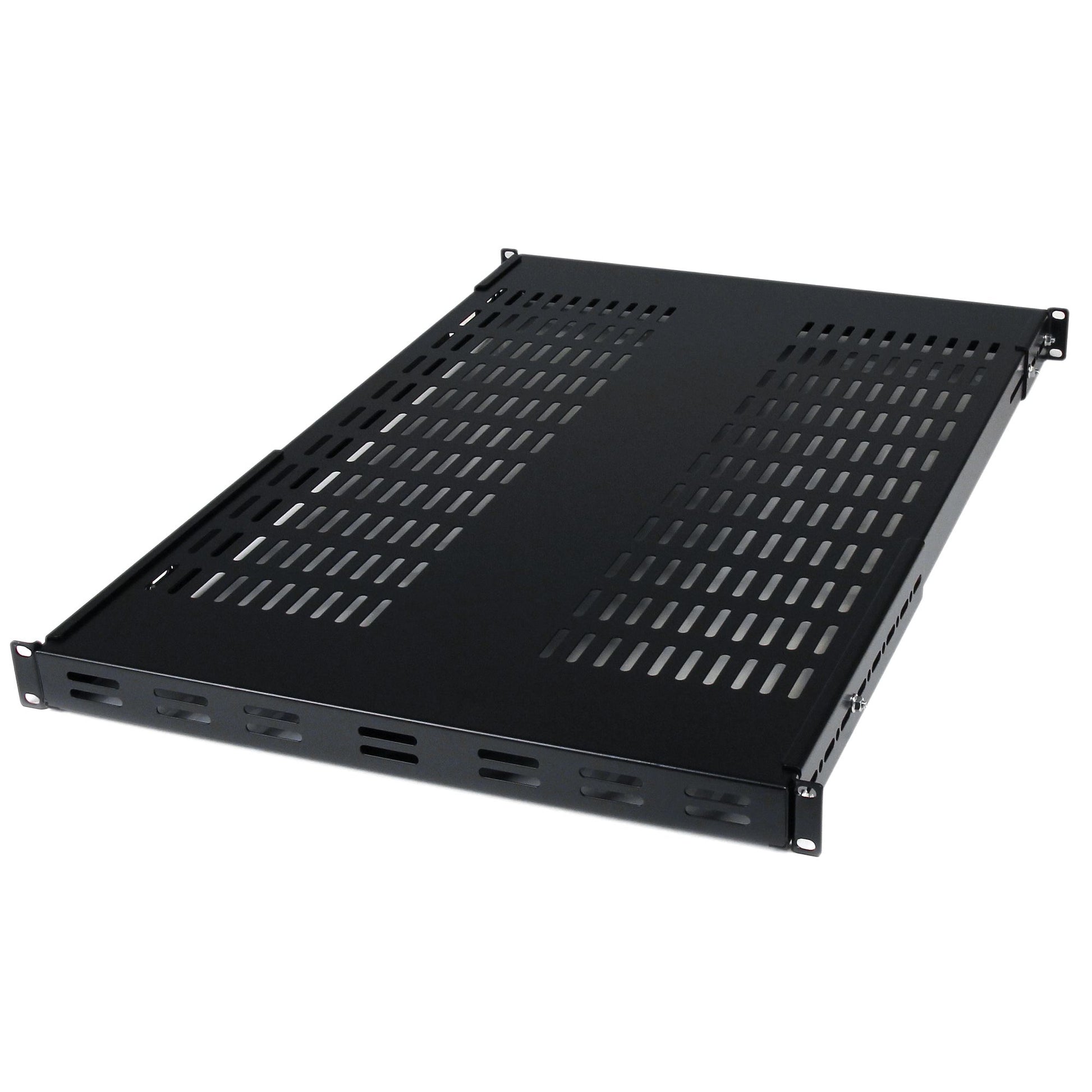

StarTech.com 1U Adjustable Vented Server Rack Mount Shelf - 175lbs - 19.5 to 38in

Build a tidy install with the StarTech.com 1U Adjustable Vented Server — dimensions and mounting details are in the spec table.

Add a sturdy, adjustable depth shelf into almost any server rack or cabinet

The ADJSHELF Adjustable Mounting Depth Rack Mount Shelf offers a simple way to effectively organize mission critical computer hardware in your server racks and cabinets.

Compatible with all 19in (wide) server racks/cabinets, the fixed rack shelf can be adjusted from 19in to 38in (mount depth) as necessary. A sturdy cold-rolled steel construction provides long term durability and enables a weight capacity of up to 175 lbs (80 kg).

Backed by a StarTech.com 2-year warranty.

Specifications

Features
Type	Adjustable shelf
Rack capacity	1U
Maximum weight capacity	80 kg
Product colour	Black
Harmonized System (HS) code	85389099
Weight & dimensions
Package width	823 mm
Package height	73 mm
Package depth	501 mm
Package weight	5.5 kg
Mounting depth (min)	49.5 cm
Mounting depth (max)	97.4 cm
Width	445 mm
Weight	4.4 kg
Height	40 mm
Depth	700 mm

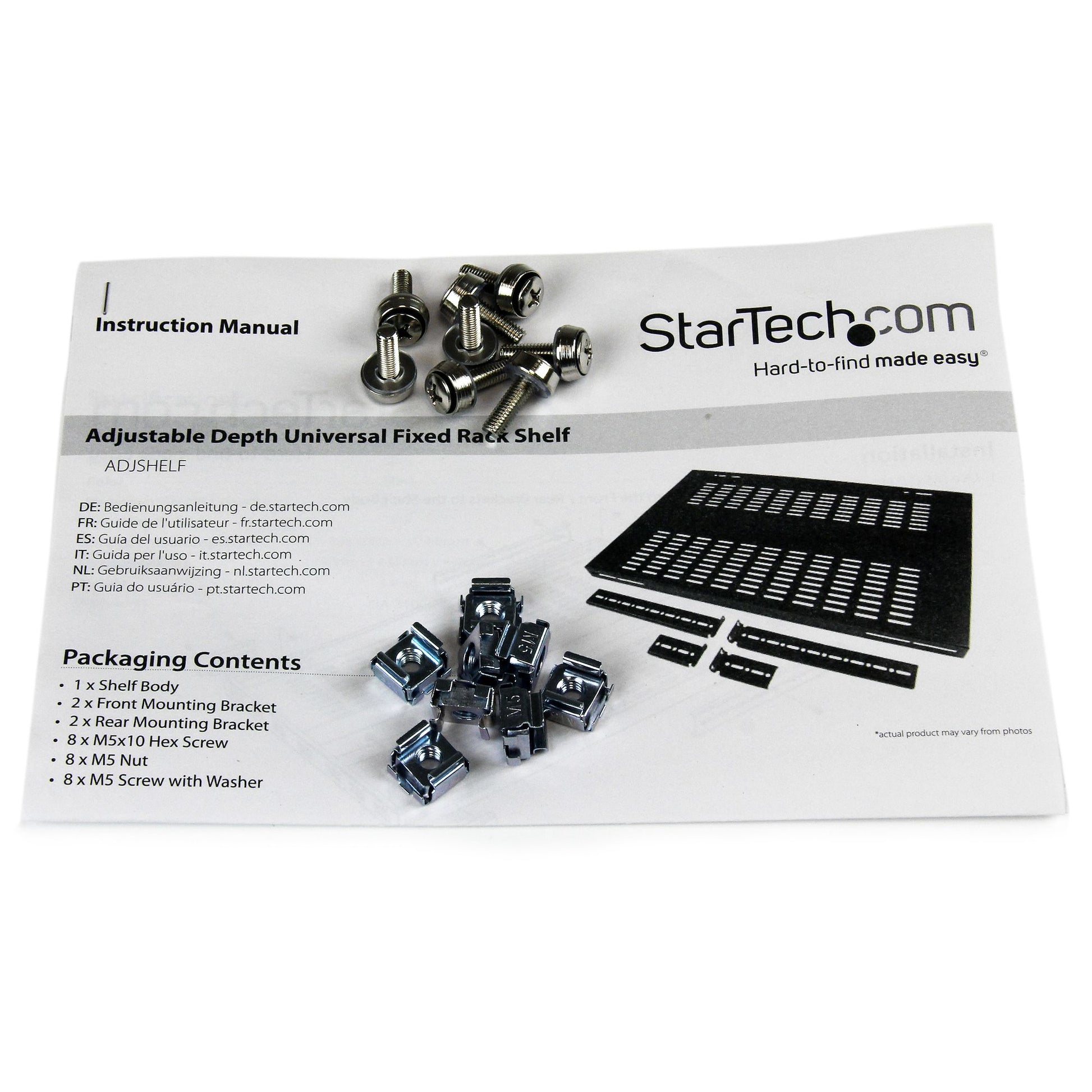

Packaging content
Screws included	Yes
Nuts included	Yes
Number of screws	16
Number of nuts	16
Quick installation guide	Yes
Technical details
Compliance certificates	CE, RoHS
Logistics data
Master (outer) case width	823 mm
Master (outer) case length	501 mm
Master (outer) case height	73 mm
Products per master (outer) case	1 pc(s)

Downloads

• Datasheet (PDF)
• Product manual / brochure (PDF)
