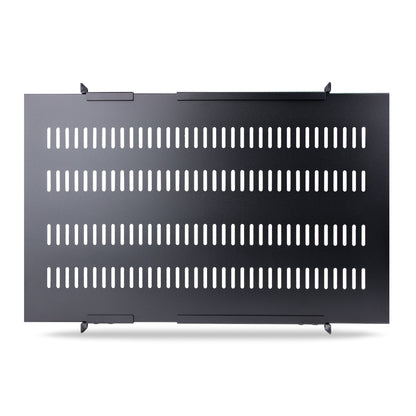

StarTech.com 1U 4-Post Adjustable Vented Server Rack Mount Shelf - 330lbs(150 kg)
StarTech.com 1U 4-Post Adjustable Vented Server Rack Mount Shelf - 330lbs(150 kg)
Regular price
£88.15 GBP
Regular price
Sale price
£88.15 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Build a tidy install with the StarTech.com 1U 4-Post Adjustable Vented — dimensions and mounting details are in the spec table.

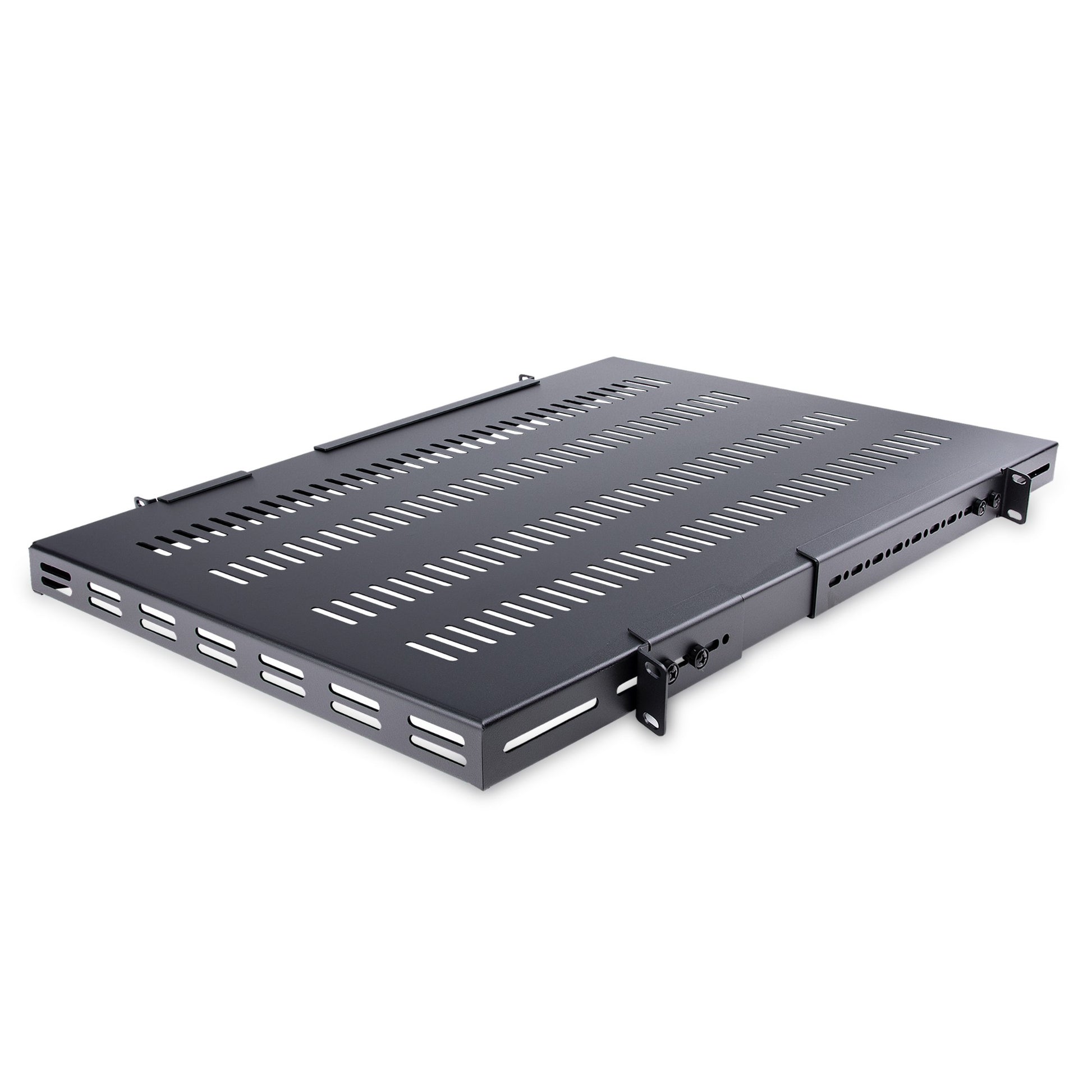

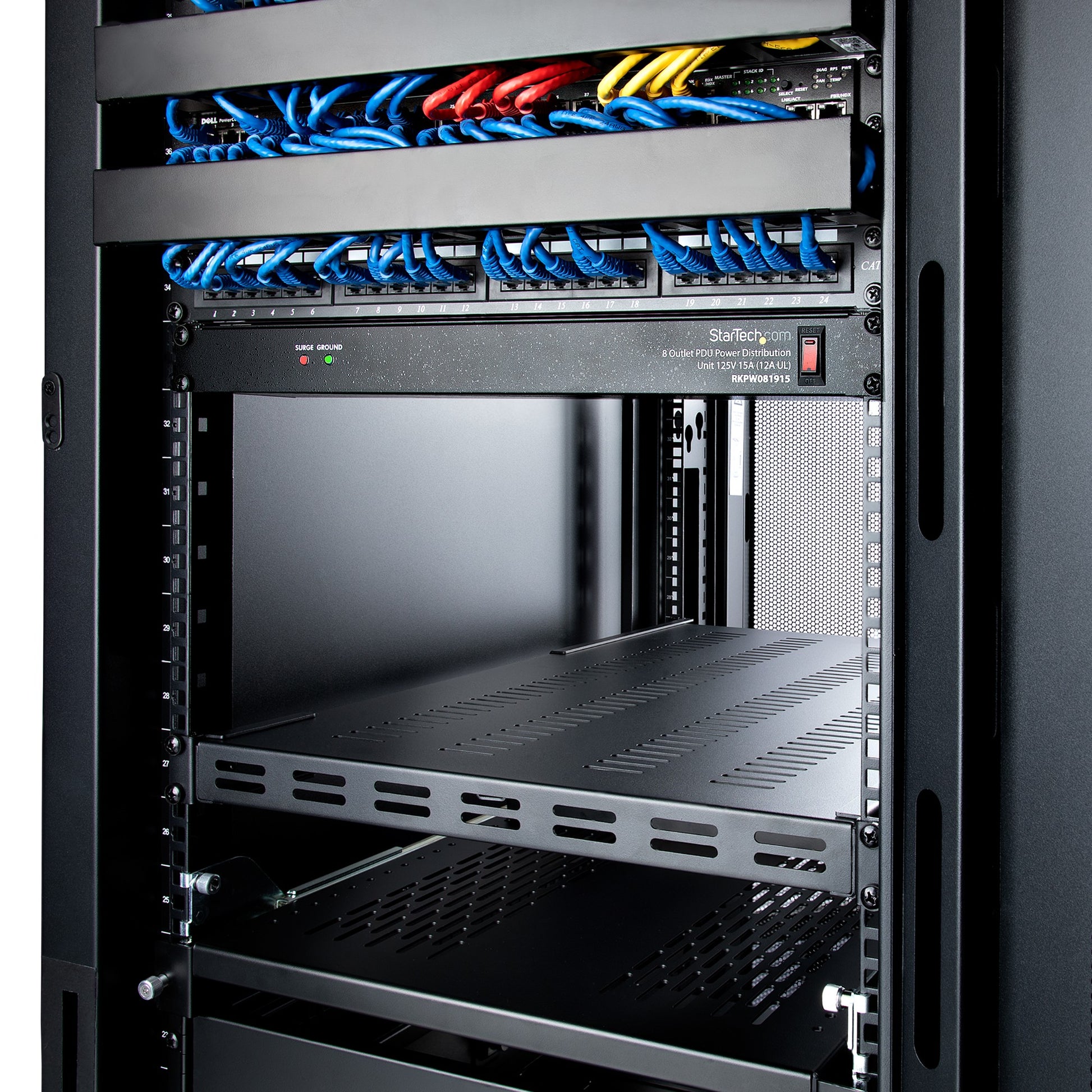

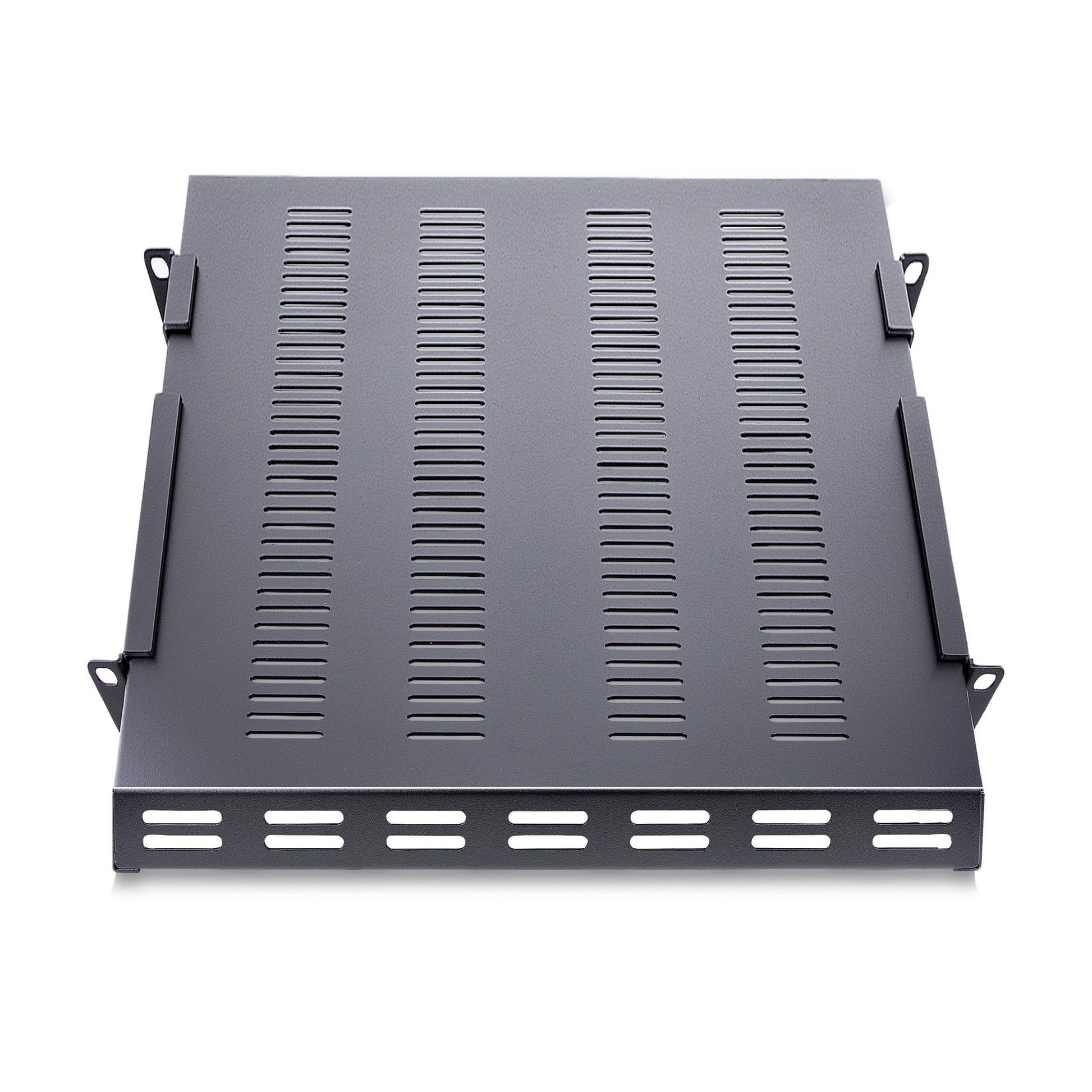

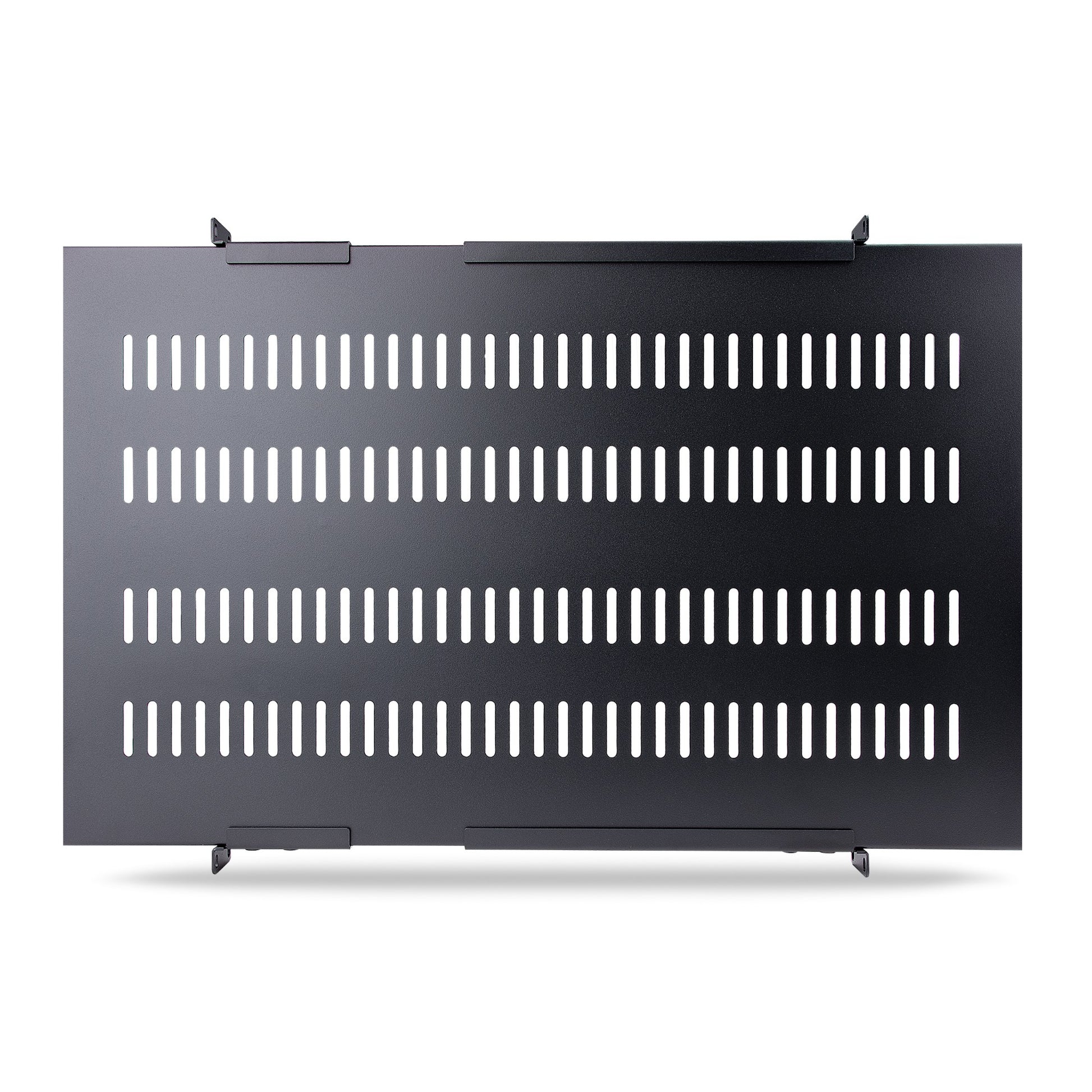

Add an adjustable depth vented shelf into almost any 4-Post server rack or cabinetThe ADJSHELFHDV 1U 4-Post Adjustable Heavy Duty Vented Rack Mount Shelf lets you add a high-capacity, adjustable 1U shelf to virtually any standard 19-inch 4-post server rack or cabinet.

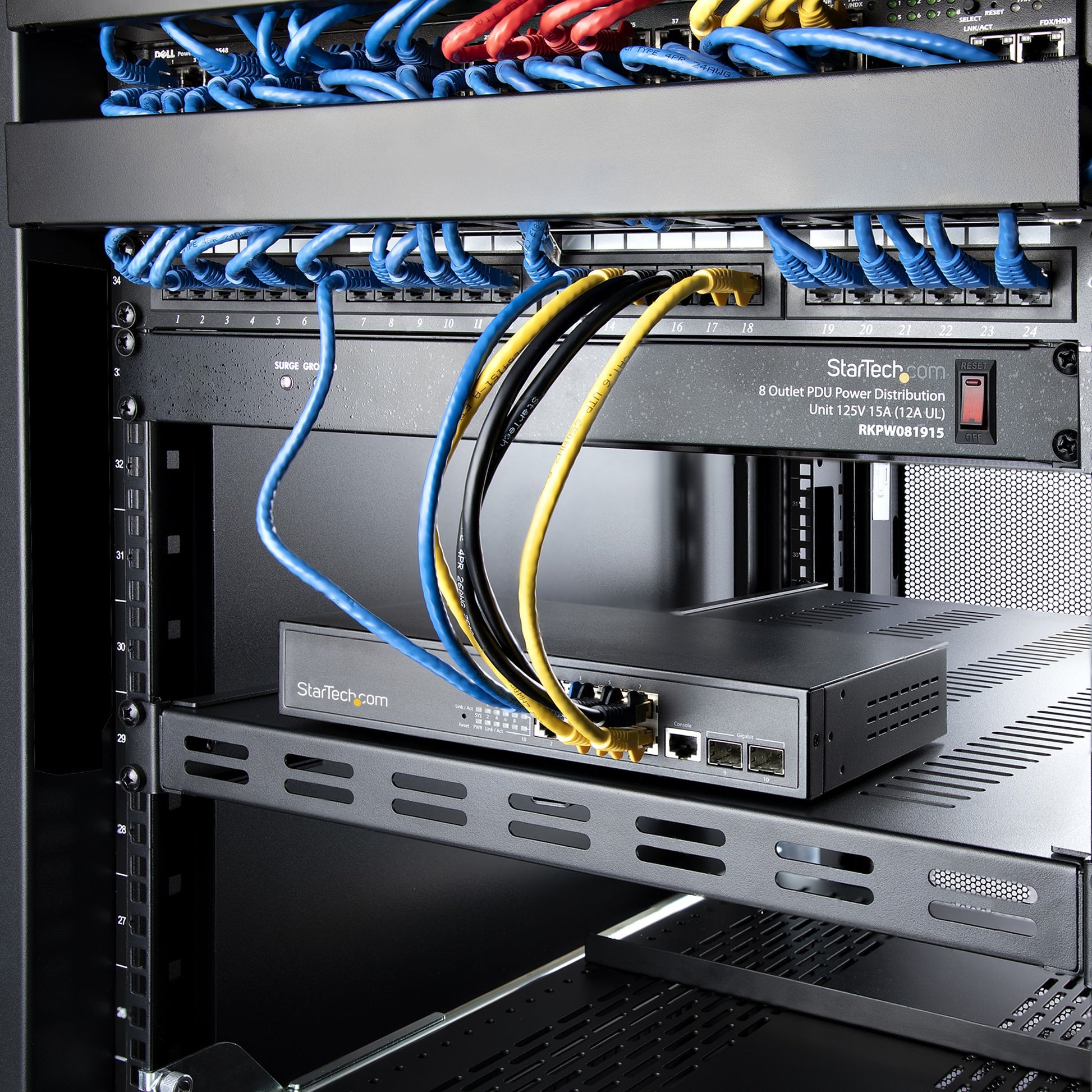

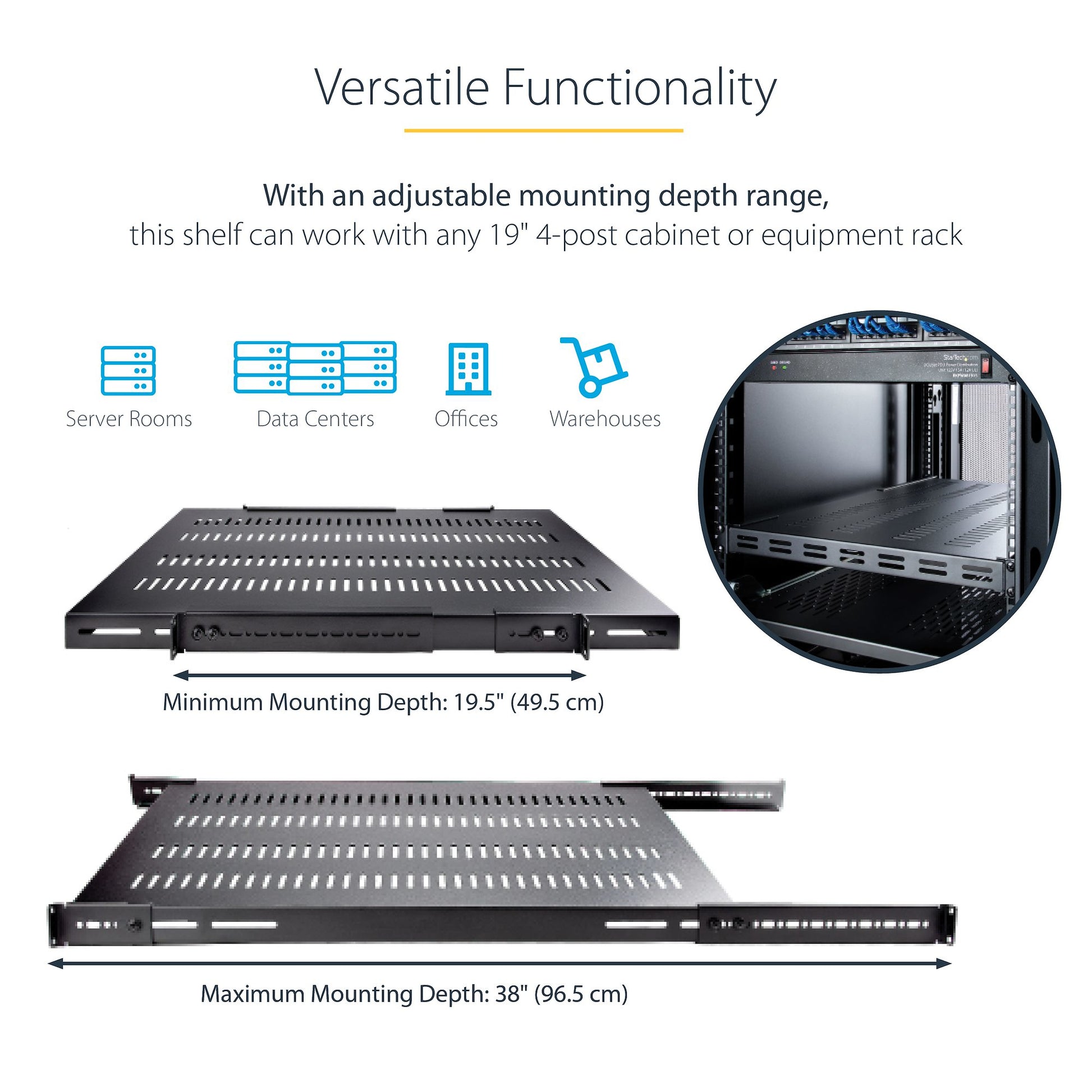

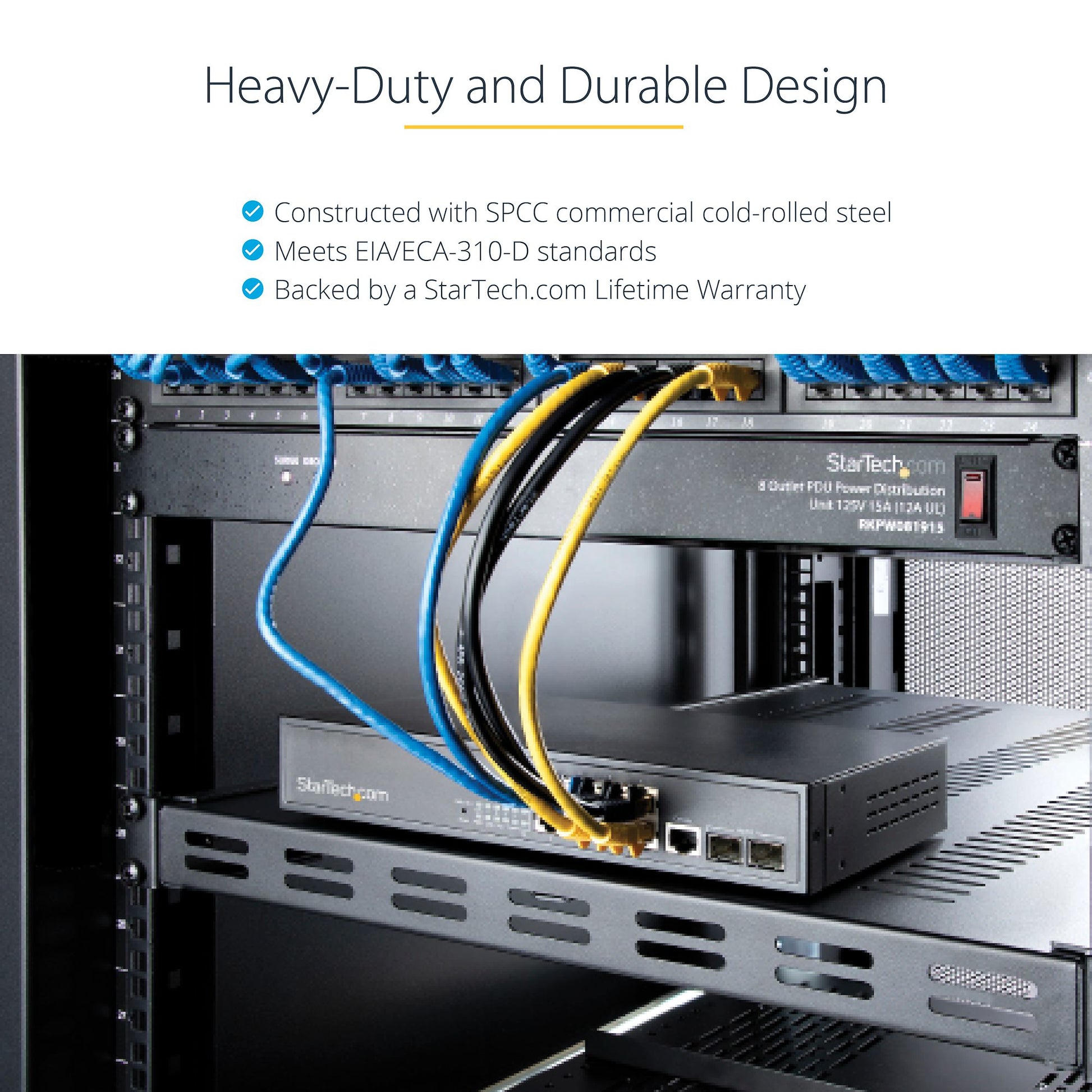

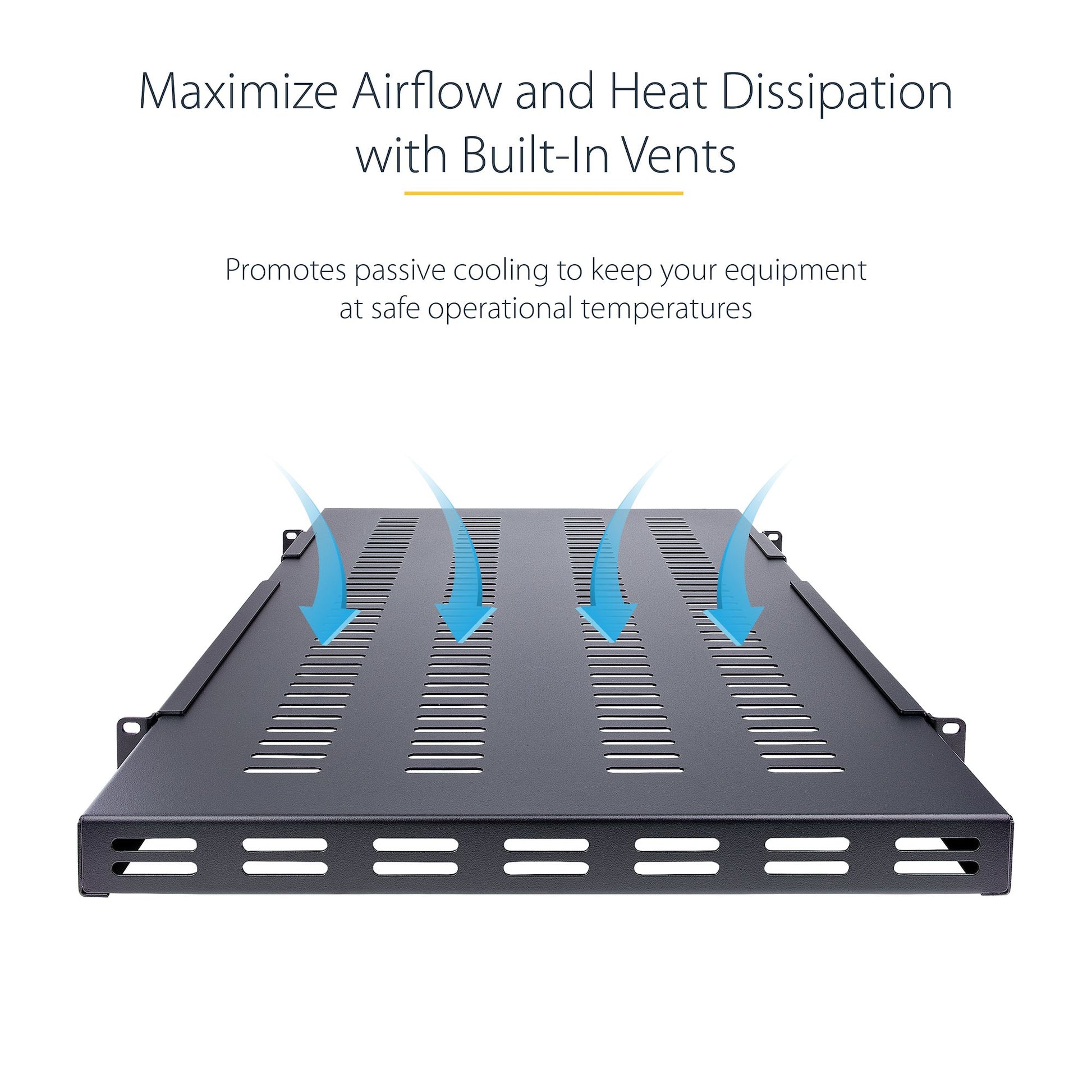

This heavy duty rackmount shelf can be adjusted from 19.5in to 38in (mounting depth) to fit your rack, while the vented design improves air flow and help to lower temperatures in the rack. Constructed using 1.2mm SPCC commercial grade cold-rolled steel, providing the ability to hold up to 150kg (330lbs) of equipment - a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.
The ADJSHELFHDV is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
Specifications
| Features | |
|---|---|
| Type | Adjustable shelf |
| Rack capacity | 1U |
| Maximum weight capacity | 150 kg |
| Product colour | Black |
| Harmonized System (HS) code | 85389099 |
| Housing material | Steel |
| Country of origin | China |
| Weight & dimensions | |
| Package width | 764 mm |
| Package height | 118 mm |
| Package depth | 552 mm |
| Package weight | 6.8 kg |
| Mounting depth (min) | 49.5 cm |
| Mounting depth (max) | 97.4 cm |
| Material thickness | 1.2 mm |
| Width | 483 mm |
| Weight | 5.7 kg |
| Height | 44 mm |
| Depth | 700 mm |
| Packaging content | |
| Screws included | Yes |
| Mounting kit | Yes |
| Number of screws | 16 |
| Washers included | Yes |
| Number of washers included | 8 |
| Number of cage nuts | 8 |
| Cage nuts included | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, CE |
| Logistics data | |
| Master (outer) case width | 786 mm |
| Master (outer) case length | 608 mm |
| Master (outer) case height | 581 mm |
| Products per master (outer) case | 5 pc(s) |
