StarTech.com 1U 4-Post Adjustable Server Rack Mount Shelf - 330lbs(150 kg) - 19.5 to

StarTech.com 1U 4-Post Adjustable Server Rack Mount Shelf - 330lbs(150 kg) - 19.5 to

Regular price £80.77 GBP
Regular price Sale price £80.77 GBP
Sale Sold out
Taxes included.
Condition
Quantity

Build a tidy install with the StarTech.com 1U 4-Post Adjustable Server — dimensions and mounting details are in the spec table.

Add a high capacity, adjustable depth fixed shelf into almost any 4-Post server rack or cabinet

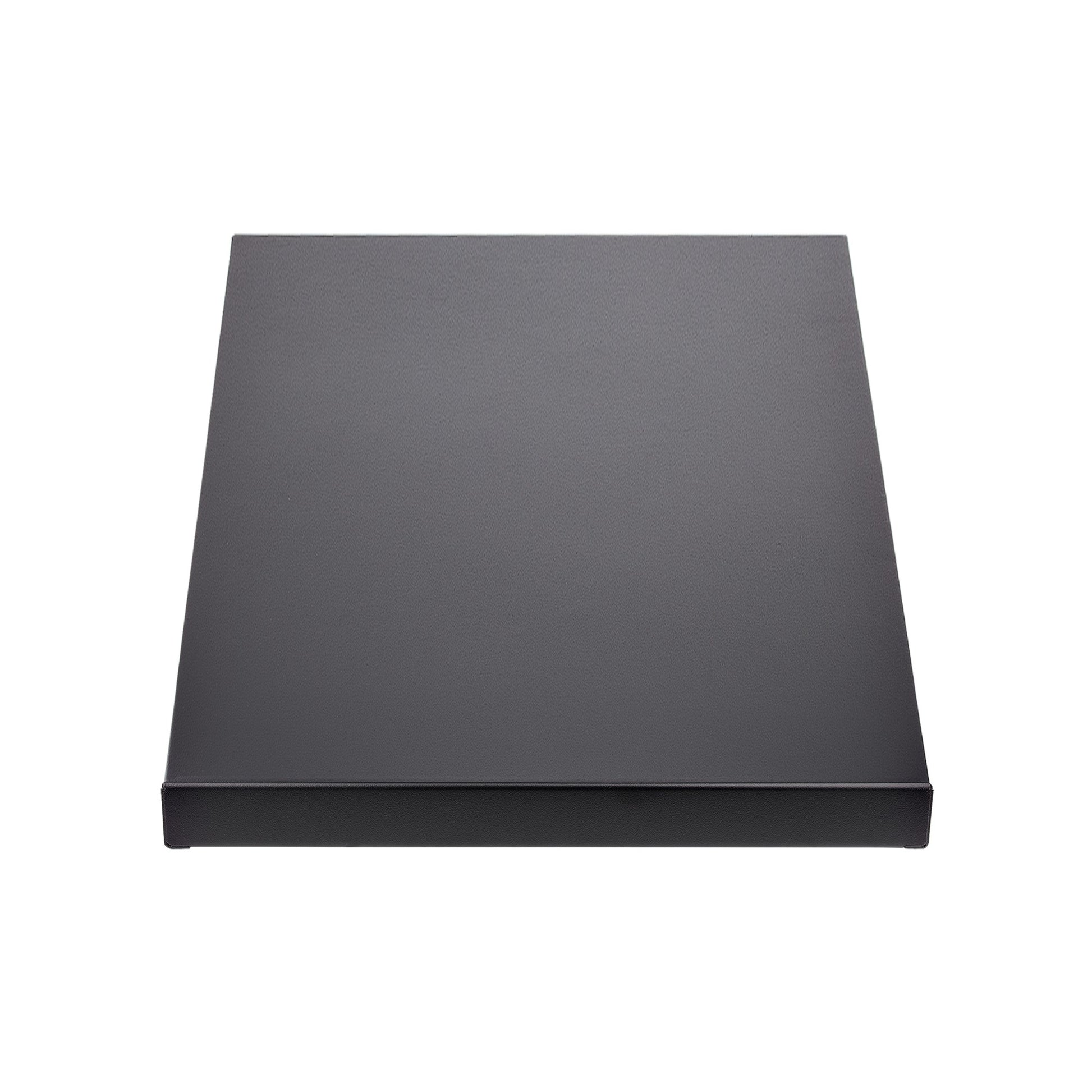

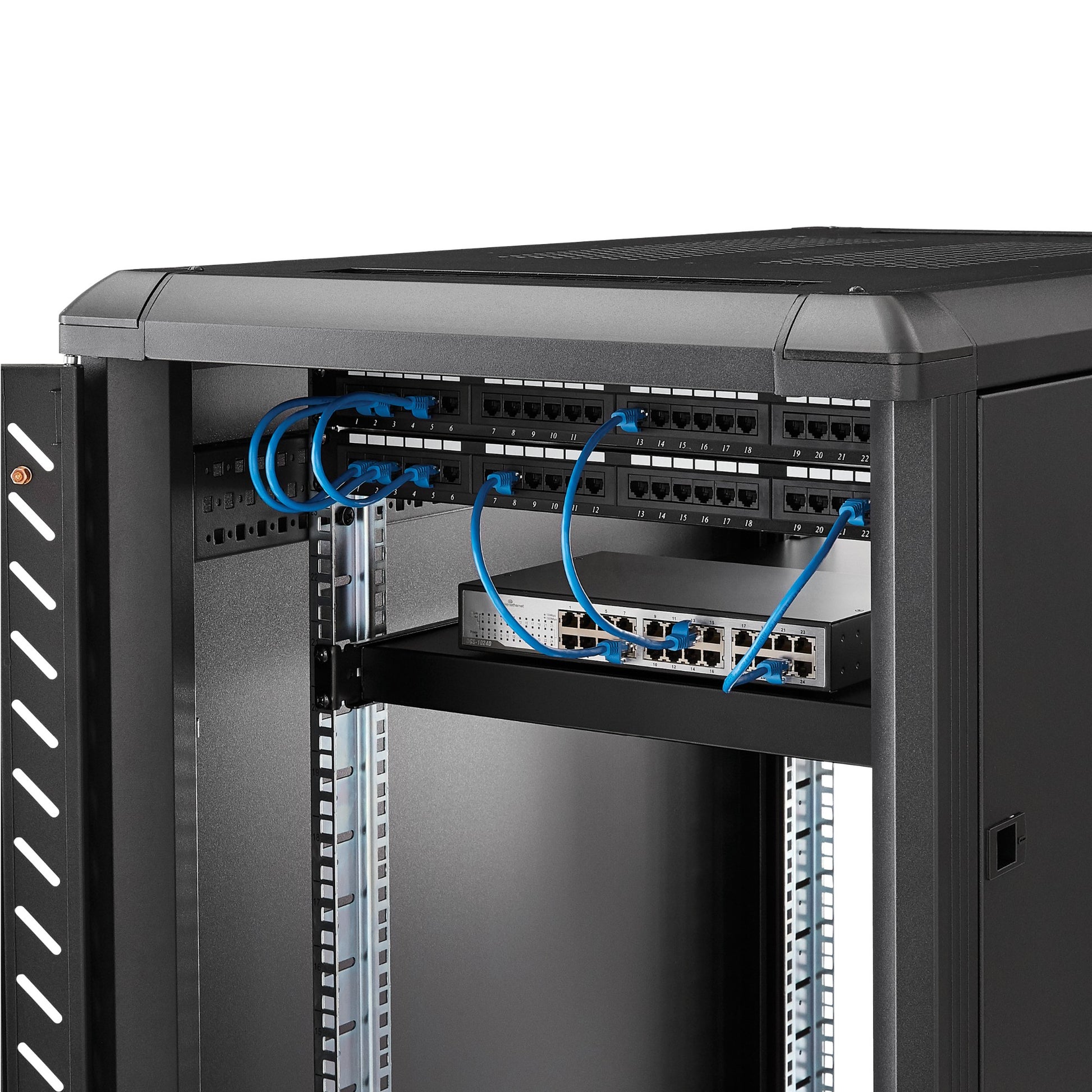

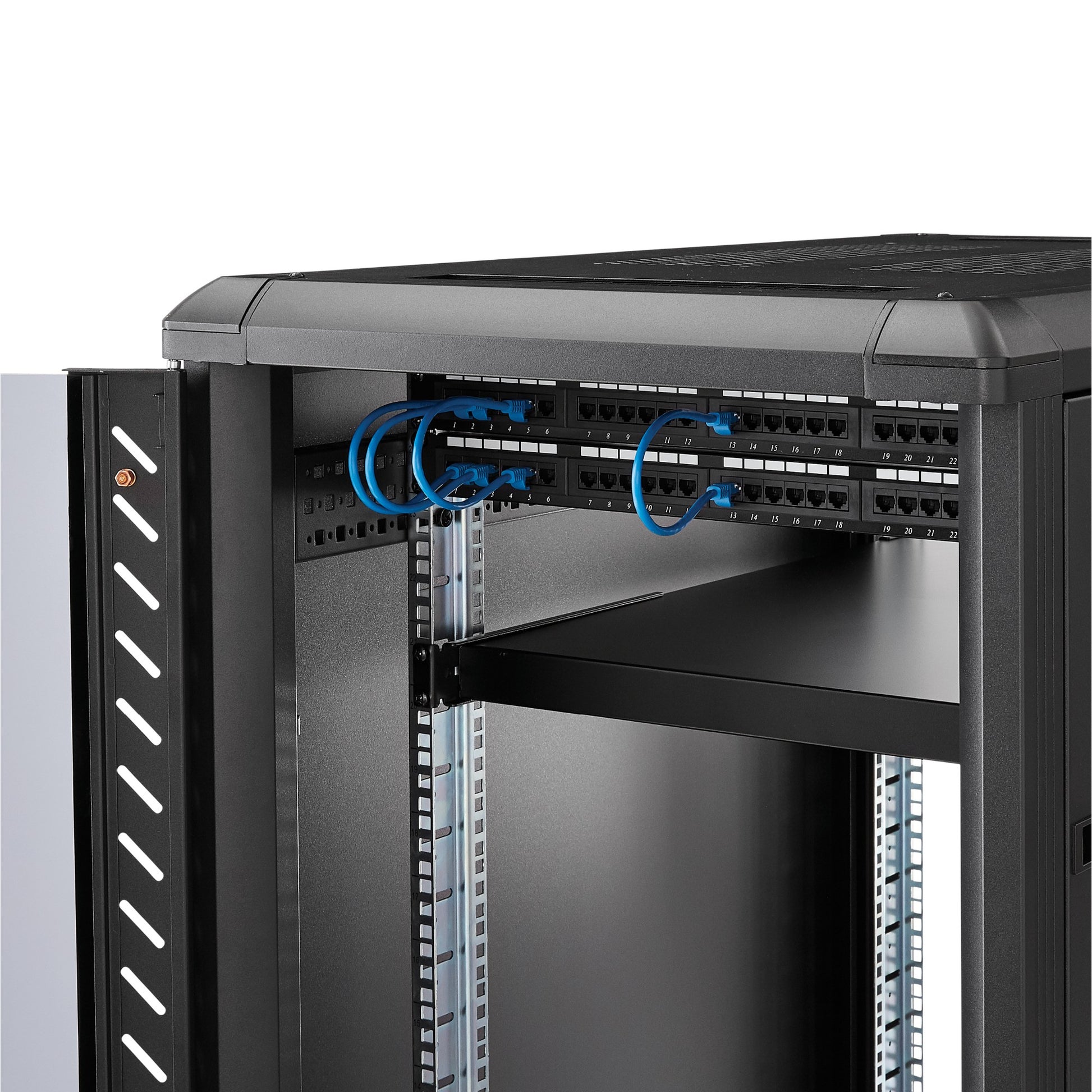

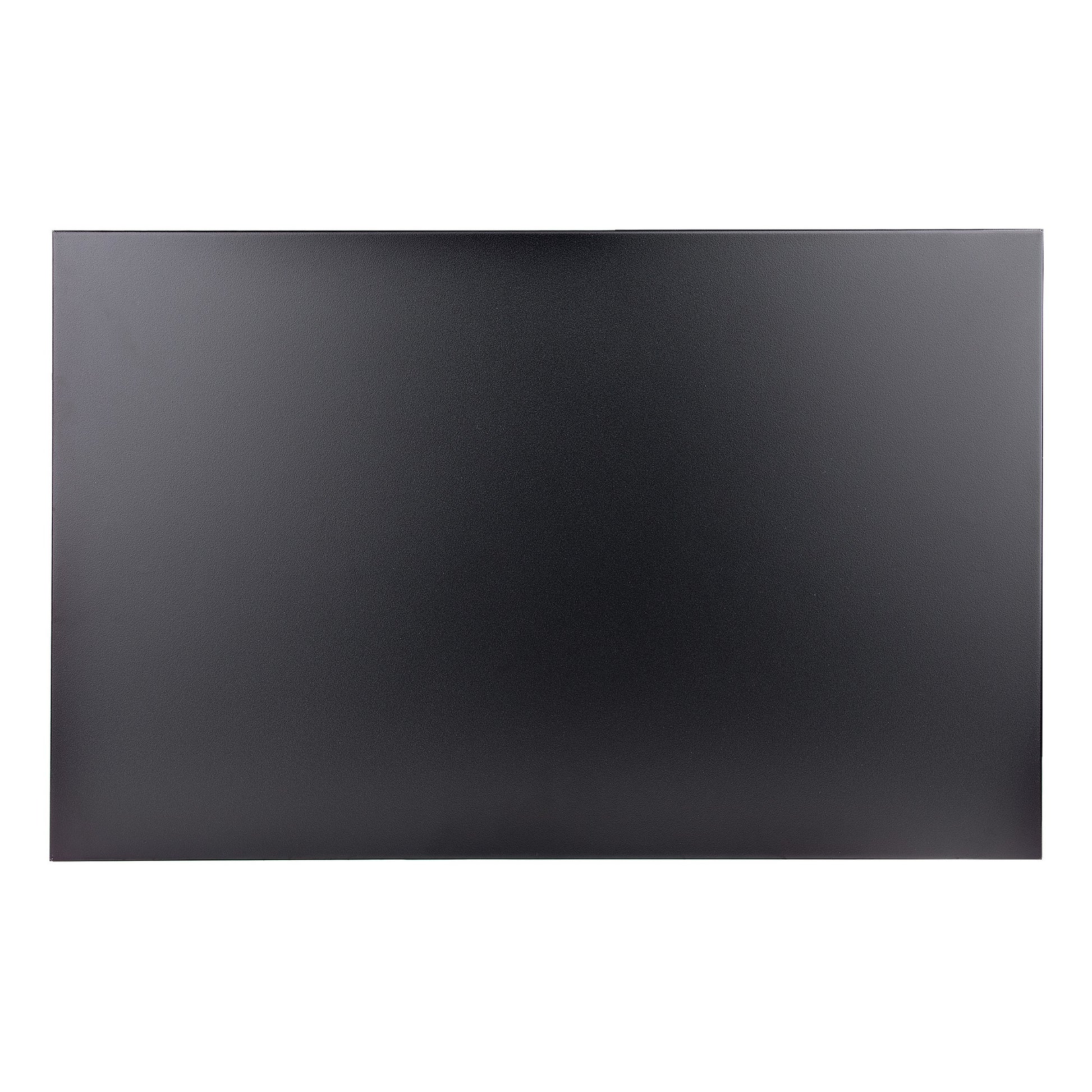

The ADJSHELFHD 1U 4-post Adjustable Heavy Duty Fixed Rack Mount Shelf lets you add a high-capacity, adjustable 1U shelf to virtually any standard 4-post 19-inch server rack or cabinet.

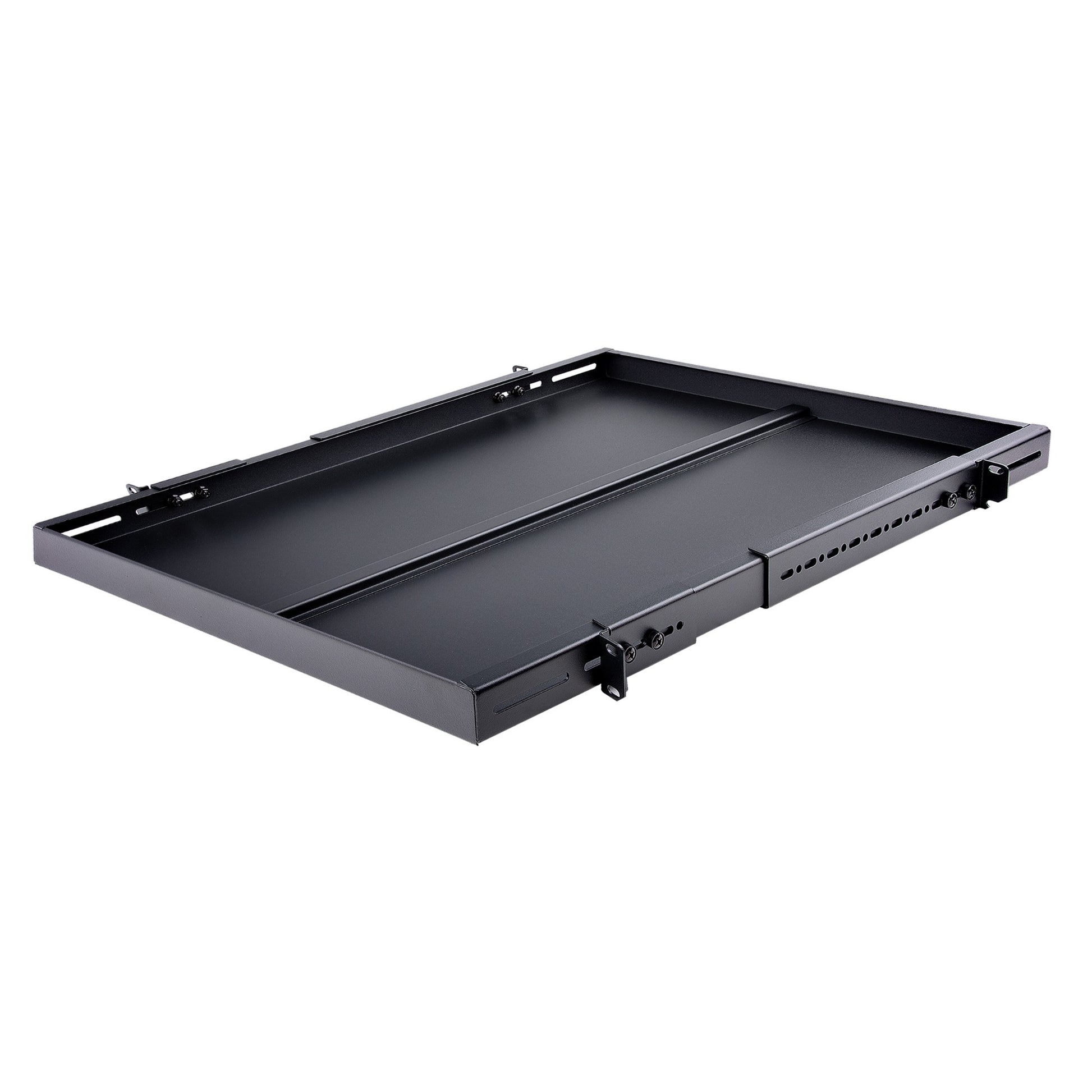

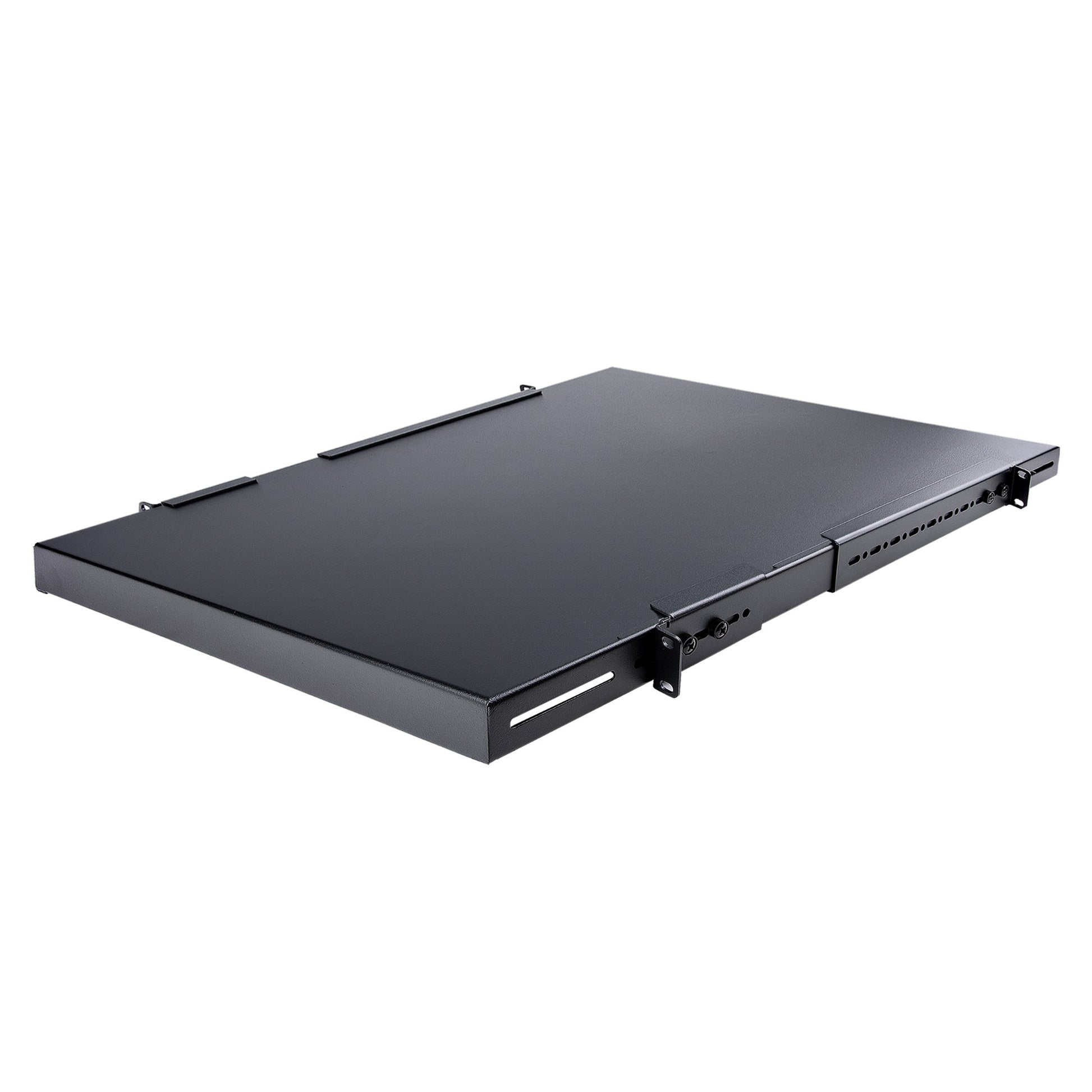

This heavy duty rackmount shelf can be adjusted from 19.5in to 38in (mounting depth) to fit your rack. Constructed using 1.0mm SPCC commercial grade cold-rolled steel, providing the ability to hold up to 150kg (330lbs) of equipment - a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.

The ADJSHELFHD is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

Specifications

Features
Type Adjustable shelf
Rack capacity 1U
Maximum weight capacity 150 kg
Product colour Black
Compliance industry standards EIA RS310-D
Harmonized System (HS) code 85389099
Housing material Steel
Country of origin China

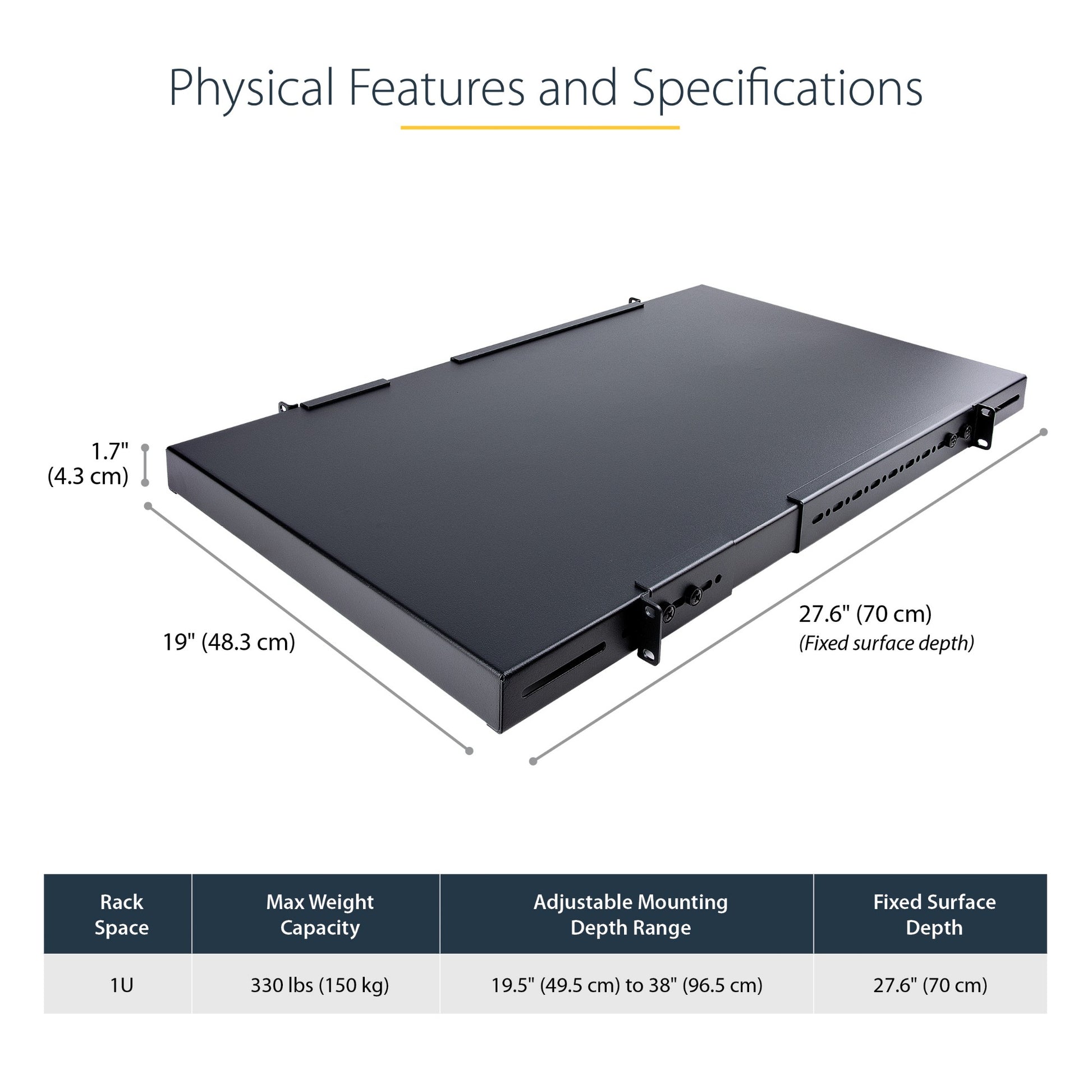

Weight & dimensions
Package width 764 mm
Package height 113 mm
Package depth 538 mm
Package weight 6.8 kg
Mounting depth (min) 49.5 cm
Mounting depth (max) 97.4 cm
Material thickness 1 mm
Width 483 mm
Weight 6.2 kg
Height 44 mm
Depth 700 mm

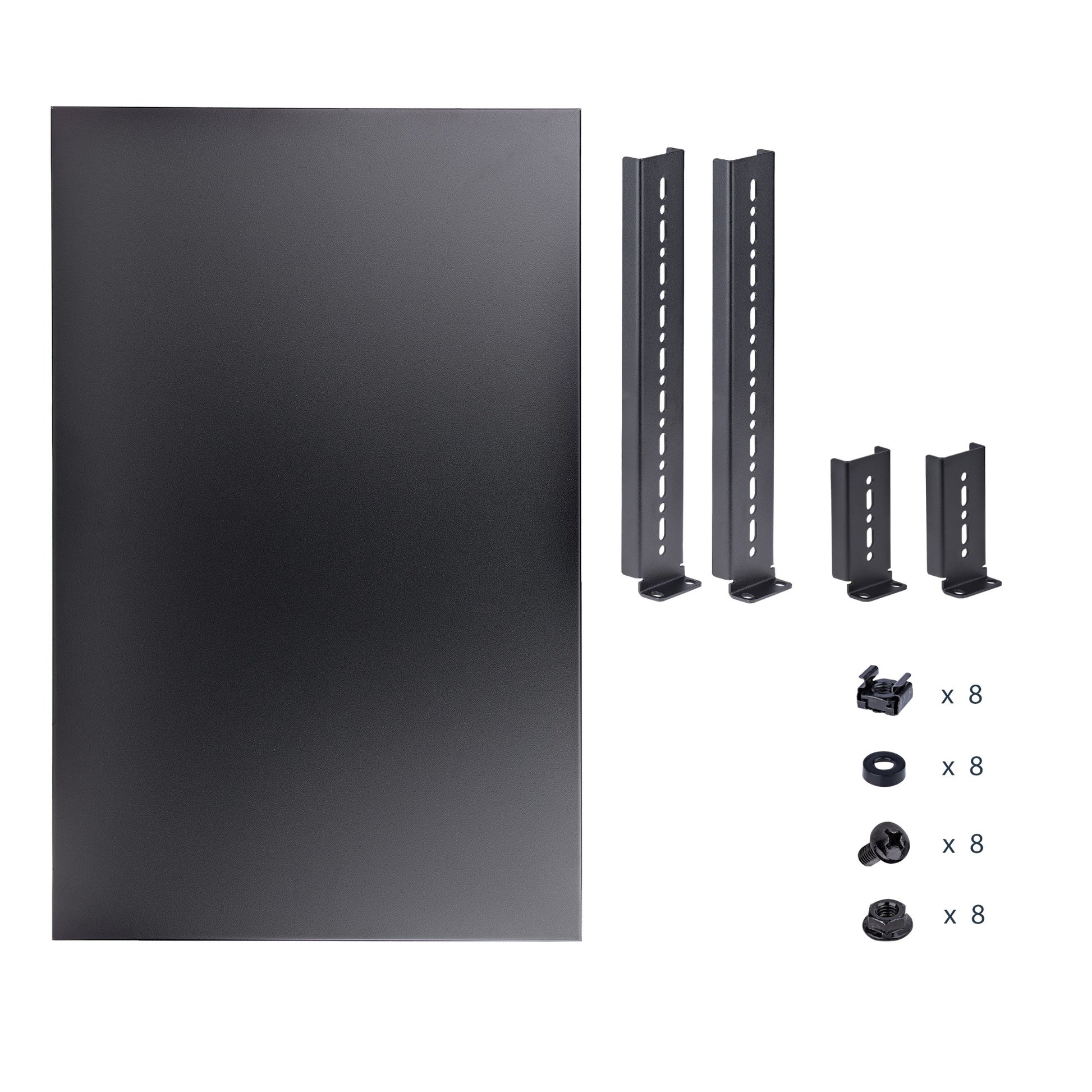

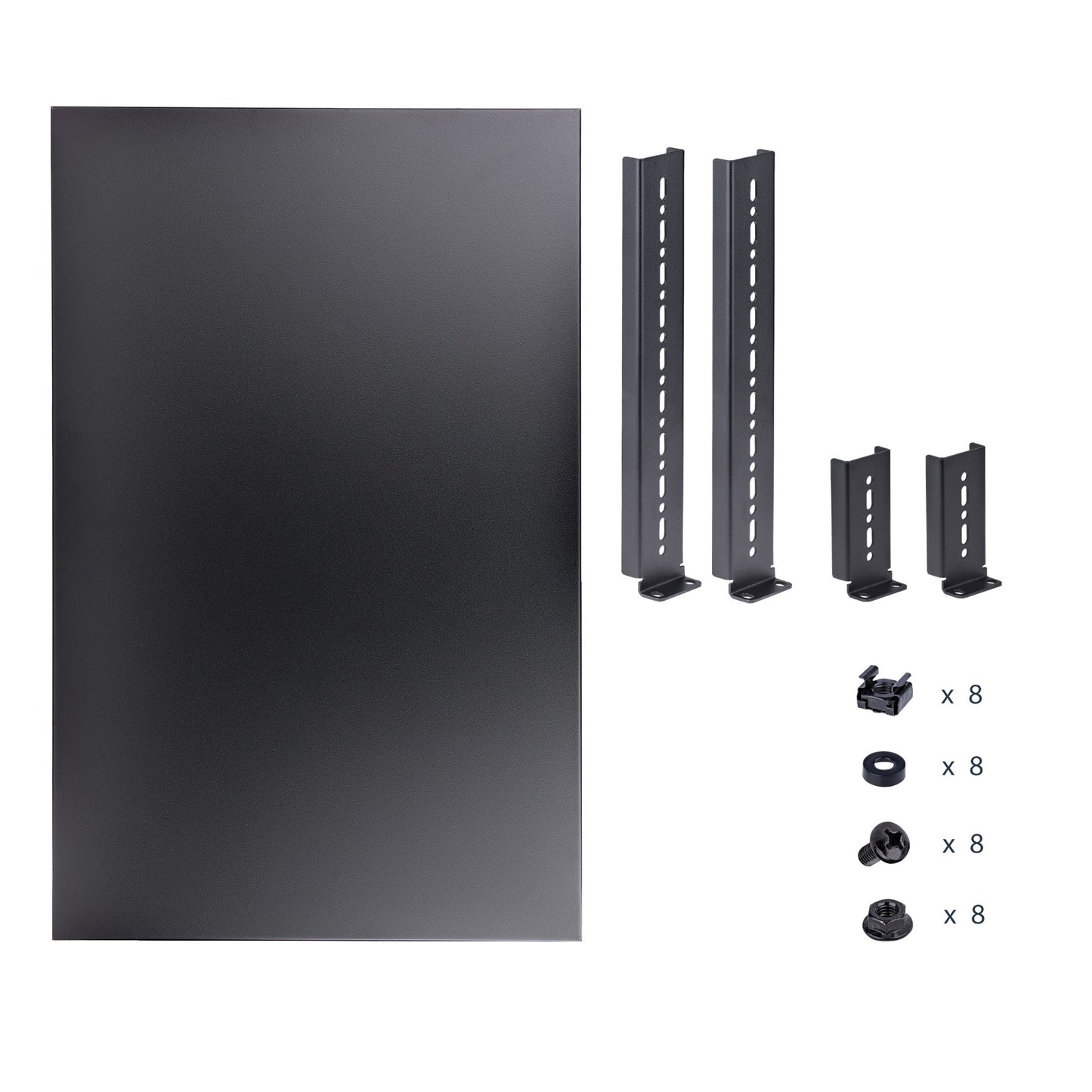

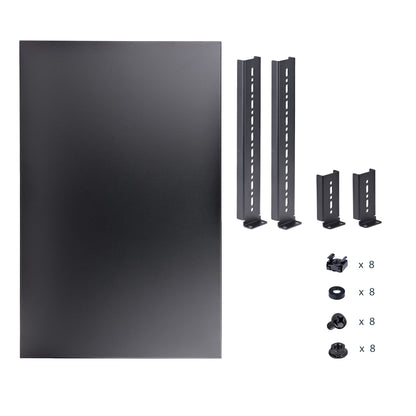

Packaging content
Screws included Yes
Mounting kit Yes
Number of screws 16
Quick installation guide Yes
Washers included Yes
Number of washers included 8
Number of cage nuts 8
Cage nuts included Yes
Technical details
Sustainability compliance Yes
Compliance certificates CE, RoHS
Logistics data
Master (outer) case width 784 mm
Master (outer) case length 555 mm
Master (outer) case height 578 mm
Products per master (outer) case 5 pc(s)
