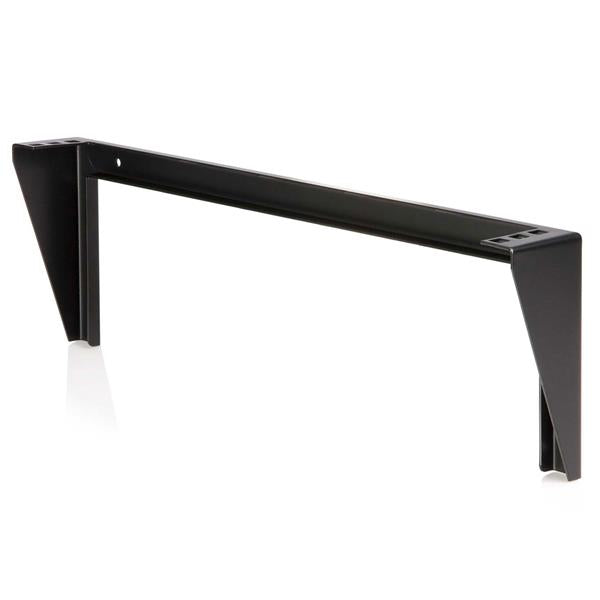

StarTech.com 1U 19in Steel Vertical Wall Mount Equipment Rack Bracket - TAA

Build a tidy install with the StarTech.com 1U 19in Steel Vertical — dimensions and mounting details are in the spec table.

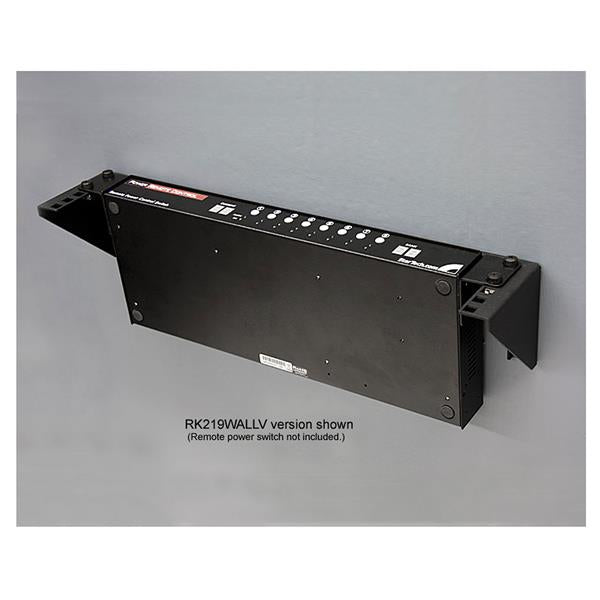

Mount a server, network or telecommunications device vertically with this 1U wall-mountable rack

The RK119WALLV 1U 19in Steel Vertical Wall Mount Equipment Rack Bracket offers a versatile storage solution allowing rackmount equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with wall) to save space. Alternatively, the 1U bracket can be installed horizontally under a desk, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Perfect for SoHo (small office, home office) environments, the wallmount bracket features a sturdy steel design constructed to EIA-310 19in rack standards, and offers space-savings for environments lacking the footprint space for a full size server equipment rack. Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes are positioned at exactly 16in apart, matching standard construction framework.

Backed by a StarTech.com Lifetime Warranty.

Need more storage space? StarTech.com also offers a 2U 19in Wallmount Bracket, a 3U 19in Wallmount Bracket and a 4U 19in Wallmount Bracket.

Specifications

Features
Certification	CE, UL
Size (imperial)	48.3 cm (19")
Rack capacity	1U
Maximum weight capacity	56.7 kg
Product colour	Black
Harmonized System (HS) code	85389099
Weight & dimensions
Package width	541 mm
Package height	84 mm
Package depth	173 mm
Package weight	973.86 g
Width	504 mm
Weight	660 g
Height	151 mm
Depth	60 mm
Packaging data
Quantity per pack	1 pc(s)
Packaging content

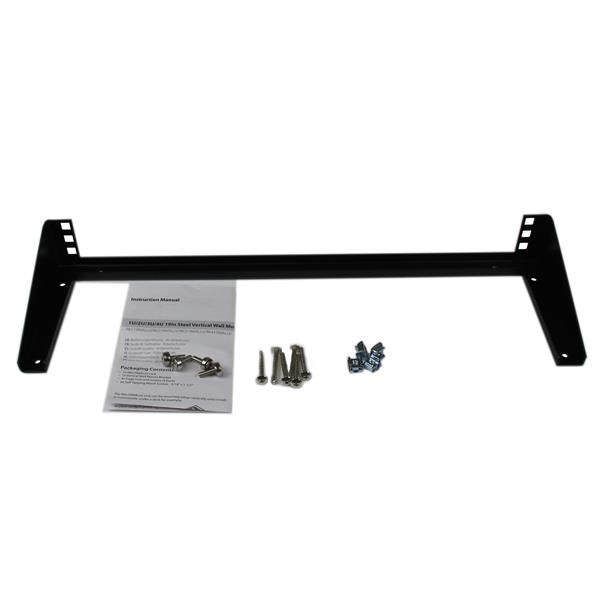

Screws included	Yes
Technical details
Compliance certificates	RoHS
Logistics data
Master (outer) case width	494 mm
Master (outer) case length	542 mm
Master (outer) case height	384 mm
Products per master (outer) case	10 pc(s)
