StarTech.com 1U 19" Cable Management Organizer - D Ring Hook Network/Server Rack

Build a tidy install with the StarTech.com 1U 19" Cable Management — dimensions and mounting details are in the spec table.

Use this 1U server rack cable-management panel with pass-thru routing holes to organize network server and KVM cabling in your rack

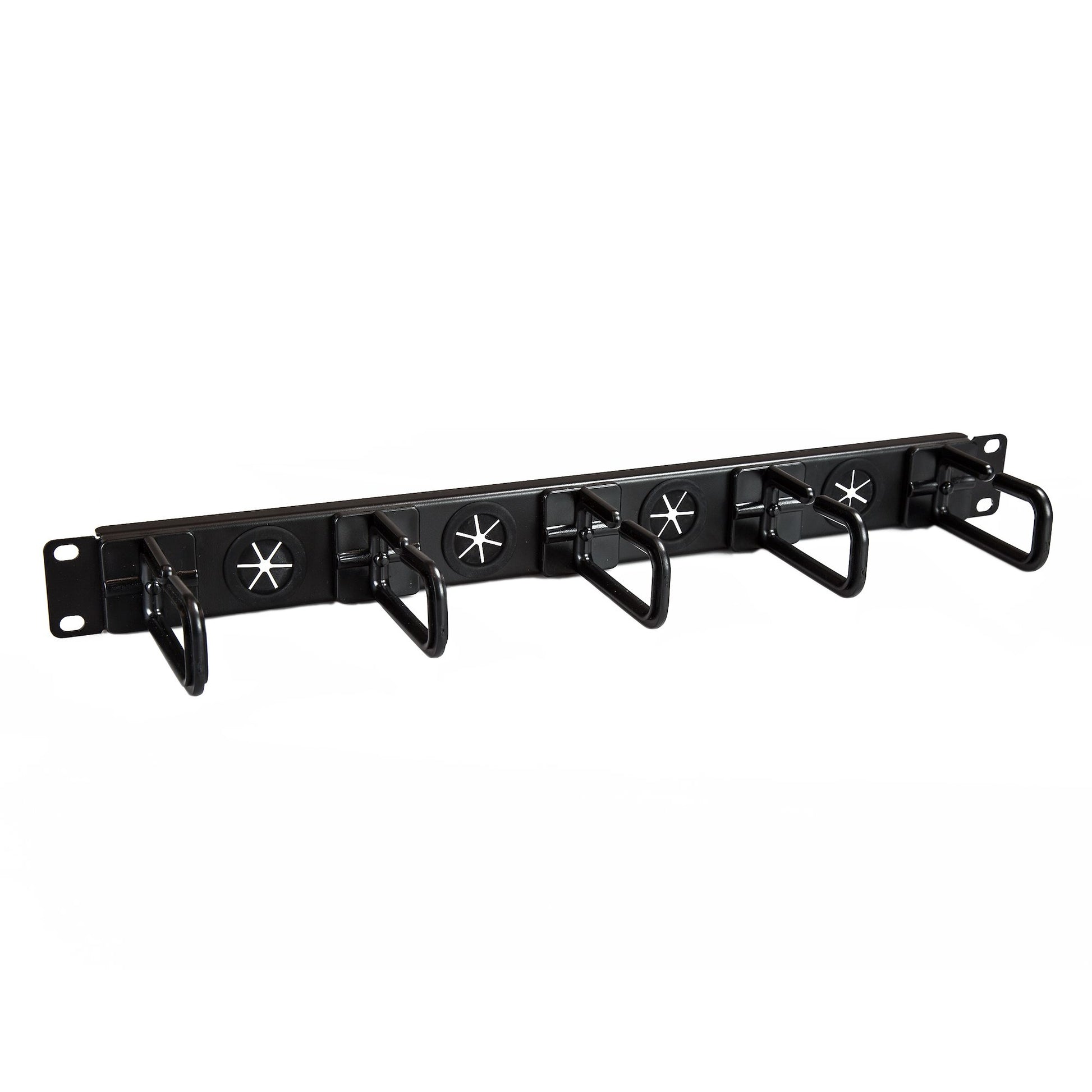

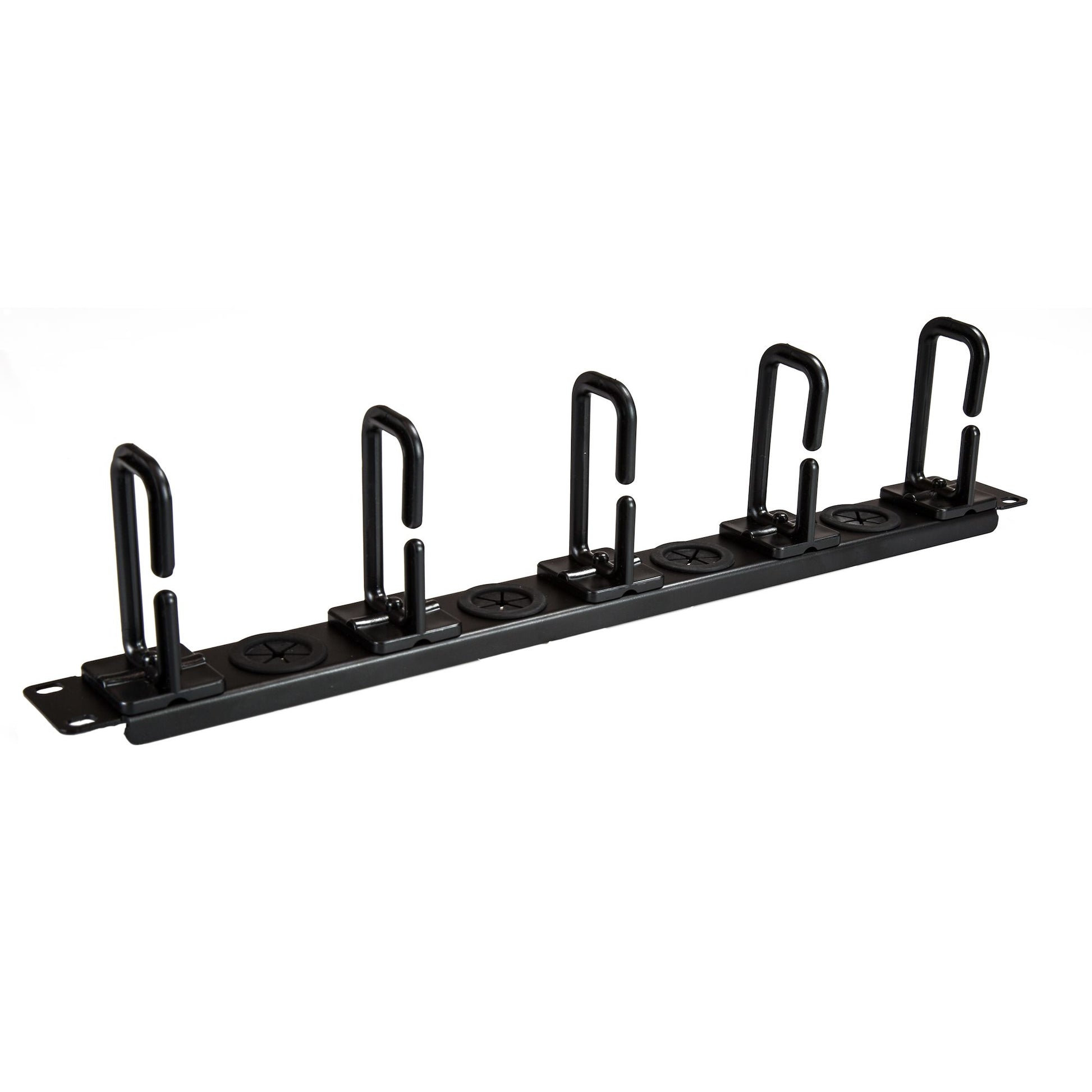

This server rack cable-management panel keeps your rack cables neatly bundled and guided, for tidier rack space. The 1U cable organizer features a combination of D-ring hooks and pass-through holes that enable you to run cables to and from your equipment through the panel and into the hooks.

Easily organize your cables for a more manageable server rack

The rack-cable management panel makes it easier to organize cables from the front or back of your server rack. It features five conveniently placed D-ring hooks that you can use to hold and guide cable bundles running vertically and horizontally. To bundle and route cables through the panel, the cable manager also features four holes designed to seamlessly route cables in and out of your rack.

1U design saves U space

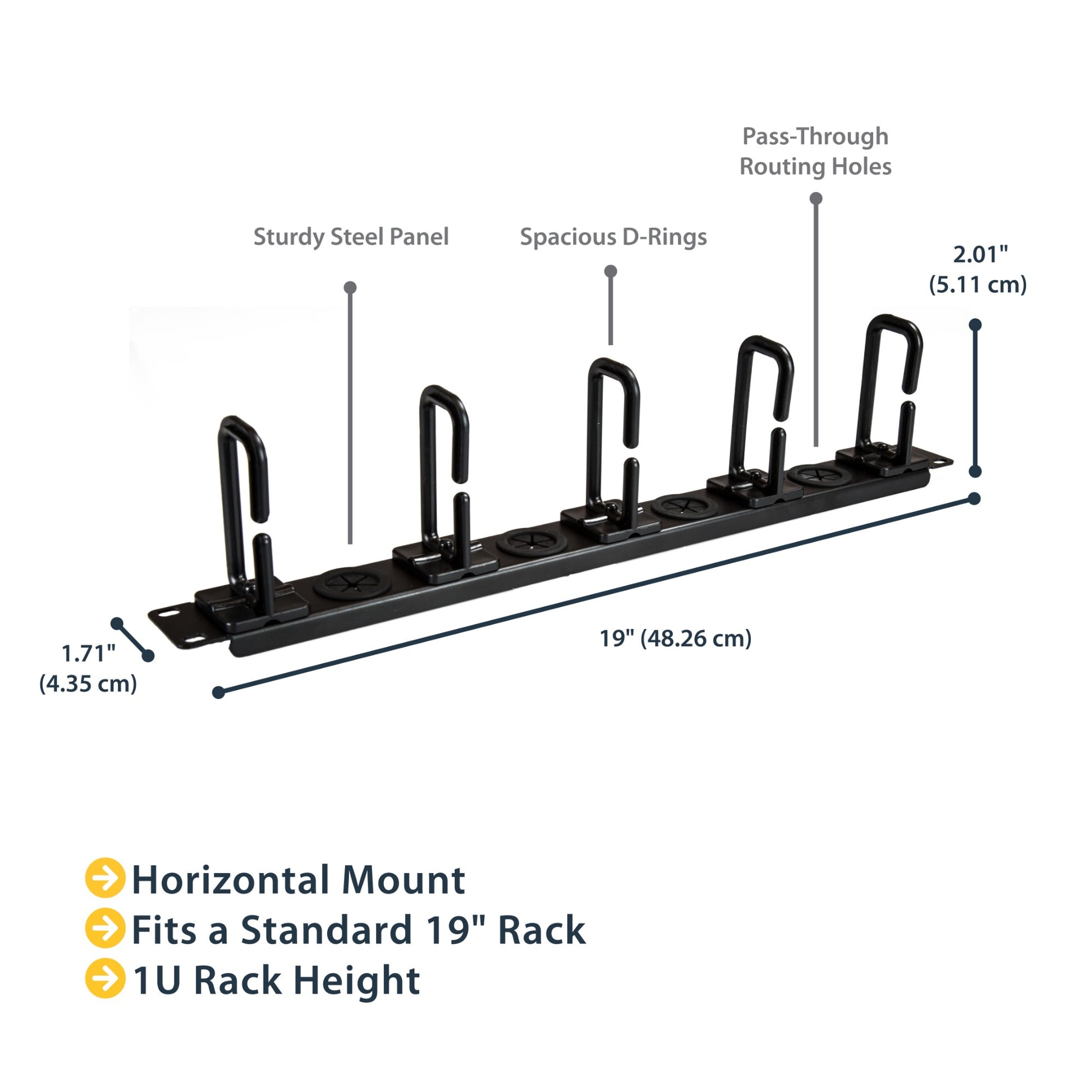

This cable management panel saves rack space with a 1U design. Despite the panel’s low-profile it still provides plenty of cable management, with a combination of five D-ring hooks and four cable holes.

Protect your equipment

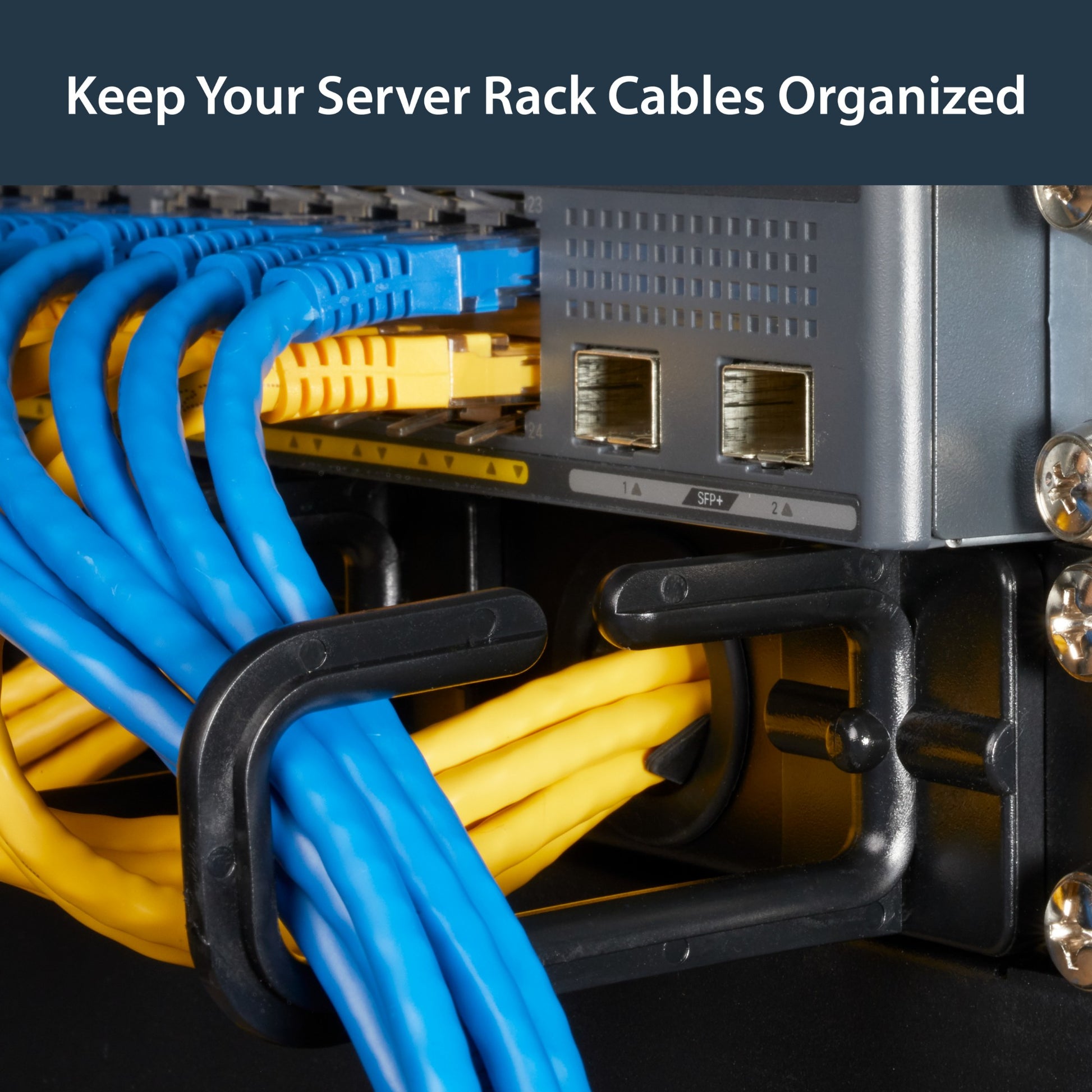

Routing your cables through a panel reduces the tension that's often put on equipment ports, preventing damage to your expensive rack-mounted devices. Properly routing cables also improves airflow in your server rack, which helps to keep your equipment running at optimal temperatures to reduce the probability of damage caused by your rack overheating.

Note: Power cables may not fit through the holes on this panel.

The CABLMANAGERH is backed by a 5-year StarTech.com warranty and free lifetime technical support.

Specifications

Features
Type	Cable management panel
Rack capacity	1U
Product colour	Black
Compliance industry standards	EIA/ECA-310-E
Harmonized System (HS) code	85389099
Weight & dimensions
Package width	553 mm
Package height	71 mm
Package depth	138 mm
Package weight	700 g
Width	44 mm
Weight	424 g
Height	102 mm
Depth	483 mm
Packaging data
Quantity per pack	1 pc(s)

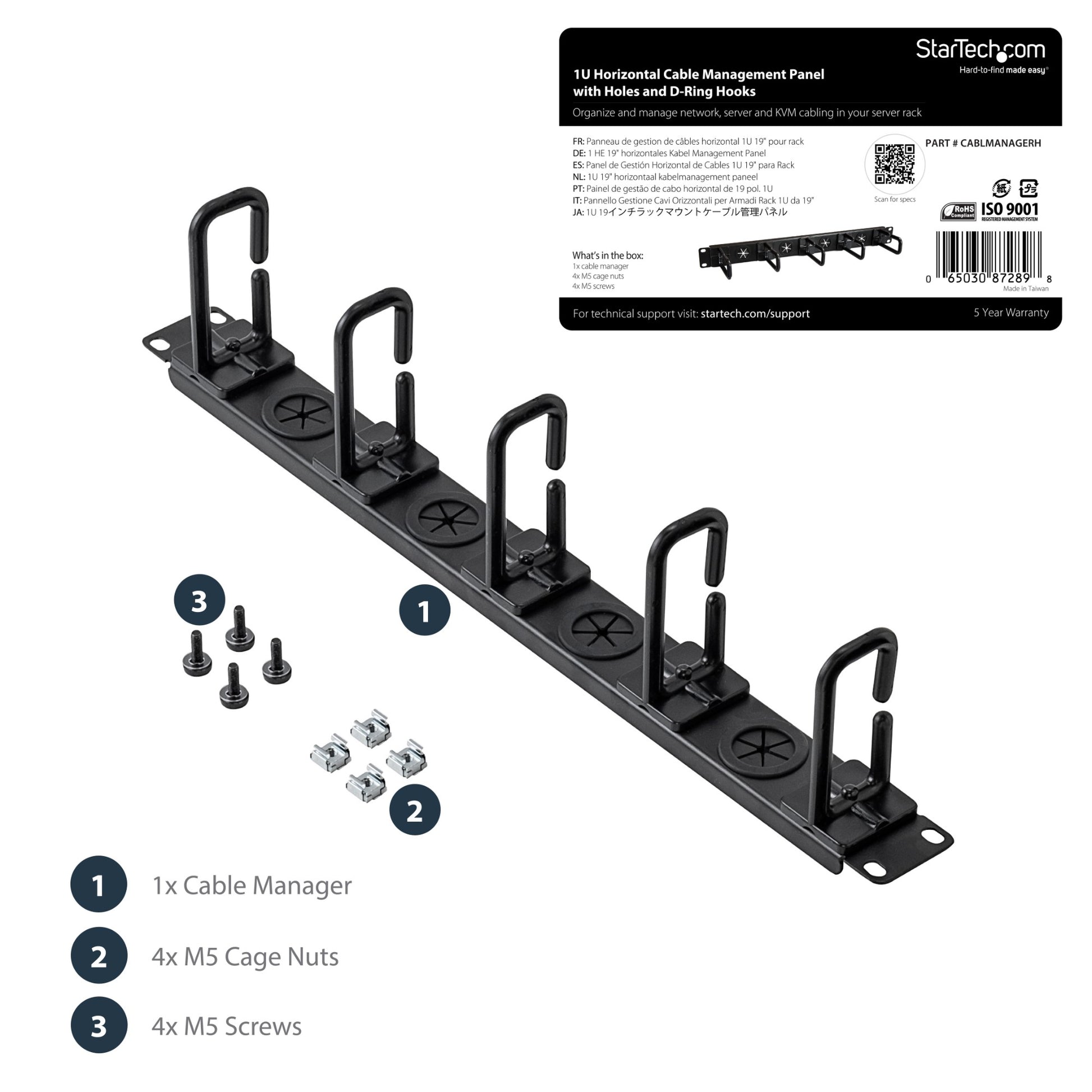

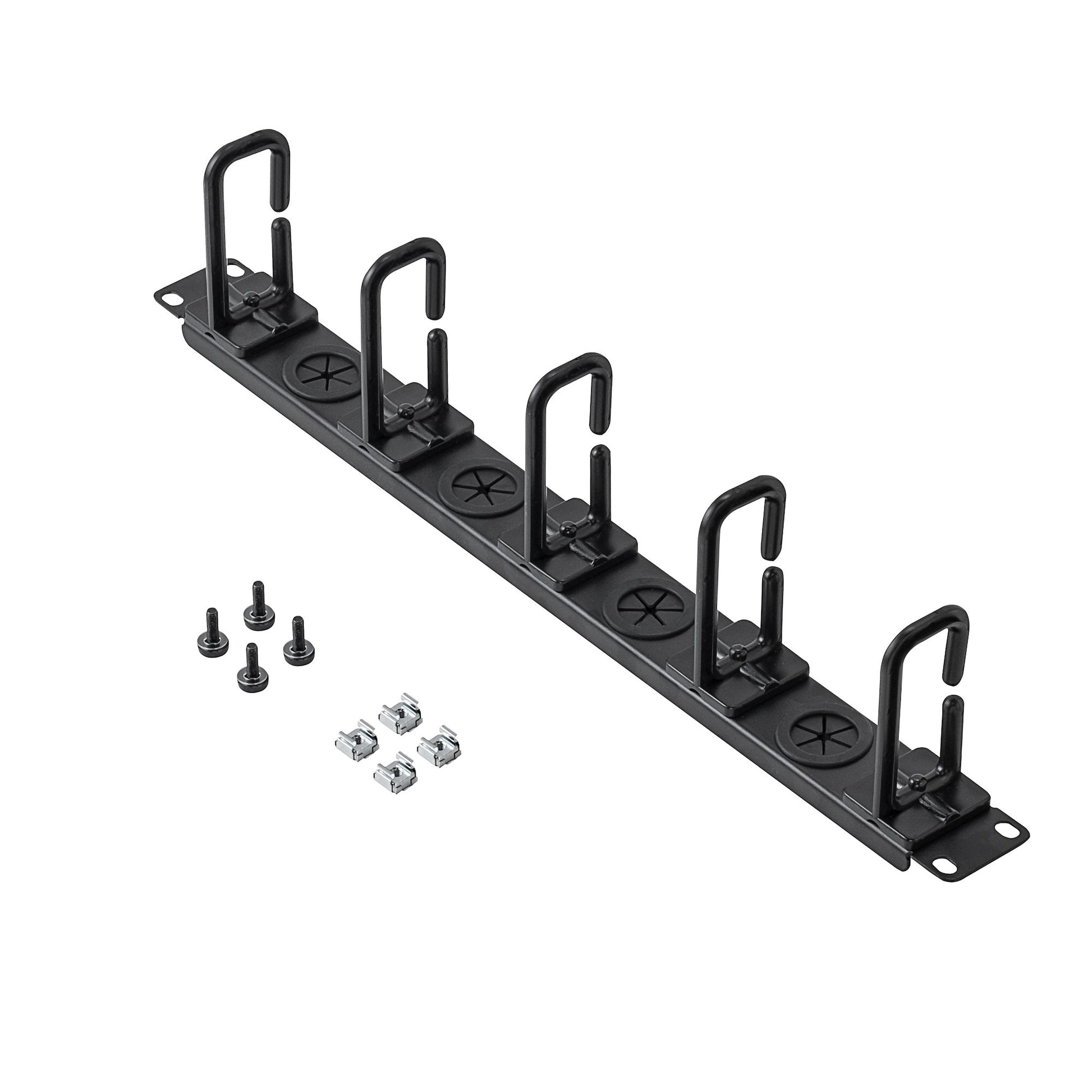

Packaging content
Screws included	Yes
Mounting kit	Yes
Number of screws	4
Screw type	M5
Number of cage nuts	4
Cage nuts included	Yes
Technical details
Compliance certificates	RoHS, CE
Logistics data
Master (outer) case width	580 mm
Master (outer) case length	563 mm
Master (outer) case height	389 mm
Products per master (outer) case	20 pc(s)
