StarTech.com 1m Blue CAT8 Ethernet Cable, Snagless RJ45, 25G/40G, 2000MHz, 100W

Make the connection with the StarTech.com 1m Blue CAT8 Ethernet — length and connector details are in the spec table.

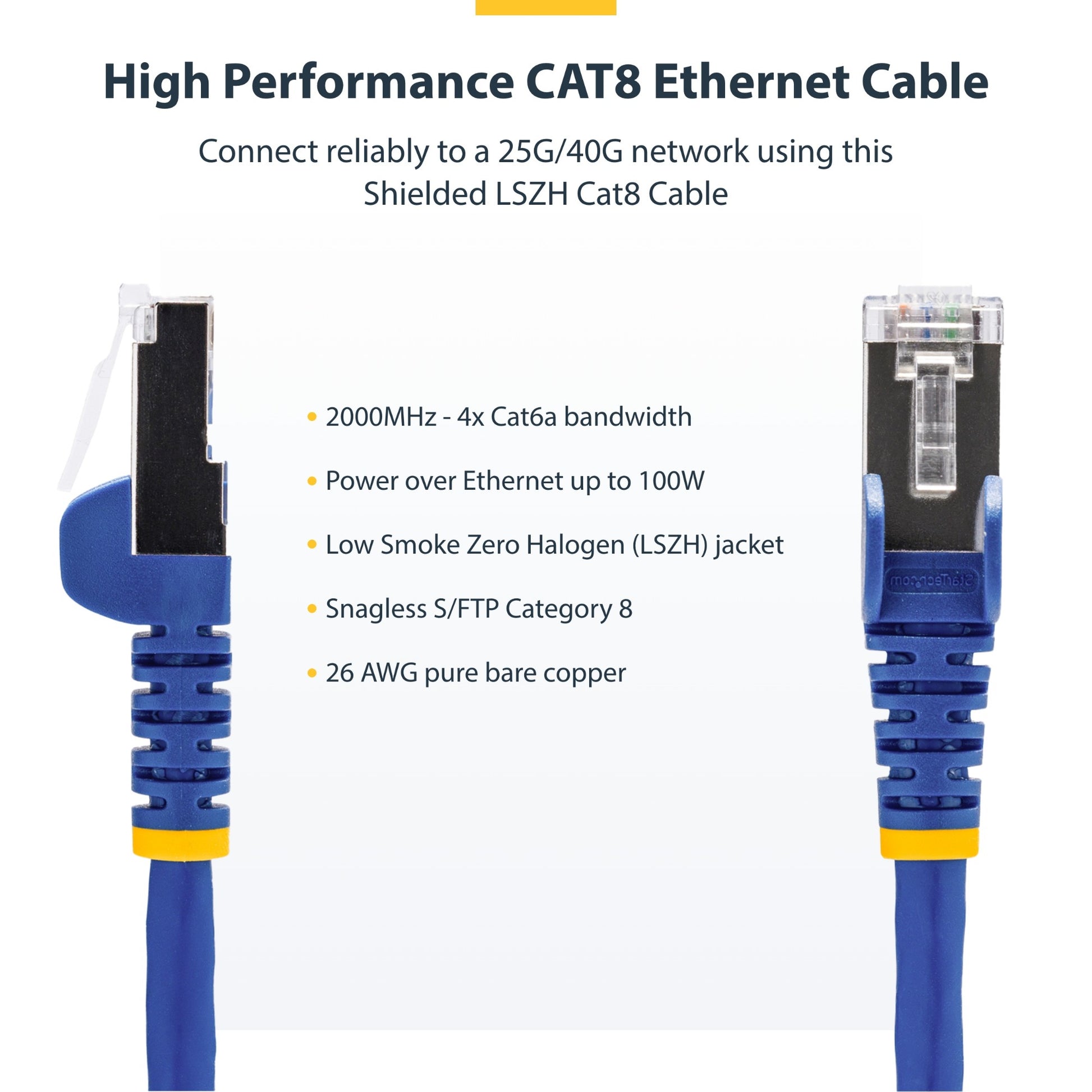

Connect reliably to a 25G/40G network using this Shielded LSZH Cat8 Cable

Connect to a 25/40Gbps switch or networking device using this Snagless S/FTP Category 8 Ethernet Cable. The 2000MHz maximum frequency enables up to four times higher throughput than Cat6a.

Pure Bare Copper Wire

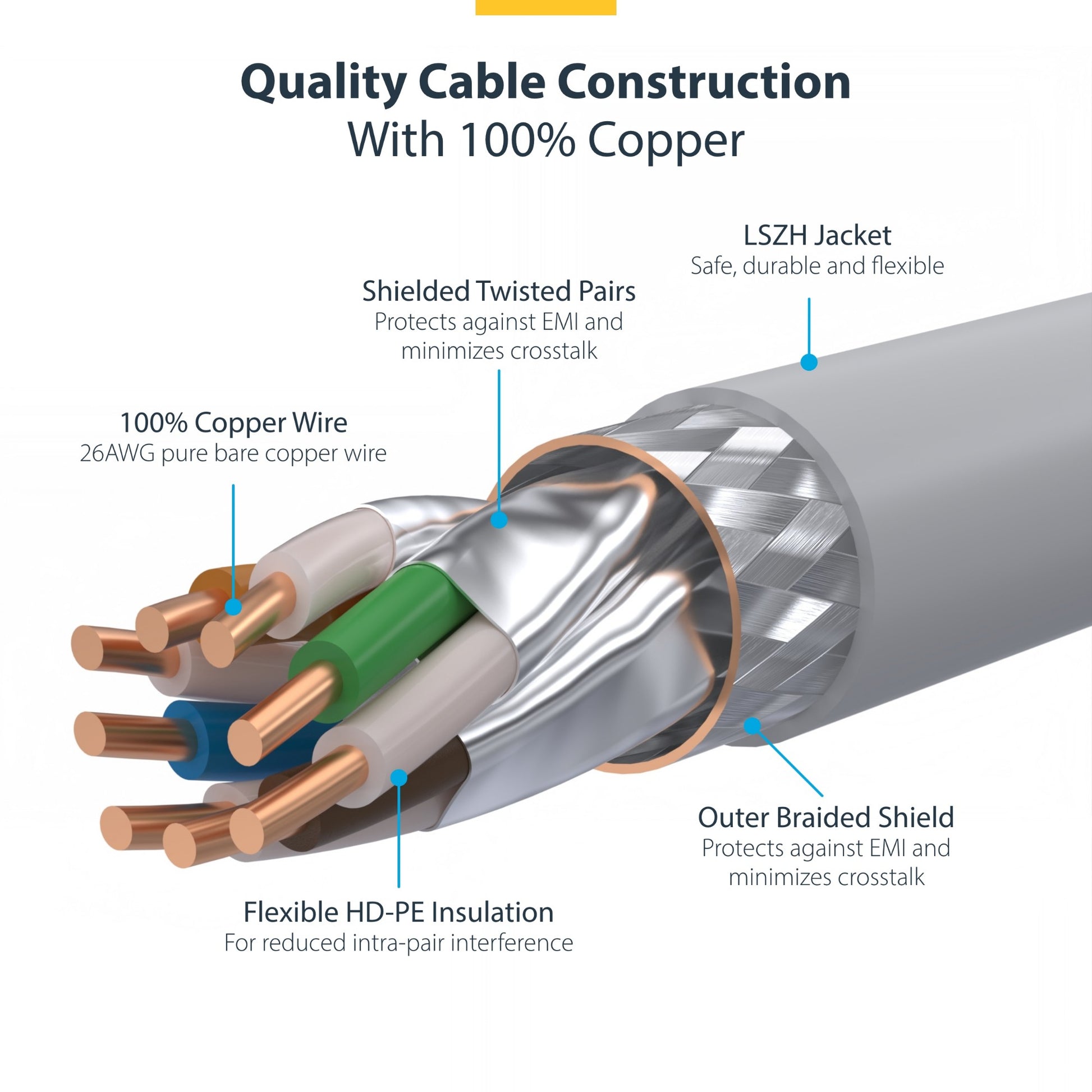

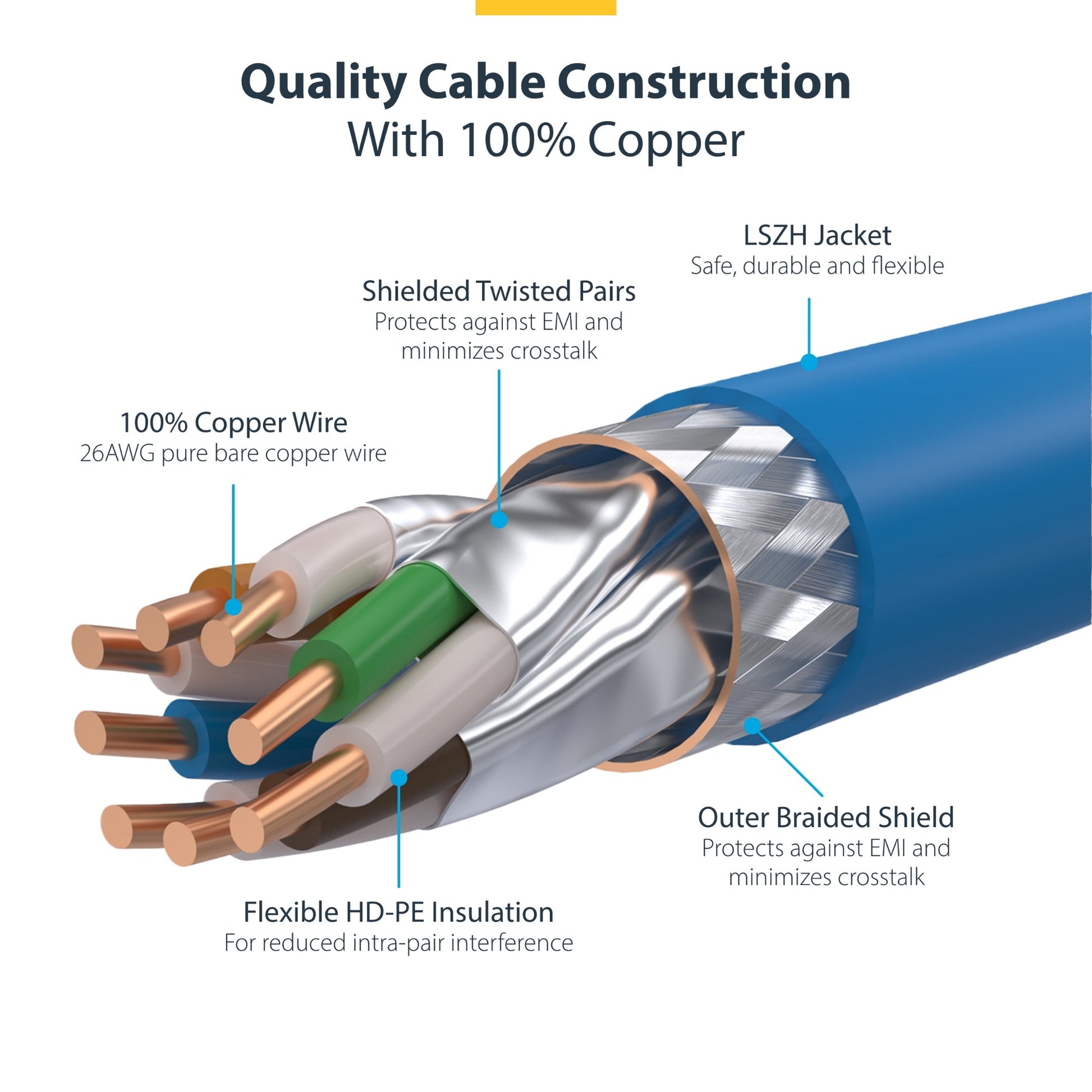

Our Snagless Cat8 Cables are designed for long-lasting performance. The 4-Pair Shielded and Foiled Twisted Pair (S/FTP) construction utilizes 26AWG pure bare copper wire for improved conductivity and low resistance, ensuring reliable transmission and minimal signal loss.

Pure bare copper wiring offers consistent performance characteristics across different environments. Each pair is shielded in aluminum-mylar foil and tinned copper braid for enhanced EMI protection.

Durable Construction

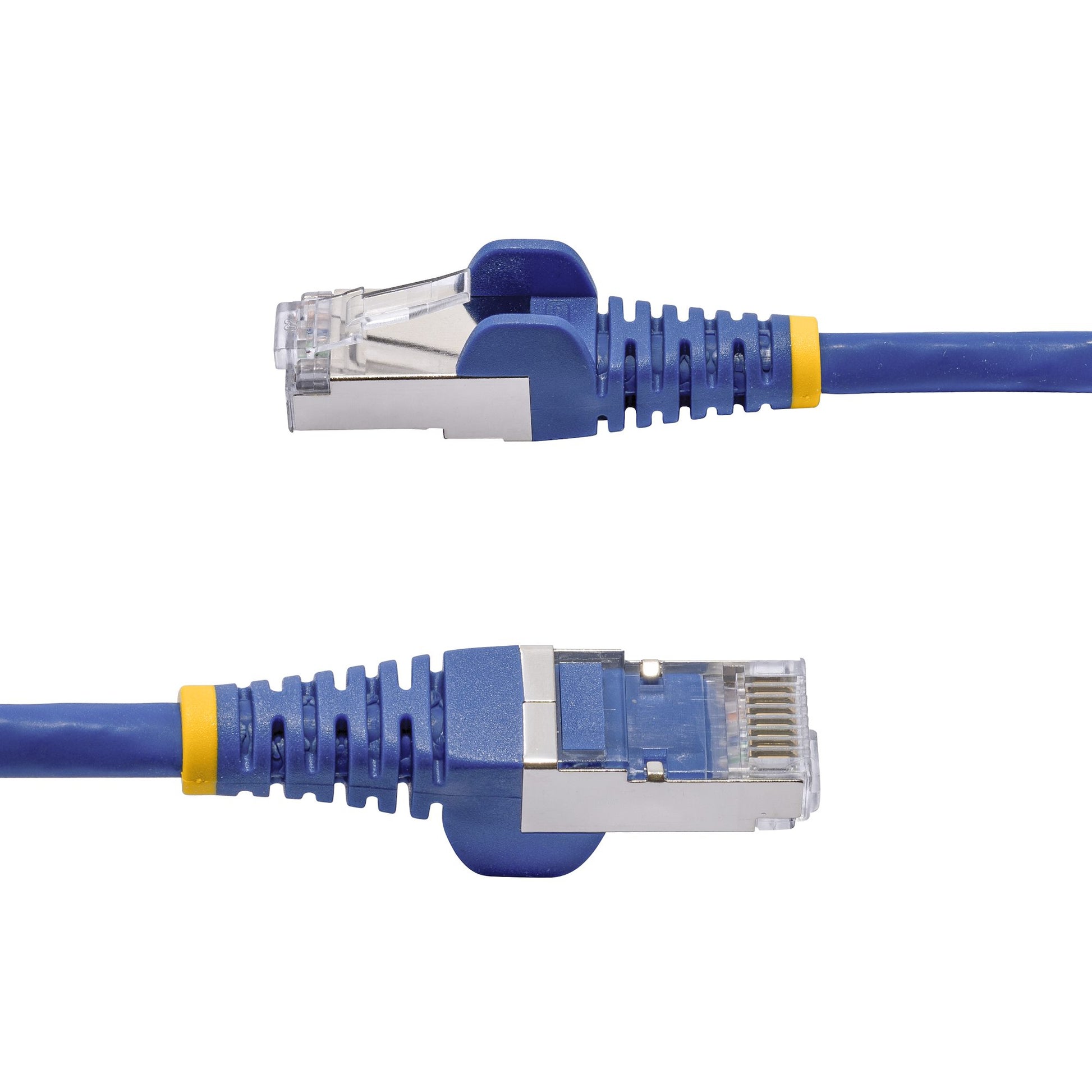

The Cat8 Ethernet Cable features snagless 50-micro gold-plated connectors that enable a precise fit to minimize wear and are rated beyond 750 connector mating cycles. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

The cable is rated to withstand -/+90-degree bends and routes well in confined spaces.

Versatile Dependability

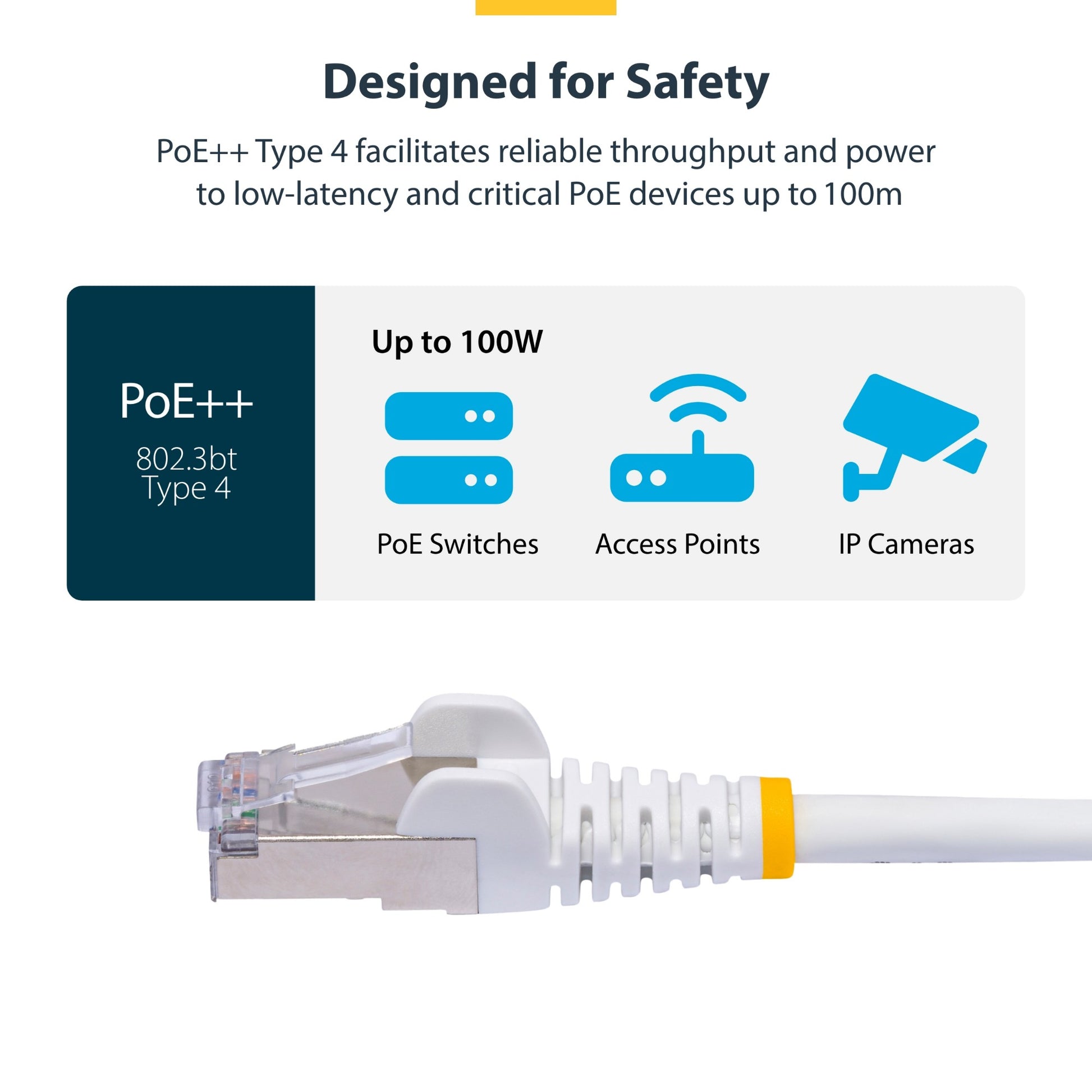

The Shielded Cat8 Patch Cord is ideal for high-density 25/40GBASE-T networks and supports up to 100W output to Power over Ethernet (PoE++) devices. Establish connectivity to 25G/40G switches, Network Attached Storage (NAS), Storage Area Networks (SANs), and SFP modules. It facilitates reliable throughput and power to low-latency and critical PoE devices, including PoE switches, access points, and IP cameras.

Backward compatibility with Cat 6/6a and Cat 5/5e standards ensure seamless integration into existing network environments. Each cable is individually tested using a Fluke® DSX2-8000 CableAnalyzer™ for guaranteed Cat8 performance.

Specifications

Features
Product colour	Blue
Snagless cable boot	Yes
Conductor material	Copper
Frequency	2000 MHz
AWG wire size	26
Cable standard	Cat8
Cable shielding	S/FTP (S-STP)
Connector 1	RJ-45
Connector 2	RJ-45
Connector contacts plating	Gold
Cabling technology	40GBase-T
Data transfer rate	40000 Mbit/s
Networking standards	IEEE 802.3ba, IEEE 802.3bt
Jacket material	Low smoke zero halogen (LSZH)
Cable length	1 m
Ethernet interface type	10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet
Power over Ethernet (PoE)	Yes
Cable shape	Round
Connector 2 gender	Male
Connector 1 gender	Male
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Power over Ethernet (PoE) type supported	PoE++ (4PPoE)
Total Power over Ethernet (PoE) budget	100 W
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 85%
Weight & dimensions
Outer diameter	5.6 mm
Packaging content
Quantity per pack	1 pc(s)
Packaging data
Package width	220 mm
Package depth	195 mm
Package height	18 mm
Package weight	56 g
Logistics data
Products per master (outer) case	120 pc(s)
Master (outer) case width	430 mm
Master (outer) case length	385 mm
Master (outer) case height	295 mm

Downloads

• Datasheet (PDF)
